Model Whirlpool KSRB25QABL01 – Common Parts & Diagrams

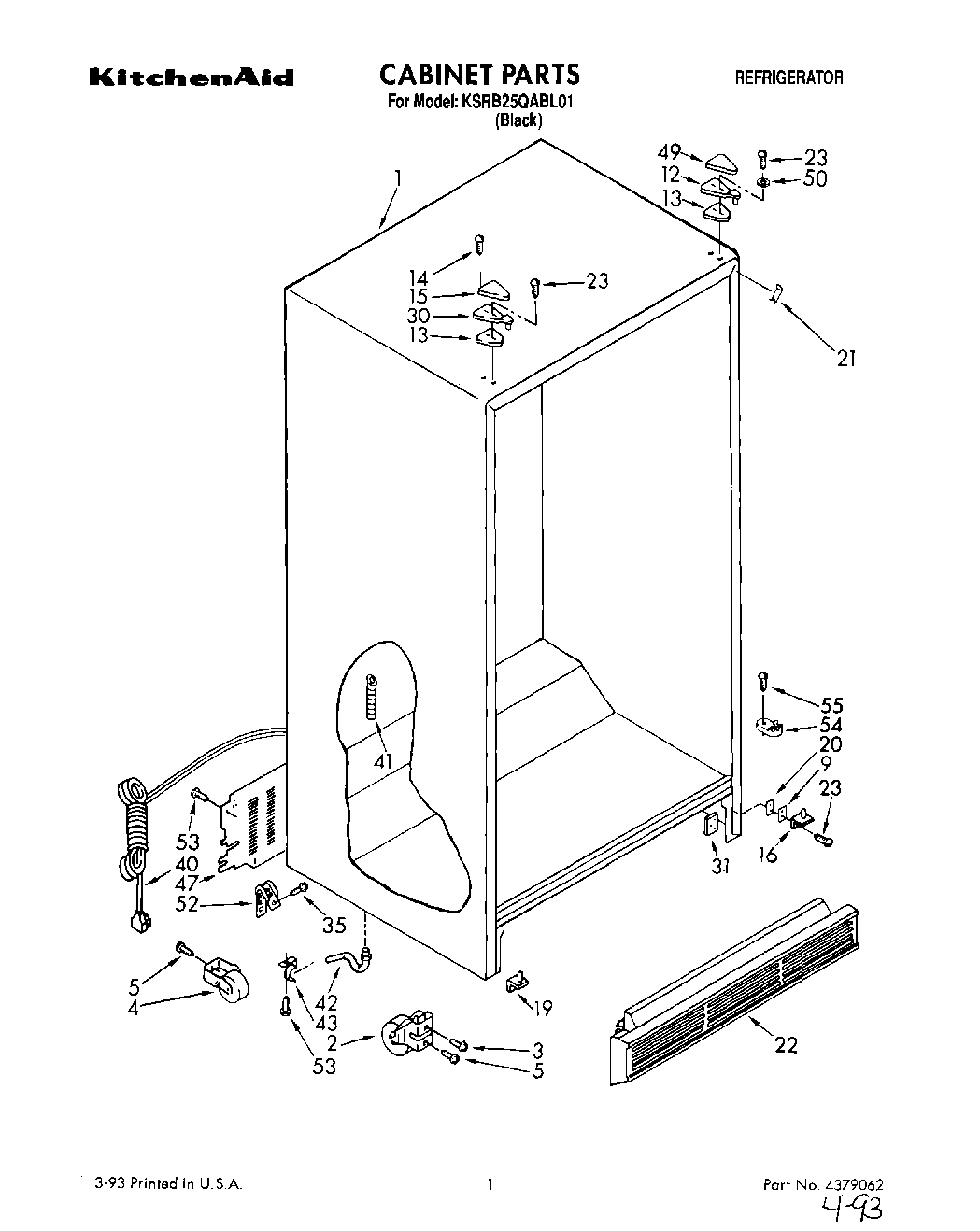

01 - CABINET

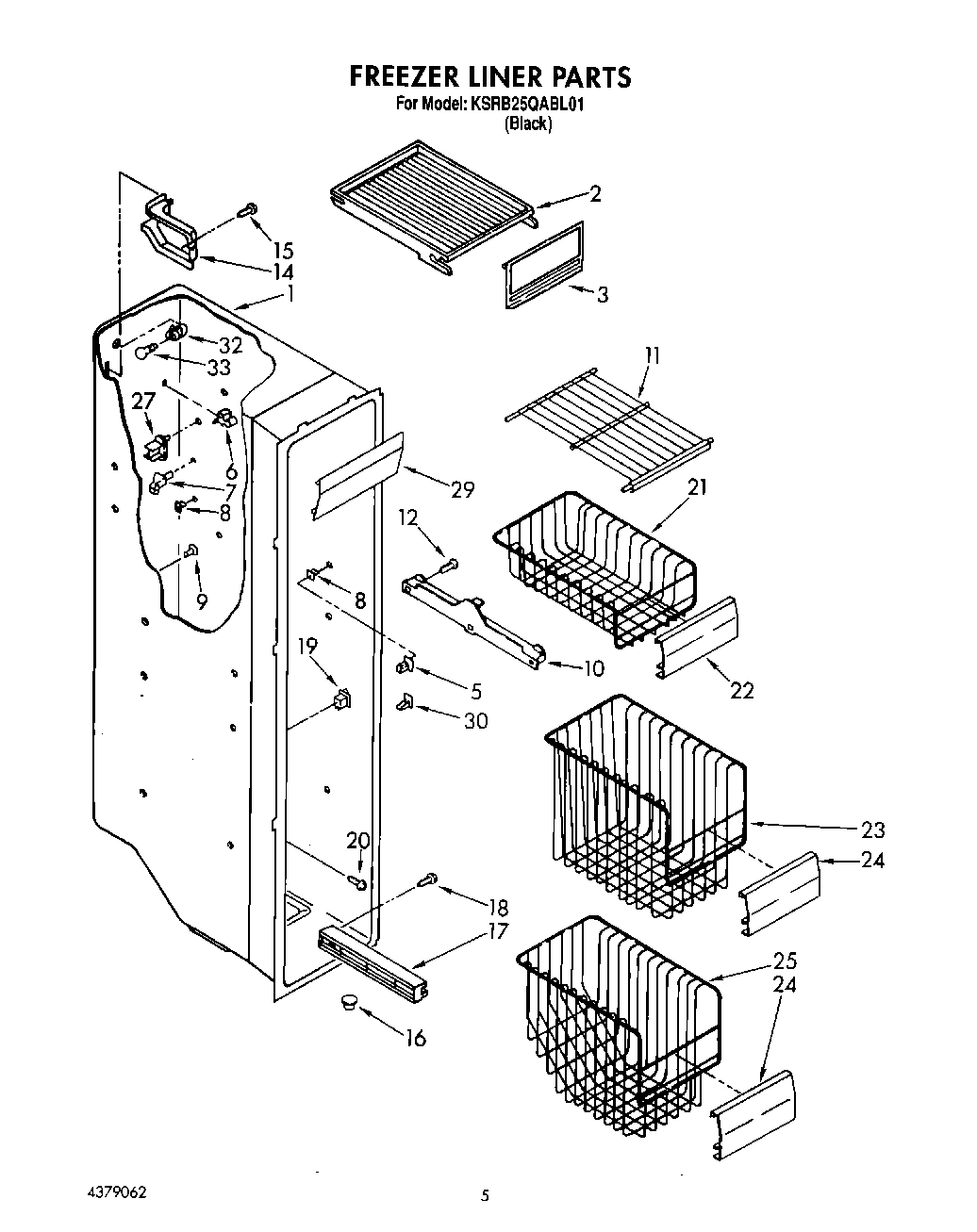

04 - FREEZER LINER

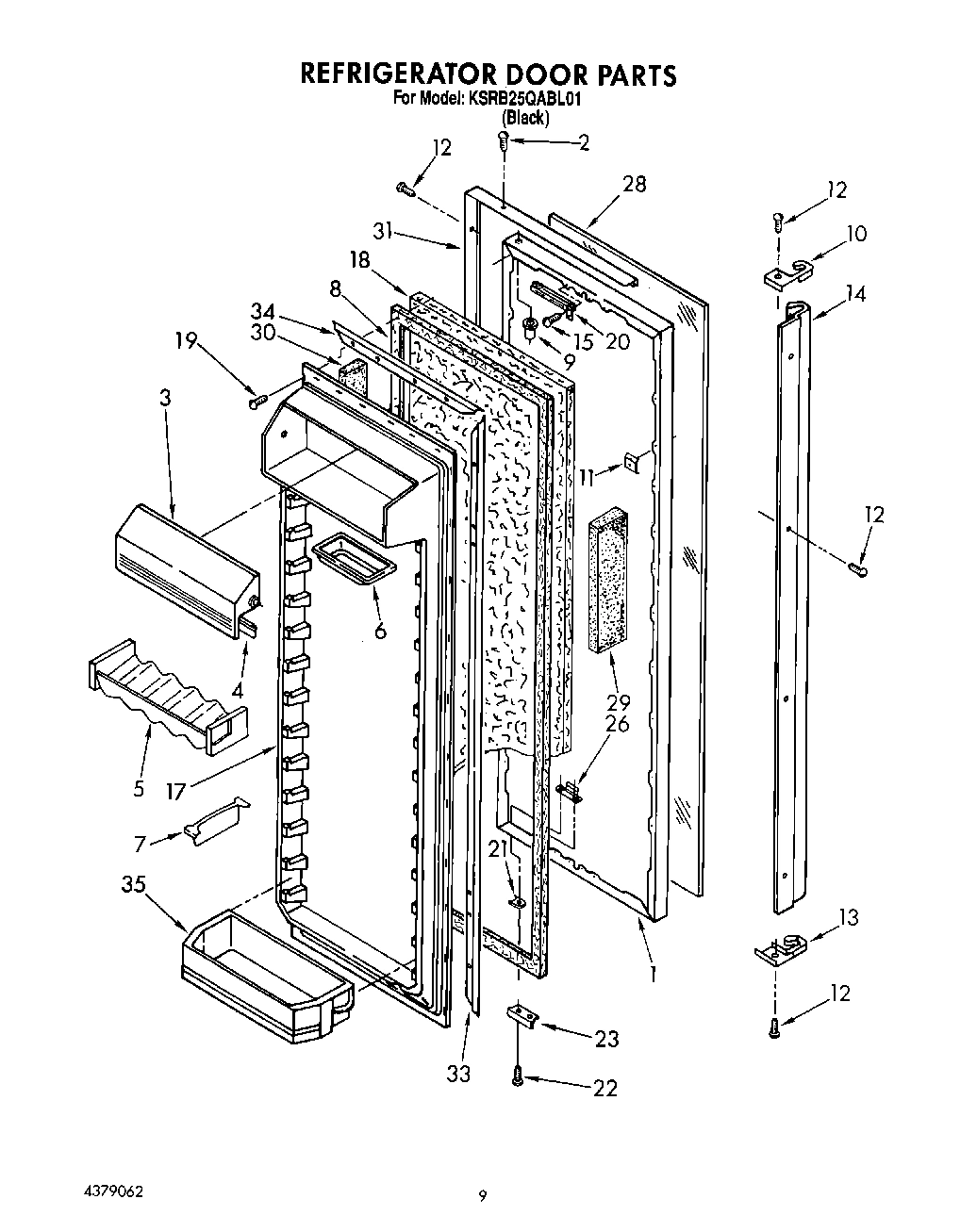

06 - REFRIGERATOR DOOR

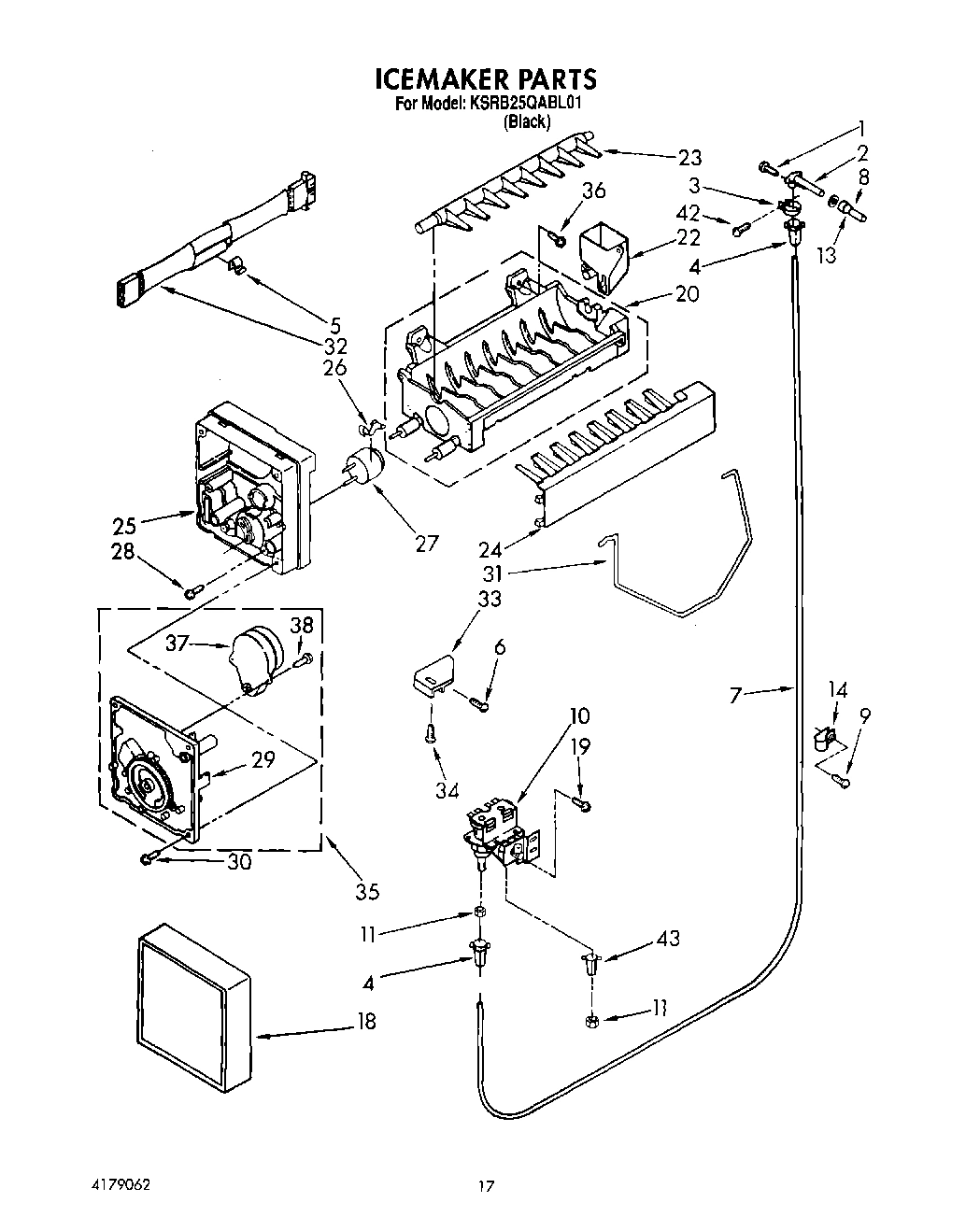

10 - ICEMAKER

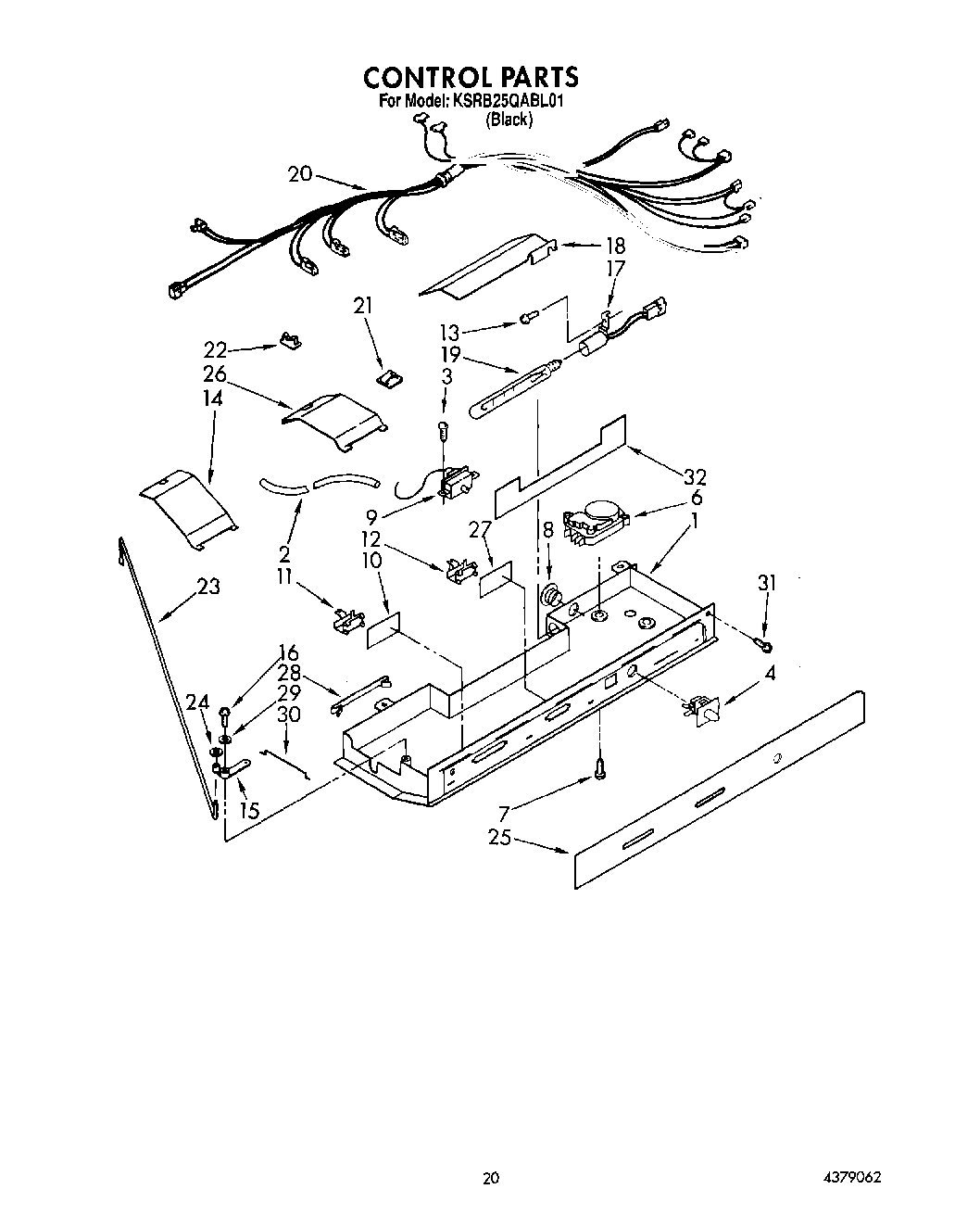

12 - CONTROL

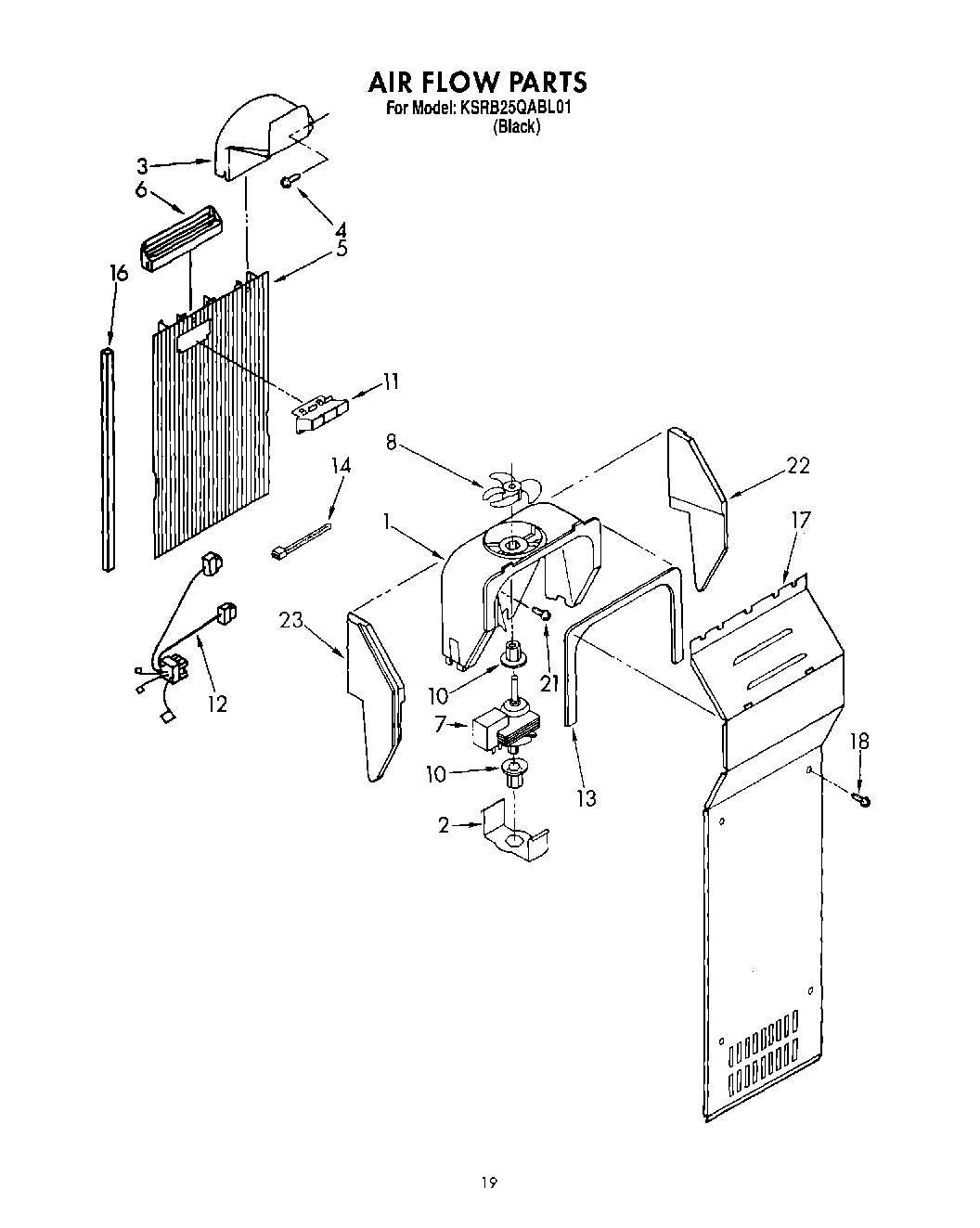

11 - AIR FLOW

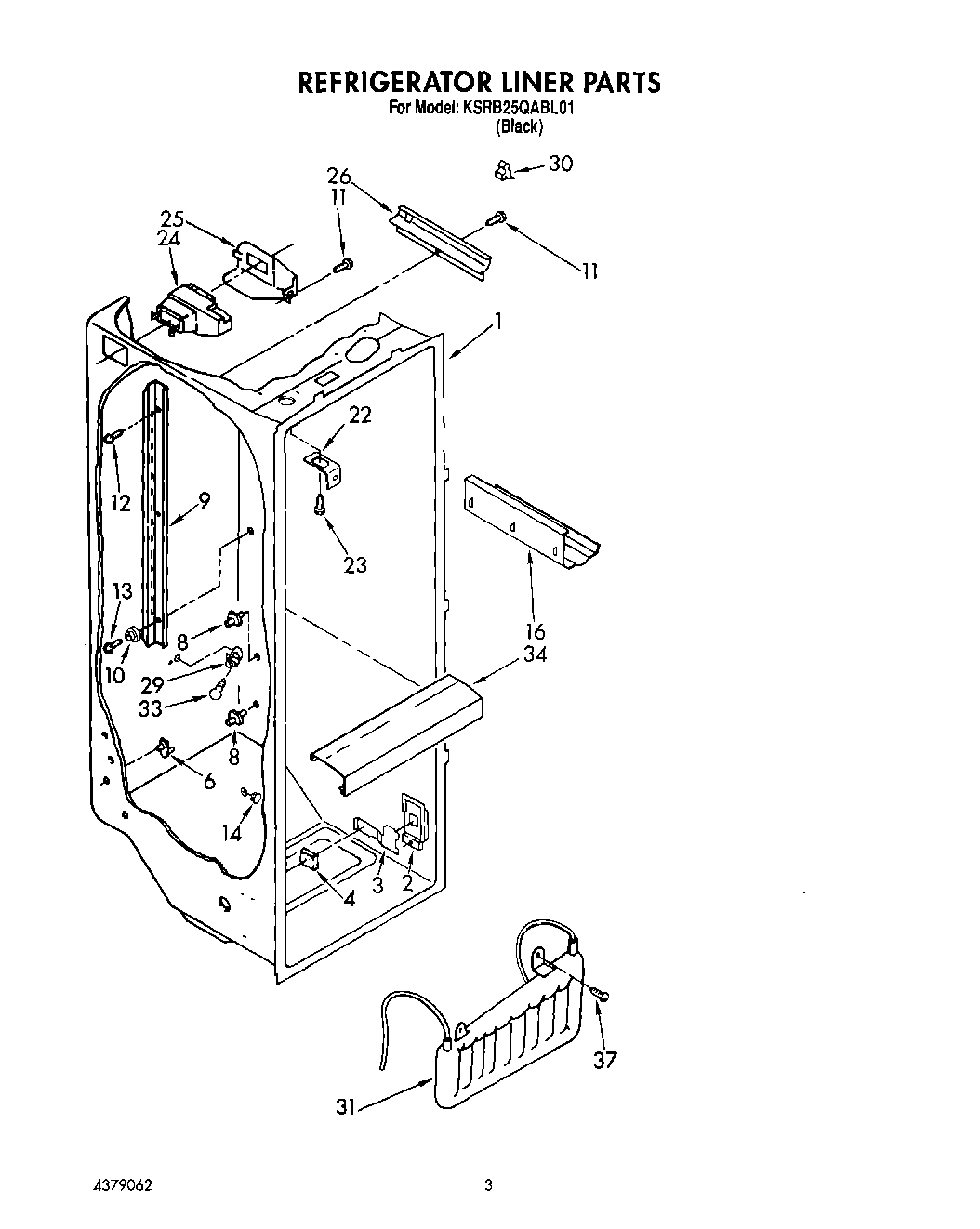

02 - REFRIGERATOR LINER

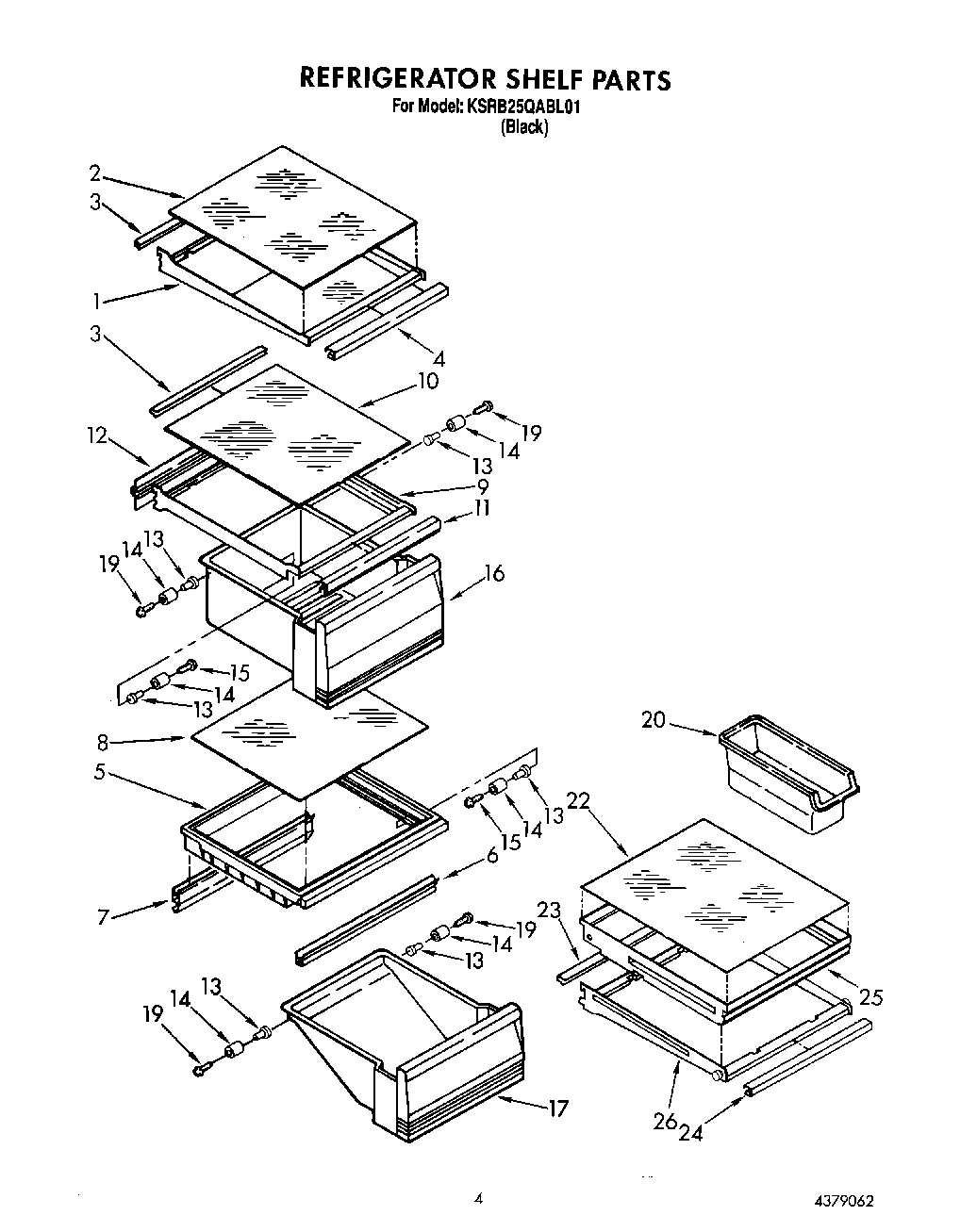

03 - REFRIGERATOR SHELF

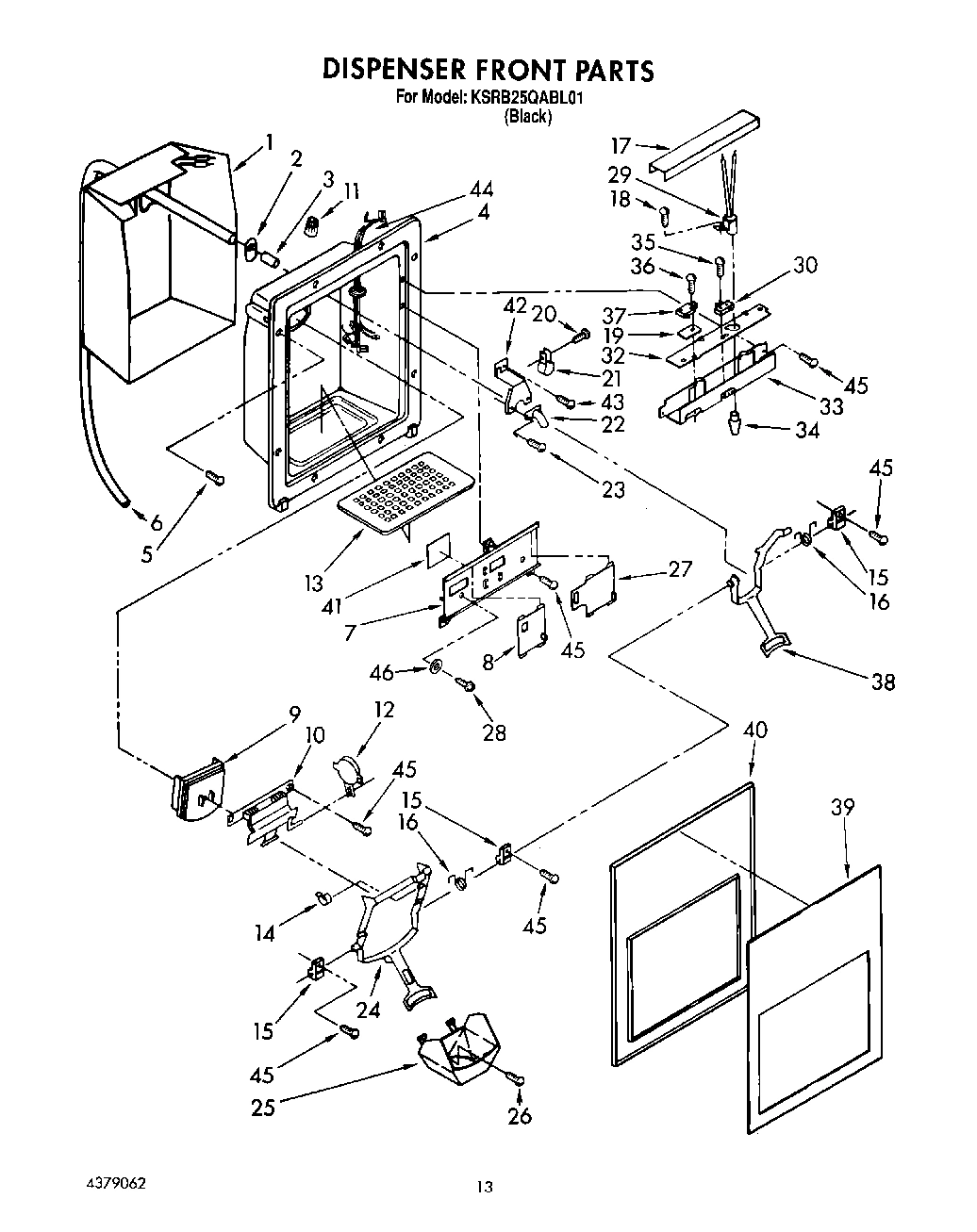

08 - DISPENSER FRONT

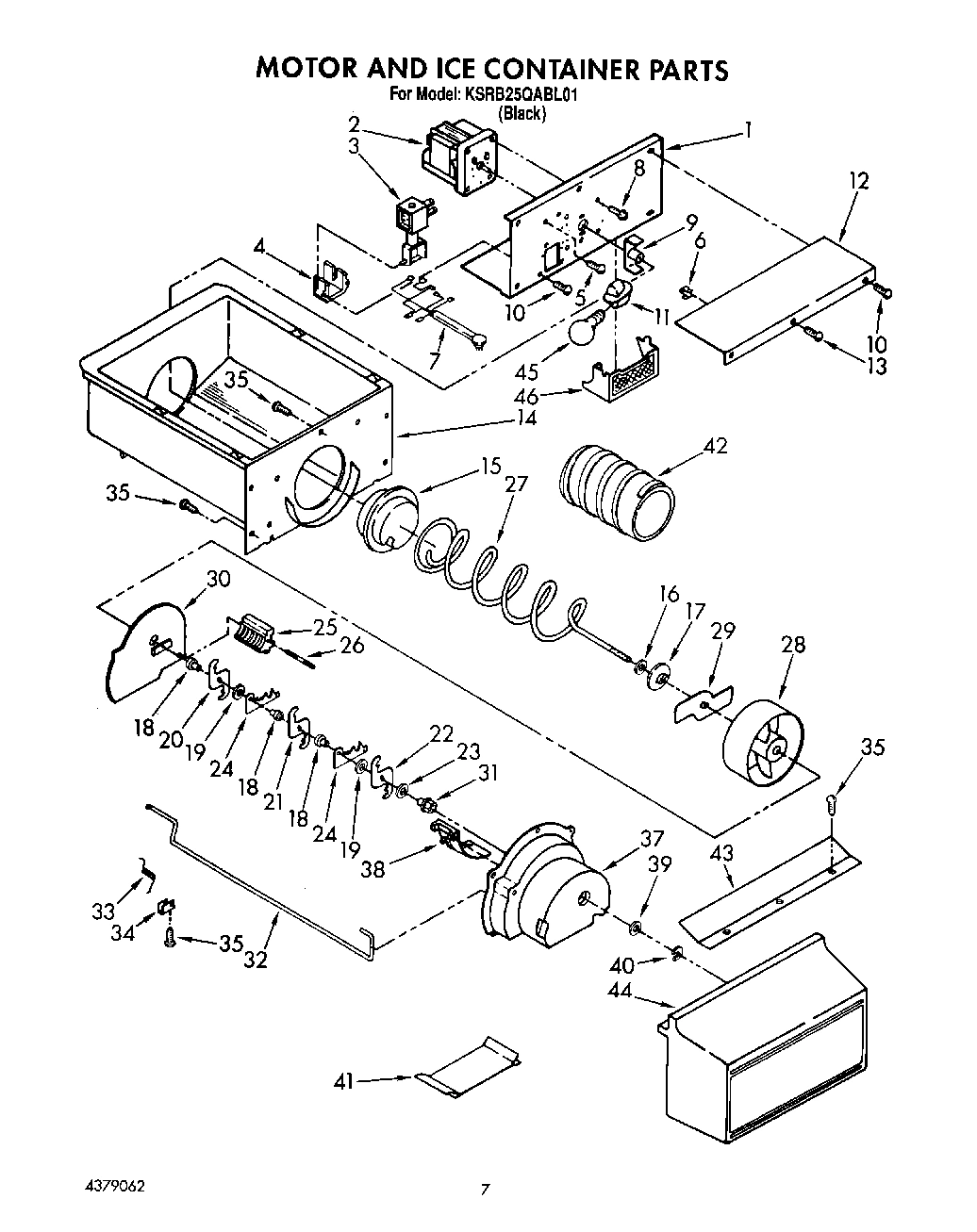

05 - MOTOR AND ICE CONTAINER, LIT/OPTIONAL

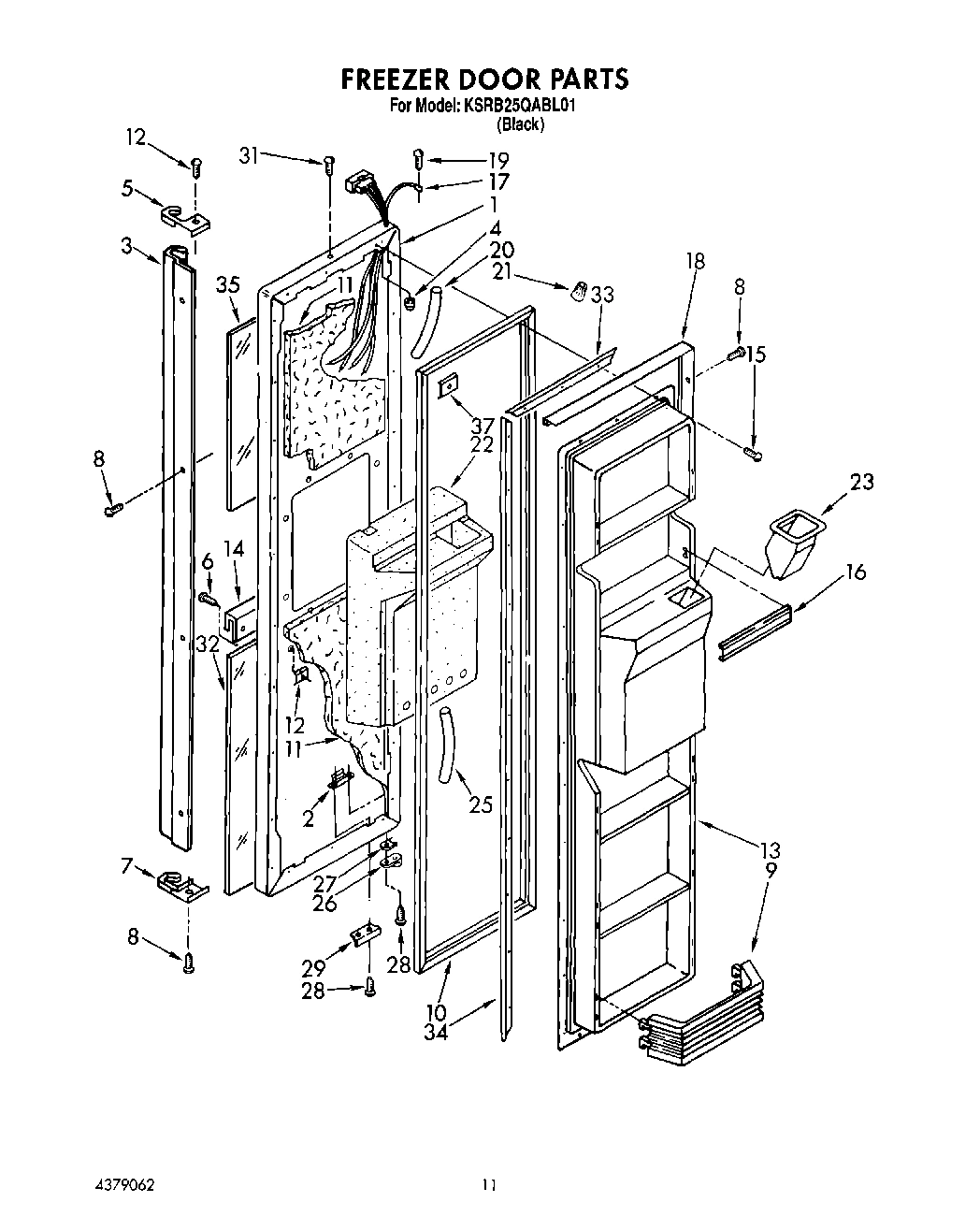

07 - FREEZER DOOR

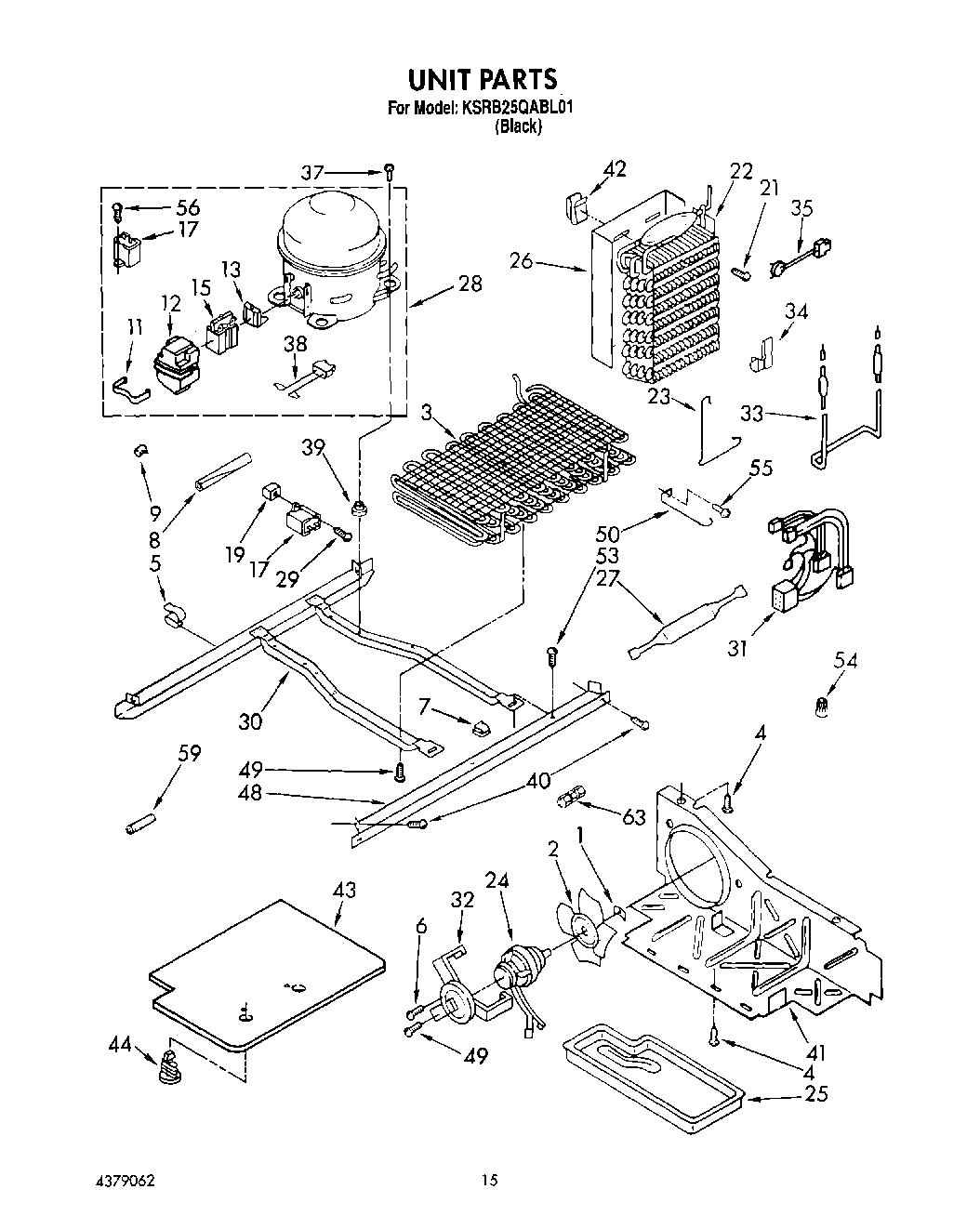

09 - UNIT
Common parts from model Whirlpool KSRB25QABL01
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2161233 WPL LIT2161233 Contact Us For Availability
WPL LIT2161900 WPL LIT2161900 Contact Us For Availability
WPL LIT2168636 WPL LIT2168636 Contact Us For Availability
WPL LIT4379062 WPL LIT4379062 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
WPL LIT787808 WPL LIT787808 Contact Us For Availability
1
Control Box WPL 2155703 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI94851A1 Contact Us For Availability
1
Shelf Assembly, Cantilever (2) WPL 1125597 Contact Us For Availability
1
Heater, Dispenser WPL 2154789 Contact Us For Availability
1
Bracket, Motor WPL 1118386 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) (Bla WPL 1117980 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Glass, Shelf WPL 1125593 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Tap Plate WPL 988402 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Retainer, Glass WPL 1125594 Contact Us For Availability
3
Handle WPL 1125914 Contact Us For Availability
3
Condenser Assembly WPL 2154011 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Gasket, Front WPL 1125786 Contact Us For Availability
4
Housing, Dispenser WPL 1107943 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
5
Air Duct Freezer WPL 2155575 Contact Us For Availability
5
Screw (2) WPL 487523 Contact Us For Availability
5
End Cap WPL 1125917 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
6
Screw WPL 486214 Contact Us For Availability
6
Diffuser Air Duct WPL 1110666 Contact Us For Availability
6
Stud, Pan Cover WPL 1125675 Contact Us For Availability
6
Screw, 8 x 7/16 WPL 489374 Contact Us For Availability
7
Gasket, Cover (Rear) WPL 1125706 Contact Us For Availability
7
Frame, Slides WPL 2152716 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2149192 Contact Us For Availability
7
End Cap, Bottom WPL 1125918 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
8
Glass, Cover (2) WPL 1125822 Contact Us For Availability
8
Slide, Cube/Crush Switch WPL 2152719 Contact Us For Availability
8
Screw WPL 489112 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Ladder, Shelf (2) WPL 1116794 Contact Us For Availability
9
Pan Shelf & Slide Assembly WPL 2161760 Contact Us For Availability
9
Shelf Bin (4) WPL 1125676 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Window WPL 1126028 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
10
Stud, Shelf (2) WPL 658944 Contact Us For Availability
10
Glass, Shelf WPL 1125595 Contact Us For Availability
10
Door Gasket, Magnetic WPL 1125928 Contact Us For Availability
11
Slide, Air Control WPL 1125592 Contact Us For Availability
11
Gasket (Front) WPL 1125814 Contact Us For Availability
11
Wire Connector WPL 850145 Contact Us For Availability
11
Strap (Service) WPL 938384 Contact Us For Availability
11
Strap (Production) WPL 943322 Contact Us For Availability
12
Slide, Thermostat WPL 1125591 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161327 Contact Us For Availability
12
Gasket (Rear) WPL 1125817 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
12
Screw Anchor (2) WPL 941242 Contact Us For Availability
12
Cover (Production) WPL 1105055 Contact Us For Availability
12
Cover (Service) WPL 1108115 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Tube, Water Inlet WPL 2155247 Contact Us For Availability
13
Screw (2) WPL 487559 Contact Us For Availability
13
Eyelet, Roller WPL 1112308 Contact Us For Availability
13
Panel, Interior Door WPL 1125608 Contact Us For Availability
13
Overload (Service (Includes Relay)) WPL 1118841 Contact Us For Availability
14
Light Bar WPL 1118072 Contact Us For Availability
14
Roller WPL 2161749 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Trim, Dispenser WPL 1125980 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Relay (See Overload) WPL ARI94853A5 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Rack, Wine & Egg WPL 1126137 Contact Us For Availability
16
Crisper Pan (2) WPL 2161893 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Trim, Door Shelf WPL 1126495 Contact Us For Availability
17
Light Socket WPL 1110690 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Utility Pan WPL 2161892 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Harness, Door WPL 1119212 Contact Us For Availability
18
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
18
Heat Shield WPL 1118033 Contact Us For Availability
18
Trim, Door WPL 1125916 Contact Us For Availability
19
Spacer WPL 625834 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Control Box Harness WPL 2155704 Contact Us For Availability
20
Tube, Door Wiring WPL 1119060 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Glass, Shelf WPL 2161683 Contact Us For Availability
22
Insulation, Dispenser WPL 1119038 Contact Us For Availability
22
Evaporator WPL 2155501 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Reflector WPL 2161809 Contact Us For Availability
23
Chute, Ice WPL 1119036 Contact Us For Availability
24
Fastener, Push-On WPL 489391 Contact Us For Availability
24
Gasket, Front WPL 2161686 Contact Us For Availability
24
Lever Assembly, Ice Dispenser WPL 1127421 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Escutcheon, Control Box WPL 2155695 Contact Us For Availability
25
Frame & Roller WPL 2161706 Contact Us For Availability
25
Guide, Ice WPL 1119035 Contact Us For Availability
25
Tube, Door Wiring WPL 2147080 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
26
Light Bar WPL 1126089 Contact Us For Availability
26
Frame And Roller Asm. (Cantilever) WPL 2161806 Contact Us For Availability
26
Screw WPL 489197 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Also Order Cement Alumilastic WPL 542369 Contact Us For Availability
27
Window WPL 1126027 Contact Us For Availability
27
Slide, Light Switch WPL 2152724 Contact Us For Availability
28
Clip, Control Box WPL 1125811 Contact Us For Availability
28
Screw WPL 489360 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 15, 17 WPL 2154562 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
29
Bracket, Door Stop WPL 1115906 Contact Us For Availability
30
Switch WPL 1127898 Contact Us For Availability
31
Screw WPL 489376 Contact Us For Availability
31
Unit, Harness WPL 2149199 Contact Us For Availability
32
Heat Shield WPL 1127141 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
32
Black Glass, Lower WPL 1126017 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
Heater, Defrost WPL 2161323 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
33
Gasket Retainer, Top & Bottom WPL 1118306 Contact Us For Availability
34
Screw, WPL 489365 Contact Us For Availability
34
Light Lens WPL 1125586 Contact Us For Availability
34
Gasket Retainer, Side (2) WPL 1118302 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
35
Screw (2) WPL 488361 Contact Us For Availability
35
Black Glass, Upper WPL 1126016 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
38
Lever Assembly, Water Dispenser WPL 1115349 Contact Us For Availability
39
Insert, Cover WPL 1125803 Contact Us For Availability
39
Grommet (4) WPL 2162067 Contact Us For Availability
40
Cover, Housing (Includes Item 39) WPL 1125807 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
41
Housing Filler WPL 2152700 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
43
Screw WPL 488316 Contact Us For Availability
43
Ice Deflector WPL 1119043 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
44
Wiring Harness, Door WPL 2147166 Contact Us For Availability
44
Front Cover, Ice Container WPL 1126036 Contact Us For Availability
46
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
46
Washer WPL 489336 Contact Us For Availability
46
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
46
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
46
CEMENT, ALUMILA WPL 542639 Contact Us For Availability
46
WPL 799340 WPL 799340 Contact Us For Availability
46
WPL 799833 WPL 799833 Contact Us For Availability
46
WPL 978883 WPL 978883 Contact Us For Availability
46
WPL 983359 WPL 983359 Contact Us For Availability
49
Hinge Cover WPL 2155938 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
NI
Nut, Compression WPL 1129179 Contact Us For Availability
× ![]()
