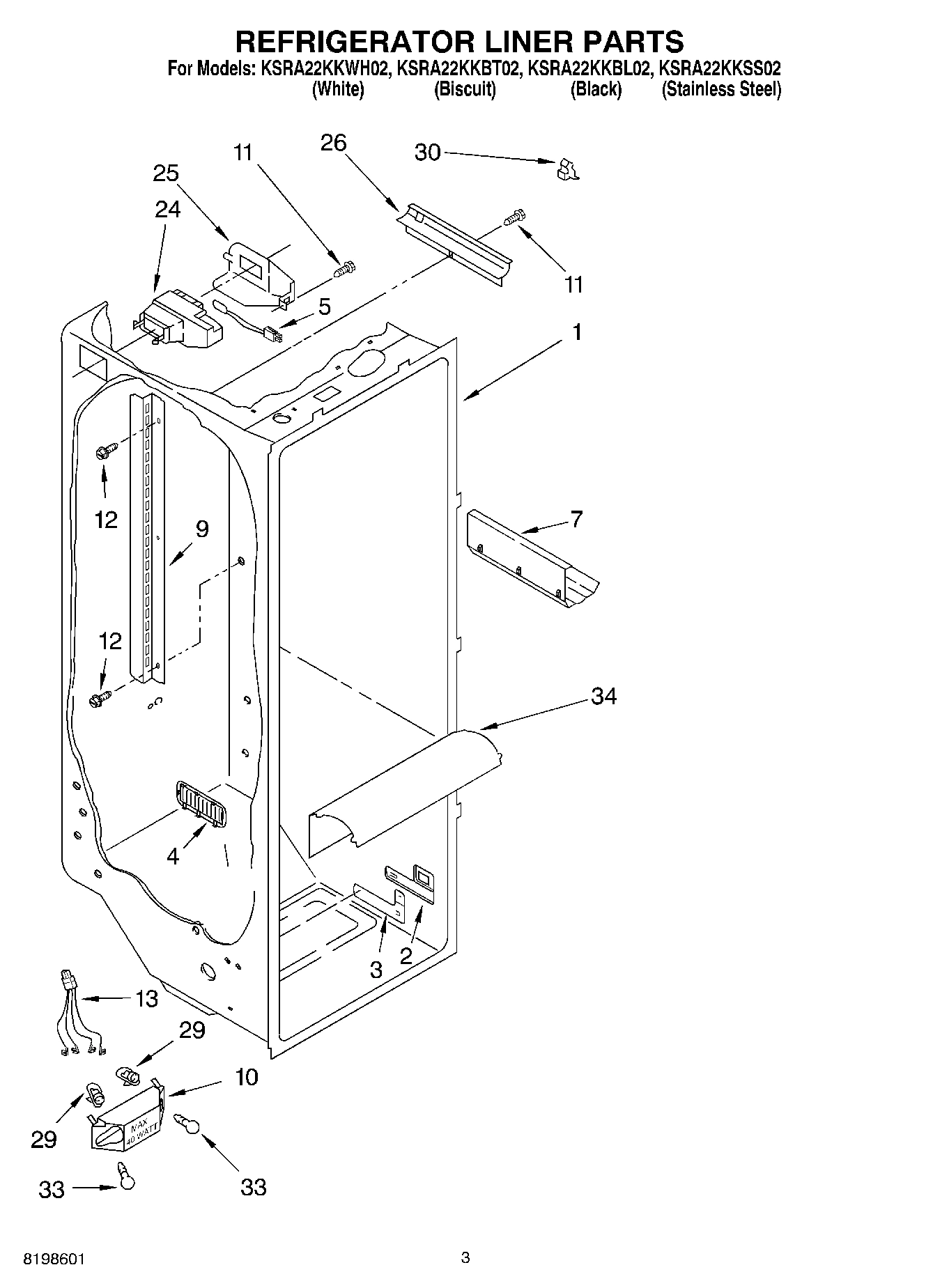

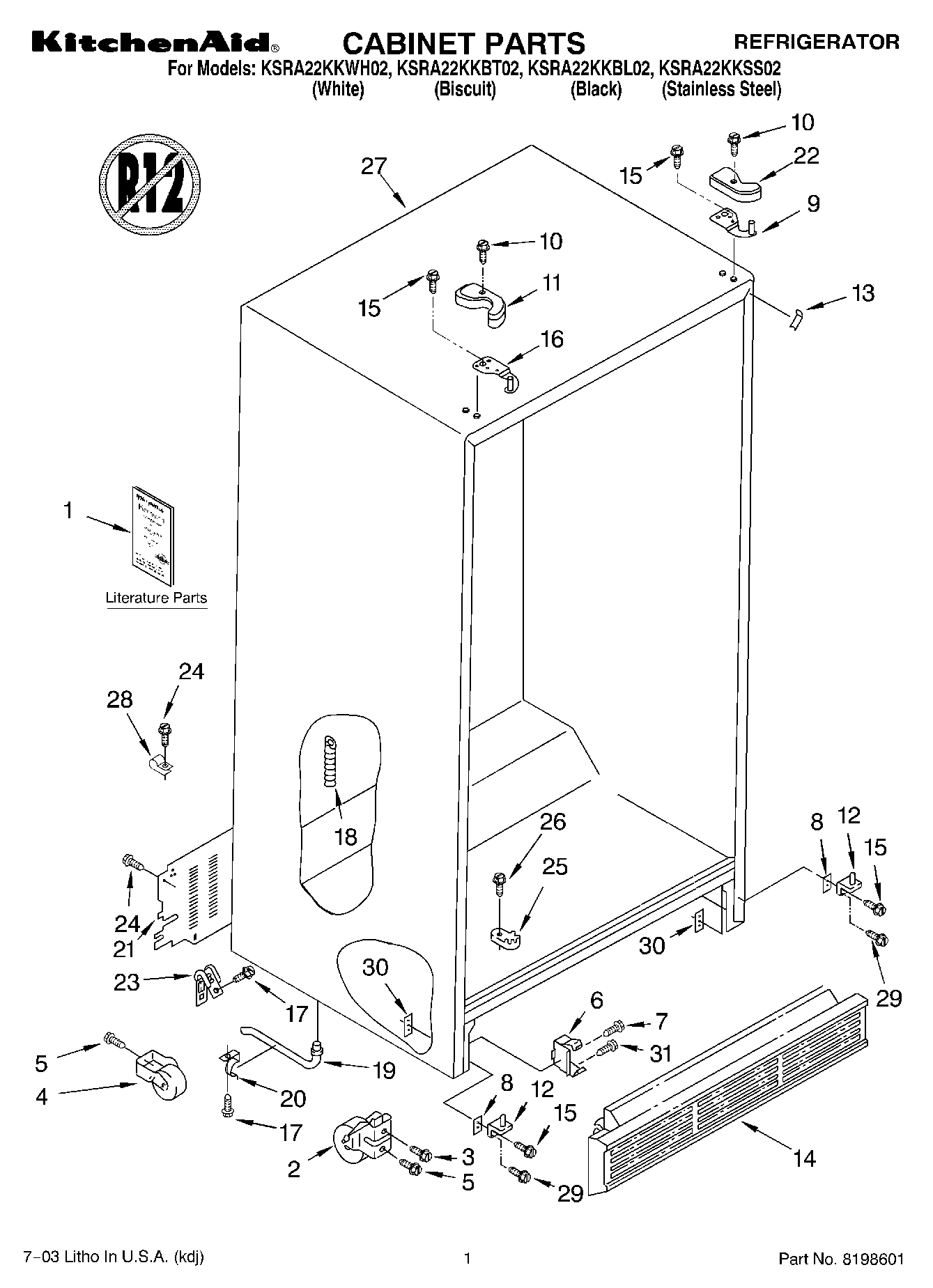

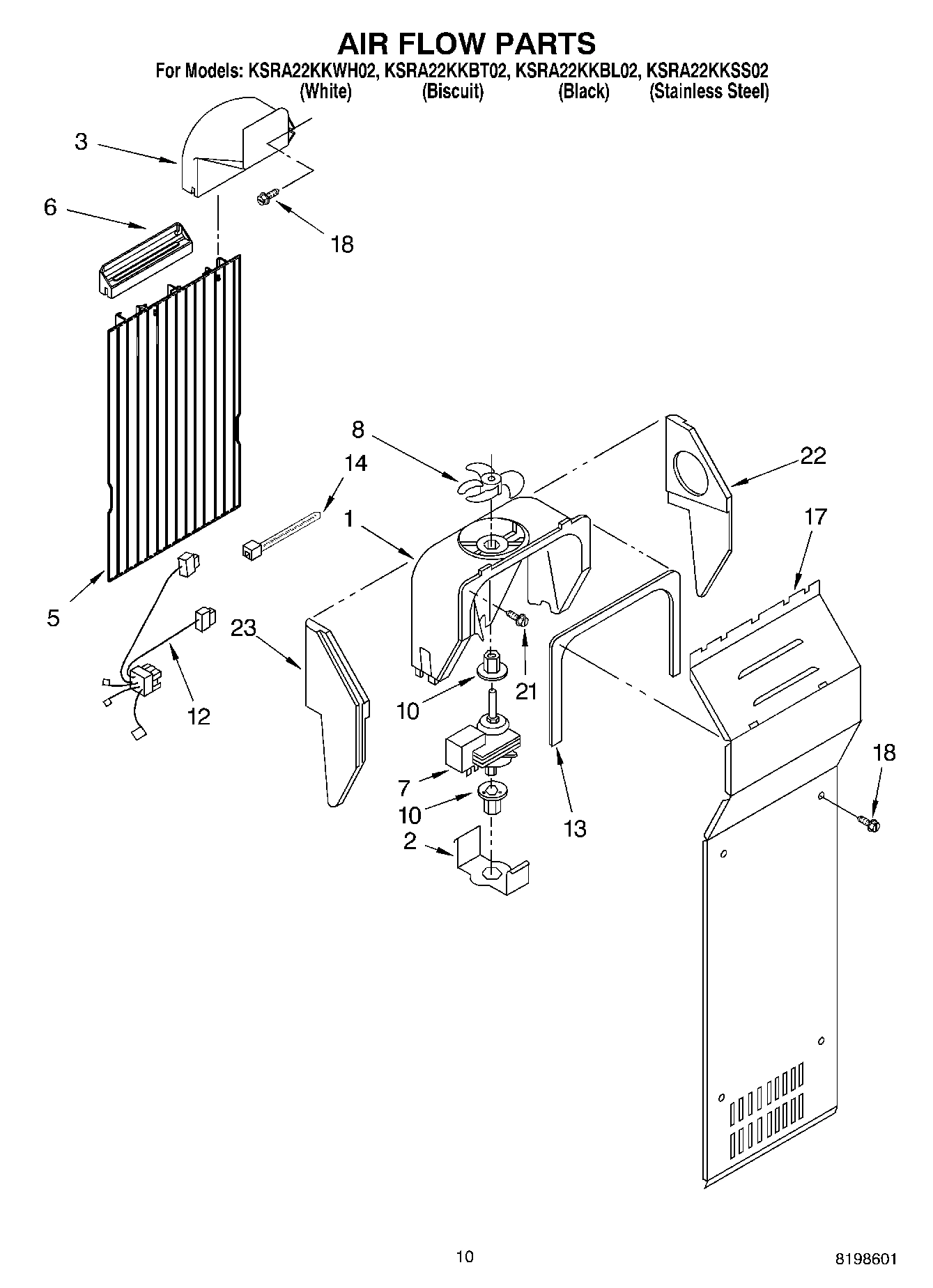

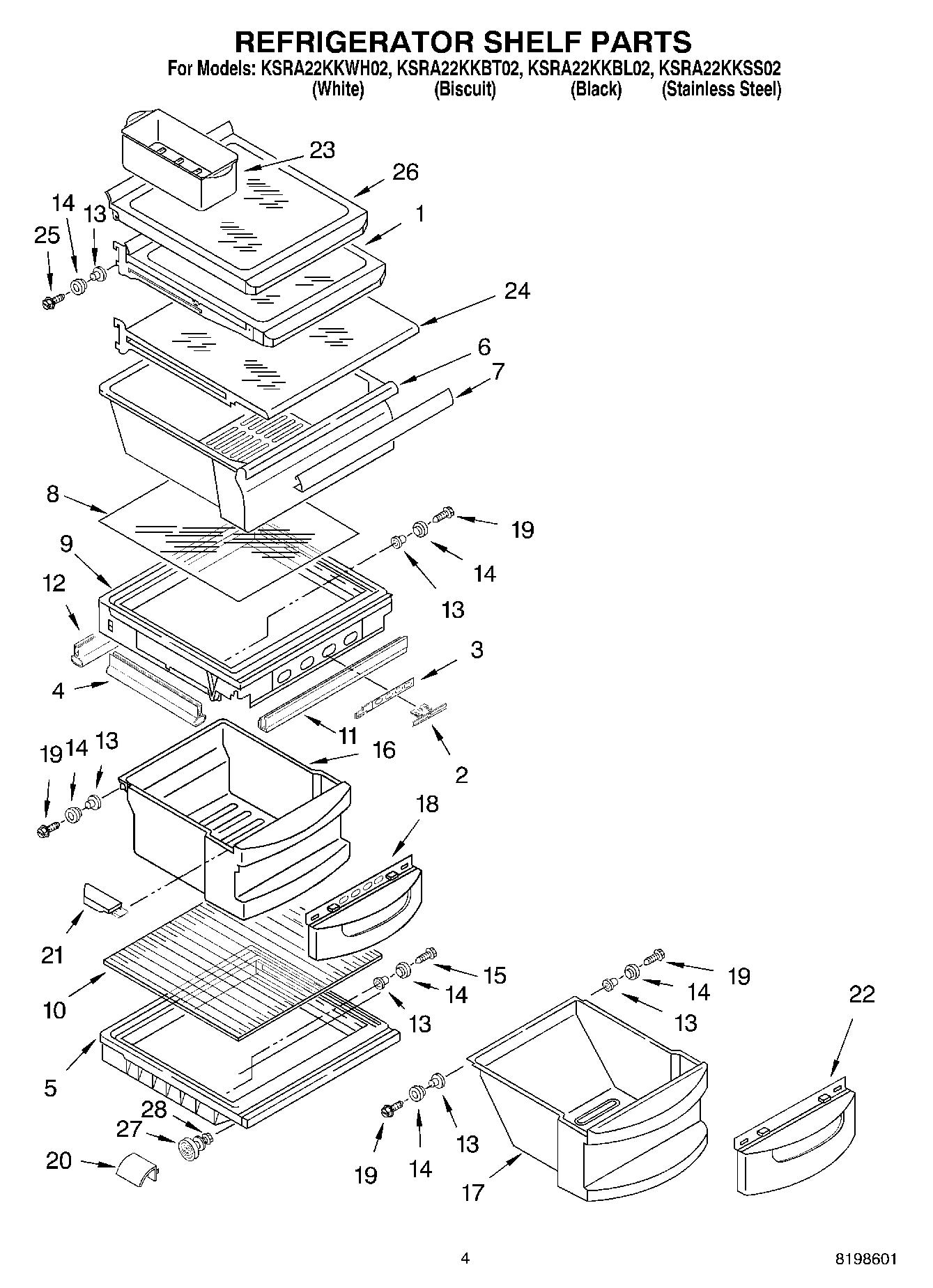

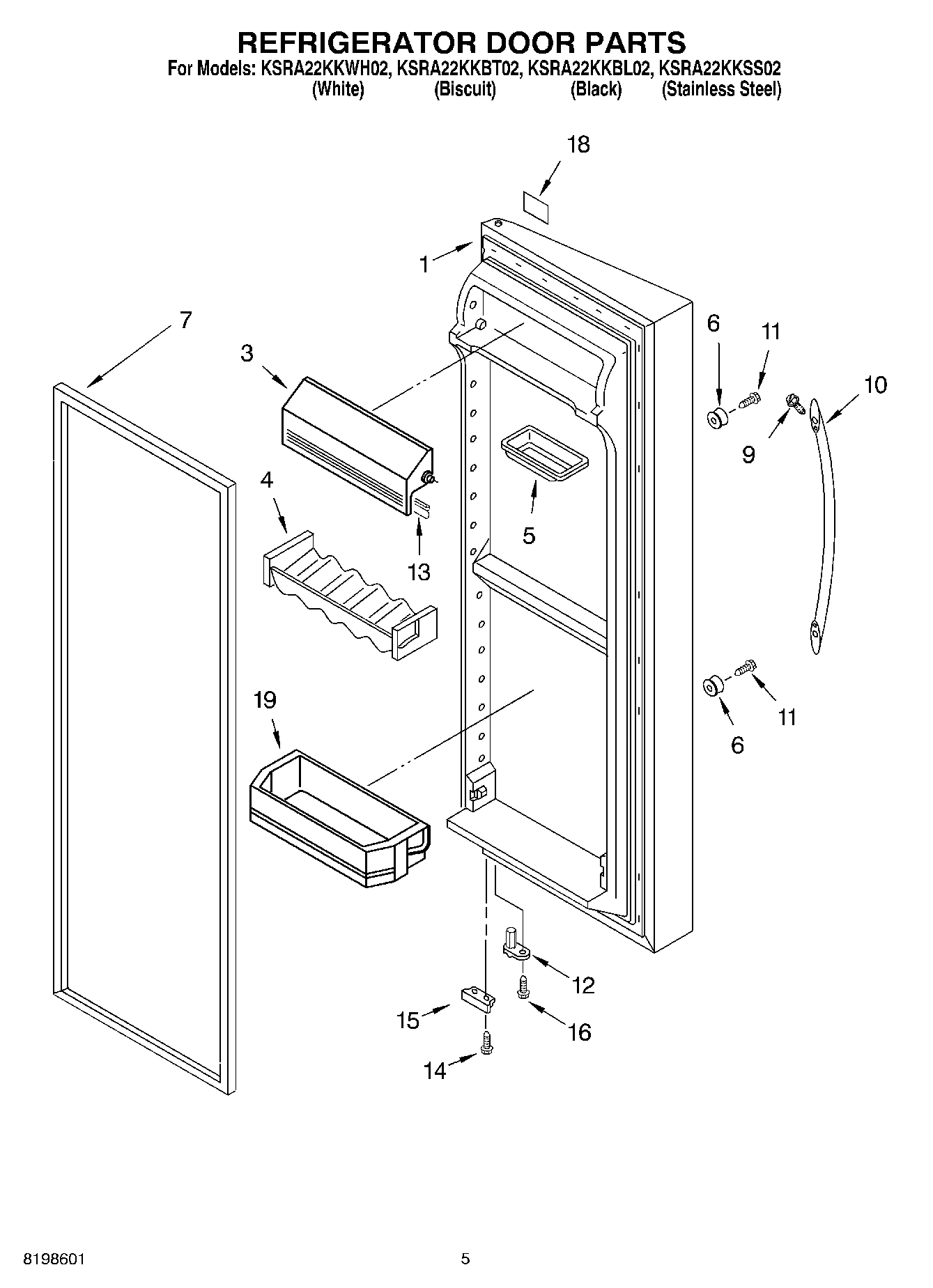

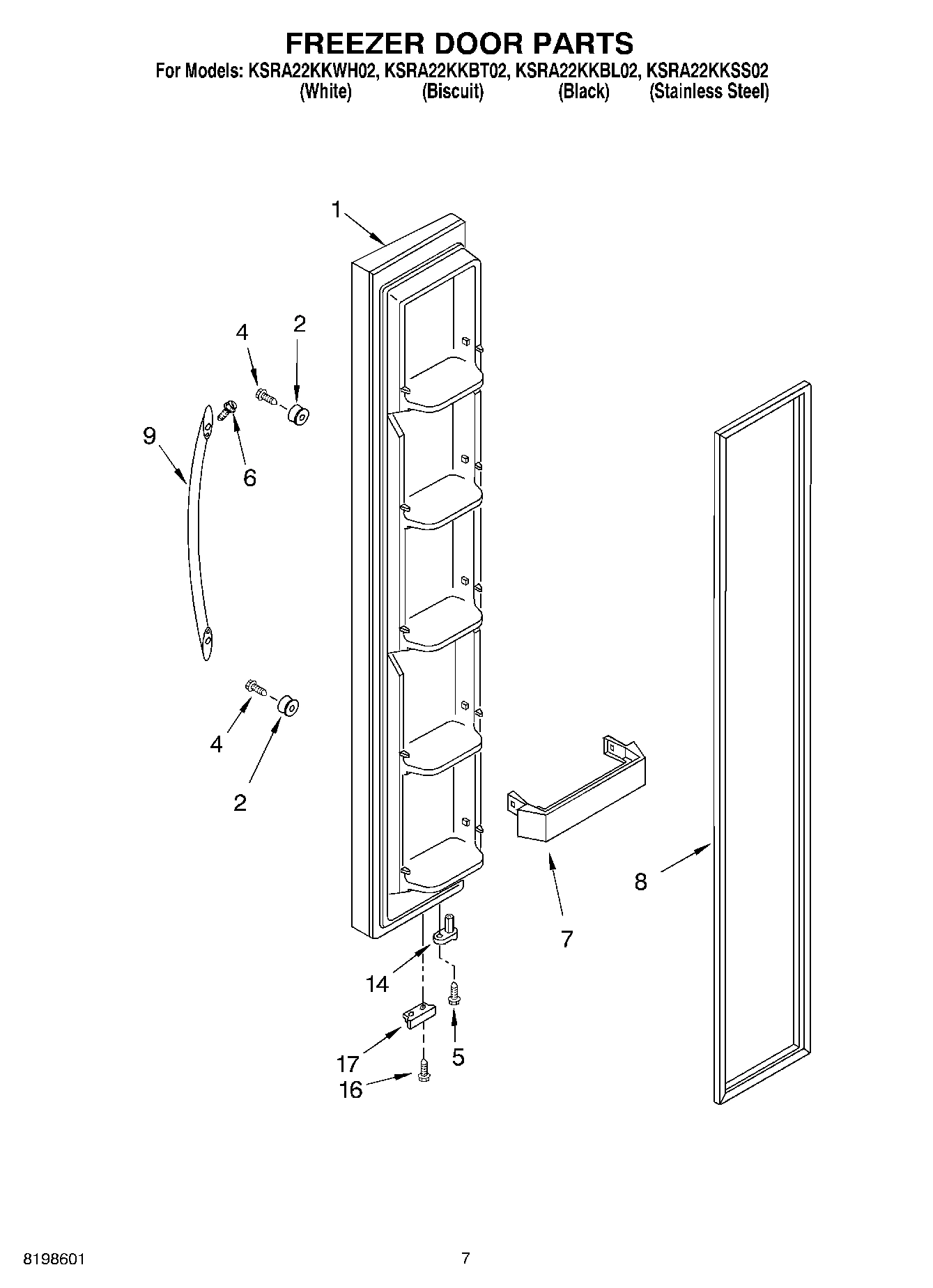

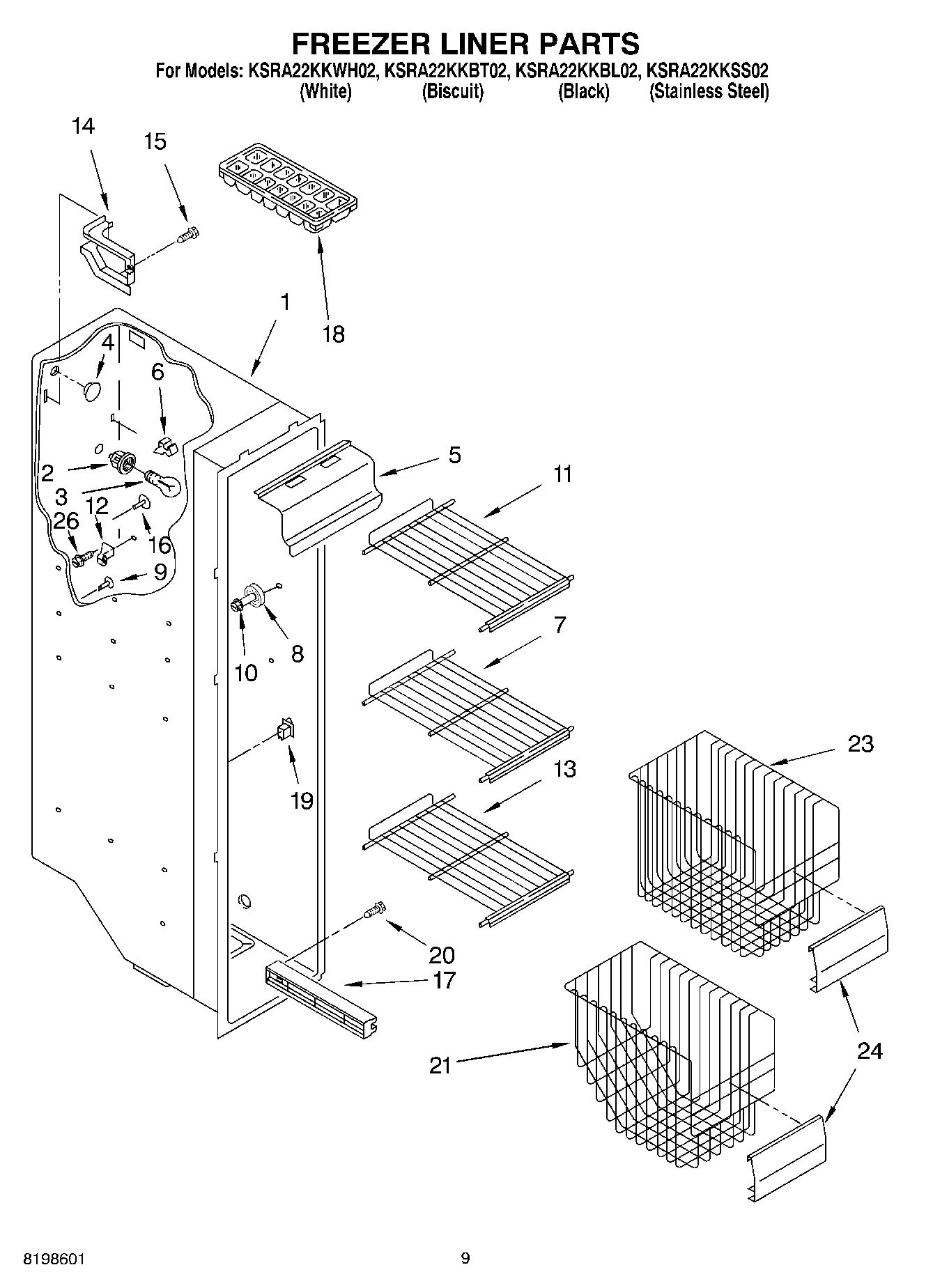

Model Whirlpool KSRA22KKWH02 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

W11729596 Whirlpool Ice Maker Field Install K In Stock WPL W11729596 $92.31

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability

Parts Not Illustrated and Optio WPL ARI93131A8 Contact Us For Availability

WPL ARI93132A3 WPL ARI93132A3 Contact Us For Availability

WPL ARI93133A4 WPL ARI93133A4 Contact Us For Availability

WPL ARI93134A1 WPL ARI93134A1 Contact Us For Availability

WPL ARI93135A2 WPL ARI93135A2 Contact Us For Availability

WPL ARI93136A1 WPL ARI93136A1 Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Control Box WPL 2212005 Contact Us For Availability

1

LITERATURE PARTS (Use & Care Guide) WPL LIT2254906 Contact Us For Availability

1

LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2255379 Contact Us For Availability

1

LITERATURE PARTS (Energy Guide) WPL LIT2260949 Contact Us For Availability

1

Liner (Not A Seviceable Part) WPL ARI93127A1 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $33.80

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

Cover WPL 2216879 Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

3

Condenser Assembly WPL 2204484 Contact Us For Availability

4

2223173 Whirlpool Refrigerator Tube Plug Backorder WPL 2223173 $4.78

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

5

WP2155595 Whirlpool Refrigerator Light Lens Backorder WPL WP2155595 $26.75

5

WP2223357 Whirlpool Refrigerator Cover In Stock WPL WP2223357 $162.66

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

W11497323 Whirlpool Snack Pan In Stock WPL W11497323 $109.31

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

Control Board WPL 2207352 Contact Us For Availability

7

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

7

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

7

Shelf WPL 2174266 Contact Us For Availability

7

Heat Shield And Drain Pan WPL 2256149 Contact Us For Availability

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $26.75

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

8

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

9

Grommet (4) WPL 2176134 Contact Us For Availability

9

Insert, Control Board WPL 2212012 Contact Us For Availability

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

Glass, Cover WPL 2255144 Contact Us For Availability

Tube, Condenser to Heat Loop WPL 2255798 Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

WP2174249K Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174249K $107.97

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

12

8201707 Whirlpool Door Hinge Backorder WPL 8201707 $28.26

12

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

12

Support, Stud WPL 2196207 Contact Us For Availability

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $68.76

Eyelet, Roller WPL 2174478 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability

Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability

Shelf WPL 2179325 Contact Us For Availability

W10804014 Whirlpool Refrigerator Grille Backorder WPL W10804014 $73.81

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Grille (Biscuit) WPL 2198469T Contact Us For Availability

Cover, Wiring WPL 2160912 Contact Us For Availability

15

8201786 Whirlpool Relay and Overload Start Ki In Stock WPL 8201786 $38.92

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

15

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

2223314 Whirlpool Refrigerator Clip Backorder WPL 2223314 $8.31

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP2261449 Whirlpool Refrigerator Track Backorder WPL WP2261449 $44.08

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Meat Pan (Includes 13, 14, 19, & 22) WPL 2223359 Contact Us For Availability

Slide, Bin (Left Side) WPL 2223704 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

Window, Crisper WPL 2174076 Contact Us For Availability

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

19

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

Harness, Control Box WPL 2216115 Contact Us For Availability

2223285 Whirlpool Refrigerator Cap Backorder WPL 2223285 $10.76

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

WP2188756 Whirlpool Refrigerator Unit Cover Backorder WPL WP2188756 $65.32

Cap, Crisper Pan (Right Side) WPL 2223286 Contact Us For Availability

Basket, Slope WPL 2223278 Contact Us For Availability

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

Hinge Cover (RC) (Biscuit) WPL 2203408T Contact Us For Availability

23

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

23

Basket, Tall WPL 2223582 Contact Us For Availability

24

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $131.83

24

WP2216112 Whirlpool Damper Control Assembly In Stock WPL WP2216112 $139.57

24

Trim, Basket WPL 2171768 Contact Us For Availability

25

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

25

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

25

Overlay, Control Box WPL 2220446 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

4389202 Whirlpool Wire Harness Backorder WPL 4389202 $162.16

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

27

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

27

Cabinet (Not A Service Part) WPL ARI93125A3 Contact Us For Availability

28

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $341.23

28

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

29

W10856122 Whirlpool Refrigerator Screw In Stock WPL W10856122 $2.51

30

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $95.80

30

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.11

31

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $47.25

34

Clip WPL 2161330 Contact Us For Availability

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

41

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $36.11

42

Clip, Heat WPL 2155547 Contact Us For Availability

48

Unit Mounting Rail WPL 2149718 Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

50

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $24.10

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

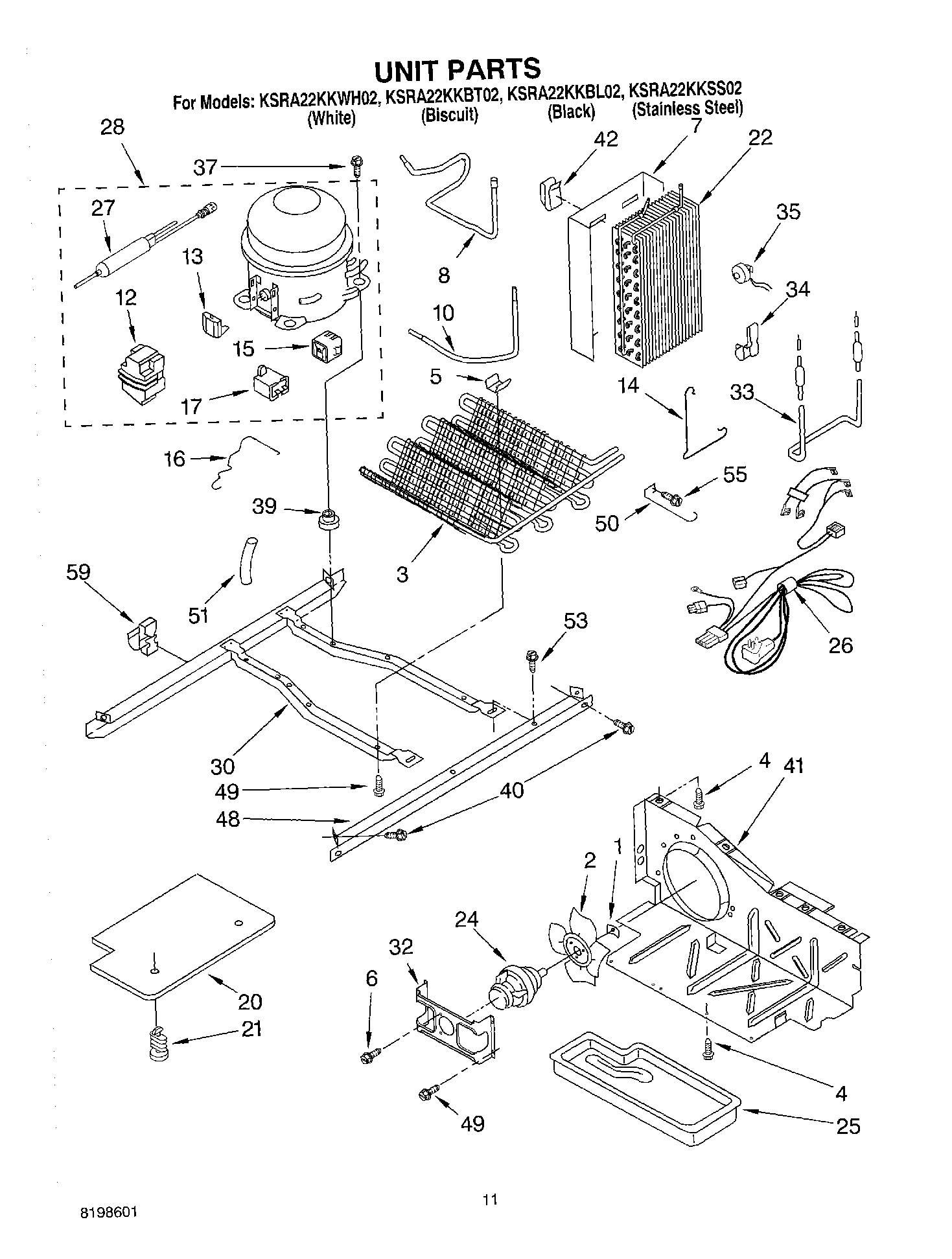

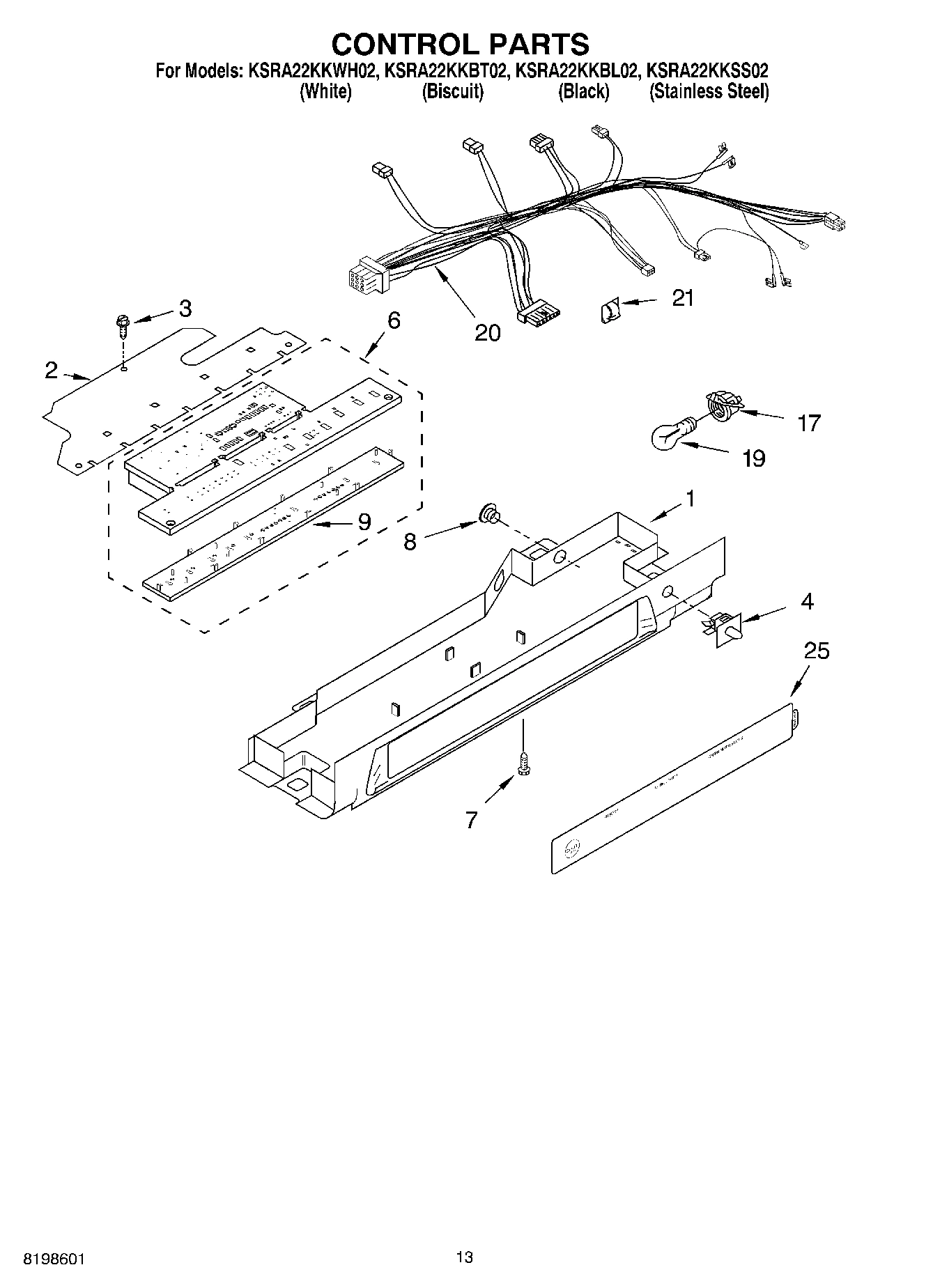

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI93128A9 Contact Us For Availability

and Optional Parts Not Included WPL ARI93129A3 Contact Us For Availability

REFRIGERANT CHARGE 5.0 oz. (R-134A) WPL ARI93130A1 Contact Us For Availability
