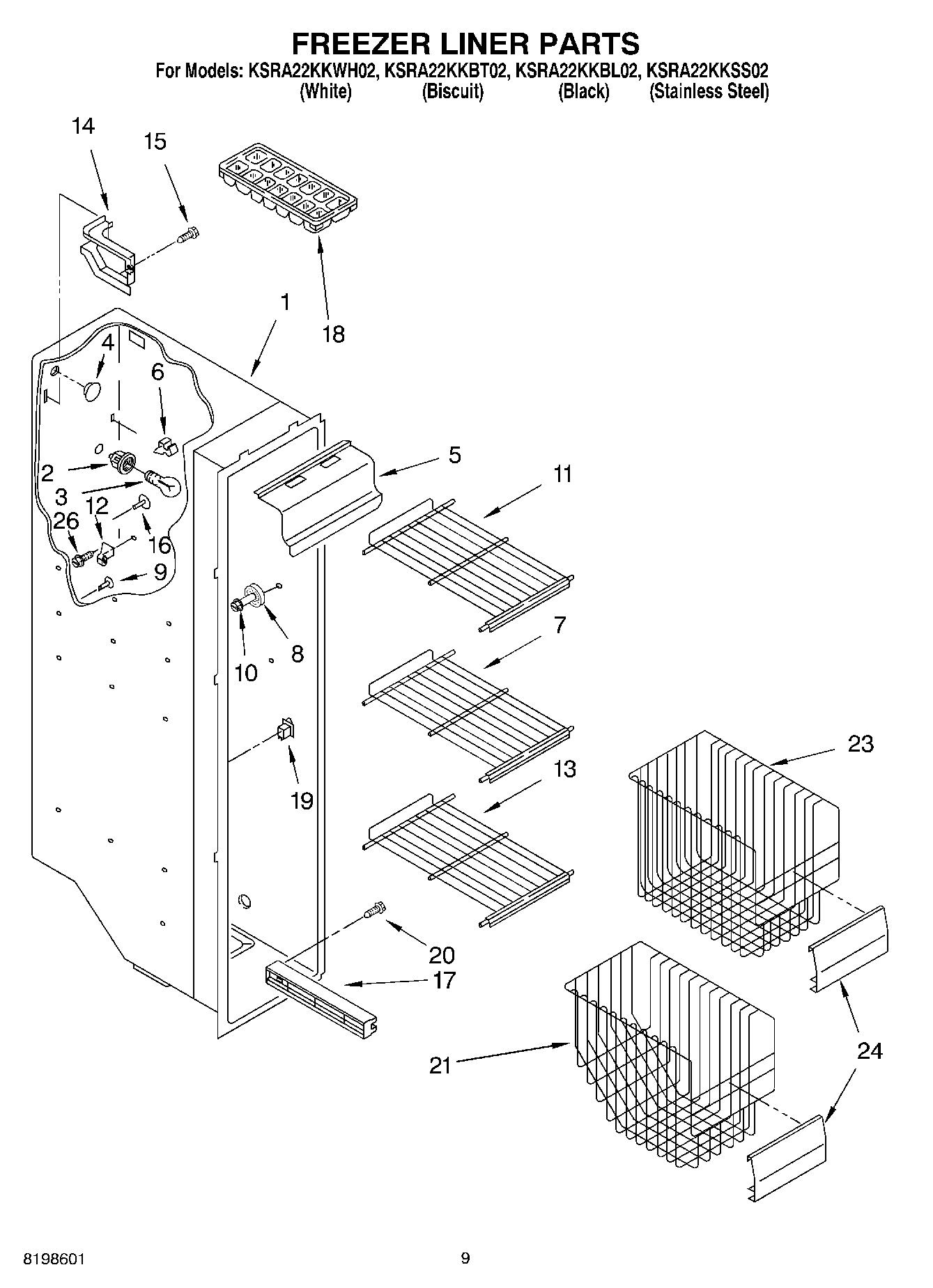

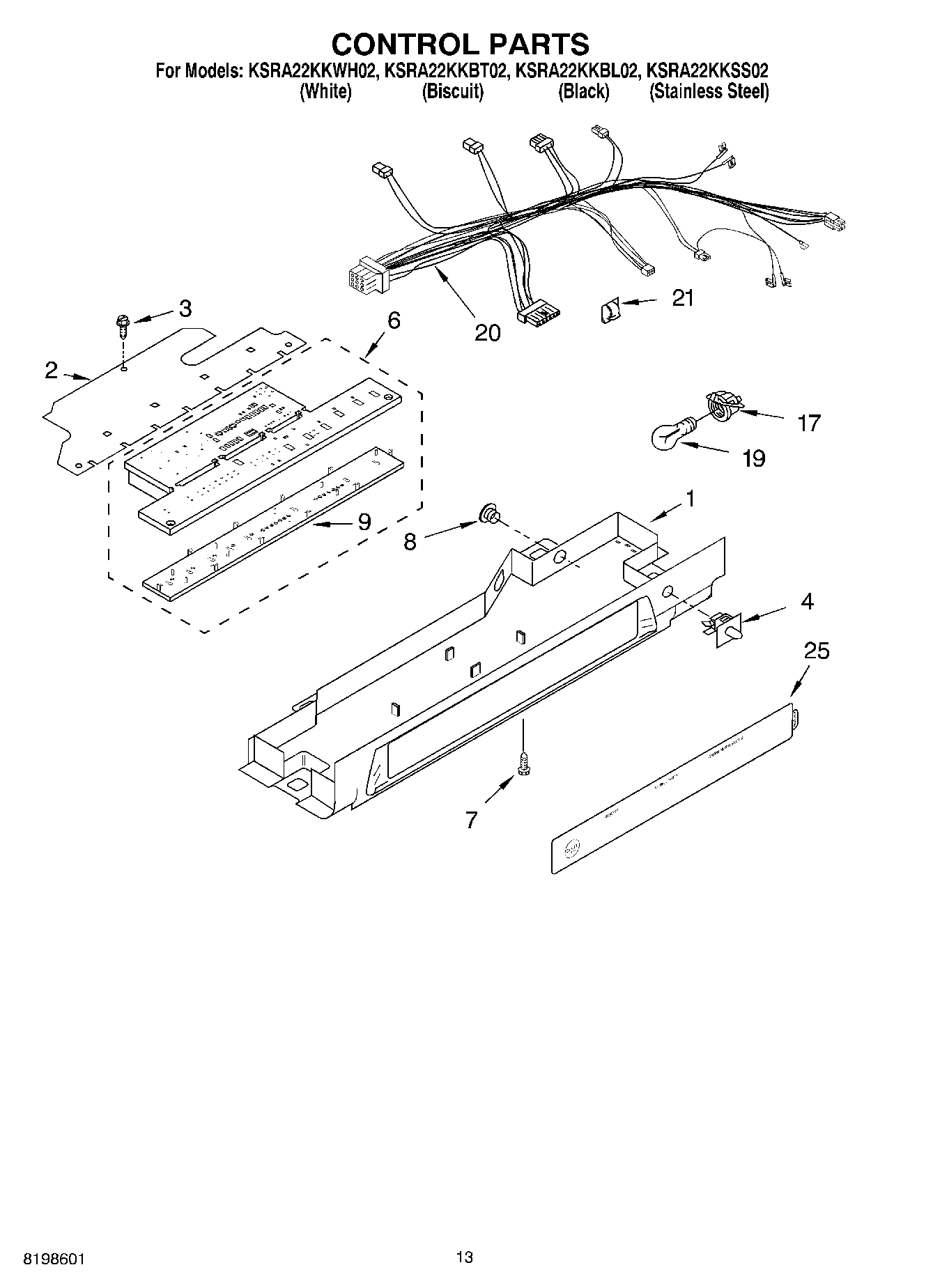

Model Whirlpool KSRA22KKBT02 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.41

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.93

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

LITERATURE PARTS (Use & Care Guide) WPL LIT2254906 Contact Us For Availability

1

LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2255379 Contact Us For Availability

1

LITERATURE PARTS (Energy Guide) WPL LIT2260949 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI93092A4 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Air Scoop WPL 2161231 Contact Us For Availability

3

Condenser Assembly WPL 2204484 Contact Us For Availability

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Beverage Holder WPL 2193409 Contact Us For Availability

4

Louver WPL 2182147 Contact Us For Availability

5

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

5

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $18.10

5

WP2223357 Whirlpool Refrigerator Cover In Stock WPL WP2223357 $170.79

5

Butter, Dish WPL 2165792 Contact Us For Availability

5

Air Duct Freezer WPL 2203592 Contact Us For Availability

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $129.98

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

Stud, Handle Mounting WPL 2203690 Contact Us For Availability

6

Diffuser, Air Duct WPL 2149544 Contact Us For Availability

7

2159073 Whirlpool Refrigerator Door Gasket In Stock WPL 2159073 $92.09

7

2159081 Whirlpool Refrigerator Door Gasket Backorder WPL 2159081 $155.34

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $38.71

7

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

7

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

7

Heat Shield And Drain Pan WPL 2256149 Contact Us For Availability

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $28.09

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

8

Shim WPL 2209697 Contact Us For Availability

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $33.75

9

Grommet (4) WPL 2176134 Contact Us For Availability

9

Screw, Set WPL 98654 Contact Us For Availability

9

Ladder, Shelf (2) WPL 2206270 Contact Us For Availability

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

Glass, Cover WPL 2255144 Contact Us For Availability

Handle (Black) WPL 2188635B Contact Us For Availability

Handle (Stainless Steel) WPL 2188635S Contact Us For Availability

Handle (Biscuit) WPL 2188635T Contact Us For Availability

Handle (White) WPL 2188635W Contact Us For Availability

Tube, Condenser to Heat Loop WPL 2255798 Contact Us For Availability

Bracket, Dual Crisper Light WPL 2256035 Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

8201707 Whirlpool Door Hinge In Stock WPL 8201707 $29.66

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

Support, Stud WPL 2196207 Contact Us For Availability

Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2216116 Contact Us For Availability

2311637 Whirlpool Refrigerator Wire Harness Backorder WPL 2311637 $52.54

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $72.20

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

Eyelet, Roller WPL 2174478 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Gasket, Door Compartment WPL 2159124 Contact Us For Availability

Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability

Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Grille (Black) WPL 2198469B Contact Us For Availability

Grille (Biscuit) WPL 2198469T Contact Us For Availability

Grille (White) WPL 2198469W Contact Us For Availability

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Bracket, Door Stop (Chrome) WPL 2200082 Contact Us For Availability

Bracket, Door Stop (Black) WPL 2200082B Contact Us For Availability

2223314 Whirlpool Refrigerator Clip Backorder WPL 2223314 $8.31

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Meat Pan (Includes 13, 14, 19, & 22) WPL 2223359 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

W11566763 Whirlpool Fitting In Stock WPL W11566763 $19.82

Window, Crisper WPL 2174076 Contact Us For Availability

Nameplate (White) WPL 2212760 Contact Us For Availability

Nameplate (Biscuit) WPL 2212761 Contact Us For Availability

Nameplate (Black) WPL 2212762 Contact Us For Availability

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

19

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

19

Shelf Bin (4) WPL 2205821 Contact Us For Availability

20

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

20

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

2223285 Whirlpool Refrigerator Cap Backorder WPL 2223285 $10.76

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP2188756 Whirlpool Refrigerator Unit Cover Backorder WPL WP2188756 $68.58

Cap, Crisper Pan (Right Side) WPL 2223286 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

Hinge Cover (RC) (Biscuit) WPL 2203408T Contact Us For Availability

23

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

24

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $149.23

24

WP2216112 Whirlpool Damper Control Assembly In Stock WPL WP2216112 $108.99

24

NLA:SCREW Backorder WPL WPW10141645 $3.70

25

WP2212240 Whirlpool Refrigerator Cover Backorder WPL WP2212240 $84.33

25

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

25

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $43.29

26

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

26

4389202 Whirlpool Wire Harness Backorder WPL 4389202 $162.16

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

27

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

27

Cabinet (Not A Service Part) WPL ARI93091A1 Contact Us For Availability

28

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $312.79

28

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

29

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

29

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $2.51

30

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

30

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $100.60

30

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.11

31

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

33

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $49.61

34

Clip WPL 2161330 Contact Us For Availability

34

Light Lens WPL 2209769 Contact Us For Availability

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $37.92

42

Clip, Heat WPL 2155547 Contact Us For Availability

48

Unit Mounting Rail WPL 2149718 Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

50

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $25.31

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI93094A9 Contact Us For Availability

and Optional Parts Not Included WPL ARI93095A2 Contact Us For Availability

REFRIGERANT CHARGE 5.0 oz. (R-134A) WPL ARI93096A1 Contact Us For Availability
