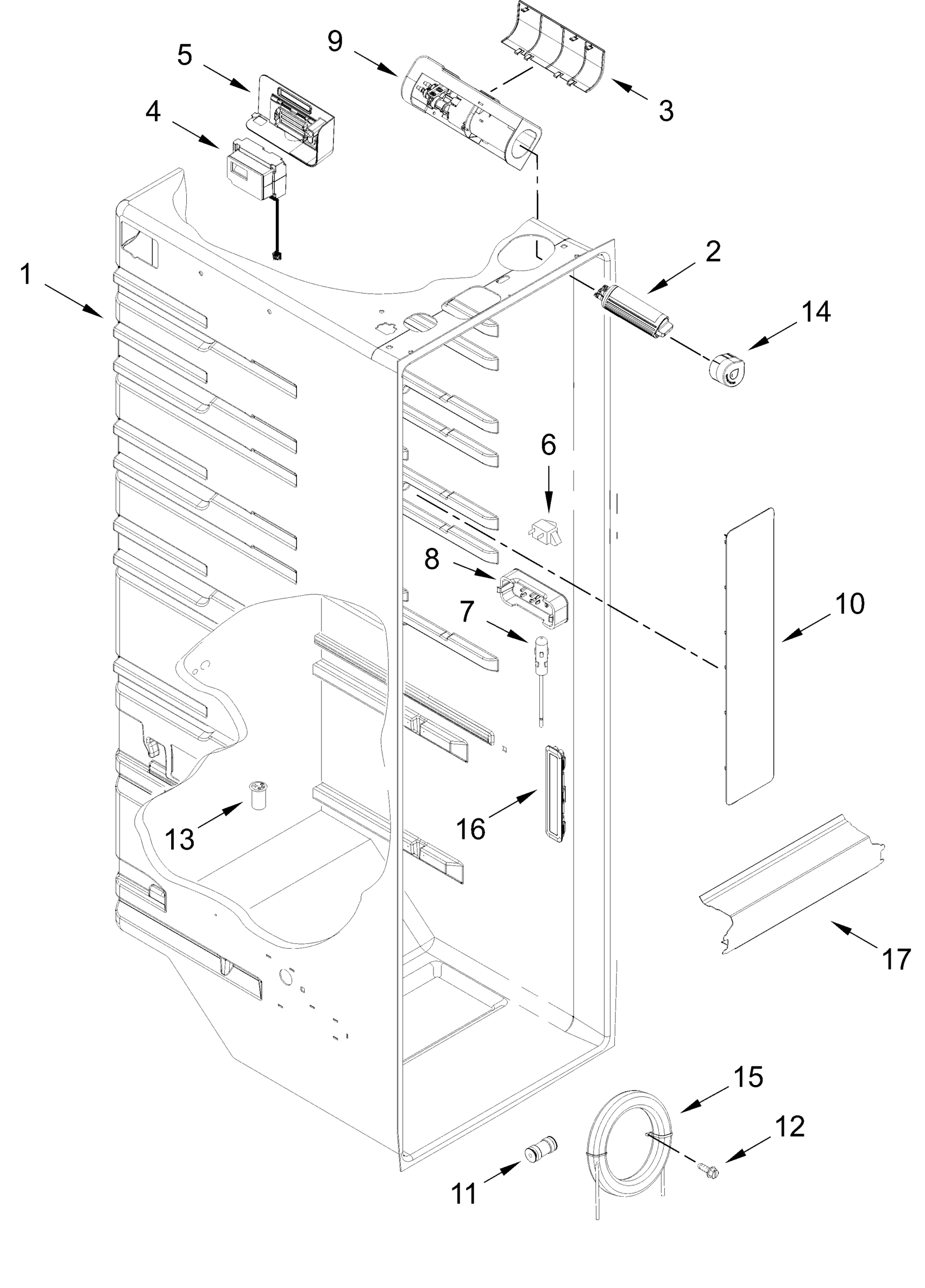

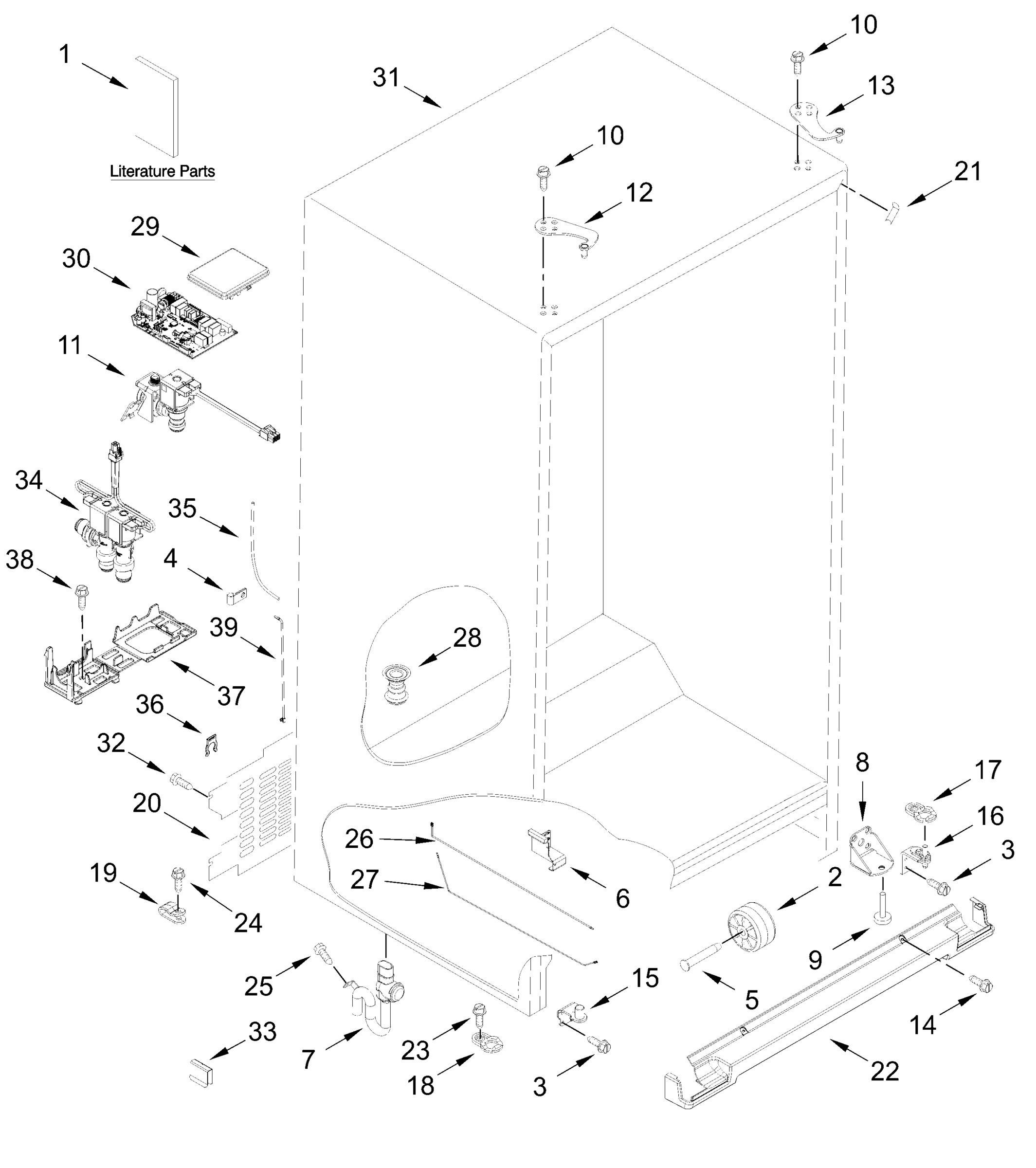

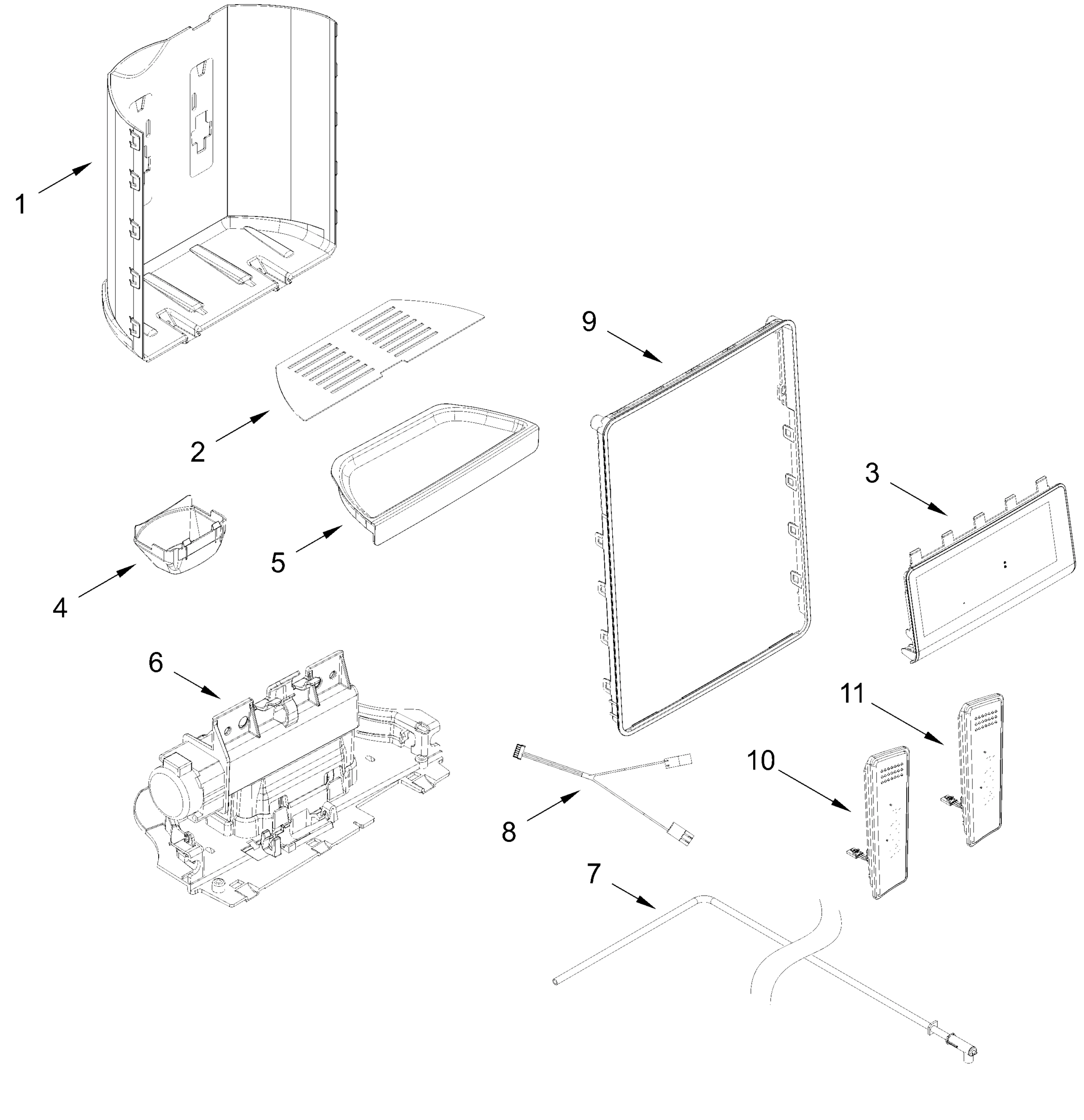

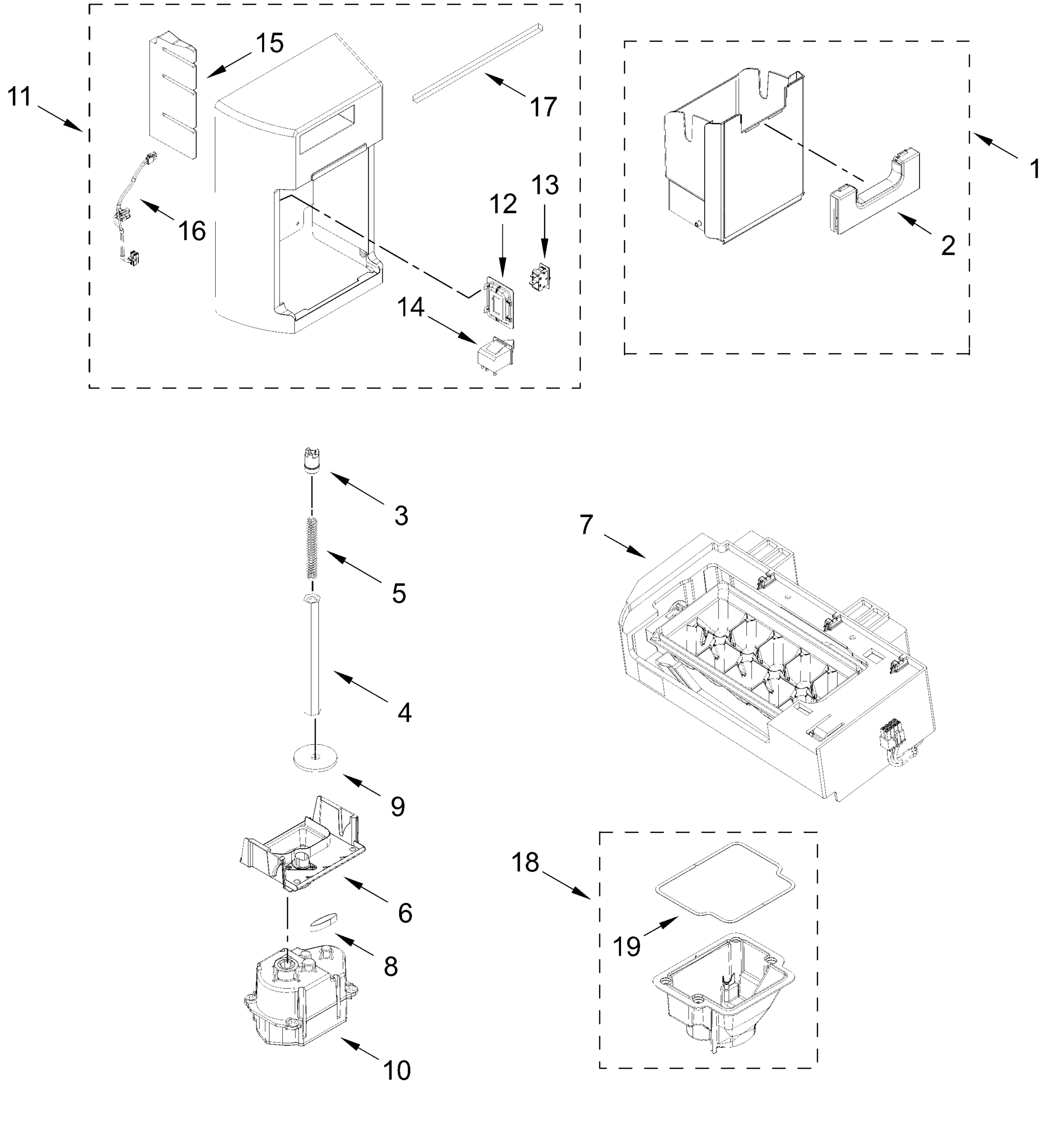

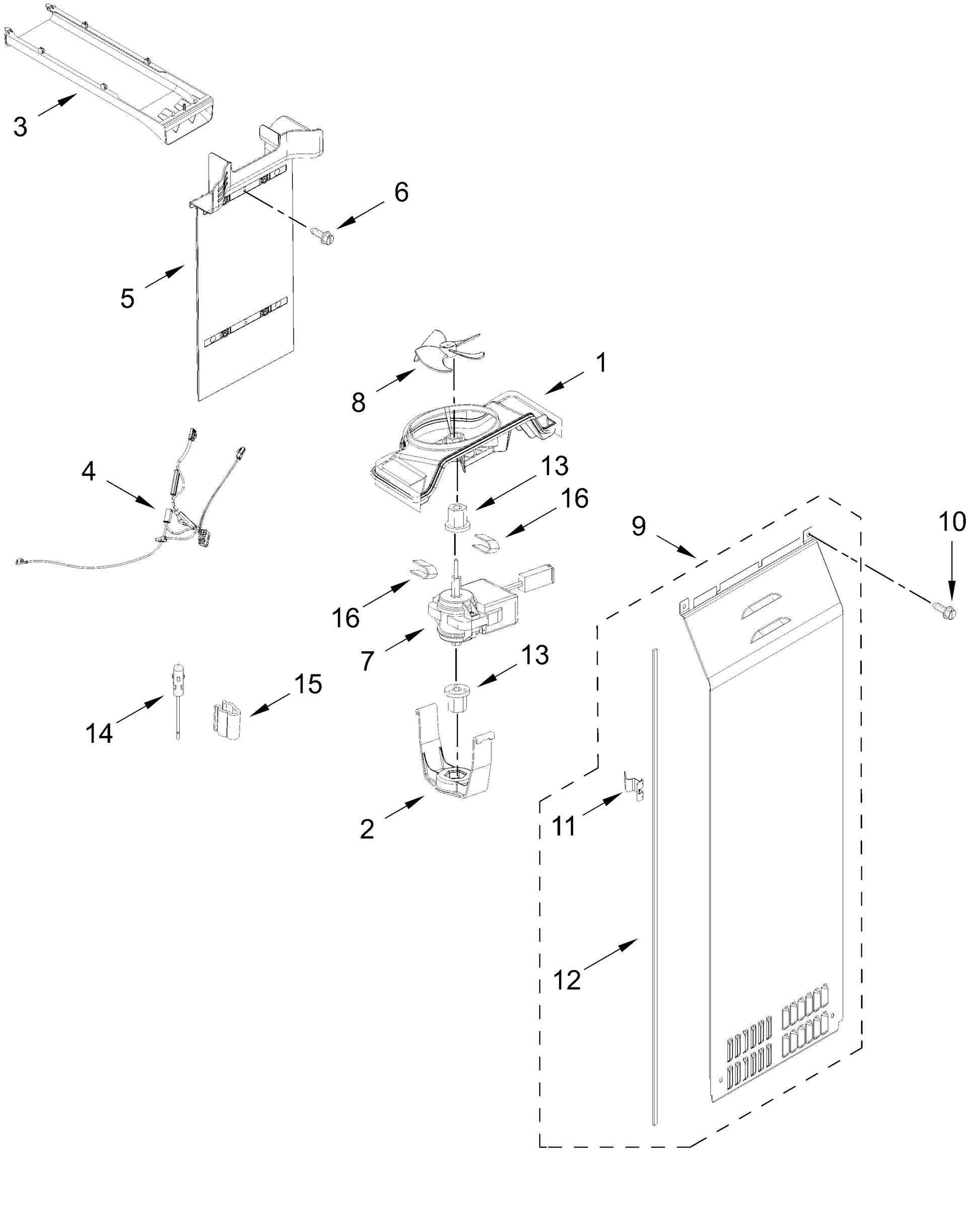

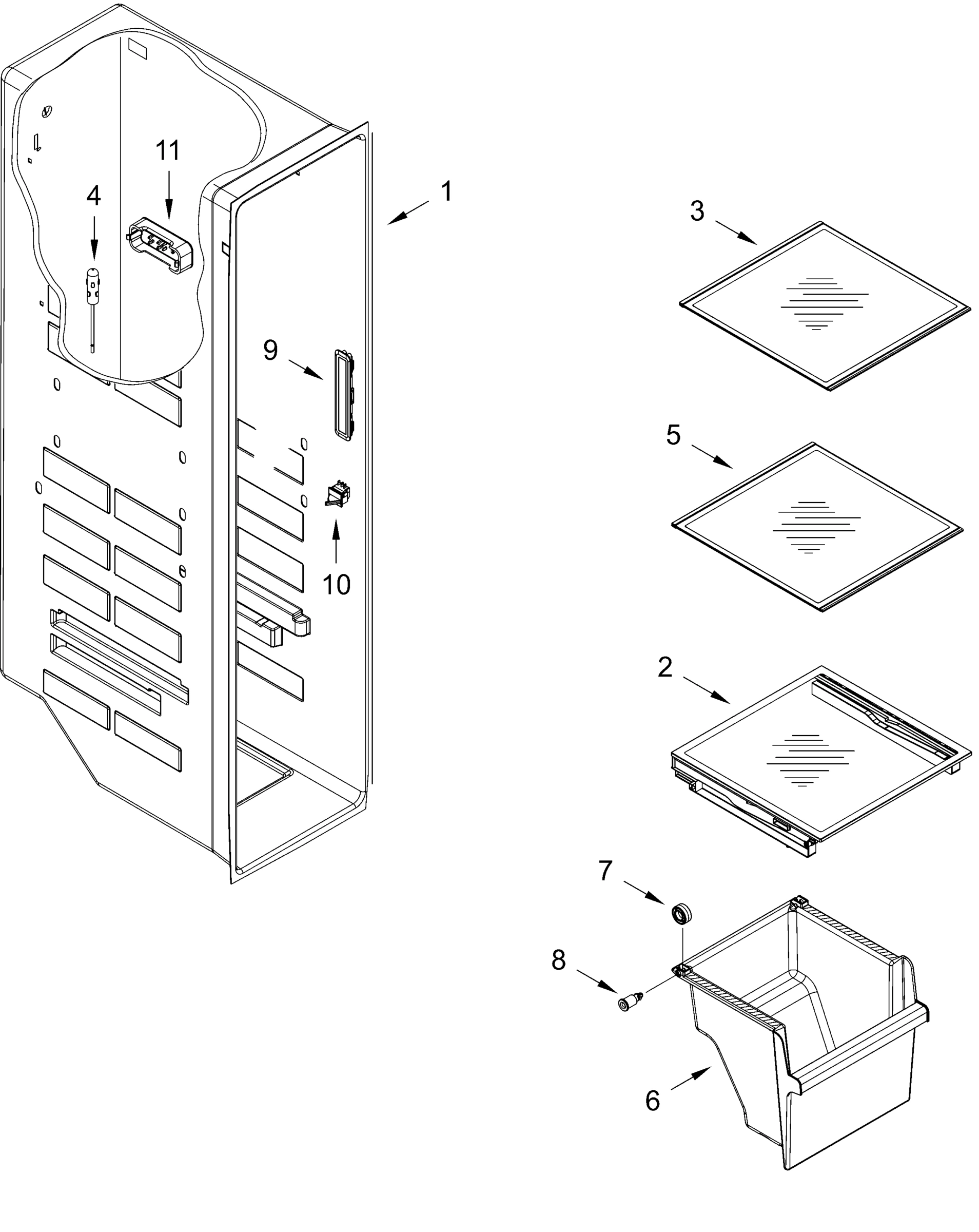

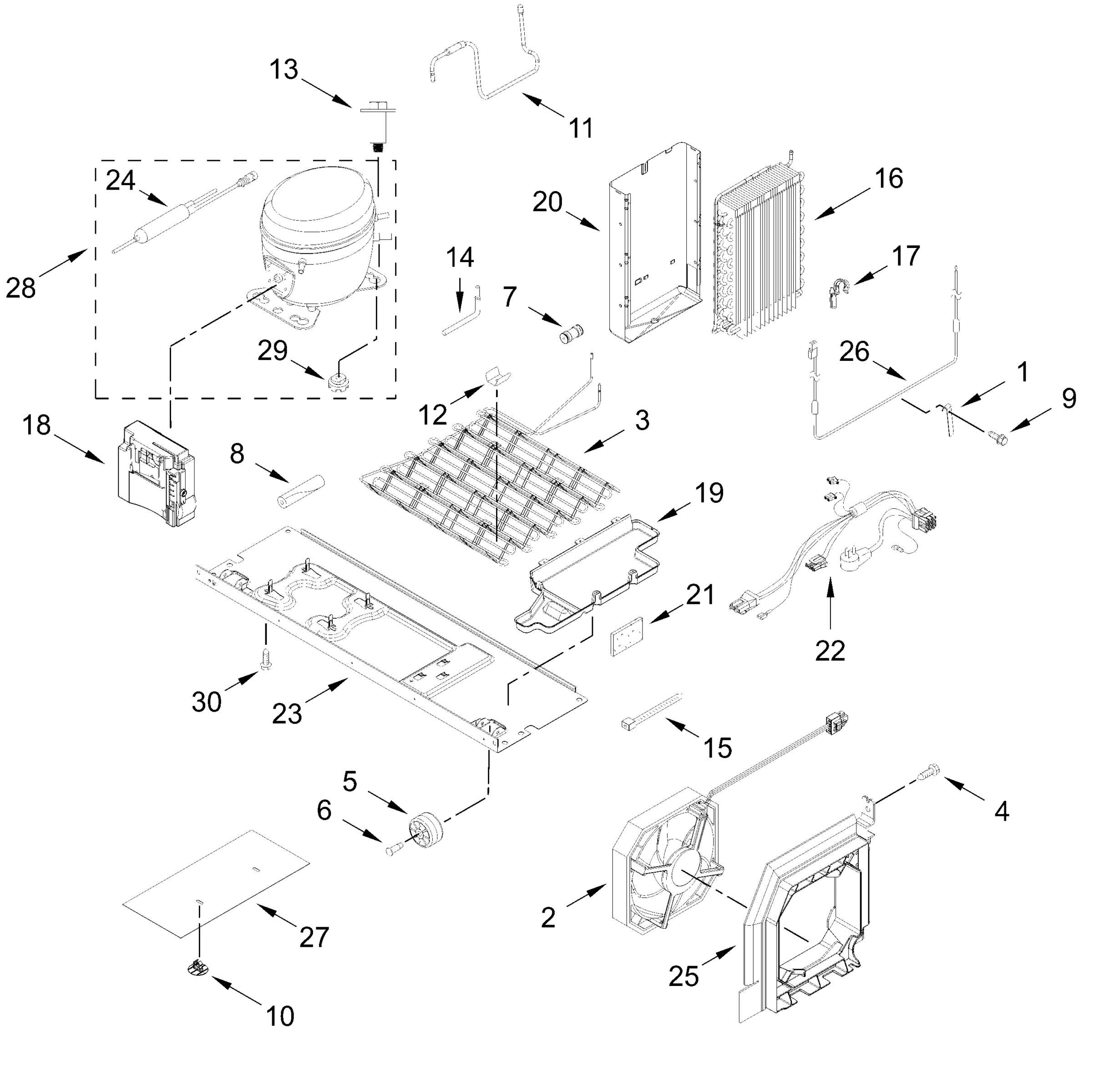

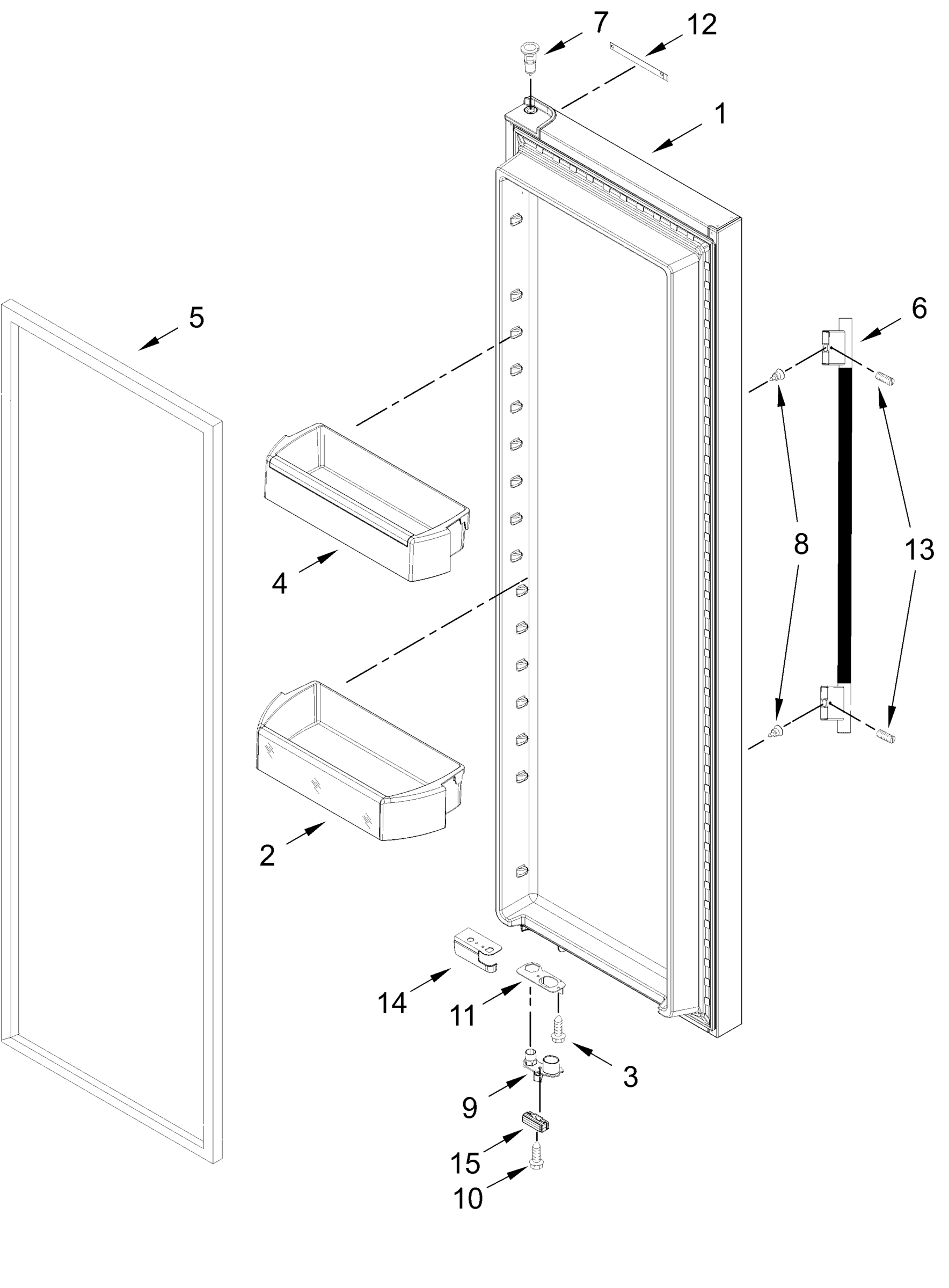

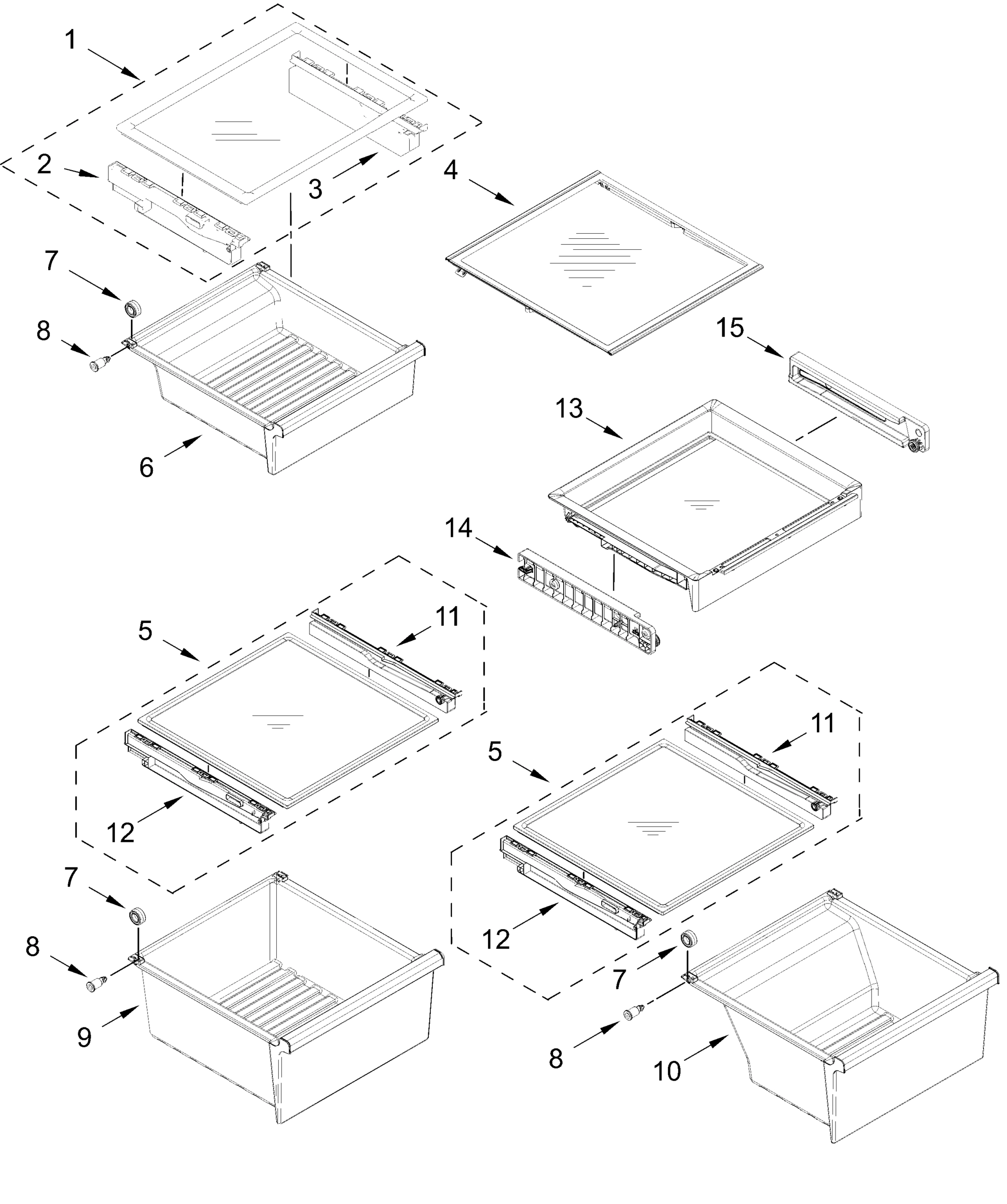

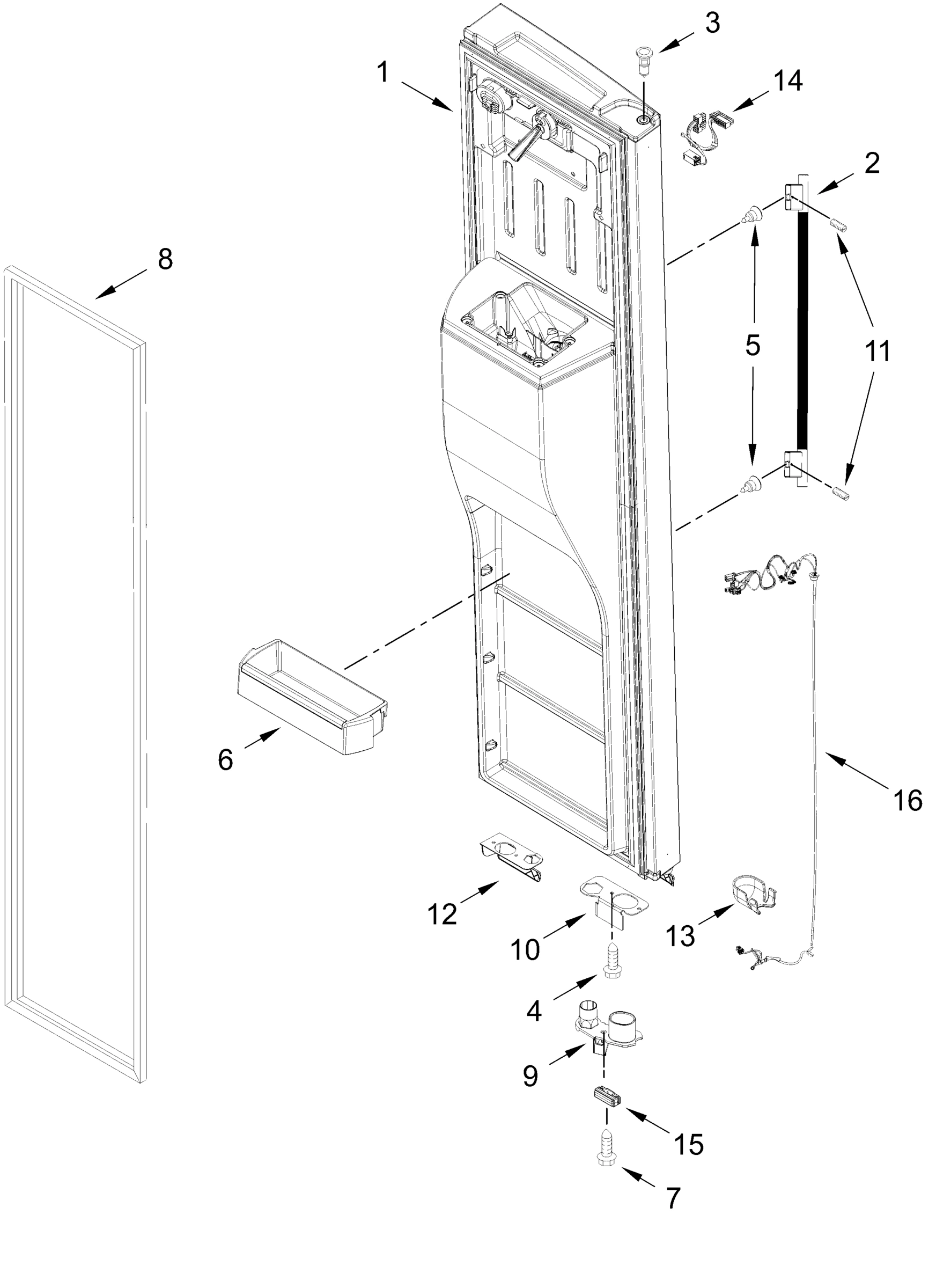

Model Whirlpool KRSC536RPS00 – Common Parts &amp; Diagrams

4318168 Whirlpool Refrigerator Primary Permag In Stock WPL 4318168 $26.79

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $39.63

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

W10134625 Whirlpool Refrigerator Touch-Up Pai In Stock WPL W10134625 $8.67

W11504415 Whirlpool Refrigerator Coupler In Stock WPL W11504415 $14.51

W11504431 Whirlpool Microwave Coupler In Stock WPL W11504431 $15.06

W11504433 Whirlpool Refrigerator Coupler In Stock WPL W11504433 $17.02

W11504445 Whirlpool Refrigerator Coupler In Stock WPL W11504445 $17.17

W11504447 Whirlpool Refrigerator Coupler In Stock WPL W11504447 $25.62

W11504449 Whirlpool Refrigerator Coupler In Stock WPL W11504449 $21.48

W11506619 Whirlpool Refrigerator Coupler In Stock WPL W11506619 $14.40

W11506623 Whirlpool Refrigerator Coupler In Stock WPL W11506623 $12.33

W11678575 Whirlpool Ring In Stock WPL W11678575 $8.11

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WPW10300794 Whirlpool Refrigerator Hardware P Backorder WPL WPW10300794 $58.17

(Also Order the Following Lokring™ Parts) WPL ARI500F2B538D318C1E3390E0716ECE69B7 Contact Us For Availability

(High Side to Condenser) WPL ARIF479D1A0D17290EA712C859BF2E1C691 Contact Us For Availability

(Suction Line to Condenser) WPL ARIDC3909E200058FAFA59ECDE3D8CD23DE Contact Us For Availability

(Capillary Tube to Evaporator) WPL ARI9B437A9AB478C7E2DEB1C4CC29D600EE Contact Us For Availability

(Suction Line to Evaporator) WPL ARI01A2781A3F964B0DAEAA0FEA5F13BC43 Contact Us For Availability

(Heat Loop to Drier) WPL ARI365422773BD6741F2B56A197441A318E Contact Us For Availability

(Capillary Tube to Drier) WPL ARI5DD2AEE280966FBC792DC043E4E4B750 Contact Us For Availability

(Suction Tube to Compressor) WPL ARI169E995E2DAC0D79856EDDCD3C362715 Contact Us For Availability

(High Pressure Side to Compressor) WPL ARI3031A698A6B8030D731C976AE04824C1 Contact Us For Availability

(Process Tube to Compressor) WPL ARI8F052732CB60E39F6CA094A8168A5109 Contact Us For Availability

REFRIGERANT CHARGE WPL ARIA203FEA88A0C0545C484B4E1C20B771B Contact Us For Availability

55 grams (R600A) WPL ARID19E8A45FC136F26803FCAC2CCB7051C Contact Us For Availability

PAINT, TOUCH-UP (1/2 oz) WPL ARICEE9DD10D6E137089B7191A71E7507C2 Contact Us For Availability

MISCELLANEOUS WPL ARIA17D8FFB0B755E300C5DF2D818354E8A Contact Us For Availability

1

W11566486 Whirlpool Heat Probe Backorder WPL W11566486 $10.76

1

FAN-SCROLL Backorder WPL W11807265 $0.00

1

Door Assembly (Stainless, Includes Door Gaske WPL W11664223 Contact Us For Availability

1

Door Assembly (Stainless, Includes Door Gaske WPL W11664230 Contact Us For Availability

1

Wall, Dispenser Back (Silver) WPL W11653442 Contact Us For Availability

2

8201663 Whirlpool Refrigerator Primary Fan Bl Backorder WPL 8201663 $52.48

2

WPW10276209 Whirlpool Grille Backorder WPL WPW10276209 $46.04

2

Bin, Gallon Door WPL W11705428 Contact Us For Availability

2

Handle Assembly (Stainless) WPL W11682895 Contact Us For Availability

2

Fan Assembly, Condenser WPL W11696100 Contact Us For Availability

3

W11708426 Whirlpool Condenser Assembly In Stock WPL W11708426 $103.17

3

Backorder WPL W11759369-includeCORE $231.50

3

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $4.70

3

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $12.79

3

Duct, Freezer Air (Upper) WPL W11629455 Contact Us For Availability

4

W10142255 Whirlpool Screw Backorder WPL W10142255 $5.65

4

WPW10258544 Whirlpool Refrigerator Shaft In Stock WPL WPW10258544 $14.53

4

WPW10435760 Whirlpool Refrigerator Ice Guide In Stock WPL WPW10435760 $9.28

4

Screw WPL W10296816 Contact Us For Availability

4

Bin, Shallow Door WPL W11705430 Contact Us For Availability

4

Wire Harness, Evaporator Fan WPL W11645425 Contact Us For Availability

5

W10276225 Whirlpool Refrigerator Drip Tray Backorder WPL W10276225 $50.20

5

W10355582 Whirlpool Refrigerator Door Gasket In Stock WPL W10355582 $150.72

5

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.97

5

WP67005149 Whirlpool Roller In Stock WPL WP67005149 $10.76

5

Duct, Freezer Air (Back) WPL W11686285 Contact Us For Availability

6

W10499011 Whirlpool Refrigerator Bracket Backorder WPL W10499011 $26.54

6

W11098702 Whirlpool Refrigerator Ice Door In Stock WPL W11098702 $64.73

6

W11208384 Whirlpool Refrigerator Rivet Backorder WPL W11208384 $7.03

6

Bin, Freezer Door WPL W11705900 Contact Us For Availability

7

W11164152 Whirlpool Drawer Roller In Stock WPL W11164152 $6.90

7

W11396715 Whirlpool Refrigerator Evaporator M In Stock WPL W11396715 $63.47

7

W11567542 Whirlpool Refrigerator Water Tube Backorder WPL W11567542 $35.01

7

WPW10277958 Whirlpool Refrigerator Fitting In Stock WPL WPW10277958 $31.44

7

WPW10296804 Whirlpool Refrigerator Screw Backorder WPL WPW10296804 $4.28

8

W11175807 Whirlpool Axle Assembly In Stock WPL W11175807 $7.72

8

W11266052 Whirlpool Refrigerator Bracket Backorder WPL W11266052 $26.54

8

W11449276 Whirlpool Handle Support In Stock WPL W11449276 $10.41

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WPW10291905 Whirlpool Seal In Stock WPL WPW10291905 $10.80

8

WPW10355585 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10355585 $120.14

8

Wire, Dispenser Jumper WPL W11630178 Contact Us For Availability

9

WP2305382 Whirlpool Refrigerator Washer In Stock WPL WP2305382 $5.01

9

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

9

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $4.70

9

WPW10257203 Whirlpool Refrigerator Lower Door In Stock WPL WPW10257203 $9.63

9

WPW10257206 Whirlpool Refrigerator Door Cam Backorder WPL WPW10257206 $9.99

9

Ring, Dispenser Trim WPL W11744768 Contact Us For Availability

9

Cover, Evaporator WPL W11629085 Contact Us For Availability

W10815861 Whirlpool Refrigerator Clip Backorder WPL W10815861 $6.90

W11293380 Whirlpool Refrigerator Bracket Backorder WPL W11293380 $25.49

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

Pad Assembly, Ice WPL W11747090 Contact Us For Availability

W11037957 Whirlpool Refrigerator Bracket In Stock WPL W11037957 $31.52

W11232019 Whirlpool Refrigerator Clip Backorder WPL W11232019 $4.39

WPW10271543 Whirlpool Refrigerator Connector In Stock WPL WPW10271543 $14.24

Cover, Ice Container WPL W11637396 Contact Us For Availability

Pad Assembly, Water WPL W11747091 Contact Us For Availability

Tube, Suction WPL W11708754 Contact Us For Availability

W10141518 Whirlpool Refrigerator Screw Backorder WPL W10141518 $5.65

W10240370 Whirlpool Refrigerator Gasket Backorder WPL W10240370 $14.42

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

W11590581 Whirlpool Refrigerator Door Hinge Backorder WPL W11590581 $9.37

WPW10632062 Whirlpool Refrigerator Wire Cover Backorder WPL WPW10632062 $3.70

Plate, Switch WPL W11675898 Contact Us For Availability

Badge WPL W11688412 Contact Us For Availability

W10323148 Whirlpool Refrigerator Wire Cover Backorder WPL W10323148 $26.10

W10907991 Whirlpool Screw Backorder WPL W10907991 $2.95

W11409290 Whirlpool Top Hinge In Stock WPL W11409290 $26.74

W11417341 Whirlpool Refrigerator Screw Backorder WPL W11417341 $9.59

W11669856 Whirlpool Grommet Backorder WPL W11669856 $5.51

Switch, Energy Saver WPL W11655238 Contact Us For Availability

W11293361 Whirlpool Refrigerator Wire Jumper Backorder WPL W11293361 $54.46

W11661847 Whirlpool Wire Cover Backorder WPL W11661847 $11.51

WPW10308489 Whirlpool Refrigerator Screw Backorder WPL WPW10308489 $3.92

WPW10384183 Whirlpool Thermistor In Stock WPL WPW10384183 $48.44

Switch, Rocker Arm WPL W11655237 Contact Us For Availability

Tube, Process WPL W11489393 Contact Us For Availability

W10749467 Whirlpool Refrigerator Insulation Backorder WPL W10749467 $60.74

W11546684 Whirlpool Refrigerator Clip In Stock WPL W11546684 $5.22

W11573367 Whirlpool Refrigerator Door Bumper Backorder WPL W11573367 $10.76

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $3.33

W11205489 Whirlpool Foam Insert Backorder WPL W11205489 $10.34

W11292872 Whirlpool Refrigerator Door Hinge In Stock WPL W11292872 $28.71

W11546605 Whirlpool Refrigerator Evaporator In Stock WPL W11546605 $104.96

Wire Assembly, Switch Jumper WPL W11604582 Contact Us For Availability

Wire, Door LV WPL W11604581 Contact Us For Availability

17

W11623163 Whirlpool Refrigerator Clip Backorder WPL W11623163 $4.39

17

WPW10400435 Whirlpool Refrigerator Gasket Backorder WPL WPW10400435 $13.82

18

W11506421 Whirlpool Inverter Box Backorder WPL W11506421 $178.87

18

W11678273 Whirlpool Bracket Backorder WPL W11678273 $28.11

19

W10166854 Whirlpool Refrigerator Gasket Backorder WPL W10166854 $10.07

19

W10714793 Whirlpool Refrigerator Evaporator T In Stock WPL W10714793 $67.64

20

Shield, Heat (Includes Drain Pan) WPL W11400741 Contact Us For Availability

21

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $10.41

21

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

22

WPW10713153 Whirlpool Refrigerator Grille In Stock WPL WPW10713153 $61.32

22

Wire Harness, Unit WPL W11604578 Contact Us For Availability

23

W10680691 Whirlpool Refrigerator Support Asse Backorder WPL W10680691 $76.83

24

W11109499 Whirlpool Refrigerator Tube In Stock WPL W11109499 $20.99

25

Bracket, Condenser Fan WPL W11639129 Contact Us For Availability

26

W11546981 Whirlpool Refrigerator Heater In Stock WPL W11546981 $51.00

27

Cover, Unit Bottom WPL W10284726 Contact Us For Availability

28

W10370680 Whirlpool Refrigerator Fitting Backorder WPL W10370680 $13.10

28

Compressor WPL W11623187 Contact Us For Availability

29

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $4.52

30

Screw WPL W10142287 Contact Us For Availability

33

W11545866 Whirlpool Refrigerator Clip Backorder WPL W11545866 $4.39

36

W11676611 Whirlpool Ring Backorder WPL W11676611 $8.11
