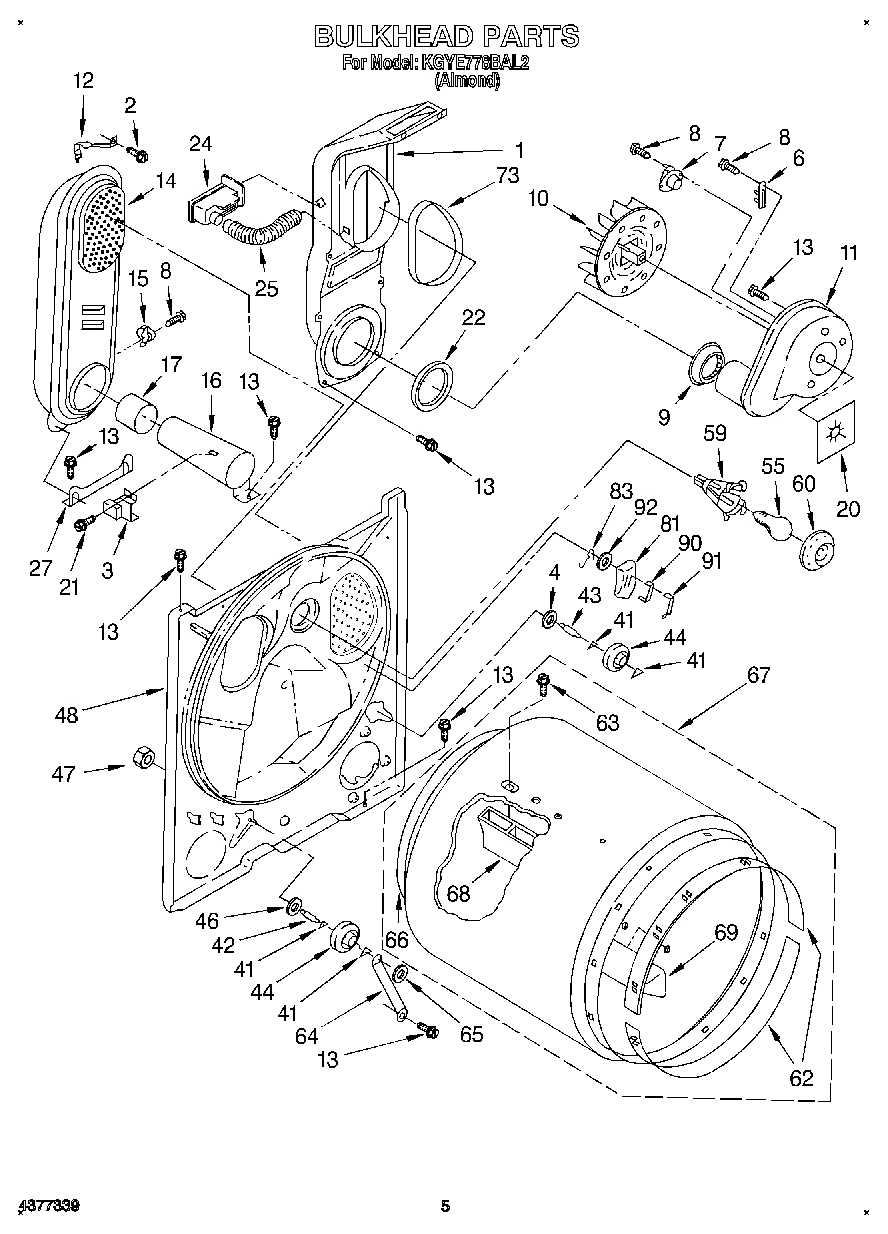

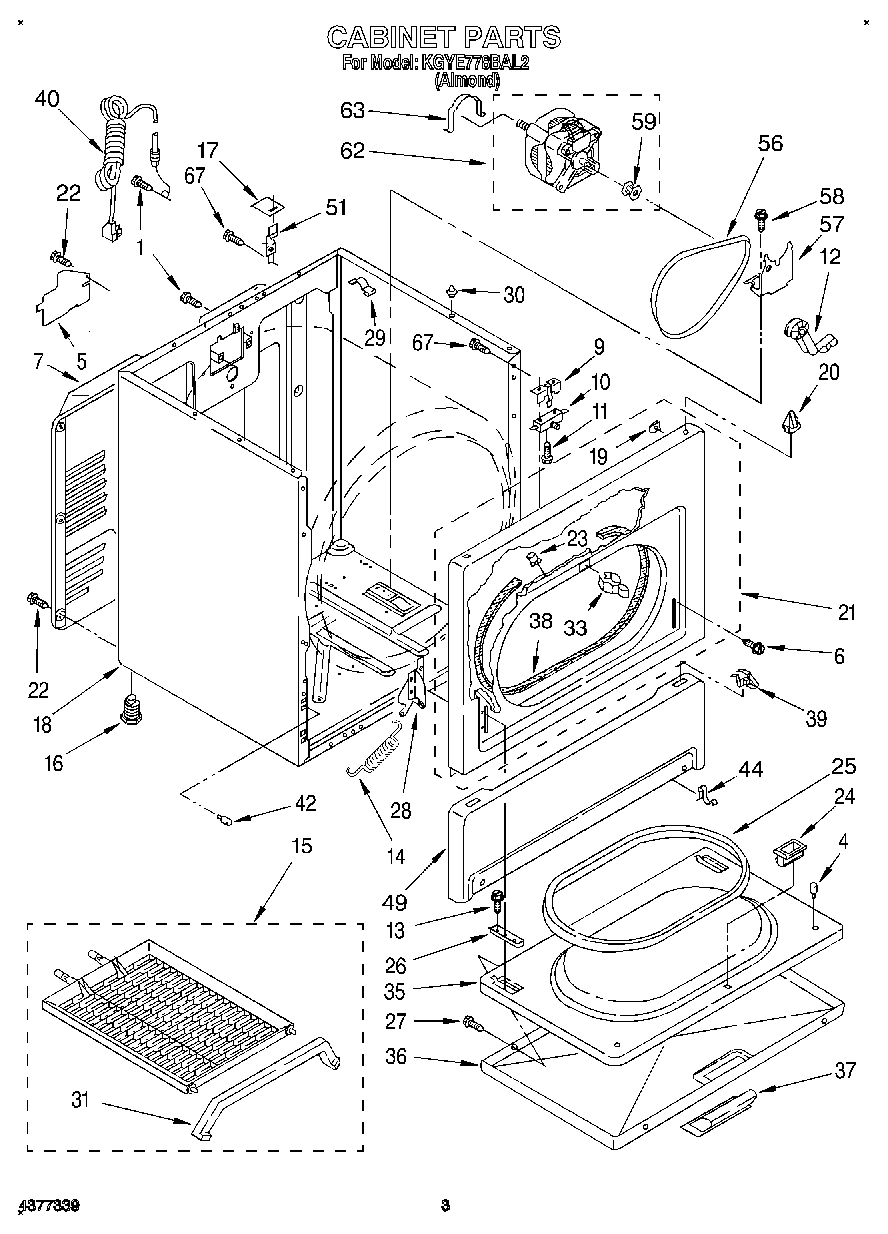

Model Whirlpool KGYE778BAL2 – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Guide, Dryer WPL LIT3387320 Contact Us For Availability

Label, Operating Instructions WPL LIT3388652 Contact Us For Availability

Guide, Use & Care WPL LIT3392988 Contact Us For Availability

Instructions, Installation WPL LIT3395306 Contact Us For Availability

Lab WPL LIT3401724 Contact Us For Availability

1

Panel, Rear Console WPL 3399179 Contact Us For Availability

1

Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL 3401771 Contact Us For Availability

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $72.29

2

Panel, Control WPL 3362010 Contact Us For Availability

3

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $31.76

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $9.46

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $22.79

4

End Cap (L.H.) WPL 3360572 Contact Us For Availability

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $24.80

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

5

Wire-Jumper Assembly WPL 3396030 Contact Us For Availability

6

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67

6

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

7

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $11.52

7

Bracket, Control WPL 3396293 Contact Us For Availability

7

Base, Burner WPL 693986 Contact Us For Availability

8

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

8

Washer WPL 237446 Contact Us For Availability

9

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.08

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

9

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.88

9

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $2.51

9

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

9

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

10

279923 Whirlpool Gas Valve In Stock WPL 279923 $150.52

10

WP349639 Whirlpool Lint Filter In Stock WPL WP349639 $19.80

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $17.39

11

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.58

11

Cover, Lint Screen (Almond) WPL 691201 Contact Us For Availability

694538 Whirlpool Bracket Backorder WPL 694538 $42.00

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.97

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $17.78

14

Connector 6-Circuit WPL 3347243 Contact Us For Availability

15

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

16

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.40

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

16

Top (Almond) WPL 3399163 Contact Us For Availability

17

WP3398093 Whirlpool Buzzer Adjuster Backorder WPL WP3398093 $55.98

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

18

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

19

3395683 Whirlpool Connector Backorder WPL 3395683 $33.67

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $11.20

20

Knob, Timer WPL 3396268 Contact Us For Availability

21

WP3398094 Whirlpool Push To Start Switch In Stock WPL WP3398094 $44.84

21

Pipe, Gas Supply WPL 233273 Contact Us For Availability

22

W11415783 Whirlpool Seal In Stock WPL W11415783 $7.16

22

Cap, End (R.H.) WPL 3360569 Contact Us For Availability

22

Valve & Union, Shut-Off WPL 345062 Contact Us For Availability

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $59.98

23

WP3399640 Whirlpool Switch In Stock WPL WP3399640 $45.40

24

Nut, Compression WPL 233076 Contact Us For Availability

24

Wire, Jumper WPL 3393818 Contact Us For Availability

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $16.78

W10906683 Whirlpool Door Seal In Stock WPL W10906683 $35.43

Timer, 60Hz. WPL 3398139 Contact Us For Availability

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

26

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

27

Knob, Push To Start WPL 3399505 Contact Us For Availability

29

Wire, Ground WPL 690853 Contact Us For Availability

30

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

31

Bracket, Dryer Rack WPL 692989 Contact Us For Availability

31

Connector, 2-Position (Gas Valve) WPL 3399964 Contact Us For Availability

32

Connector, 3-Position (Gas Valve) WPL 3399963 Contact Us For Availability

35

WP695737 Whirlpool Door Backorder WPL WP695737 $108.35

36

Knob, Control (2) WPL 3362610 Contact Us For Availability

37

Clip WPL 689180 Contact Us For Availability

38

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

39

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $3.88

41

Receptacle, 2 Way WPL 717252 Contact Us For Availability

42

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

42

Harness, Gas WPL 3401638 Contact Us For Availability

43

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

44

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.70

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

46

Connector, Timer WPL 3397269 Contact Us For Availability

47

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

54

Bumper, Lint Lid WPL 297535 Contact Us For Availability

57

WP348780 Whirlpool Base In Stock WPL WP348780 $38.12

60

Lens, Drum Light WPL 341165 Contact Us For Availability

62

279441 Whirlpool Front Bearing Ring In Stock WPL 279441 $45.04

62

WPW10476828-includeCORE Whirlpool WPW10476828 Backorder WPL WPW10476828-includeCORE $180.58

63

3391885 Whirlpool Connector Backorder WPL 3391885 $30.25

63

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

64

W11684613 Whirlpool Bracket Backorder WPL W11684613 $7.96

65

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

66

279408 Whirlpool Dryer Rear Drum Seal In Stock WPL 279408 $26.88

67

W10899578 Whirlpool Dryer Drum Assembly In Stock WPL W10899578 $132.34

68

WP692490 Whirlpool Drum Baffle Backorder WPL WP692490 $52.25

69

WP3403636 Whirlpool Drum Baffle Backorder WPL WP3403636 $47.56

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.88

81

279366 Whirlpool Sensor Kit In Stock WPL 279366 $54.81

83

WP342267 Whirlpool Clip Backorder WPL WP342267 $4.36

90

WP348859 Whirlpool Electrode Assembly Backorder WPL WP348859 $2.51

91

WP348860 Whirlpool Electrode Backorder WPL WP348860 $2.51

92

WP298877 Whirlpool Washer Backorder WPL WP298877 $13.32
