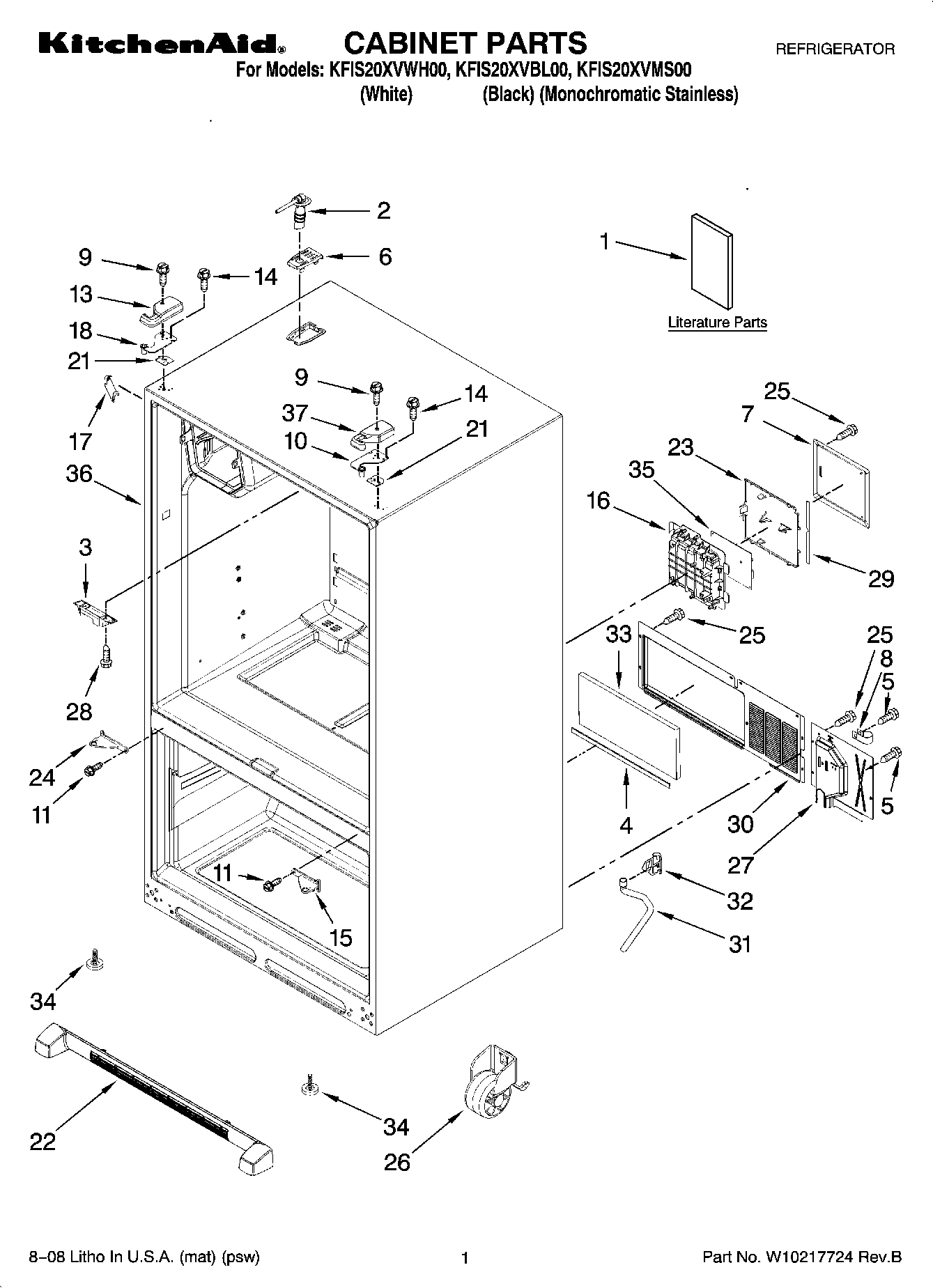

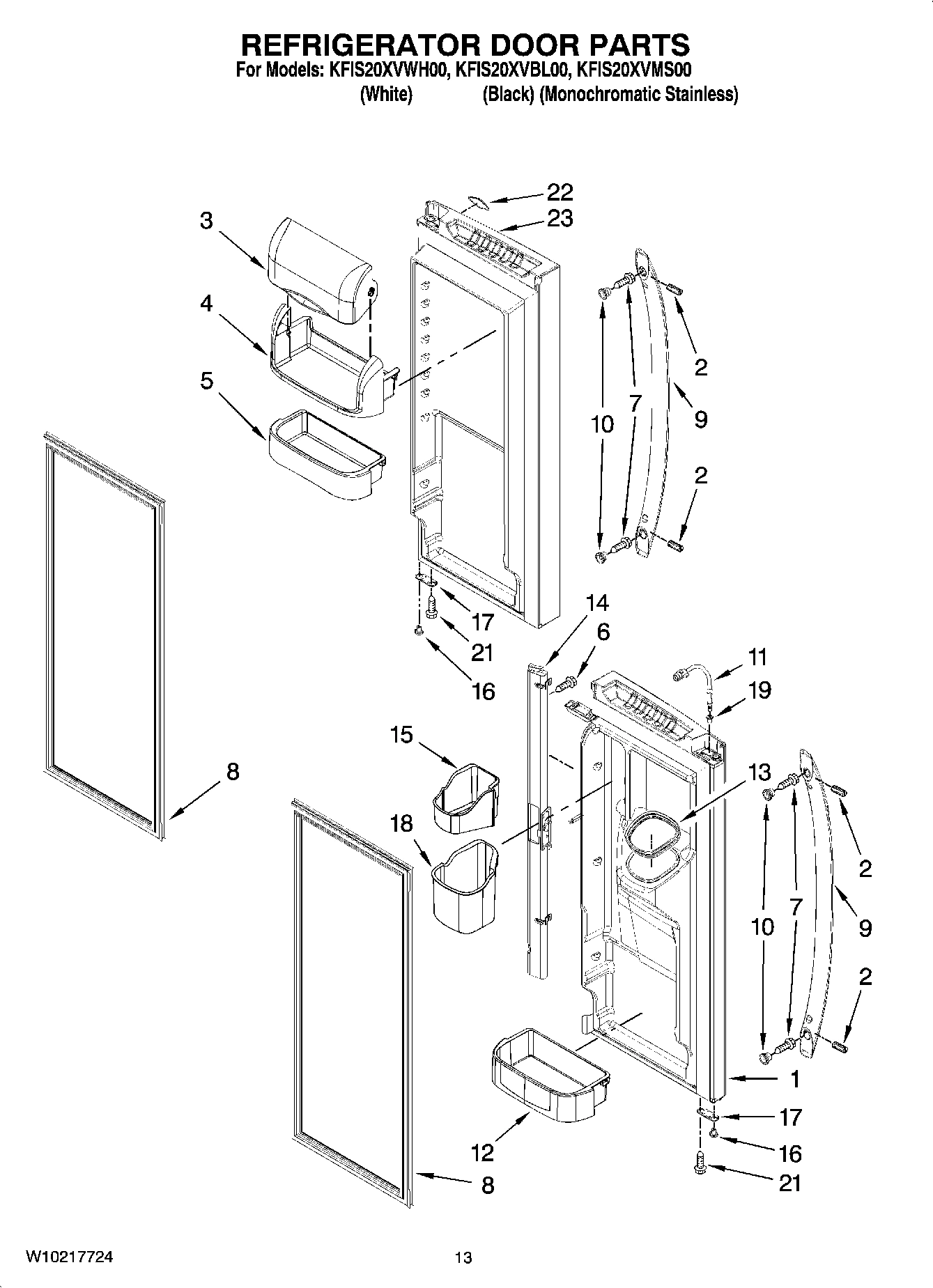

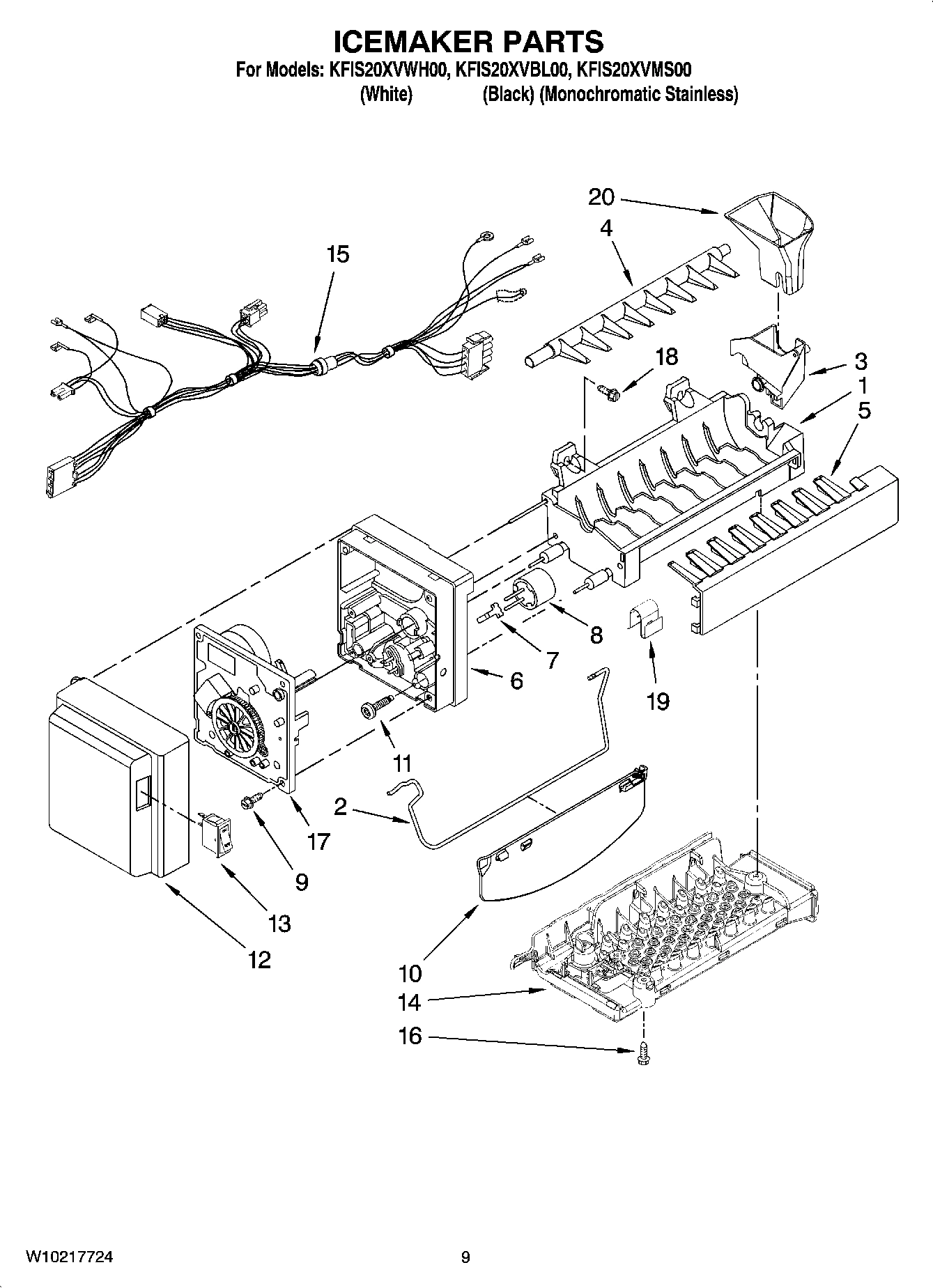

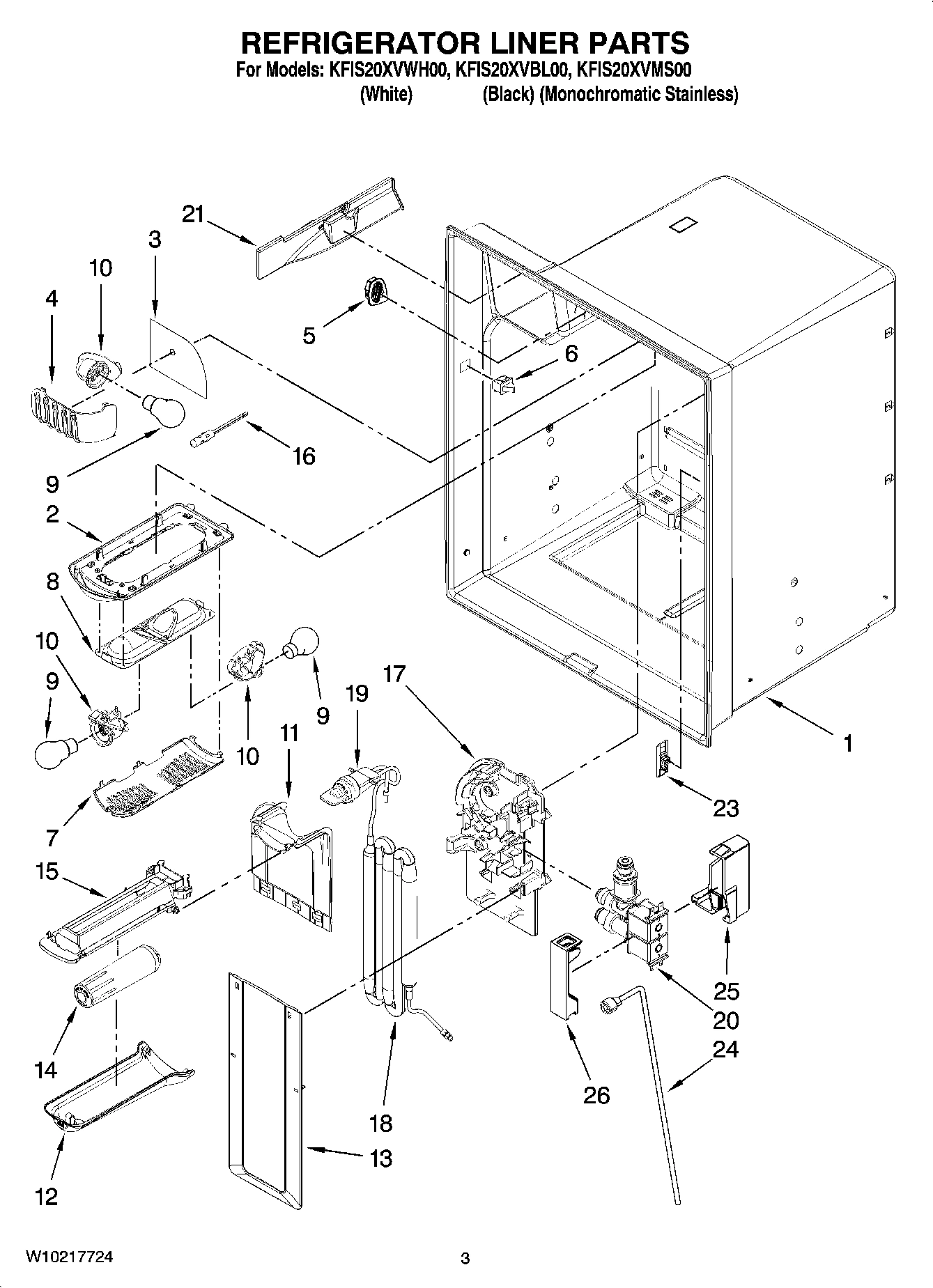

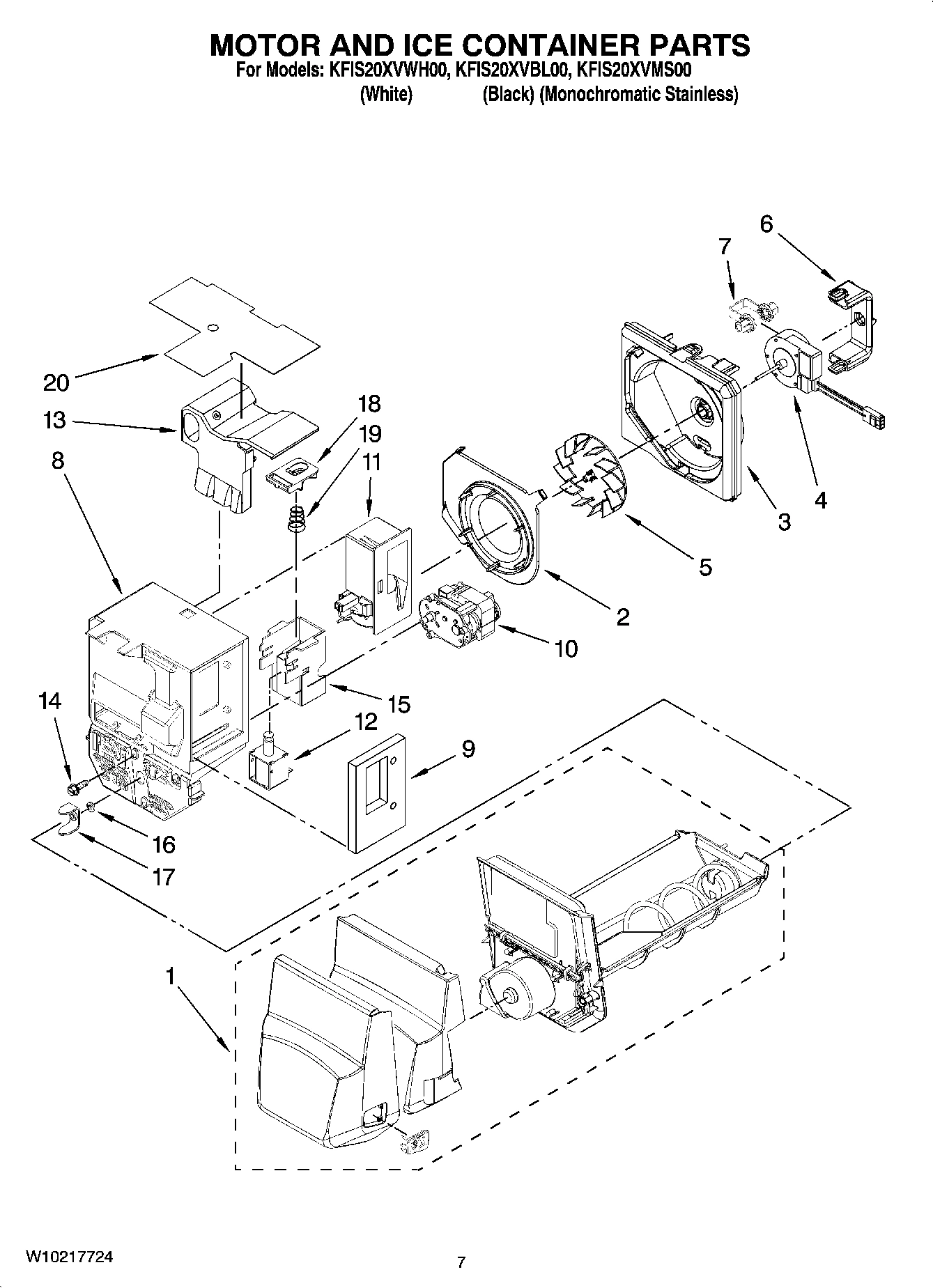

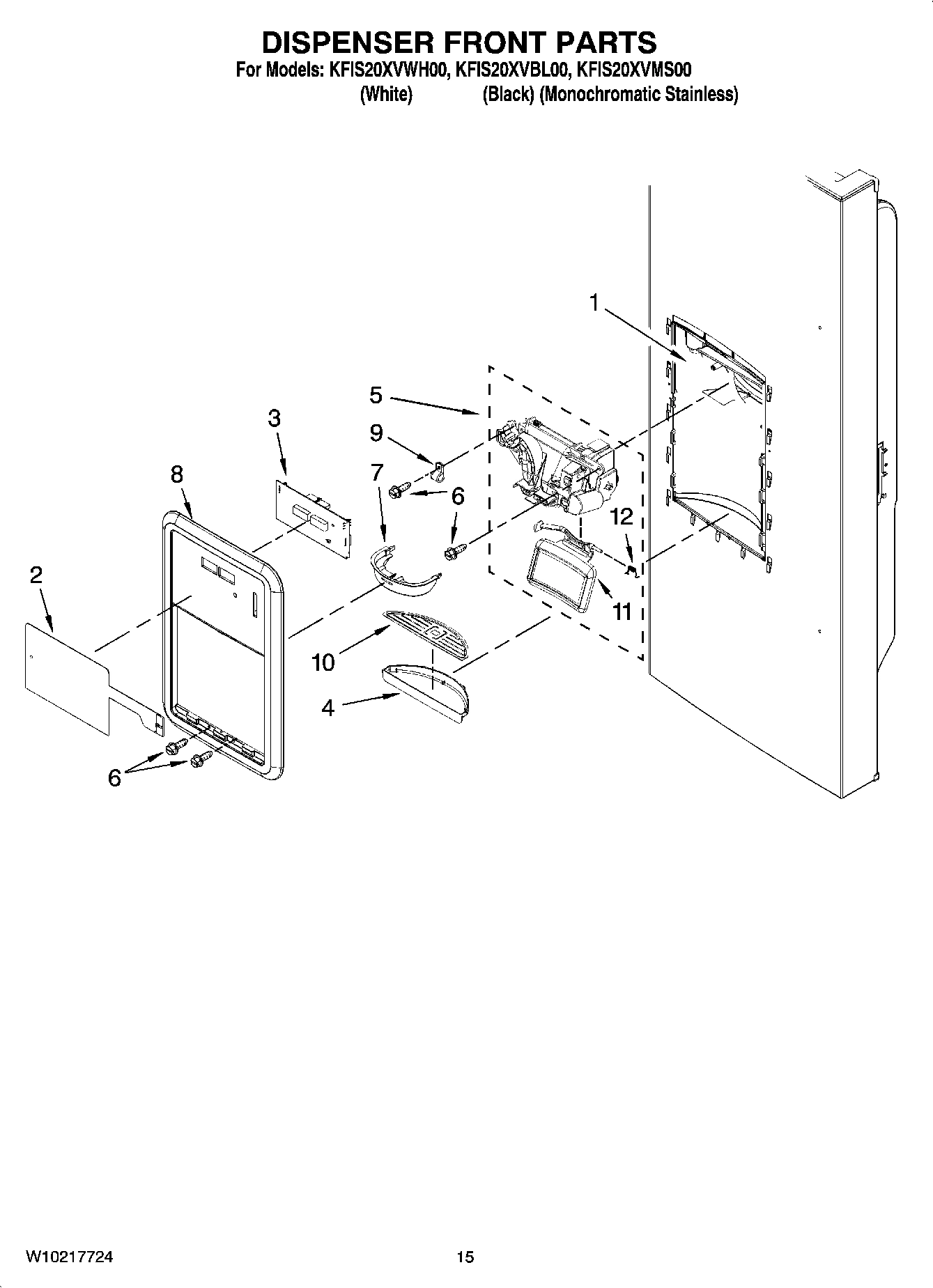

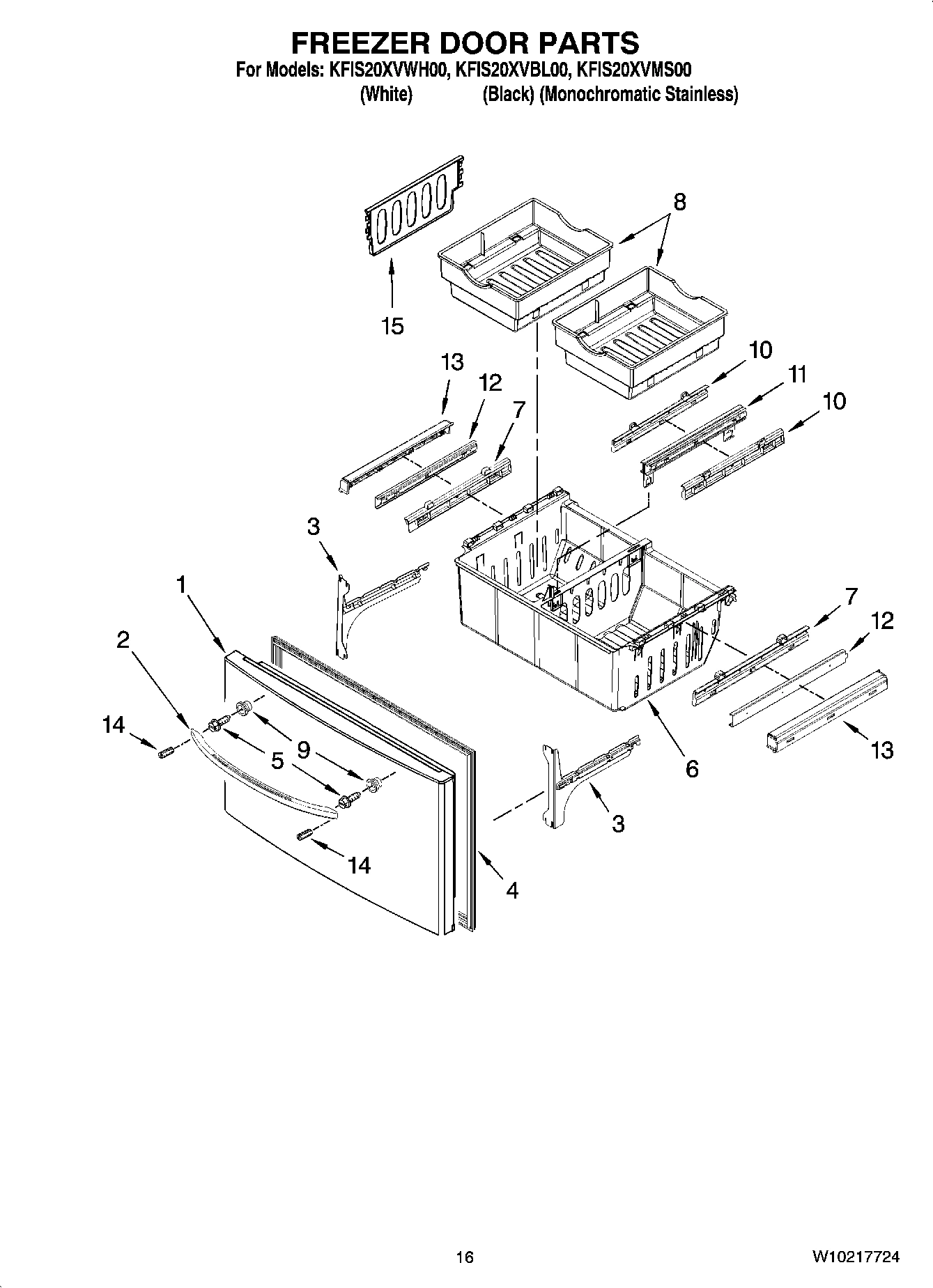

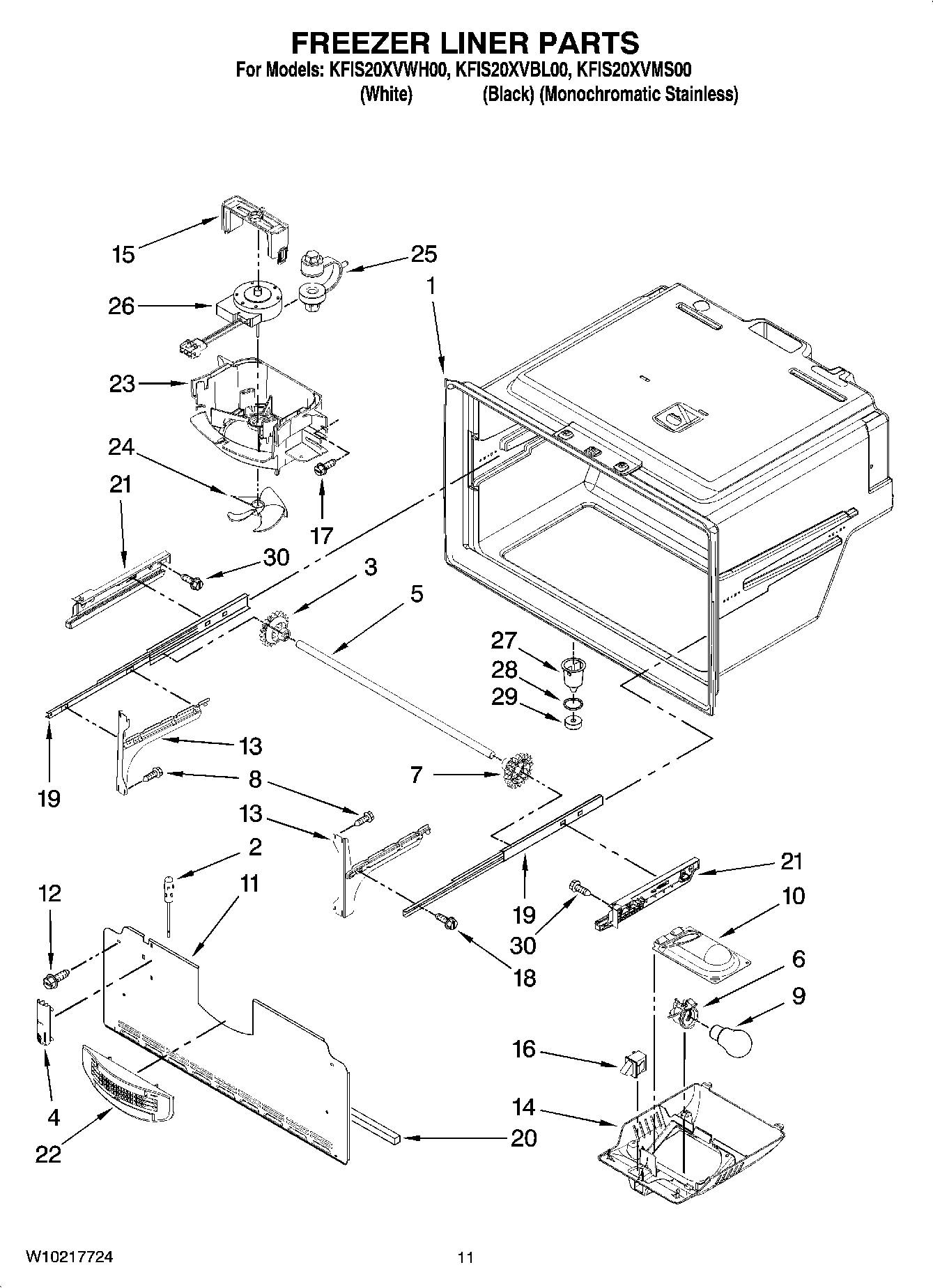

Model Whirlpool KFIS20XVBL00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

WPL 978029 WPL 978029 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WPW10324088 Whirlpool Refrigerator Ice Bin Backorder WPL WPW10324088 $218.52

1

Liner (Not A Seviceable Part) WPL ARI154558A Contact Us For Availability

1

Door, Left (Black) WPL 12978040BQ Contact Us For Availability

1

Door, Left (Stainless) WPL 12978040SQ Contact Us For Availability

1

Door, Left (White) WPL 12978040WQ Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI154556A Contact Us For Availability

1

Freezer Door (Black) WPL 12977803BQ Contact Us For Availability

1

Freezer Door (Stainless) WPL 12977803SQ Contact Us For Availability

1

Freezer Door (White) WPL 12977803WQ Contact Us For Availability

2

W10121282 Whirlpool Refrigerator Insert Backorder WPL W10121282 $10.16

2

W11415785 Whirlpool Refrigerator Water Fill T In Stock WPL W11415785 $40.44

2

WPW10175514 Whirlpool Refrigerator Shut-Off A Backorder WPL WPW10175514 $44.85

2

WPW10314515 Whirlpool Refrigerator Handle Backorder WPL WPW10314515 $122.50

2

WPW10314517K Whirlpool Refrigerator Handle Backorder WPL WPW10314517K $120.76

2

Handle, Door (Black) WPL W10119643 Contact Us For Availability

2

Module, Light WPL 67006328 Contact Us For Availability

3

W10121281 Whirlpool Refrigerator Shroud Backorder WPL W10121281 $27.52

3

WP67003637 Whirlpool Dairy Door In Stock WPL WP67003637 $43.90

3

WPW10330991 Whirlpool Refrigerator Bracket In Stock WPL WPW10330991 $42.30

3

WPW10330994 Whirlpool Refrigerator Bracket Backorder WPL WPW10330994 $56.22

3

Board, L.V. WPL 13053103SP Contact Us For Availability

3

Foil, Light WPL 67006326 Contact Us For Availability

4

12921801 Whirlpool Refrigerator Light Cover Backorder WPL 12921801 $10.76

4

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $48.97

4

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $3.70

4

WPW10162697 Whirlpool Refrigerator Motor Backorder WPL WPW10162697 $113.74

4

WPW10436253 Whirlpool Refrigerator Black Free In Stock WPL WPW10436253 $144.09

4

WPW10443321 Whirlpool Door Gasket In Stock WPL WPW10443321 $126.50

4

WPW10714545 Whirlpool Refrigerator Freezer Do In Stock WPL WPW10714545 $101.59

5

W10555984 Whirlpool Refrigerator Grille Backorder WPL W10555984 $14.60

5

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $11.31

5

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

5

WPW10123444K Whirlpool Refrigerator Wheel Backorder WPL WPW10123444K $31.92

5

WPW10451453 Whirlpool Refrigerator Cantilever Backorder WPL WPW10451453 $48.79

6

W10165970 Whirlpool Refrigerator Clip Backorder WPL W10165970 $30.25

6

W10191141 Whirlpool Refrigerator Tube Cover Backorder WPL W10191141 $8.88

6

W11311945 Whirlpool Refrigerator Screw Backorder WPL W11311945 $9.59

6

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $14.86

6

Bin, Lower WPL 67006981 Contact Us For Availability

7

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $8.86

7

67006295 Whirlpool Refrigerator Target Ring Backorder WPL 67006295 $32.63

7

67006901 Whirlpool Refrigerator Screw Backorder WPL 67006901 $2.51

7

W10187469 Whirlpool Refrigerator Bracket Backorder WPL W10187469 $30.25

7

Grommet, Fan Motor WPL W10151687 Contact Us For Availability

7

Cover, Light WPL 67006318 Contact Us For Availability

8

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $45.48

8

W10184227 Whirlpool Refrigerator Freezer Bin Backorder WPL W10184227 $66.57

8

W10830055 Whirlpool Refrigerator Door Gasket In Stock WPL W10830055 $124.35

8

W11378944 Whirlpool Door Gasket In Stock WPL W11378944 $85.54

8

W11396037 Whirlpool Door Gasket In Stock WPL W11396037 $108.48

8

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

8

Facade, Dispenser (Black) WPL W10184486 Contact Us For Availability

8

Divider, Ice Box WPL W10187440 Contact Us For Availability

9

67002329 Whirlpool Refrigerator Pantry Gasket Backorder WPL 67002329 $10.76

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.89

9

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

9

WP67006113 Whirlpool Stud Bolt In Stock WPL WP67006113 $5.00

9

WP67006341 Whirlpool Refrigerator Gasket In Stock WPL WP67006341 $3.70

67006342 Whirlpool Refrigerator Auger Motor Backorder WPL 67006342 $148.01

W10184223 Whirlpool Refrigerator Bracket Backorder WPL W10184223 $40.19

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $4.58

W11592374 Whirlpool Refrigerator Top Door Hin In Stock WPL W11592374 $10.07

WPW10121440 Whirlpool Refrigerator Extension Backorder WPL WPW10121440 $30.25

Grille, Sump WPL W10187370 Contact Us For Availability

Heater, Defrost WPL W10162932 Contact Us For Availability

Housing, Light WPL 67001035 Contact Us For Availability

12962106 Whirlpool Refrigerator Waterline Doo Backorder WPL 12962106 $82.54

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10170831 Whirlpool Refrigerator Pad Backorder WPL W10170831 $36.00

W10170832 Whirlpool Refrigerator Pad Backorder WPL W10170832 $36.71

W10235358 Whirlpool Refrigerator Glide Backorder WPL W10235358 $142.79

WPW10127427 Whirlpool Refrigerator Control In Stock WPL WPW10127427 $65.37

WPW10185233 Whirlpool Refrigerator Pad In Stock WPL WPW10185233 $36.71

Cover, Water Tank (Upper) WPL 67006330 Contact Us For Availability

Cover, Evap WPL 67006383 Contact Us For Availability

67006344 Whirlpool Refrigerator Solenoid Backorder WPL 67006344 $93.52

WP67003793 Whirlpool Refrigerator Temperature Backorder WPL WP67003793 $28.31

WP67006331 Whirlpool Refrigerator Water Filte In Stock WPL WP67006331 $61.58

WPW10235368 Whirlpool Refrigerator Glide Backorder WPL WPW10235368 $134.64

WPW10451454 Whirlpool Refrigerator Cantilever Backorder WPL WPW10451454 $50.95

67006329 Whirlpool Refrigerator Lower Water T Backorder WPL 67006329 $87.48

W10826790 Whirlpool Refrigerator Retainer Backorder WPL W10826790 $29.92

W10826791 Whirlpool Refrigerator Retainer Backorder WPL W10826791 $29.92

W11676504 Whirlpool Insert Assembly Backorder WPL W11676504 $12.77

WP2313326 Whirlpool Refrigerator Switch Backorder WPL WP2313326 $11.99

WPW10287601 Whirlpool Seal In Stock WPL WPW10287601 $14.38

EDR4RXD1 Whirlpool EveryDrop® Refrigerator W In Stock WPL EDR4RXD1 $55.44

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

WP12722813AP Whirlpool Refrigerator Mullion R Backorder WPL WP12722813AP $119.08

WP12722813W Whirlpool Refrigerator Mullion Ra Backorder WPL WP12722813W $117.12

WP67006387 Whirlpool Refrigerator Thermostat In Stock WPL WP67006387 $38.96

WPW10121269 Whirlpool Refrigerator Air Baffle Backorder WPL WPW10121269 $30.25

WPW10151713 Whirlpool Refrigerator Mullion Ra Backorder WPL WPW10151713 $123.51

WPW10235370 Whirlpool Refrigerator Glide Backorder WPL WPW10235370 $113.76

Module, Freezer Light WPL 67006423 Contact Us For Availability

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $10.76

67006325 Whirlpool Filter Base Bracket In Stock WPL 67006325 $44.07

67007111 Whirlpool Refrigerator Spring Bracke Backorder WPL 67007111 $10.76

W10187453 Whirlpool Refrigerator Bin Backorder WPL W10187453 $35.32

W11712696 Whirlpool Clip Backorder WPL W11712696 $6.62

Harness, Icemaker WPL W10123395 Contact Us For Availability

Divider, Upper Bin WPL 67006373 Contact Us For Availability

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $22.72

12820504 Whirlpool Refrigerator Insulation Backorder WPL 12820504 $26.48

67006346 Whirlpool Refrigerator Washer Backorder WPL 67006346 $9.24

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

W11445850 Whirlpool Door Switch In Stock WPL W11445850 $19.64

WP12028505AP Whirlpool Closing Cam In Stock WPL WP12028505AP $29.12

WP67003638 Whirlpool Closing Cam In Stock WPL WP67003638 $3.70

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $29.21

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $29.10

67006324 Whirlpool Refrigerator Bracket Backorder WPL 67006324 $11.29

W11703060 Whirlpool Door Stop Backorder WPL W11703060 $5.38

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.07

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.51

WPW10143396 Whirlpool Refrigerator Crisper Pa Backorder WPL WPW10143396 $148.61

Yoke, Ice Dispenser WPL 630521 Contact Us For Availability

W11592375 Whirlpool Door Hinge Backorder WPL W11592375 $10.07

WP12956202 Whirlpool Refrigerator Reservoir In Stock WPL WP12956202 $138.45

WP3400805 Whirlpool Screw Assembly Backorder WPL WP3400805 $2.51

Bucket, Dispenser (Lower) WPL W10187454 Contact Us For Availability

Yoke, Solenoid WPL 67006347 Contact Us For Availability

12996601 Whirlpool Refrigerator Bushing Clip Backorder WPL 12996601 $6.92

67006348 Whirlpool Refrigerator Spring Backorder WPL 67006348 $7.89

W11658403 Whirlpool Slides In Stock WPL W11658403 $78.63

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

Plug, Bypass WPL 12664501 Contact Us For Availability

67006322 Whirlpool Refrigerator Dual Water Va In Stock WPL 67006322 $90.27

W11451451 Whirlpool Refrigerator Gasket Backorder WPL W11451451 $4.85

WPW10121434 Whirlpool Refrigerator Insert Backorder WPL WPW10121434 $9.86

Foil, Ice Box WPL W10142628 Contact Us For Availability

12999501 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999501 $35.59

12999502 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999502 $36.00

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $3.70

Adapter (Left) WPL W10184173 Contact Us For Availability

Adapter (Right) WPL W10184175 Contact Us For Availability

Cover, Ice Box Harness WPL 12960403SP Contact Us For Availability

W11176847 Whirlpool Refrigerator Grille Backorder WPL W11176847 $45.13

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $34.73

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $37.53

WPW10534155 Whirlpool Refrigerator Gray Kickp In Stock WPL WPW10534155 $42.11

Grille, Toe (Black) WPL W10131134 Contact Us For Availability

Nameplate (Stainless) WPL W10046610 Contact Us For Availability

Grille, Toe (White) WPL W10131133 Contact Us For Availability

12987301 Whirlpool Refrigerator Cover Backorder WPL 12987301 $7.91

67006428 Whirlpool Refrigerator Lid, High Vol Backorder WPL 67006428 $27.52

W11700329 Whirlpool Evaporator Shroud Backorder WPL W11700329 $20.24

Door, Right (Black) WPL 12978017BQ Contact Us For Availability

Door, Right (White) WPL 12978017WQ Contact Us For Availability

Door, Right (Stainless) WPL 12978039SQ Contact Us For Availability

67006442 Whirlpool Refrigerator Center Hinge Backorder WPL 67006442 $51.88

W10917988 Whirlpool Refrigerator Door Hinge Backorder WPL W10917988 $37.30

W10918113 Whirlpool Refrigerator Door Hinge Backorder WPL W10918113 $41.43

WP67006337 Whirlpool Refrigerator Fan Blade In Stock WPL WP67006337 $47.51

Waterline, Cabinet (W/Nut) WPL 67006970 Contact Us For Availability

W10118193 Whirlpool Refrigerator Cover Backorder WPL W10118193 $30.25

W11673433 Whirlpool Clip Backorder WPL W11673433 $62.75

W11676465 Whirlpool Grommet Backorder WPL W11676465 $5.38

W11686675 Whirlpool Screw Backorder WPL W11686675 $8.11

W10118194 Whirlpool Refrigerator Cover Backorder WPL W10118194 $30.25

W10850438 Whirlpool Refrigerator Evaporator M In Stock WPL W10850438 $160.43

WPW10515762 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515762 $37.39

WPW10515763 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515763 $37.73

27

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $29.08

27

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $3.70

27

Cover, Water Valve WPL 67006426 Contact Us For Availability

28

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

28

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.72

29

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $3.70

29

Gasket, HV Control WPL 67006429 Contact Us For Availability

30

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

30

Cover, MC Back WPL 12575101ED Contact Us For Availability

31

W10164397 Whirlpool Refrigerator Drain Tube Backorder WPL W10164397 $8.73

31

WP67005930 Whirlpool Refrigerator Pantry Draw In Stock WPL WP67005930 $48.40

32

Clip, Drain Tube WPL W10157973 Contact Us For Availability

33

67003796 Whirlpool Refrigerator Fiber Acousti Backorder WPL 67003796 $10.76

34

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $3.88

35

WPW10310240-includeCORE Whirlpool WPW10310240 Backorder WPL WPW10310240-includeCORE $273.76

36

Cabinet (Not WPL ARI154555A Contact Us For Availability

37

67005958 Whirlpool Refrigerator Top Hinge Cov In Stock WPL 67005958 $12.02

37

WP67005956 Whirlpool Refrigerator Cover Backorder WPL WP67005956 $12.06

37

WPW10191117 Whirlpool Refrigerator Cover Backorder WPL WPW10191117 $11.03

38

67006434 Whirlpool Axle Pin In Stock WPL 67006434 $3.70
