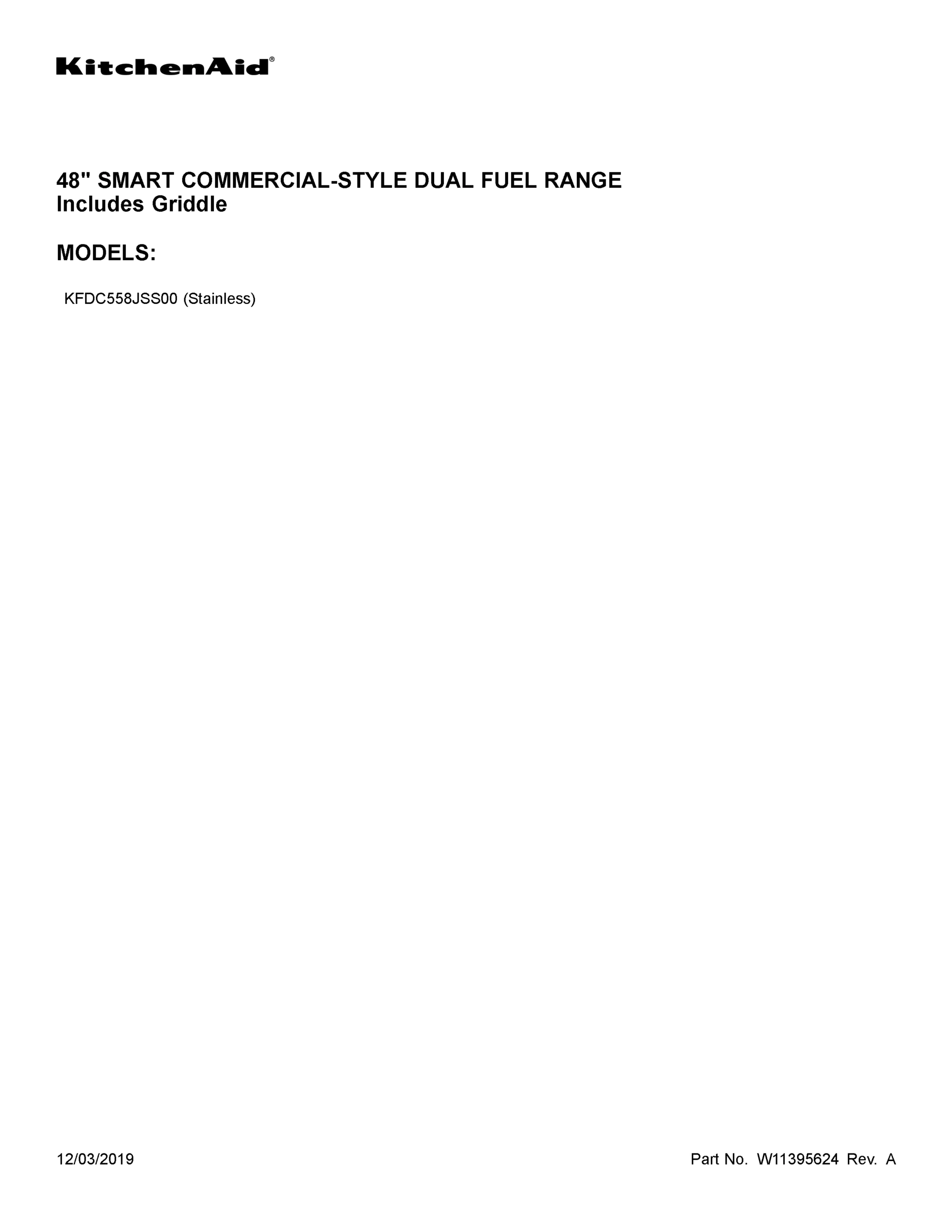

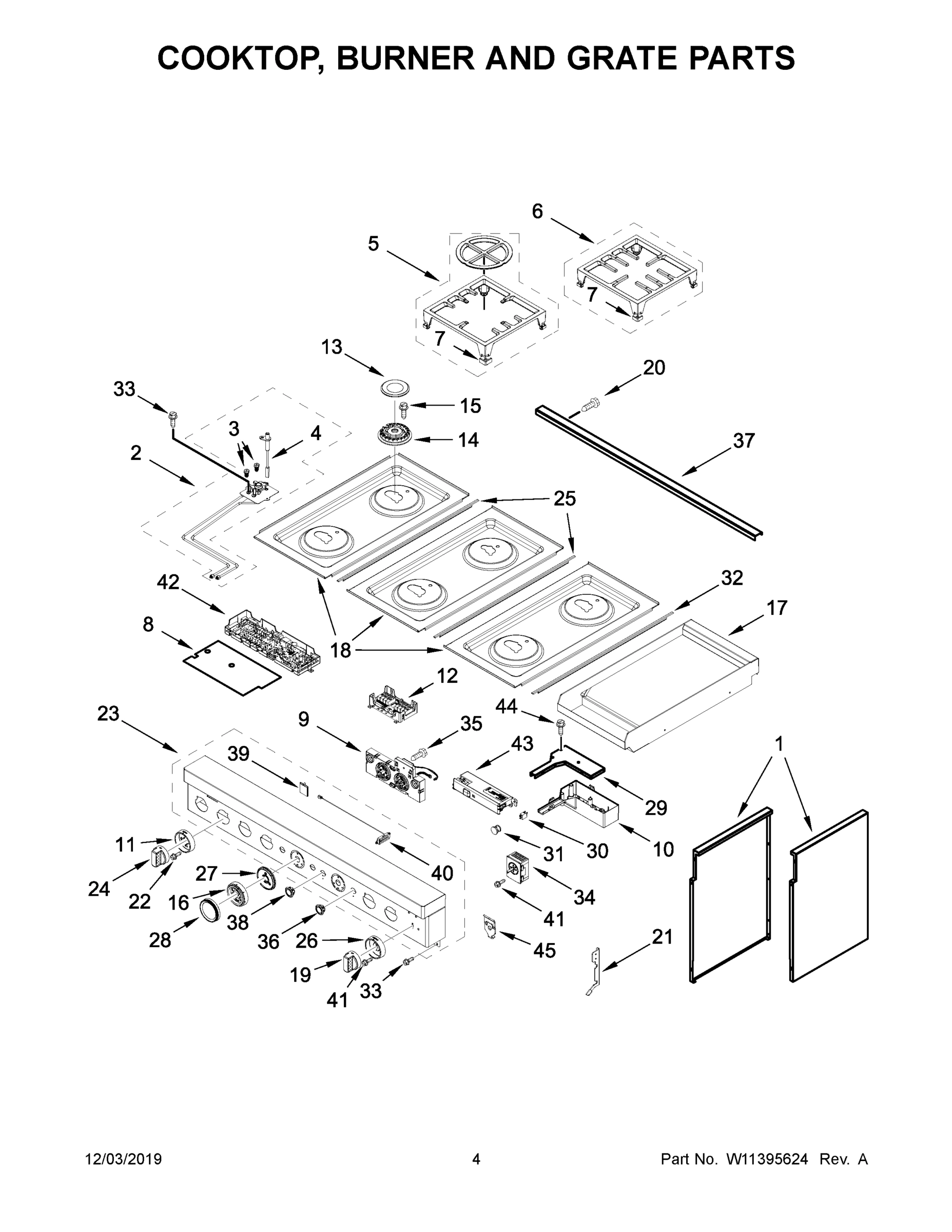

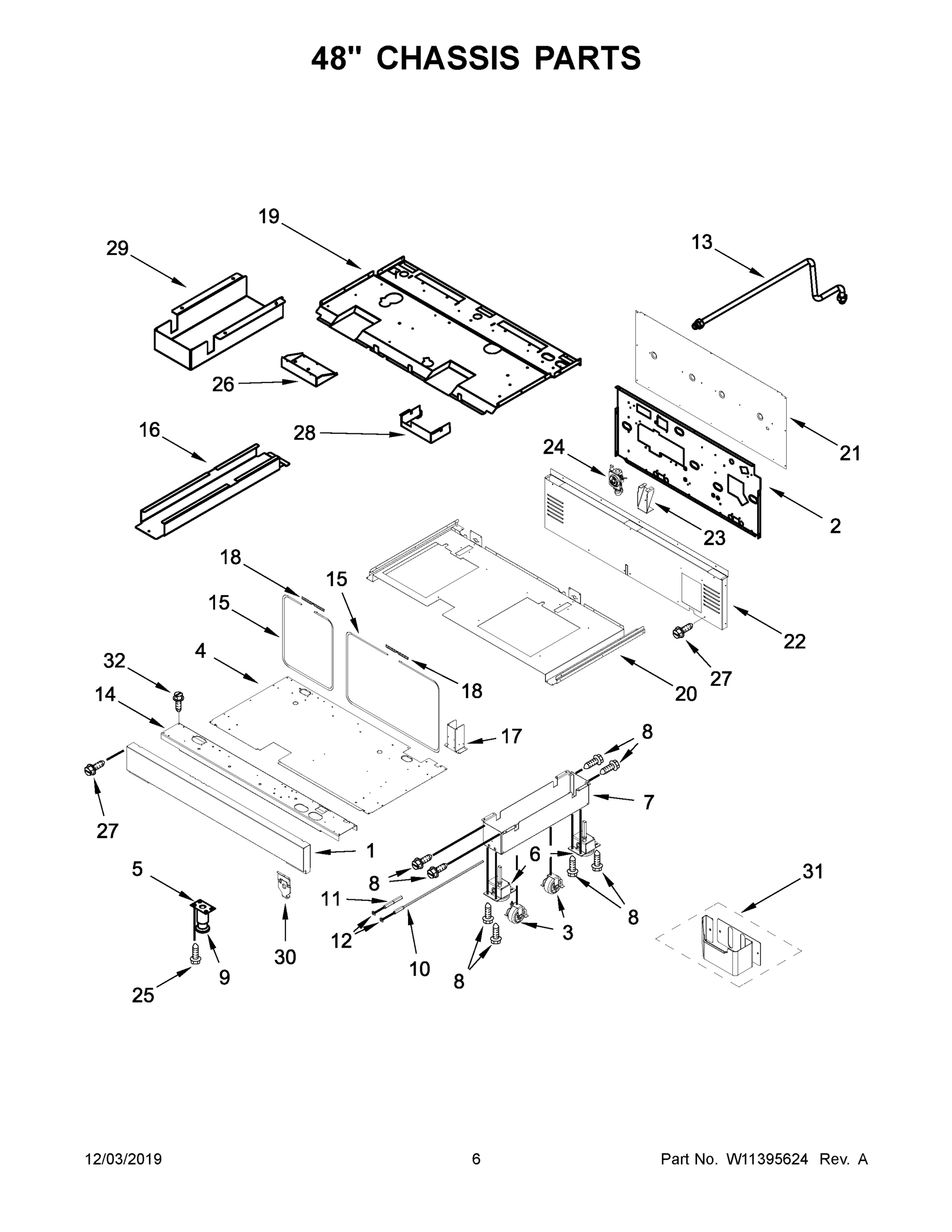

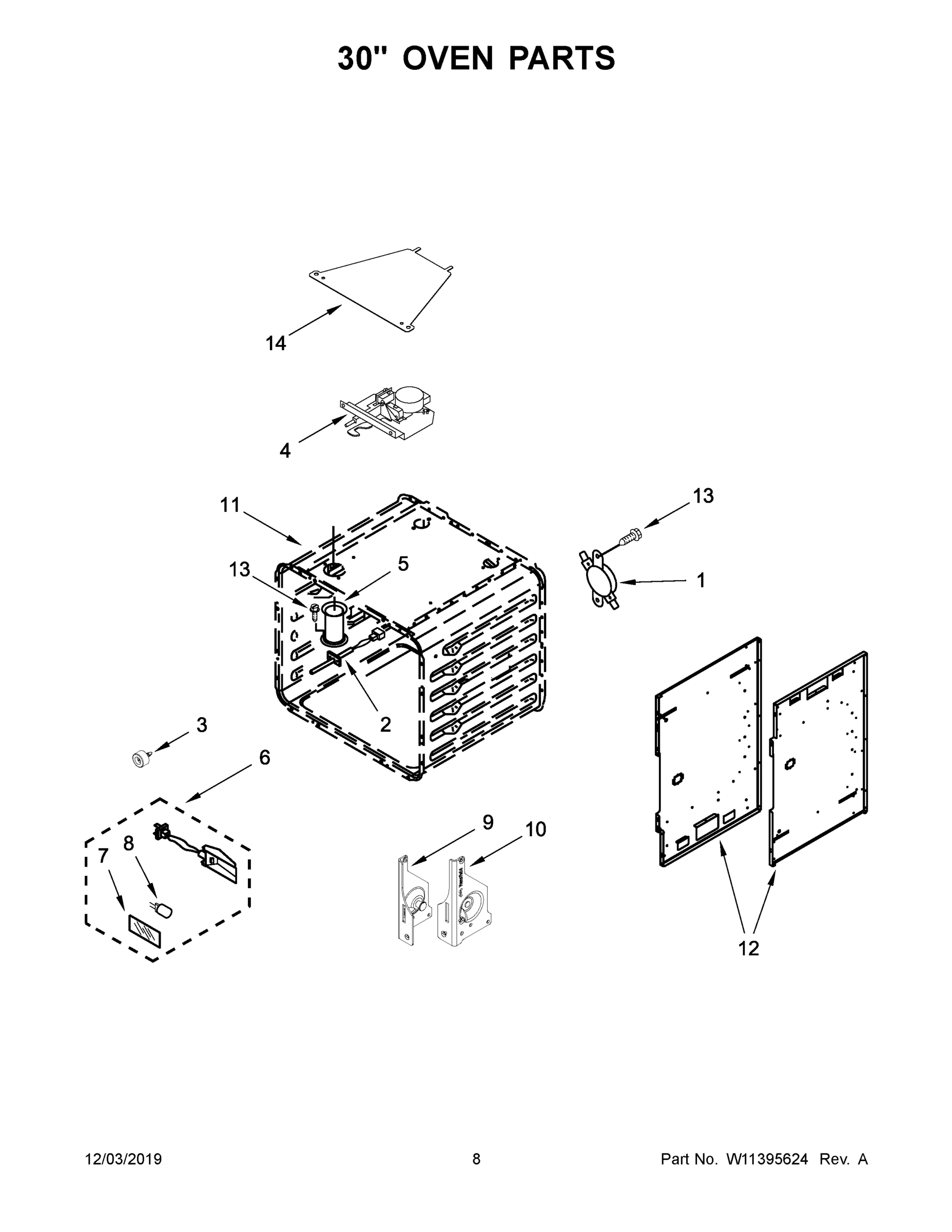

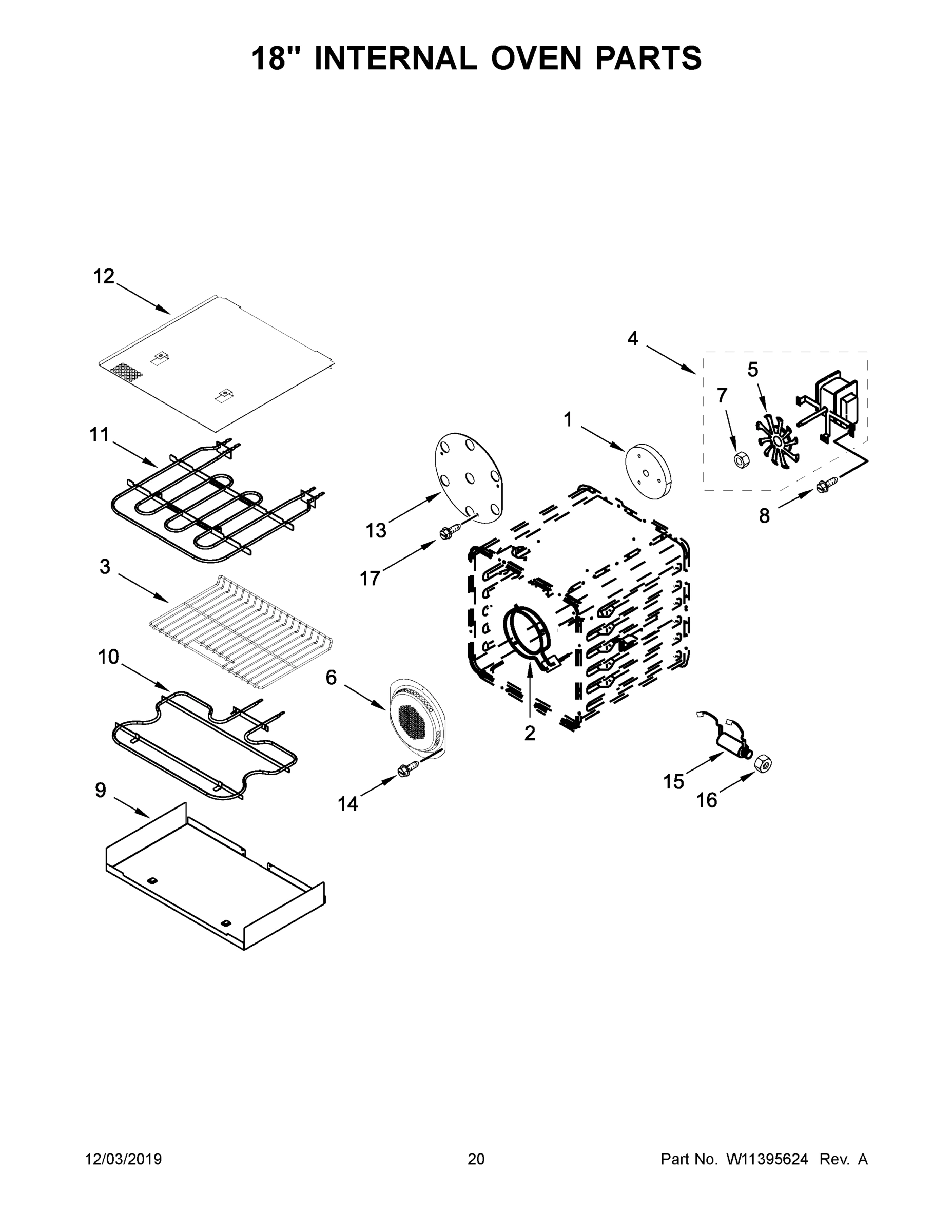

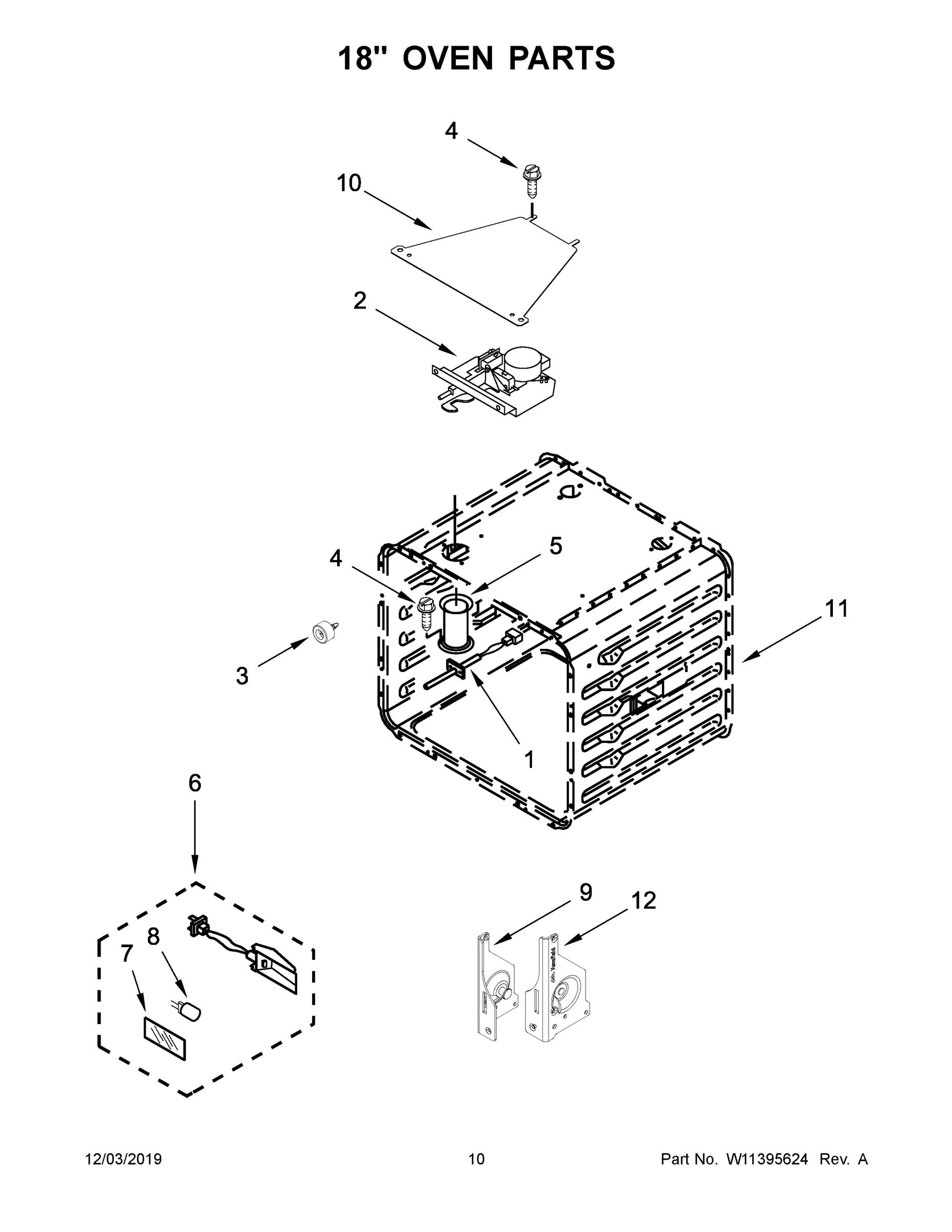

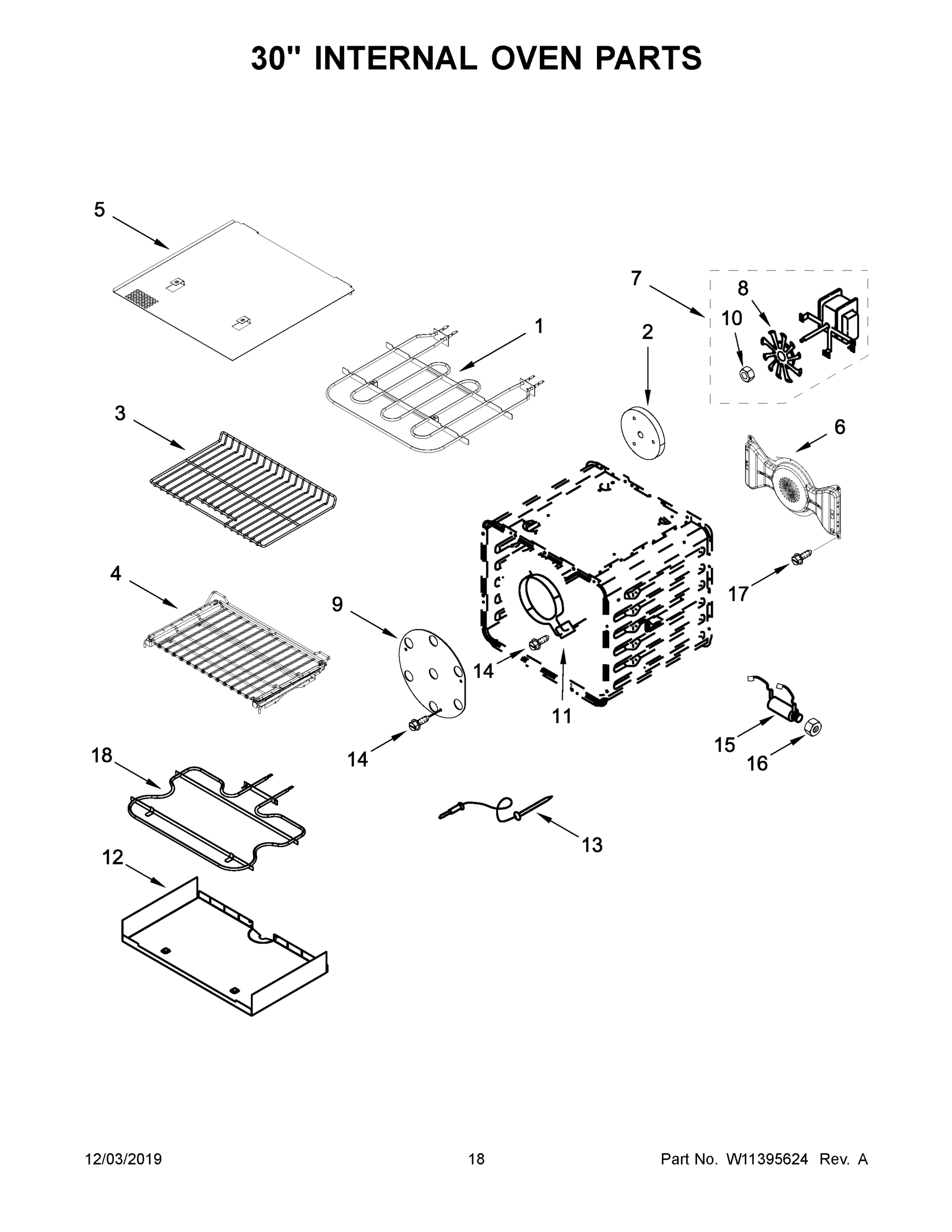

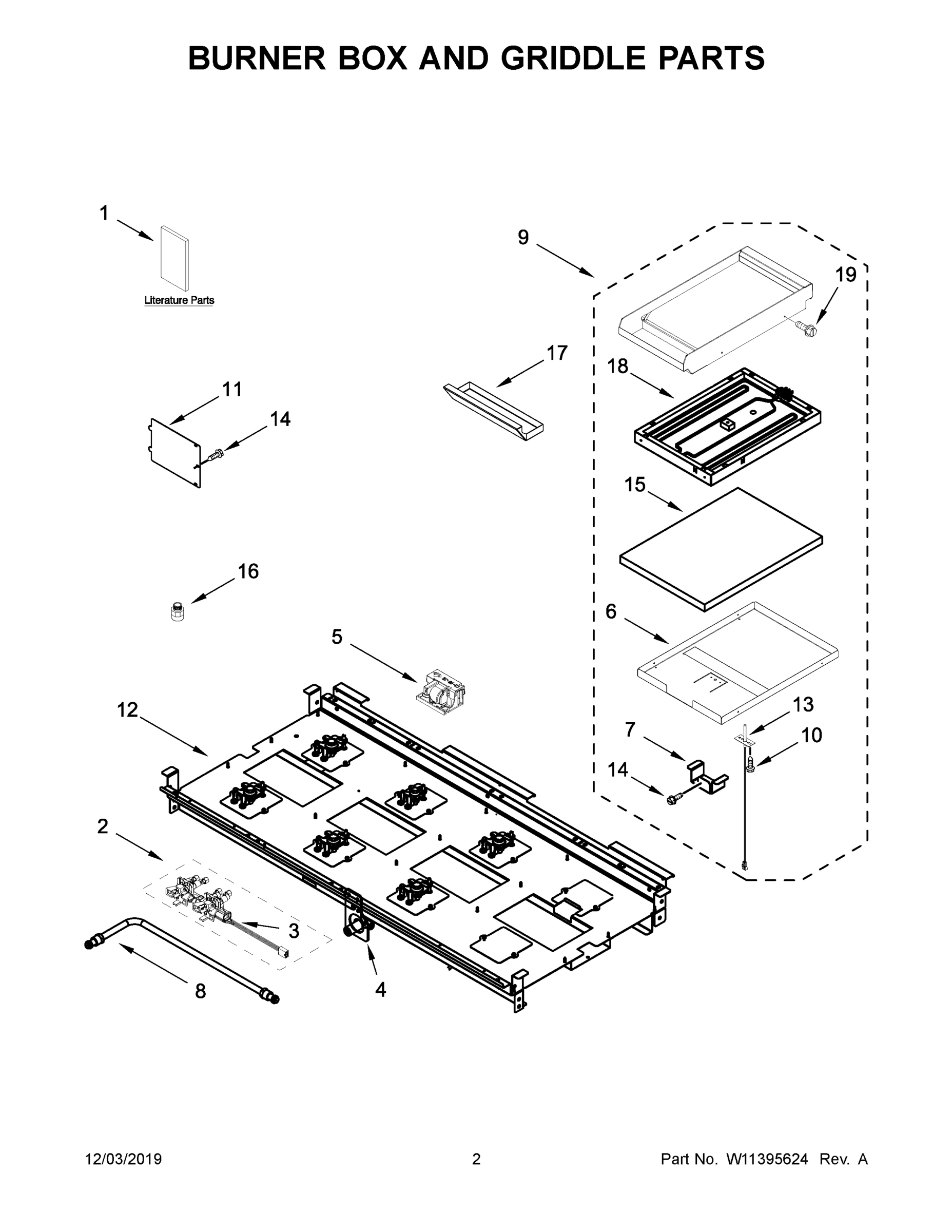

Model Whirlpool KFDC558JSS00 RANGE/OVEN, DUAL FUEL, COMMERCIAL-STYLE, 48 INCH – Common Parts &amp; Diagrams

1

W11318831 Whirlpool Glass Frame Backorder WPL W11318831 $122.09

1

W11321067 Whirlpool Complete Side Assembly Backorder WPL W11321067 $199.83

1

W11400495 Whirlpool Cover Plate Backorder WPL W11400495 $197.31

1

WP4449751 Whirlpool Range Oven Thermostat Fix In Stock WPL WP4449751 $75.89

1A

W11320596 Whirlpool Side Assembly In Stock WPL W11320596 $188.64

2

W10859573 Whirlpool Range Oven Temperature Se In Stock WPL W10859573 $68.99

2

W11333305 Whirlpool Holder Orifice Backorder WPL W11333305 $39.64

2

W11688507 Whirlpool Insulation Backorder WPL W11688507 $9.10

2

INSULATION, DOOR WPL W10321285 Contact Us For Availability

2

BACK, CHASSIS WPL W11324987 Contact Us For Availability

2A

W11384764 Whirlpool Range Orifice Holder Backorder WPL W11384764 $39.64

2B

W11398670 Whirlpool Orifice Holder Backorder WPL W11398670 $39.64

2C

W11398674 Whirlpool Orifice Holder Backorder WPL W11398674 $39.64

2D

W11319743 Whirlpool Range Orifice Holder In Stock WPL W11319743 $39.64

2E

W11398676 Whirlpool Orifice Holder Backorder WPL W11398676 $39.64

3

W10570879 Whirlpool Range Rack Assembly Backorder WPL W10570879 $67.64

3

W11318823 Whirlpool Door Glass Backorder WPL W11318823 $57.67

3

W11550107 Whirlpool Oven Rack Backorder WPL W11550107 $56.40

3

W11643164 Whirlpool Orifice Spud Backorder WPL W11643164 $34.59

3

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $15.79

3

WPW10351278 Whirlpool Bumper Backorder WPL WPW10351278 $3.70

3A

W11672510 Whirlpool Spud Orifice Backorder WPL W11672510 $34.57

3B

W11661909 Whirlpool Range Orifice Spud Backorder WPL W11661909 $34.57

3C

W10892438 Whirlpool Orifice Spud Backorder WPL W10892438 $37.39

4

W11029221 Whirlpool Door Latch In Stock WPL W11029221 $109.81

4

W11320536 Whirlpool Duct Backorder WPL W11320536 $116.89

4

W11496977 Whirlpool Range Rack Backorder WPL W11496977 $209.37

4

W11573760 Whirlpool Surface Igniter In Stock WPL W11573760 $7.61

4

RETAINER, GLASS WPL W11194821 Contact Us For Availability

4A

W11114379 Whirlpool Appliance Surface Igniter Backorder WPL W11114379 $23.46

4B

W11628654 Whirlpool Surface Igniter Backorder WPL W11628654 $18.68

5

W10819914 Whirlpool Convection Fan Backorder WPL W10819914 $33.96

5

W11380124 Whirlpool Burner Grate In Stock WPL W11380124 $99.69

5

W11643630 Whirlpool Door Hinge Backorder WPL W11643630 $75.77

5

W11643896 Whirlpool Appliance Door Hinge In Stock WPL W11643896 $70.61

5

WP9759118 Whirlpool Mounting Plate Backorder WPL WP9759118 $29.99

5

SHIELD, ELEMENT BROIL WPL W10160856 Contact Us For Availability

5

TUBE, VENT WPL W11290663 Contact Us For Availability

6

W10859931 Whirlpool Foot Level Backorder WPL W10859931 $43.97

6

W11233684 Whirlpool Range Light Assembly Backorder WPL W11233684 $34.99

6

W11380128 Whirlpool Burner Grate Backorder WPL W11380128 $99.69

6

W11643898 Whirlpool Door Hinge Backorder WPL W11643898 $46.26

6

W11643900 Whirlpool Door Hinge In Stock WPL W11643900 $46.26

6

W11662207 Whirlpool Convection Baffle Backorder WPL W11662207 $57.18

6

COVER, FAN WPL W11211948 Contact Us For Availability

7

W10169756 Whirlpool Light Lens Backorder WPL W10169756 $26.48

7

W10794042 Whirlpool Nut Backorder WPL W10794042 $5.29

7

W10860984 Whirlpool Fan Motor In Stock WPL W10860984 $74.69

7

W10908710 Whirlpool Mounting Bracket Backorder WPL W10908710 $75.57

7

W11550692 Whirlpool Bumper In Stock WPL W11550692 $6.73

7

WPW10272594 Whirlpool Window Frame Backorder WPL WPW10272594 $66.39

8

W11320149 Whirlpool Insulator Backorder WPL W11320149 $66.93

8

W11712404 Whirlpool Screw Backorder WPL W11712404 $8.11

8

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

8

WPW10169757 Whirlpool Light Bulb In Stock WPL WPW10169757 $27.72

9

W10162096 Whirlpool Screw Backorder WPL W10162096 $9.59

9

W10270397 Whirlpool Vent Seal Backorder WPL W10270397 $12.11

9

W11400494-includeCORE Whirlpool W11400494 Ran Backorder WPL W11400494-includeCORE $274.60

9

WP9759117 Whirlpool Leveling Foot Backorder WPL WP9759117 $60.62

9

TRAY, HIDDEN BAKE WPL W11110223 Contact Us For Availability

9

RECEIVER, HINGE (LEFT) WPL W11096294 Contact Us For Availability

W10115869 Whirlpool Shaft Backorder WPL W10115869 $41.50

W11400261 Whirlpool Door Glass Backorder WPL W11400261 $512.81

ELEMENT, HIDDEN BAKE WPL W11045324 Contact Us For Availability

COVER, WIFI OUTER WPL W11205795 Contact Us For Availability

RECEIVER, HINGE (RIGHT) WPL W11096293 Contact Us For Availability

W10115793 Whirlpool Shaft Backorder WPL W10115793 $32.08

W10116010 Whirlpool Broil Element Backorder WPL W10116010 $53.11

W11380146 Whirlpool Knob Bezel Backorder WPL W11380146 $32.04

W11384735 Whirlpool Door Handle Backorder WPL W11384735 $119.92

W11643125 Whirlpool Element Backorder WPL W11643125 $44.43

WP9761958 Whirlpool Range Terminal Block In Stock WPL WP9761958 $13.67

11A

W11380145 Whirlpool Knob Bezel In Stock WPL W11380145 $32.04

489504 Whirlpool Range Ring Backorder WPL 489504 $4.85

W10160855 Whirlpool Heat Shield Backorder WPL W10160855 $55.93

W11320145 Whirlpool Cabinet Panel Backorder WPL W11320145 $118.44

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

BRACKET, HANDLE WPL W11197830 Contact Us For Availability

TRAY, HIDDEN BAKE WPL W11109421 Contact Us For Availability

12A

CHASSIS, SIDE (RIGHT) WPL W11102296 Contact Us For Availability

W10261523 Whirlpool Plate Backorder WPL W10261523 $25.82

W10839793 Whirlpool Refrigerator Nameplate In Stock WPL W10839793 $22.77

W11320154 Whirlpool Range Gas Tubing Backorder WPL W11320154 $63.60

W11344538 Whirlpool Surface Burner Cap In Stock WPL W11344538 $83.08

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $55.46

SCREW WPL 7101P42660 Contact Us For Availability

W10160858 Whirlpool Lid Cover Backorder WPL W10160858 $26.21

W11344539 Whirlpool Burner Head In Stock WPL W11344539 $43.70

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

WPW10276043 Whirlpool Screw Backorder WPL WPW10276043 $2.51

SCREW WPL W10739592 Contact Us For Availability

SUPPORT, CHANNEL WPL W11369238 Contact Us For Availability

14A

W11344742 Whirlpool Burner Head In Stock WPL W11344742 $46.32

14B

W11344746 Whirlpool Burner Head Backorder WPL W11344746 $46.32

8186589 Whirlpool Jack Probe In Stock WPL 8186589 $60.42

W11193480 Whirlpool Screw Backorder WPL W11193480 $9.59

W11643628 Whirlpool Screw In Stock WPL W11643628 $9.59

W11675844 Whirlpool Oven Gasket In Stock WPL W11675844 $25.44

15A

W11115326 Whirlpool Gasket Backorder WPL W11115326 $108.27

15A

W11678580 Whirlpool Screw In Stock WPL W11678580 $8.11

4453116 Whirlpool Range Adapter Backorder WPL 4453116 $68.92

W11050145 Whirlpool HVAC Air Duct Backorder WPL W11050145 $58.75

W11231343 Whirlpool Lock Nut Backorder WPL W11231343 $9.59

W11368841RE Whirlpool Range Commercial-Style Backorder WPL W11368841RE $83.26

W11567541 Whirlpool Knob Backorder WPL W11567541 $71.77

W10115819 Whirlpool Brace Backorder WPL W10115819 $26.21

W10276497 Whirlpool Drip Tray Backorder WPL W10276497 $189.27

W10850807 Whirlpool Screw Backorder WPL W10850807 $2.51

W10920281 Whirlpool Screw Backorder WPL W10920281 $2.95

18

ELEMENT, HIDDEN BAKE WPL W10115995 No Longer Available

18

W11344755 Whirlpool Cooktop Backorder WPL W11344755 $60.09

18

W11362015 Whirlpool Retainer Backorder WPL W11362015 $57.47

18A

W11344757 Whirlpool Cooktop Backorder WPL W11344757 $60.09

18B

W11392645 Whirlpool Cooktop Backorder WPL W11392645 $171.65

19

W11392643 Whirlpool Knob Backorder WPL W11392643 $41.30

19

TOP, CHASSIS WPL W11324984 Contact Us For Availability

20

CHASSIS, BOTTOM WPL W11040800 Contact Us For Availability

20

WPL 7101P33860 WPL 7101P33860 Contact Us For Availability

21

W10130760 Whirlpool Bracket Mounting Backorder WPL W10130760 $26.21

21

PANEL, BACK TOP WPL W11103335 Contact Us For Availability

21A

W10130759 Whirlpool Mounting Bracket Backorder WPL W10130759 $26.21

22

W11674763 Whirlpool Screw Backorder WPL W11674763 $8.11

22

PANEL, BACK BOTTOM WPL W11034123 Contact Us For Availability

23

W11320155 Whirlpool Mounting Bracket Backorder WPL W11320155 $39.36

23

W11402036 Whirlpool Control Panel Backorder WPL W11402036 $308.09

24

W11106948 Whirlpool Pressure Regulator In Stock WPL W11106948 $108.40

24

W11380561 Whirlpool Knob Backorder WPL W11380561 $41.30

24A

W11380562 Whirlpool Knob Assembly Backorder WPL W11380562 $41.30

25

3400518 Whirlpool Oven Foot Mount Screw Backorder WPL 3400518 $9.13

25

W10271524 Whirlpool Trim Top Backorder WPL W10271524 $88.85

26

W11388057 Whirlpool Knob Bezel Backorder WPL W11388057 $39.35

26

DRAWER, APPLIANCE MANAGER WPL W11106341 Contact Us For Availability

27

WPL W10913810 WPL W10913810 Contact Us For Availability

28

W11385692 Whirlpool Knob Backorder WPL W11385692 $75.86

28

CABINET, APPLIANCE MANAGER WPL W11369237 Contact Us For Availability

29

CHANNEL, WIRE WPL W11368831 Contact Us For Availability

29

WPL W11205794 WPL W11205794 Contact Us For Availability

30

W10116114 Whirlpool Indicator Light Backorder WPL W10116114 $31.66

31

W10294500 Whirlpool Light Lens Backorder WPL W10294500 $4.85

31

W11199181 Whirlpool Foot Cover Backorder WPL W11199181 $54.37

31A

W11199178 Whirlpool Foot Cover Assembly Backorder WPL W11199178 $54.37

32

W10291193 Whirlpool Trim Top Backorder WPL W10291193 $57.11

32

W11169708 Whirlpool Screw Backorder WPL W11169708 $9.59

34

W11318834 Whirlpool Infinite Heat Switch Backorder WPL W11318834 $116.16

35

WP3400814 Whirlpool Screw Backorder WPL WP3400814 $2.91

36

W11241510 Whirlpool Push Button Backorder WPL W11241510 $25.40

37

WPL W11156418 WPL W11156418 Contact Us For Availability

38

W11241511 Whirlpool Push Button Backorder WPL W11241511 $24.16

39

W10896366 Whirlpool Light Indicator Backorder WPL W10896366 $39.51

40

W11318855 Whirlpool Antenna Backorder WPL W11318855 $107.97

41

W10674068 Whirlpool Screw Backorder WPL W10674068 $8.62

42

W11398684-includeCORE Whirlpool W11398684 Ran Backorder WPL W11398684-includeCORE $237.68

43

W11234290 Whirlpool Electronic Control Board Backorder WPL W11234290 $75.33

44

WPL 7101P62460 WPL 7101P62460 Contact Us For Availability

45

W11318207 Whirlpool Clip Assembly Backorder WPL W11318207 $4.61

W10123240 Whirlpool Broil Pan and Roasting Ra Backorder WPL W10123240 $72.40

W10160195 Whirlpool Cover Backorder WPL W10160195 $160.20

W10216179 Whirlpool Wok Ring In Stock WPL W10216179 $22.05

W10285449 Whirlpool Backsplash Backorder WPL W10285449 $484.00

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

W10780278 Whirlpool Wire Harness Backorder WPL W10780278 $41.63

W11200302 Whirlpool Wire Harness Backorder WPL W11200302 $156.20

W11317786 Whirlpool Wire Harness Backorder WPL W11317786 $83.28

W11317787 Whirlpool Wire Harness Backorder WPL W11317787 $75.77

W11317788 Whirlpool Wire Harness Backorder WPL W11317788 $66.70

W11317789 Whirlpool Wire Harness Backorder WPL W11317789 $107.97

W11317791 Whirlpool Wire Harness Backorder WPL W11317791 $75.77

W11368841BN Whirlpool Medallion Backorder WPL W11368841BN $88.69

W11368841NE Whirlpool Medallion Backorder WPL W11368841NE $131.86

W11368841SI Whirlpool Range Medallion Backorder WPL W11368841SI $134.94

W11502161 Whirlpool Conversion Kit In Stock WPL W11502161 $24.91

W11544575 Whirlpool Anti-Tip Bracket Backorder WPL W11544575 $19.47

WP3400968 Whirlpool Nut Backorder WPL WP3400968 $3.70

WP9759877 Whirlpool Retainer Backorder WPL WP9759877 $6.51

FOLLOWING PARTS NOT ILLUSTRATED WPL NP Contact Us For Availability

SCREW, ANTI-TIP KIT WPL 7101P48560 Contact Us For Availability

CORD, POWER WPL W11212216 Contact Us For Availability

ACCESSORY PARTS, STAINLESS STEEL CLEANER & PO WPL 4396920 Contact Us For Availability

ACCESSORY PARTS, BACKSPLASH (ADJUSTABLE) WPL 8284755 Contact Us For Availability

ACCESSORY PARTS, KIT, HIGH ALTITUDE WPL W11238043 Contact Us For Availability

ACCESSORY PARTS, MEDALLION, HANDLE (BLACK ANO WPL W11368841BO Contact Us For Availability

ACCESSORY PARTS, MEDALLION, HANDLE (DARK BLUE WPL W11368841DD Contact Us For Availability

ACCESSORY PARTS, MEDALLION, HANDLE (MARSCAPON WPL W11368841MP Contact Us For Availability

INSULATION, WRAP, 30" WPL W10282810 Contact Us For Availability

INSULATION, BACK, 30" WPL W10282818 Contact Us For Availability
