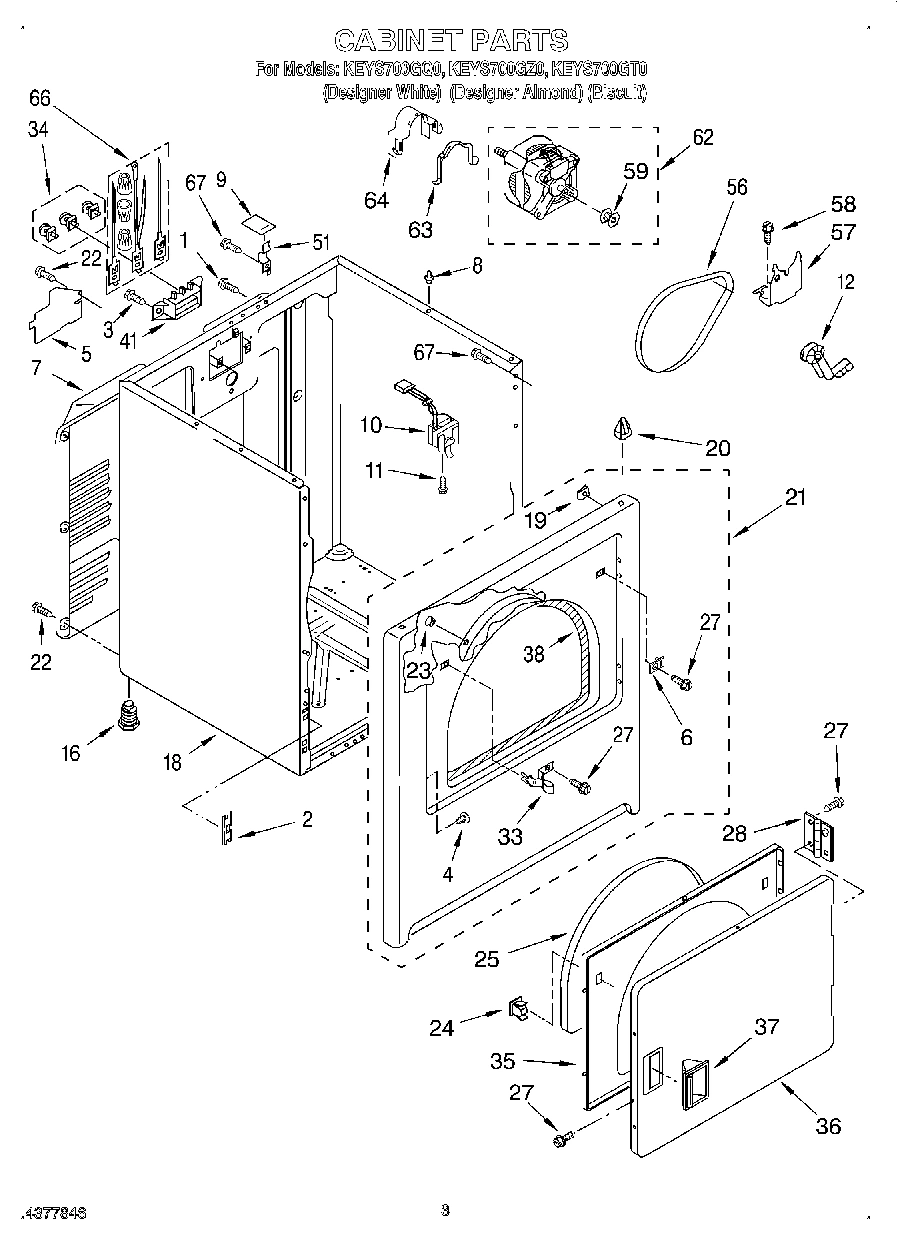

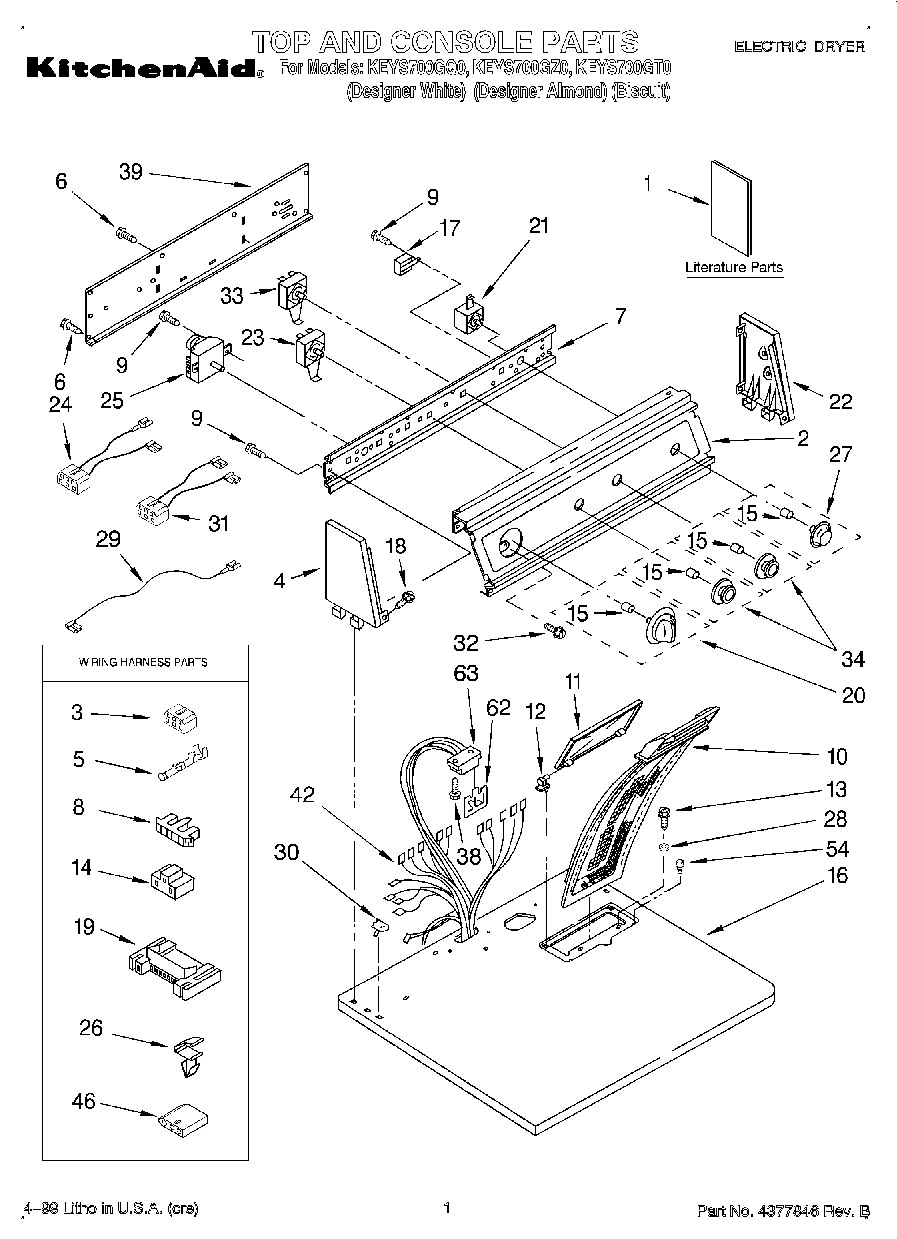

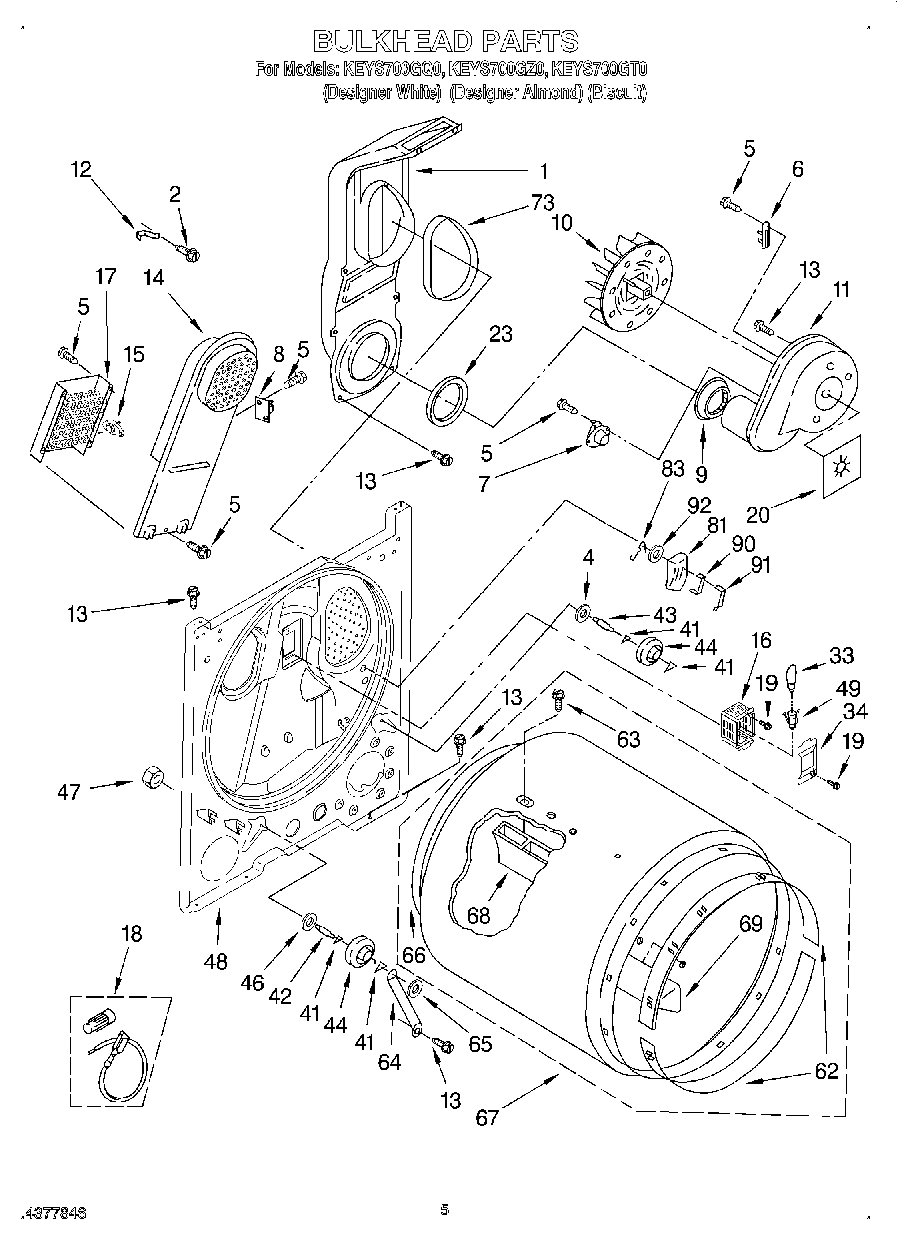

Model Whirlpool KEYS700GT0 ELECTRIC DRYER – Common Parts &amp; Diagrams

1

W11117429 Whirlpool Chute Assembly In Stock WPL W11117429 $66.93

2

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $6.50

2

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

3

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

4

WP3404413 Whirlpool Plug Backorder WPL WP3404413 $2.51

4

Plug, Hinge Hole (Almond) WPL 3404414 Contact Us For Availability

4

Plug, Hinge Hole (Biscuit) WPL 3404415 Contact Us For Availability

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $24.80

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

5

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

6

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67

6

WP3403630 Whirlpool Plug In Stock WPL WP3403630 $3.70

6

Plug, Strike Hole (Biscuit) WPL 3403632 Contact Us For Availability

7

280043 Whirlpool Rear Panel Backorder WPL 280043 $135.03

7

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $11.52

8

Connector, Timer WPL 3397269 Contact Us For Availability

8

Locator, Top WPL 98669 Contact Us For Availability

9

18849 Whirlpool Pad Backorder WPL 18849 $9.13

9

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

10

WP3406105 Whirlpool Door Switch In Stock WPL WP3406105 $12.11

10

WP349639 Whirlpool Lint Filter In Stock WPL WP349639 $19.80

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $17.39

11

WP3395530 Whirlpool Screw Backorder WPL WP3395530 $2.51

12

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.97

14

3401144 Whirlpool Connector Backorder WPL 3401144 $7.89

15

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

16

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.40

17

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $51.99

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

Cabinet (White) WPL 3399585 Contact Us For Availability

Cabinet (Almond) WPL 3399586 Contact Us For Availability

Cabinet (Biscuit (Includes Illus. Nos. 5, 7, WPL 3399595 Contact Us For Availability

19

3395683 Whirlpool Connector Backorder WPL 3395683 $33.67

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $11.20

20

Knob, Timer (White) WPL 3405299 Contact Us For Availability

20

Seal, Blower WPL 3394196 Contact Us For Availability

WP3398094 Whirlpool Push To Start Switch In Stock WPL WP3398094 $44.84

Panel, Front (White) WPL 3403444 Contact Us For Availability

Panel, Front (Almond) WPL 3403445 Contact Us For Availability

Panel, Front (Biscuit) WPL 8282481 Contact Us For Availability

22

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

23

279220 Whirlpool Clip In Stock WPL 279220 $11.93

23

W11415783 Whirlpool Seal In Stock WPL W11415783 $7.16

23

WP3399639 Whirlpool Switch In Stock WPL WP3399639 $33.03

24

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $2.36

24

3401695 Whirlpool Wire Harness Backorder WPL 3401695 $30.25

25

W10861521 Whirlpool Dryer Door Seal In Stock WPL W10861521 $47.81

25

WP3976570 Whirlpool Timer In Stock WPL WP3976570 $145.43

26

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

27

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

28

WPW10362431 Whirlpool Hinge Assembly Backorder WPL WPW10362431 $3.70

30

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

32

3400859 Whirlpool Screw Backorder WPL 3400859 $9.13

33

3399638 Whirlpool Switch Backorder WPL 3399638 $46.99

33

W11429589 Whirlpool Strike In Stock WPL W11429589 $9.48

34

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

35

WP3402341 Whirlpool Door Backorder WPL WP3402341 $80.69

36

W10861227 Whirlpool Door Assembly Backorder WPL W10861227 $117.85

36

Door, Front (Biscuit) WPL 3402337 Contact Us For Availability

36

Door, Front (Almond) WPL 3402336 Contact Us For Availability

37

WP3405184 Whirlpool White Door Handle In Stock WPL WP3405184 $39.86

37

WP3405189 Whirlpool Handle Backorder WPL WP3405189 $30.25

37

Handle, Door (Almond) WPL 3405185 Contact Us For Availability

38

W11035878 Whirlpool Bearing and Seal In Stock WPL W11035878 $45.51

41

WP3397659 Whirlpool Terminal Block In Stock WPL WP3397659 $8.51

46

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

47

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

48

W10828905 Whirlpool Bulkhead OS1 Backorder WPL W10828905 $118.41

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $9.64

57

WP348780 Whirlpool Base In Stock WPL WP348780 $38.12

58

3400500 Whirlpool Screw In Stock WPL 3400500 $9.59

59

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $22.86

62

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $91.50

3391885 Whirlpool Connector Backorder WPL 3391885 $30.25

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 799344 WPL 799344 Contact Us For Availability

64

W11684613 Whirlpool Bracket Backorder WPL W11684613 $7.96

64

WP3404162 Whirlpool Clamp In Stock WPL WP3404162 $3.70

65

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

66

279318 Whirlpool Terminal In Stock WPL 279318 $41.56

67

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

68

WP692490 Whirlpool Drum Baffle Backorder WPL WP692490 $52.25

69

WP3403636 Whirlpool Drum Baffle Backorder WPL WP3403636 $47.56

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.88

92

WP298877 Whirlpool Washer Backorder WPL WP298877 $13.32
