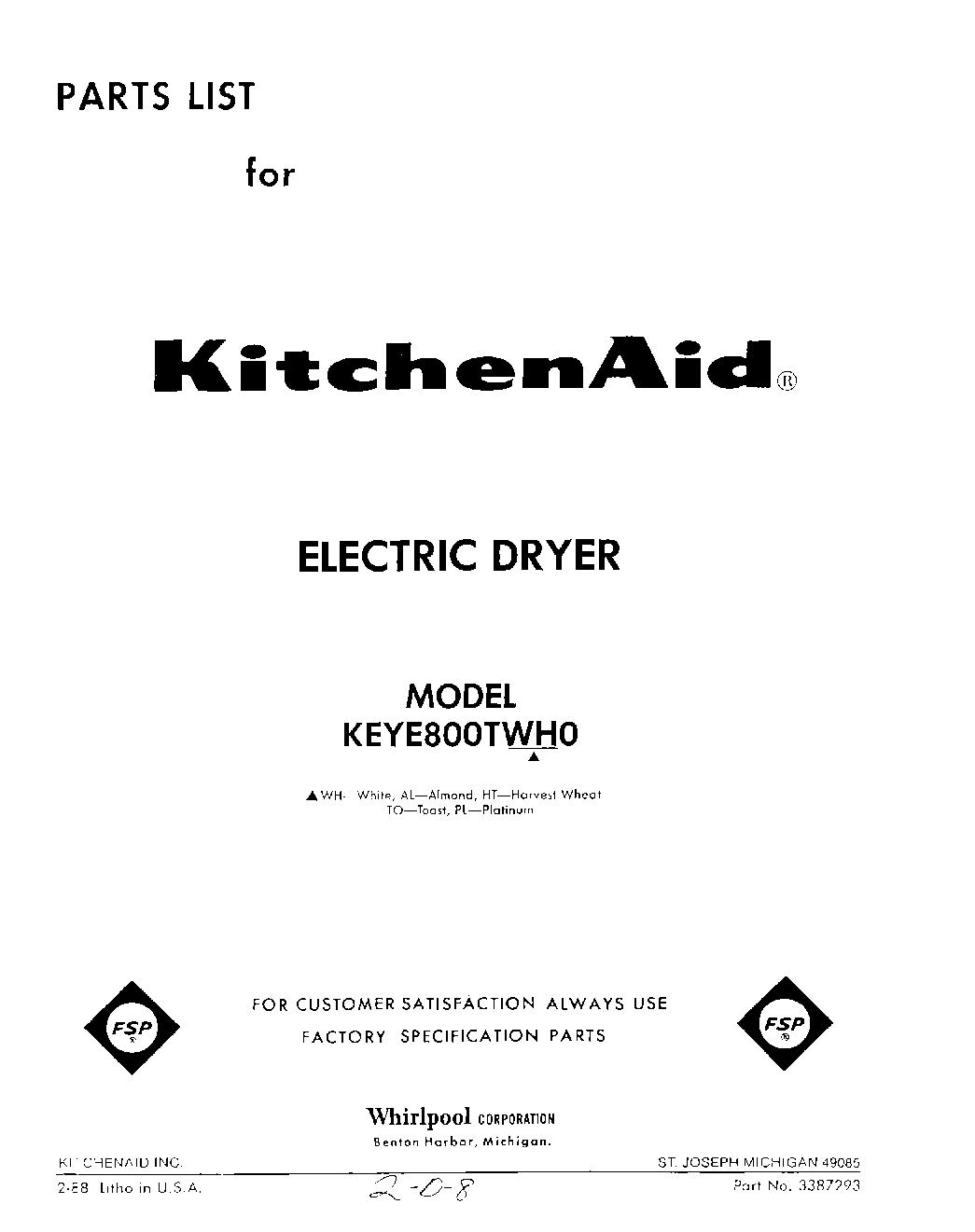

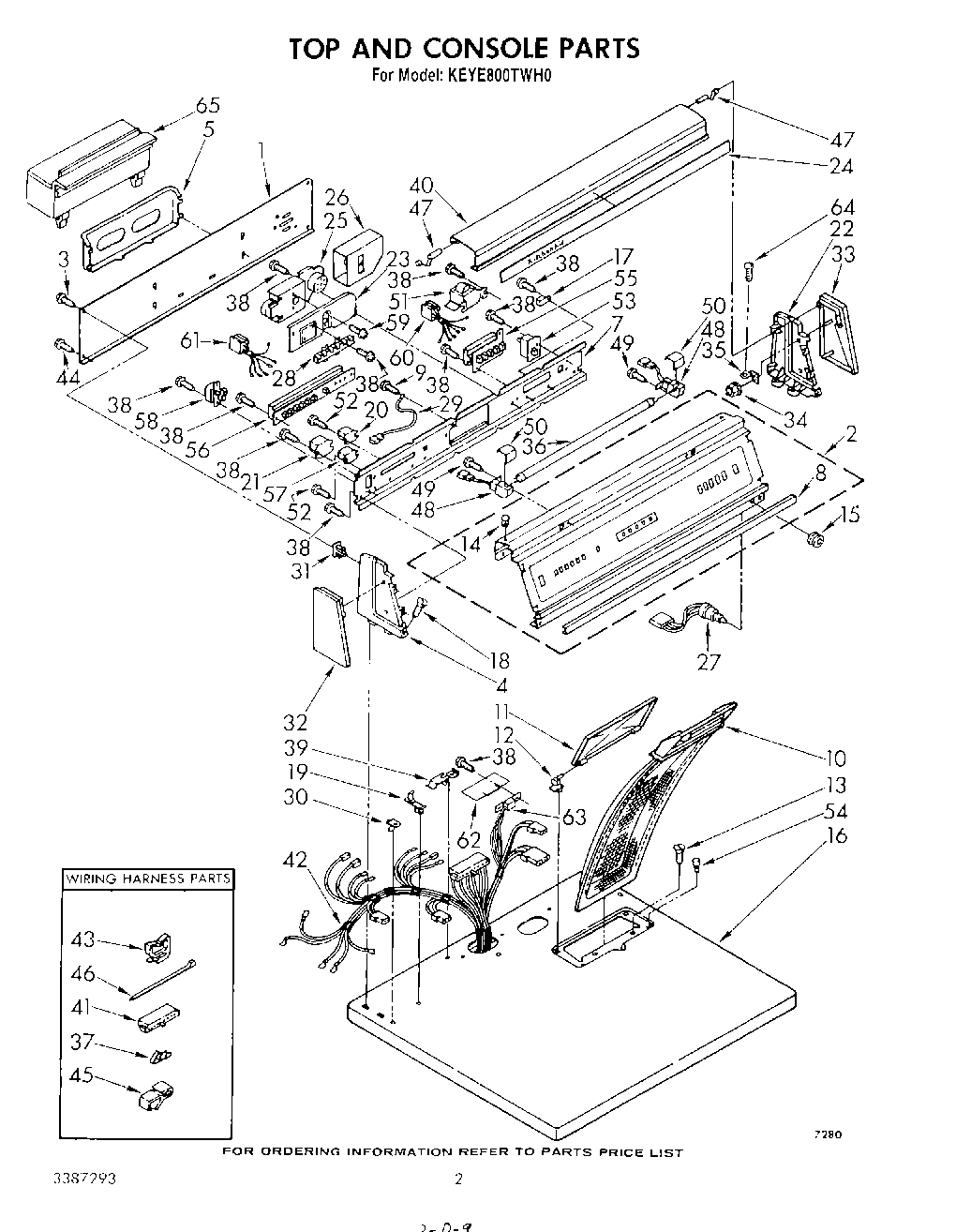

Model Whirlpool KEYE800TAL0 – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 799344 WPL 799344 Contact Us For Availability

1

Lint Chute Assembly WPL 349242 Contact Us For Availability

3

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

3

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

3

Heater, Thermostat WPL 61894 Contact Us For Availability

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $24.80

6

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67

6

Screw, 10-32 x 1/2 WPL 342043 Contact Us For Availability

7

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

7

Panel, Rear WPL 348365 Contact Us For Availability

8

279769 Whirlpool Dryer Thermal Cut-Off Fuse K In Stock WPL 279769 $36.08

8

Wire, Ground WPL 690236 Contact Us For Availability

9

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

9

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.88

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $17.39

10

Switch, Door WPL 3387218 Contact Us For Availability

11

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

11

Housing, Blower WPL 695081 Contact Us For Availability

12

279771 Whirlpool Clip Backorder WPL 279771 $6.20

12

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.97

14

WPW10041960 Whirlpool Door Spring Backorder WPL WPW10041960 $14.04

14

Box, Heater WPL 695547 Contact Us For Availability

15

279080 Whirlpool Thermostat Backorder WPL 279080 $42.35

15

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $6.50

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.40

Top (Almond) WPL 697681 Contact Us For Availability

Top (Harvest Wheat) WPL 697682 Contact Us For Availability

Top (Toast) WPL 697683 Contact Us For Availability

Top (Platinum) WPL 697684 Contact Us For Availability

17

18849 Whirlpool Pad Backorder WPL 18849 $9.13

17

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $51.99

17

WP697663 Whirlpool Element Backorder WPL WP697663 $134.66

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

Screw, 8-18 (2) WPL 64211 Contact Us For Availability

Cabinet (White) WPL 690841 Contact Us For Availability

Cabinet (Almond) WPL 690842 Contact Us For Availability

Cabinet (Harvest Wheat) WPL 690845 Contact Us For Availability

cabinet (toast) WPL 694876 Contact Us For Availability

Cabinet (Platinum) WPL 694877 Contact Us For Availability

19

686770 Whirlpool Support Bracket Backorder WPL 686770 $7.52

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

19

Stop, Push-In (2) WPL 358473 Contact Us For Availability

20

697811 Whirlpool Relay Backorder WPL 697811 $32.79

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $11.20

20

Seal, Blower WPL 694630 Contact Us For Availability

279740 Whirlpool Panel Primary with O/S2 Backorder WPL 279740 $176.01

WP8566493 Whirlpool Relay In Stock WPL WP8566493 $39.57

Tap, Downstream WPL 339625 Contact Us For Availability

Panel Front (Almond) WPL 695631 Contact Us For Availability

panel, front (harvest wheat) WPL 695632 Contact Us For Availability

Panel Front (Toast) WPL 695633 Contact Us For Availability

Panel, Front (Platinum) WPL 695634 Contact Us For Availability

22

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

22

Cap, End (R.H.) WPL 388504 Contact Us For Availability

22

Tubing Downstream WPL 339893 Contact Us For Availability

23

279220 Whirlpool Clip In Stock WPL 279220 $11.93

23

Bracket, Timer WPL 697675 Contact Us For Availability

23

Sensor, Pressure WPL 696371 Contact Us For Availability

24

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $2.36

24

Insert, Lamp Cover WPL 3388189 Contact Us For Availability

24

Tubing Upstream WPL 339892 Contact Us For Availability

25

W10906683 Whirlpool Door Seal In Stock WPL W10906683 $35.43

25

Timer, 60Hz. WPL 697349 Contact Us For Availability

25

Tap Upstream WPL 339624 Contact Us For Availability

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

26

Shield, Timer Assembly WPL 697673 Contact Us For Availability

26

Clip, Switch WPL 339745 Contact Us For Availability

27

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

27

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

27

Switch, Flourescent WPL 3347115 Contact Us For Availability

WP8066056 Whirlpool Door Hinge In Stock WPL WP8066056 $44.19

WP8066057 Whirlpool Door Hinge In Stock WPL WP8066057 $32.63

Indicator Light WPL 697733 Contact Us For Availability

Shield, Light WPL 690262 Contact Us For Availability

29

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

29

WP3388703 Whirlpool Washer Backorder WPL WP3388703 $4.36

29

Wire, Ground WPL 690853 Contact Us For Availability

30

Nut, Push-In (2) WPL 358472 Contact Us For Availability

30

Locator, Top WPL 98669 Contact Us For Availability

31

Clip, Push-On (4) WPL 689559 Contact Us For Availability

31

Insert, Handle WPL 389043 Contact Us For Availability

32

WP488130 Whirlpool Air Conditioner Nut Backorder WPL WP488130 $3.09

32

Trim, End Cap (L.H.) WPL 388745 Contact Us For Availability

33

Trim, End Cap (R.H.) WPL 388746 Contact Us For Availability

34

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

34

Nut, No.10 Thread WPL 388744 Contact Us For Availability

35

WP695737 Whirlpool Door Backorder WPL WP695737 $108.35

35

Bracket, End Cap (2) WPL 3349048 Contact Us For Availability

WP3393549 Whirlpool Door Assembly Backorder WPL WP3393549 $83.93

Lamp, Fluorescent WPL 387693 Contact Us For Availability

Door, Front (Almond) WPL 692319 Contact Us For Availability

door, front (harvest wheat) WPL 692322 Contact Us For Availability

door, front (toast) WPL 695130 Contact Us For Availability

Door, Front (Platinum) WPL 695131 Contact Us For Availability

Terminal WPL 60279 Contact Us For Availability

Handle, Door (White) WPL 3387212 Contact Us For Availability

Handle, Door (Almond) WPL 3387213 Contact Us For Availability

Handle, Door (Harvest Wheat) WPL 3387214 Contact Us For Availability

Handle, Door (Toast) WPL 3387215 Contact Us For Availability

Handle, Door (Platinum) WPL 3387216 Contact Us For Availability

38

W11035878 Whirlpool Bearing and Seal In Stock WPL W11035878 $45.51

38

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

39

Clip, Wire (Tech Sheet/Top) WPL 357144 Contact Us For Availability

39

Clip, Toe WPL 342601 Contact Us For Availability

40

Cover, Light (Includes No.24) WPL 3387152 Contact Us For Availability

41

279320 Whirlpool Dryer Rear Terminal Block Ki In Stock WPL 279320 $28.16

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

41

Connector WPL 60278 Contact Us For Availability

42

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $44.50

42

Harness, Electric WPL 3388256 Contact Us For Availability

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $32.30

43

Clip, Harness (Rear Bulkhead Area) WPL 688412 Contact Us For Availability

43

WPL 341776 WPL 341776 Contact Us For Availability

44

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.70

44

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $14.74

45

Clip, Harness Retainer (Door Switch Wires) WPL 689180 Contact Us For Availability

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

46

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

47

Hinge, Lamp Cover WPL 3347112 Contact Us For Availability

48

Socket, Lamp ((R.H.)) WPL 389217 Contact Us For Availability

48

Socket, Lamp ((L.H.)) WPL 389226 Contact Us For Availability

48

BULKHEAD WPL 685821 Contact Us For Availability

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

WPL 697095 WPL 697095 Contact Us For Availability

WPL 697096 WPL 697096 Contact Us For Availability

WPL 697097 WPL 697097 Contact Us For Availability

WPL 697098 WPL 697098 Contact Us For Availability

WPL 697099 WPL 697099 Contact Us For Availability

50

Cover, Socket WPL 3348529 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

51

Ballast WPL 387700 Contact Us For Availability

52

Screw Mounting WPL 98831 Contact Us For Availability

53

Rela WPL 697667 Contact Us For Availability

54

WPL 297535 WPL 297535 Contact Us For Availability

55

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

55

WPL 697668 WPL 697668 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $9.64

56

98460 Whirlpool Nut Backorder WPL 98460 $9.59

56

WPL 3387912 WPL 3387912 Contact Us For Availability

57

WP348780 Whirlpool Base In Stock WPL WP348780 $38.12

57

WPL 389265 WPL 389265 Contact Us For Availability

58

3400500 Whirlpool Screw In Stock WPL 3400500 $9.59

58

WPL 697726 WPL 697726 Contact Us For Availability

59

WP356418 Whirlpool Screw In Stock WPL WP356418 $2.51

59

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $22.86

59

Socket Assembly WPL 691034 Contact Us For Availability

60

WPL 697810 WPL 697810 Contact Us For Availability

60

Lens, Drum Light WPL 341165 Contact Us For Availability

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $91.50

61

WPL 3388352 WPL 3388352 Contact Us For Availability

62

279441 Whirlpool Front Bearing Ring In Stock WPL 279441 $45.04

62

WPL 661513 WPL 661513 Contact Us For Availability

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

63

WPL 341141 WPL 341141 Contact Us For Availability

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

64

W11684613 Whirlpool Bracket Backorder WPL W11684613 $7.96

64

WPL 310629 WPL 310629 Contact Us For Availability

65

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

65

WPL 3388894 WPL 3388894 Contact Us For Availability

66

279318 Whirlpool Terminal In Stock WPL 279318 $41.56

66

279408 Whirlpool Dryer Rear Drum Seal In Stock WPL 279408 $26.88

67

W10899578 Whirlpool Dryer Drum Assembly In Stock WPL W10899578 $132.34

67

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

68

WP692490 Whirlpool Drum Baffle Backorder WPL WP692490 $52.25

69

WP3403636 Whirlpool Drum Baffle Backorder WPL WP3403636 $47.56

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.88

81

279366 Whirlpool Sensor Kit In Stock WPL 279366 $54.81

83

WP342267 Whirlpool Clip Backorder WPL WP342267 $4.36

90

WP348859 Whirlpool Electrode Assembly Backorder WPL WP348859 $2.51

91

WP348860 Whirlpool Electrode Backorder WPL WP348860 $2.51

92

WP298877 Whirlpool Washer Backorder WPL WP298877 $13.32
