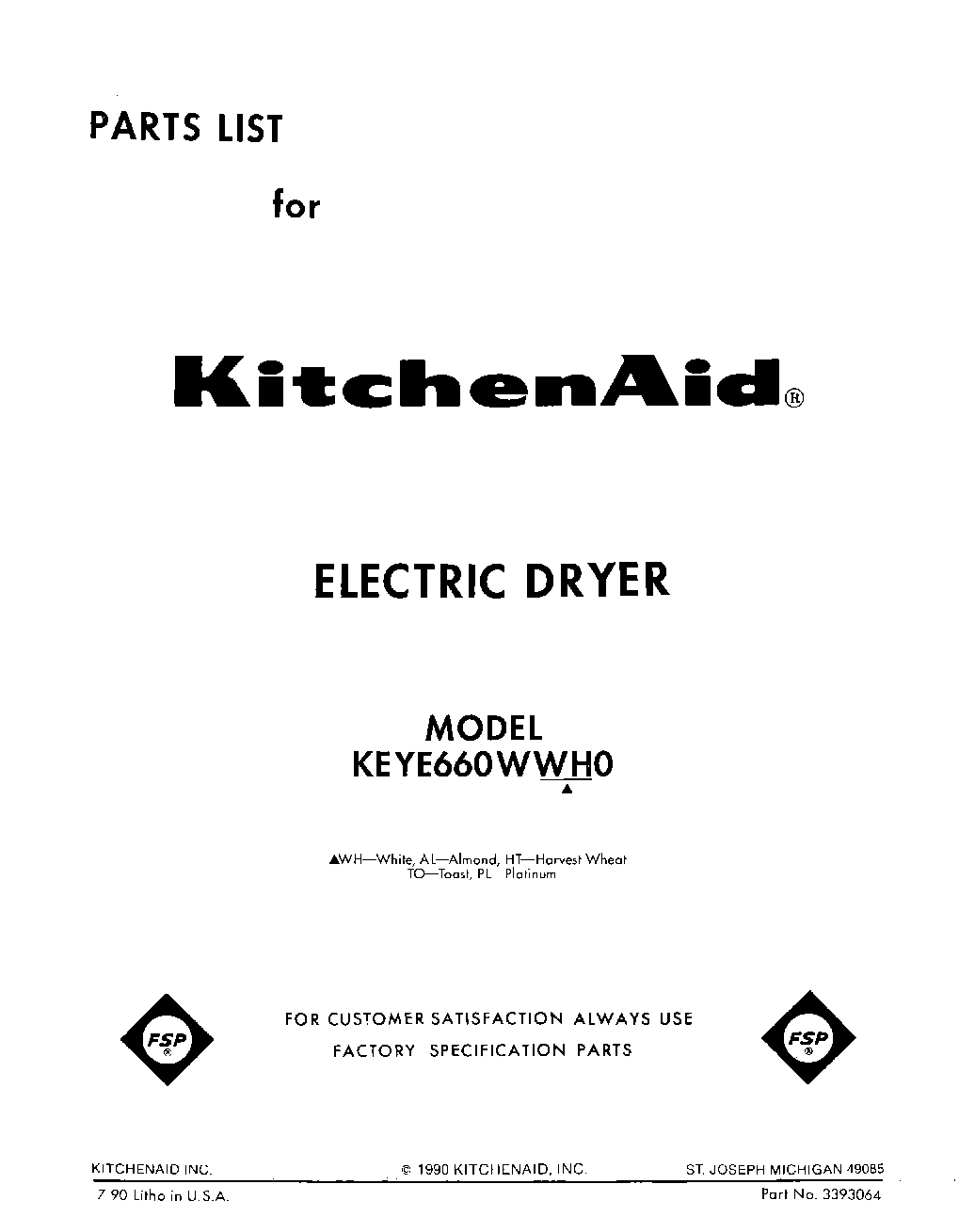

Model Whirlpool KEYE660WWH0 – Common Parts & Diagrams

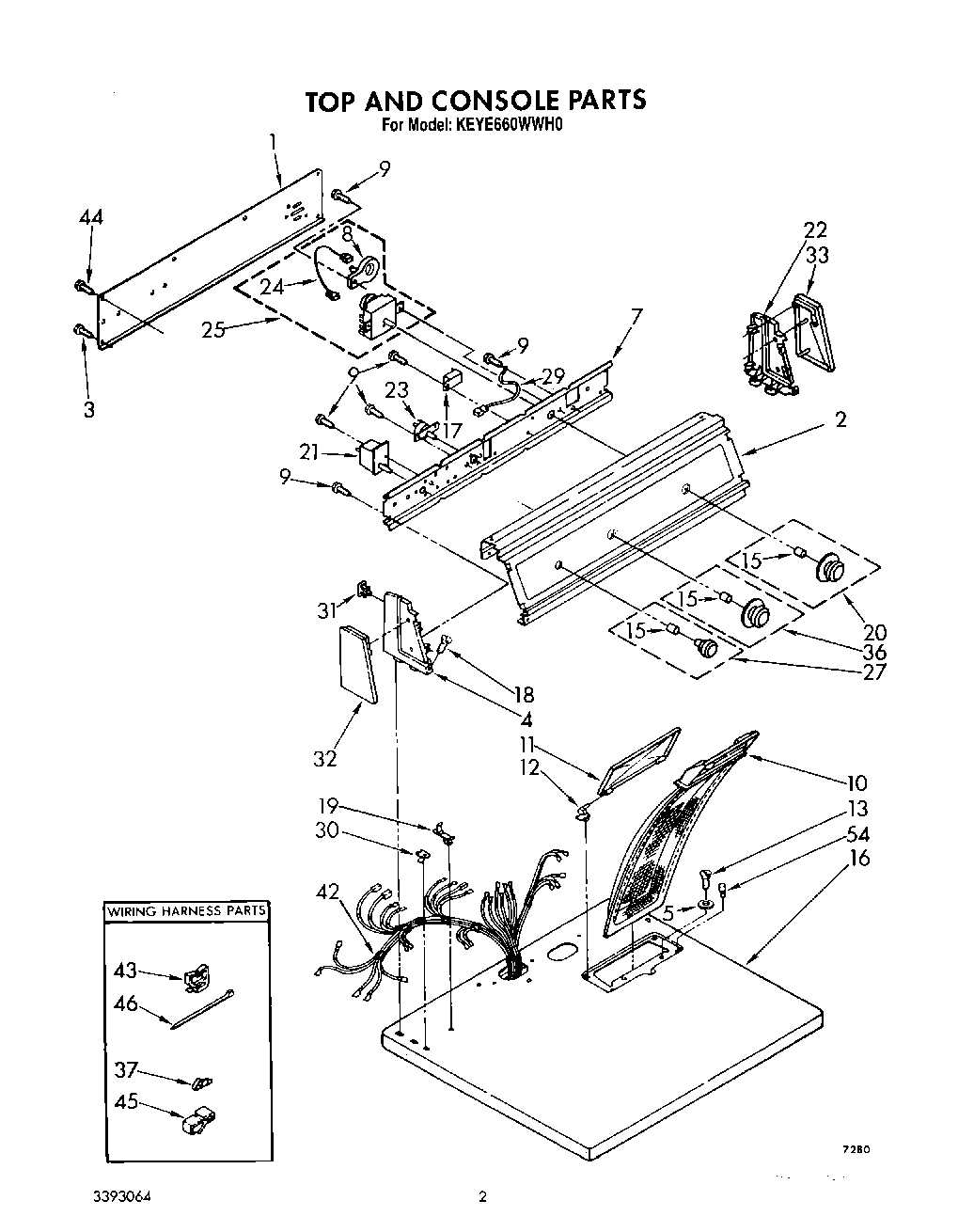

01 - SECTION
02 - SECTION
04 - SECTION
03 - SECTION
Common parts from model Whirlpool KEYE660WWH0
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
Paint, Spray 13 Oz. (Almond) WPL 350956 Contact Us For Availability
WPL 72110 WPL 72110 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GR WPL 350938 Contact Us For Availability
WPL 72113 WPL 72113 Contact Us For Availability
WPL 799344 WPL 799344 Contact Us For Availability
1
Panel, Rear Console WPL 3388889 Contact Us For Availability
2
Panel, Control WPL 3392805 Contact Us For Availability
3
Heater, Thermostat WPL 61894 Contact Us For Availability
4
Cap, End (L.H.) WPL 3353666 Contact Us For Availability
5
Washer WPL 237446 Contact Us For Availability
6
Screw, 10-32 x 1/2 WPL 342043 Contact Us For Availability
7
Bracket, Control WPL 3390619 Contact Us For Availability
7
Panel, Rear WPL 348365 Contact Us For Availability
8
Wire, Ground WPL 690236 Contact Us For Availability
11
Cover, Lint Screen WPL 691205 Contact Us For Availability
11
Housing, Blower WPL 695081 Contact Us For Availability
14
Box, Heater WPL 695547 Contact Us For Availability
16
Top (White) WPL 3393374 Contact Us For Availability
16
Top (Almond) WPL 3393375 Contact Us For Availability
16
Top (Harvest Wheat) WPL 3393376 Contact Us For Availability
16
Top (Toast) WPL 3393377 Contact Us For Availability
16
Top (Platinum) WPL 3393378 Contact Us For Availability
17
Pad, Top Hinge WPL 18849 Contact Us For Availability
18
TERMINAL WIRE KIT (FOR HEATER ELEMENT WIRING WPL 279457 Contact Us For Availability
18
Screw, 8-18 (2) WPL 64211 Contact Us For Availability
18
Cabinet (White) WPL 690841 Contact Us For Availability
18
Cabinet (Almond) WPL 690842 Contact Us For Availability
18
Cabinet (Harvest Wheat) WPL 690845 Contact Us For Availability
18
cabinet (toast) WPL 694876 Contact Us For Availability
18
Cabinet (Platinum) WPL 694877 Contact Us For Availability
19
Stop, Push-In (2) WPL 358473 Contact Us For Availability
19
Support Protector WPL 686770 Contact Us For Availability
20
Knob, Timer WPL 3389725 Contact Us For Availability
20
Seal, Blower WPL 3392123 Contact Us For Availability
21
Switch, Push To Start WPL 348314 Contact Us For Availability
21
Panel Front (Almond) WPL 695631 Contact Us For Availability
21
panel, front (harvest wheat) WPL 695632 Contact Us For Availability
21
Panel Front (Toast) WPL 695633 Contact Us For Availability
21
Panel, Front (Platinum) WPL 695634 Contact Us For Availability
22
Cap, End (R.H.) WPL 3353672 Contact Us For Availability
23
Switch, Temperature 3-Position WPL 696887 Contact Us For Availability
23
Shield, Light WPL 690262 Contact Us For Availability
24
Wire, Jumper WPL 696098 Contact Us For Availability
25
Timer & Resistor 60 Hz. WPL 695760 Contact Us For Availability
25
Pad, Cabinet WPL 686889 Contact Us For Availability
27
Knob, Push To Start WPL 3390054 Contact Us For Availability
29
Wire, Ground WPL 690853 Contact Us For Availability
30
Nut, Push-In (2) WPL 358472 Contact Us For Availability
30
Locator, Top WPL 98669 Contact Us For Availability
32
Trim, Endcap (L.H.) WPL 3353685 Contact Us For Availability
33
Trim, Endcap (R.H.) WPL 3353678 Contact Us For Availability
34
TERMINAL BLOCK KIT (FOR TERMINAL BLOCK) WPL 279393 Contact Us For Availability
36
Knob, Temperature Control WPL 3351727 Contact Us For Availability
36
Door, Front (Almond) WPL 3393550 Contact Us For Availability
36
Door, Front (Harvest Wheat) WPL 3393551 Contact Us For Availability
36
Door, Front (Toast) WPL 3393552 Contact Us For Availability
36
Door, Front (Platinum) WPL 3393553 Contact Us For Availability
37
Terminal WPL 60279 Contact Us For Availability
37
handle, door (almond) WPL 3390782 Contact Us For Availability
37
Handle, Door (Toast) WPL 3390783 Contact Us For Availability
37
handle, door (platinum) WPL 3390784 Contact Us For Availability
37
handle, door (harvest wheat) WPL 3390785 Contact Us For Availability
42
WPL 238614 WPL 238614 Contact Us For Availability
42
Harness, Wiring WPL 3390905 Contact Us For Availability
43
Clip, Harness (Rear Bulkhead Area) WPL 688412 Contact Us For Availability
45
Clip, Harness Retainer (Door Switch Wires) WPL 689180 Contact Us For Availability
49
WPL 697095 WPL 697095 Contact Us For Availability
49
WPL 697096 WPL 697096 Contact Us For Availability
49
WPL 697097 WPL 697097 Contact Us For Availability
49
WPL 697098 WPL 697098 Contact Us For Availability
49
WPL 697099 WPL 697099 Contact Us For Availability
54
Bumper, Lint Lid WPL 297535 Contact Us For Availability
56
Nut, Push-In (2) WPL 98460 Contact Us For Availability
63
Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability
66
WPL 279318 WPL 279318 Contact Us For Availability
× ![]()
