Model Whirlpool KDRU707VSS04 30`` COMMERCIAL-STYLE GAS RANGE – Common Parts & Diagrams

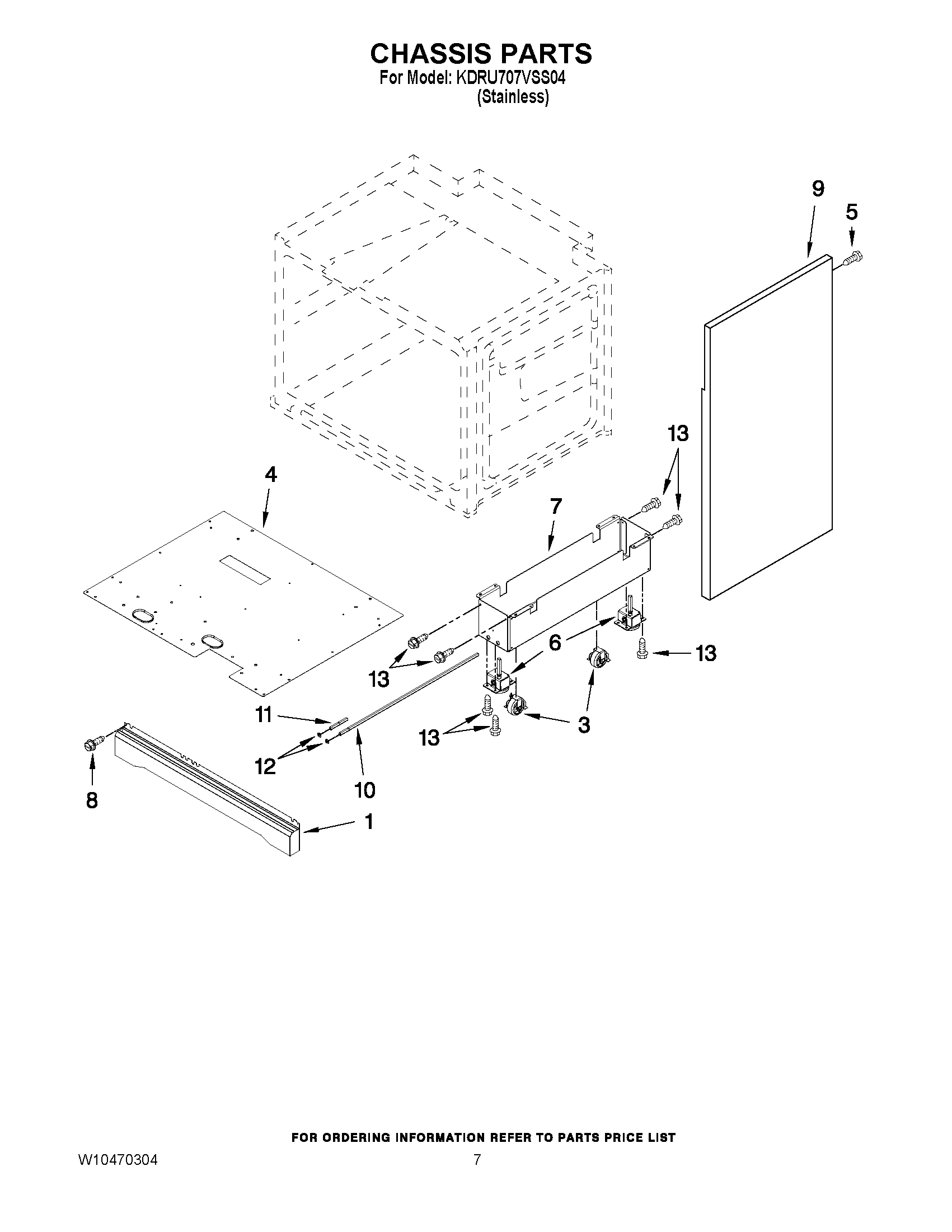

04 - CHASSIS PARTS

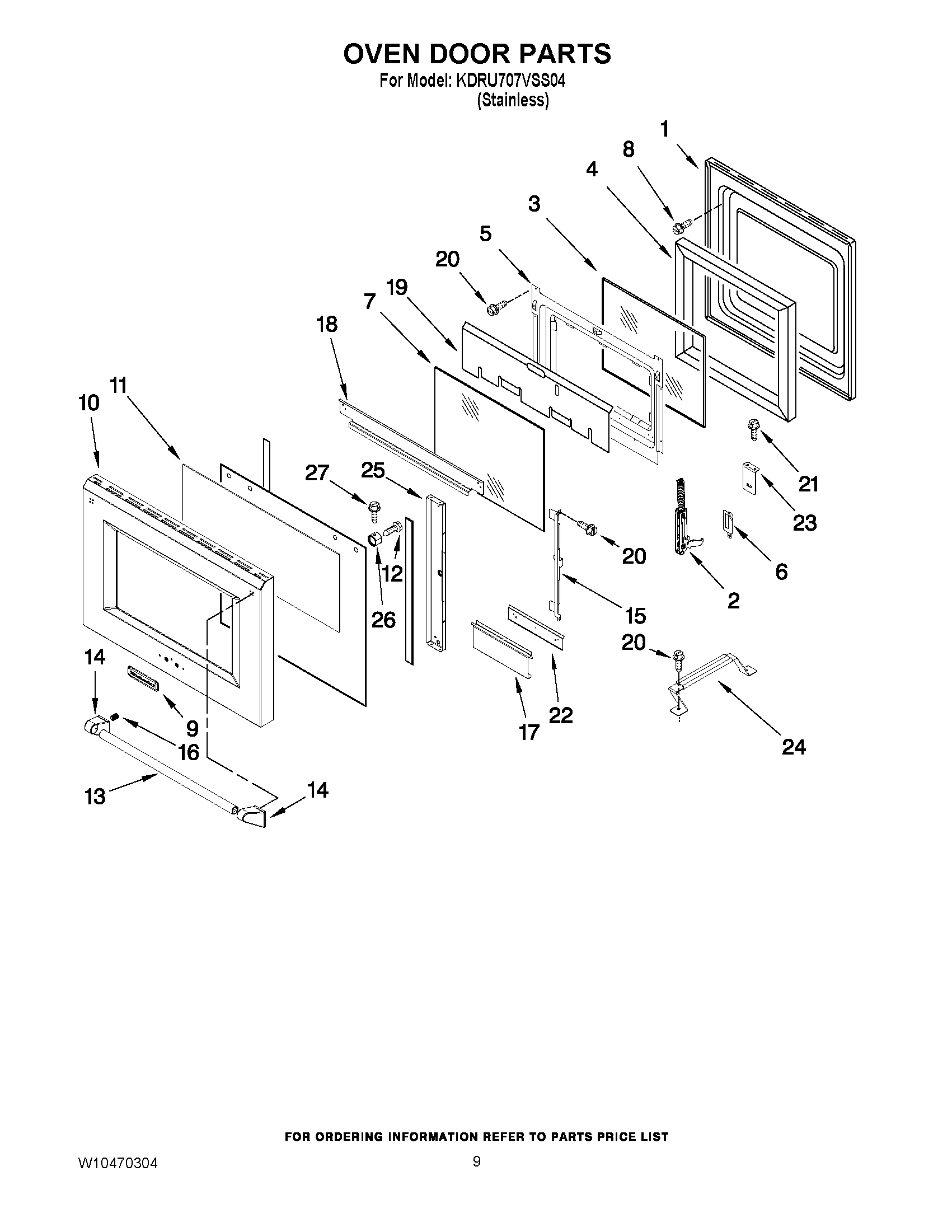

06 - OVEN DOOR PARTS
03 - OVEN PARTS
01 - COOKTOP, BURNER AND GRATE PARTS
08 - OPTIONAL PARTS
05 - TOP VENTING PARTS
07 - INTERNAL OVEN PARTS
02 - BURNER BOX, GAS VALVES, AND SWITCHES
Common parts from model Whirlpool KDRU707VSS04 30`` COMMERCIAL-STYLE GAS RANGE
1
KICKPLATE WPL W10225971 Contact Us For Availability
1
SLOPE, EXHAUST VENT WPL W10246075 Contact Us For Availability
1
SHIELD, ELEMENT BROIL WPL W10160856 Contact Us For Availability
2
ORIFICE (LF,RF) WPL W10340424 Contact Us For Availability
2
ELEMENT, BROIL WPL W10115994 Contact Us For Availability
2
Screw WPL 4449748 Contact Us For Availability
2
VENT, COOLING TOP WPL W10160896 Contact Us For Availability
2
SCREW WPL 7101P42660 Contact Us For Availability
3
ASSEMBLY, BUMPER WPL W10105790 Contact Us For Availability
3
INSULATION, BURNER BOX WPL W10276534 Contact Us For Availability
4
ORIFICE HOLDER (RR) WPL W10282659 Contact Us For Availability
4
VENT-BOTTOM WPL W10246078 Contact Us For Availability
4
BRACKET, VALVE WPL W10432260 Contact Us For Availability
5
ELEMENT, HIDDEN BAKE WPL W10115995 Contact Us For Availability
5
PLATE, COOLING LATCH WPL W10160875 Contact Us For Availability
5
BRACKET, PRESSURE REGULATOR WPL W10115850 Contact Us For Availability
6
Transformer, Control WPL 9762885 Contact Us For Availability
6
ADAPTER, 1/2`` FEMALE WPL 4453115 Contact Us For Availability
6
BAFFLE, CONVECTION WPL W10160879 Contact Us For Availability
6
COVER, HINGE (LEFT) WPL W10115876 Contact Us For Availability
6
TRIM, ISLAND WPL W10269218 Contact Us For Availability
7
BASE, LEVELING LEG WPL W10249333 Contact Us For Availability
7
MANIFOLD WPL W10402609 Contact Us For Availability
8
BRACKET, BLOWER WPL W10160844 Contact Us For Availability
9
COVER, FAN WPL W10261523 Contact Us For Availability
9
BEZEL, FRONT WPL W10261510 Contact Us For Availability
9
COVER, LATCH WPL W10160858 Contact Us For Availability
9
BUSHING, BURNER BOX WPL W10189097 Contact Us For Availability
10
SHAFT, LONG WPL W10115869 Contact Us For Availability
10
CHIMNEY SEAL WPL W10270396 Contact Us For Availability
10
SCREW, VALVE MTG WPL W10189140 Contact Us For Availability
11
SHAFT, SHORT WPL W10115793 Contact Us For Availability
11
REGULATOR, PRESSURE WPL W10293267 Contact Us For Availability
11
ELEMENT, CONVECTION WPL W10116434 Contact Us For Availability
12
E-RING WPL 489504 Contact Us For Availability
12
SCREW, END CAP WPL W10217130 Contact Us For Availability
12
TRAY, HIDDEN BAKE WPL W10160845 Contact Us For Availability
12
BURNER BOX WPL W10371508 Contact Us For Availability
13
DOOR HANDLE WPL W10115720 Contact Us For Availability
13
BOX, TERMINAL WPL W10115858 Contact Us For Availability
13
BRACKET, BURNER WPL W10369547 Contact Us For Availability
14
HANDLE, END CAPS (RIGHT) WPL W10226025 Contact Us For Availability
14
HANDLE, END CAPS (LEFT) WPL W10226026 Contact Us For Availability
14
INSULATOR, TERMINAL BOX WPL 9759721 Contact Us For Availability
14
Screw WPL 7101P50060 Contact Us For Availability
15
SPRING, ELECTRODE (LF,LR,RF) WPL W10256046 Contact Us For Availability
15
SPRING, ELECTRODE (RR) WPL 8286863 Contact Us For Availability
15
Jack, Meat Probe WPL W10150011 Contact Us For Availability
15
COVER, CHANNEL WPL W10269198 Contact Us For Availability
15
COVER, IGNITION WPL W10115843 Contact Us For Availability
16
ADAPTER, 1/2`` MALE WPL 4453116 Contact Us For Availability
17
Screw WPL 4449040 Contact Us For Availability
17
SEAL, SWITCH COVER WPL W10423373 Contact Us For Availability
18
COOKTOP (LEFT) WPL W10352969 Contact Us For Availability
18
COOKTOP (RIGHT) WPL W10352968 Contact Us For Availability
18
TUBE, PRESSURE REGULATOR WPL W10269191 Contact Us For Availability
18
SUPPORT, CONTROL WPL W10249337 Contact Us For Availability
19
SEAL, FOAM WPL W10270397 Contact Us For Availability
19
DRIP, TRAY WPL W10269215 Contact Us For Availability
20
KEYPAD WPL W10116103 Contact Us For Availability
20
SEAL, CONTROL WPL W10239444 Contact Us For Availability
20
BRACKET, STEAM VALVE WPL W10331561 Contact Us For Availability
23
BRACKET, DOOR TOP WPL W10115715 Contact Us For Availability
26
GASKET, ORIFICE HOLDER WPL 8286930 Contact Us For Availability
26
SUPPORT, HANDLE WPL W10225964 Contact Us For Availability
27
SCREW WPL W10061760 Contact Us For Availability
27
APPLIANCE, MANAGER WPL W10339702 Contact Us For Availability
28
Switch, Pressure WPL W10194453 Contact Us For Availability
31
Valve, Solenoid WPL W10111418 Contact Us For Availability
32
TRIM WPL W10271524 Contact Us For Availability
34
Bumper WPL 4448520 Contact Us For Availability
35
BRACKET, MOVING CONSOLE (RIGHT) WPL W10130759 Contact Us For Availability
35
BRACKET, MOVING CONSOLE (LEFT) WPL W10130760 Contact Us For Availability
NI
BROIL PAN AND ROASTING RACK WPL W10123240 Contact Us For Availability
NI
HARNESS, WIRE COMMUNICATION WPL W10146020 Contact Us For Availability
NI
TUBE, BACK WPL W10280797 Contact Us For Availability
NI
HARNESS, WIRE (SWITCH, F/S) WPL W10327536 Contact Us For Availability
NI
TUBE, FRT RT WPL W10353141 Contact Us For Availability
NI
TUBE, FRT LFT WPL W10353154 Contact Us For Availability
NI
HARNESS, WIRE (IGNITOR, 3 WIRE) WPL W10363277 Contact Us For Availability
NI
LP CONVERSION KIT WPL W10393255 Contact Us For Availability
NI
MAIN HARNESS WPL W10505493 Contact Us For Availability
NI
TUBE, RAPID WPL W10353152 Contact Us For Availability
× ![]()
