Model Whirlpool KDRS407VSS03 30`` STAINLESS FREE-STANDING RANGE/DUAL FUEL – Common Parts & Diagrams

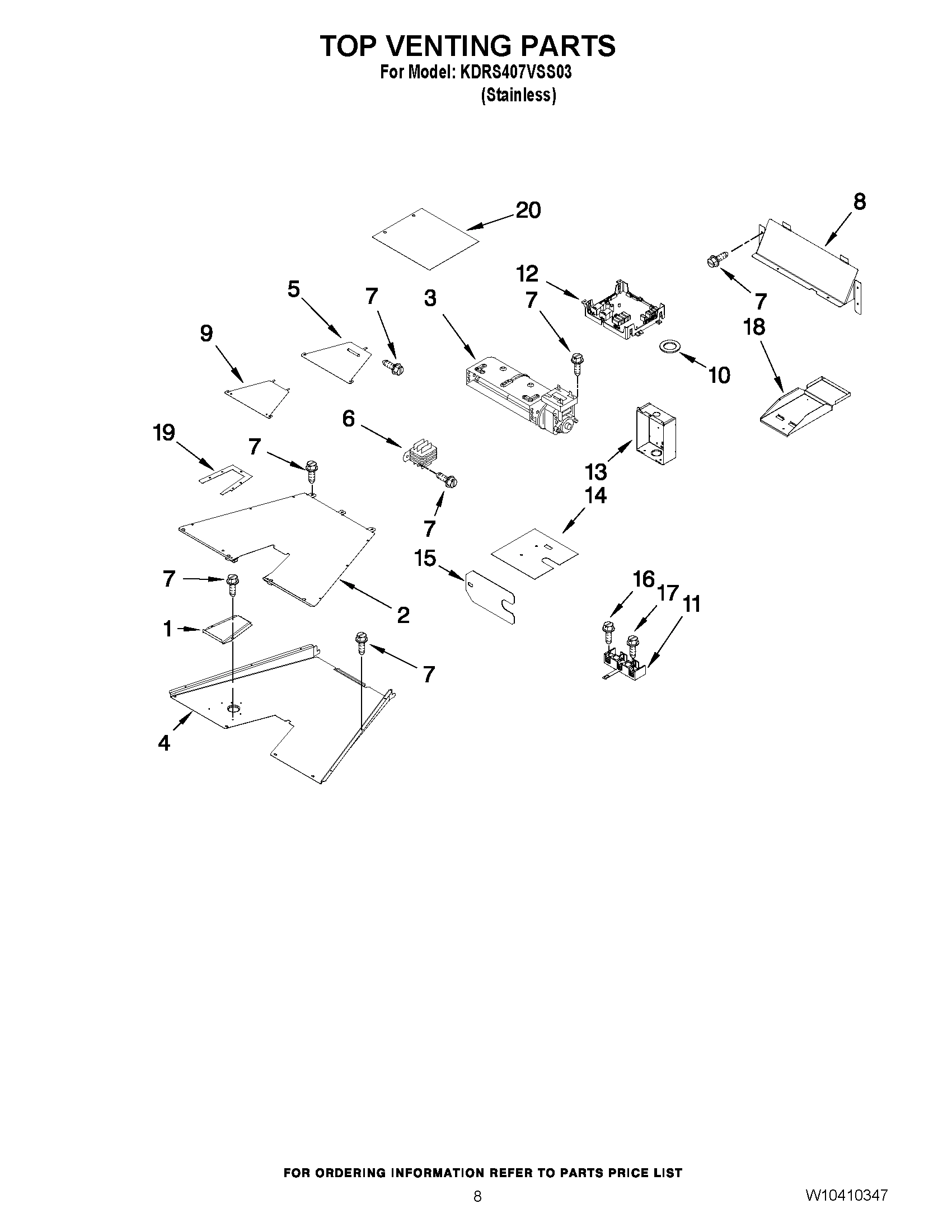

05 - TOP VENTING PARTS

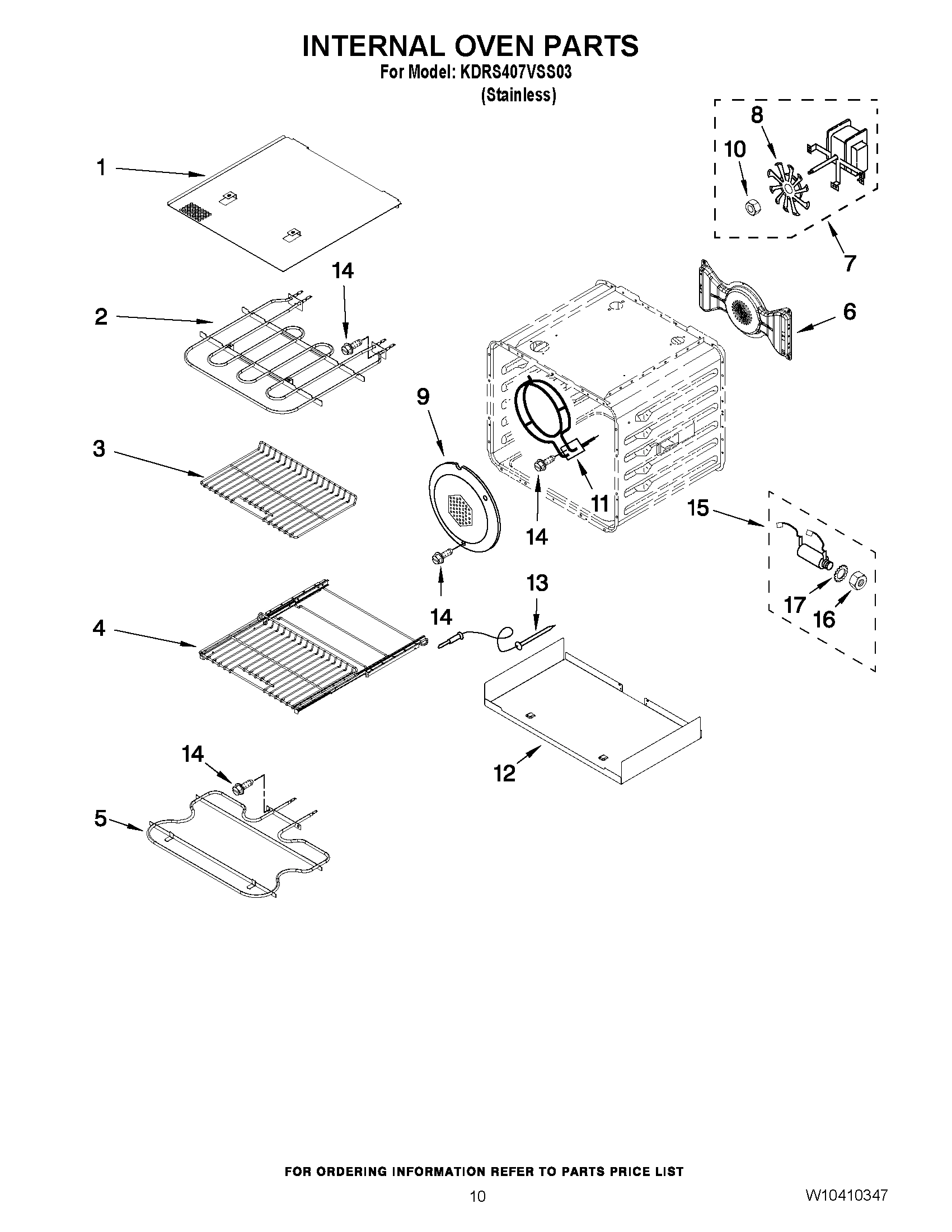

07 - INTERNAL OVEN PARTS
04 - CHASSIS PARTS
06 - OVEN DOOR PARTS
08 - OPTIONAL PARTS
02 - BURNER BOX, GAS VALVES, AND SWITCHES
01 - COOKTOP, BURNER AND GRATE PARTS
03 - OVEN PARTS
Common parts from model Whirlpool KDRS407VSS03 30`` STAINLESS FREE-STANDING RANGE/DUAL FUEL
1
KICKPLATE WPL W10225971 Contact Us For Availability
1
SLOPE, EXHAUST VENT WPL W10246075 Contact Us For Availability
1
TECH SHEET (ENGLISH) WPL W10403294 Contact Us For Availability
1
TECH SHEET (FRENCH) WPL W10403296 Contact Us For Availability
2
ORIFICE (LF-HIGH) WPL W10340424 Contact Us For Availability
2
ELEMENT, BROIL WPL W10115994 Contact Us For Availability
2
Screw WPL 4449748 Contact Us For Availability
3
ASSEMBLY, BUMPER WPL W10105790 Contact Us For Availability
4
ORIFICE HOLDER (RR) WPL W10282659 Contact Us For Availability
4
BRACKET, VALVE WPL W10189107 Contact Us For Availability
4
TOP, CHASSIS WPL W10267897 Contact Us For Availability
5
ELEMENT, HIDDEN BAKE WPL W10115995 Contact Us For Availability
5
TUBE, VENT WPL W10288061 Contact Us For Availability
6
ADAPTER, 1/2`` FEMALE WPL 4453115 Contact Us For Availability
6
Lens, Light WPL W10169756 Contact Us For Availability
6
TRIM, ISLAND WPL W10269218 Contact Us For Availability
6
COVER, HINGE (LEFT) WPL W10115876 Contact Us For Availability
7
BASE, LEVELING LEG WPL W10249333 Contact Us For Availability
7
MANIFOLD WPL W10402609 Contact Us For Availability
8
RUBBER, FOOT WPL 9759322 Contact Us For Availability
9
COVER, FAN WPL W10261523 Contact Us For Availability
9
BEZEL, FRONT WPL W10261510 Contact Us For Availability
10
SHAFT, LONG WPL W10115869 Contact Us For Availability
10
FILLER, COOKTOP WPL W10189105 Contact Us For Availability
11
SHAFT, SHORT WPL W10115793 Contact Us For Availability
11
REGULATOR, PRESSURE WPL W10293267 Contact Us For Availability
11
BEZEL, REAR WPL W10261512 Contact Us For Availability
11
PANEL, BACK BOTTOM WPL W10145399 Contact Us For Availability
12
E-RING WPL 489504 Contact Us For Availability
12
SCREW, END CAP WPL W10217130 Contact Us For Availability
12
BRACKET, SPARK MODULE WPL W10367052 Contact Us For Availability
12
SIDE, CHASSIS (RIGHT) WPL W10269205 Contact Us For Availability
12
SIDE, CHASSIS (LEFT) WPL W10269206 Contact Us For Availability
13
DOOR HANDLE WPL W10115720 Contact Us For Availability
13
BACK, CHASSIS WPL W10235550 Contact Us For Availability
14
HANDLE, END CAPS (RIGHT) WPL W10226025 Contact Us For Availability
14
HANDLE, END CAPS (LEFT) WPL W10226026 Contact Us For Availability
14
INSULATOR, TERMINAL BOX WPL 9759721 Contact Us For Availability
14
LINER, OVEN (NOT SERVICED) WPL NP Contact Us For Availability
15
SPRING, ELECTRODE (LF,LR,RF) WPL W10256046 Contact Us For Availability
15
SPRING, ELECTRODE (RR) WPL 8286863 Contact Us For Availability
16
ADAPTER, 1/2`` MALE WPL 4453116 Contact Us For Availability
17
Screw WPL 4449040 Contact Us For Availability
17
TUBE, PRESSURE REGULATOR WPL W10269191 Contact Us For Availability
18
COOKTOP (LEFT) WPL W10352969 Contact Us For Availability
18
COOKTOP (RIGHT) WPL W10352968 Contact Us For Availability
19
SEAL, FOAM WPL W10270397 Contact Us For Availability
20
BASE, CHASSIS WPL W10235537 Contact Us For Availability
21
BRACKET, USER INTERFACE WPL W10250476 Contact Us For Availability
22
PANEL, BACK TOP WPL W10269207 Contact Us For Availability
23
BRACKET, DOOR TOP WPL W10115715 Contact Us For Availability
23
SCREW WPL 7101P42660 Contact Us For Availability
25
MODULE, SPARK WPL 7431P03860 Contact Us For Availability
26
GASKET, ORIFICE HOLDER WPL 8286930 Contact Us For Availability
26
SUPPORT, HANDLE WPL W10225964 Contact Us For Availability
27
SCREW WPL W10061760 Contact Us For Availability
27
NUT, HEX WPL 7103P16660 Contact Us For Availability
32
TRIM WPL W10271524 Contact Us For Availability
33
Screw WPL 7101P33860 Contact Us For Availability
34
Bumper WPL 4448520 Contact Us For Availability
35
BRACKET, MOVING CONSOLE (RIGHT) WPL W10130759 Contact Us For Availability
35
BRACKET, MOVING CONSOLE (LEFT) WPL W10130760 Contact Us For Availability
NI
BROIL PAN AND ROASTING RACK WPL W10123240 Contact Us For Availability
NI
TUBING, GAS (RR) WPL W10280797 Contact Us For Availability
NI
HARNESS, SWITCH WPL W10327536 Contact Us For Availability
NI
HARNESS, WIRE COMMUNICATION WPL W10116124 Contact Us For Availability
NI
MAIN HARNESS WPL W10116180 Contact Us For Availability
NI
TUBING, GAS (RF) WPL W10353141 Contact Us For Availability
NI
TUBING, GAS (LF) WPL W10353154 Contact Us For Availability
NI
INSULATION, BACK WPL W10160806 Contact Us For Availability
× ![]()
