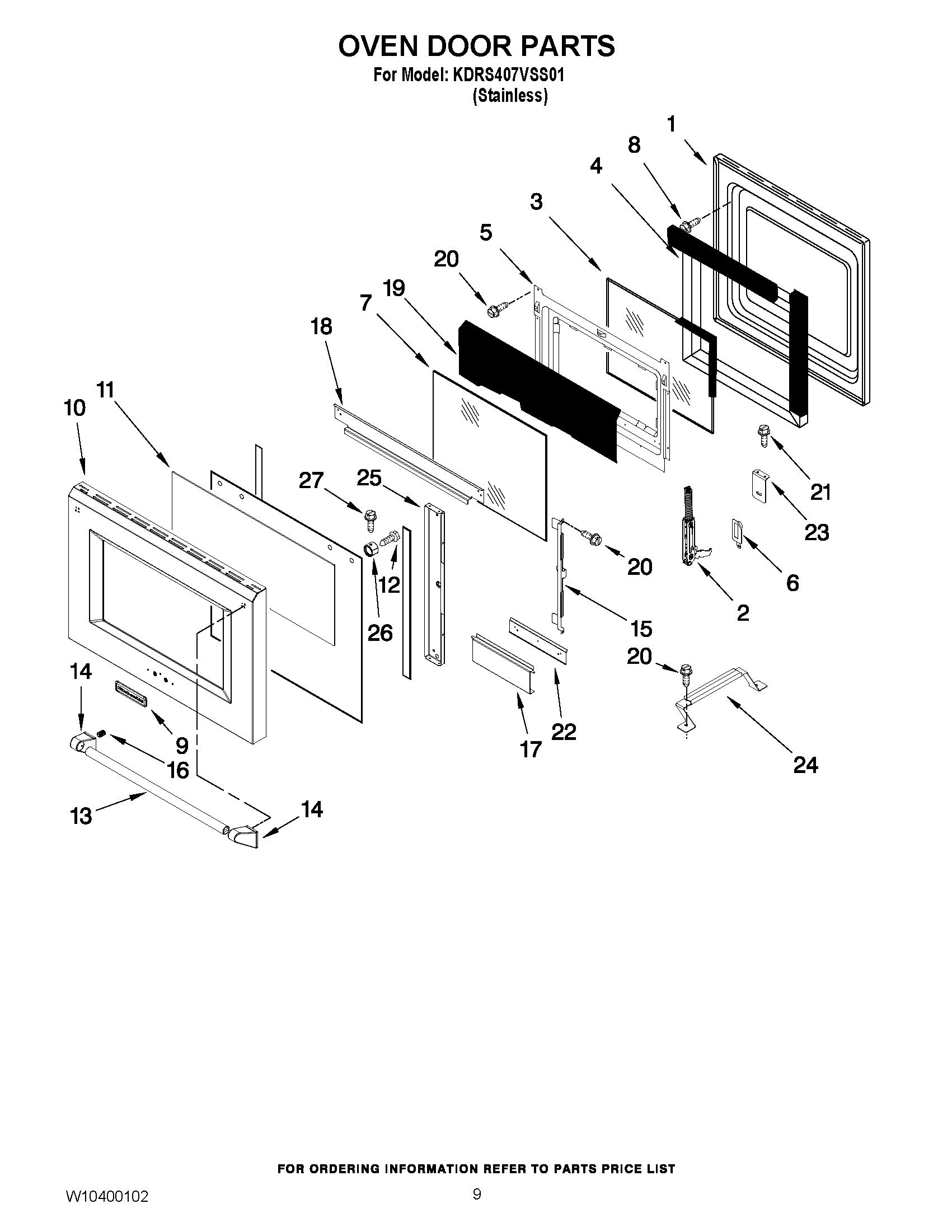

06 - OVEN DOOR PARTS

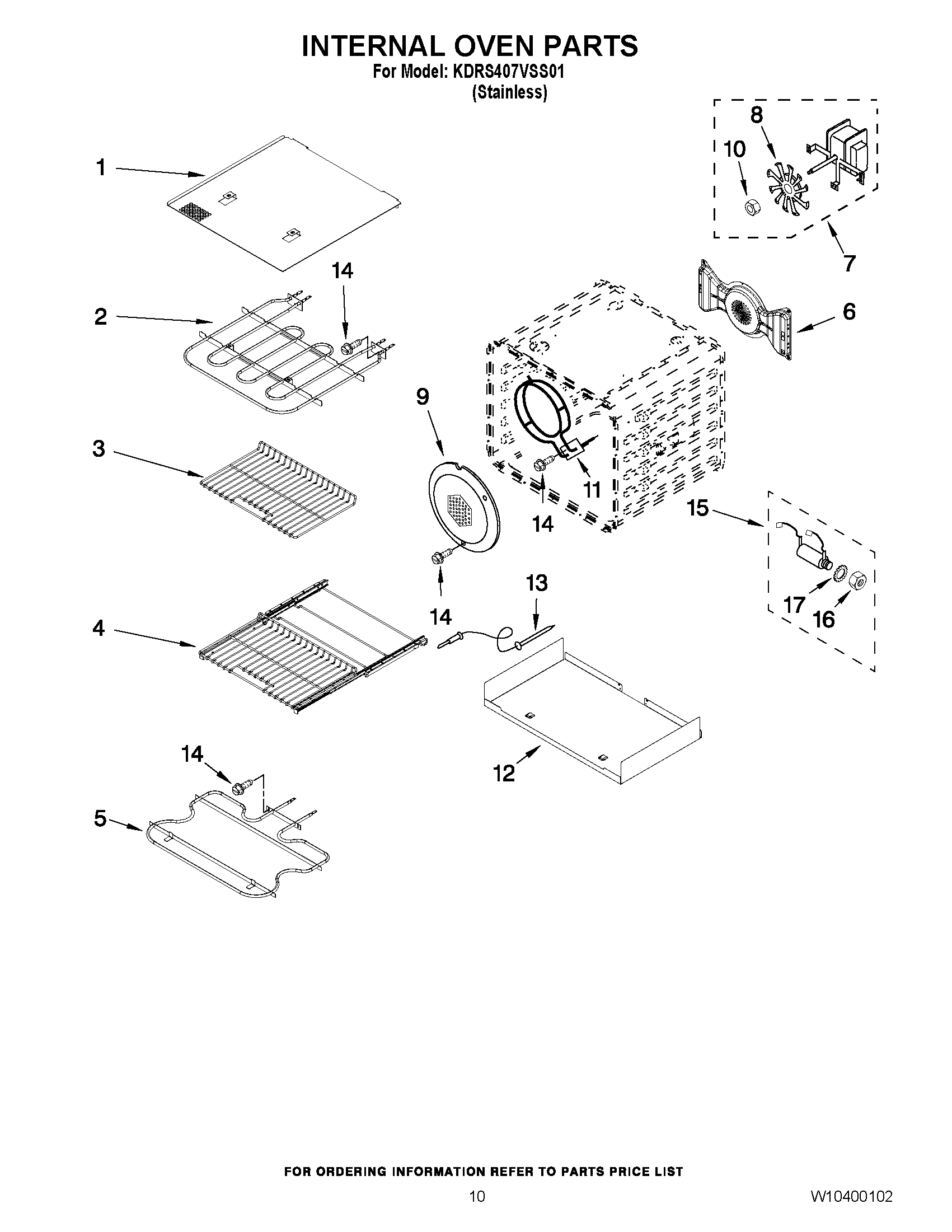

07 - INTERNAL OVEN PARTS
01 - COOKTOP, BURNER AND GRATE PARTS
03 - OVEN PARTS
05 - TOP VENTING PARTS
08 - OPTIONAL PARTS
02 - BURNER BOX, GAS VALVES, AND SWITCHES
04 - CHASSIS PARTS
Common parts from model Whirlpool KDRS407VSS01 30`` STAINLESS FREE STANDING RANGE/DUAL FUEL
1
KICKPLATE WPL W10225971 Contact Us For Availability
1
SLOPE, EXHAUST VENT WPL W10246075 Contact Us For Availability
2
ORIFICE (LF - LOW) WPL W10160185 Contact Us For Availability
2
ORIFICE (LF - HIGH) WPL W10160179 Contact Us For Availability
2
ORIFICE (LR & RF) WPL W10160232 Contact Us For Availability
2
ELEMENT, BROIL WPL W10115994 Contact Us For Availability
2
Screw WPL 4449748 Contact Us For Availability
2
SCREW WPL 7101P42660 Contact Us For Availability
3
ASSEMBLY, BUMPER WPL W10105790 Contact Us For Availability
3
INSULATION, BURNER BOX WPL W10276534 Contact Us For Availability
4
ORIFICE HOLDER (RR) WPL W10282659 Contact Us For Availability
4
ORIFICE HOLDER (LR & RF) WPL W10160234 Contact Us For Availability
4
BRACKET, VALVE WPL W10189107 Contact Us For Availability
4
VENT, BOTTOM UPPER WPL W10269197 Contact Us For Availability
5
ELEMENT, HIDDEN BAKE WPL W10115995 Contact Us For Availability
5
BRACKET, PRESSURE REGULATOR WPL W10115850 Contact Us For Availability
6
ADAPTER, 1/2`` FEMALE WPL 4453115 Contact Us For Availability
6
Lens, Light WPL W10169756 Contact Us For Availability
6
TRIM, ISLAND WPL W10269218 Contact Us For Availability
6
COVER, HINGE (LEFT) WPL W10115876 Contact Us For Availability
7
CLIP, ELECTRODE WPL W10160825 Contact Us For Availability
7
BASE, LEVELING LEG WPL W10249333 Contact Us For Availability
7
MANIFOLD WPL W10115891 Contact Us For Availability
8
VALVE, SINGLE (LR & RF) WPL W10326645 Contact Us For Availability
9
COVER, FAN WPL W10261523 Contact Us For Availability
9
BEZEL, FRONT WPL W10261510 Contact Us For Availability
9
BUSHING, BURNER BOX WPL W10189097 Contact Us For Availability
10
SHAFT, LONG WPL W10115869 Contact Us For Availability
10
SCREW, VALVE MTG WPL W10189140 Contact Us For Availability
11
SHAFT, SHORT WPL W10115793 Contact Us For Availability
11
REGULATOR, PRESSURE WPL W10293267 Contact Us For Availability
12
E-RING WPL 489504 Contact Us For Availability
12
SCREW,END CAP(2) WPL W10217130 Contact Us For Availability
12
BURNER BOX WPL W10276535 Contact Us For Availability
13
DOOR HANDLE WPL W10115720 Contact Us For Availability
13
BRACKET, BURNER (LF, LR & RF) WPL W10115929 Contact Us For Availability
13
BRACKET, BURNER ( RR) WPL W10280796 Contact Us For Availability
14
HANDLE, END CAPS (RIGHT) WPL W10226025 Contact Us For Availability
14
HANDLE, END CAPS (LEFT) WPL W10226026 Contact Us For Availability
14
INSULATOR, TERMINAL BOX WPL 9759721 Contact Us For Availability
15
SPRING, ELECTRODE (RR) WPL 8286863 Contact Us For Availability
15
COVER, IGNITION WPL W10115843 Contact Us For Availability
16
ADAPTER, 1/2`` MALE WPL 4453116 Contact Us For Availability
17
TUBE, PRESSURE REGULATOR WPL W10269191 Contact Us For Availability
17
Screw WPL 4449040 Contact Us For Availability
18
COOKTOP (LEFT) WPL W10189104 Contact Us For Availability
18
COVER, HOUSING WPL W10287036 Contact Us For Availability
19
SEAL, SWITCH COVER WPL W10189177 Contact Us For Availability
19
SEAL, FOAM WPL W10270397 Contact Us For Availability
21
BRACKET, USER INTERFACE WPL W10250476 Contact Us For Availability
22
NUT, BURNER WPL W10115953 Contact Us For Availability
23
BRACKET, DOOR TOP WPL W10115715 Contact Us For Availability
26
GASKET, ORIFICE HOLDER WPL 8286930 Contact Us For Availability
26
SUPPORT, HANDLE WPL W10225964 Contact Us For Availability
27
SCREW WPL W10061760 Contact Us For Availability
32
TRIM WPL W10271524 Contact Us For Availability
34
BUMPER (12) WPL 4448520 Contact Us For Availability
35
BRACKET, MOVING CONSOLE (RIGHT) WPL W10130759 Contact Us For Availability
35
BRACKET, MOVING CONSOLE (LEFT) WPL W10130760 Contact Us For Availability
NI
BROIL PAN AND ROASTING RACK WPL W10123240 Contact Us For Availability
NI
TUBING, GAS (RR) WPL W10280797 Contact Us For Availability
NI
HARNESS, WIRE (IGNITOR, 3 WIRE) WPL W10145992 Contact Us For Availability
NI
HARNESS, WIRE (SWITCH, F/S) WPL W10327536 Contact Us For Availability
NI
TUBING, GAS (LF - SIMMER) WPL W10115911 Contact Us For Availability
NI
HARNESS, WIRE COMMUNICATION WPL W10116124 Contact Us For Availability
NI
MAIN HARNESS WPL W10116180 Contact Us For Availability
NI
Screw, Ground WPL 4450800 Contact Us For Availability
NI
ADHESIVE (SEAL, ACCESS PANEL) WPL 4453191 Contact Us For Availability
NI
ADHESIVE (SEAL, RIBBON CABLE) WPL 4453192 Contact Us For Availability
NI
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
NI
GROMMET, FLEX, 60MM WPL W10177363 Contact Us For Availability
NI
30`` HANDLE KIT WPL W10188342 Contact Us For Availability
NI
STAINLESS STEEL KNOB KIT WPL W10231702 Contact Us For Availability
NI
TUBING, GAS (LR) WPL W10115908 Contact Us For Availability
NI
TUBING, GAS (RF & LF) WPL W10115910 Contact Us For Availability
× ![]()
