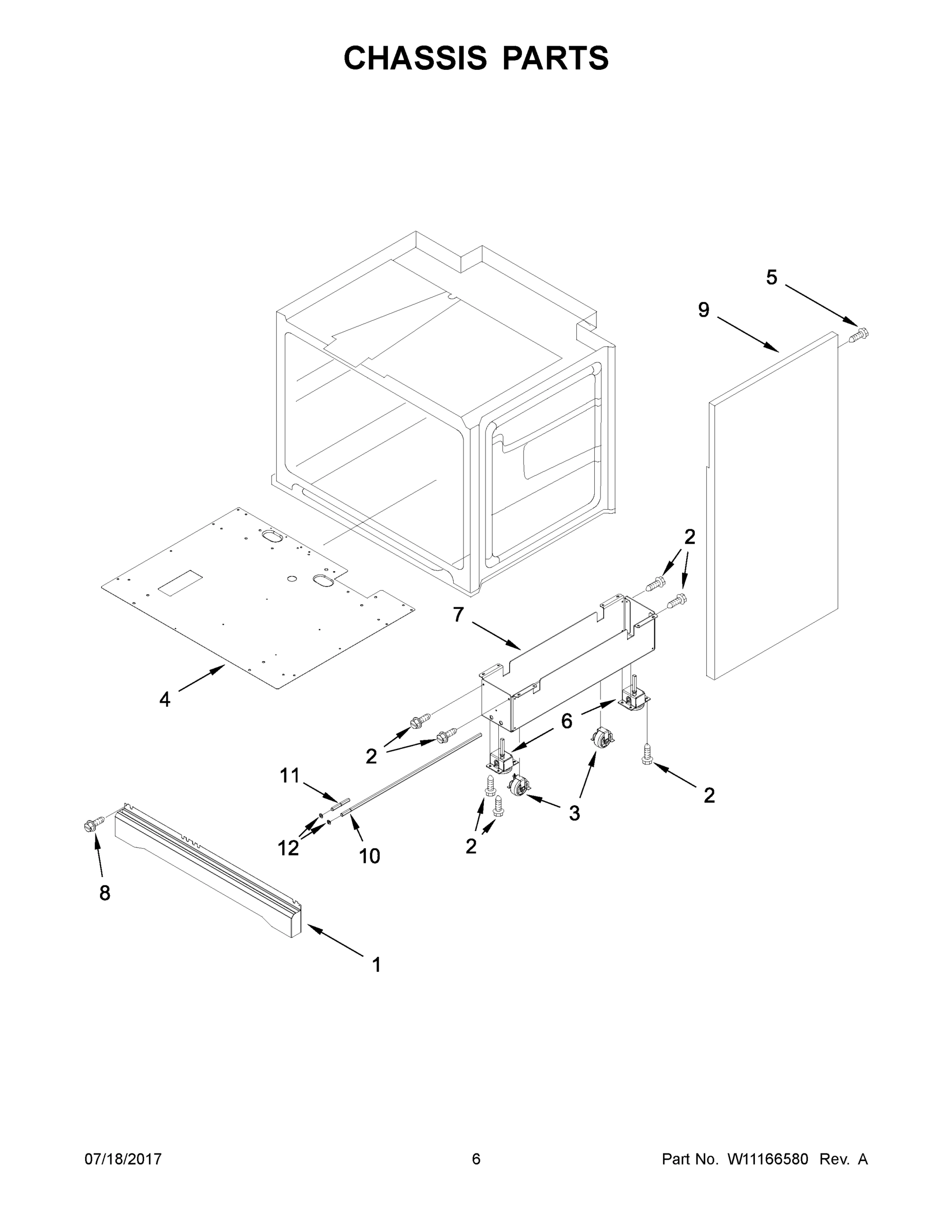

Model Whirlpool KDRS407VSD01 RANGE/OVEN/GRIDDLE, DUAL FUEL, COMMERCIAL-STYLE, 3 – Common Parts &amp; Diagrams

1

WPW10385583 Whirlpool Burner Valve Backorder WPL WPW10385583 $129.98

2

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $7.01

2

W10115994 Whirlpool Broil Element Backorder WPL W10115994 $124.01

2

W10657945 Whirlpool Orifice Spud Backorder WPL W10657945 $35.10

2B

W11051480 Whirlpool Orifice Assembly Backorder WPL W11051480 $35.10

3

W10105790 Whirlpool Bumper In Stock WPL W10105790 $4.85

3

W10846622 Whirlpool Orifice Holder Backorder WPL W10846622 $43.32

3

W11550107 Whirlpool Oven Rack Backorder WPL W11550107 $59.22

3

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $84.22

3

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $17.40

3

WPW10245511 Whirlpool Blower In Stock WPL WPW10245511 $201.89

4

W10846623 Whirlpool Orifice Holder Backorder WPL W10846623 $43.32

4

W11186364 Whirlpool Oven Rack In Stock WPL W11186364 $142.36

4

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $68.58

5

WP4457132 Whirlpool Retainer Backorder WPL WP4457132 $107.44

5

ELEMENT, HIDDEN BAKE WPL W10115995 Contact Us For Availability

6

4453115 Whirlpool Range Adapter Backorder WPL 4453115 $45.57

6

W10115876 Whirlpool Cover Backorder WPL W10115876 $32.63

6

W10269218 Whirlpool Trim Top Backorder WPL W10269218 $107.73

6

W10495854 Whirlpool Transformer Backorder WPL W10495854 $86.64

6

W10859931 Whirlpool Foot Level Backorder WPL W10859931 $46.17

7

W10249333 Whirlpool Range Mounting Bracket Backorder WPL W10249333 $118.92

7

W10402609 Whirlpool Manifold Backorder WPL W10402609 $186.91

7

W10854967 Whirlpool Surface Igniter In Stock WPL W10854967 $17.04

7

W10860984 Whirlpool Fan Motor In Stock WPL W10860984 $74.69

7

WP9759225 Whirlpool Inner Door Glass Backorder WPL WP9759225 $87.13

7

WPW10307114 Whirlpool Light Backorder WPL WPW10307114 $51.06

8

WPW10292297 Whirlpool Screw Backorder WPL WPW10292297 $3.33

8

WPW10385582 Whirlpool Burner Valve In Stock WPL WPW10385582 $142.13

9

W10261523 Whirlpool Plate Backorder WPL W10261523 $27.12

9

W10839793 Whirlpool Refrigerator Nameplate In Stock WPL W10839793 $23.59

9

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $56.92

9A

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $56.92

10

W10115869 Whirlpool Shaft Backorder WPL W10115869 $43.57

W10115793 Whirlpool Shaft Backorder WPL W10115793 $33.69

W10449141 Whirlpool Regulator Backorder WPL W10449141 $116.41

W11643125 Whirlpool Element Backorder WPL W11643125 $46.65

WP9761958 Whirlpool Range Terminal Block In Stock WPL WP9761958 $14.49

12

489504 Whirlpool Range Ring Backorder WPL 489504 $4.85

12

W10217130 Whirlpool Screw Backorder WPL W10217130 $5.29

W10467022 Whirlpool Box Terminal Backorder WPL W10467022 $52.58

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $59.04

WPW10256034 Whirlpool Burner Cap Backorder WPL WPW10256034 $74.66

BRACKET, BURNER WPL W10560553 Contact Us For Availability

13A

WPW10256032 Whirlpool Burner Cap Backorder WPL WPW10256032 $47.18

13B

WPW10364463 Whirlpool Burner Cap Backorder WPL WPW10364463 $28.05

14

9759721 Whirlpool Range Insulator Backorder WPL 9759721 $41.32

14

WPW10371235 Whirlpool Burner Valve Backorder WPL WPW10371235 $139.87

14A

WPW10256027 Whirlpool Burner Head Backorder WPL WPW10256027 $55.21

14B

WPW10282515 Whirlpool Burner Head Backorder WPL WPW10282515 $67.26

15

W11684564 Whirlpool Clip Assembly In Stock WPL W11684564 $4.48

15

WP9759229 Whirlpool Mounting Bracket Backorder WPL WP9759229 $63.73

15

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $55.66

15A

8286863 Whirlpool Oven Clip In Stock WPL 8286863 $26.21

4453116 Whirlpool Range Adapter Backorder WPL 4453116 $72.36

W10883622 Whirlpool Orifice Holder Backorder WPL W10883622 $41.25

WP3196163 Whirlpool Screw In Stock WPL WP3196163 $3.33

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $2.51

17

WPW10298119-includeCORE Whirlpool WPW10298119 Backorder WPL WPW10298119-includeCORE $299.58

17

SCREW WPL 4449040 Contact Us For Availability

18

W10352969 Whirlpool Cooktop Assembly Backorder WPL W10352969 $135.65

18A

W10352968 Whirlpool Cooktop Backorder WPL W10352968 $131.54

W10130760 Whirlpool Bracket Mounting Backorder WPL W10130760 $27.52

W10189177 Whirlpool Seal Switch Backorder WPL W10189177 $6.28

W10270397 Whirlpool Vent Seal Backorder WPL W10270397 $12.11

WP4449751 Whirlpool Range Oven Thermostat Fix In Stock WPL WP4449751 $76.71

19A

W10130759 Whirlpool Mounting Bracket Backorder WPL W10130759 $27.52

20

WPW10116104 Whirlpool Membrane Switch Backorder WPL WPW10116104 $184.04

21

W10250476 Whirlpool Mounting Bracket Backorder WPL W10250476 $67.78

22

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $10.76

23

W10115715 Whirlpool Bracket Mounting Backorder WPL W10115715 $13.21

25

WPW10169757 Whirlpool Light Bulb In Stock WPL WPW10169757 $29.94

25

WPW10475147 Whirlpool Spark Module In Stock WPL WPW10475147 $146.65

26

8286930 Whirlpool Oven Gasket Backorder WPL 8286930 $32.57

26

W10169756 Whirlpool Light Lens Backorder WPL W10169756 $27.80

26

SUPPORT, HANDLE WPL W10225964 Contact Us For Availability

27

W10061760 Whirlpool Screw In Stock WPL W10061760 $5.67

29

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $2.51

31

W11241670 Whirlpool Grill Grate Backorder WPL W11241670 $128.14

32

W10271524 Whirlpool Trim Top Backorder WPL W10271524 $88.85

33

WPL 7101P33860 WPL 7101P33860 Contact Us For Availability

34

W11676349 Whirlpool Screw Backorder WPL W11676349 $8.11

35

W11241230 Whirlpool Screw Backorder WPL W11241230 $9.59

16515 Whirlpool Clip Backorder WPL 16515 $11.62

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

4453191 Whirlpool Seal Backorder WPL 4453191 $30.89

8287106 Whirlpool Clip Assembly Backorder WPL 8287106 $27.52

9757778 Whirlpool Range Bushing Backorder WPL 9757778 $34.44

W10123240 Whirlpool Broil Pan and Roasting Ra Backorder WPL W10123240 $72.40

W10280797 Whirlpool Gas Tubing Backorder WPL W10280797 $30.87

W10338986 Whirlpool Wire Harness Backorder WPL W10338986 $188.81

W10353141 Whirlpool Gas Tubing Assembly Backorder WPL W10353141 $62.12

W10353154 Whirlpool Gas Tubing Backorder WPL W10353154 $61.52

W10494088 Whirlpool Wire Harness Backorder WPL W10494088 $43.59

W10503778 Whirlpool Wire Harness Backorder WPL W10503778 $72.82

W10726866 Whirlpool Wire Harness Backorder WPL W10726866 $30.56

W10763500 Whirlpool Wire Harness Backorder WPL W10763500 $69.34

W10780278 Whirlpool Wire Harness Backorder WPL W10780278 $43.72

W10856625 Whirlpool Venturi Backorder WPL W10856625 $70.88

Backorder WPL W11321066 $53.18

W11544575 Whirlpool Anti-Tip Bracket Backorder WPL W11544575 $19.47

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP3400968 Whirlpool Nut Backorder WPL WP3400968 $3.70

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $25.71

WP9759877 Whirlpool Retainer Backorder WPL WP9759877 $6.51

MISCELLANEOUS, CLEANER, COOKTOP WPL 31464 Contact Us For Availability

WPL 7101P48560 WPL 7101P48560 Contact Us For Availability

WPL 8010P08660 WPL 8010P08660 Contact Us For Availability

WPL 8019P01360 WPL 8019P01360 Contact Us For Availability

WPL NP WPL NP Contact Us For Availability

WPL W10283996 WPL W10283996 Contact Us For Availability

WPL W10766100 WPL W10766100 Contact Us For Availability

MISCELLANEOUS, STAINLESS STEEL CLEANER & POLI WPL 4396920 Contact Us For Availability

ADHESIVE, SEAL, RIBBON CABLE WPL 4453192 Contact Us For Availability

ADHESIVE, LOCTITE WPL 591014 Contact Us For Availability
