Model Whirlpool KBSD708MBS01 REFRIGERATOR, ALL – Common Parts &amp; Diagrams

1

W11623097 Whirlpool Inverter Box In Stock WPL W11623097 $169.21

1

W11633382 Whirlpool Door FIP Backorder WPL W11633382 $864.79

1

W11633394 Whirlpool Door Flip Backorder WPL W11633394 $864.79

1

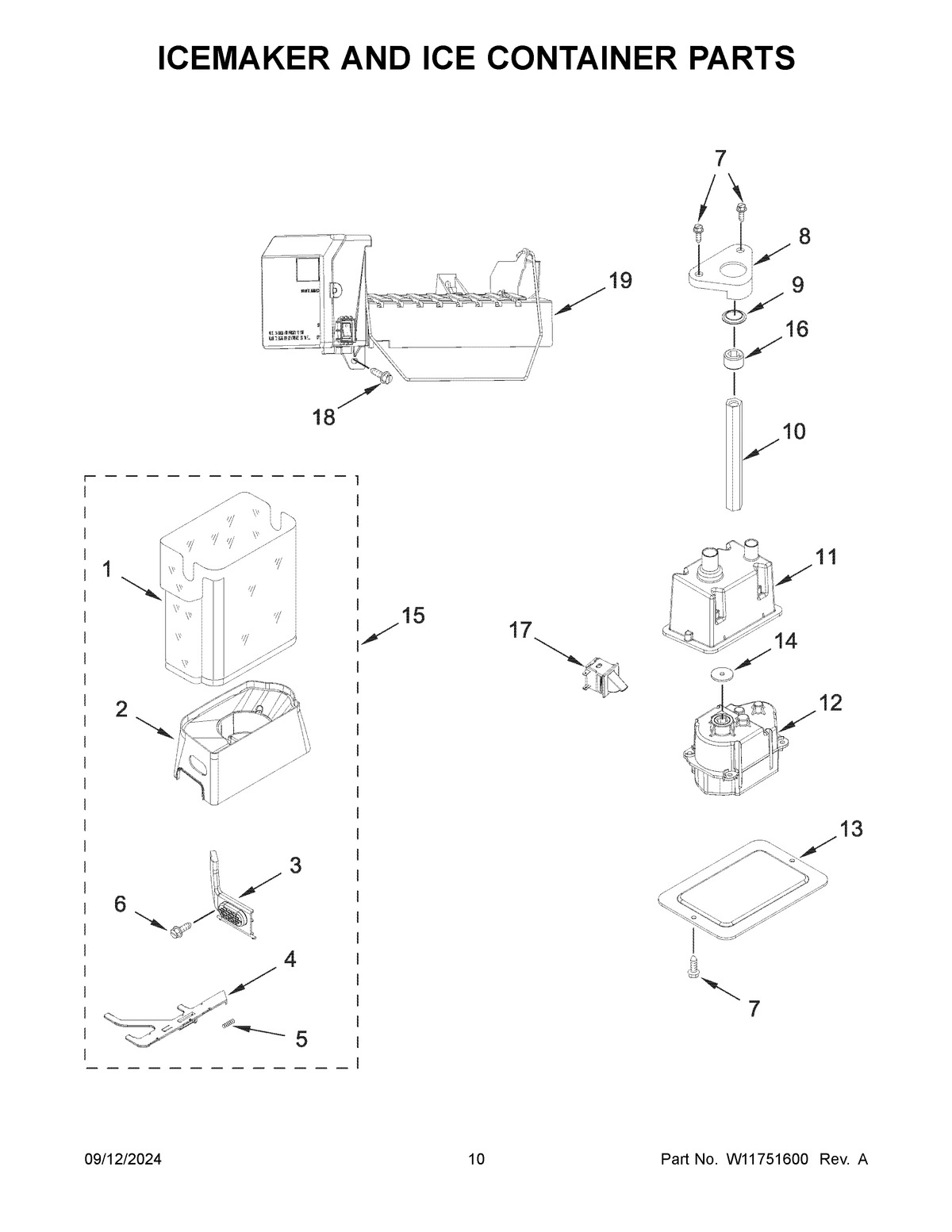

WP2222970 Whirlpool Refrigerator Ice Bin Backorder WPL WP2222970 $99.17

1

HOUSING, DISPENSER (NOT SERVICED) WPL ARI0820F7799426DB23CC858392159B72FE Contact Us For Availability

1

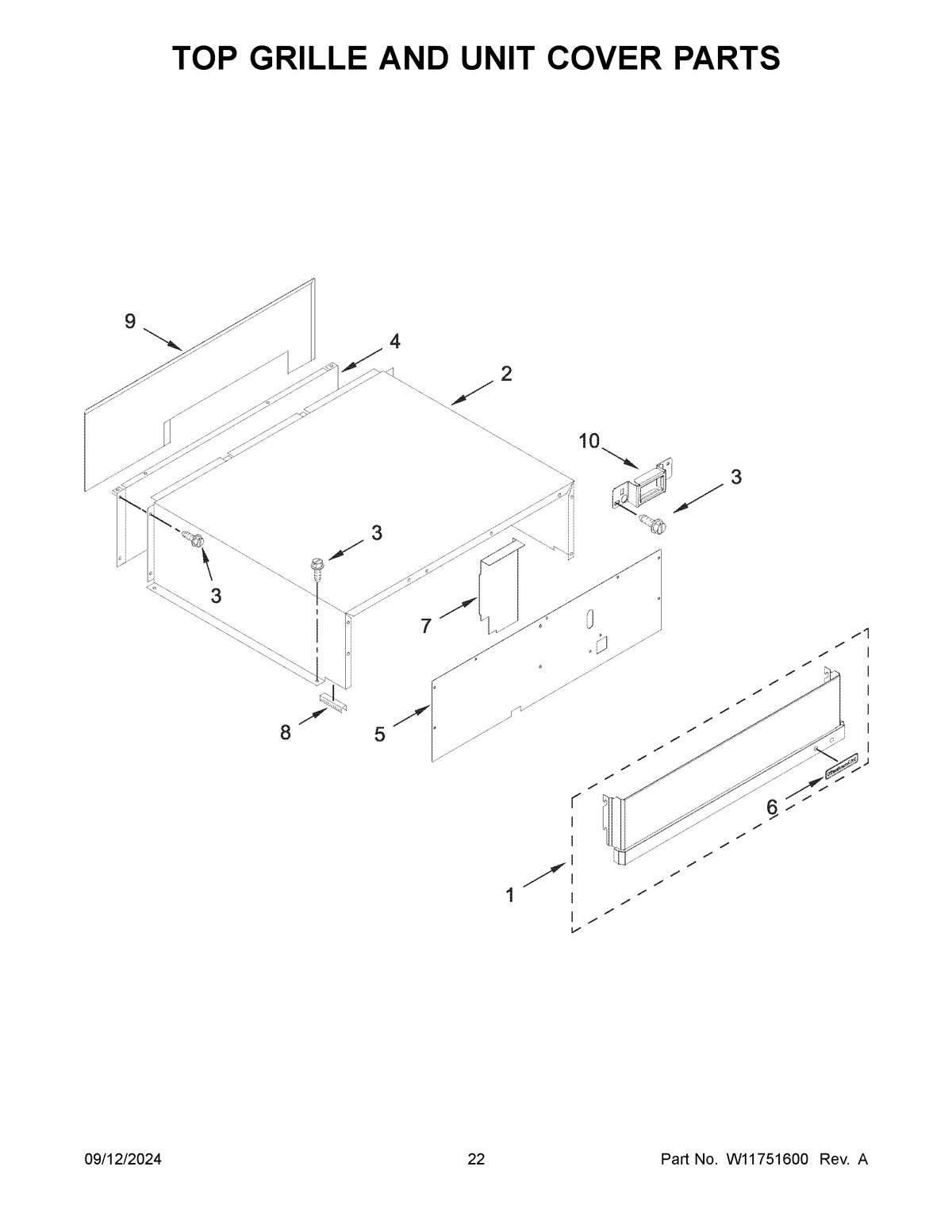

ASSEMBLY, TOP GRILLE (BLACK STAINLESS) WPL W11697553 Contact Us For Availability

1

BRACKET, EVAPORATOR RIGHT TOP WPL W11695309 Contact Us For Availability

2

W11530767 Whirlpool Tube Backorder WPL W11530767 $42.80

2

SHELF, FIXED WPL W11603230 Contact Us For Availability

2

COVER, UNIT WPL W11708444 Contact Us For Availability

2

SCREW WPL 489473 Contact Us For Availability

3

2318189 Whirlpool Refrigerator Drip Pan Backorder WPL 2318189 $50.98

3

W10542660 Whirlpool Refrigerator Bracket Backorder WPL W10542660 $30.14

3

W10749207 Whirlpool Refrigerator Bin Button Backorder WPL W10749207 $25.09

3

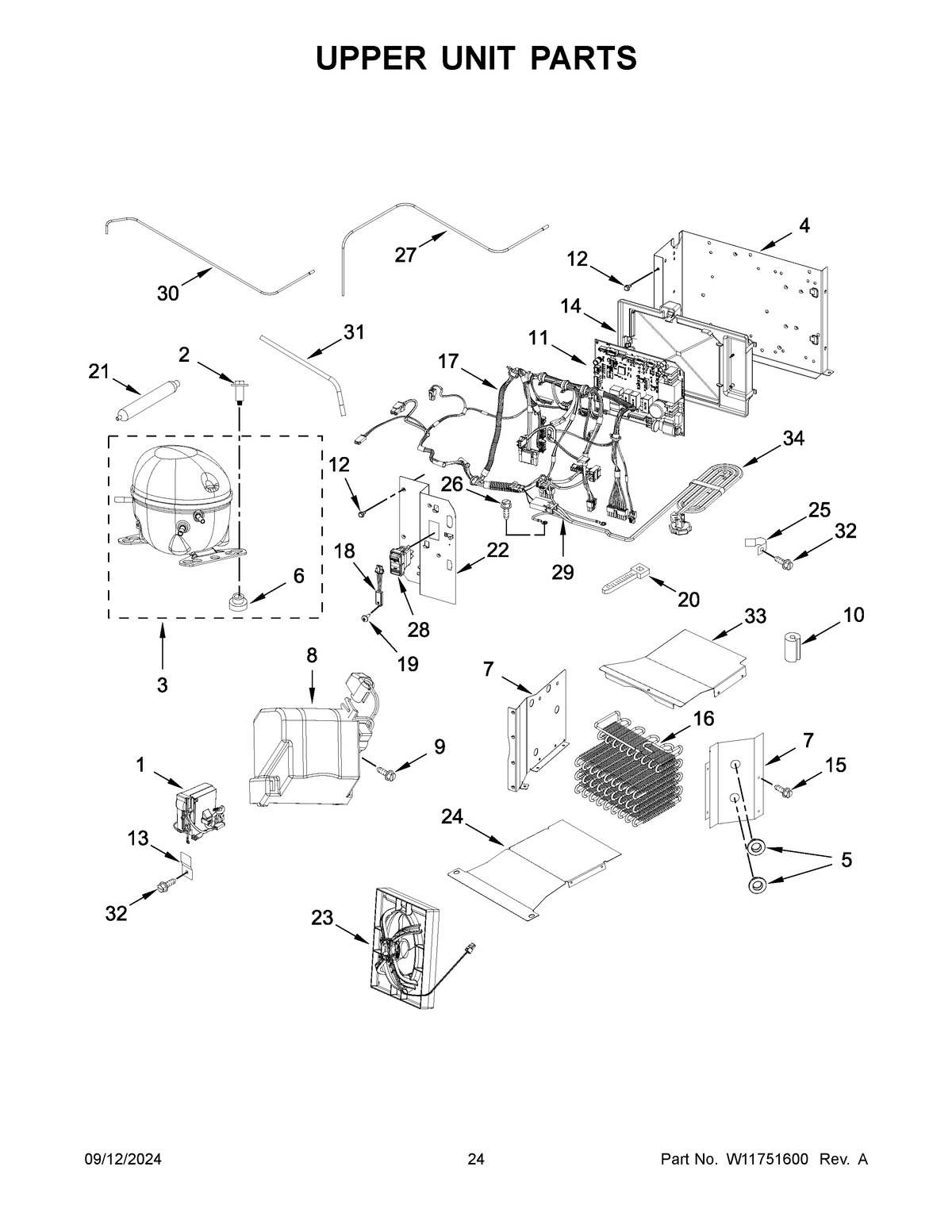

W11557671 Whirlpool Refrigerator Compressor In Stock WPL W11557671 $427.63

3

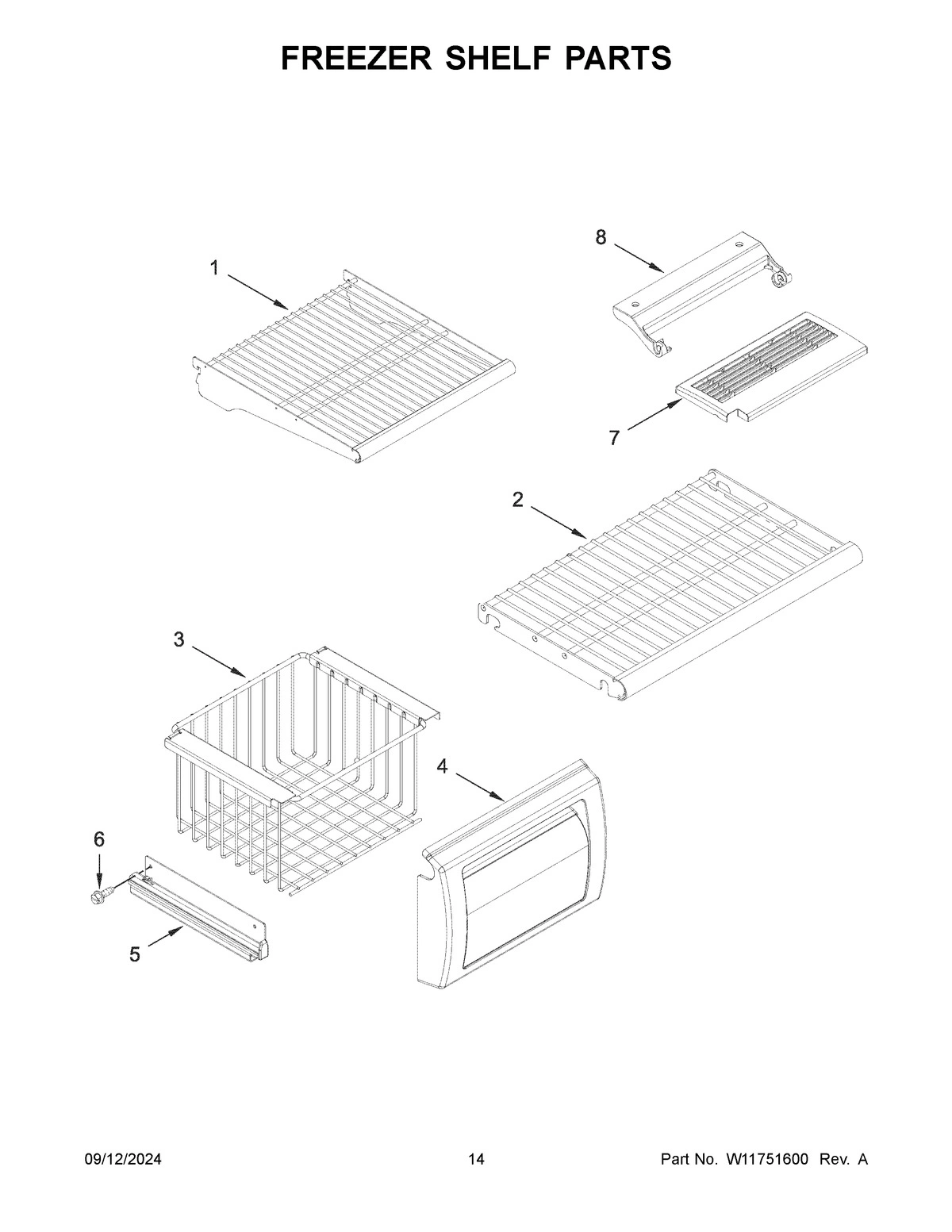

W11602366 Whirlpool Refrigerator Basket Backorder WPL W11602366 $76.71

3

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

3

W11752085 Whirlpool Door Hinge In Stock WPL W11752085 $22.36

3

PAN COVER ASSEMBLY, MEAT WPL W11441725 Contact Us For Availability

3

SCREW (BLACK) WPL W10784922 Contact Us For Availability

3A

W11504415 Whirlpool Refrigerator Coupler In Stock WPL W11504415 $13.69

3B

W11504431 Whirlpool Microwave Coupler In Stock WPL W11504431 $14.24

3C

W11504416 Whirlpool Refrigerator Coupler In Stock WPL W11504416 $14.57

4

W10134785 Whirlpool Refrigerator Bin Latch In Stock WPL W10134785 $32.61

4

W10550831 Whirlpool Refrigerator Housing Backorder WPL W10550831 $33.58

4

W10833902 Whirlpool Refrigerator Clamp Backorder WPL W10833902 $4.45

4

W11474472 Whirlpool Screw In Stock WPL W11474472 $2.51

4

W11627455 Whirlpool Basket Front Backorder WPL W11627455 $116.41

4

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $15.13

4

WPW10546285 Whirlpool Refrigerator Motor In Stock WPL WPW10546285 $54.83

4

PAN COVER ASSEMBLY, CRISPER WPL W11441727 Contact Us For Availability

4

PANEL, UNIT BACK WPL W11708420 Contact Us For Availability

5

W11435372 Whirlpool Cover-Unit Backorder WPL W11435372 $25.62

5

W11444578 Whirlpool Tube Backorder WPL W11444578 $42.80

5

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

5

WP2259318 Whirlpool Refrigerator Slide Backorder WPL WP2259318 $144.34

5

WPW10205979 Whirlpool Refrigerator Ice Door M In Stock WPL WPW10205979 $37.17

5

PAN ASSEMBLY, MEAT WPL W11448428 Contact Us For Availability

5

MOUNTING GROMMET, CONDENSER WPL W10587113 Contact Us For Availability

5A

2259317 Whirlpool Refrigerator Slide Backorder WPL 2259317 $106.19

6

2198671 Whirlpool Refrigerator Screw Backorder WPL 2198671 $4.58

6

2302878 Whirlpool Refrigerator Door Hinge Backorder WPL 2302878 $34.92

6

W10839793 Whirlpool Refrigerator Nameplate In Stock WPL W10839793 $22.77

6

W11238395 Whirlpool Refrigerator Filter Cap In Stock WPL W11238395 $26.88

6

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

6

W11673500 Whirlpool Door Hinge In Stock WPL W11673500 $61.63

6

WPW10504458 Whirlpool Refrigerator Door Chute In Stock WPL WPW10504458 $8.27

6

PAN, COOL CONTROL CRISPER WPL W11740829 Contact Us For Availability

6

PAN ASSEMBLY, DRAIN WPL W11491712 Contact Us For Availability

7

W10542663 Whirlpool Refrigerator Support Backorder WPL W10542663 $27.07

7

W10645086 Whirlpool Refrigerator Divider Backorder WPL W10645086 $37.70

7

W11625072 Whirlpool Refrigerator FIP Gasket In Stock WPL W11625072 $180.98

7

Backorder WPL W11631295 $159.68

7

COVER, ICEMAKER WPL W11567119 Contact Us For Availability

7

ASSEMBLY, TOP DOOR BIN WPL W11610618 Contact Us For Availability

7

SUPPORT, CONDENSER (LEFT HAND) WPL W11695311 Contact Us For Availability

7

COVER, WIRING BOTTOM WPL W11695781 Contact Us For Availability

7A

SUPPORT, CONDENSER (RIGHT HAND) WPL W11695312 Contact Us For Availability

8

2215910 Whirlpool Refrigerator Grommet Backorder WPL 2215910 $28.80

8

2307810 Whirlpool Refrigerator Air Duct Backorder WPL 2307810 $26.21

8

W10783284 Whirlpool Refrigerator Handle Backorder WPL W10783284 $110.27

8

W11247667 Whirlpool Refrigerator Cover Backorder WPL W11247667 $39.18

8

W11766462 Whirlpool Bracket Backorder WPL W11766462 $12.37

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

8

COVER, WIRE BOX WPL W11695782 Contact Us For Availability

9

W11625077 Whirlpool Refrigerator FIP Gasket Backorder WPL W11625077 $180.44

9

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

9

WP2302937 Whirlpool Refrigerator Thermistor In Stock WPL WP2302937 $28.64

9

WP2305235 Whirlpool Refrigerator Spigot Backorder WPL WP2305235 $48.73

9

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.40

9

WPW10121140 Whirlpool Refrigerator Housing In Stock WPL WPW10121140 $106.14

9

SHELF ASSEMBLY, PLATTER WPL W11611417 Contact Us For Availability

9

INSULATION, UNIT BACK PANEL WPL W11244166 Contact Us For Availability

9

TUBE, DISCHARGE WPL W11444570 Contact Us For Availability

2307584 Whirlpool Refrigerator Grommet Backorder WPL 2307584 $12.70

W10141518 Whirlpool Refrigerator Screw Backorder WPL W10141518 $5.65

W10321050 Whirlpool Refrigerator Shield Backorder WPL W10321050 $26.21

W10800787 Whirlpool Refrigerator Door Skin Backorder WPL W10800787 $460.10

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $3.57

W11633366 Whirlpool Utility Pan Backorder WPL W11633366 $42.27

W11649219 Whirlpool Separator Backorder WPL W11649219 $20.95

SKIN, DOOR (BLACK STAINLESS FILLER (NOT SERVI WPL W11441148 Contact Us For Availability

COVER, SAFETY SWITCH WPL W11356980 Contact Us For Availability

W11629714 Whirlpool Evaporator Backorder WPL W11629714 $152.19

W11633367 Whirlpool Utility Pan Backorder WPL W11633367 $42.27

CNTRL-ELEC+CORE Backorder WPL W11752963-includeCORE $200.85

SCREW WPL 3400525 Contact Us For Availability

SCREW (STAINLESS) WPL W11672062 Contact Us For Availability

HOUSING, MIDDLE (NOT AVAILABLE ORDER ITEM 12) WPL ARI8659AC7004BCB431455DB56FB8661A77 Contact Us For Availability

11A

W11504450 Whirlpool Refrigerator Coupler In Stock WPL W11504450 $24.47

11B

W11506620 Whirlpool Refrigerator Coupler In Stock WPL W11506620 $16.85

W10758113 Whirlpool Refrigerator Spacer Backorder WPL W10758113 $57.63

W10758121 Whirlpool Refrigerator Spacer Backorder WPL W10758121 $31.38

W11625251 Whirlpool Front Cover Backorder WPL W11625251 $82.74

W11626107 Whirlpool Heater Assembly In Stock WPL W11626107 $84.56

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

SPACER, CRISPER (LEFT HAND) WPL W11410122 Contact Us For Availability

12A

SPACER, CRISPER (RIGHT HAND) WPL W11410123 Contact Us For Availability

2256328 Whirlpool Bracket Assembly Backorder WPL 2256328 $28.20

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

W11626828 Whirlpool Pad Backorder WPL W11626828 $24.14

W11629268 Whirlpool Thermistor In Stock WPL W11629268 $19.03

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

SPACER, MEAT PAN (LEFT HAND) WPL W11410124 Contact Us For Availability

13A

SPACER, MEAT PAN (RIGHT HAND) WPL W11410125 Contact Us For Availability

2302956 Whirlpool Refrigerator Slide Backorder WPL 2302956 $118.28

W10758123 Whirlpool Spacer Backorder WPL W10758123 $29.41

W11298172 Whirlpool Refrigerator Extension Backorder WPL W11298172 $30.43

W11626123 Whirlpool Pad Backorder WPL W11626123 $24.14

W11715935 Whirlpool Dampener Backorder WPL W11715935 $7.61

WPW10254073 Whirlpool Refrigerator Washer Backorder WPL WPW10254073 $4.15

HOUSING, CONTROL BOARD WPL W11435369 Contact Us For Availability

14A

2302957 Whirlpool Refrigerator Slide Backorder WPL 2302957 $87.50

14A

W10847927 Whirlpool Refrigerator Extension In Stock WPL W10847927 $34.39

2257644 Whirlpool Refrigerator Door Hinge Backorder WPL 2257644 $62.10

W10756209 Whirlpool Refrigerator Spacer Backorder WPL W10756209 $50.93

W10761897 Whirlpool Refrigerator Spacer Backorder WPL W10761897 $34.02

W10844011 Whirlpool Refrigerator Slide Backorder WPL W10844011 $123.50

W11626104-includeCORE Whirlpool W11626104 Ref Backorder WPL W11626104-includeCORE $229.25

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $18.70

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.42

15A

W10732727 Whirlpool Refrigerator Slide Backorder WPL W10732727 $123.50

W10432308 Whirlpool Gasket Backorder WPL W10432308 $8.86

W11629730 Whirlpool Jumper Wire Backorder WPL W11629730 $8.88

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $25.86

WP308544 Whirlpool Screw In Stock WPL WP308544 $2.51

WP8533928 Whirlpool Refrigerator Screw In Stock WPL WP8533928 $2.51

CONDENSER (ALSO ORDER THE FOLLOWING LOKRING WPL W11601407 Contact Us For Availability

16A

WP3400886 Whirlpool Refrigerator Screw Backorder WPL WP3400886 $3.70

W10761937 Whirlpool Refrigerator Spacer Backorder WPL W10761937 $34.02

W11421662 Whirlpool Wire Harness Backorder WPL W11421662 $79.21

W11626241 Whirlpool Drip Tray In Stock WPL W11626241 $48.02

WP2220377 Whirlpool Refrigerator Air Baffle In Stock WPL WP2220377 $173.69

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.42

W10169509 Whirlpool Refrigerator Clip Backorder WPL W10169509 $28.80

W11627456 Whirlpool Sensor Backorder WPL W11627456 $32.28

W11700297 Whirlpool Refrigerator Gap Hinge Backorder WPL W11700297 $13.29

WP2004994 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2004994 $3.70

BIN, SHALLOW DOOR WPL W11408940 Contact Us For Availability

2320554 Whirlpool Bracket Backorder WPL 2320554 $26.21

W10127710 Whirlpool Refrigerator Plate Backorder WPL W10127710 $8.55

W11500952 Whirlpool Refrigerator Hinge Bushin Backorder WPL W11500952 $12.32

WP2006346 Whirlpool Refrigerator Washer In Stock WPL WP2006346 $4.43

SCREW WPL W10068580 Contact Us For Availability

20

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $7.78

20

BIN, GALLON DOOR WPL W11408930 Contact Us For Availability

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

W11109499 Whirlpool Refrigerator Tube In Stock WPL W11109499 $20.17

W11769878 Whirlpool Screw Backorder WPL W11769878 $7.72

BIN, SHALLOW DOOR WPL W11408938 Contact Us For Availability

21A

W11504445 Whirlpool Refrigerator Coupler In Stock WPL W11504445 $15.56

21B

W11504432 Whirlpool Refrigerator Coupler In Stock WPL W11504432 $13.58

22

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $9.59

22

WPW10191952 Whirlpool Refrigerator Screw Backorder WPL WPW10191952 $3.70

22

BRACKET, CONTROL ASSEMBLY WPL W11435371 Contact Us For Availability

23

W11623099 Whirlpool Condenser Motor Backorder WPL W11623099 $50.00

24

BRACKET, CONDENSER BOTTOM WPL W11695784 Contact Us For Availability

25

W10527053 Whirlpool Refrigerator Door Hinge Backorder WPL W10527053 $70.12

25

W11234470 Whirlpool Refrigerator Clamp Backorder WPL W11234470 $10.76

25A

WP2006780 Whirlpool Refrigerator Door Hinge Backorder WPL WP2006780 $102.66

26

WP2302876 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2302876 $27.05

26

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

27

TUBE, HEAT LOOP TRANSITION WPL W11602252 Contact Us For Availability

28

SWITCH, POWER DISCONNECT WPL W11311927 Contact Us For Availability

29

2310195 Whirlpool Refrigerator Wire Jumper Backorder WPL 2310195 $46.67

30

TUBE, DRIER TRANSITIO WPL W11602250 Contact Us For Availability

31

WPL W11482820 WPL W11482820 Contact Us For Availability

33

WPL W11695783 WPL W11695783 Contact Us For Availability

34

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $28.80

34

2310196 Whirlpool Refrigerator Power Cord Backorder WPL 2310196 $31.55

40

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

44

2006616 Whirlpool Refrigerator Bracket Backorder WPL 2006616 $28.80

46

2005032 Whirlpool Refrigerator Leveler Backorder WPL 2005032 $65.09

47

2005433 Whirlpool Refrigerator Spacer Backorder WPL 2005433 $10.23

52

W11212166 Whirlpool Refrigerator Inlet Tube In Stock WPL W11212166 $15.77

54

W11246413 Whirlpool Refrigerator Inlet Valve In Stock WPL W11246413 $72.49

56

WPW10279866 Whirlpool Refrigerator Inlet Valv In Stock WPL WPW10279866 $95.69

58

W10782424 Whirlpool Refrigerator Ring Backorder WPL W10782424 $8.53

58A

W10782423 Whirlpool Refrigerator Ring Backorder WPL W10782423 $8.53

61

W11177574 Whirlpool Refrigerator Screw Backorder WPL W11177574 $9.59

62

WP2316859 Whirlpool Refrigerator Bushing In Stock WPL WP2316859 $22.56

63

WP2320509 Whirlpool Refrigerator Door Cam Backorder WPL WP2320509 $9.92

NI

WPL ARIC72CB5B276C01BB311A52CEB21CF5406 WPL ARIC72CB5B276C01BB311A52CEB21CF5406 Contact Us For Availability
