Model Whirlpool KBRS36FMB00 36`` BOTTOM MOUNT BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

1

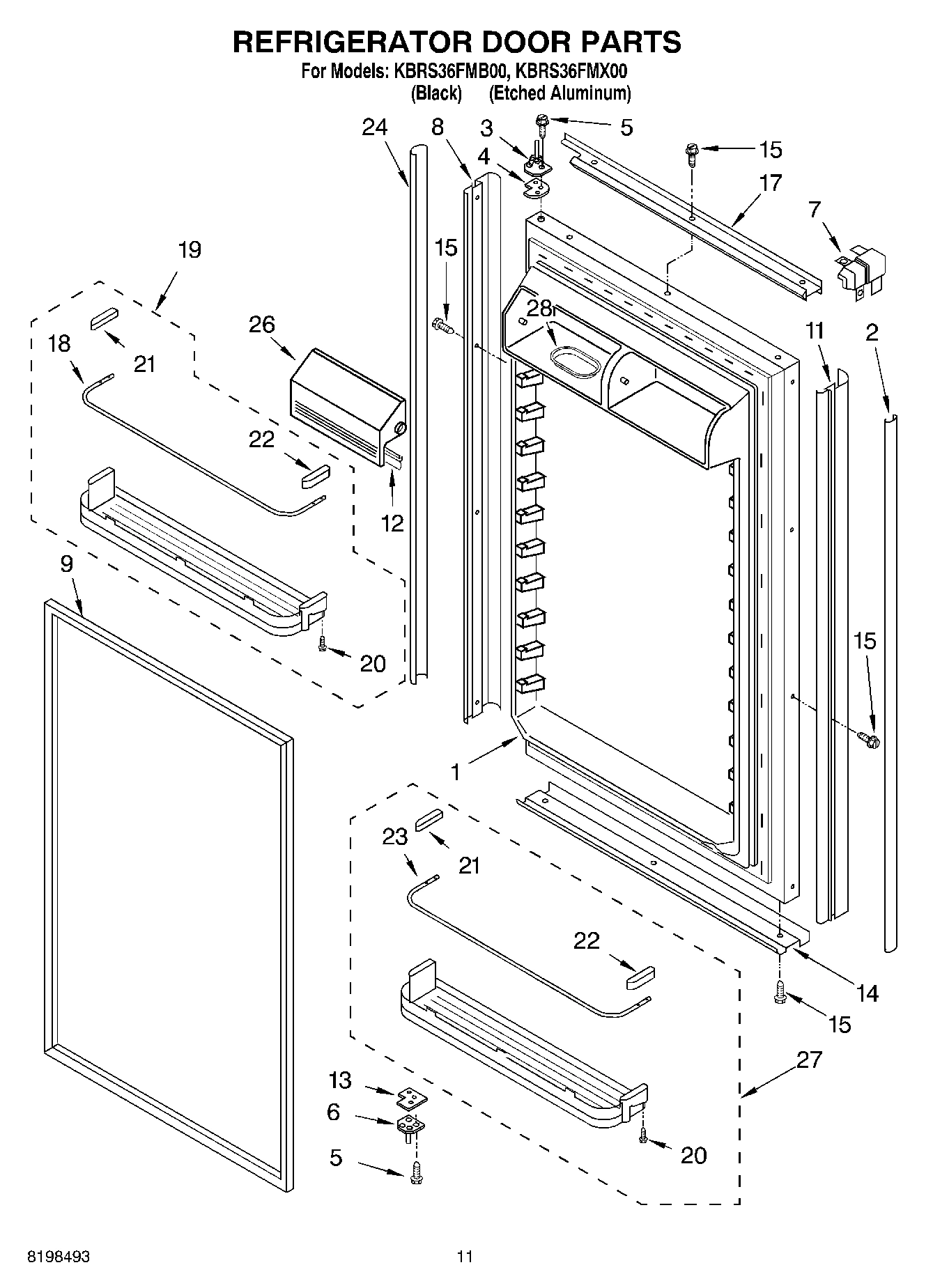

Refrigerator Door (Includes Item 9) WPL 2300083 Contact Us For Availability

1

Tube, Transition (Condenser) WPL 2259472 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT2266810 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT2266812 Contact Us For Availability

1

Literature Parts (Energy Label) WPL LIT2266819 Contact Us For Availability

1

Literature Parts (Service & Wiring Sheet) WPL LIT2266830 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability

1

Tube, Valve WPL 2204597 Contact Us For Availability

1

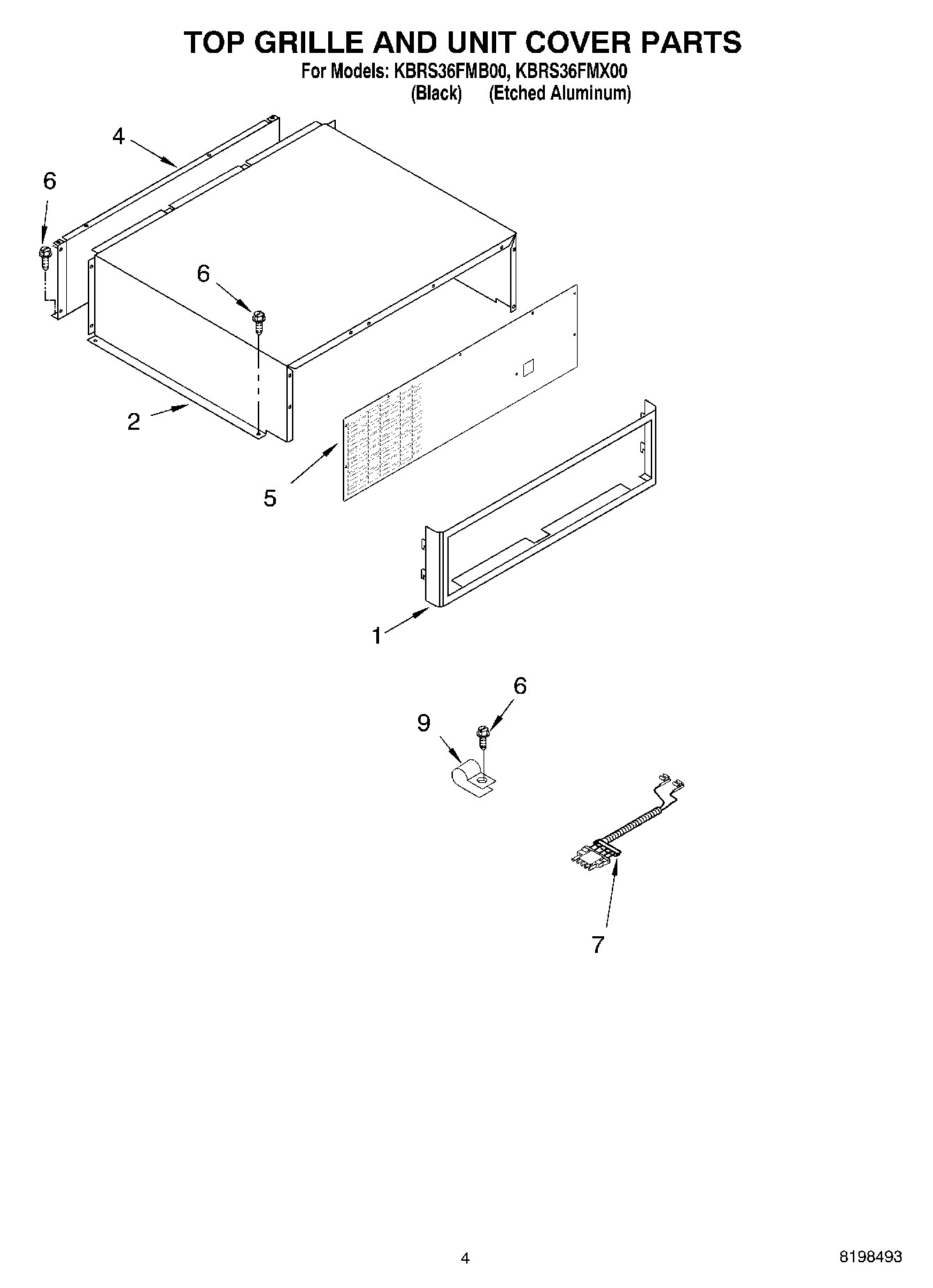

Top Grille Assembly (Black) WPL 2259426B Contact Us For Availability

1

Top Grille Assembly (Etched Aluminum) WPL 2259426X Contact Us For Availability

1

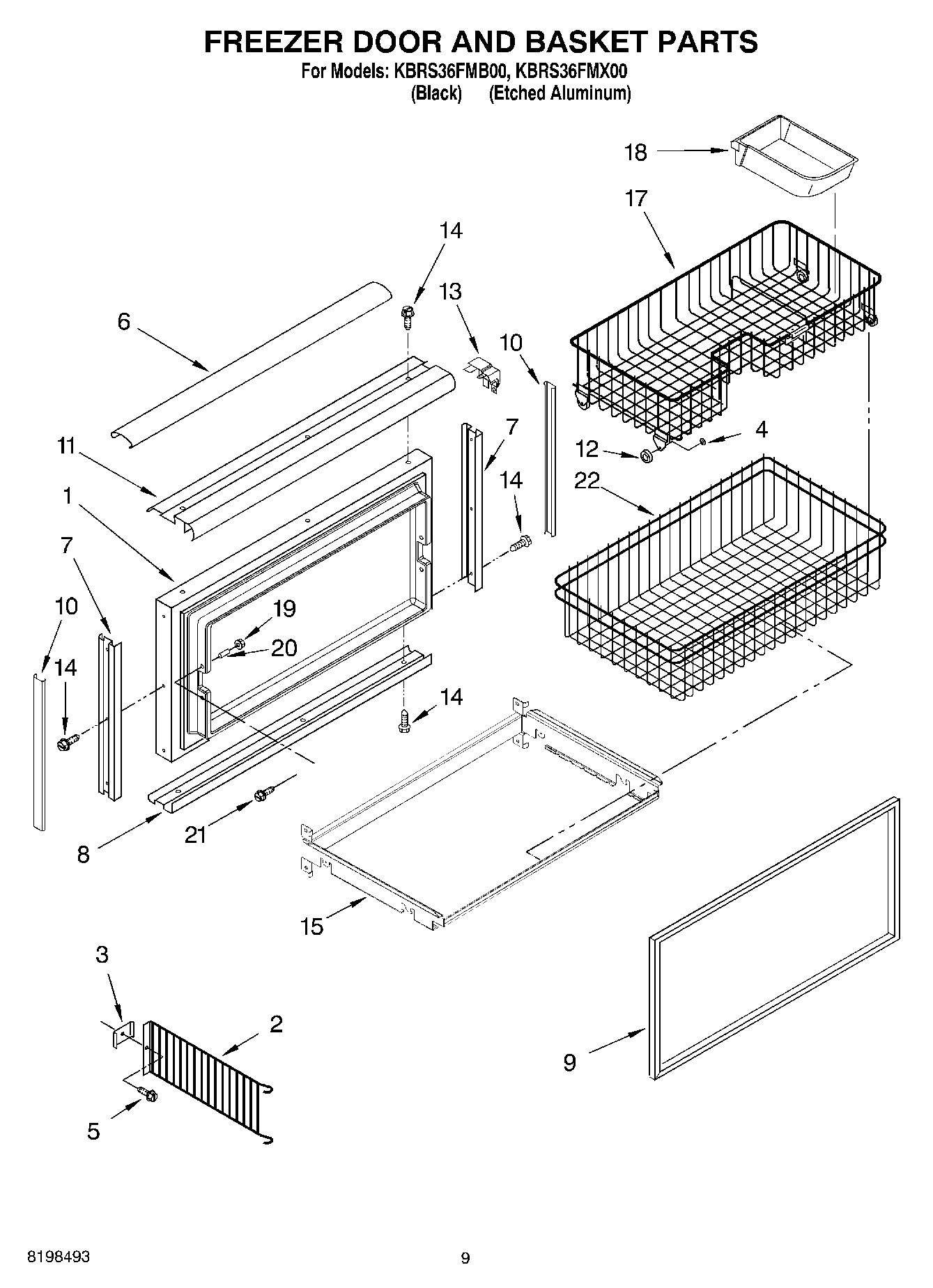

Slide, Freezer Basket (Right Side) WPL 2257355 Contact Us For Availability

1

Slide, Freezer Basket (Left Side) WPL 2257356 Contact Us For Availability

2

WP2221240 Whirlpool Refrigerator Heater In Stock WPL WP2221240 $75.78

2

Tube, Transition (Drier/Restrictor) WPL 2259304 Contact Us For Availability

2

Trim Cover, Handle (Etched Aluminum) WPL 2006337 Contact Us For Availability

2

Trim Cover, Handle (Black) WPL 2006341 Contact Us For Availability

2

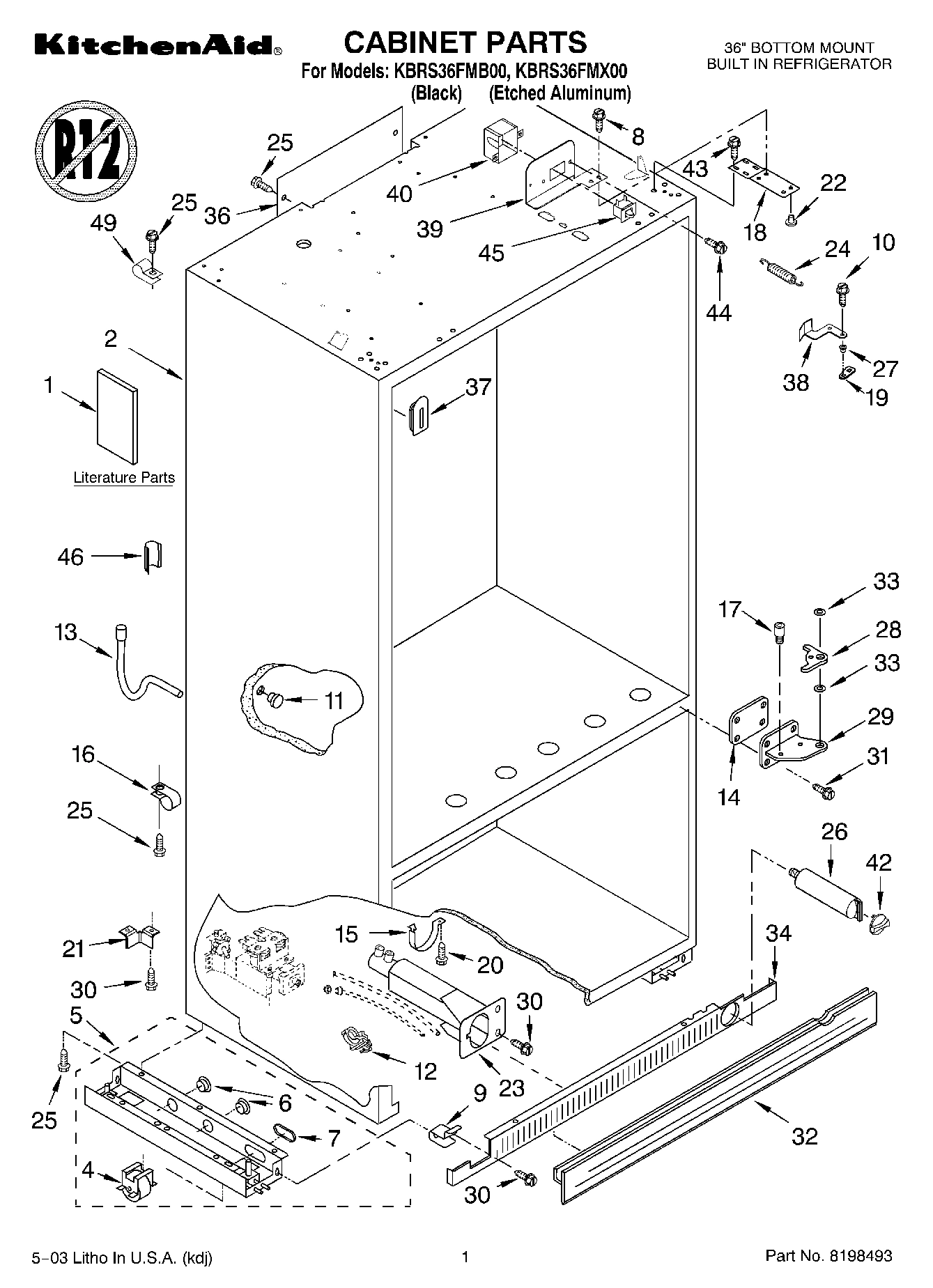

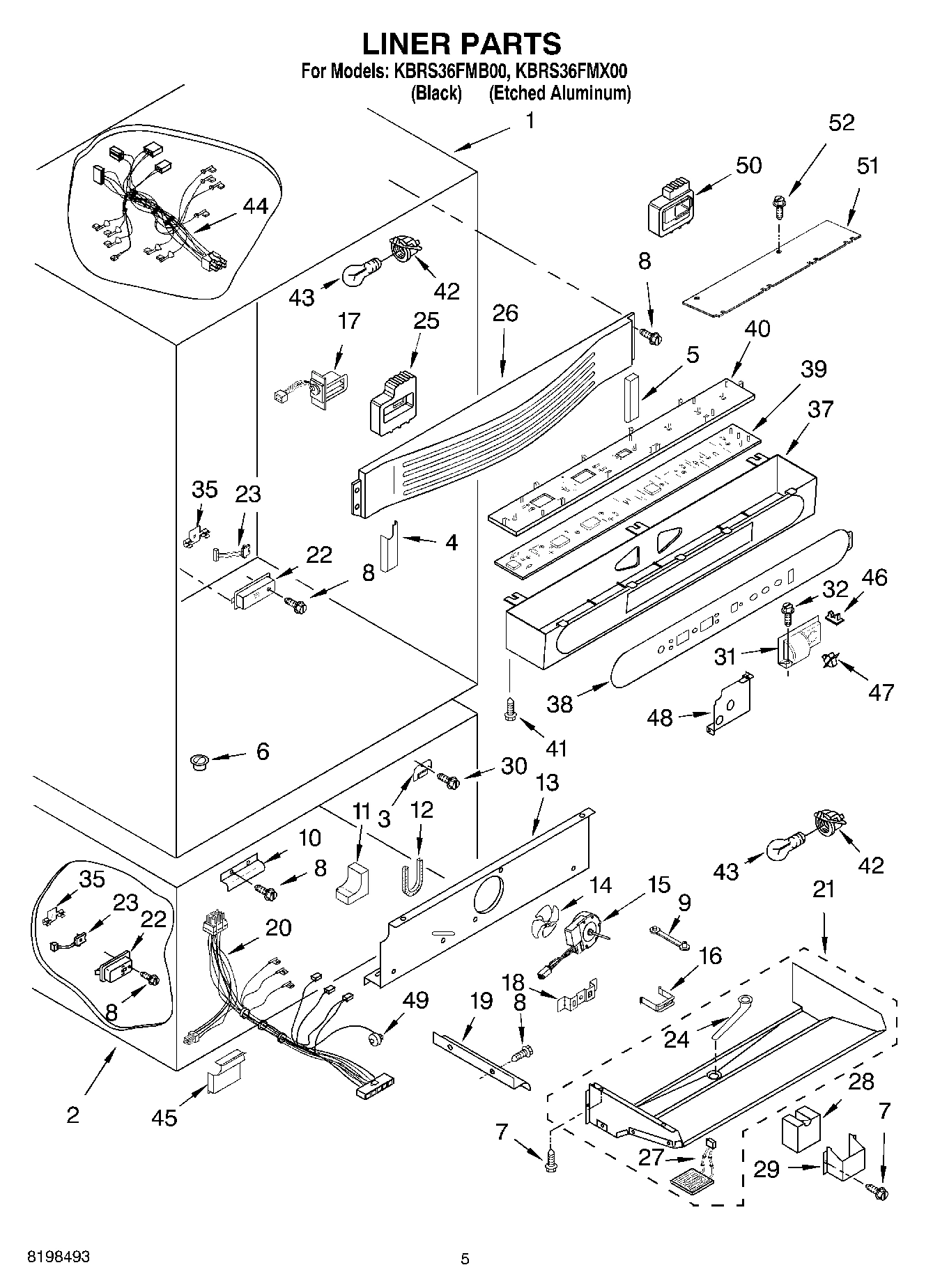

Cabinet (Not A Serviceable Part) WPL ARI80304A2 Contact Us For Availability

2

Cover, Unit WPL 2259320 Contact Us For Availability

3

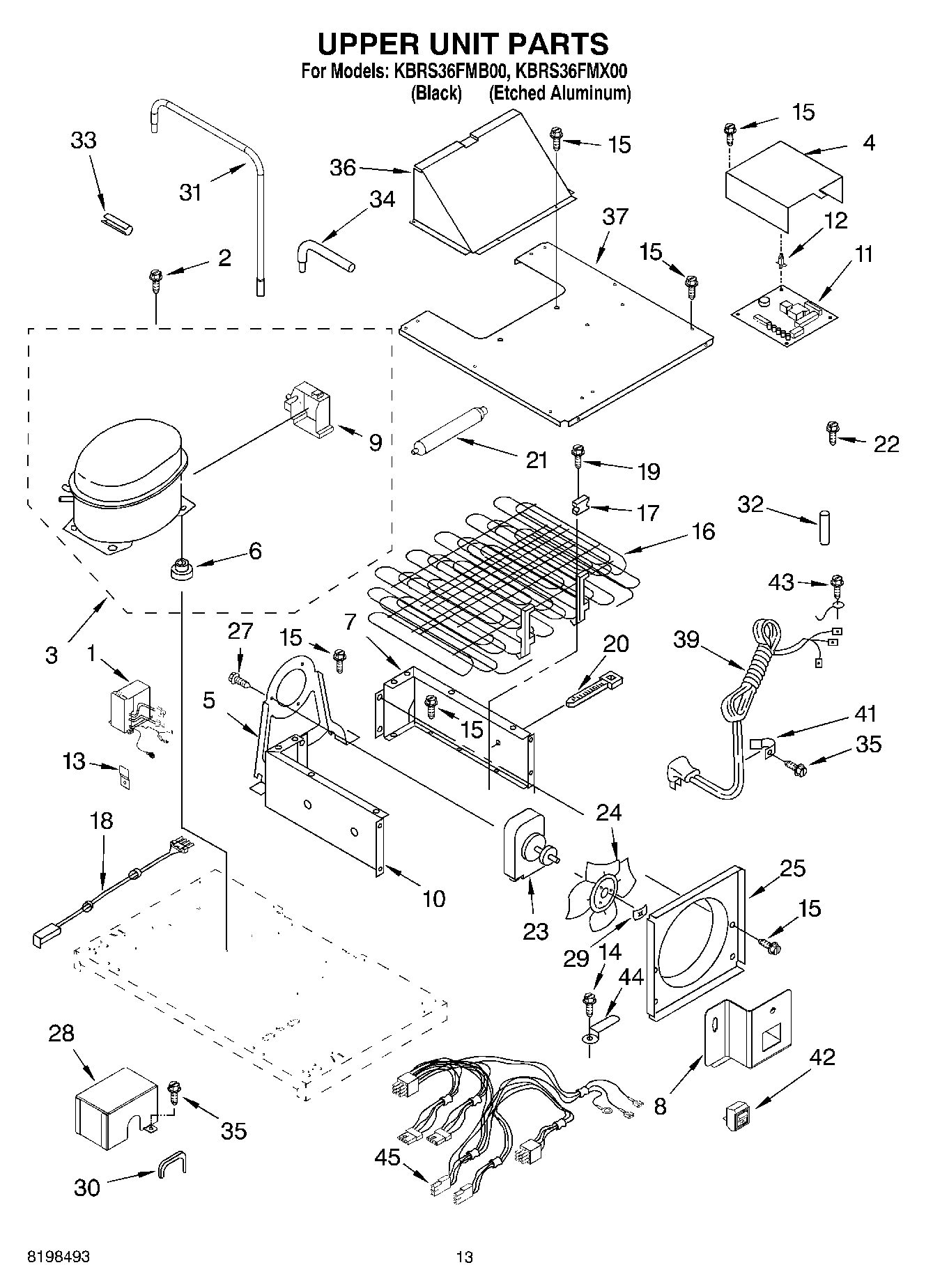

W10841139 Whirlpool Refrigerator Compressor In Stock WPL W10841139 $336.32

3

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.51

3

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

3

Hinge Assembly, Top WPL 2266912 Contact Us For Availability

4

2207415 Whirlpool Refrigerator Nut In Stock WPL 2207415 $9.59

4

2256466 Whirlpool Refrigerator Unit Cover Backorder WPL 2256466 $151.83

4

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $18.92

4

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $17.40

4

Spacer-Hinge, Top WPL 2256381 Contact Us For Availability

4

Housing, Control Board WPL 2257354 Contact Us For Availability

4

Spacer, Crisper (Left Side) WPL 2256442 Contact Us For Availability

4

Spacer, Crisper (Right Side) WPL 2256443 Contact Us For Availability

5

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

5

W10860229 Whirlpool Refrigerator Support Backorder WPL W10860229 $177.18

5

W10860448 Whirlpool Refrigerator Support Backorder WPL W10860448 $137.10

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

CLIP WPL 2257639 Contact Us For Availability

5

Bracket, Fan Motor WPL 2215641 Contact Us For Availability

5

Front, Unit Cover WPL 2259095 Contact Us For Availability

6

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

6

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

6

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

6

Suction Tube WPL 2259303 Contact Us For Availability

6

Hinge Assembly, Bottom WPL 2257605 Contact Us For Availability

6

Grommet, Wiring WPL 2005006 Contact Us For Availability

6

Tube, Filter Inlet WPL 2214613 Contact Us For Availability

6

Egg Bin WPL 2221071 Contact Us For Availability

7

2207457 Whirlpool Refrigerator Door Trim Backorder WPL 2207457 $42.33

7

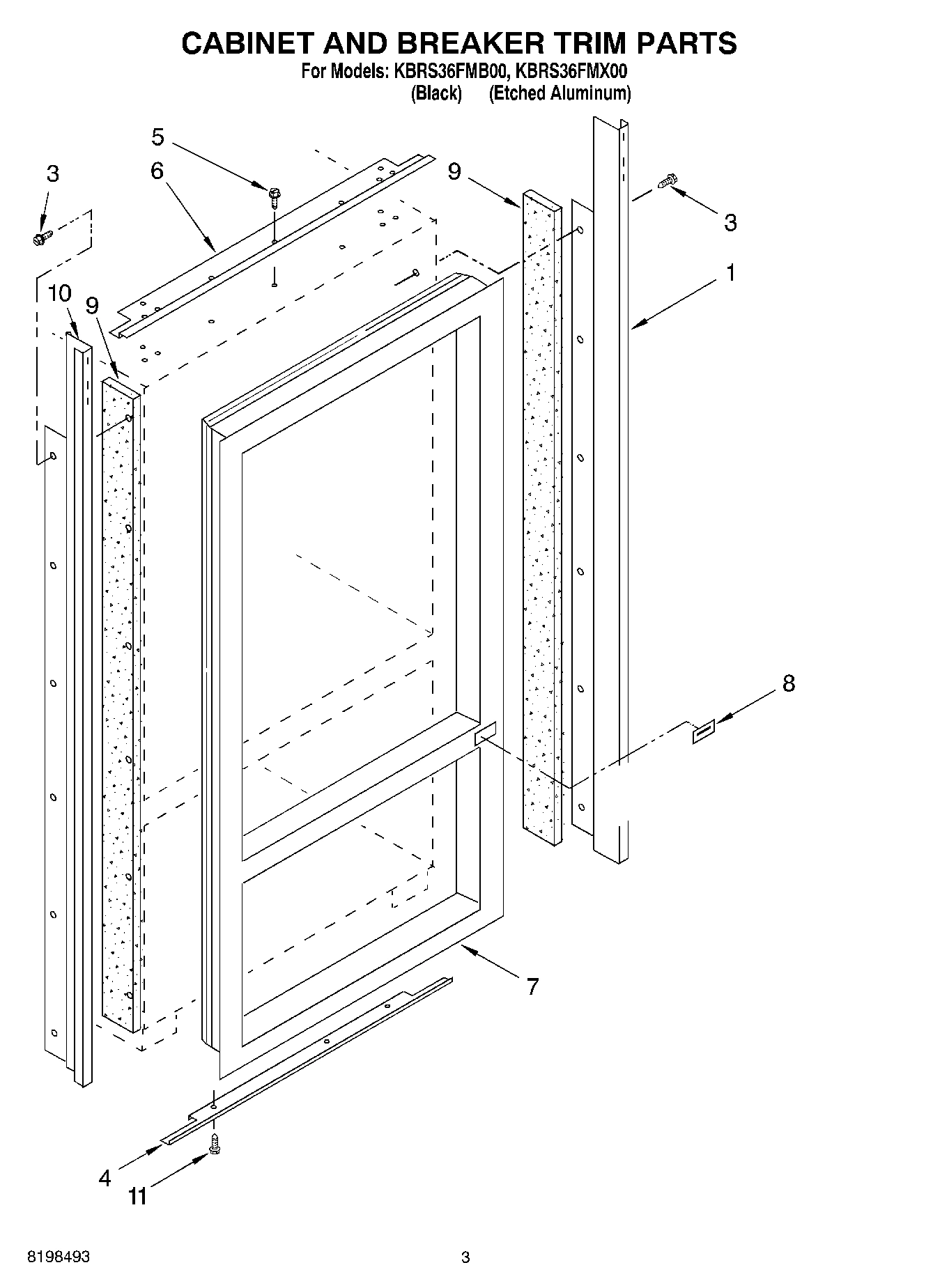

Corner Trim (Black) WPL 2006273 Contact Us For Availability

7

Heater, Defrost (Rear) WPL 2207486 Contact Us For Availability

7

Grommet, Flexible WPL 2005007 Contact Us For Availability

7

Shroud, Condenser (Right) WPL 2266803 Contact Us For Availability

7

Water Inlet Tube Assembly WPL 2221140 Contact Us For Availability

7

Wire Assembly WPL 2187423 Contact Us For Availability

7

Bracket, Freezer Basket (Left Side) WPL 2257326 Contact Us For Availability

7

Bracket, Freezer Basket (Right Side) WPL 2257327 Contact Us For Availability

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.33

8

Door Trim, Side (Etched Aluminum) WPL 2005176 Contact Us For Availability

8

Door Trim, Side (Black) WPL 2006275 Contact Us For Availability

8

Bracket, Switch WPL 2259096 Contact Us For Availability

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $30.25

9

2302709 Whirlpool Refrigerator Door Gasket Backorder WPL 2302709 $164.10

9

Seal, Side Trim WPL 2005925 Contact Us For Availability

9

Heater, Drain Pan WPL 2259329 Contact Us For Availability

9

Mounting Bracket, Grill WPL 2006442 Contact Us For Availability

9

Tube, Filter Outlet WPL 2254800 Contact Us For Availability

WP2313917 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2313917 $95.19

Screw WPL 2005921 Contact Us For Availability

Hanger, Heater WPL 2209450 Contact Us For Availability

Shroud, Condenser (Left) WPL 2259369 Contact Us For Availability

W10823805-includeCORE Whirlpool W10823805 Ref Backorder WPL W10823805-includeCORE $326.94

Handle, Door (Etched Aluminum) WPL 2005178 Contact Us For Availability

Handle, Door (Black) WPL 2006296 Contact Us For Availability

Shield, Drain Pan WPL 2005908 Contact Us For Availability

Cap, Grommet WPL 1112849 Contact Us For Availability

Cover, Bottom WPL 2300104 Contact Us For Availability

W11214482 Whirlpool Refrigerator Roller In Stock WPL W11214482 $36.73

WP2203075 Whirlpool Refrigerator Spacer Backorder WPL WP2203075 $6.59

Gasket (2) WPL 2005982 Contact Us For Availability

Support, Heater WPL 2204543 Contact Us For Availability

Clamp WPL 2004514 Contact Us For Availability

Trim-Glass, Side WPL 2257562 Contact Us For Availability

2256328 Whirlpool Bracket Assembly Backorder WPL 2256328 $29.61

WP2221231 Whirlpool Refrigerator Shield In Stock WPL WP2221231 $40.50

SPACER, HINGE (BOTTOM) WPL 2257647 Contact Us For Availability

Tube, Discharge WPL 2259474 Contact Us For Availability

Tube, Drain Condensate WPL 2204516 Contact Us For Availability

Divider, Crisper Pan WPL 2256474 Contact Us For Availability

2207470 Whirlpool Refrigerator Hinge Shim Backorder WPL 2207470 $30.87

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

WP3400886 Whirlpool Refrigerator Screw Backorder WPL WP3400886 $3.70

Door Trim, Bottom (Etched Aluminum) WPL 2005177 Contact Us For Availability

Door Trim, Bottom (Black) WPL 2006284 Contact Us For Availability

Screw WPL 486899 Contact Us For Availability

2302952 Whirlpool Refrigerator Slide Backorder WPL 2302952 $124.83

2302953 Whirlpool Refrigerator Slide Backorder WPL 2302953 $124.94

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

W10851443 Whirlpool Refrigerator Screw In Stock WPL W10851443 $3.33

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $3.33

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $5.38

Bracket Assembly, Freezer Basket WPL 2257426 Contact Us For Availability

Clamp, Filter Housing WPL 2209090 Contact Us For Availability

488946 Whirlpool Air Conditioner Clamp Backorder WPL 488946 $10.25

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

CONDENSER WPL 2259307 Contact Us For Availability

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

EVAPORATOR WPL 2259053 Contact Us For Availability

WP2221296 Whirlpool Air Baffle In Stock WPL WP2221296 $176.19

Heater, Defrost (Front) WPL 2207485 Contact Us For Availability

Screw, Door Stop WPL 2001295 Contact Us For Availability

Basket, Upper WPL 2257442 Contact Us For Availability

Door Trim, Top (Etched Aluminum) WPL 2005175 Contact Us For Availability

Door Trim, Top (Black) WPL 2006288 Contact Us For Availability

Grommet (4) WPL 943447 Contact Us For Availability

Wire Harness, Icemaker WPL 2254792 Contact Us For Availability

2257644 Whirlpool Refrigerator Door Hinge Backorder WPL 2257644 $65.21

Pan, Ice Cube WPL 2174124 Contact Us For Availability

Tube, Door Shelf WPL 2005482 Contact Us For Availability

Clamp, Heater (2) WPL 2204510 Contact Us For Availability

Wire, Jumper WPL 2187679 Contact Us For Availability

Cover WPL 2257538 Contact Us For Availability

Shelf (4) WPL 2258973 Contact Us For Availability

WP2207454 Whirlpool Refrigerator Nut Backorder WPL WP2207454 $4.58

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

Cam-Closer, Door WPL 2005783 Contact Us For Availability

Shelf, Door (2) WPL 2005417 Contact Us For Availability

Trim-Glass, Side WPL 2257563 Contact Us For Availability

20

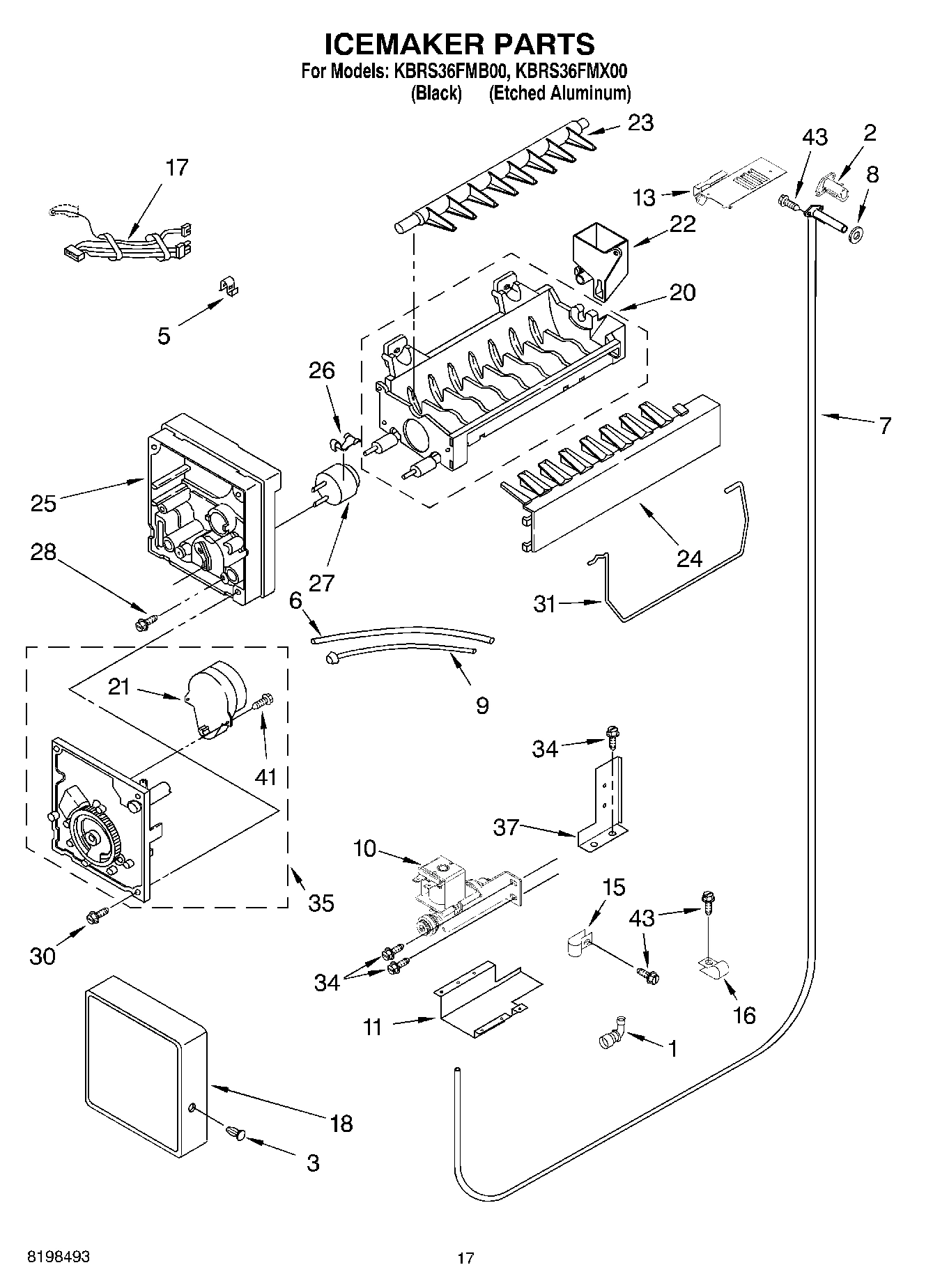

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $145.60

20

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $3.33

20

Bushing WPL 2207471 Contact Us For Availability

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $30.25

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $55.08

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

Screw WPL 3400507 Contact Us For Availability

End Cap, Left WPL 2005542 Contact Us For Availability

Glass Shelf, Deli WPL 2257561 Contact Us For Availability

W10169509 Whirlpool Refrigerator Clip Backorder WPL W10169509 $30.25

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.39

Bushing WPL 2002903 Contact Us For Availability

Screw WPL 487522 Contact Us For Availability

Basket, Freezer Lower WPL 2257331 Contact Us For Availability

End Cap, Right WPL 2005541 Contact Us For Availability

W10181323 Whirlpool Refrigerator Condenser Fa In Stock WPL W10181323 $137.10

WP2209022 Whirlpool Refrigerator Housing In Stock WPL WP2209022 $97.12

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Tube, Door Shelf (Gallon) WPL 2006152 Contact Us For Availability

WP2004517 Whirlpool Refrigerator Spring In Stock WPL WP2004517 $33.21

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

Blade, Fan WPL 2190685 Contact Us For Availability

Trim Cover (Etched Aluminum) WPL 2006322 Contact Us For Availability

Trim Cover (Black) WPL 2006336 Contact Us For Availability

25

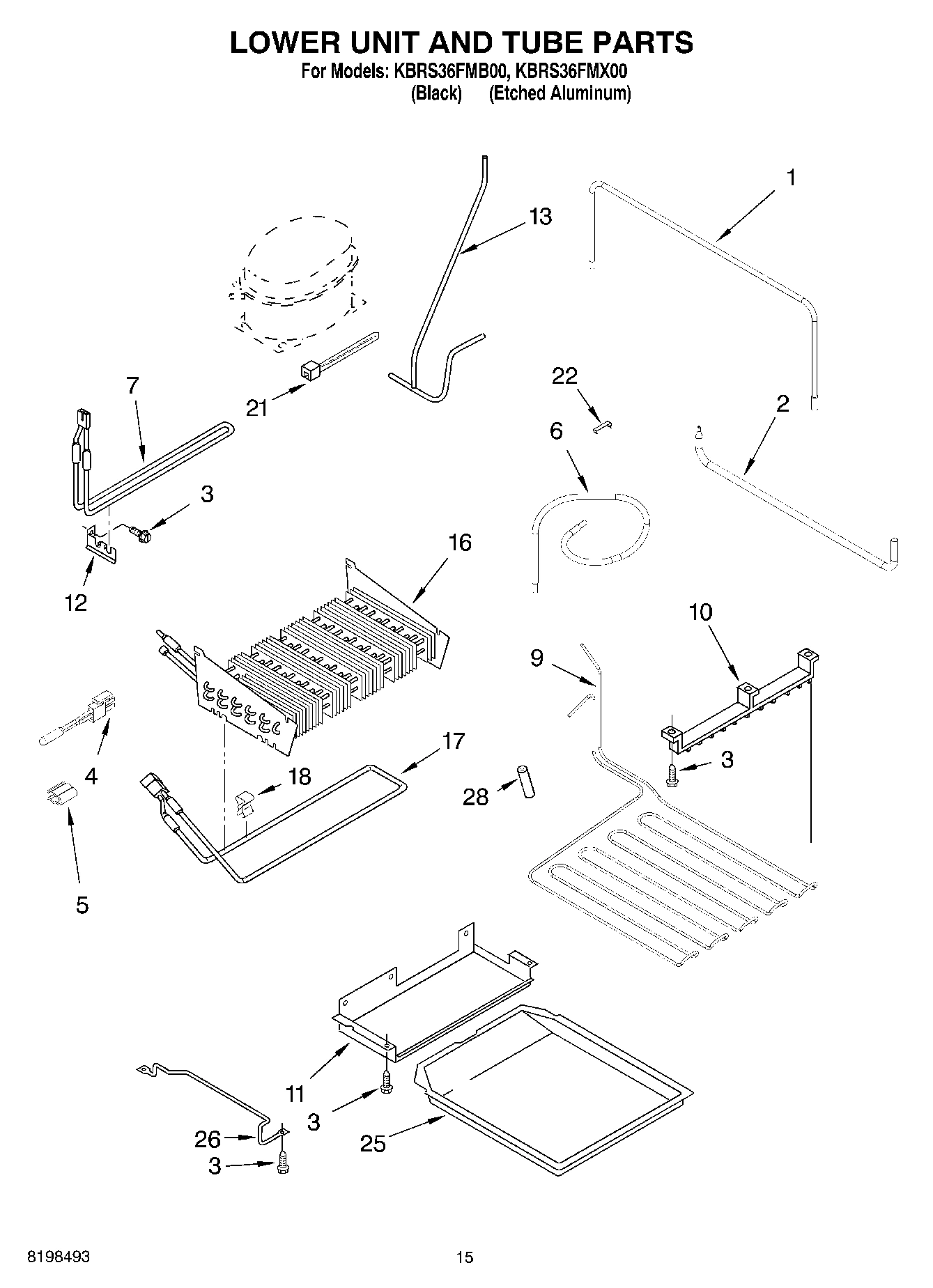

WP2001264 Whirlpool Refrigerator Drip Pan In Stock WPL WP2001264 $94.21

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

25

Orifice, Fan WPL 2003169 Contact Us For Availability

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $57.55

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

Door, Utility Bin (2) (Includes Item 12) WPL 2005983 Contact Us For Availability

Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability

Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability

8281160 Whirlpool Screw Backorder WPL 8281160 $5.33

WP2316859 Whirlpool Refrigerator Bushing In Stock WPL WP2316859 $24.52

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.85

Door Shelf, Gallon WPL 2006154 Contact Us For Availability

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $7.78

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

W10188434 Whirlpool Refrigerator Hinge Gap Backorder WPL W10188434 $43.57

Butter Tray WPL 2165792 Contact Us For Availability

Cover, Electrical WPL 2259463 Contact Us For Availability

29

2005101 Whirlpool Refrigerator Bottom Hinge In Stock WPL 2005101 $58.01

29

WP2256375 Whirlpool Refrigerator Crisper Pan Backorder WPL WP2256375 $165.49

29

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

30

2256374 Whirlpool Front Pan Backorder WPL 2256374 $121.36

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.33

30

GROMMET WPL 2266857 Contact Us For Availability

31

W11474472 Whirlpool Screw In Stock WPL W11474472 $3.33

31

Tube, Transition (Condenser/Drier) WPL 2259302 Contact Us For Availability

31

Shut Off Arm WPL 2221172 Contact Us For Availability

32

WP2209024B Whirlpool Refrigerator Front Grill Backorder WPL WP2209024B $71.24

32

Sleeve, Condenser WPL 2000645 Contact Us For Availability

33

2257548 Whirlpool Refrigerator Front Pan Backorder WPL 2257548 $69.59

33

WP2006346 Whirlpool Refrigerator Washer Backorder WPL WP2006346 $5.42

33

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.90

34

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $14.62

34

Grille Base, Front WPL 2215889B Contact Us For Availability

35

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

35

Clip, Thermistor WPL 2209204 Contact Us For Availability

36

2215612 Whirlpool Refrigerator Duct Cover Backorder WPL 2215612 $33.31

36

Cover, Fan WPL 2209495 Contact Us For Availability

Grommet, Wiring WPL 1113122 Contact Us For Availability

Cover, Condenser WPL 2259092 Contact Us For Availability

Water Valve Mounting Bracket WPL 2004914 Contact Us For Availability

Glass, Crisper Shelf WPL 2257560 Contact Us For Availability

38

WP2307857 Whirlpool Refrigerator Extension In Stock WPL WP2307857 $34.61

38

Trim-Glass, Rear WPL 2257564 Contact Us For Availability

39

2221097 Whirlpool Refrigerator Bracket Backorder WPL 2221097 $30.89

39

Service Cord WPL 2259197 Contact Us For Availability

39

Trim-Glass, Front WPL 2257566 Contact Us For Availability

40

2215938 Whirlpool Refrigerator Switch Cover In Stock WPL 2215938 $30.25

41

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

41

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

41

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

42

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $20.14

42

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $36.85

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

W11721628 Whirlpool Screw Assembly Backorder WPL W11721628 $8.11

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Slide, Deli (Left Side) WPL 2257544 Contact Us For Availability

Slide, Deli (Right Side) WPL 2257545 Contact Us For Availability

44

Clip, Cord Plug WPL 653035 Contact Us For Availability

44

Spacer, Deli (Left Side) WPL 2257531 Contact Us For Availability

44

Spacer, Deli (Right Side) WPL 2257532 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $14.06

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Wiring Harness, Unit Compartment WPL 2187675 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI80308A3 Contact Us For Availability

REFRIGERANT CHARGE 5.75 oz. (R-134A) WPL ARI80309A2 Contact Us For Availability

46

9791833 Whirlpool Refrigerator Clip Backorder WPL 9791833 $4.37

47

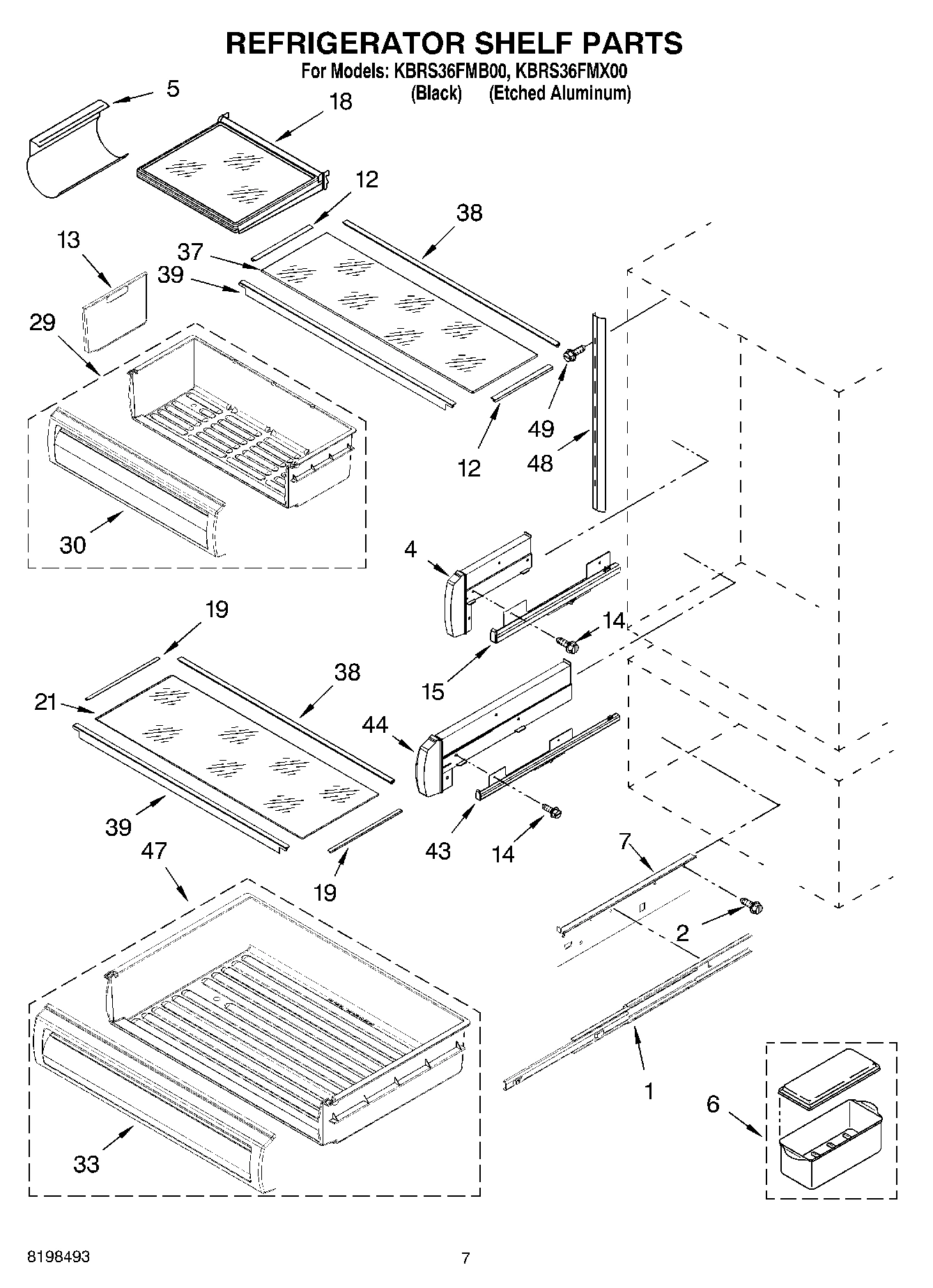

Deli Pan Assembly (Includes 33) WPL 2257535 Contact Us For Availability

48

Ladder, Shelf (4) WPL 2005410 Contact Us For Availability

49

2006475 Whirlpool Refrigerator Screw Backorder WPL 2006475 $9.13

49

W10833902 Whirlpool Refrigerator Clamp In Stock WPL W10833902 $4.45

WPW10277450 Whirlpool Refrigerator Icemaker In Stock WPL WPW10277450 $169.15

Cleaner, Stainless Steel, 2 Oz. WPL 2006783 Contact Us For Availability

Front Panel Kit (White) WPL 2220952 Contact Us For Availability

Front Panel Kit (Black) WPL 2220953 Contact Us For Availability

Front Panel Kit (Biscuit) WPL 2220954 Contact Us For Availability

Front Panel Kit (Stainless Steel) WPL 2220955 Contact Us For Availability
