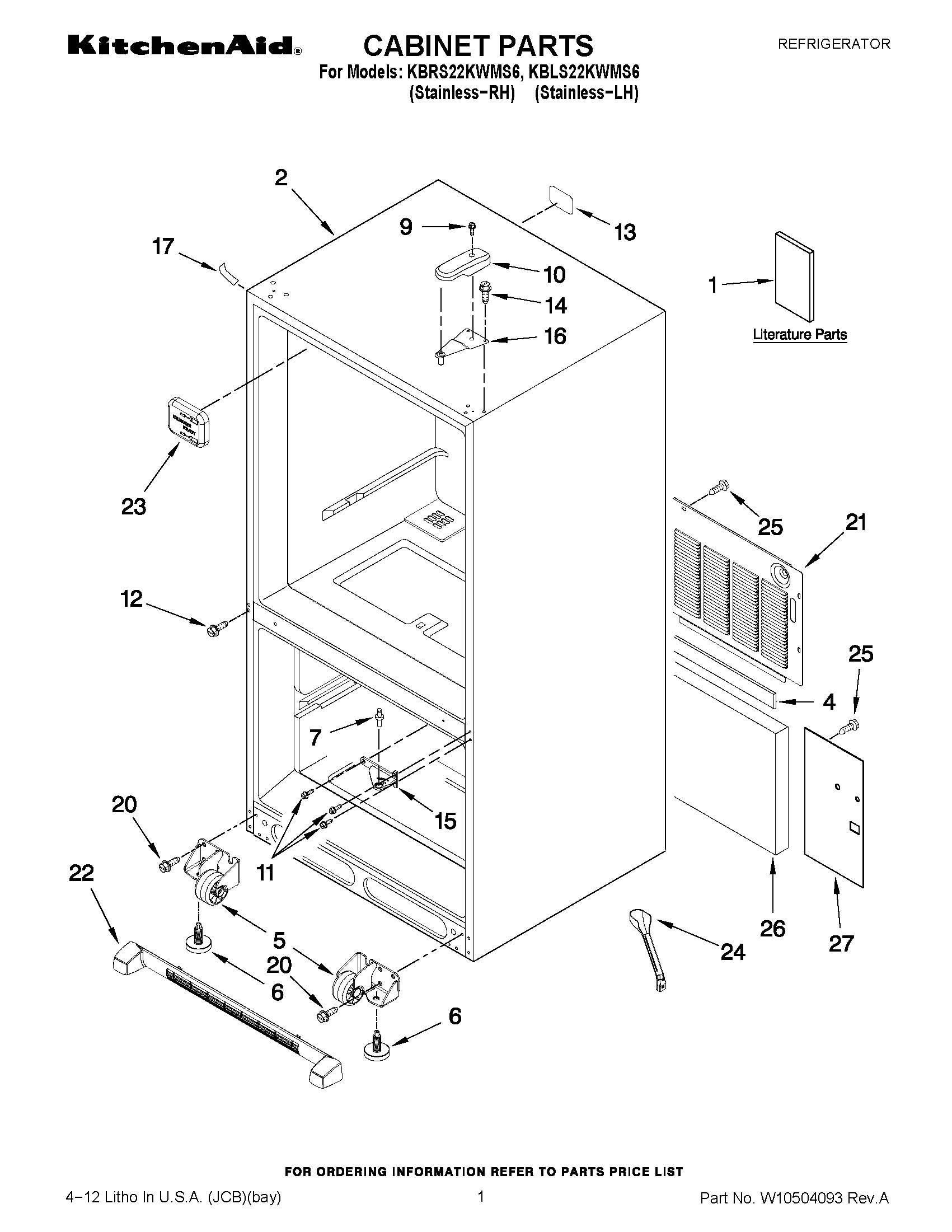

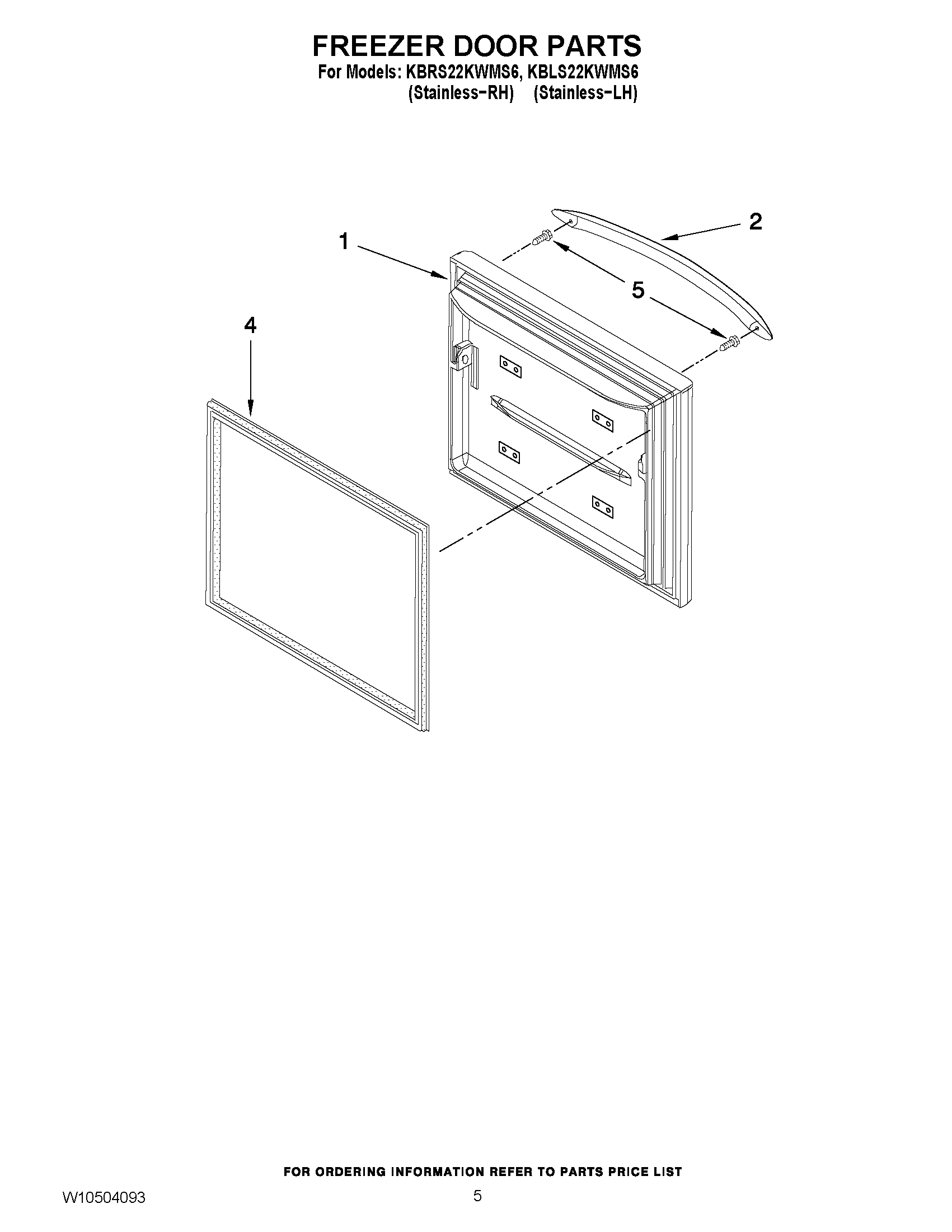

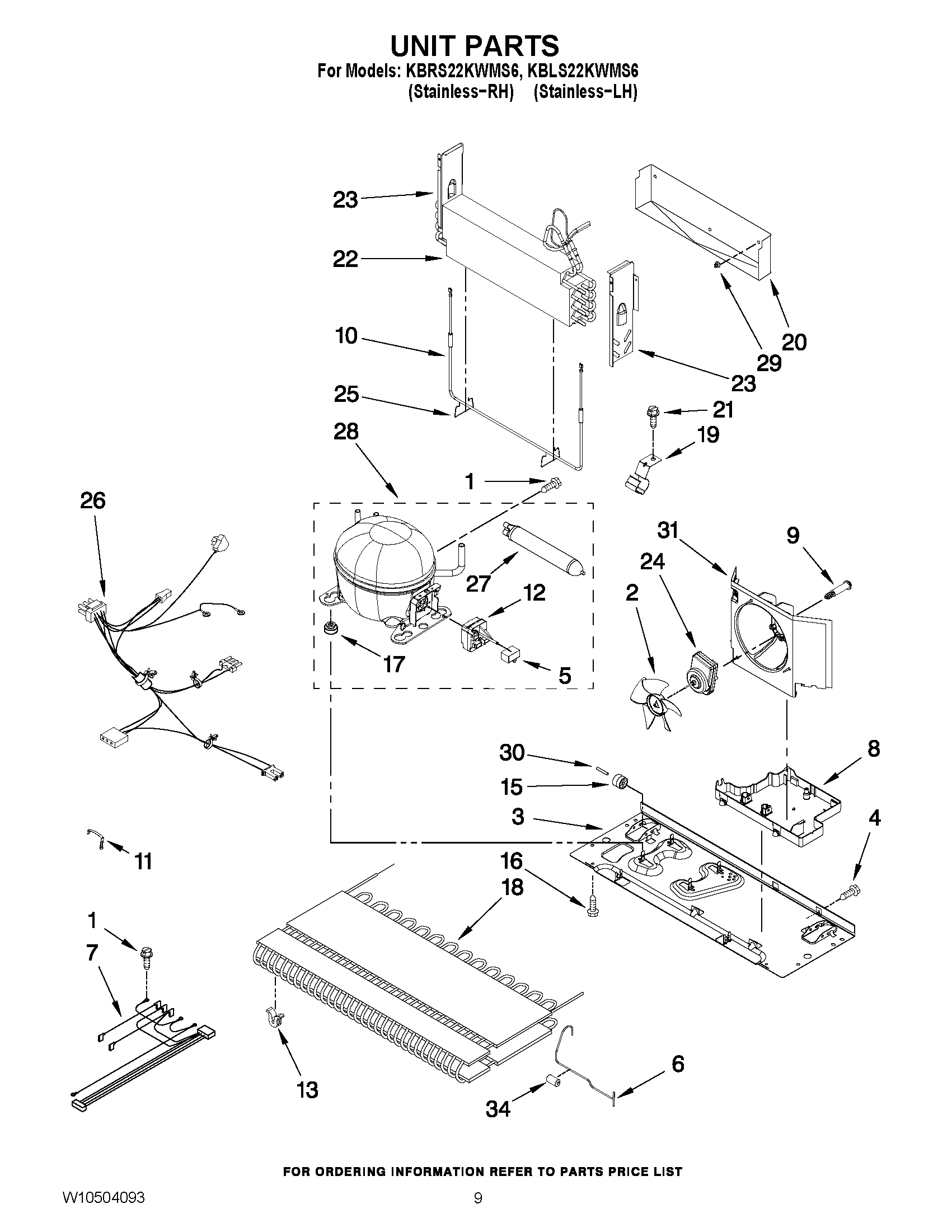

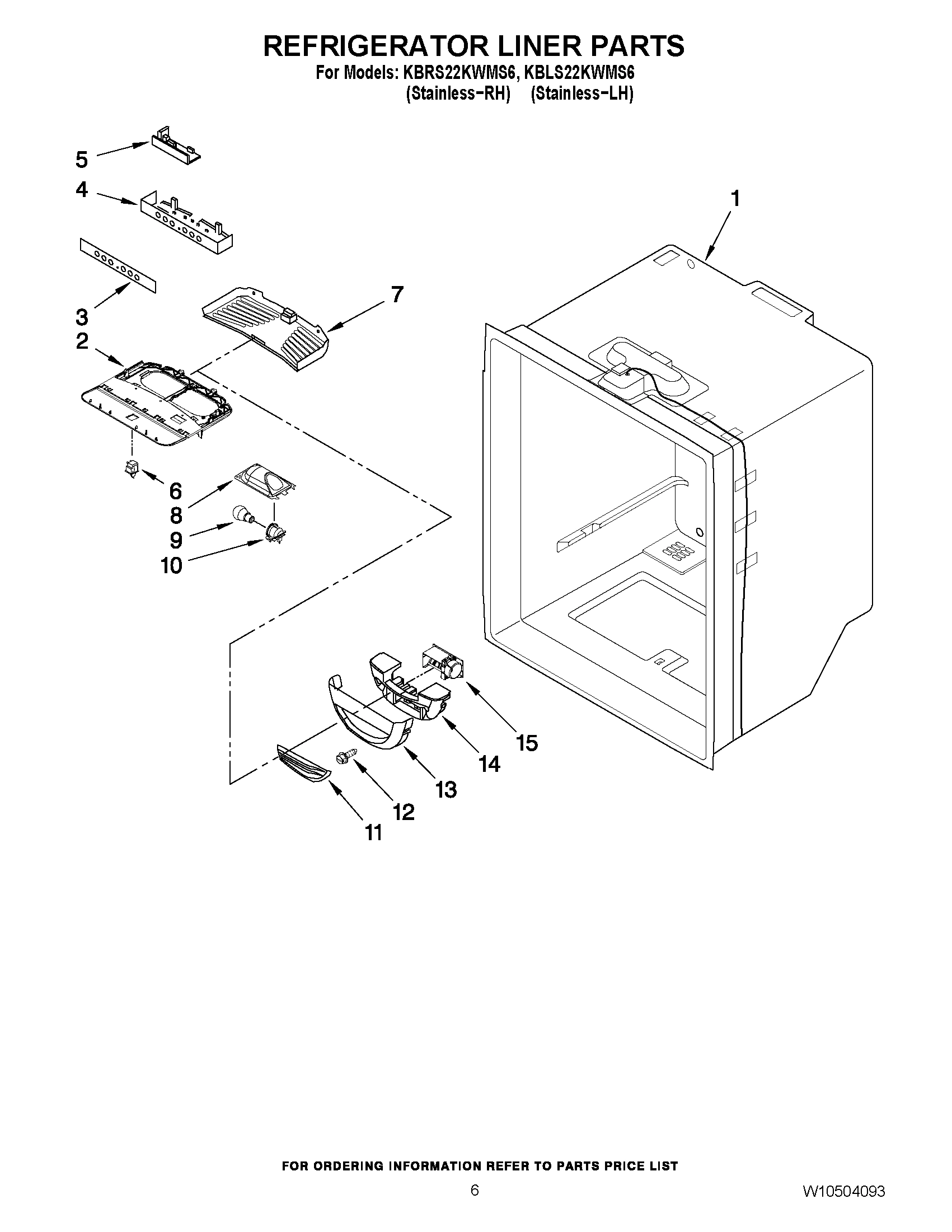

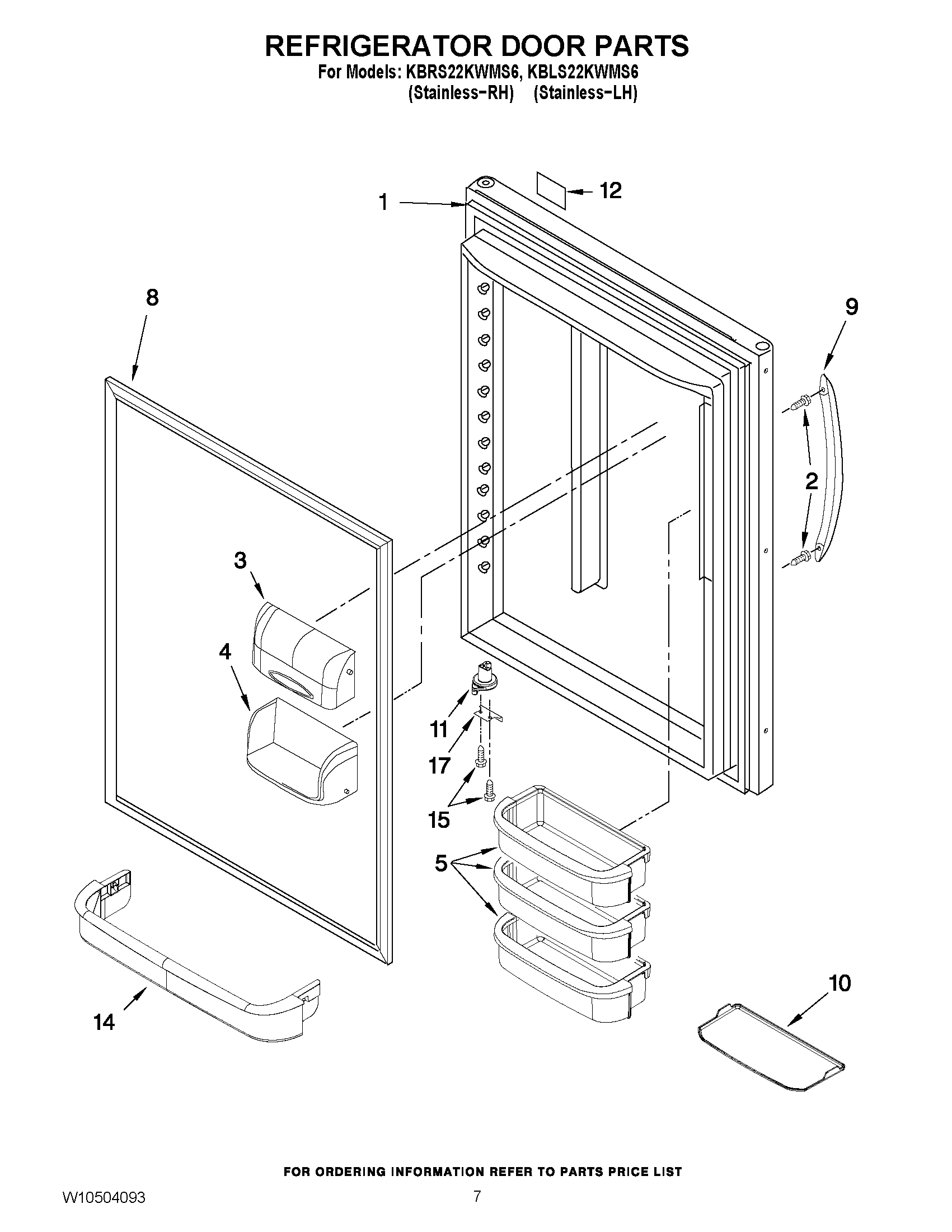

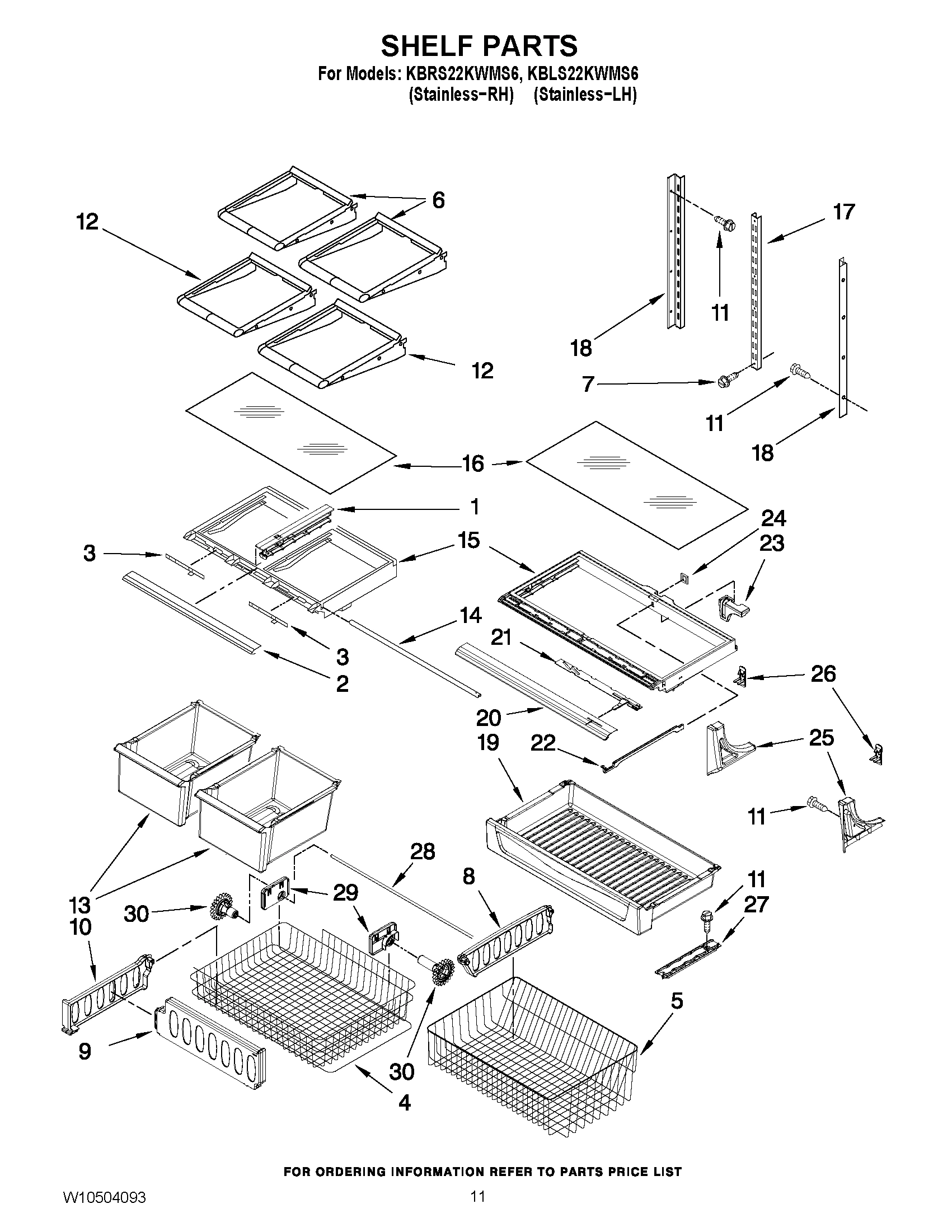

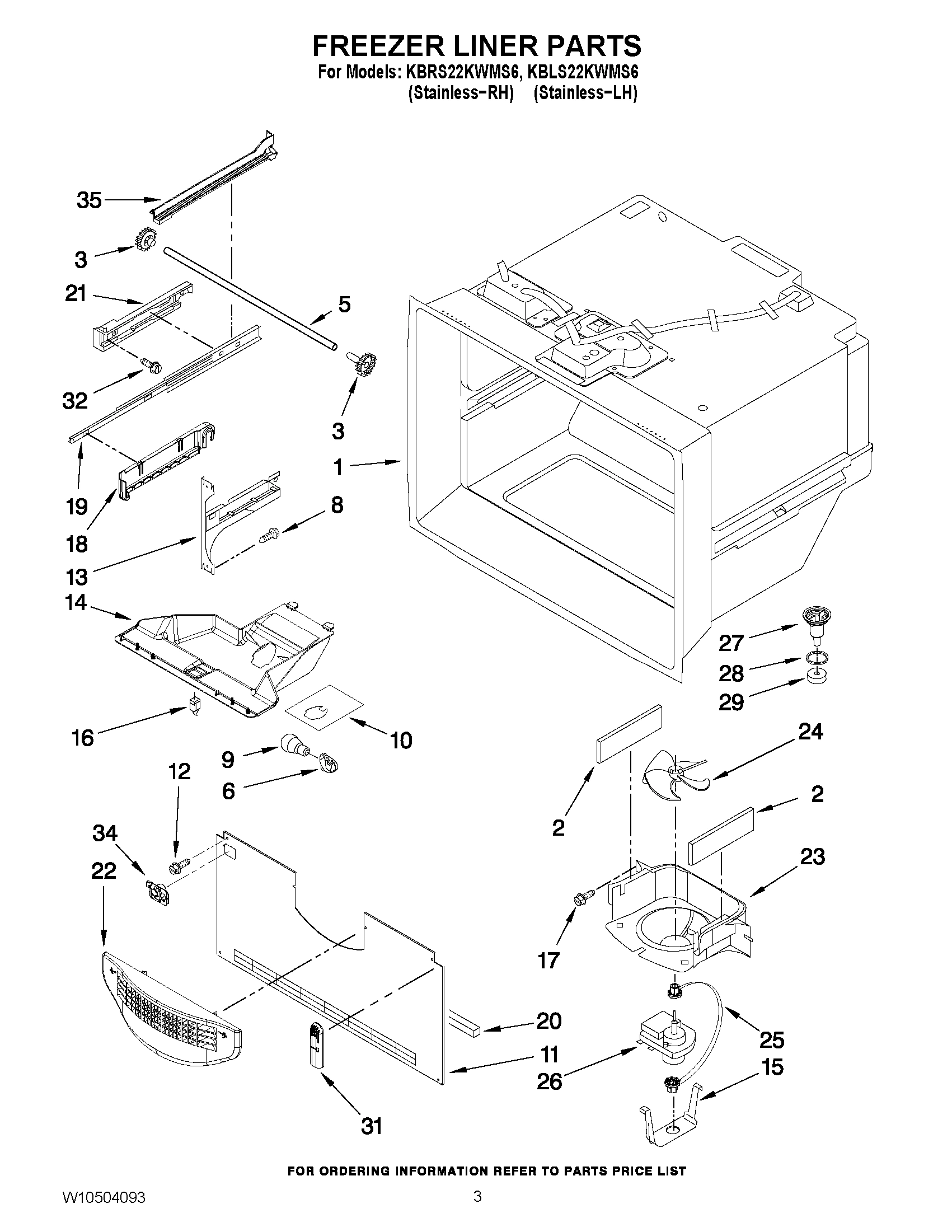

Model Whirlpool KBRS22KWMS6 REFRIGERATOR – Common Parts &amp; Diagrams

2

W10231483 Whirlpool Refrigerator Trim Shelf Backorder WPL W10231483 $41.52

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $35.43

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $8.86

3

W10207257 Whirlpool Refrigerator Overlay Backorder WPL W10207257 $33.32

3

W10480110 Whirlpool Refrigerator Plate Backorder WPL W10480110 $64.38

4

B5759655 Whirlpool Refrigerator Gasket In Stock WPL B5759655 $7.69

4

W10348238 Whirlpool Refrigerator Freezer Bask Backorder WPL W10348238 $108.63

4

W10443316 Whirlpool Refrigerator Door Gasket In Stock WPL W10443316 $106.86

5

W11715937 Whirlpool Shaft Backorder WPL W11715937 $37.90

5

WPW10119841 Whirlpool Cantilever Bin In Stock WPL WPW10119841 $44.91

5

WPW10503183 Whirlpool Freezer Basket Backorder WPL WPW10503183 $130.46

6

W11402521 Whirlpool Refrigerator Glass Shelf Backorder WPL W11402521 $118.14

6

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $3.70

7

W10215666 Whirlpool Refrigerator Screw Backorder WPL W10215666 $5.65

7

W11260592 Whirlpool Refrigerator Wire Harness In Stock WPL W11260592 $36.93

7

WP67006642 Whirlpool Refrigerator Pin Backorder WPL WP67006642 $3.70

8

W10443023 Whirlpool Refrigerator Housing Backorder WPL W10443023 $37.83

8

W10443314 Whirlpool Refrigerator FIP Gasket Backorder WPL W10443314 $122.02

8

W10847995 Whirlpool Divider Assembly Backorder WPL W10847995 $28.80

9

W10311695 Whirlpool Refrigerator Divider Backorder WPL W10311695 $14.37

9

W10829281 Whirlpool Refrigerator Screw Backorder WPL W10829281 $5.01

10

W10241046 Whirlpool Refrigerator Divider Backorder WPL W10241046 $12.44

10

W11469652 Whirlpool Refrigerator Shield Backorder WPL W11469652 $10.76

10

WP12729128 Whirlpool Defrost Heater In Stock WPL WP12729128 $66.88

11

W10308415 Whirlpool Refrigerator Evaporator C Backorder WPL W10308415 $105.96

11

WP12028505AP Whirlpool Closing Cam In Stock WPL WP12028505AP $29.12

12

W10293291 Whirlpool Refrigerator Start Device Backorder WPL W10293291 $60.96

12

W11402523 Whirlpool Refrigerator Glass Shelf Backorder WPL W11402523 $118.14

12

WPW10243391 Whirlpool Refrigerator Nameplate Backorder WPL WPW10243391 $26.90

13

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $37.84

13

WPW10330994 Whirlpool Refrigerator Bracket Backorder WPL WPW10330994 $54.13

13

WPW10330995 Whirlpool Refrigerator Bracket Backorder WPL WPW10330995 $108.21

14

Backorder WPL W11750607 $18.30

14

WP12227303WD Whirlpool Refrigerator Crisper B Backorder WPL WP12227303WD $42.33

14

WPW10277025 Whirlpool Refrigerator Housing Backorder WPL WPW10277025 $52.87

15

12607103AP Whirlpool Refrigerator Door Hinge Backorder WPL 12607103AP $25.80

15

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $74.68

15

CLIP, EVAP. MOTOR WPL 13058002 Contact Us For Availability

16

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $16.18

16

Screw WPL 12992101 Contact Us For Availability

W10273463 Whirlpool Refrigerator Ladder Backorder WPL W10273463 $10.83

W11401472 Whirlpool Refrigerator Door Stop Backorder WPL W11401472 $10.76

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $3.70

W10251969 Whirlpool Refrigerator Ladder Backorder WPL W10251969 $11.51

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $35.12

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $35.12

WPW10346420 Whirlpool Refrigerator Condenser Backorder WPL WPW10346420 $115.08

19

W10281329 Whirlpool Clamp Backorder WPL W10281329 $6.59

19

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $74.88

20

W11159742 Whirlpool Refrigerator Gasket Backorder WPL W11159742 $10.10

20

WPW10292802 Whirlpool Refrigerator Drip Tray Backorder WPL WPW10292802 $66.34

21

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $26.21

21

WPW10284684 Whirlpool Refrigerator Bracket In Stock WPL WPW10284684 $14.42

21

WPW10284685 Whirlpool Refrigerator Bracket In Stock WPL WPW10284685 $14.51

22

W11459354 Whirlpool Refrigerator Evaporator In Stock WPL W11459354 $102.30

23

WP12531601 Whirlpool Refrigerator Tunnel Backorder WPL WP12531601 $4.15

23

Dam (Left Side) WPL 12225602 Contact Us For Availability

23

Dam (Right Side) WPL 12225702 Contact Us For Availability

24

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $50.00

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

25

W10121318 Whirlpool Refrigerator Grommet Backorder WPL W10121318 $27.29

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $59.77

26

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $43.65

26

WPW10234024 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10234024 $167.82

26

INSULATION, SOUND WPL 12820505 Contact Us For Availability

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

28

W10233960 Whirlpool Refrigerator Compressor In Stock WPL W10233960 $340.91

29

W10348259 Whirlpool Refrigerator Bracket Asse Backorder WPL W10348259 $30.38

29

W10348260 Whirlpool Refrigerator Bracket Backorder WPL W10348260 $30.38

29

Clip, Evaporator WPL 10623002 Contact Us For Availability

30

67006434 Whirlpool Axle Pin Backorder WPL 67006434 $3.70

30

WPW10474715 Whirlpool Refrigerator Gear Backorder WPL WPW10474715 $10.96

30

WPW10474716 Whirlpool Refrigerator Gear Backorder WPL WPW10474716 $10.87

31

W11556315 Whirlpool Shroud Backorder WPL W11556315 $27.80

34

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $3.70

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

W11459724 Whirlpool Refrigerator Icemaker In Stock WPL W11459724 $154.33

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

REFRIGERANT CHARGE (5.25 OZS. (R-134A)) WPL NP Contact Us For Availability
