Model Whirlpool KBRP36MHT01 BUILT-IN BOTTOM MOUNT REFRIGERATOR – Common Parts & Diagrams

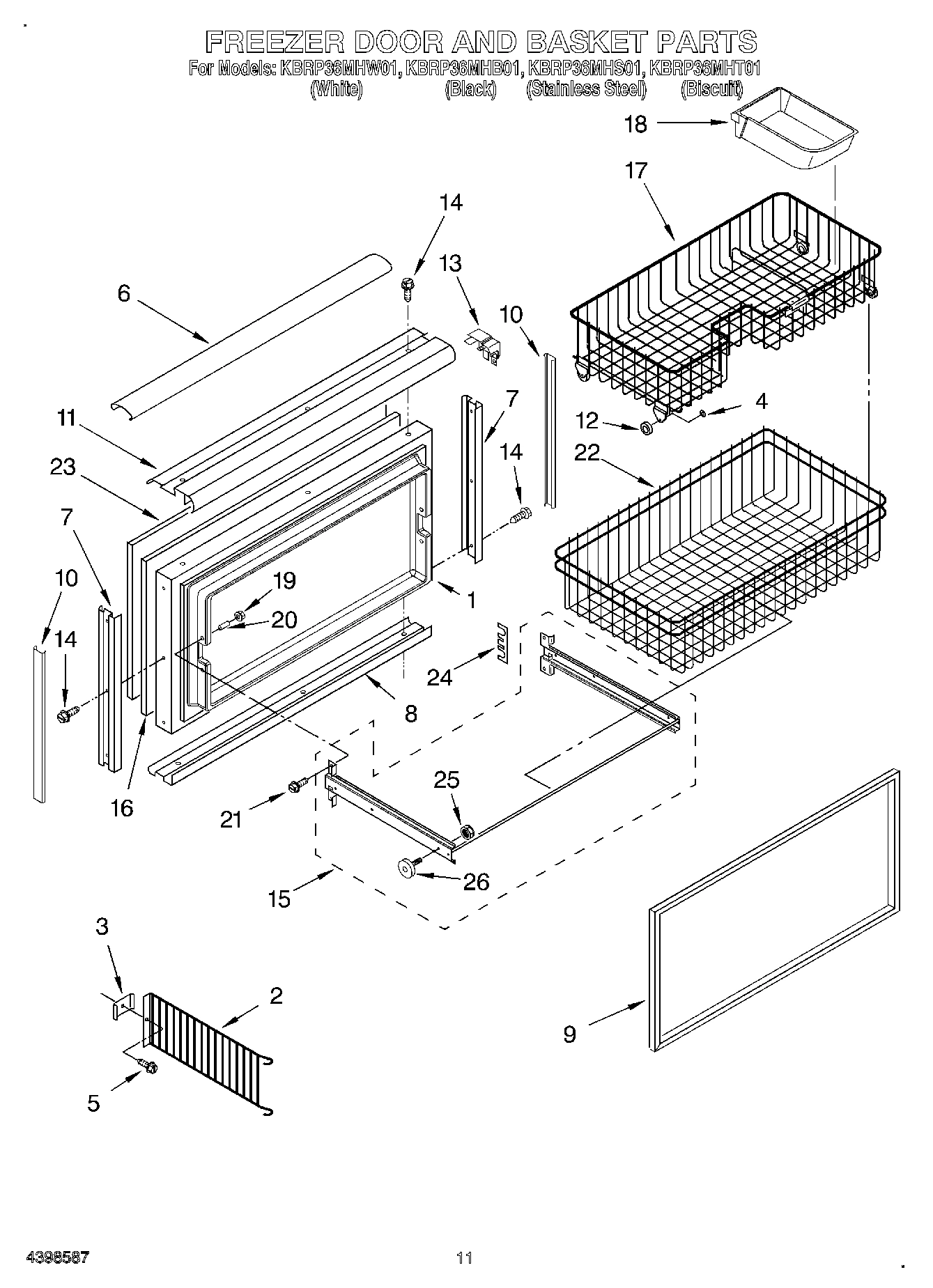

07 - FREEZER DOOR AND BASKET

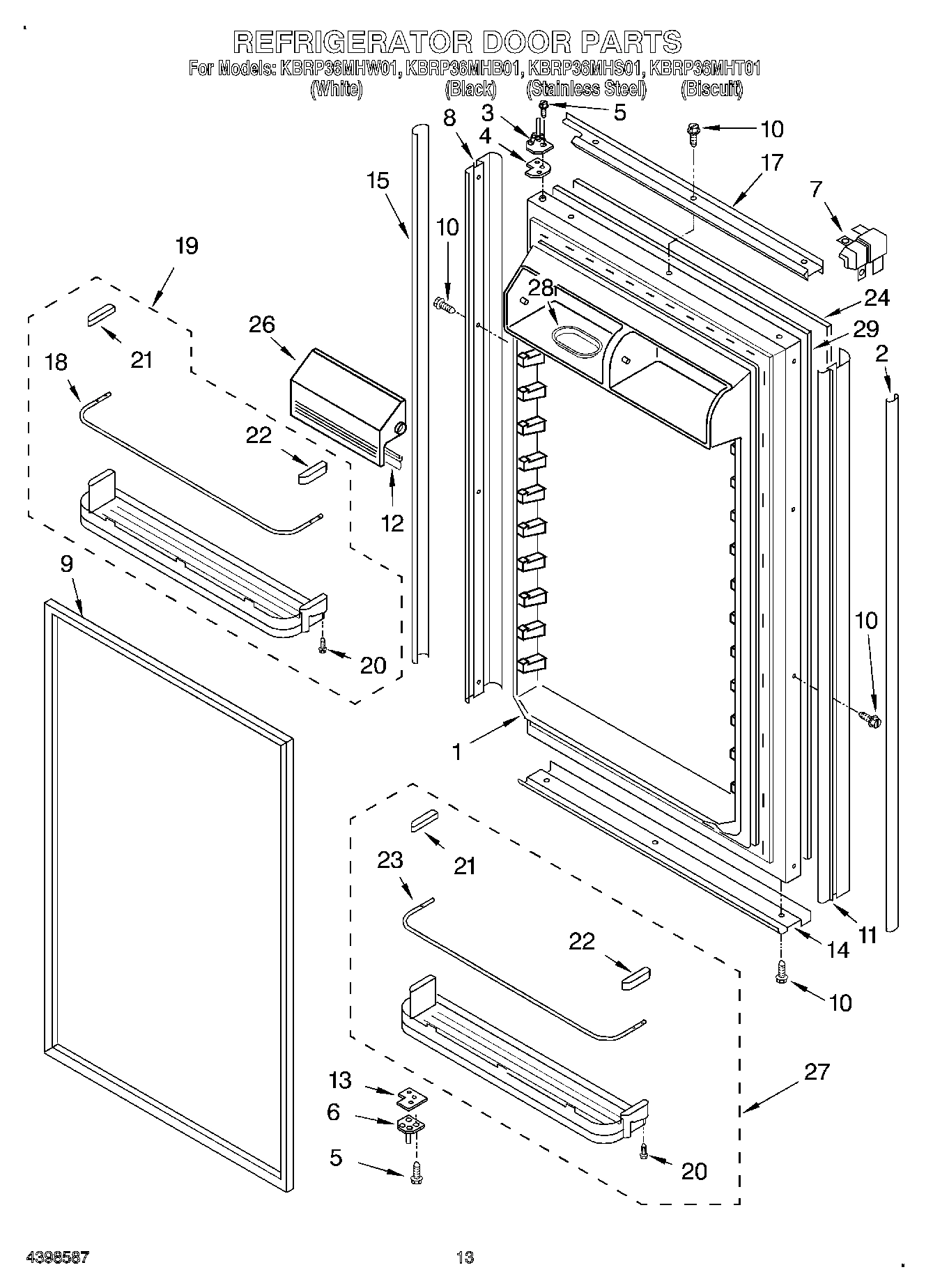

08 - REFRIGERATOR DOOR
06 - REFRIGERATOR SHELF
09 - UPPER UNIT
02 - CABINET AND BREAKER TRIM
03 - TOP GRILLE AND UNIT COVER
05 - CONTROL PANEL
10 - LOWER UNIT AND TUBE
04 - LINER
11 - ICEMAKER
01 - CABINET, LITERATURE
Common parts from model Whirlpool KBRP36MHT01 BUILT-IN BOTTOM MOUNT REFRIGERATOR
1
Slide, Freezer Basket (Right Side) WPL 2207520 Contact Us For Availability
1
Slide, Freezer Basket (Left Side) WPL 2207521 Contact Us For Availability
1
Assembly, Unit Base WPL 2003398 Contact Us For Availability
1
Cabinet Trim, Right Side (Stainless Steel) WPL 2005256 Contact Us For Availability
1
Cabinet Trim, Right Side (White) WPL 2006210 Contact Us For Availability
1
Cabinet Trim, Right Side (Black) WPL 2006211 Contact Us For Availability
1
Cabinet Trim, Right Side (Biscuit) WPL 2006212 Contact Us For Availability
1
Top Grille Assembly (White) WPL 2006165 Contact Us For Availability
1
Top Grille Assembly (Black) WPL 2006169 Contact Us For Availability
1
Top Grille Assembly (Biscuit) WPL 2006173 Contact Us For Availability
1
Top Grille Assembly (Stainless Steel) WPL 2006177 Contact Us For Availability
1
Control Panel WPL 2005489 Contact Us For Availability
1
Defrost Bi-Metal WPL 2207482 Contact Us For Availability
1
Liner, Refrigerator (Not Serviceable) WPL ARI79825A1 Contact Us For Availability
1
LITERATURE PARTS (Use & Care Guide) WPL LIT2005193 Contact Us For Availability
1
LITERATURE PARTS (Energy Label) WPL LIT2005194 Contact Us For Availability
1
LITERATURE PARTS (Installation Instructions) WPL LIT2005214 Contact Us For Availability
1
LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2207484 Contact Us For Availability
1
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
2
Screw, 8-18 x 1.00 WPL 9751808 Contact Us For Availability
2
Clip, Compressor Mounting (4) WPL 2163787 Contact Us For Availability
2
Screw WPL 2003857 Contact Us For Availability
2
Cover, Unit WPL 2005549 Contact Us For Availability
2
Overlay, Control Panel WPL 2005940 Contact Us For Availability
2
Liner, Freezer (Not a Serviceable Part) WPL ARI79826A4 Contact Us For Availability
2
Cabinet (Not A Serviceable Part) WPL ARI79824A2 Contact Us For Availability
3
Screw, 8-15 x 1.250 WPL 487559 Contact Us For Availability
3
Repair, Screw WPL 487246 Contact Us For Availability
3
Circuit Board WPL 2005585 Contact Us For Availability
3
Wiring Channel Side WPL 2005775 Contact Us For Availability
3
Grommet, Tube Crossover WPL 2005004 Contact Us For Availability
4
Spacer, Crisper (Right Side) WPL 2005138 Contact Us For Availability
4
Spacer, Crisper (Left Side) WPL 2005139 Contact Us For Availability
4
Washer WPL 680975 Contact Us For Availability
4
Cabinet, Trim (Bottom) WPL 2004536 Contact Us For Availability
4
Grille, Bracket WPL 2002484 Contact Us For Availability
4
Slide, Control WPL 2005414 Contact Us For Availability
4
Diffuser Cap, Left Side WPL 2005932 Contact Us For Availability
5
Grommet, Light Fiber WPL 2172906 Contact Us For Availability
5
Diffuser Cap, Right Side WPL 2005931 Contact Us For Availability
6
Cabinet, Trim Top WPL 2003645 Contact Us For Availability
6
Trim-Lower, Panel (White) WPL 2006168 Contact Us For Availability
6
Trim-Lower, Panel (Black) WPL 2006172 Contact Us For Availability
6
Trim-Lower, Panel (Biscuit) WPL 2006176 Contact Us For Availability
6
Trim-Lower, Panel (Stainless Steel) WPL 2006180 Contact Us For Availability
6
Condenser Inlet Tube WPL 2005577 Contact Us For Availability
6
Grommet, Wiring WPL 2005006 Contact Us For Availability
7
Roller WPL 2188212 Contact Us For Availability
7
Breaker Trim WPL 2005076 Contact Us For Availability
7
Guard, Compressor Wiring WPL 2005534 Contact Us For Availability
7
Heat Shield, Lamp WPL 2005935 Contact Us For Availability
7
Water Inlet Tube Assembly WPL 2005009 Contact Us For Availability
7
Grommet, Flexible WPL 2005007 Contact Us For Availability
8
Tube, Connect (Drier) WPL 2003015 Contact Us For Availability
8
Cover, Hinge WPL 2005782 Contact Us For Availability
8
Baffle-Air, Condenser WPL 2006440 Contact Us For Availability
8
Screw (3) WPL 489260 Contact Us For Availability
8
Screw WPL 2001297 Contact Us For Availability
9
Seal, Side Trim WPL 2005925 Contact Us For Availability
9
Fiber Optic WPL 2179920 Contact Us For Availability
9
Eyelet, Roller WPL 2174478 Contact Us For Availability
9
Trim-Top, Panel (White) WPL 2006166 Contact Us For Availability
9
Trim-Top, Panel (Black) WPL 2006170 Contact Us For Availability
9
Trim-Top, Panel (Biscuit) WPL 2006174 Contact Us For Availability
9
Trim-Top, Panel (Stainless Steel) WPL 2006178 Contact Us For Availability
9
Grommet WPL 548268 Contact Us For Availability
9
Connector WPL 2154472 Contact Us For Availability
9
Mounting Bracket, Grill WPL 2006442 Contact Us For Availability
10
Screw WPL 2005921 Contact Us For Availability
10
Cabinet Trim, Left Side (Stainless Steel) WPL 2005493 Contact Us For Availability
10
Cabinet Trim, Left Side (White) WPL 2006214 Contact Us For Availability
10
Cabinet Trim, Left Side (Black) WPL 2006215 Contact Us For Availability
10
Cabinet Trim, Left Side (Biscuit) WPL 2006216 Contact Us For Availability
10
Bracket, Trim Panel WPL 2005485 Contact Us For Availability
10
Thermostat WPL 2207475 Contact Us For Availability
10
Hanger, Heater WPL 1113062 Contact Us For Availability
10
Wiring Channel, Freezer Rear WPL 2006148 Contact Us For Availability
10
Valve, Solenoid WPL 2003791 Contact Us For Availability
11
Handle, Door (White) WPL 2005391 Contact Us For Availability
11
Handle, Door (Stainless Steel) WPL 2005846 Contact Us For Availability
11
Handle, Door (Biscuit) WPL 2006295 Contact Us For Availability
11
Handle, Door (Black) WPL 2006296 Contact Us For Availability
11
Louver, Vent (White) WPL 2006189 Contact Us For Availability
11
Louver, Vent (Black) WPL 2006190 Contact Us For Availability
11
Louver, Vent (Biscuit) WPL 2006191 Contact Us For Availability
11
Louver, Vent (Stainless Steel) WPL 2006192 Contact Us For Availability
11
Socket, Light WPL 2005043 Contact Us For Availability
11
Shield, Drain Pan WPL 2005908 Contact Us For Availability
11
Foam, Fan Shroud WPL 2204505 Contact Us For Availability
11
Cap, Grommet WPL 1112849 Contact Us For Availability
12
Gasket (2) WPL 2005982 Contact Us For Availability
12
Cover WPL 2169935 Contact Us For Availability
12
Capacitor WPL 2169137 Contact Us For Availability
12
Louver, Bracket WPL 2005483 Contact Us For Availability
12
Sleeve WPL 2002448 Contact Us For Availability
12
Grommet, Flexible WPL 2207430 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
13
Stop, Roller WPL 1113169 Contact Us For Availability
13
Spacer-Hinge, Bottom WPL 2003982 Contact Us For Availability
13
Tube, Discharge WPL 2002995 Contact Us For Availability
13
Shroud, Evaporator Fan WPL 2204506 Contact Us For Availability
13
Tube, Drain Condensate WPL 2204516 Contact Us For Availability
14
Trim-Door, Bottom (White) WPL 2005390 Contact Us For Availability
14
Trim-Door, Bottom (Stainless Steel) WPL 2005851 Contact Us For Availability
14
Trim-Door, Bottom (Biscuit) WPL 2006283 Contact Us For Availability
14
Trim-Door, Bottom (Black) WPL 2006284 Contact Us For Availability
14
Screw WPL 486899 Contact Us For Availability
14
Trim-Side, Panel (White) WPL 2006167 Contact Us For Availability
14
Trim-Side, Panel (Black) WPL 2006171 Contact Us For Availability
14
Trim-Side, Panel (Biscuit) WPL 2006175 Contact Us For Availability
14
Trim-Side, Panel (Stainless Steel) WPL 2006179 Contact Us For Availability
14
Harness, Control Box WPL 2207480 Contact Us For Availability
14
Plug, Water Valve WPL 2005038 Contact Us For Availability
15
Heat Exchanger WPL 2005103 Contact Us For Availability
15
Cover-Trim, Side (White) WPL 2006333 Contact Us For Availability
15
Cover-Trim, Side (Stainless steel) WPL 2006334 Contact Us For Availability
15
Cover-Trim, Side (Biscuit) WPL 2006335 Contact Us For Availability
15
Cover-Trim, Side (Black) WPL 2006336 Contact Us For Availability
15
Support, Crisper Shelf (2) WPL 2005987 Contact Us For Availability
15
Bracket-Panel, Right Side WPL 2006161 Contact Us For Availability
15
Channel, Wiring Freezer Light WPL 2207411 Contact Us For Availability
16
Rail, Deli Center WPL 2006454 Contact Us For Availability
16
Condenser WPL 2003392 Contact Us For Availability
16
CLIP, WIRING WPL 1115375 Contact Us For Availability
16
Evaporator (Also Order Item 15) WPL 2204539 Contact Us For Availability
16
Bracket (Single) WPL 938224 Contact Us For Availability
17
Heater, Defrost (Front) WPL 2207485 Contact Us For Availability
17
Screw, Door Stop WPL 2001295 Contact Us For Availability
17
Trim-Door, Top (White) WPL 2005388 Contact Us For Availability
17
Trim-Door, Top (Stainless Steel) WPL 2005852 Contact Us For Availability
17
Trim-Door, Top (Biscuit) WPL 2006287 Contact Us For Availability
17
Trim-Door, Top (Black) WPL 2006288 Contact Us For Availability
17
Grommet (4) WPL 943447 Contact Us For Availability
17
Bracket-Panel, Left Side WPL 2006160 Contact Us For Availability
17
Bracket, Freezer Light WPL 2207410 Contact Us For Availability
17
Air Baffle Assembly WPL 2005584 Contact Us For Availability
18
Tube, Door Shelf WPL 2005482 Contact Us For Availability
18
Shelf (4) WPL 2005571 Contact Us For Availability
18
Clamp (4) WPL 1113019 Contact Us For Availability
18
Decorative Panel, Acrylic (White) WPL 2006436 Contact Us For Availability
18
Decorative Panel, Acrylic (Black) WPL 2006437 Contact Us For Availability
18
Decorative Panel, Acrylic (Biscuit) WPL 2006438 Contact Us For Availability
18
Decorative Panel, Acrylic (Stainless Steel) WPL 2204587 Contact Us For Availability
18
Clamp, Heater (4) WPL 2204510 Contact Us For Availability
18
Bracket (Double) WPL 548263 Contact Us For Availability
19
Cam, Door Closer WPL 2005783 Contact Us For Availability
19
Screw WPL 487522 Contact Us For Availability
19
Shelf, Door (2) WPL 2005417 Contact Us For Availability
19
Air Damper, Deli WPL 2005429 Contact Us For Availability
19
Board, Filler WPL 2006439 Contact Us For Availability
19
Heater, Defrost (Rear) WPL 2207486 Contact Us For Availability
19
Wiring Channel Freezer, Side WPL 2006147 Contact Us For Availability
20
Rail-Rear, Deli WPL 2005151 Contact Us For Availability
20
Wiring Harness, Freezer WPL 2207481 Contact Us For Availability
21
End Cap, Left WPL 2005542 Contact Us For Availability
21
Glass Shelf, Deli WPL 2005152 Contact Us For Availability
21
Cover, Evaporator Assembly WPL 2204504 Contact Us For Availability
21
Closer-Extension, Door WPL 2207534 Contact Us For Availability
22
Bushing WPL 2002903 Contact Us For Availability
22
End Cap, Right WPL 2005541 Contact Us For Availability
22
Rail-Front, Deli WPL 2005153 Contact Us For Availability
22
Wiring Cover, Icemaker WPL 2005792 Contact Us For Availability
23
Thermistor WPL 1116959 Contact Us For Availability
23
WPL 2006152 WPL 2006152 Contact Us For Availability
23
Control Knob, Deli WPL 2005415 Contact Us For Availability
23
Strap WPL 851095 Contact Us For Availability
23
Motor, Fan WPL 2208903 Contact Us For Availability
24
Blade, Fan WPL 2190685 Contact Us For Availability
24
WPL 2006425 WPL 2006425 Contact Us For Availability
24
WPL 2006427 WPL 2006427 Contact Us For Availability
24
WPL 2006429 WPL 2006429 Contact Us For Availability
24
WPL 2204580 WPL 2204580 Contact Us For Availability
24
Support, Heater WPL 2204543 Contact Us For Availability
24
Drain Tube, Condesate WPL 2204514 Contact Us For Availability
25
Washer WPL 2006252 Contact Us For Availability
25
Orifice, Fan WPL 2003169 Contact Us For Availability
25
Insulation, Baffle WPL 2005117 Contact Us For Availability
26
WPL 2005419 WPL 2005419 Contact Us For Availability
26
Connector, Deli Pan WPL 2005165 Contact Us For Availability
26
Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability
26
Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability
26
Cover, Air Diffuser WPL 2005422 Contact Us For Availability
27
WPL 2006154 WPL 2006154 Contact Us For Availability
27
Lid, Deli Pan WPL 2005428 Contact Us For Availability
27
Heater-Tube, Drain WPL 2204595 Contact Us For Availability
27
Cement Alumilastic) WPL 542639 Contact Us For Availability
27
Bushing-Arm, Extension WPL 2005920 Contact Us For Availability
28
WPL 2165792 WPL 2165792 Contact Us For Availability
28
Hinge Rod, Deli Pan WPL 2005923 Contact Us For Availability
28
Insulation, Tube Drain WPL 2204538 Contact Us For Availability
29
WPL 2006432 WPL 2006432 Contact Us For Availability
29
Cripser Pan WPL 2005157 Contact Us For Availability
29
Cover, Tube Drain WPL 2204537 Contact Us For Availability
30
Handle, Crisper Pan WPL 2005480 Contact Us For Availability
30
Guard, Capillary Tube WPL 2006476 Contact Us For Availability
31
Shut Off Arm WPL 2208981 Contact Us For Availability
32
Overlay, Crisper Pan WPL 2005986 Contact Us For Availability
32
Sleeve, Condenser WPL 2000645 Contact Us For Availability
33
Rail-Front, Crisper Shelf WPL 2005424 Contact Us For Availability
34
Vent, Crisper Shelf WPL 2005425 Contact Us For Availability
34
Process, Tube WPL 2003011 Contact Us For Availability
34
Grille Base, Front (Black) WPL 2004530 Contact Us For Availability
34
Grille Base, Front (White) WPL 2004533 Contact Us For Availability
35
Slide-Humidity, Crisper Shelf WPL 2005413 Contact Us For Availability
35
Screw WPL 489238 Contact Us For Availability
36
Heater, Fill Tube WPL 2004594 Contact Us For Availability
36
Cover, Fan WPL 2003174 Contact Us For Availability
36
Cover, Rear WPL 2004512 Contact Us For Availability
37
Glass, Crisper Shelf WPL 2005477 Contact Us For Availability
37
Cover, Condenser WPL 2005535 Contact Us For Availability
37
Water Valve Mounting Bracket WPL 2004914 Contact Us For Availability
37
Grommet, Wiring WPL 2207518 Contact Us For Availability
38
Rail-Rear, Crisper Shelf WPL 2005478 Contact Us For Availability
39
Seal-Front, Crisper Shelf WPL 2005479 Contact Us For Availability
39
Service Cord WPL 2003381 Contact Us For Availability
40
Insulation, Crisper Rail WPL 2005984 Contact Us For Availability
41
Baffle-Center, Crisper Shelf WPL 2005985 Contact Us For Availability
41
Clamp, Cord (2) WPL 1113162 Contact Us For Availability
42
Center Support, Left Half WPL 2005794 Contact Us For Availability
43
Center Support, Right Half WPL 2005795 Contact Us For Availability
44
Bracket, Center Support WPL 2005796 Contact Us For Availability
44
Clip, Cord Plug WPL 653035 Contact Us For Availability
44
Compresion Nut WPL 1129179 Contact Us For Availability
45
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
45
Wiring Harness, Unit Compartment WPL 2207479 Contact Us For Availability
45
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
47
Deli Pan WPL 2005163 Contact Us For Availability
48
Ladder, Shelf (4) WPL 2005410 Contact Us For Availability
50
Ladder, Crisper Support WPL 2005797 Contact Us For Availability
51
Shelf Stud WPL 2004068 Contact Us For Availability
52
Roller WPL 2207462 Contact Us For Availability
53
Bumper WPL 2207522 Contact Us For Availability
55
Shim WPL 2207569 Contact Us For Availability
× ![]()
