Model Whirlpool KBRP36MHB00 – Common Parts & Diagrams
06 - REFRIGERATOR SHELF
07 - FREEZER DOOR AND BASKET

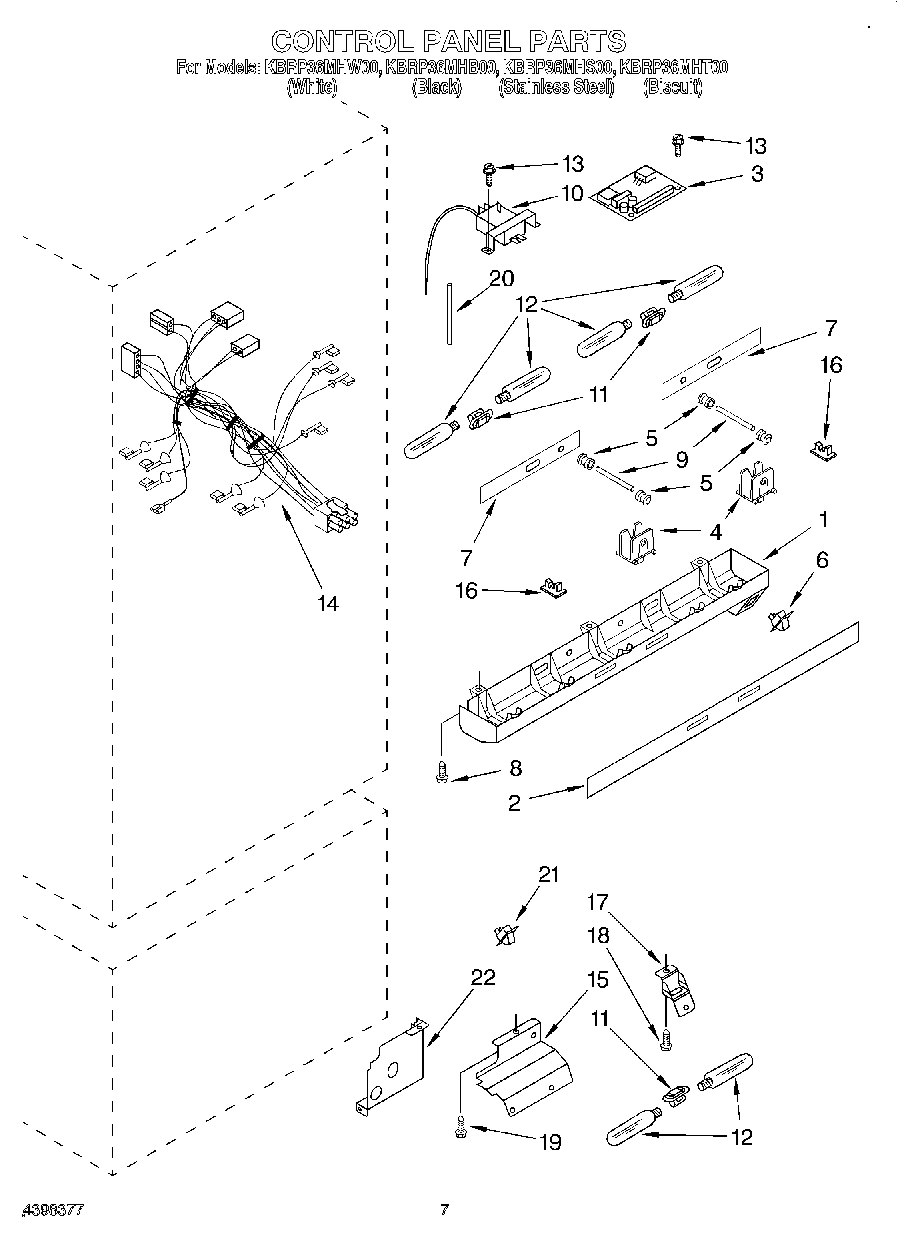

05 - CONTROL PANEL

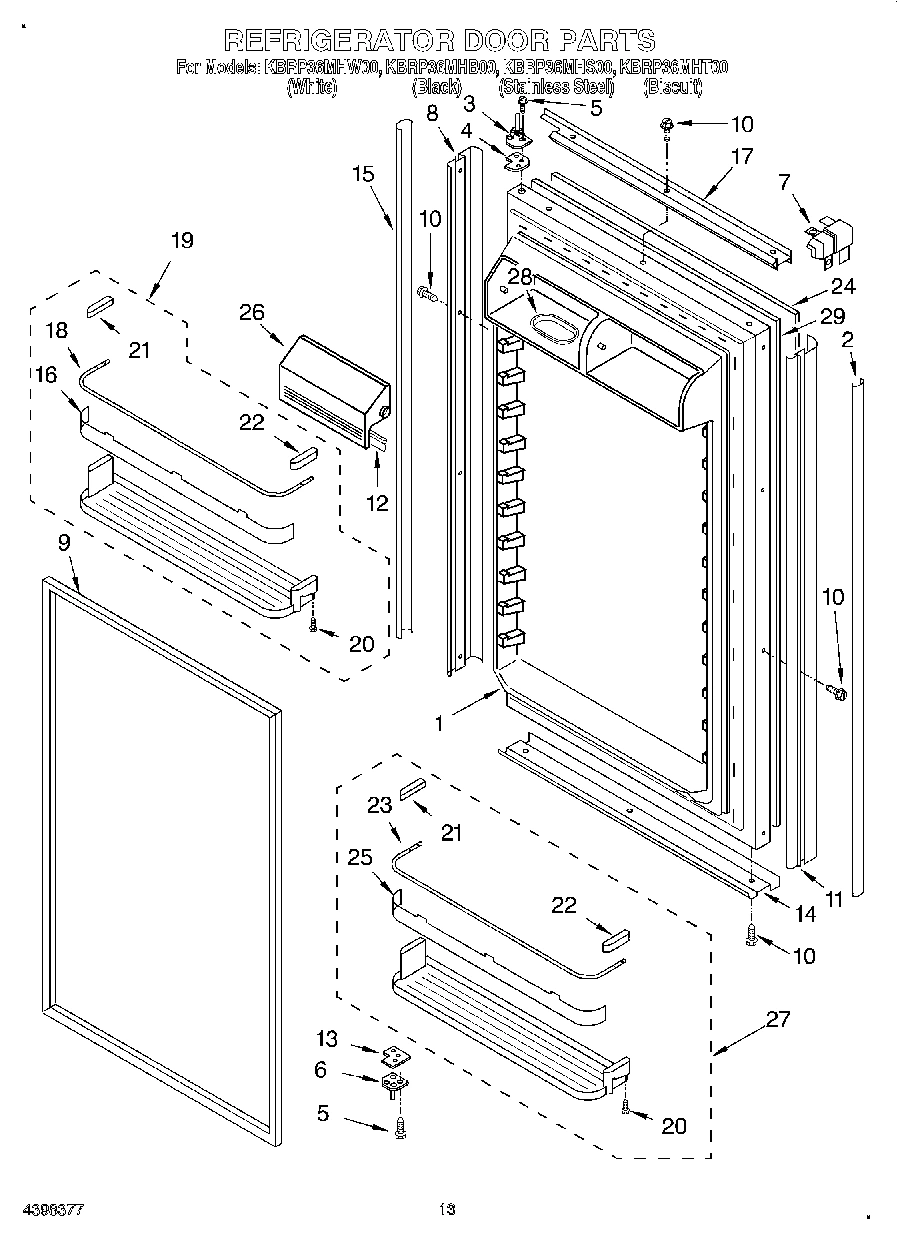

08 - REFRIGERATOR DOOR

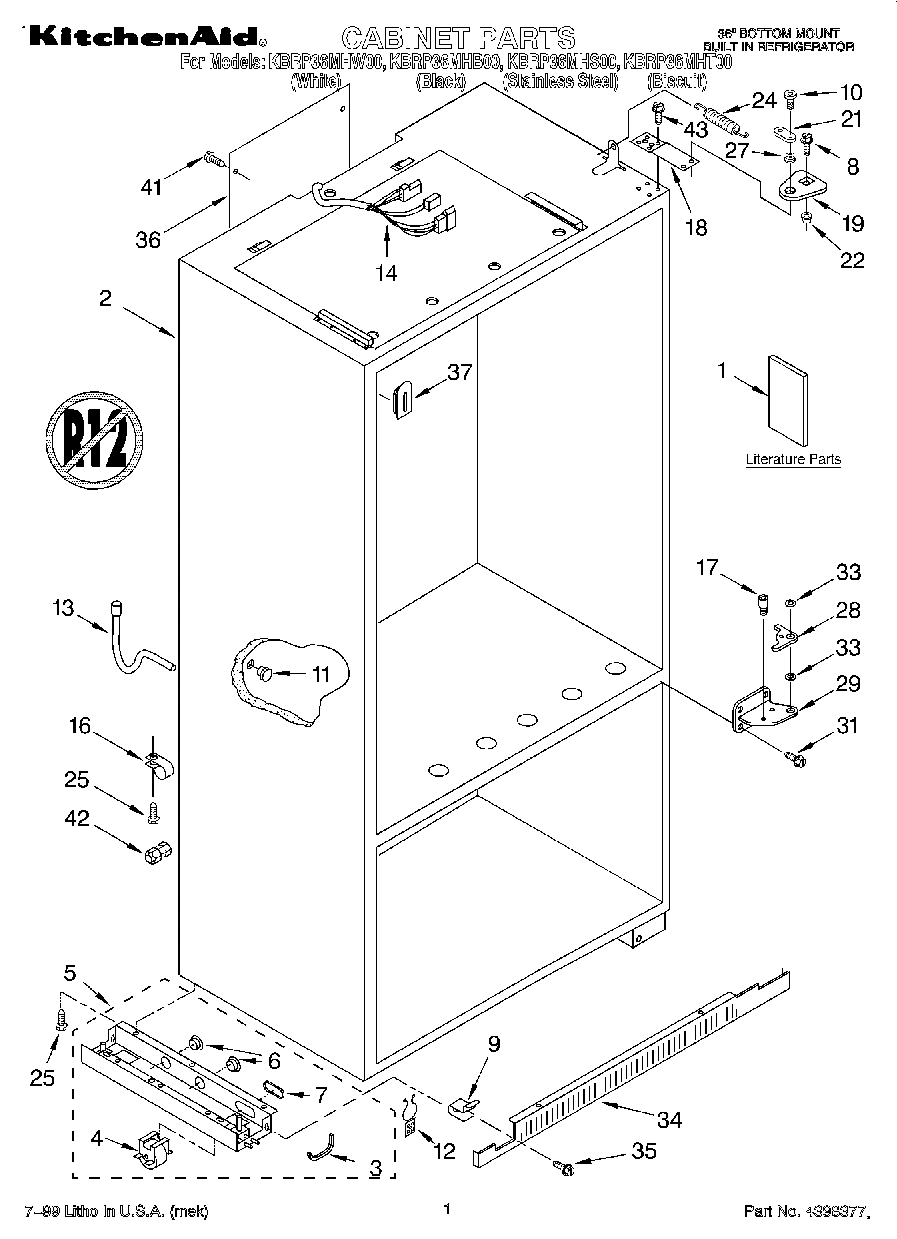

01 - CABINET, LITERATURE

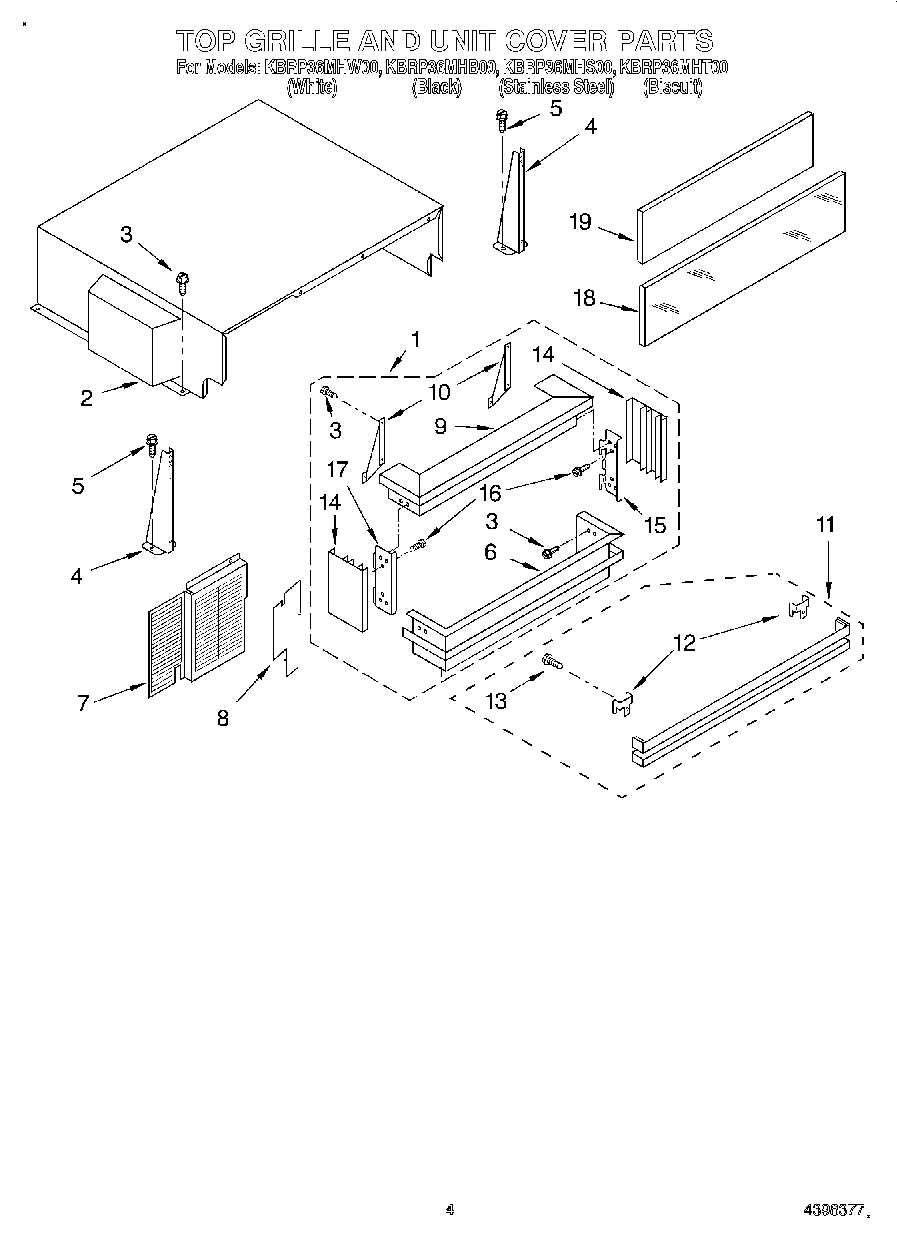

03 - TOP GRILLE AND UNIT COVER

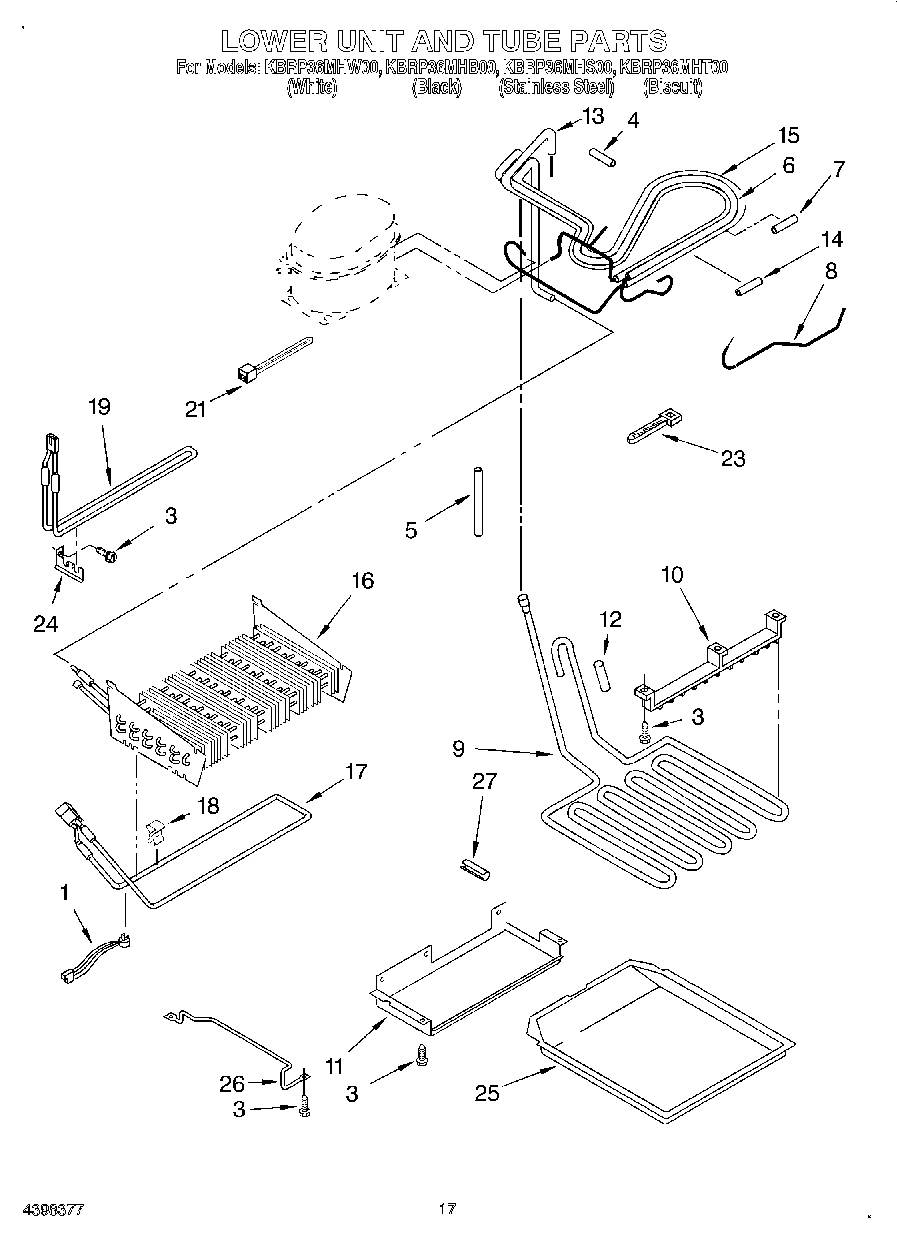

10 - LOWER UNIT AND TUBE

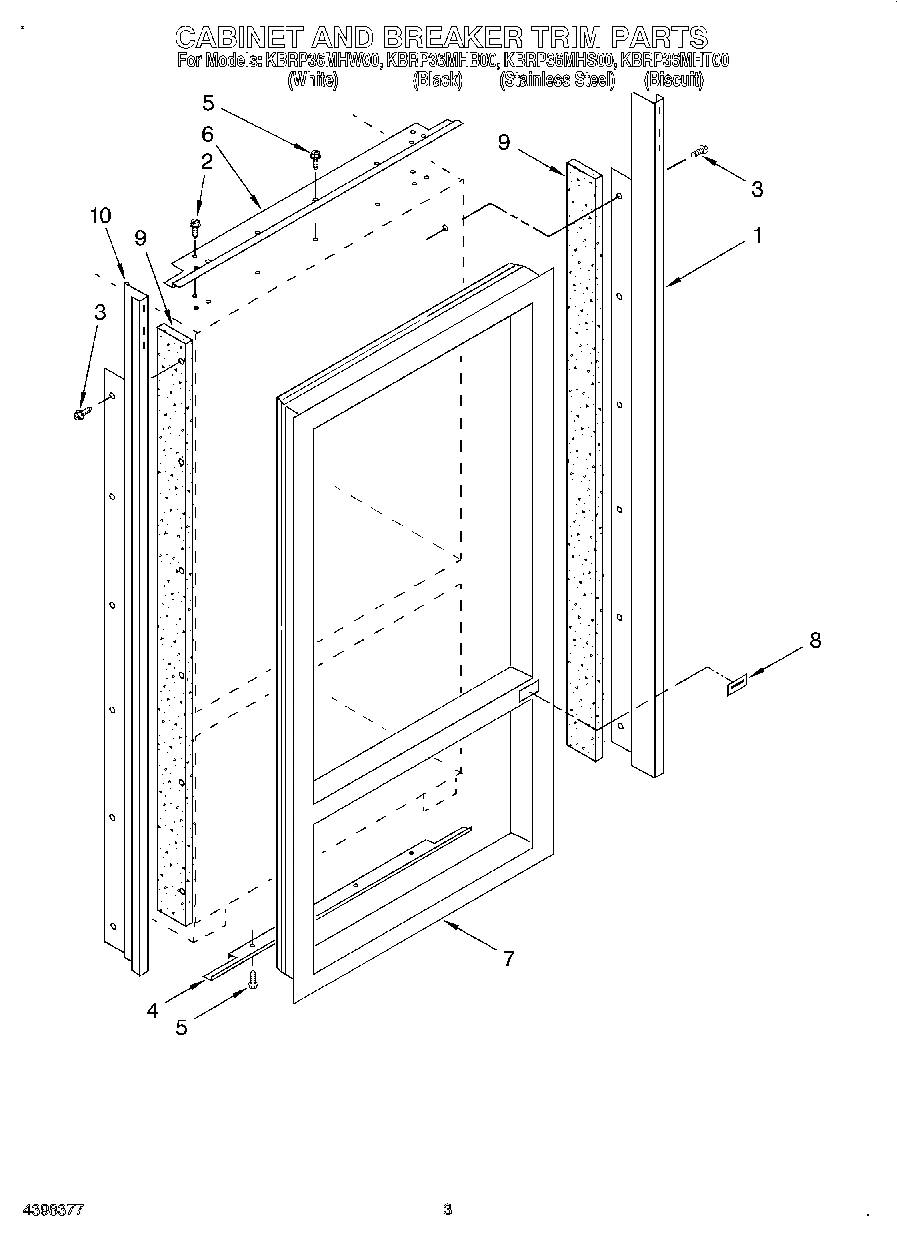

02 - CABINET AND BREAKER TRIM

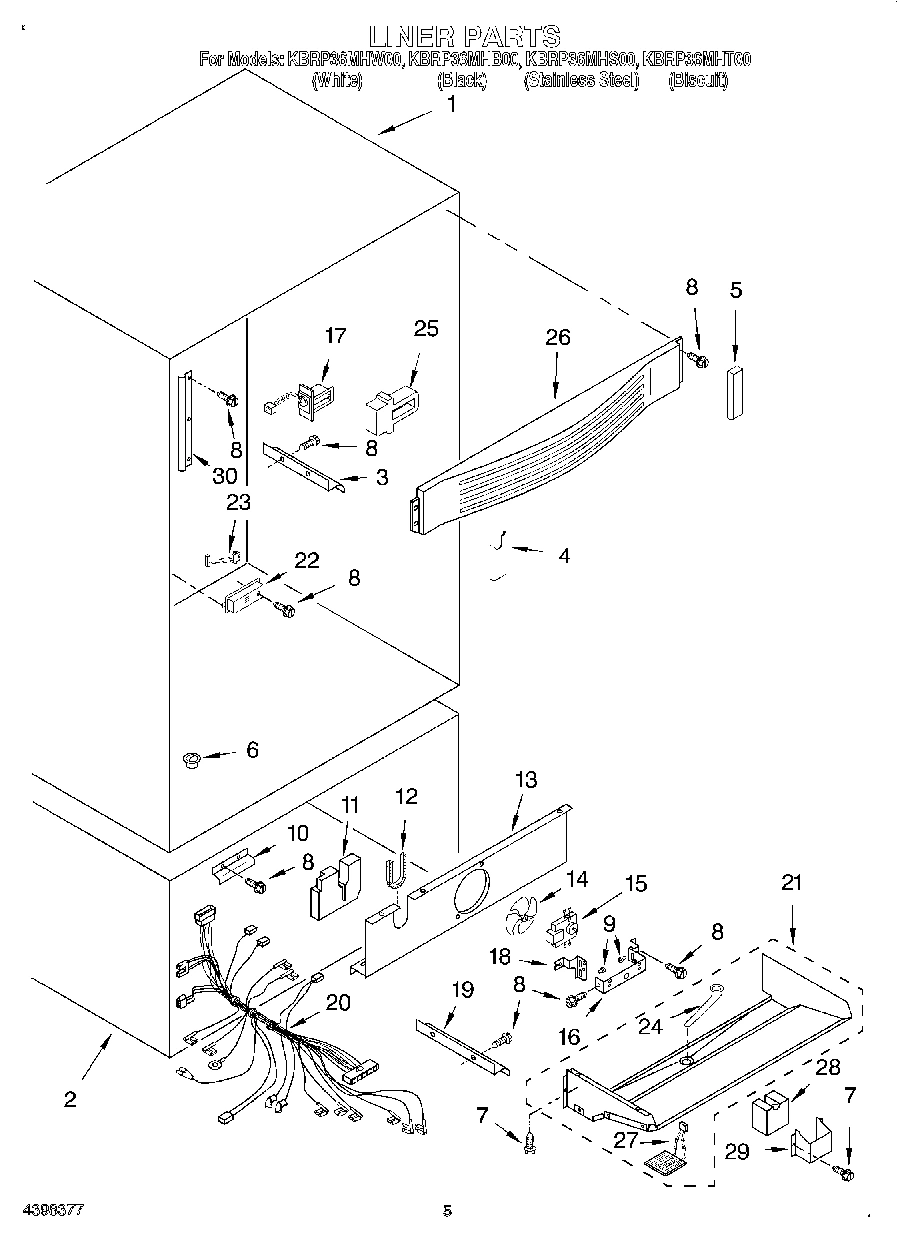

04 - LINER

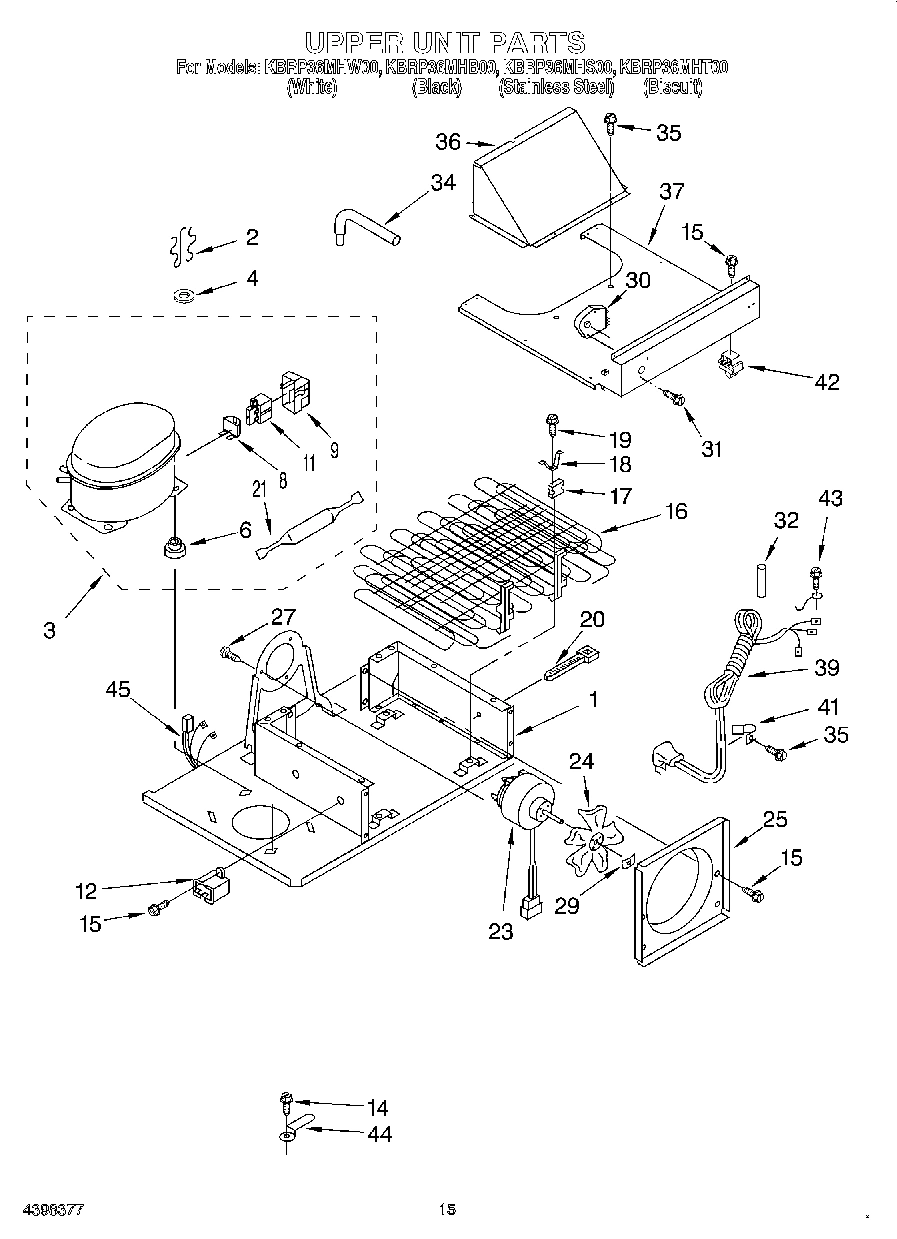

09 - UPPER UNIT

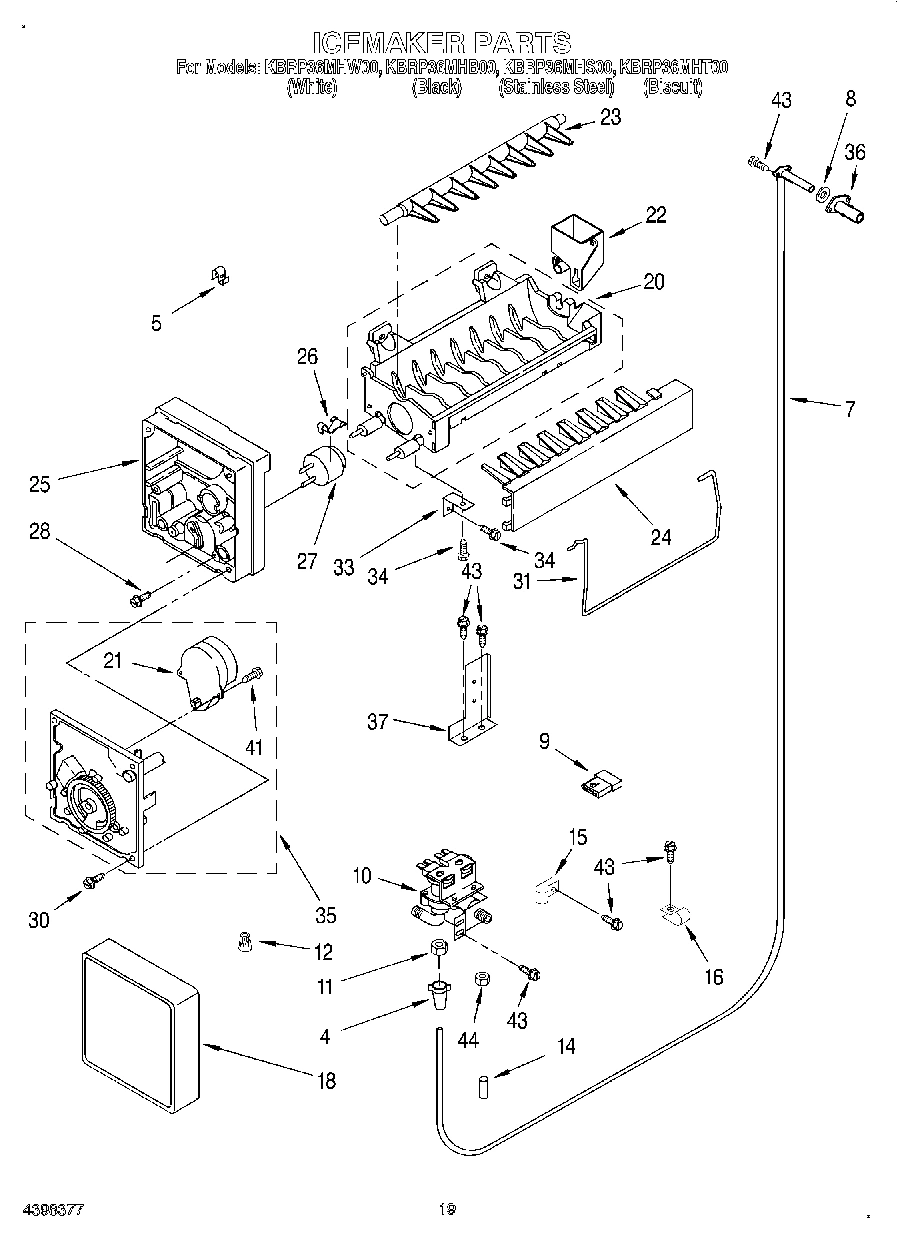

11 - ICE MAKER
Common parts from model Whirlpool KBRP36MHB00
1
Control Panel WPL 2005489 Contact Us For Availability
1
Refrigerator Door (Includes Item 9) WPL 2005168 Contact Us For Availability
1
LITERATURE PARTS (Use & Care Guide) WPL LIT2005193 Contact Us For Availability
1
LITERATURE PARTS (Energy Label) WPL LIT2005194 Contact Us For Availability
1
LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2005213 Contact Us For Availability
1
LITERATURE PARTS (Installation Instructions) WPL LIT2005214 Contact Us For Availability
1
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Top Grille Assembly (White) WPL 2006165 Contact Us For Availability
1
Top Grille Assembly (Black) WPL 2006169 Contact Us For Availability
1
Top Grille Assembly (Biscuit) WPL 2006173 Contact Us For Availability
1
Top Grille Assembly (Stainless Steel) WPL 2006177 Contact Us For Availability
1
Defrost Bi-Metal WPL 2006343 Contact Us For Availability
1
Cabinet Trim, Right Side (Stainless Steel) WPL 2005256 Contact Us For Availability
1
Cabinet Trim, Right Side (White) WPL 2006210 Contact Us For Availability
1
Cabinet Trim, Right Side (Black) WPL 2006211 Contact Us For Availability
1
Cabinet Trim, Right Side (Biscuit) WPL 2006212 Contact Us For Availability
1
Liner, Refrigerator (Not Serviceable) WPL ARI79812A1 Contact Us For Availability
1
Assembly, Unit Base WPL 2003398 Contact Us For Availability
2
Overlay, Control Panel WPL 2005940 Contact Us For Availability
2
Cover-Trim, Handle (White) WPL 2006338 Contact Us For Availability
2
Cover-Trim, Handle (Stainless Steel) WPL 2006339 Contact Us For Availability
2
Cover-Trim, Handle (Biscuit) WPL 2006340 Contact Us For Availability
2
Cover-Trim, Handle (Black) WPL 2006341 Contact Us For Availability
2
Cabinet (Not A Serviceable Part) WPL ARI79811A5 Contact Us For Availability
2
Cover, Unit WPL 2005549 Contact Us For Availability
2
Screw WPL 2003857 Contact Us For Availability
2
Liner, Freezer (Not a Serviceable Part) WPL ARI79813A3 Contact Us For Availability
2
Clip, Compressor Mounting (4) WPL 2163787 Contact Us For Availability
3
Circuit Board WPL 2005585 Contact Us For Availability
3
Hinge Assembly, Top WPL 2005171 Contact Us For Availability
3
Grommet, Tube Crossover WPL 2005004 Contact Us For Availability
3
Repair, Screw WPL 487246 Contact Us For Availability
3
Wiring Channel Side WPL 2005775 Contact Us For Availability
4
Slide, Control WPL 2005414 Contact Us For Availability
4
Spacer-Hinge, Top WPL 2004520 Contact Us For Availability
4
Grille, Bracket WPL 2002484 Contact Us For Availability
4
Cabinet, Trim (Bottom) WPL 2004536 Contact Us For Availability
4
Diffuser Cap, Left Side WPL 2005932 Contact Us For Availability
4
Washer WPL 680975 Contact Us For Availability
5
Grommet, Light Fiber WPL 2172906 Contact Us For Availability
5
Diffuser Cap, Right Side WPL 2005931 Contact Us For Availability
6
Hinge Assembly, Bottom WPL 2003986 Contact Us For Availability
6
Grommet, Wiring WPL 2005006 Contact Us For Availability
6
Trim-Lower, Panel (White) WPL 2006168 Contact Us For Availability
6
Trim-Lower, Panel (Black) WPL 2006172 Contact Us For Availability
6
Trim-Lower, Panel (Biscuit) WPL 2006176 Contact Us For Availability
6
Trim-Lower, Panel (Stainless Steel) WPL 2006180 Contact Us For Availability
6
Condenser Inlet Tube WPL 2005577 Contact Us For Availability
6
Cabinet, Trim Top WPL 2003645 Contact Us For Availability
7
Trim, Corner (White) WPL 2006270 Contact Us For Availability
7
Trim, Corner (Biscuit) WPL 2006272 Contact Us For Availability
7
Trim, Corner (Black) WPL 2006273 Contact Us For Availability
7
Heat Shield, Lamp WPL 2005935 Contact Us For Availability
7
Grommet, Flexible WPL 2005007 Contact Us For Availability
7
Guard, Compressor Wiring WPL 2005534 Contact Us For Availability
7
Breaker Trim WPL 2005076 Contact Us For Availability
7
Water Inlet Tube Assembly WPL 2005009 Contact Us For Availability
8
Tube, Connect (Drier) WPL 2003015 Contact Us For Availability
8
Trim-Door, Bottom (Stainless Steel) WPL 2006280 Contact Us For Availability
8
Trim-Door, Bottom (Biscuit) WPL 2006281 Contact Us For Availability
8
Trim-Door, Bottom (Black) WPL 2006282 Contact Us For Availability
8
Screw (3) WPL 489260 Contact Us For Availability
8
Trim-Door, Side (White) WPL 2005389 Contact Us For Availability
8
Trim-Door, Side (Stainless Steel) WPL 2005850 Contact Us For Availability
8
Trim-Door, Side (Biscuit) WPL 2006274 Contact Us For Availability
8
Trim-Door, Side (Black) WPL 2006275 Contact Us For Availability
8
Screw WPL 2001297 Contact Us For Availability
8
Baffle-Air, Condenser WPL 2006440 Contact Us For Availability
8
Cover, Hinge WPL 2005782 Contact Us For Availability
9
Seal, Side Trim WPL 2005925 Contact Us For Availability
9
Fiber Optic WPL 2179920 Contact Us For Availability
9
Eyelet, Roller WPL 2174478 Contact Us For Availability
9
Door Gasket, Magnetic WPL 2005187 Contact Us For Availability
9
Door Gasket, Magnetic WPL 2005174 Contact Us For Availability
9
Mounting Bracket, Grill WPL 2006442 Contact Us For Availability
9
Trim-Top, Panel (White) WPL 2006166 Contact Us For Availability
9
Trim-Top, Panel (Black) WPL 2006170 Contact Us For Availability
9
Trim-Top, Panel (Biscuit) WPL 2006174 Contact Us For Availability
9
Trim-Top, Panel (Stainless Steel) WPL 2006178 Contact Us For Availability
9
Grommet WPL 548268 Contact Us For Availability
9
Connector WPL 2154472 Contact Us For Availability
10
Screw WPL 2005921 Contact Us For Availability
10
Cover-Trim, Side (White) WPL 2006323 Contact Us For Availability
10
Cover-Trim, Side (Biscuit) WPL 2006325 Contact Us For Availability
10
Cover-Trim, Side (Black) WPL 2006326 Contact Us For Availability
10
Thermostat WPL 2005936 Contact Us For Availability
10
Bracket, Trim Panel WPL 2005485 Contact Us For Availability
10
Hanger, Heater WPL 1113062 Contact Us For Availability
10
Cabinet Trim, Left Side (Stainless Steel) WPL 2005493 Contact Us For Availability
10
Cabinet Trim, Left Side (White) WPL 2006214 Contact Us For Availability
10
Cabinet Trim, Left Side (Black) WPL 2006215 Contact Us For Availability
10
Cabinet Trim, Left Side (Biscuit) WPL 2006216 Contact Us For Availability
10
Wiring Channel, Freezer Rear WPL 2006148 Contact Us For Availability
10
Valve, Solenoid WPL 2003791 Contact Us For Availability
11
Handle, Door (White) WPL 2005392 Contact Us For Availability
11
Handle, Door (Stainless Steel) WPL 2005871 Contact Us For Availability
11
Handle, Door (Biscuit) WPL 2006291 Contact Us For Availability
11
Handle, Door (Black) WPL 2006292 Contact Us For Availability
11
Socket, Light WPL 2005043 Contact Us For Availability
11
Handle, Door (White) WPL 2005391 Contact Us For Availability
11
Handle, Door (Stainless Steel) WPL 2005846 Contact Us For Availability
11
Handle, Door (Biscuit) WPL 2006295 Contact Us For Availability
11
Handle, Door (Black) WPL 2006296 Contact Us For Availability
11
Cap, Grommet WPL 1112849 Contact Us For Availability
11
Louver, Vent (White) WPL 2006189 Contact Us For Availability
11
Louver, Vent (Black) WPL 2006190 Contact Us For Availability
11
Louver, Vent (Biscuit) WPL 2006191 Contact Us For Availability
11
Louver, Vent (Stainless Steel) WPL 2006192 Contact Us For Availability
11
Shield, Drain Pan WPL 2005908 Contact Us For Availability
11
Foam, Fan Shroud WPL 2204505 Contact Us For Availability
12
Gasket (2) WPL 2005982 Contact Us For Availability
12
Clip, Wire WPL 2005237 Contact Us For Availability
12
Louver, Bracket WPL 2005483 Contact Us For Availability
12
Sleeve WPL 2002448 Contact Us For Availability
12
Grommet, Flexible WPL 2207430 Contact Us For Availability
12
Capacitor WPL 2169137 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
13
Stop, Roller WPL 1113169 Contact Us For Availability
13
Spacer-Hinge, Bottom WPL 2003982 Contact Us For Availability
13
Tube, Drain Condensate WPL 2204516 Contact Us For Availability
13
Tube, Discharge WPL 2002995 Contact Us For Availability
13
Shroud, Evaporator Fan WPL 2204506 Contact Us For Availability
14
Wiring Harness, Cabinet WPL 2005100 Contact Us For Availability
14
Trim-Door, Bottom (White) WPL 2005390 Contact Us For Availability
14
Trim-Door, Bottom (Stainless Steel) WPL 2005851 Contact Us For Availability
14
Trim-Door, Bottom (Biscuit) WPL 2006283 Contact Us For Availability
14
Trim-Door, Bottom (Black) WPL 2006284 Contact Us For Availability
14
Trim-Side, Panel (White) WPL 2006167 Contact Us For Availability
14
Trim-Side, Panel (Black) WPL 2006171 Contact Us For Availability
14
Trim-Side, Panel (Biscuit) WPL 2006175 Contact Us For Availability
14
Trim-Side, Panel (Stainless Steel) WPL 2006179 Contact Us For Availability
14
Screw WPL 486899 Contact Us For Availability
14
Plug, Water Valve WPL 2005038 Contact Us For Availability
15
Heat Exchanger WPL 2005103 Contact Us For Availability
15
Bracket, Assembly Freezer Basket WPL 2207438 Contact Us For Availability
15
Channel, Wiring Freezer Light WPL 2207411 Contact Us For Availability
15
Cover-Trim, Side (White) WPL 2006333 Contact Us For Availability
15
Cover-Trim, Side (Stainless steel) WPL 2006334 Contact Us For Availability
15
Cover-Trim, Side (Biscuit) WPL 2006335 Contact Us For Availability
15
Cover-Trim, Side (Black) WPL 2006336 Contact Us For Availability
15
Bracket-Panel, Right Side WPL 2006161 Contact Us For Availability
16
Filler, Board WPL 2006433 Contact Us For Availability
16
CLIP, WIRING WPL 1115375 Contact Us For Availability
16
Window, Door Shelf WPL 2005488 Contact Us For Availability
16
Evaporator (Also Order Item 15) WPL 2204539 Contact Us For Availability
16
Bracket (Single) WPL 938224 Contact Us For Availability
16
Condenser WPL 2003392 Contact Us For Availability
17
Screw, Door Stop WPL 2001295 Contact Us For Availability
17
Basket, Upper WPL 2005376 Contact Us For Availability
17
Bracket, Freezer Light WPL 2207410 Contact Us For Availability
17
Trim-Door, Top (White) WPL 2005388 Contact Us For Availability
17
Trim-Door, Top (Stainless Steel) WPL 2005852 Contact Us For Availability
17
Trim-Door, Top (Biscuit) WPL 2006287 Contact Us For Availability
17
Trim-Door, Top (Black) WPL 2006288 Contact Us For Availability
17
Bracket-Panel, Left Side WPL 2006160 Contact Us For Availability
17
Heater, Defrost Front WPL 2204512 Contact Us For Availability
17
Air Baffle Assembly WPL 2005584 Contact Us For Availability
17
Grommet (4) WPL 943447 Contact Us For Availability
18
Pan, Ice Cube WPL 2174124 Contact Us For Availability
18
Tube, Door Shelf WPL 2005482 Contact Us For Availability
18
Decorative Panel, Acrylic (White) WPL 2006436 Contact Us For Availability
18
Decorative Panel, Acrylic (Black) WPL 2006437 Contact Us For Availability
18
Decorative Panel, Acrylic (Biscuit) WPL 2006438 Contact Us For Availability
18
Decorative Panel, Acrylic (Stainless Steel) WPL 2204587 Contact Us For Availability
18
Clamp, Heater (4) WPL 2204510 Contact Us For Availability
18
Bracket (Double) WPL 548263 Contact Us For Availability
18
Clamp (4) WPL 1113019 Contact Us For Availability
19
Cam, Door Closer WPL 2005783 Contact Us For Availability
19
Screw WPL 487522 Contact Us For Availability
19
Shelf, Door (2) WPL 2005417 Contact Us For Availability
19
Board, Filler WPL 2006439 Contact Us For Availability
19
Heater, Defrost Rear WPL 2204513 Contact Us For Availability
19
Wiring Channel Freezer, Side WPL 2006147 Contact Us For Availability
20
Bushing WPL 2005941 Contact Us For Availability
20
Tube-Barrier, Thermostat WPL 2207416 Contact Us For Availability
20
Wire Tie (2) WPL 851095 Contact Us For Availability
20
Wiring Harness, Freezer WPL 2005115 Contact Us For Availability
21
Screw WPL 3400507 Contact Us For Availability
21
End Cap, L WPL 2005542 Contact Us For Availability
21
Closer-Extension, Door WPL 2005919 Contact Us For Availability
21
Cover, Evaporator Assembly WPL 2204504 Contact Us For Availability
22
Bushing WPL 2002903 Contact Us For Availability
22
Basket, Freezer Lower WPL 2006244 Contact Us For Availability
22
Wiring Cover, Icemaker WPL 2005792 Contact Us For Availability
22
WPL 2005541 WPL 2005541 Contact Us For Availability
23
Motor, Fan WPL 2169135 Contact Us For Availability
23
Thermistor WPL 1116959 Contact Us For Availability
23
Panel, Acrylic (White) WPL 2006426 Contact Us For Availability
23
Panel, Acrylic (Black) WPL 2006428 Contact Us For Availability
23
Panel, Acrylic (Biscuit) WPL 2006430 Contact Us For Availability
23
Panel, Acrylic (Stainless Steel) WPL 2204581 Contact Us For Availability
23
WPL 2006152 WPL 2006152 Contact Us For Availability
24
Blade, Fan WPL 1108179 Contact Us For Availability
24
WPL 2006425 WPL 2006425 Contact Us For Availability
24
WPL 2006427 WPL 2006427 Contact Us For Availability
24
WPL 2006429 WPL 2006429 Contact Us For Availability
24
WPL 2204580 WPL 2204580 Contact Us For Availability
24
Support, Heater WPL 2204543 Contact Us For Availability
24
Drain Tube, Condesate WPL 2204514 Contact Us For Availability
25
WPL 2006151 WPL 2006151 Contact Us For Availability
25
Insulation, Baffle WPL 2005117 Contact Us For Availability
25
Orifice, Fan WPL 2003169 Contact Us For Availability
26
WPL 2005419 WPL 2005419 Contact Us For Availability
26
Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability
26
Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability
26
Cover, Air Diffuser WPL 2005422 Contact Us For Availability
27
WPL 2006154 WPL 2006154 Contact Us For Availability
27
Bushing-Arm, Extension WPL 2005920 Contact Us For Availability
27
Heater-Tube, Drain WPL 2204595 Contact Us For Availability
27
Cement Alumilastic) WPL 542639 Contact Us For Availability
28
WPL 2165792 WPL 2165792 Contact Us For Availability
28
Insulation, Tube Drain WPL 2204538 Contact Us For Availability
29
WPL 2006432 WPL 2006432 Contact Us For Availability
29
Cover, Tube Drain WPL 2204537 Contact Us For Availability
30
Guard, Capillary Tube WPL 2006476 Contact Us For Availability
31
Shut Off Arm WPL 2208981 Contact Us For Availability
32
Sleeve, Condenser WPL 2000645 Contact Us For Availability
34
Grille Base, Front (Black) WPL 2004530 Contact Us For Availability
34
Grille Base, Front (White) WPL 2004533 Contact Us For Availability
34
Process, Tube WPL 2003011 Contact Us For Availability
35
Screw WPL 489238 Contact Us For Availability
36
Heater, Fill Tube WPL 2004594 Contact Us For Availability
36
Cover, Rear WPL 2004512 Contact Us For Availability
36
Cover, Fan WPL 2003174 Contact Us For Availability
37
Grommet, Wiring WPL 1113123 Contact Us For Availability
37
Cover, Condenser WPL 2005535 Contact Us For Availability
37
Water Valve Mounting Bracket WPL 2004914 Contact Us For Availability
39
Service Cord WPL 2003381 Contact Us For Availability
41
Clamp, Cord (2) WPL 1113162 Contact Us For Availability
44
Clip, Cord Plug WPL 653035 Contact Us For Availability
44
Compresion Nut WPL 1129179 Contact Us For Availability
45
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
45
Wiring Harness, Unit Compartment WPL 2005929 Contact Us For Availability
45
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
