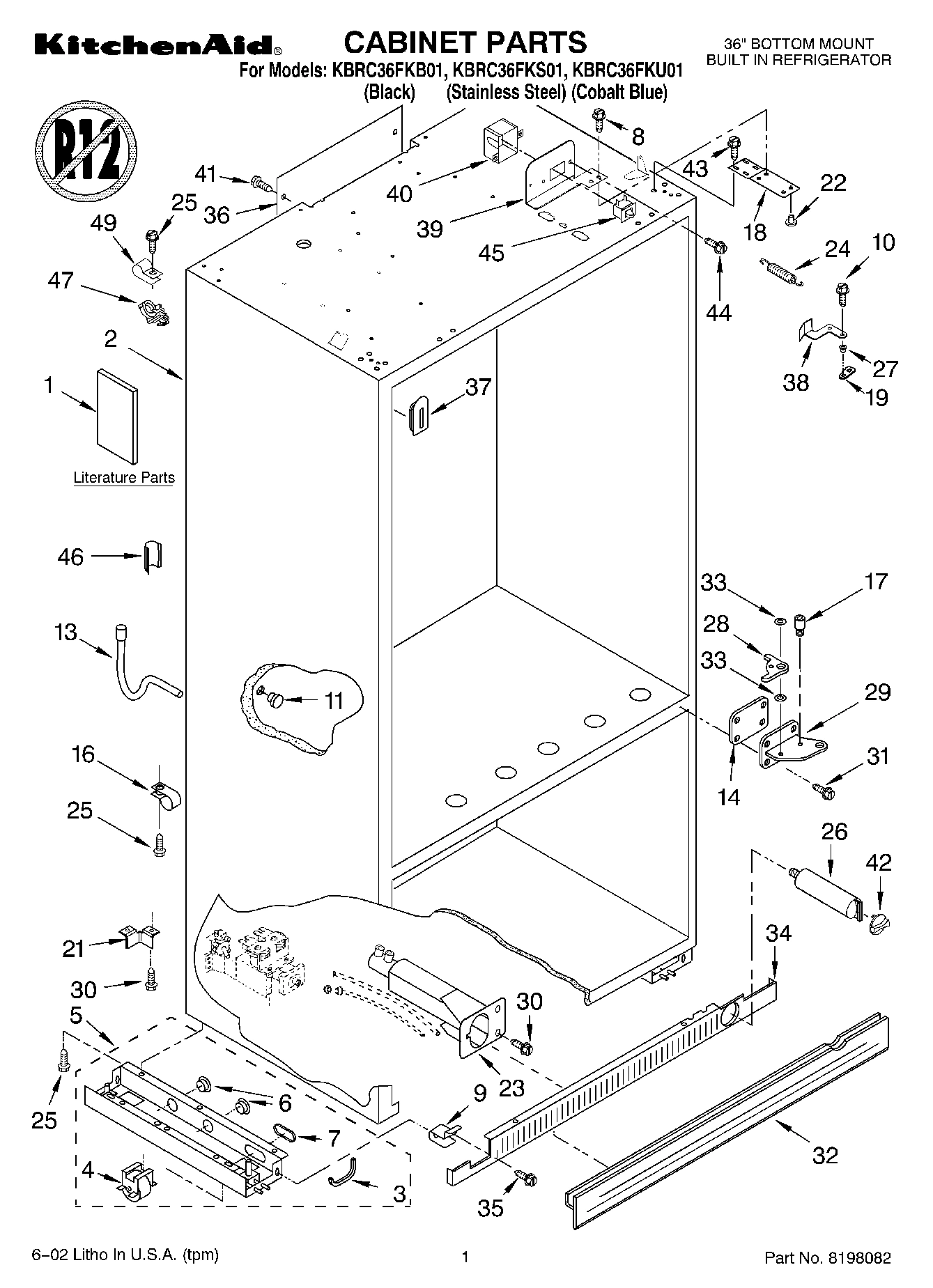

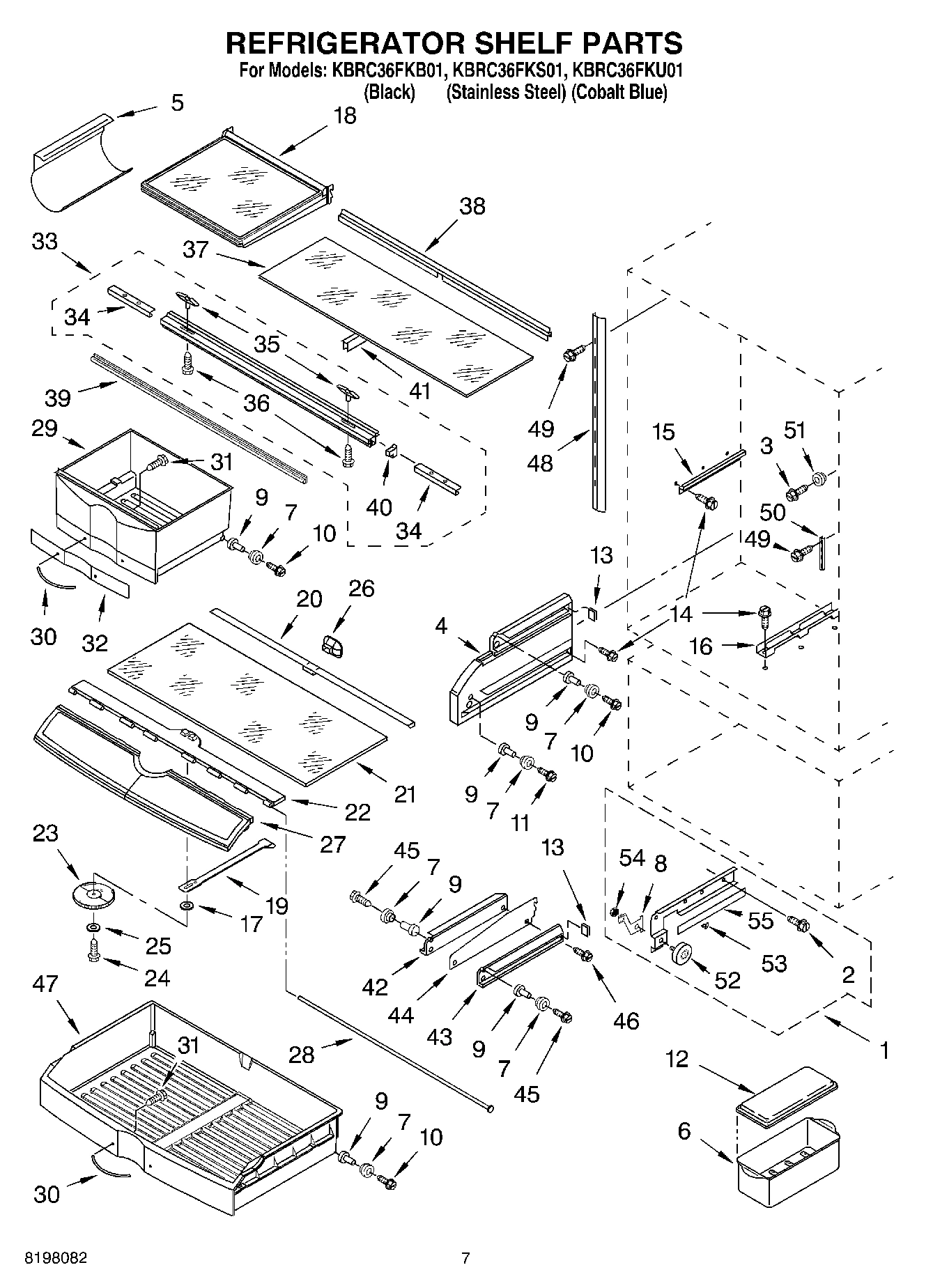

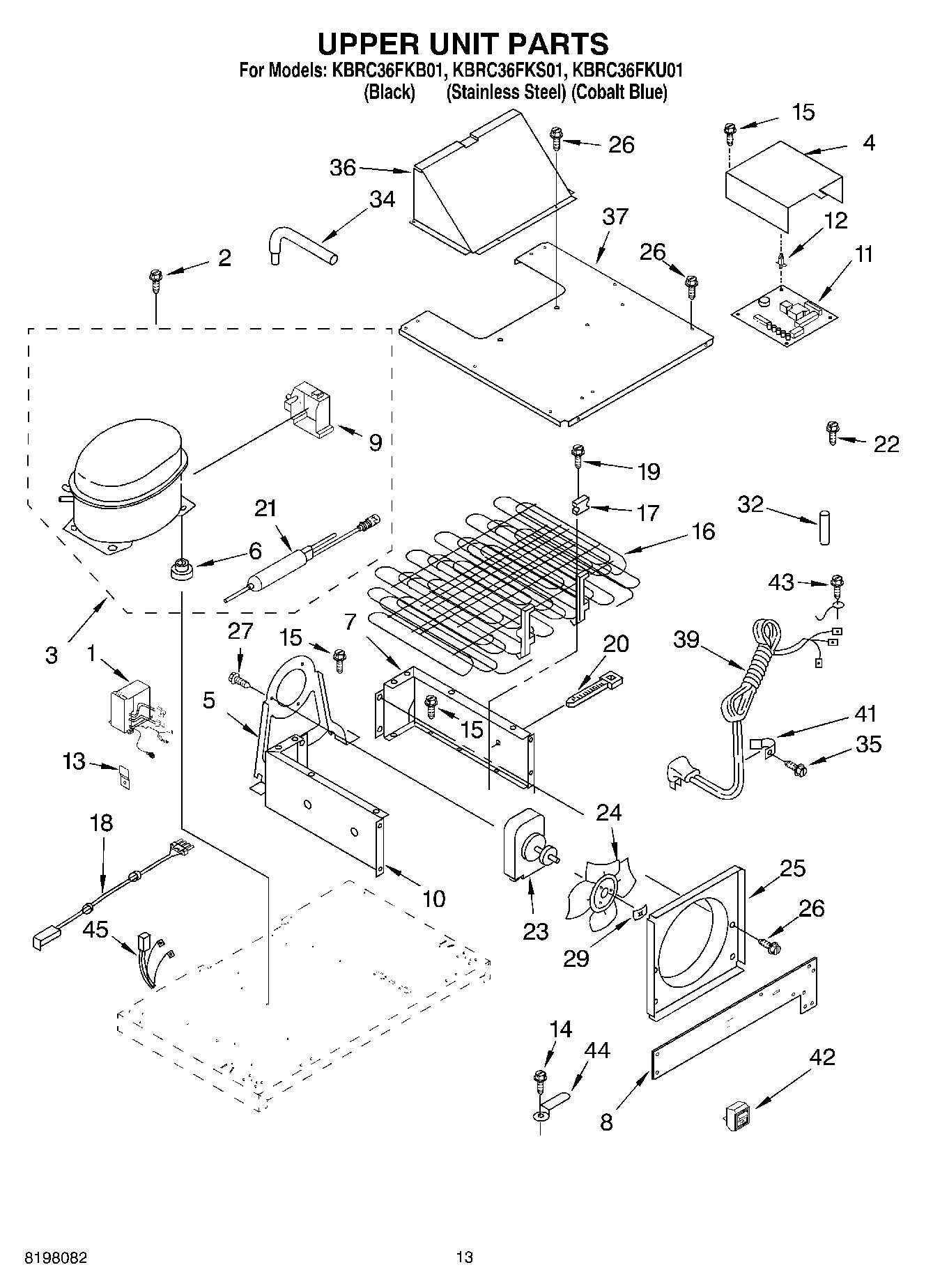

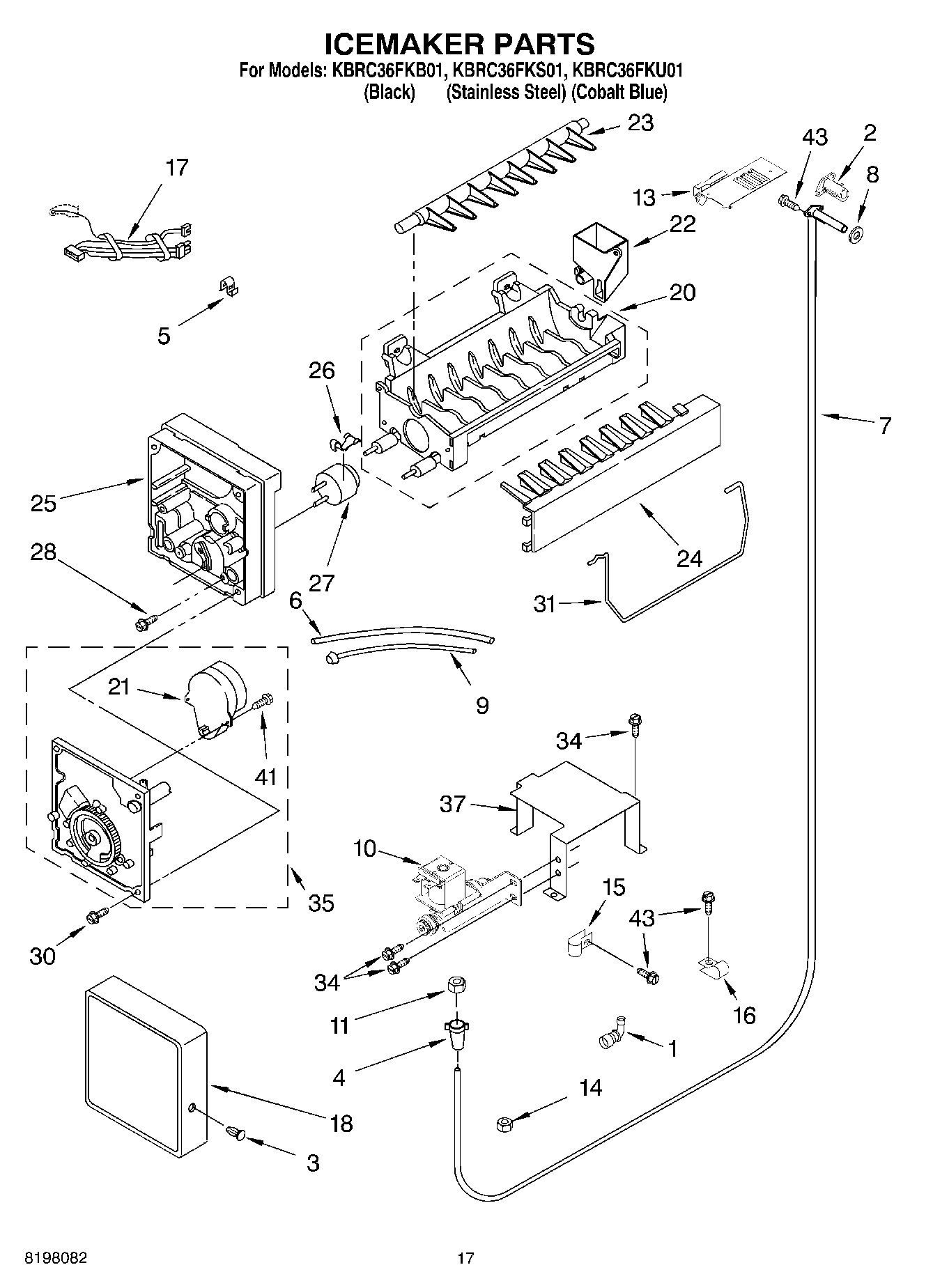

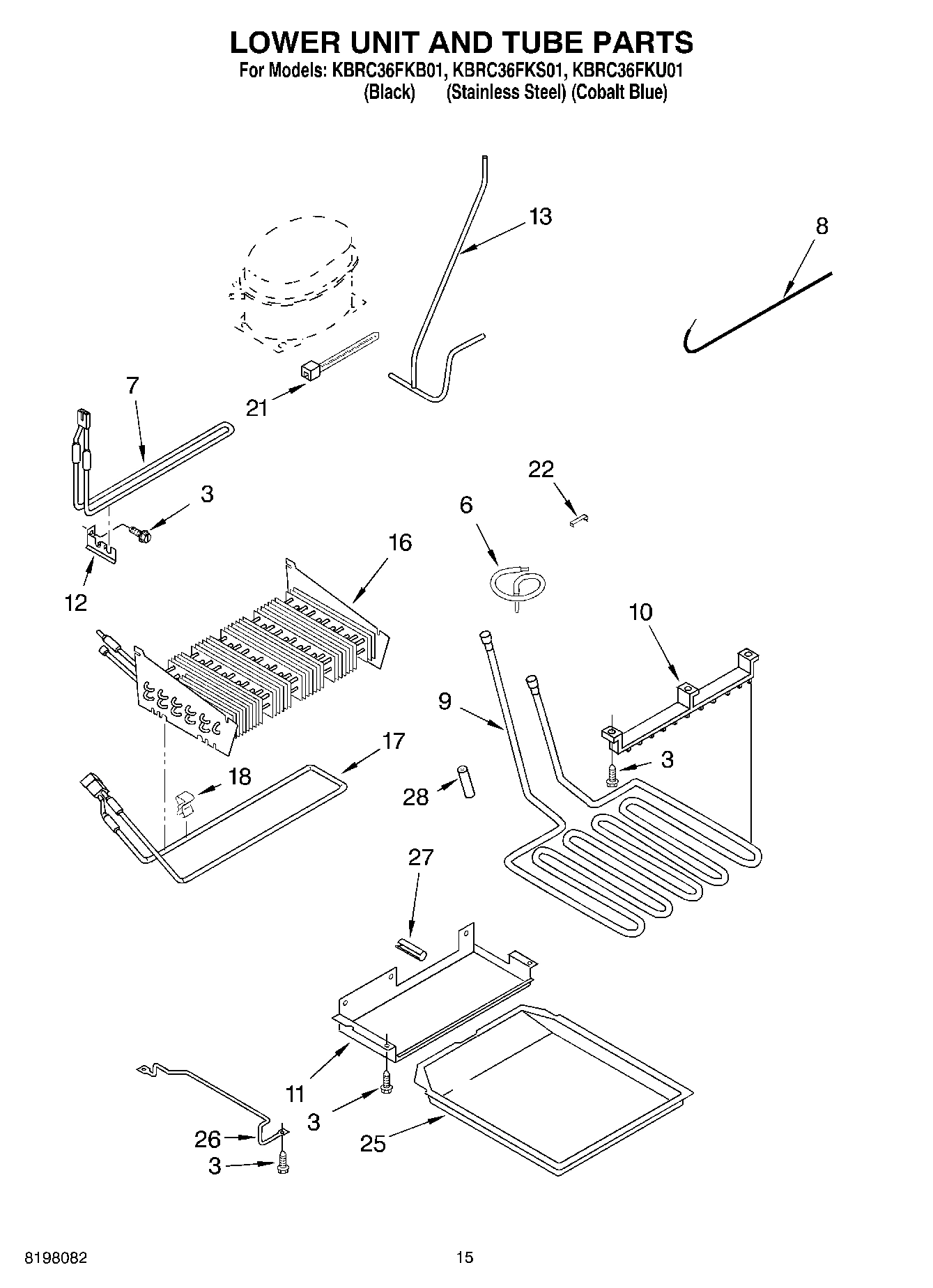

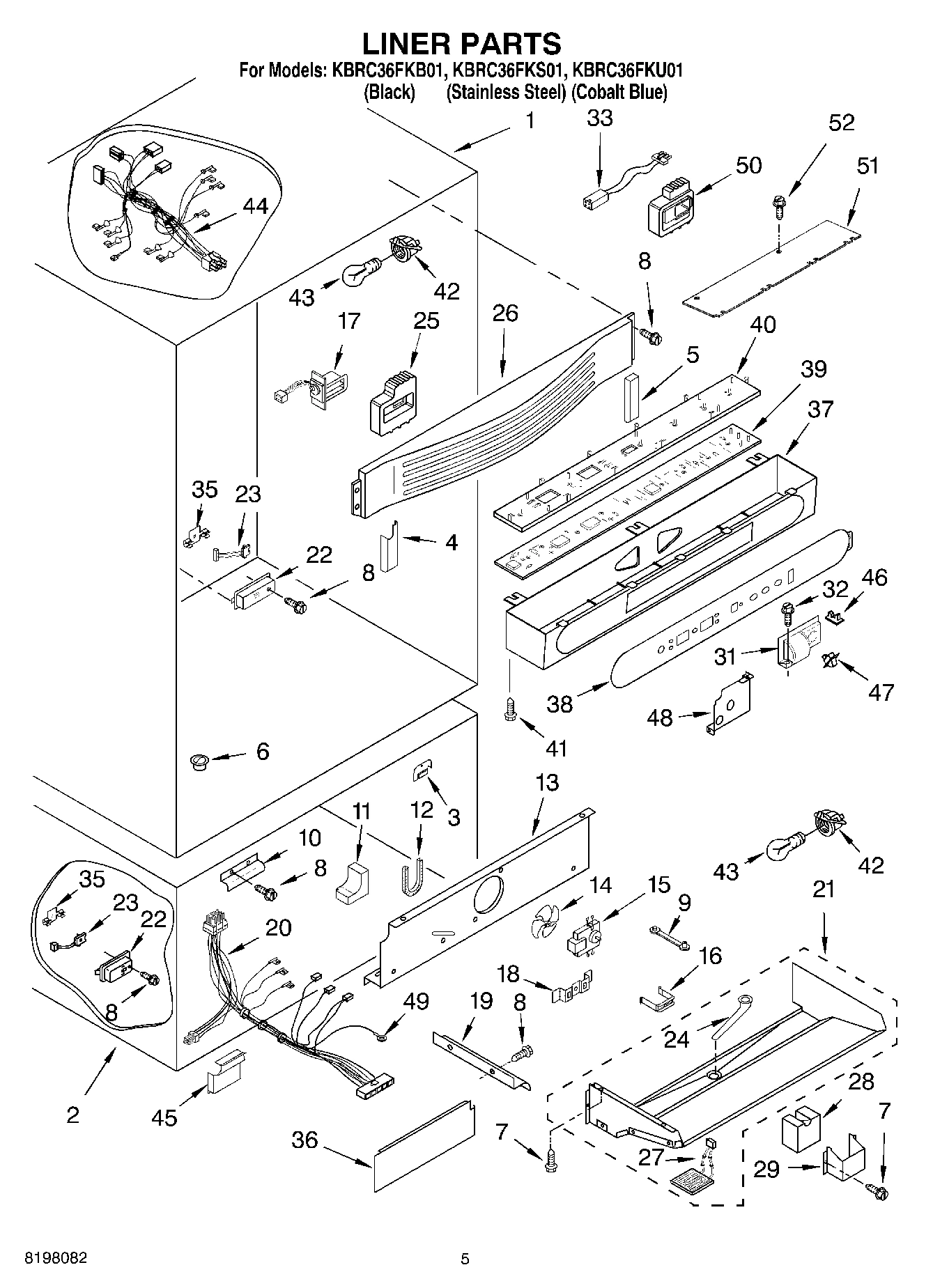

Model Whirlpool KBRC36FKU01 BUILT-IN BOTTOM MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

1

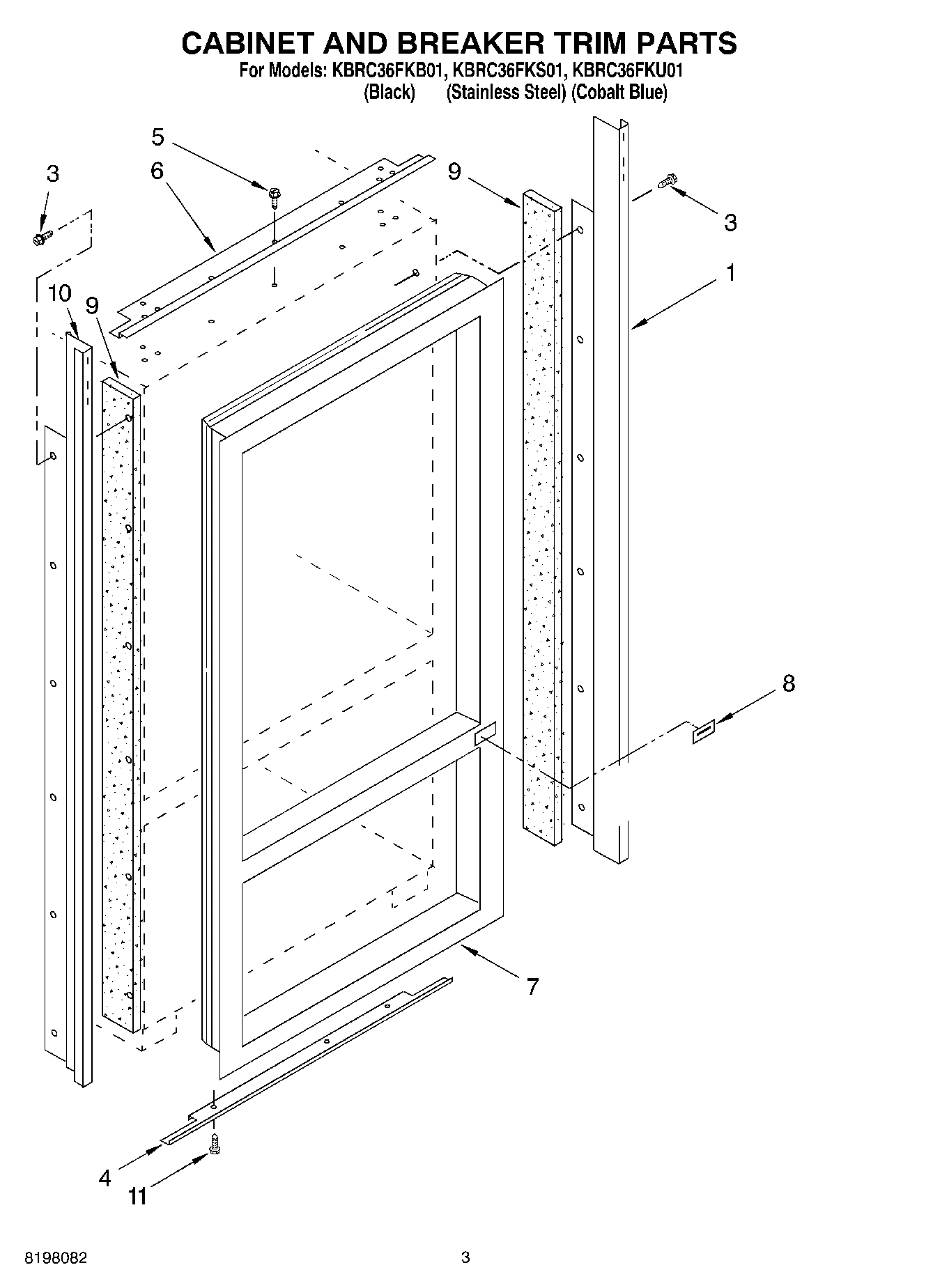

Cabinet, Trim (Right Side) (Black) WPL 2215919B Contact Us For Availability

1

Cabinet, Trim (Right Side) (Stainless Steel) WPL 2215919S Contact Us For Availability

1

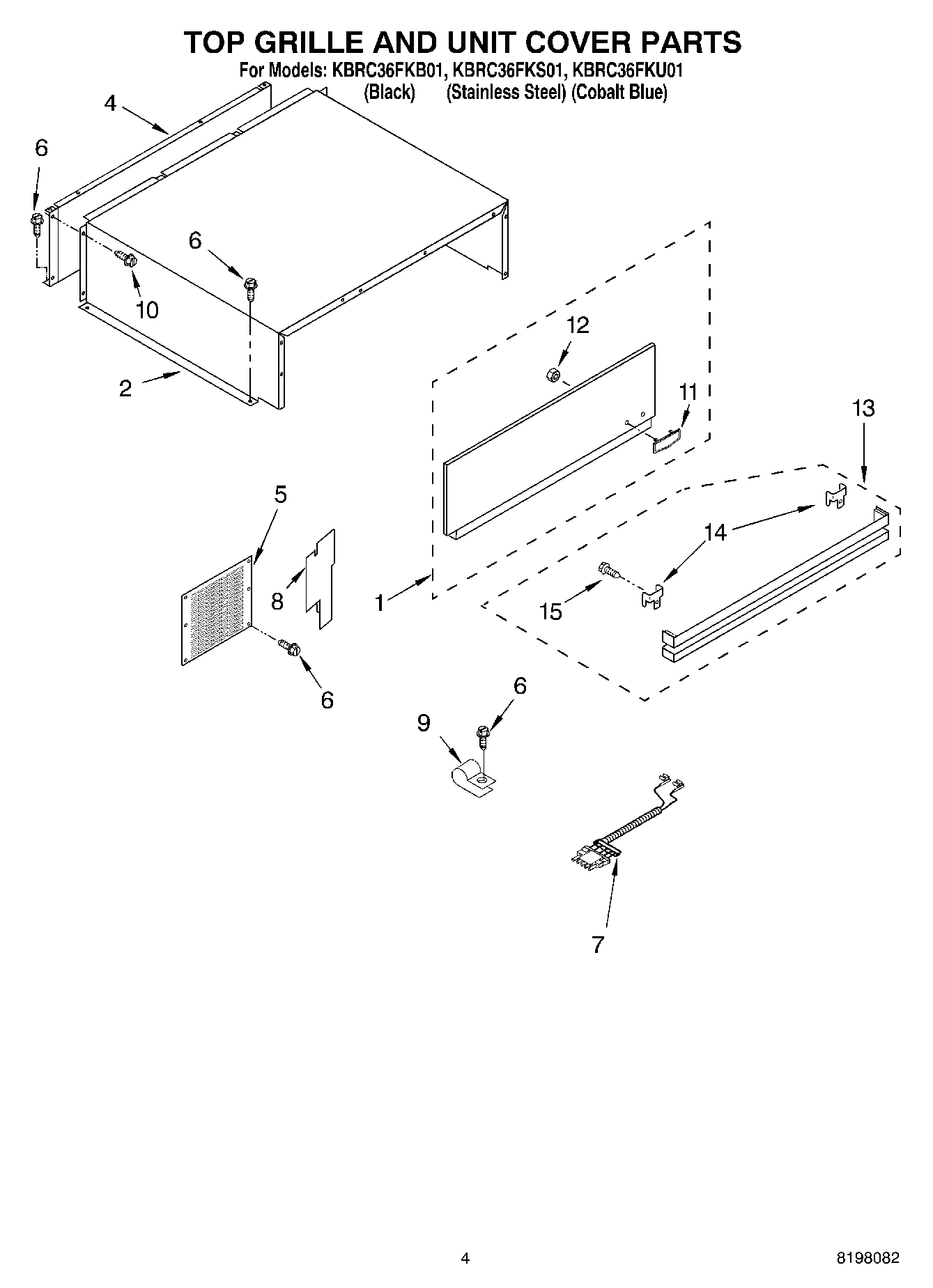

Top Grille Assembly (Cobalt Blue) WPL 2215952C Contact Us For Availability

1

Top Grille Assembly (Stainless Steel) WPL 2215952S Contact Us For Availability

1

Top Grille Assembly (Black) WPL 2220996B Contact Us For Availability

1

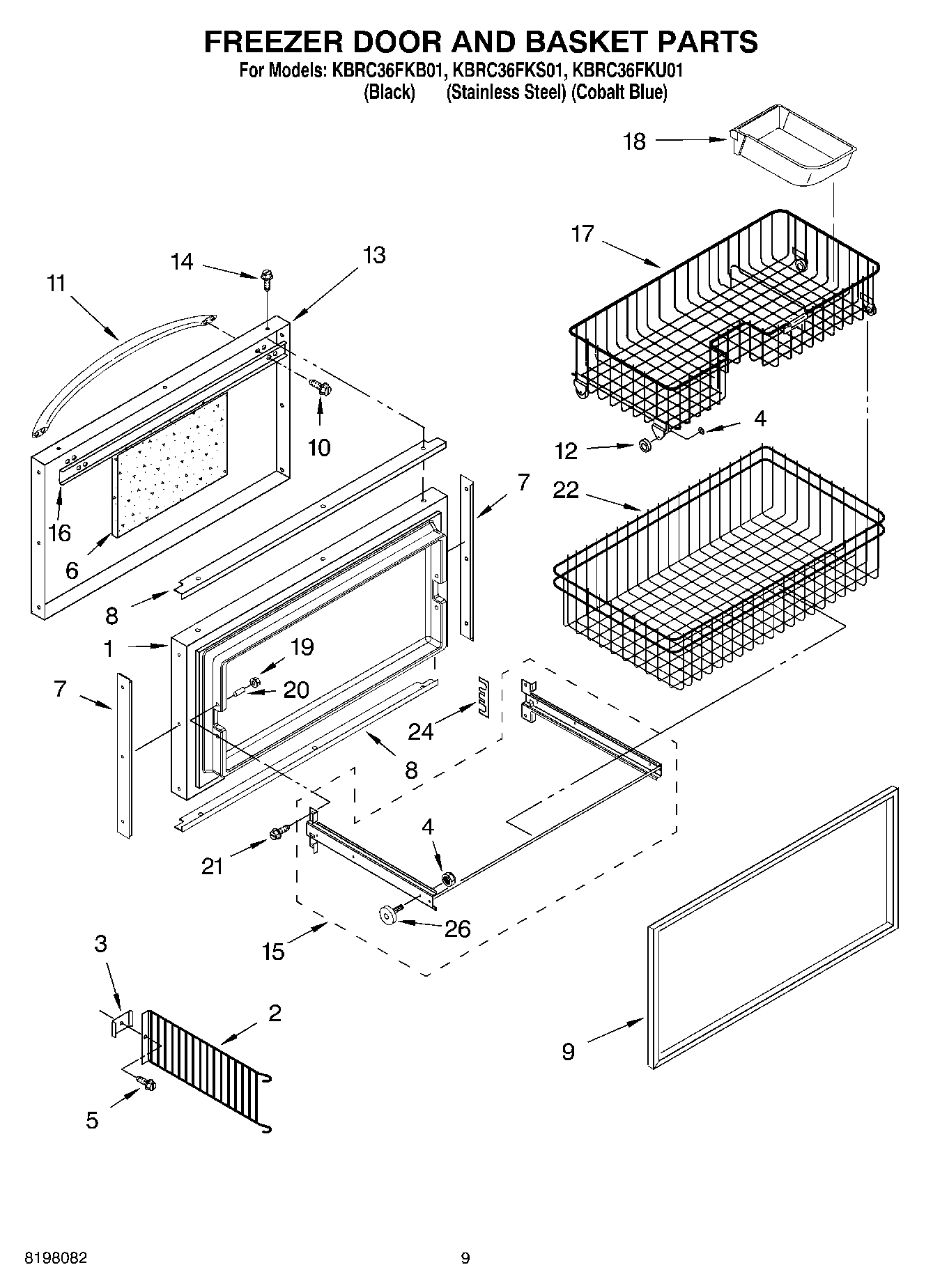

Freezer Door Panel (Includes Item 9) WPL 2188601 Contact Us For Availability

1

Tube, Valve WPL 2204597 Contact Us For Availability

1

Slide, Freezer Basket (Right Side) WPL 2221278 Contact Us For Availability

1

Slide, Freezer Basket (Left Side) WPL 2221279 Contact Us For Availability

1

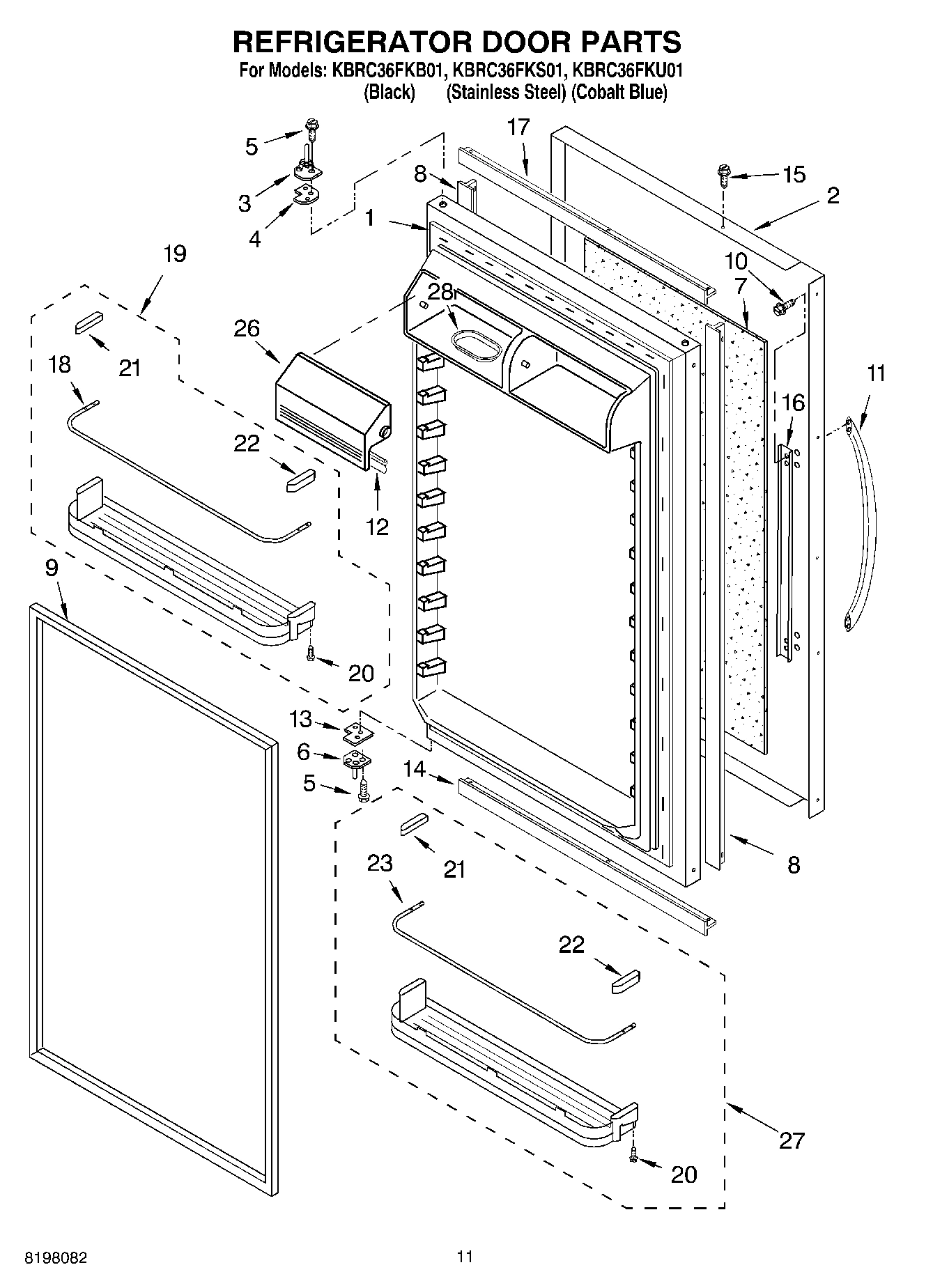

Refrigerator Door (Includes Item 9) WPL 2188600 Contact Us For Availability

2

WP2221240 Whirlpool Refrigerator Heater In Stock WPL WP2221240 $67.89

2

Cover, Unit WPL 2209490 Contact Us For Availability

2

Divider, Basket WPL 2204525 Contact Us For Availability

2

Screw, 8-15 x 1.00 WPL 9751808 Contact Us For Availability

2

Skin, Door (Stainless Steel) WPL 2005396 Contact Us For Availability

2

Skin, Door (Black) WPL 2209105B Contact Us For Availability

2

Skin, Door (Cobalt Blue) WPL 2209105C Contact Us For Availability

3

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

3

W10841139 Whirlpool Refrigerator Compressor In Stock WPL W10841139 $319.55

3

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

3

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

3

Clamp, Divider WPL 2207429 Contact Us For Availability

3

Hinge Assembly, Top WPL 2005171 Contact Us For Availability

4

2256466 Whirlpool Refrigerator Unit Cover Backorder WPL 2256466 $151.83

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

4

Cabinet, Trim (Bottom) WPL 2254724 Contact Us For Availability

4

Housing, Control Board WPL 2199929 Contact Us For Availability

4

Spacer, Crisper (Right Side) WPL 2005138 Contact Us For Availability

4

Spacer, Crisper (Left Side) WPL 2005139 Contact Us For Availability

4

Spacer-Hinge, Top WPL 2004520 Contact Us For Availability

5

Backorder WPL 2179404 $8.47

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

5

Guard, Wiring WPL 2209492 Contact Us For Availability

5

Bracket, Fan Motor WPL 2215641 Contact Us For Availability

6

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

6

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

6

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

6

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

6

Suction Tube WPL 2209035 Contact Us For Availability

6

Cabinet, Trim Top WPL 2003645 Contact Us For Availability

6

Filler, Foam WPL 2005400 Contact Us For Availability

6

Tube, Filter Inlet WPL 2214613 Contact Us For Availability

6

Hinge Assembly, Bottom WPL 2003986 Contact Us For Availability

7

Heater, Defrost (Rear) WPL 2207486 Contact Us For Availability

7

Breaker Trim (Not Serviced) WPL ARI79650A6 Contact Us For Availability

7

Wire Assembly WPL 2187423 Contact Us For Availability

7

Spacer, Door Edge - Side WPL 2221031 Contact Us For Availability

7

Shroud, Condenser (Right) WPL 2209038 Contact Us For Availability

7

Water Inlet Tube Assembly WPL 2221140 Contact Us For Availability

7

Roller WPL 2188212 Contact Us For Availability

7

Filler, Foam WPL 2005397 Contact Us For Availability

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Tube, Connect (Drier) WPL 2209454 Contact Us For Availability

8

Cover, Hinge WPL 2005782 Contact Us For Availability

8

Baffle-Air, Condenser WPL 8201530 Contact Us For Availability

8

Spacer, Door Edge Top & Bottom WPL 2221033 Contact Us For Availability

8

Panel, Condenser Front WPL 2215665 Contact Us For Availability

8

Bracket, Spacer (Right Side) WPL 2221280 Contact Us For Availability

8

Bracket, Spacer (Left Side) WPL 2221281 Contact Us For Availability

8

Spacer, Door Edge - Side (2) WPL 2221032 Contact Us For Availability

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $28.80

9

Heater, Drain Pan WPL 2209451 Contact Us For Availability

9

Seal, Side Trim WPL 2005925 Contact Us For Availability

9

Eyelet, Roller WPL 2174478 Contact Us For Availability

9

Door Gasket, Magnetic WPL 2188533 Contact Us For Availability

9

Tube, Filter Outlet WPL 2209430 Contact Us For Availability

9

Door Gasket, Magnetic WPL 2188532 Contact Us For Availability

WP2313917 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2313917 $89.88

WP308544 Whirlpool Screw Backorder WPL WP308544 $2.51

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Screw WPL 2005921 Contact Us For Availability

Hanger, Heater WPL 2209450 Contact Us For Availability

Cabinet Trim (Left Side) (Black) WPL 2215936B Contact Us For Availability

Cabinet Trim (Left Side) (Stainless Steel) WPL 2215936S Contact Us For Availability

Shroud, Condenser (Left) WPL 2209037 Contact Us For Availability

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

Shield, Drain Pan WPL 2005908 Contact Us For Availability

Nameplate (Flat Black) WPL 2005292 Contact Us For Availability

Nameplate (Cobalt Blue) WPL 8270201 Contact Us For Availability

Handle, Door (Stainless Steel) WPL 2005290 Contact Us For Availability

Handle, Door (Black) WPL 2209095B Contact Us For Availability

Control Board WPL 2254740 Contact Us For Availability

Nut Compression WPL 2204357 Contact Us For Availability

W11214482 Whirlpool Refrigerator Roller Backorder WPL W11214482 $34.97

WP2004333 Whirlpool Refrigerator Nut Backorder WPL WP2004333 $4.59

WP2203075 Whirlpool Refrigerator Spacer Backorder WPL WP2203075 $6.59

Support, Heater WPL 2204543 Contact Us For Availability

Cover WPL 2169935 Contact Us For Availability

Gasket (2) WPL 2005982 Contact Us For Availability

2256328 Whirlpool Bracket Assembly Backorder WPL 2256328 $28.20

WP2221231 Whirlpool Refrigerator Shield Backorder WPL WP2221231 $38.58

Roller Stop WPL 1113169 Contact Us For Availability

Tube, Discharge WPL 2209036 Contact Us For Availability

Louver, Vent (Black) WPL 2215970B Contact Us For Availability

Louver, Vent (Stainless Steel) WPL 2215970S Contact Us For Availability

Skin, Door (Stainless Steel) WPL 2005399 Contact Us For Availability

Skin, Door (Black) WPL 2209106B Contact Us For Availability

Skin, Door (Cobalt Blue) WPL 2209106C Contact Us For Availability

Spacer-Hinge, Bottom WPL 2003982 Contact Us For Availability

2207470 Whirlpool Refrigerator Hinge Shim Backorder WPL 2207470 $29.41

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

Bracket, Louver WPL 2005483 Contact Us For Availability

Screw WPL 486899 Contact Us For Availability

Plug, Water Valve WPL 2215656 Contact Us For Availability

Spacer, Door Edge - Bottom WPL 2221029 Contact Us For Availability

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

W10851443 Whirlpool Refrigerator Screw In Stock WPL W10851443 $2.51

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $4.56

Bracket, Assembly Freezer Basket WPL 2207533 Contact Us For Availability

Support, Crisper Shelf (2) WPL 2005987 Contact Us For Availability

488946 Whirlpool Air Conditioner Clamp Backorder WPL 488946 $10.25

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

Evaporator WPL 2209465 Contact Us For Availability

Plate, Handle WPL 2209202 Contact Us For Availability

Condenser WPL 2209062 Contact Us For Availability

Rail, Deli Center WPL 2006454 Contact Us For Availability

WP2221296 Whirlpool Air Baffle In Stock WPL WP2221296 $177.39

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Heater, Defrost (Front) WPL 2207485 Contact Us For Availability

Screw, Door Stop WPL 2001295 Contact Us For Availability

Basket, Upper WPL 2005376 Contact Us For Availability

Grommet (4) WPL 943447 Contact Us For Availability

Wire Harness, Icemaker WPL 2254737 Contact Us For Availability

Spacer, Door Edge - Top WPL 2221030 Contact Us For Availability

Clamp, Heater (2) WPL 2204510 Contact Us For Availability

Pan, Ice Cube WPL 2174124 Contact Us For Availability

Wire, Jumper WPL 2187422 Contact Us For Availability

Cover WPL 2221232 Contact Us For Availability

Shelf (4) WPL 2005571 Contact Us For Availability

Tube, Door Shelf WPL 2005482 Contact Us For Availability

WP2207454 Whirlpool Refrigerator Nut Backorder WPL WP2207454 $4.58

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

Cam-Closer, Door WPL 2005783 Contact Us For Availability

Air Damper, Deli WPL 2005429 Contact Us For Availability

Shelf, Door (2) WPL 2005417 Contact Us For Availability

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Bushing WPL 2207471 Contact Us For Availability

Rail-Rear, Deli WPL 2005151 Contact Us For Availability

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $28.80

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $52.25

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

Screw WPL 3400507 Contact Us For Availability

Glass Shelf, Deli WPL 2005152 Contact Us For Availability

End Cap, Left WPL 2005542 Contact Us For Availability

W10169509 Whirlpool Refrigerator Clip Backorder WPL W10169509 $28.80

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Bushing WPL 2002903 Contact Us For Availability

Screw WPL 487522 Contact Us For Availability

Basket, Freezer Lower WPL 2006244 Contact Us For Availability

Rail-Front, Deli WPL 2220883 Contact Us For Availability

End Cap, Right WPL 2005541 Contact Us For Availability

W10181323 Whirlpool Refrigerator Condenser Fa In Stock WPL W10181323 $165.56

WP2209022 Whirlpool Refrigerator Housing In Stock WPL WP2209022 $91.73

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Control Knob, Deli WPL 2005415 Contact Us For Availability

Tube, Door Shelf (Gallon) WPL 2006152 Contact Us For Availability

WP2004517 Whirlpool Refrigerator Spring In Stock WPL WP2004517 $30.85

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

Blade, Fan WPL 2190685 Contact Us For Availability

Spacer WPL 2207576 Contact Us For Availability

WP2001264 Whirlpool Refrigerator Drip Pan In Stock WPL WP2001264 $88.94

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

Orifice, Fan WPL 2003169 Contact Us For Availability

Washer WPL 2006252 Contact Us For Availability

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability

Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability

Roller WPL 2207550 Contact Us For Availability

Connector, Deli Pan WPL 2005165 Contact Us For Availability

Door, Utility Bin (2) (Includes Item 12) WPL 2005983 Contact Us For Availability

8281160 Whirlpool Screw Backorder WPL 8281160 $5.33

WP2158826 Whirlpool Refrigerator Dampener Backorder WPL WP2158826 $0.90

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

Cement Alumilastic) WPL 542639 Contact Us For Availability

Lid, Deli Pan WPL 2222655 Contact Us For Availability

Door Shelf, Gallon WPL 2006154 Contact Us For Availability

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $7.78

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

Hinge Rod, Deli Pan WPL 2005923 Contact Us For Availability

Butter Tray WPL 2165792 Contact Us For Availability

29

2005101 Whirlpool Refrigerator Bottom Hinge Backorder WPL 2005101 $55.24

29

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

29

Cripser Pan WPL 2005157 Contact Us For Availability

30

Handle, Crisper Pan WPL 2005480 Contact Us For Availability

31

2006253 Whirlpool Refrigerator Screw Backorder WPL 2006253 $9.59

31

W11474472 Whirlpool Screw In Stock WPL W11474472 $2.51

31

Shut Off Arm WPL 2221172 Contact Us For Availability

32

WP2209024B Whirlpool Refrigerator Front Grill Backorder WPL WP2209024B $67.86

32

Sleeve, Condenser WPL 2000645 Contact Us For Availability

32

Overlay, Crisper Pan WPL 2005986 Contact Us For Availability

33

WP2006346 Whirlpool Refrigerator Washer In Stock WPL WP2006346 $4.59

33

Rail-Front, Crisper Shelf WPL 2220885 Contact Us For Availability

34

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $14.62

34

Vent, Crisper Shelf WPL 2005425 Contact Us For Availability

35

Clip, Thermistor WPL 2209204 Contact Us For Availability

35

Slide-Humidity, Crisper Shelf WPL 2005413 Contact Us For Availability

36

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

36

Cover, Fan WPL 2209495 Contact Us For Availability

37

Cover, Condenser WPL 2215628 Contact Us For Availability

37

Water Valve Mounting Bracket WPL 2221282 Contact Us For Availability

37

Glass, Crisper Shelf WPL 2005477 Contact Us For Availability

38

Rail-Rear, Crisper Shelf WPL 2005478 Contact Us For Availability

39

Service Cord WPL 2003381 Contact Us For Availability

39

Seal-Front, Crisper Shelf WPL 2005479 Contact Us For Availability

40

Insulation, Crisper Rail WPL 2005984 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Baffle-Center, Crisper Shelf WPL 2005985 Contact Us For Availability

42

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

42

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $30.80

42

Center Support, Left Half WPL 2005794 Contact Us For Availability

43

W10887190 Whirlpool Refrigerator Light Bulb In Stock WPL W10887190 $7.06

43

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

43

Center Support, Right Half WPL 2005795 Contact Us For Availability

44

Clip, Cord Plug WPL 653035 Contact Us For Availability

44

Bracket, Center Support WPL 2005796 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Wiring Harness, Unit Compartment WPL 2187418 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

46

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

47

Deli Pan WPL 2222741 Contact Us For Availability

48

Wiring Cover, Icemaker WPL 2005792 Contact Us For Availability

48

Ladder, Shelf (4) WPL 2005410 Contact Us For Availability

49

2006475 Whirlpool Refrigerator Screw Backorder WPL 2006475 $9.13

49

Defrost Bi-Metal WPL 2187378 Contact Us For Availability

50

Diffuser Assembly WPL 2215829 Contact Us For Availability

50

Ladder, Crisper Support WPL 2005797 Contact Us For Availability

51

2221121 Whirlpool Refrigerator Support Backorder WPL 2221121 $32.68

51

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

52

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

52

WPL 2221260 WPL 2221260 Contact Us For Availability

53

WPL 2207522 WPL 2207522 Contact Us For Availability

54

2207415 Whirlpool Refrigerator Nut Backorder WPL 2207415 $9.59

55

WPL 2207569 WPL 2207569 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
