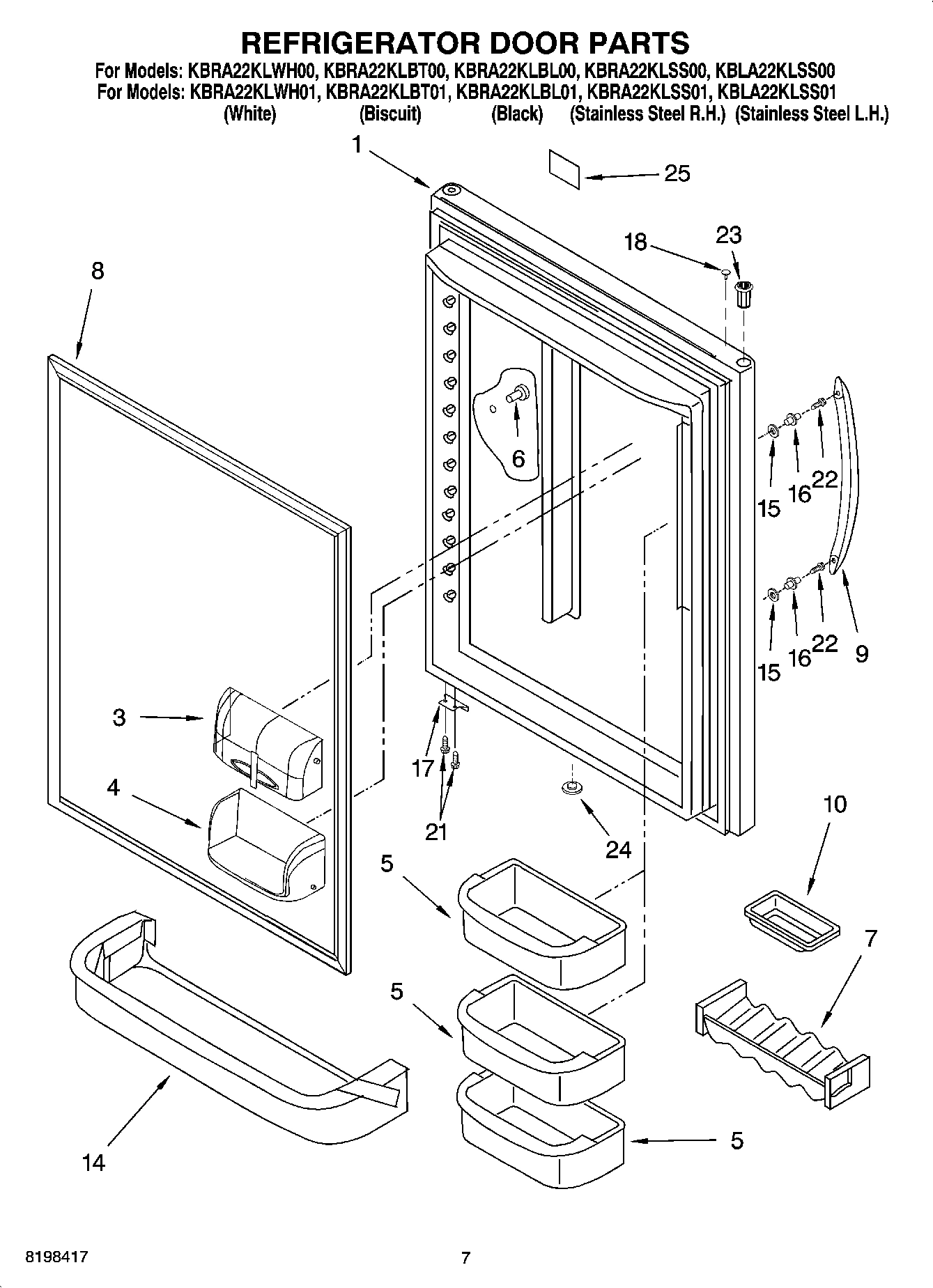

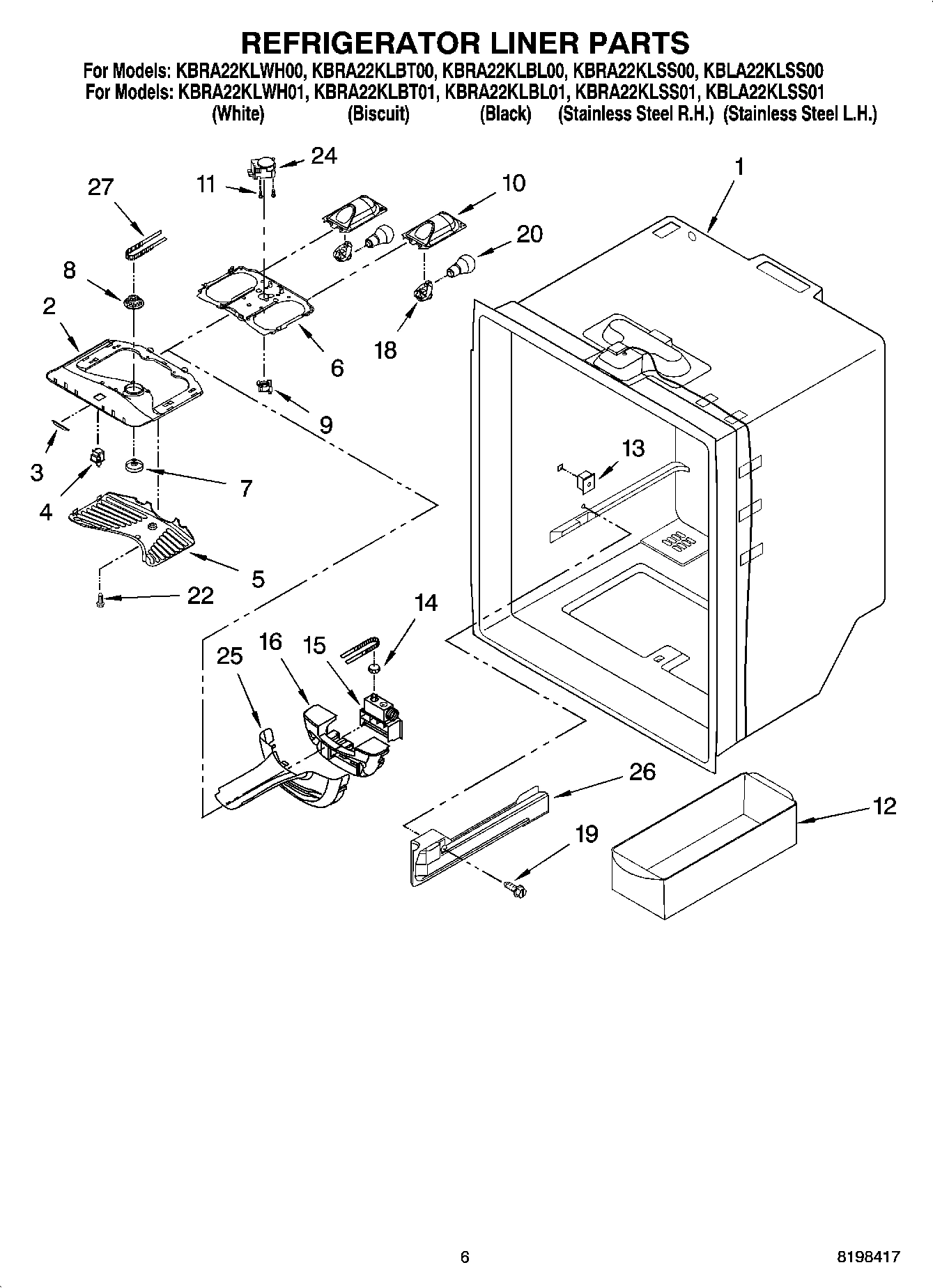

Model Whirlpool KBRA22KLWH00 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4396418 Whirlpool Ice Maker Backorder WPL 4396418 $192.72

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Ice Container Assembly WPL 4343700 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL ARI79479A9 WPL ARI79479A9 Contact Us For Availability

WPL ARI79480A2 WPL ARI79480A2 Contact Us For Availability

WPL ARI79481A1 WPL ARI79481A1 Contact Us For Availability

WPL ARI79482A9 WPL ARI79482A9 Contact Us For Availability

WPL ARI79483A9 WPL ARI79483A9 Contact Us For Availability

WPL ARI79484A1 WPL ARI79484A1 Contact Us For Availability

1

12658920SQ Whirlpool Refrigerator Foam In Pla Backorder WPL 12658920SQ $458.96

1

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $13.89

1

Refrigerator Door Panel (Includes Insulation) WPL 8170852 Contact Us For Availability

1

Refrigerator Door Panel (Includes Insulation) WPL 8170957 Contact Us For Availability

1

Refrigerator Door Panel (Includes Insulation) WPL 8170970 Contact Us For Availability

1

Refrigerator Door Panel (Includes Insulation) WPL 8171126 Contact Us For Availability

1

Refrigerator Door Panel (Includes Insulation) WPL 8171127 Contact Us For Availability

1

Screw WPL 8171073 Contact Us For Availability

1

Liner (Not A Seviceable Part) WPL ARI79474A3 Contact Us For Availability

1

Freezer Door Panel (Includes Insulation) (Whi WPL 8170900 Contact Us For Availability

1

Freezer Door Panel (Includes Insulation) (Bla WPL 8170958 Contact Us For Availability

1

Freezer Door Panel (Includes Insulation) (Bis WPL 8171128 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT8171143 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT8171144 Contact Us For Availability

1

Literature Parts (Energy Tag) WPL LIT8171145 Contact Us For Availability

2

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $3.70

2

WP12587601 Whirlpool Refrigerator Condenser B Backorder WPL WP12587601 $55.33

2

Handle (White) WPL 8170950 Contact Us For Availability

2

Handle (Stainless Steel) WPL 8170955 Contact Us For Availability

2

Handle (Black) WPL 8171014 Contact Us For Availability

2

Handle (Biscuit) WPL 8171015 Contact Us For Availability

2

Rack, Wine WPL 8170799 Contact Us For Availability

3

W10709784 Whirlpool Refrigerator Handle Plug Backorder WPL W10709784 $10.23

3

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

3

WP2189009 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189009 $3.51

3

WP67003637 Whirlpool Dairy Door In Stock WPL WP67003637 $43.90

3

Base WPL 8170905 Contact Us For Availability

3

Basket, Lower WPL 8171133 Contact Us For Availability

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $48.97

4

Endcap, Basket (Left Side) WPL 8171131 Contact Us For Availability

4

Endcap, Basket (Right Side) WPL 8171132 Contact Us For Availability

4

Cover, Control WPL 8170847 Contact Us For Availability

4

GASKET WPL 8170924 Contact Us For Availability

5

Shelf Bin (3) (Medium) WPL 8170751 Contact Us For Availability

5

Basket, Upper Fzr. WPL 8171130 Contact Us For Availability

5

Roller Assembly WPL 8170886 Contact Us For Availability

6

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $4.58

6

WP12246608 Whirlpool Refrigerator Button In Stock WPL WP12246608 $3.70

6

WP67001130 Whirlpool Refrigerator White Butto In Stock WPL WP67001130 $3.70

6

Handle, Basket WPL 8170874 Contact Us For Availability

6

Clip, Grille WPL 8170869 Contact Us For Availability

7

12002311 Whirlpool Refrigerator Center Hinge Backorder WPL 12002311 $3.70

7

WP67001255 Whirlpool Ice Bucket Backorder WPL WP67001255 $86.21

7

WP67005626 Whirlpool Refrigerator Can Caddy Backorder WPL WP67005626 $45.48

7

Harness, Evap. Heater WPL 8170903 Contact Us For Availability

8

W10443315 Whirlpool Door Gasket In Stock WPL W10443315 $119.64

8

WPW10436248 Whirlpool Door Gasket In Stock WPL WPW10436248 $141.28

8

WPW10436250 Whirlpool Refrigerator Freezer Do In Stock WPL WPW10436250 $131.01

8

Door Gasket, Magnetic (White) WPL 8170759 Contact Us For Availability

8

Drain Pan WPL 8170911 Contact Us For Availability

8

Divider, Basket (Lower) WPL 8171134 Contact Us For Availability

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.89

9

Grommet (3) WPL 8170908 Contact Us For Availability

9

Meat Pan WPL 4344307 Contact Us For Availability

9

Screw WPL 4343715 Contact Us For Availability

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.64

WP67001794 Whirlpool Refrigerator Defrost Hea In Stock WPL WP67001794 $77.65

Dish, Butter WPL 4344296 Contact Us For Availability

Divider, Basket (Upper) WPL 8171072 Contact Us For Availability

Housing, Frz. Light WPL 8170838 Contact Us For Availability

Hinge Cover, Bottom (Black) WPL 8171002 Contact Us For Availability

Hinge Cover, Bottom (Biscuit) WPL 8171003 Contact Us For Availability

Hinge Cover, Bottom (White) WPL 8171004 Contact Us For Availability

WP67006380 Whirlpool Screw Backorder WPL WP67006380 $2.51

Strap WPL 8170724 Contact Us For Availability

Shelf, S/G (3) WPL 4344313 Contact Us For Availability

Cover, Evaporator WPL 8170883 Contact Us For Availability

12

WP67002527 Whirlpool Refrigerator Overload Pr In Stock WPL WP67002527 $77.27

12

Shelf Assy (Meat Pan) WPL 8170406 Contact Us For Availability

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $5.71

Rack, Ice Tray WPL 8170880 Contact Us For Availability

Adapter (Left Side) WPL 8171136 Contact Us For Availability

Adapter (Right Side) WPL 8171137 Contact Us For Availability

10712401 Whirlpool Refrigerator Vent Plug (Wh Backorder WPL 10712401 $4.50

12001937 Whirlpool Refrigerator 42-Degree Def In Stock WPL 12001937 $53.40

67004838 Whirlpool Refrigerator Button Vent P Backorder WPL 67004838 $4.72

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.51

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

Trim, Door Shelf WPL 8170795 Contact Us For Availability

Housing, Light WPL 8170848 Contact Us For Availability

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $10.76

W11689473 Whirlpool Door Hinge Backorder WPL W11689473 $26.41

WP12607104ED Whirlpool Refrigerator Door Hing Backorder WPL WP12607104ED $49.87

WASHER WPL 8171021 Contact Us For Availability

Frame & Roller Assembly (3) WPL 4344309 Contact Us For Availability

Clip, Evap. Motor WPL 8170895 Contact Us For Availability

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $14.86

WPM0274057 Whirlpool Refrigerator Shim In Stock WPL WPM0274057 $2.51

WPM0274062 Whirlpool Refrigerator Shim In Stock WPL WPM0274062 $12.94

Stud, Handle WPL 8171017 Contact Us For Availability

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $29.10

67003484 Whirlpool Refrigerator White Corner Backorder WPL 67003484 $10.25

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $10.76

67003781 Whirlpool Refrigerator Door Stop (BS Backorder WPL 67003781 $35.30

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.07

WP67001098 Whirlpool Refrigerator Tube Cover Backorder WPL WP67001098 $3.70

CAPACITOR WPL 8171142 Contact Us For Availability

Crisper (2) WPL 4344366 Contact Us For Availability

Cover, Corner (Biscuit) WPL 8170859 Contact Us For Availability

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $53.36

WP67006132 Whirlpool Refrigerator Condenser Backorder WPL WP67006132 $138.54

Plug, Button (Black) WPL 4343926 Contact Us For Availability

Plug, Button (White) WPL 8170953 Contact Us For Availability

Screw WPL 4343861 Contact Us For Availability

19

Hinge Bottom (Black) WPL 8171066 Contact Us For Availability

19

Hinge Bottom (White) WPL 8171067 Contact Us For Availability

W11159742 Whirlpool Refrigerator Gasket Backorder WPL W11159742 $10.10

WP67006715 Whirlpool Refrigerator Screw Backorder WPL WP67006715 $3.70

WPW10292802 Whirlpool Refrigerator Drip Tray In Stock WPL WPW10292802 $69.65

WPW10568041 Whirlpool Refrigerator Crisper Sh In Stock WPL WPW10568041 $80.04

21

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $2.51

21

Glass, Crisper Cover WPL 4344367 Contact Us For Availability

12001919 Whirlpool Refrigerator Evaporator Re Backorder WPL 12001919 $194.96

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $40.86

Ladder, Center WPL 8170870 Contact Us For Availability

Grille Assembly (Includes Clips) (Black) WPL 8170995 Contact Us For Availability

Grille Assembly (Includes Clips) (White) WPL 8170996 Contact Us For Availability

Grille Assembly (Includes Clips) (Biscuit) WPL 8170997 Contact Us For Availability

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

Bushing (Black) WPL 4344361 Contact Us For Availability

Bushing (White) WPL 4344362 Contact Us For Availability

Dam (Left Side) WPL 8171154 Contact Us For Availability

Dam (Right Side) WPL 8171155 Contact Us For Availability

Ladder, Side WPL 8170871 Contact Us For Availability

24

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

24

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

24

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

W11673433 Whirlpool Clip Backorder WPL W11673433 $62.75

Nameplate (Black) WPL 8170732 Contact Us For Availability

Nameplate (Biscuit) WPL 8170733 Contact Us For Availability

Nameplate (White) WPL 8170734 Contact Us For Availability

Screw WPL 4344167 Contact Us For Availability

Screw WPL 8170578 Contact Us For Availability

Shroud, Evap.Fan WPL 8171153 Contact Us For Availability

26

Harness, Unit WPL 8171150 Contact Us For Availability

26

Plate, Cover WPL 8170921 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

27

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

27

Cover, Water Valve WPL 8170920 Contact Us For Availability

28

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $312.79

28

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

29

WP67002780 Whirlpool Refrigerator Grommet Backorder WPL WP67002780 $3.70

30

WP67006908 Whirlpool Refrigerator Screw In Stock WPL WP67006908 $2.51

30

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $43.65

30

Cover, Unit WPL 8170910 Contact Us For Availability

31

SHROUD WPL 8170906 Contact Us For Availability

31

Bracket, Slide (Left Side) WPL 8171138 Contact Us For Availability

31

Bracket, Slide (Right Side) WPL 8171139 Contact Us For Availability

32

WP67006506 Whirlpool Refrigerator Power Cord Backorder WPL WP67006506 $17.57

32

Bracket, Fan Motor WPL 8170907 Contact Us For Availability

33

67003796 Whirlpool Refrigerator Fiber Acousti Backorder WPL 67003796 $10.76

34

Clip, Drier WPL 8170901 Contact Us For Availability

34

Bracket, Door WPL 8171074 Contact Us For Availability

35

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.51

36

WP67005149 Whirlpool Roller In Stock WPL WP67005149 $10.76

37

Knob, Control WPL 8170851 Contact Us For Availability

37

Tube, Drain WPL 8170861 Contact Us For Availability

38

67001067 Whirlpool Refrigerator Drain Tube Cl Backorder WPL 67001067 $4.41

39

Grommet (4) WPL 4343845 Contact Us For Availability

39

Cover, Frz. Control WPL 8170849 Contact Us For Availability

40

Screw WPL 4344562 Contact Us For Availability

41

67006434 Whirlpool Axle Pin In Stock WPL 67006434 $3.70

41

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $16.98

41

WP67003000 Whirlpool Refrigerator Control In Stock WPL WP67003000 $114.18

67001012 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001012 $29.13

67001014 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001014 $10.76

Clip, Evaporator WPL 4344219 Contact Us For Availability

Cover, Hinge (Biscuit) WPL 8170976 Contact Us For Availability

43

W10709801 Whirlpool Refrigerator Screw Backorder WPL W10709801 $9.13

44

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.85

44

Screw WPL 4343847 Contact Us For Availability

46

W11177593 Whirlpool Leveling Feet In Stock WPL W11177593 $7.08

47

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $29.08

47

Gasket (3) WPL 8170918 Contact Us For Availability

47

WPL ARI79473A4 WPL ARI79473A4 Contact Us For Availability

48

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.72

49

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $3.70

53

Screw WPL 4344292 Contact Us For Availability

54

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.53

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Tube, Drain WPL 8170913 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI79476A2 Contact Us For Availability

and Optional Parts Not Included WPL ARI79477A9 Contact Us For Availability

REFRIGERANT CHARGE 5.0 Ozs. (R-134A) WPL ARI79478A2 Contact Us For Availability
