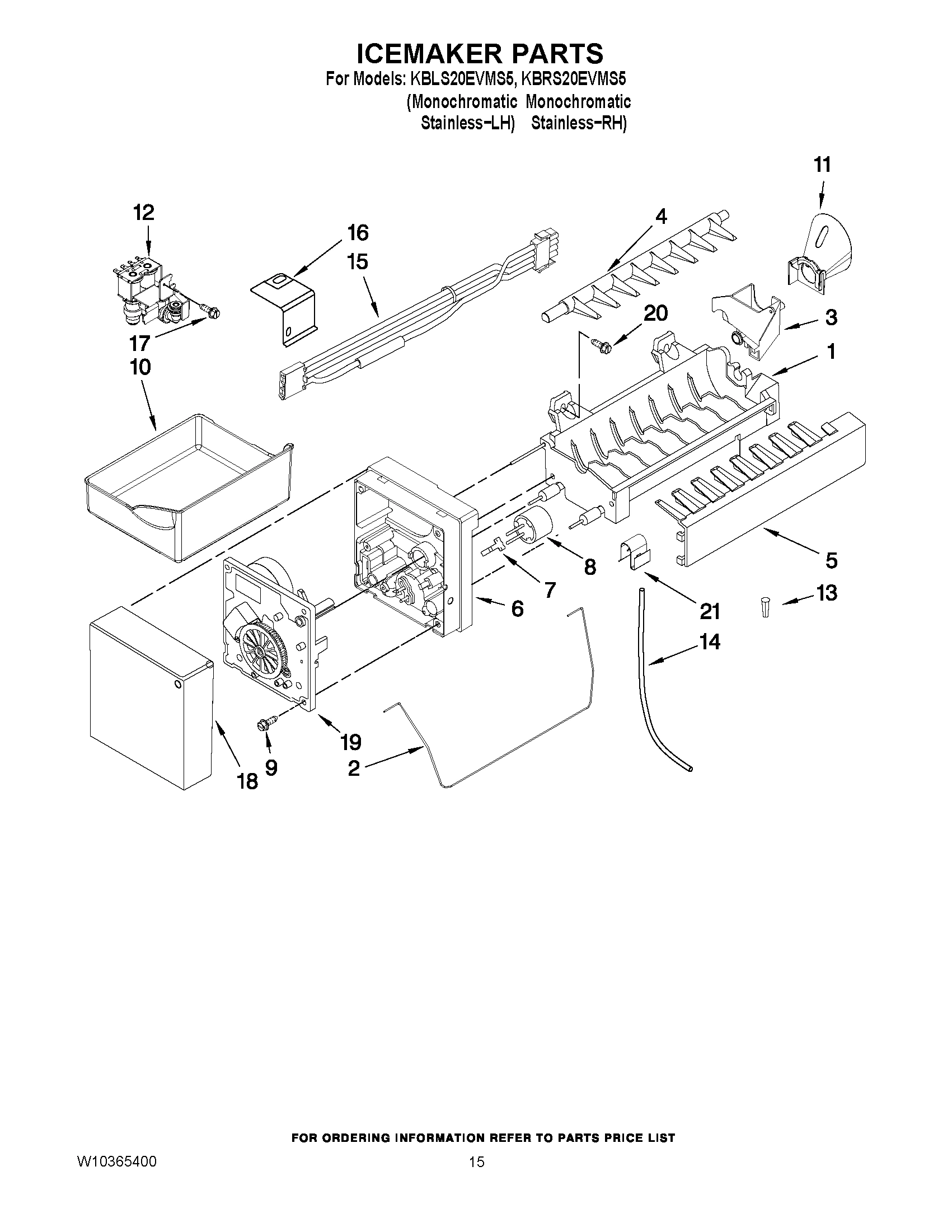

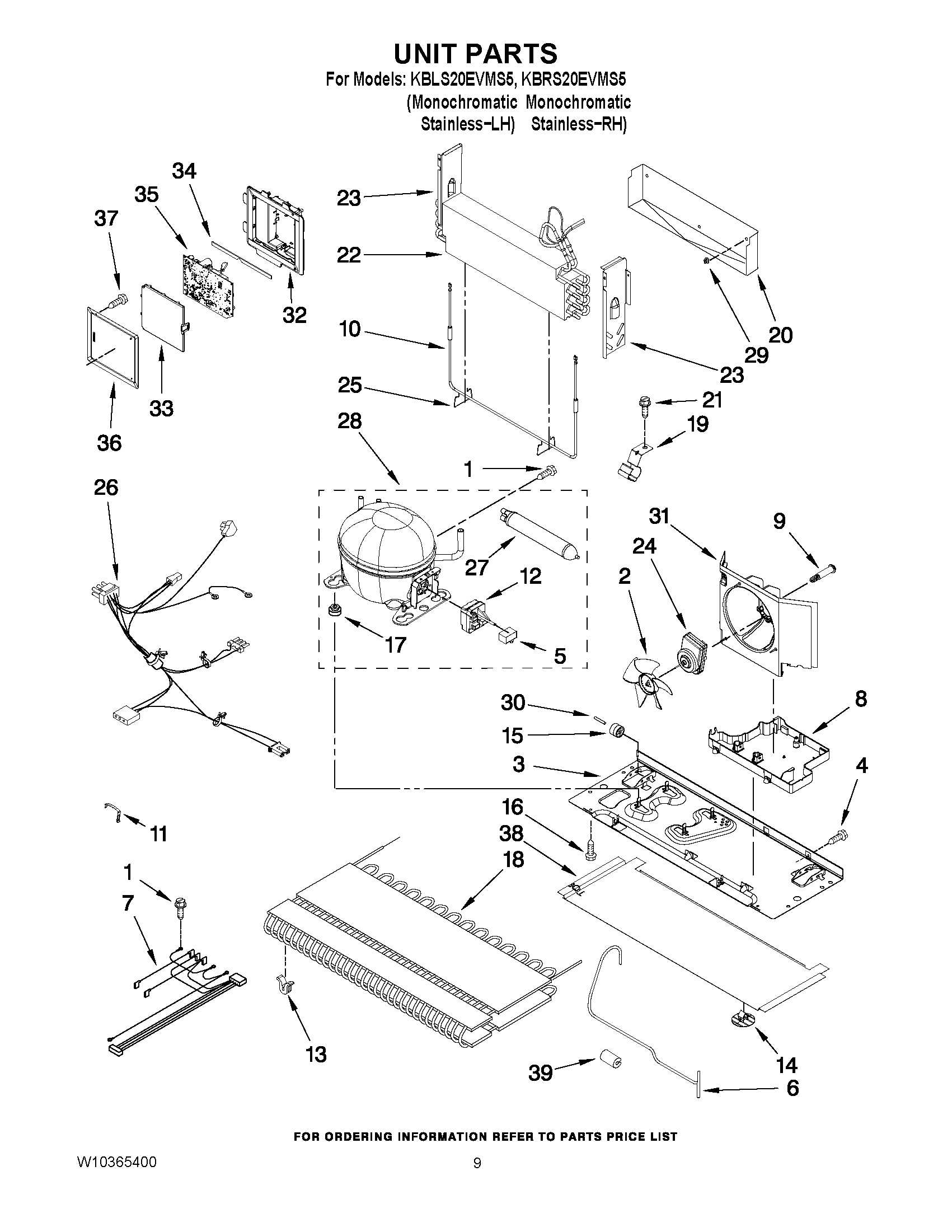

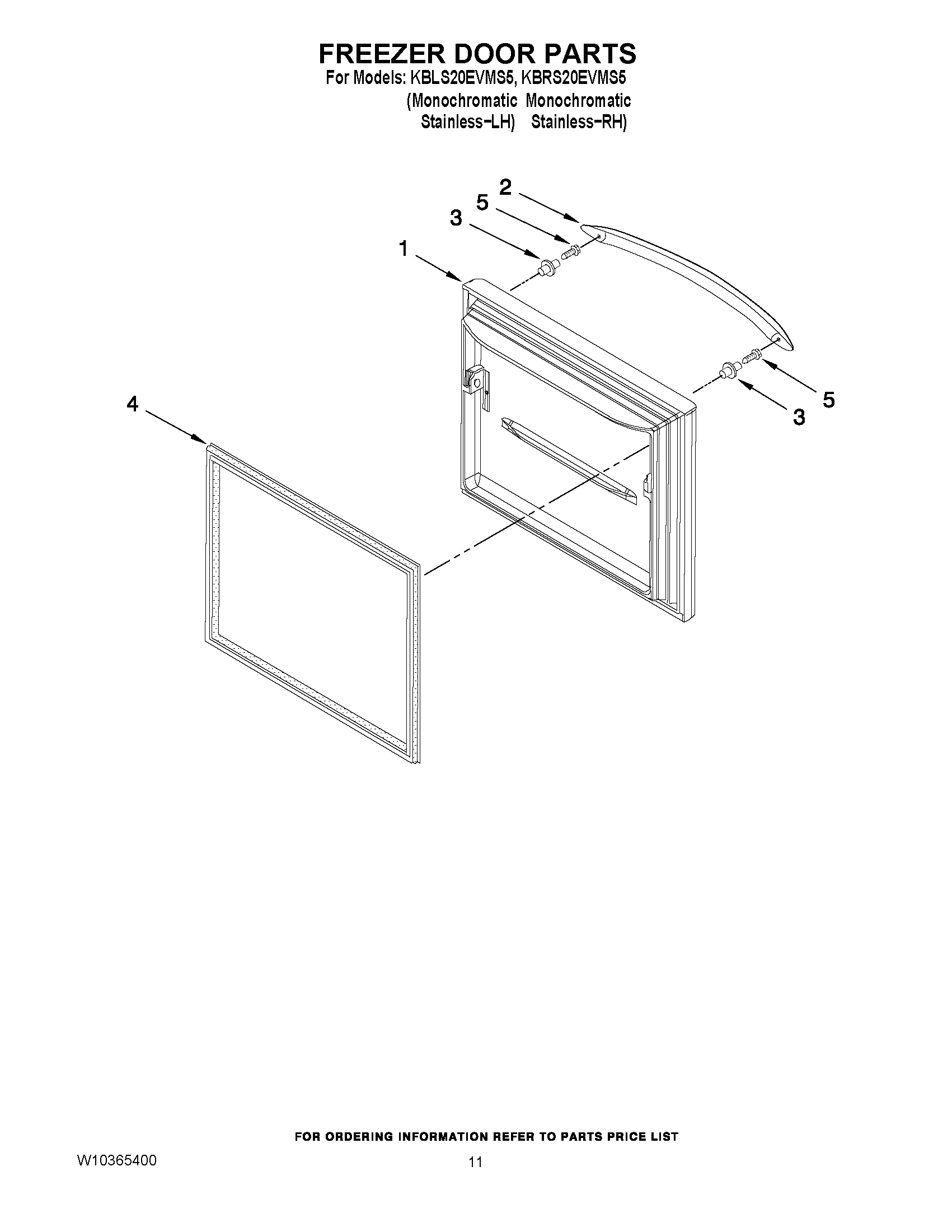

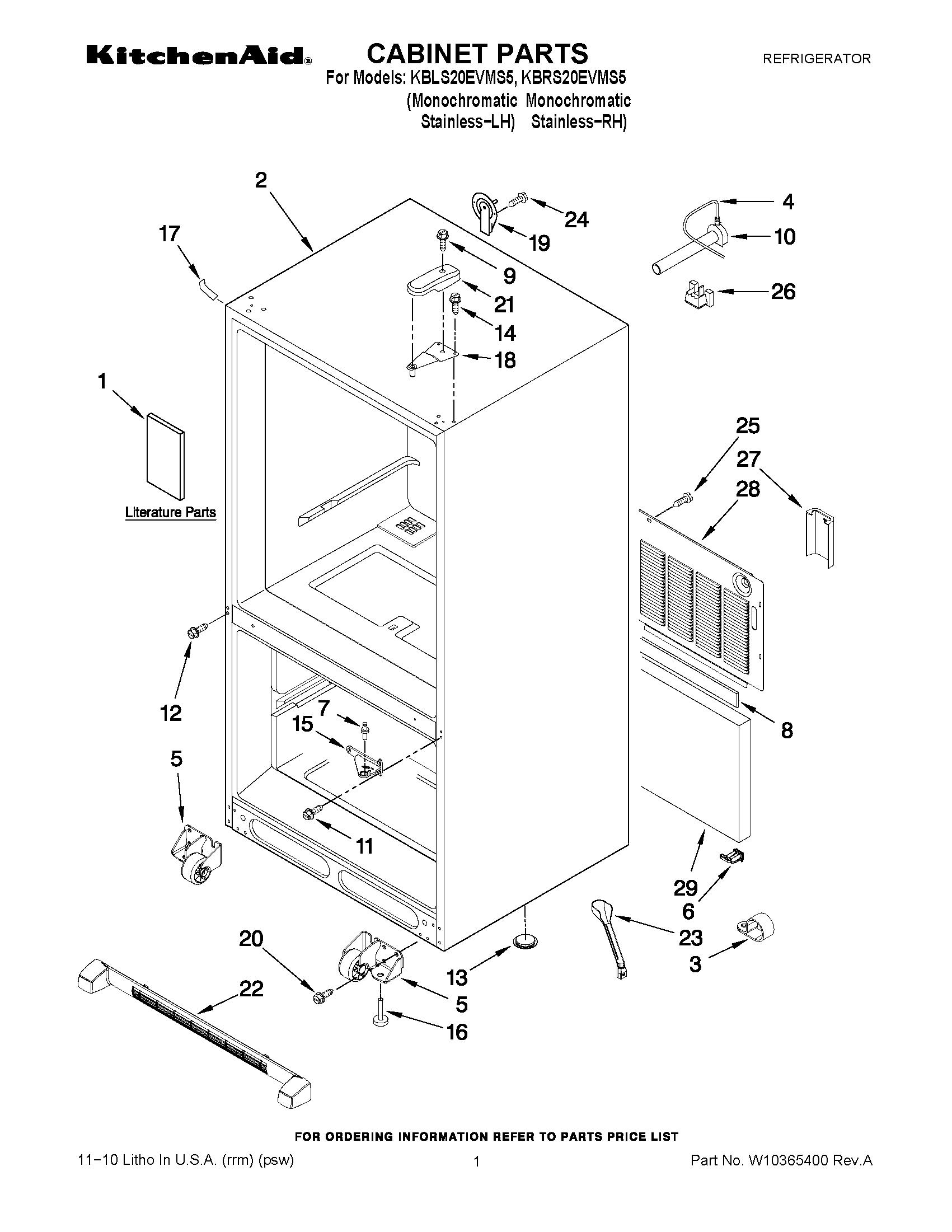

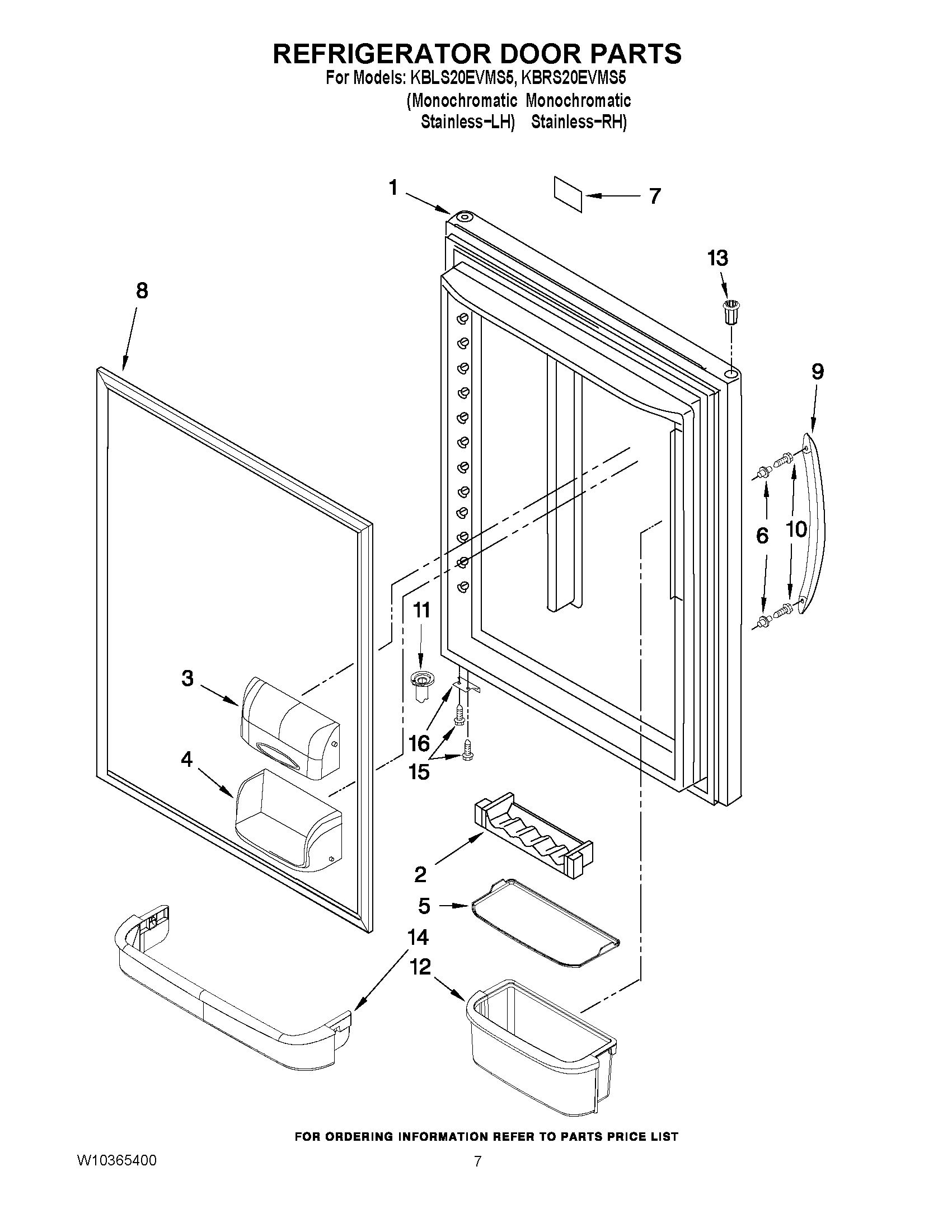

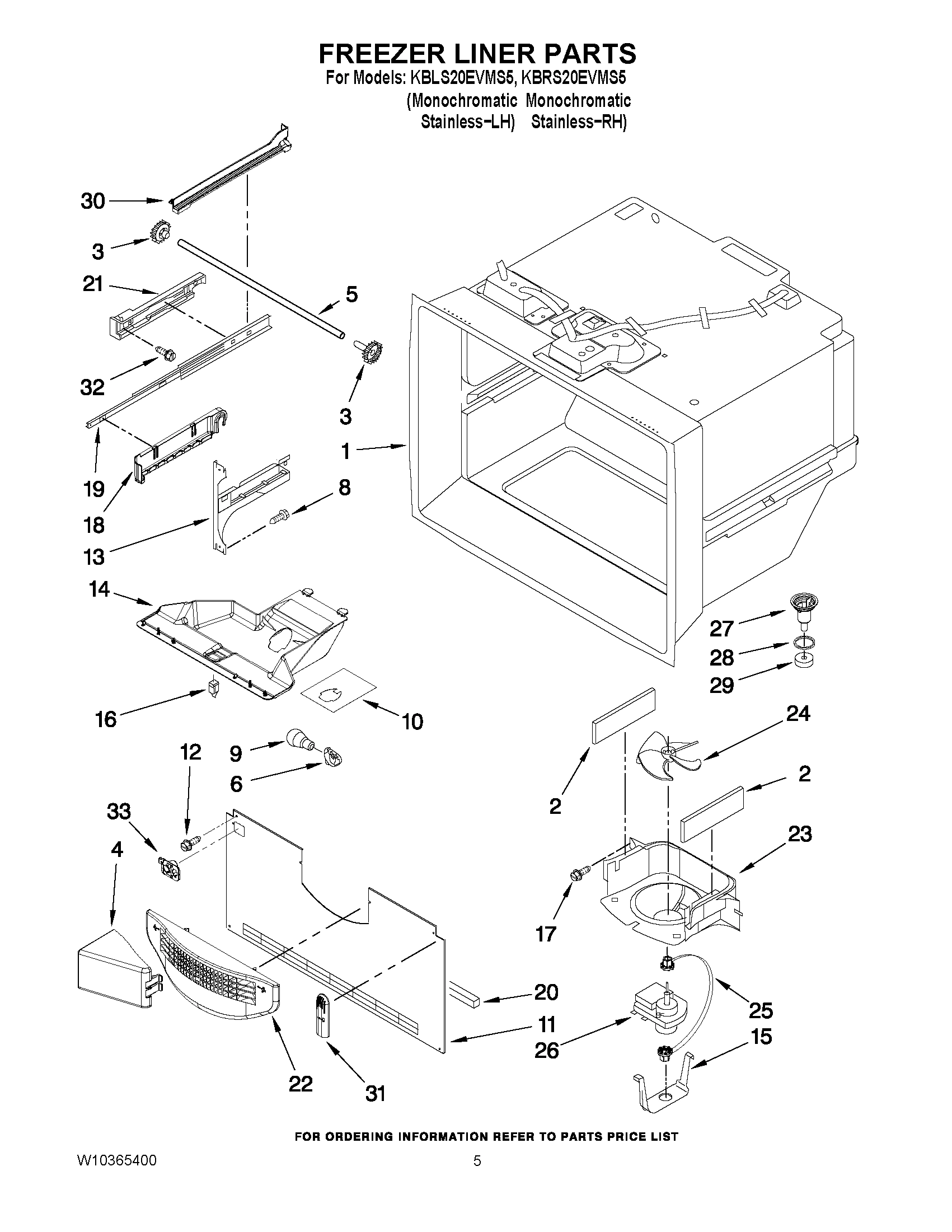

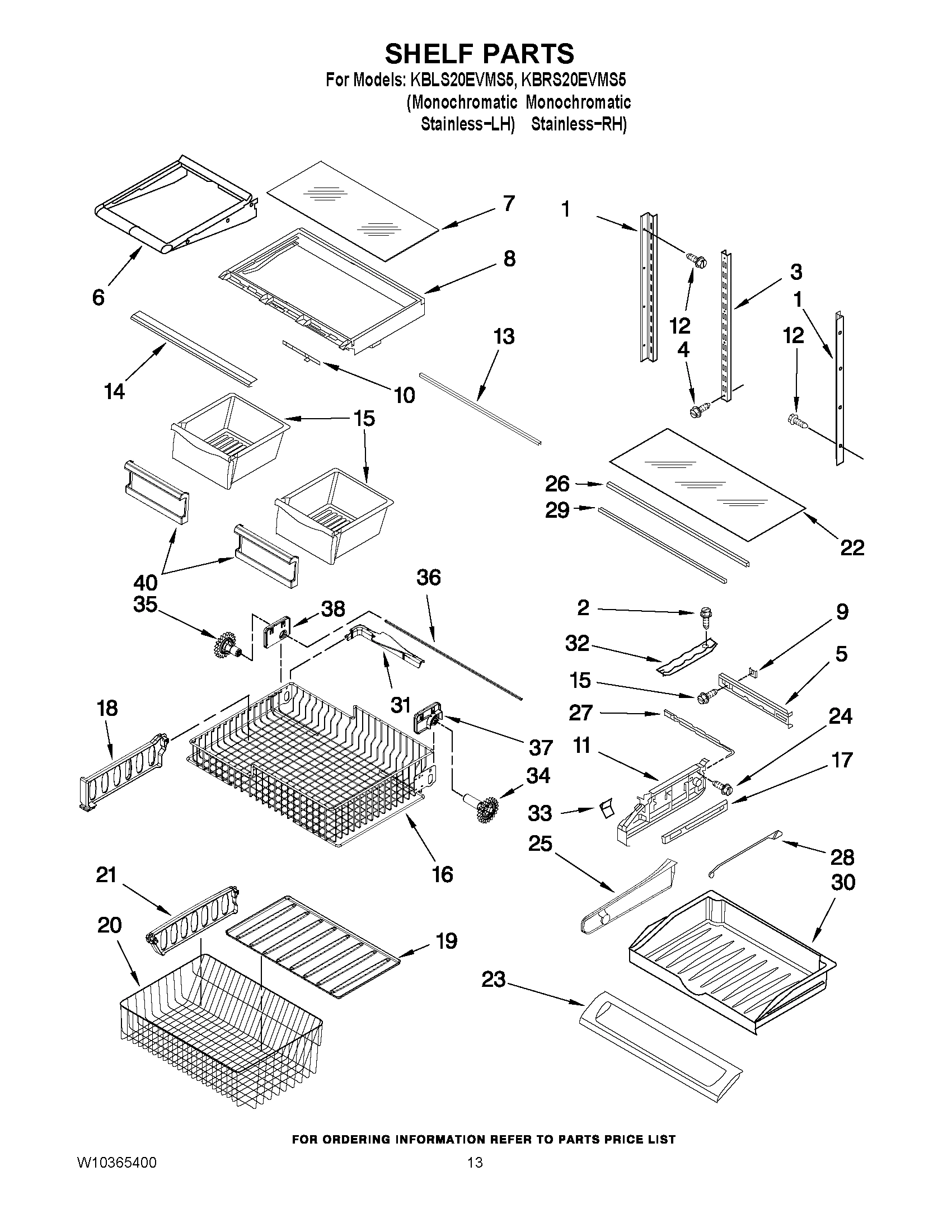

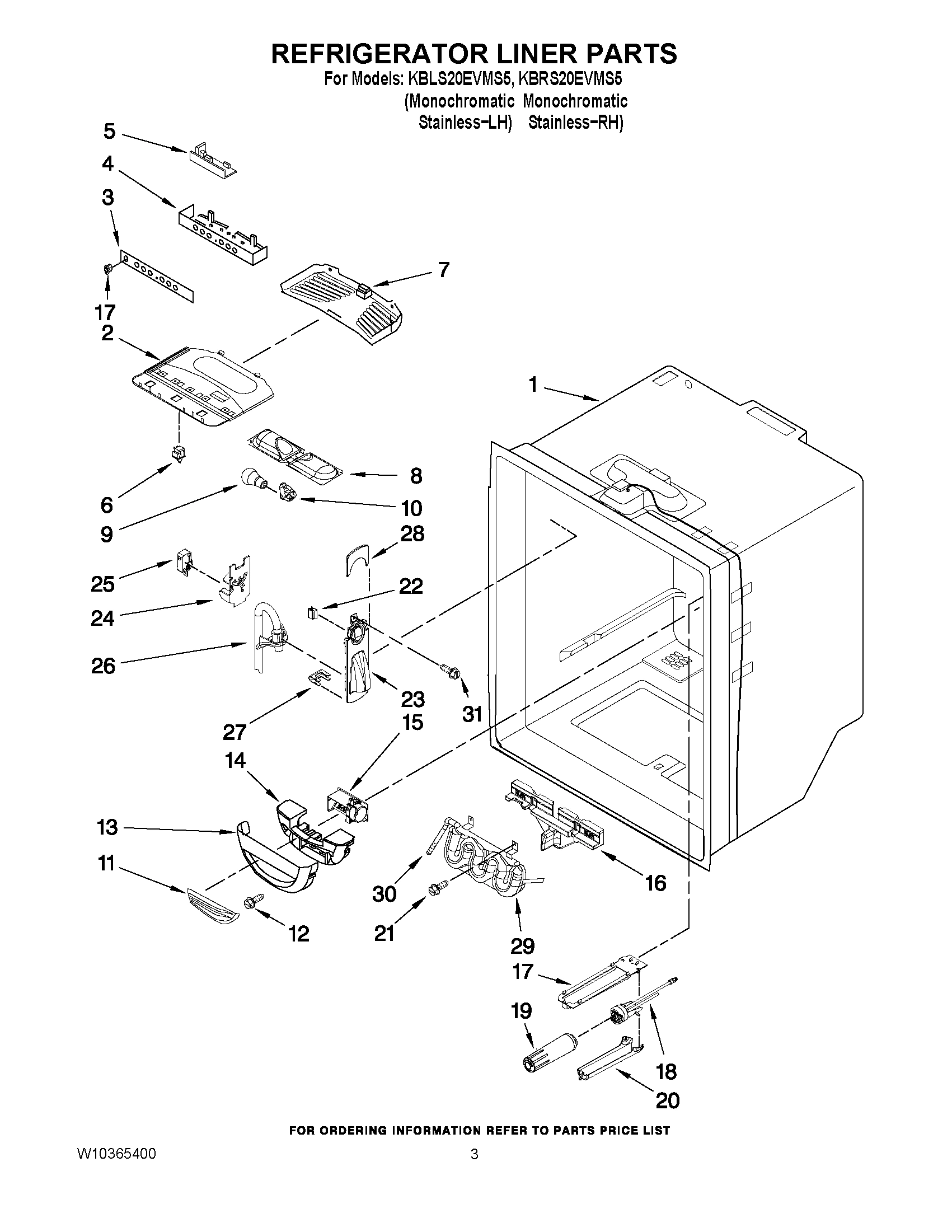

Model Whirlpool KBLS20EVMS5 REFRIGERATOR – Common Parts &amp; Diagrams

1

W10251971 Whirlpool Ladder Assembly Backorder WPL W10251971 $35.32

2

W11285509 Whirlpool Refrigerator Shut-Off Arm Backorder WPL W11285509 $52.56

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $52.96

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $9.68

3

W10273463 Whirlpool Refrigerator Ladder Backorder WPL W10273463 $11.38

4

W10157765 Whirlpool Refrigerator Deflector Backorder WPL W10157765 $30.25

4

W10215666 Whirlpool Refrigerator Screw Backorder WPL W10215666 $5.65

4

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

5

12656202 Whirlpool Refrigerator Housing Backorder WPL 12656202 $54.81

5

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $12.13

5

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

5

WPW10319823-includeCORE Whirlpool WPW10319823 Backorder WPL WPW10319823-includeCORE $200.45

6

12831101 Whirlpool Refrigerator Tube Clamp Backorder WPL 12831101 $7.69

6

WP12463911 Whirlpool Refrigerator Glass Shelf Backorder WPL WP12463911 $125.72

6

TUBE, DISCHARGE WPL W10217746 Contact Us For Availability

7

W10292242 Whirlpool Refrigerator Wire Harness Backorder WPL W10292242 $86.50

7

WP67006642 Whirlpool Refrigerator Pin Backorder WPL WP67006642 $3.70

7

WP67006655 Whirlpool Refrigerator Crisper Gla Backorder WPL WP67006655 $119.87

7

Nameplate (Grey) WPL W10046610 Contact Us For Availability

8

B5759655 Whirlpool Refrigerator Gasket In Stock WPL B5759655 $7.69

8

WP67006185 Whirlpool Refrigerator Crisper Fra In Stock WPL WP67006185 $108.37

8

Gasket, Door (Apollo Grey) WPL W10179478 Contact Us For Availability

9

67002329 Whirlpool Refrigerator Pantry Gasket Backorder WPL 67002329 $10.76

9

W10829281 Whirlpool Refrigerator Screw In Stock WPL W10829281 $5.01

9

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

W10825088 Whirlpool Refrigerator Defrost Heat In Stock WPL W10825088 $81.12

W11469652 Whirlpool Refrigerator Shield Backorder WPL W11469652 $10.76

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $4.52

WPW10171529 Whirlpool Refrigerator Ice Pan In Stock WPL WPW10171529 $63.96

SCREW-HANDLE WPL W10290759 Contact Us For Availability

12918001 Whirlpool Refrigerator Funnel Backorder WPL 12918001 $7.69

W11727809 Whirlpool Evaporator Cover Backorder WPL W11727809 $34.44

WP12028505AP Whirlpool Closing Cam In Stock WPL WP12028505AP $43.13

WP12656018 Whirlpool Drawer Support In Stock WPL WP12656018 $45.67

WP12656105 Whirlpool Drawer Support In Stock WPL WP12656105 $33.27

12

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $3.33

12

WP12544124 Whirlpool Refrigerator Valve In Stock WPL WP12544124 $115.68

12

WPW10244032 Whirlpool Refrigerator Start Devi Backorder WPL WPW10244032 $30.89

13

10961006AP Whirlpool Refrigerator Hinge Bushi Backorder WPL 10961006AP $5.71

13

WP12227304WD Whirlpool Refrigerator Drawer Su Backorder WPL WP12227304WD $45.29

13

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $39.73

W11120581 Whirlpool Refrigerator Water Tube Backorder WPL W11120581 $45.71

Backorder WPL W11750607 $19.22

WPW10277025 Whirlpool Refrigerator Housing Backorder WPL WPW10277025 $54.90

Retainer, Door WPL 12690503 Contact Us For Availability

TRIM, CRISPER WPL W10231486 Contact Us For Availability

W11689473 Whirlpool Door Hinge In Stock WPL W11689473 $26.41

WP67002659 Whirlpool Crisper Pan In Stock WPL WP67002659 $96.47

WPW10594329 Whirlpool Control Damper In Stock WPL WPW10594329 $97.22

CLIP, EVAP. MOTOR WPL 13058002 Contact Us For Availability

W10348245 Whirlpool Refrigerator Freezer Bask Backorder WPL W10348245 $117.12

W11401472 Whirlpool Refrigerator Door Stop Backorder WPL W11401472 $10.76

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $4.70

WPW10163893 Whirlpool Refrigerator Insulation Backorder WPL WPW10163893 $30.25

17

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

17

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $4.52

17

WPW10235370 Whirlpool Refrigerator Glide Backorder WPL WPW10235370 $114.56

W10241046 Whirlpool Refrigerator Divider Backorder WPL W10241046 $12.44

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $16.98

WPW10281115 Whirlpool Refrigerator Bracket Backorder WPL WPW10281115 $27.80

WPW10281116 Whirlpool Bracket Backorder WPL WPW10281116 $27.80

WPW10346415 Whirlpool Refrigerator Condenser Backorder WPL WPW10346415 $152.87

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $7.16

W10281329 Whirlpool Clamp In Stock WPL W10281329 $6.59

W11658403 Whirlpool Slides In Stock WPL W11658403 $79.44

WP12727304 Whirlpool Refrigerator Mat Backorder WPL WP12727304 $50.00

20

W10503185 Whirlpool Refrigerator Cutlery Bask Backorder WPL W10503185 $57.94

20

W11159728 Whirlpool Refrigerator Gasket In Stock WPL W11159728 $10.93

20

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $30.85

W10150061 Whirlpool Refrigerator Divider Backorder WPL W10150061 $30.25

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

WPW10284692 Whirlpool Refrigerator Bracket Backorder WPL WPW10284692 $44.49

WPW10284693 Whirlpool Mounting Bracket Backorder WPL WPW10284693 $44.45

22

12002041 Whirlpool Refrigerator Evaporator Re In Stock WPL 12002041 $201.99

22

W11125512 Whirlpool Refrigerator Glass Shelf In Stock WPL W11125512 $133.54

WP67005930 Whirlpool Refrigerator Pantry Draw In Stock WPL WP67005930 $49.23

Dam (Left Side) WPL 12225602 Contact Us For Availability

FACADE, DISP. WPL 12706909SP Contact Us For Availability

Dam (Right Side) WPL 12225702 Contact Us For Availability

12707303SP Whirlpool Refrigerator Plate Backorder WPL 12707303SP $31.09

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $50.82

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.51

25

W10121318 Whirlpool Refrigerator Grommet In Stock WPL W10121318 $28.66

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $62.75

25

WP67002321 Whirlpool Refrigerator Divider Pan Backorder WPL WP67002321 $16.54

W10222811 Whirlpool Refrigerator Wire Harness Backorder WPL W10222811 $146.51

WP12227305WD Whirlpool Drawer Support Backorder WPL WP12227305WD $44.96

WP12777701 Whirlpool Refrigerator Filler Bloc Backorder WPL WP12777701 $4.15

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $44.47

27

W10208593 Whirlpool Refrigerator Valve Cover In Stock WPL W10208593 $9.24

27

WP67003793 Whirlpool Refrigerator Temperature Backorder WPL WP67003793 $28.31

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $15.50

28

67003794 Whirlpool Refrigerator Temperature C Backorder WPL 67003794 $8.09

28

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $328.61

28

WPW10211855 Whirlpool Refrigerator Back Cover Backorder WPL WPW10211855 $80.65

W11229977 Whirlpool Refrigerator Reservoir In Stock WPL W11229977 $73.16

WP67006010 Whirlpool Refrigerator Shelf Trim Backorder WPL WP67006010 $91.97

INSULATION, SOUND WPL 12820505 Contact Us For Availability

Clip, Evaporator WPL 10623002 Contact Us For Availability

30

67006434 Whirlpool Axle Pin In Stock WPL 67006434 $3.70

30

W11490183 Whirlpool Refrigerator Utility Pan Backorder WPL W11490183 $76.45

31

W10149389 Whirlpool Refrigerator Handle Backorder WPL W10149389 $30.25

31

W11556315 Whirlpool Shroud In Stock WPL W11556315 $30.01

32

WP67001719 Whirlpool Refrigerator Track Backorder WPL WP67001719 $2.51

32

BOX, HV CONTROL WPL W10257665 Contact Us For Availability

33

W11498983 Whirlpool Refrigerator Knob Backorder WPL W11498983 $11.14

33

LID, HV BOX WPL 12957702 Contact Us For Availability

34

WPW10474715 Whirlpool Refrigerator Gear Backorder WPL WPW10474715 $10.96

34

GASKET, HV BOX WPL 12957801 Contact Us For Availability

35

WPW10317076-includeCORE Whirlpool WPW10317076 Backorder WPL WPW10317076-includeCORE $280.30

35

WPW10474716 Whirlpool Refrigerator Gear Backorder WPL WPW10474716 $10.87

36

12961602 Whirlpool Refrigerator Wire Cover Backorder WPL 12961602 $41.10

36

W11173556 Whirlpool Refrigerator Shaft Backorder WPL W11173556 $10.87

37

W10348260 Whirlpool Refrigerator Bracket Backorder WPL W10348260 $31.90

37

W11686675 Whirlpool Screw Backorder WPL W11686675 $8.11

38

W10348259 Whirlpool Refrigerator Bracket Asse Backorder WPL W10348259 $31.90

38

EXTENSION-BASEPAN WPL W10206338 Contact Us For Availability

39

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $4.52

40

FRONT, CRISPER WPL 12909404SP Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $29.35

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

REFRIGERANT CHARGE (5.25 OZS. (R-134A)) WPL NP Contact Us For Availability

Cleaner, Stnls Steel Magic WPL 20000008 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
