GE JTP30SM1SS Electric Range Parts List

1

PANEL CNTL ASM (30-SS) GEN WB36T11025 Contact Us For Availability

View on Model

2

SUPPORT CNTL TRM GEN WB02T10376 Contact Us For Availability

View on Model

16

HOUSING BOARD ASM TO11 GEN WB27T10911 Contact Us For Availability

View on Model

18

KIT PANEL CNTL 30 (SS) GEN WB49T10037 Contact Us For Availability

View on Model

55

WB02T10359 GE Oven Badge Backorder GEN WB02T10359 $4.52

View on Model

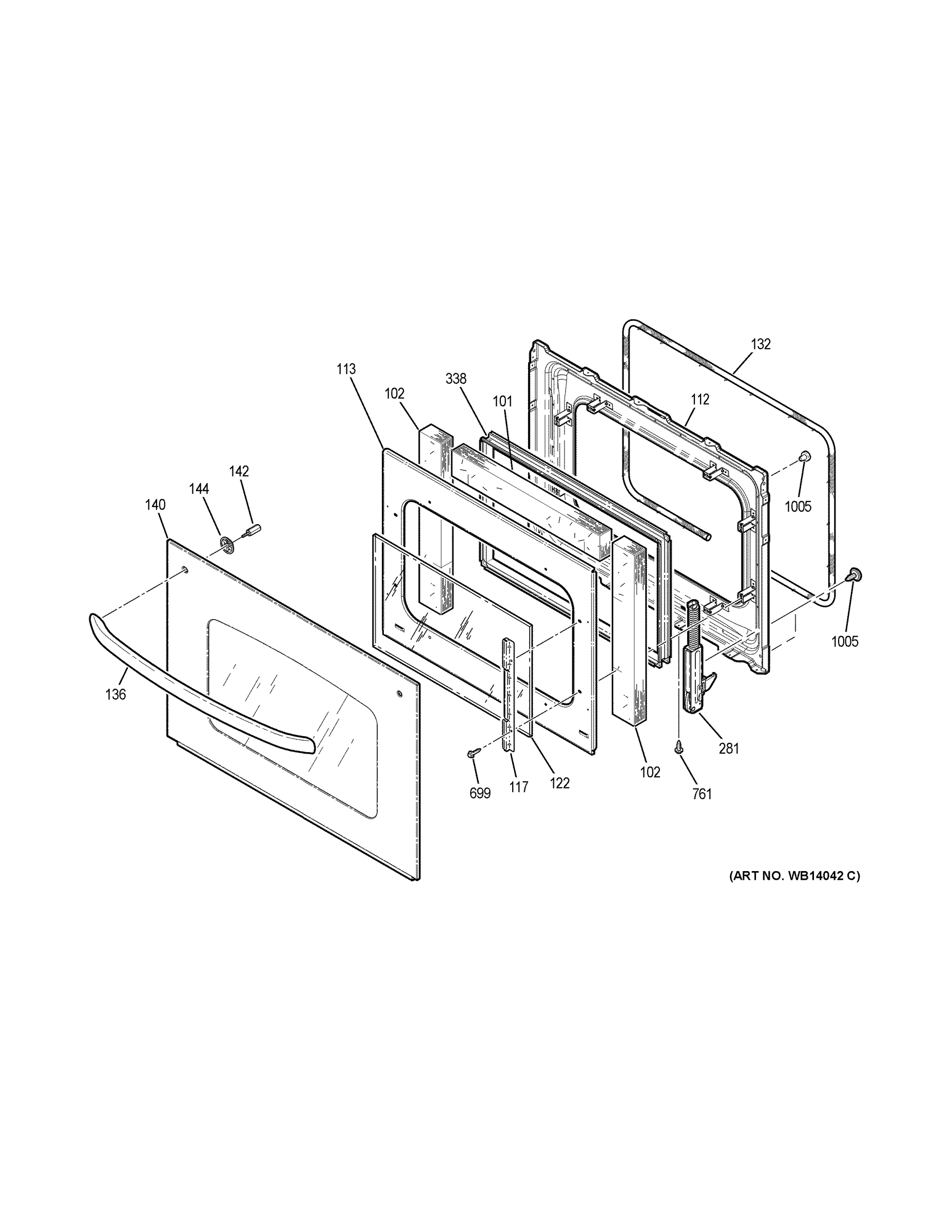

101

WB35X30052 GE Oven Door Insulation Assembly Backorder GEN WB35X30052 $5.20

View on Model

102

WB35K10025 GE Oven Side Door Insulation Backorder GEN WB35K10025 $5.20

View on Model

112

LINING OVN DR ASM GEN WB55T10169 Contact Us For Availability

View on Model

113

WB02T10371 GE Oven Retainer Insulation Backorder GEN WB02T10371 $45.16

View on Model

117

WB56T10373 GE Oven Door Retainer Kit Backorder GEN WB56T10373 $652.41

View on Model

122

WB57K5230 GE Oven Inner Glass Door Backorder GEN WB57K5230 $144.11

View on Model

132

WB04T10050 GE Oven Door Gasket In Stock GEN WB04T10050 $43.43

View on Model

133

WB01T10022 GE Oven Door Bumper Backorder GEN WB01T10022 $5.20

View on Model

136

WB15T10163 GE Oven Stainless Steel Handle Backorder GEN WB15T10163 $94.46

View on Model

140

DOOR OTR ASM SS GEN WB56T10261 Contact Us For Availability

View on Model

142

SPACER REINFORCEMENT GEN WB02T10408 Contact Us For Availability

View on Model

144

WB02T10524 GE Oven Door Handle Spacer Backorder GEN WB02T10524 $5.20

View on Model

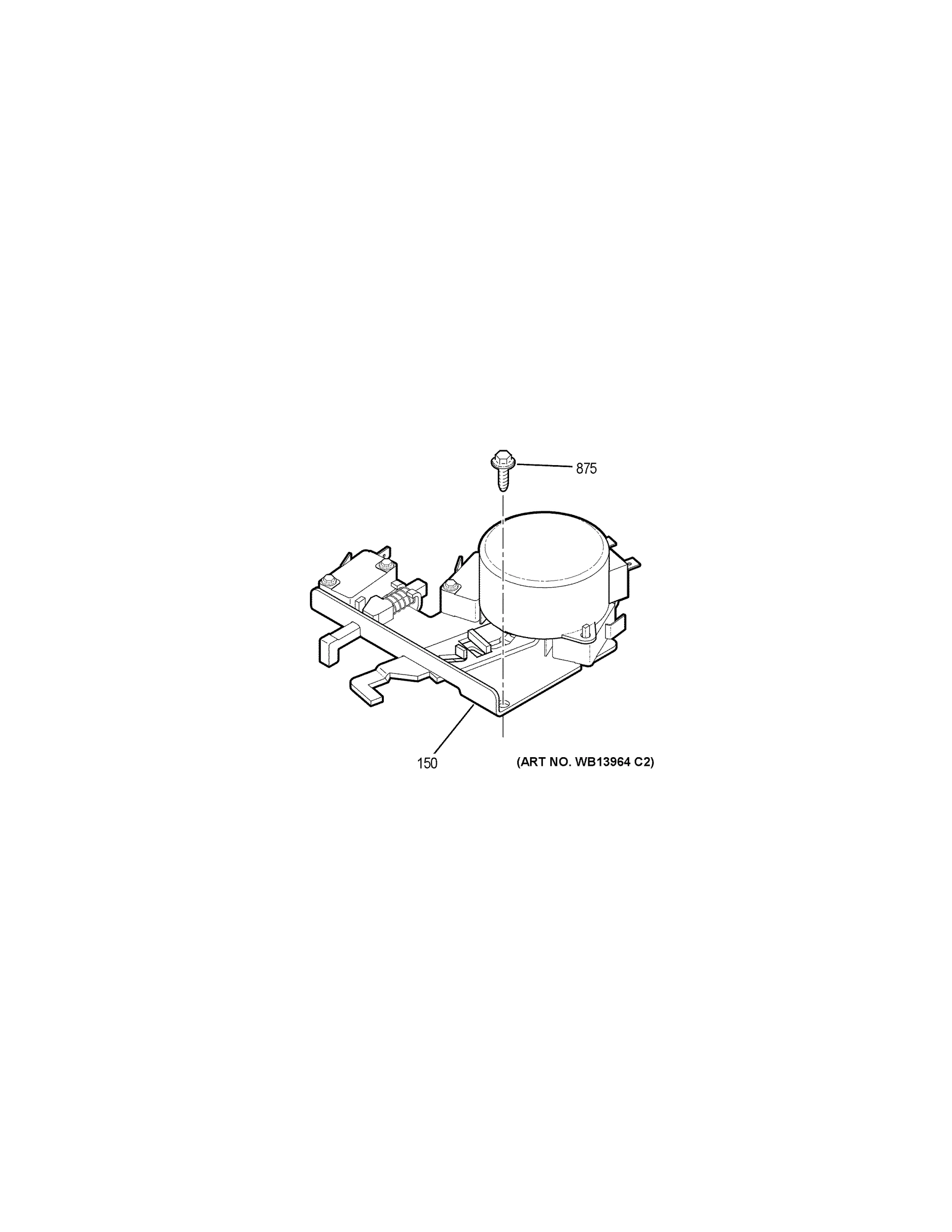

150

WB14T10071 GE Oven Latch Assembly Backorder GEN WB14T10071 $176.72

View on Model

157

WB24T10081 GE Oven High Limit Thermostat In Stock GEN WB24T10081 $27.49

View on Model

158

WB24T10127 GE Oven Bimetal Limit Switch Backorder GEN WB24T10127 $7.17

View on Model

159

WB24T10060 GE Oven Safety Thermostat In Stock GEN WB24T10060 $9.04

View on Model

201

WRAPPER OVN CAV ASM GEN WB63T10128 Contact Us For Availability

View on Model

241

RACK OVEN GEN WB48T10049 Contact Us For Availability

View on Model

252

WB44T10106 GE Oven Broil Assembly Backorder GEN WB44T10106 $63.48

View on Model

253

WB23T10015 GE Oven Sensor Probe In Stock GEN WB23T10015 $18.65

View on Model

258

WB08T10002 GE Oven 40W 120V Cooktop Lamp Bulb In Stock GEN WB08T10002 $17.35

View on Model

259

WB25T10002 GE Oven Bulb Lens In Stock GEN WB25T10002 $5.20

View on Model

268

TRIM BTM CAB (BK) GEN WB07T10583 Contact Us For Availability

View on Model

277

RECEIVER HINGE GEN WB10T10083 Contact Us For Availability

View on Model

281

WB10T10094 GE Oven Right Door Hinge Backorder GEN WB10T10094 $58.92

View on Model

281

HINGE DOOR LT GEN WB10T10095 Contact Us For Availability

View on Model

282

WB28T10215 GE Oven Vent Tube Assembly Backorder GEN WB28T10215 $30.36

View on Model

338

WB56T10105 GE Oven Inner Window Assembly In Stock GEN WB56T10105 $97.54

View on Model

489

PAN REFLECTOR SIDE GEN WB49T10018 Contact Us For Availability

View on Model

490

PAN REFLECTOR HDN BAKE GEN WB49T10019 Contact Us For Availability

View on Model

534

WB26T10015 GE Oven Cavity Support Backorder GEN WB26T10015 $15.19

View on Model

699

WB1M1 GE Oven Screw Backorder GEN WB1M1 $5.00

View on Model

752

WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI Backorder GEN WB02T10324 $5.20

View on Model

752

WB1K5200 GE Oven Screw 340531 Backorder GEN WB1K5200 $5.20

View on Model

761

WB1K5029 GE Oven Screw Backorder GEN WB1K5029 $5.20

View on Model

809

WB1X1137 GE Oven Screw Backorder GEN WB1X1137 $5.20

View on Model

810

WB1X1130 GE Oven Screw 10-32 Backorder GEN WB1X1130 $5.20

View on Model

875

WH2X930 GE Screw Backorder GEN WH2X930 $5.20

View on Model

887

WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black Backorder GEN WB1K5173 $5.20

View on Model

935

WB1K5174 GE Oven Washer Backorder GEN WB1K5174 $5.20

View on Model

945

WB1K5046 GE Oven Washer Backorder GEN WB1K5046 $4.94

View on Model

1001

WB36T11246 GE Oven Panel and Bracket Assembly Backorder GEN WB36T11246 $133.45

View on Model

1002

WB01T10072 GE Screw 8-32 1HW .312 Nickel Backorder GEN WB01T10072 $5.20

View on Model

1005

WB01T10008 GE Oven Screw 10-32 Backorder GEN WB01T10008 $5.20

View on Model

1016

WB27T11161 GE Oven Control Board In Stock GEN WB27T11161 $162.73

View on Model

1018

WB27T11229 GE Oven Faceplate In Stock GEN WB27T11229 $19.07

View on Model
