JTP28CF6CC

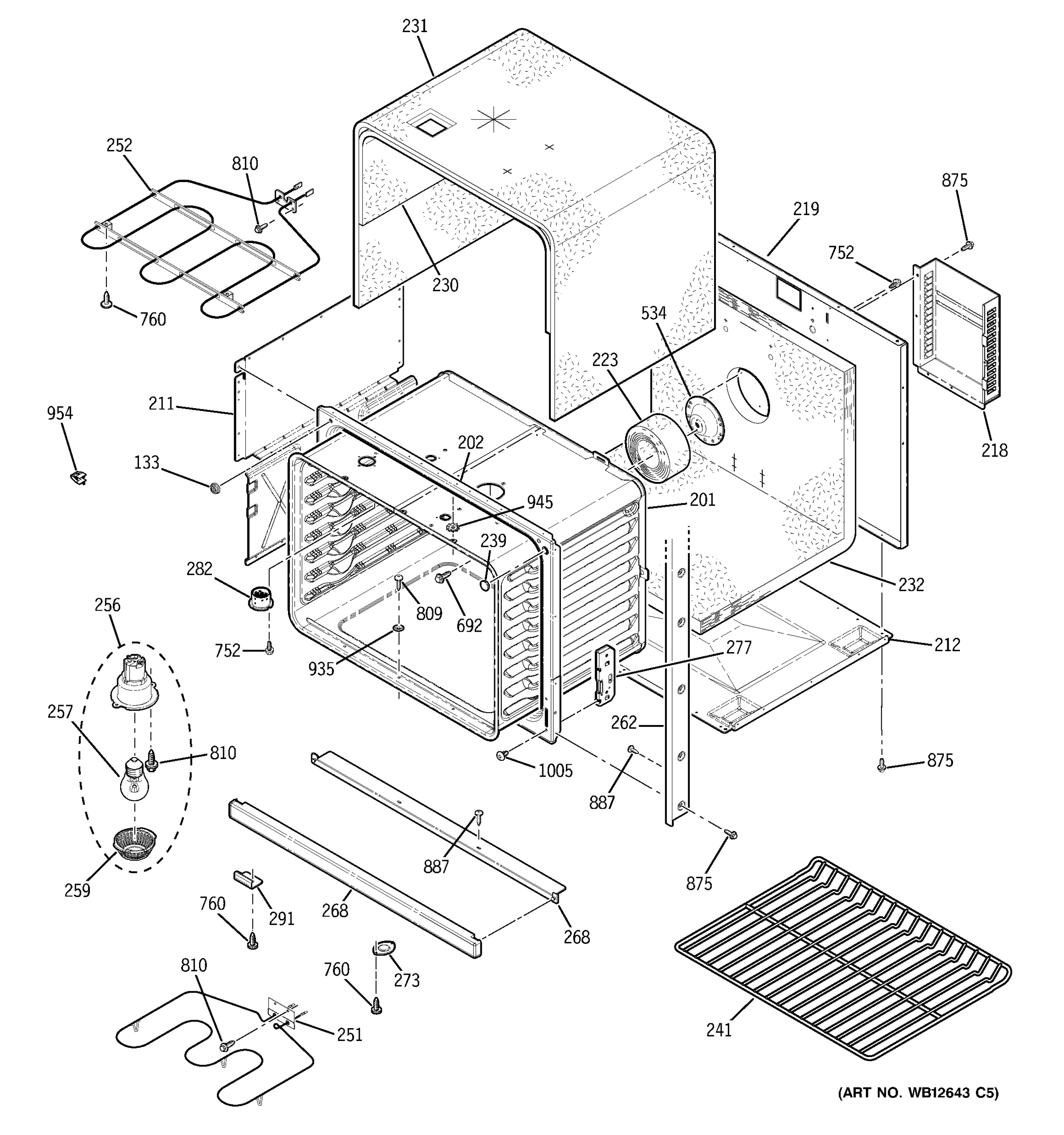

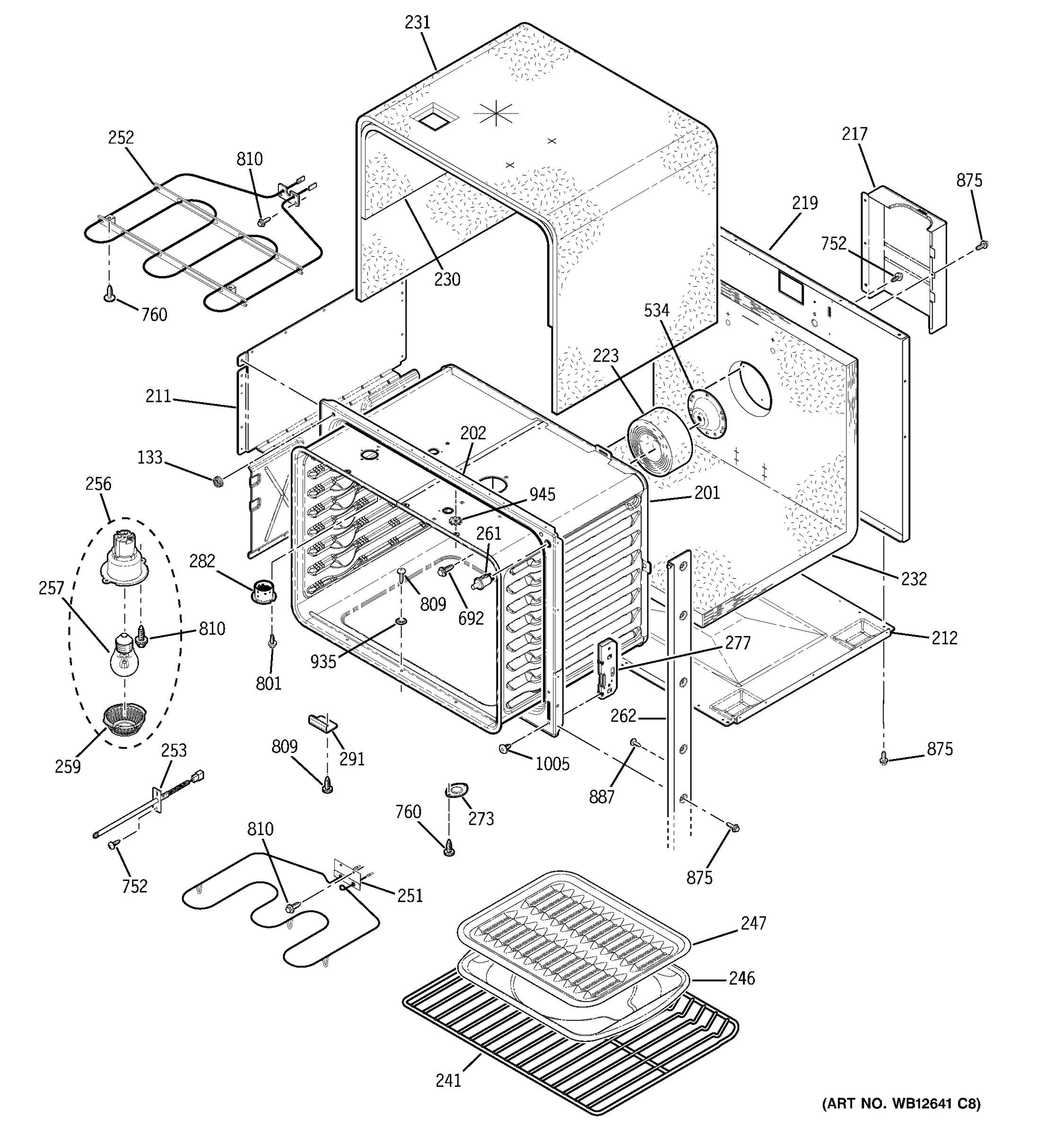

Model JTP28CF6CC – Common Parts & Diagrams

Common parts from model JTP28CF6CC

WB27T10411 GE Oven Control

WB27T10411 GE Oven Control In Stock GEN WB27T10411 $326.56

WB26T10018 GE Oven Fan Motor

WB26T10018 GE Oven Fan Motor In Stock GEN WB26T10018 $103.27

WB25T10039 GE Oven Light Indicator

WB25T10039 GE Oven Light Indicator Out of Stock GEN WB25T10039 $8.14

WB25T10043 GE Oven Lens

WB25T10043 GE Oven Lens Out of Stock GEN WB25T10043 $5.11

WB35X30052 GE Oven Door Insulation

WB35X30052 GE Oven Door Insulation Out of Stock GEN WB35X30052 $5.11

WB35K10025 GE Oven Insulation Oven Door Side

WB35K10025 GE Oven Insulation Oven Door Side Out of Stock GEN WB35K10025 $5.11

WB41T10003 GE Oven Lower Door Gasket

WB41T10003 GE Oven Lower Door Gasket Out of Stock GEN WB41T10003 $86.56

WB01T10022 GE Oven Bumper Door

WB01T10022 GE Oven Bumper Door Out of Stock GEN WB01T10022 $5.11

WB03T10156 GE Oven Door Bumper

WB03T10156 GE Oven Door Bumper Out of Stock GEN WB03T10156 $5.00

WB24T10080 GE Oven Bake TCO

WB24T10080 GE Oven Bake TCO In Stock GEN WB24T10080 $14.94

WB24T10060 GE Oven Safety Thermostat

WB24T10060 GE Oven Safety Thermostat In Stock GEN WB24T10060 $8.89

FRAME FRT LOWER

FRAME FRT LOWER Out of Stock GEN WB63T10083 $79.21

WB02T10284 GE Oven Retainer Insulation Side

WB02T10284 GE Oven Retainer Insulation Side Out of Stock GEN WB02T10284 $46.69

WB35T10126 GE Oven Insulation Top

WB35T10126 GE Oven Insulation Top Out of Stock GEN WB35T10126 $10.62

WB35T10074 GE Oven Insulation (Out) Lower

WB35T10074 GE Oven Insulation (Out) Lower Out of Stock GEN WB35T10074 $54.95

WB48T10095 GE Oven Rack

WB48T10095 GE Oven Rack In Stock GEN WB48T10095 $52.97

WB48X10056 GE Large Porcelain Broil Pan Set

WB48X10056 GE Large Porcelain Broil Pan Set In Stock GEN WB48X10056 $21.29

WB44T10018 GE Oven Range Bake Element

WB44T10018 GE Oven Range Bake Element In Stock GEN WB44T10018 $78.75

WB44T10043 GE Oven Unit Broil Assembly (DLX)

WB44T10043 GE Oven Unit Broil Assembly (DLX) In Stock GEN WB44T10043 $72.59

WB23T10015 GE Oven Sensor Probe

WB23T10015 GE Oven Sensor Probe In Stock GEN WB23T10015 $18.34

WB08T10002 GE Oven Cooktop Lamp 40W 120V Bulb

WB08T10002 GE Oven Cooktop Lamp 40W 120V Bulb In Stock GEN WB08T10002 $17.06

WB25T10002 GE Oven Bulb Lens

WB25T10002 GE Oven Bulb Lens In Stock GEN WB25T10002 $5.11

WB28T10081 GE Oven Vent Inlet Duct Lower

WB28T10081 GE Oven Vent Inlet Duct Lower Out of Stock GEN WB28T10081 $13.50

WB38X33650 GE Vent Tube

WB38X33650 GE Vent Tube Out of Stock GEN WB38X33650 $10.54

WB2X9152 GE Oven Cover

WB2X9152 GE Oven Cover Out of Stock GEN WB2X9152 $17.59

WB01T10066 GE Oven Screw 10-16 XC02

WB01T10066 GE Oven Screw 10-16 XC02 Out of Stock GEN WB01T10066 $5.11

WB1K5200 GE Oven SCREW 340531

WB1K5200 GE Oven SCREW 340531 Out of Stock GEN WB1K5200 $5.11

WB1X536 GE Oven Screw

WB1X536 GE Oven Screw Out of Stock GEN WB1X536 $6.25

WB1M1 GE Oven Screw

WB1M1 GE Oven Screw Out of Stock GEN WB1M1 $4.91

WB1X1137 GE Oven Screw-10AB

WB1X1137 GE Oven Screw-10AB Out of Stock GEN WB1X1137 $5.00

WB1X1130 GE Oven Screw-10-32

WB1X1130 GE Oven Screw-10-32 Out of Stock GEN WB1X1130 $5.00

WH2X930 GE Screw

WH2X930 GE Screw In Stock GEN WH2X930 $5.11

WB1K5174 GE Oven Washer

WB1K5174 GE Oven Washer Out of Stock GEN WB1K5174 $5.11

WB02K10073 GE Oven Clip Capillary

WB02K10073 GE Oven Clip Capillary In Stock GEN WB02K10073 $5.00

WB01T10008 GE Oven Screw 10-32 TR

WB01T10008 GE Oven Screw 10-32 TR In Stock GEN WB01T10008 $5.11
