Model GE JT950SA3SS Electric Range – Common Parts & Diagrams
CENTER SPACER
CONTROL PANEL
DOOR

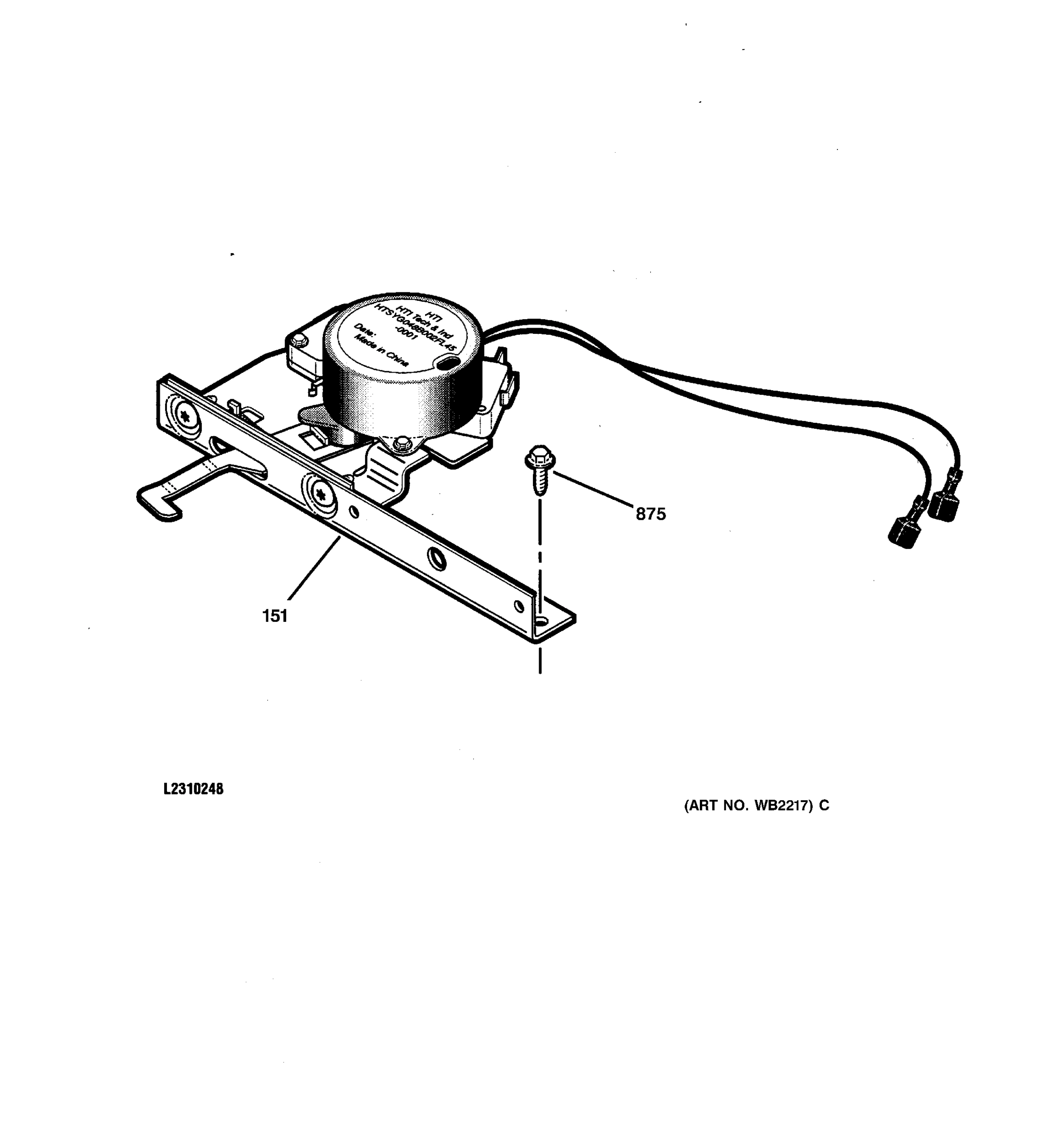

DOOR LOCK
FAN
LOWER BODY PARTS

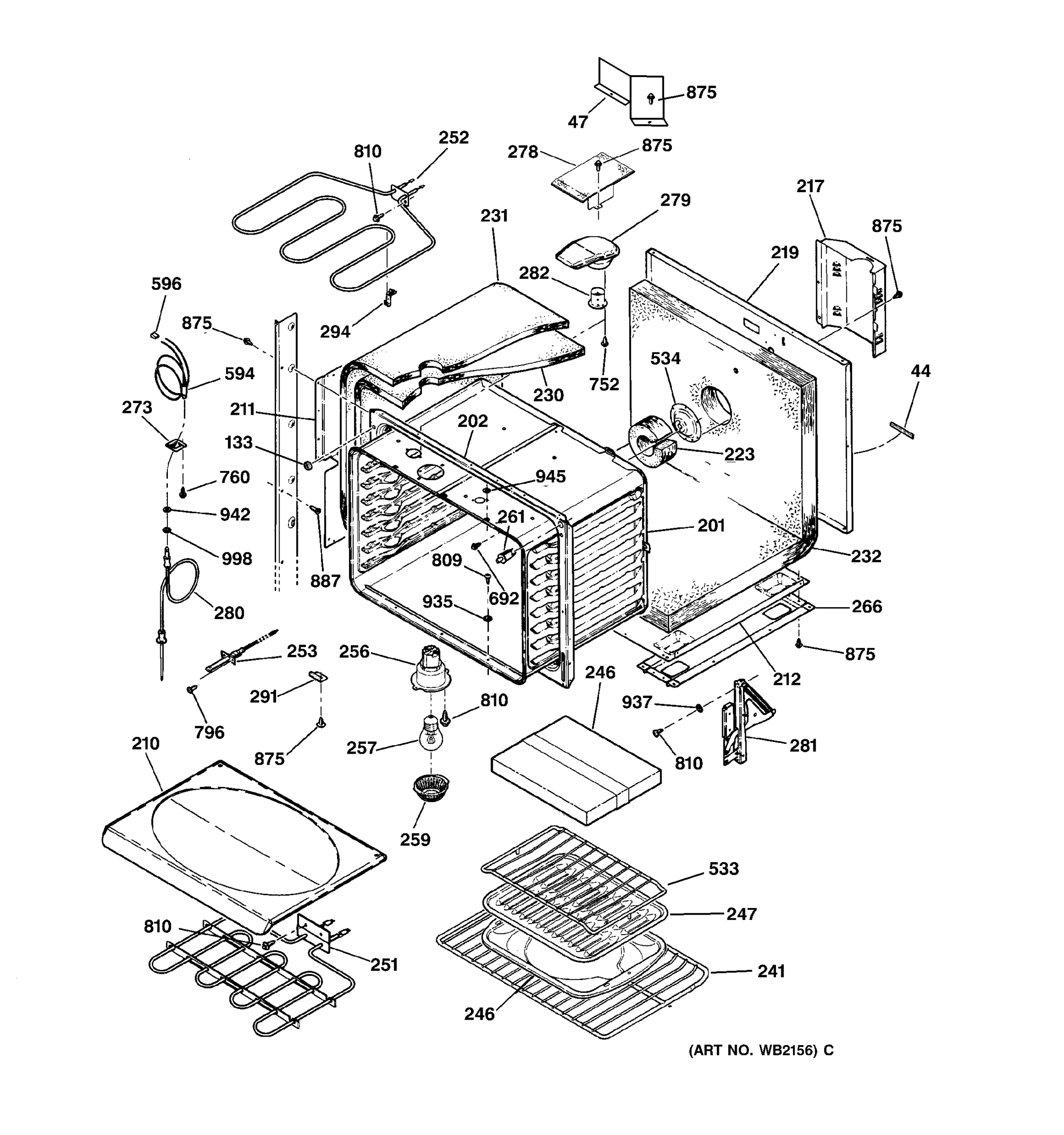

UPPER BODY PARTS
Common parts from model GE JT950SA3SS Electric Range
1
GEN WB36T10207 GEN WB36T10207 Contact Us For Availability
44
GEN WB02K5225 GEN WB02K5225 Contact Us For Availability
47
GEN WB39T10002 GEN WB39T10002 Contact Us For Availability
47
GEN WB39T10003 GEN WB39T10003 Contact Us For Availability
103
GEN WB02K5321 GEN WB02K5321 Contact Us For Availability
106
GEN WB07T10036 GEN WB07T10036 Contact Us For Availability
112
GEN WB55T10017 GEN WB55T10017 Contact Us For Availability
113
GEN WB02K5322 GEN WB02K5322 Contact Us For Availability
134
GEN WB07K5424 GEN WB07K5424 Contact Us For Availability
136
GEN WB15K5108 GEN WB15K5108 Contact Us For Availability
140
GEN WB07T10127 GEN WB07T10127 Contact Us For Availability
141
GEN WB35T10006 GEN WB35T10006 Contact Us For Availability
147
GEN WB56T10044 GEN WB56T10044 Contact Us For Availability
151
LATCH OVN GEN WB14T10008 Contact Us For Availability
158
GEN WB24T10033 GEN WB24T10033 Contact Us For Availability
158
GEN WB24T10039 GEN WB24T10039 Contact Us For Availability
159
GEN WB24T10045 GEN WB24T10045 Contact Us For Availability
201
GEN WB63T10033 GEN WB63T10033 Contact Us For Availability
201
GEN WB63T10057 GEN WB63T10057 Contact Us For Availability
202
FRONT FRAME GEN WB63T10058 Contact Us For Availability
211
SIDE INSULATION RETAINER GEN WB02K5306 Contact Us For Availability
212
GEN WB02K5305 GEN WB02K5305 Contact Us For Availability
217
GEN WB34K5193 GEN WB34K5193 Contact Us For Availability
218
GEN WB34K5192 GEN WB34K5192 Contact Us For Availability
219
GEN WB02K5307 GEN WB02K5307 Contact Us For Availability
220
GEN WB34K5195 GEN WB34K5195 Contact Us For Availability
230
GEN WB35K5118 GEN WB35K5118 Contact Us For Availability
231
GEN WB35K5119 GEN WB35K5119 Contact Us For Availability
241
GEN WB48K5022 GEN WB48K5022 Contact Us For Availability
241
GEN WB48T10009 GEN WB48T10009 Contact Us For Availability
246
GEN WB48T10010 GEN WB48T10010 Contact Us For Availability
257
GEN BUY LOCAL GEN BUY LOCAL Contact Us For Availability
262
GEN WB07K5368 GEN WB07K5368 Contact Us For Availability
268
GEN WB07T10037 GEN WB07T10037 Contact Us For Availability
273
GEN WB02K5365 GEN WB02K5365 Contact Us For Availability
273
GEN WB34K5140 GEN WB34K5140 Contact Us For Availability
279
GEN WB50T10039 GEN WB50T10039 Contact Us For Availability
281
GEN WB14T10005 GEN WB14T10005 Contact Us For Availability
282
GEN WB28K5010 GEN WB28K5010 Contact Us For Availability
291
GEN WB02X9152 GEN WB02X9152 Contact Us For Availability
338
GEN WB56K0020 GEN WB56K0020 Contact Us For Availability
511
FAN MOTOR CONV. GEN WB26T10006 Contact Us For Availability
514
GEN WB26T10002 GEN WB26T10002 Contact Us For Availability
534
SUPPORT OVN CAVITY GEN WB26T10003 Contact Us For Availability
537
GEN WB26T10001 GEN WB26T10001 Contact Us For Availability
594
GEN WB08K5053 GEN WB08K5053 Contact Us For Availability
596
GEN WB08K5013 GEN WB08K5013 Contact Us For Availability
602
GEN WH02X0941 GEN WH02X0941 Contact Us For Availability
692
SCREW GEN WZ04X0416 Contact Us For Availability
847
GEN WB01X1317 GEN WB01X1317 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
937
GEN WB01X1140 GEN WB01X1140 Contact Us For Availability
939
GEN WB01T10010 GEN WB01T10010 Contact Us For Availability
941
GEN WB01X1399 GEN WB01X1399 Contact Us For Availability
976
GEN WB01K5199 GEN WB01K5199 Contact Us For Availability
999
GEN 31-10125 GEN 31-10125 Contact Us For Availability
999
GEN 31-13726 GEN 31-13726 Contact Us For Availability
999
GEN 49-8443 GEN 49-8443 Contact Us For Availability
999
GEN 49-8908 GEN 49-8908 Contact Us For Availability
999
GEN WB18K5491 GEN WB18K5491 Contact Us For Availability
999
GEN WB18T10104 GEN WB18T10104 Contact Us For Availability
999
GEN WB18T10105 GEN WB18T10105 Contact Us For Availability
999
GEN WB18T10106 GEN WB18T10106 Contact Us For Availability
× ![]()
