Model GE JSP40AW3AA Electric Range – Common Parts & Diagrams
BACKSPLASH KIT
BLOWER

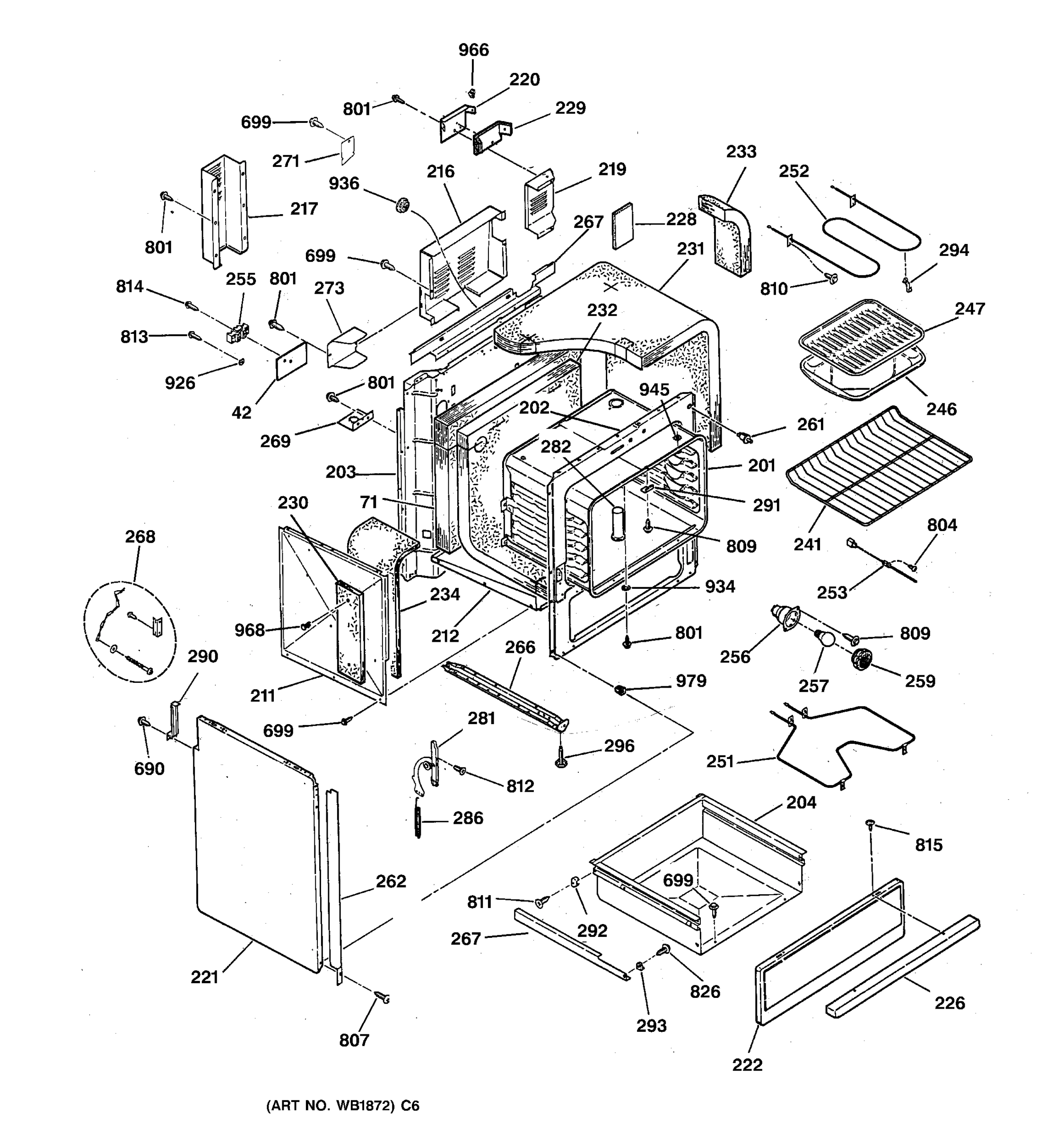

BODY PARTS

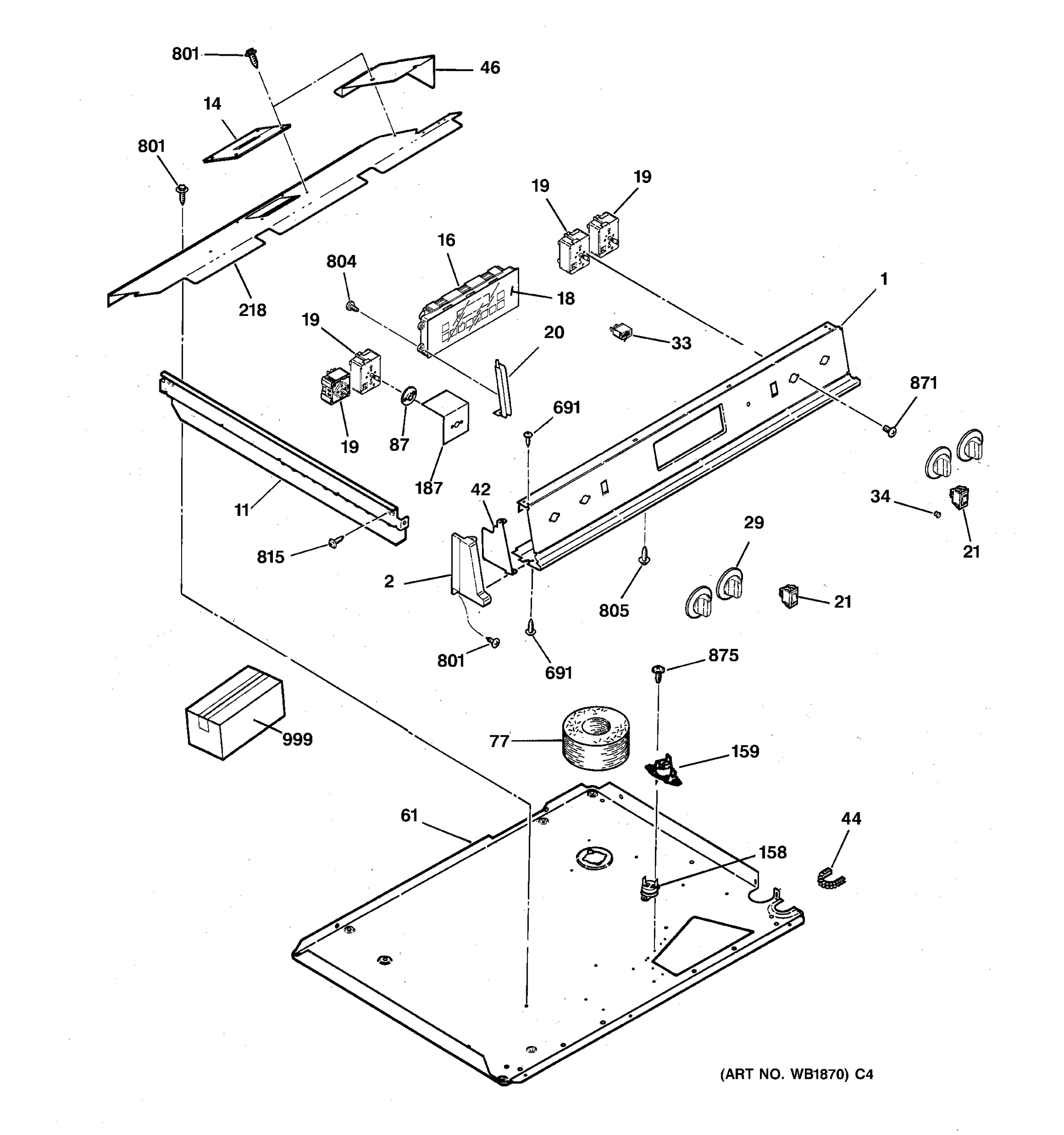

CONTROL PANEL

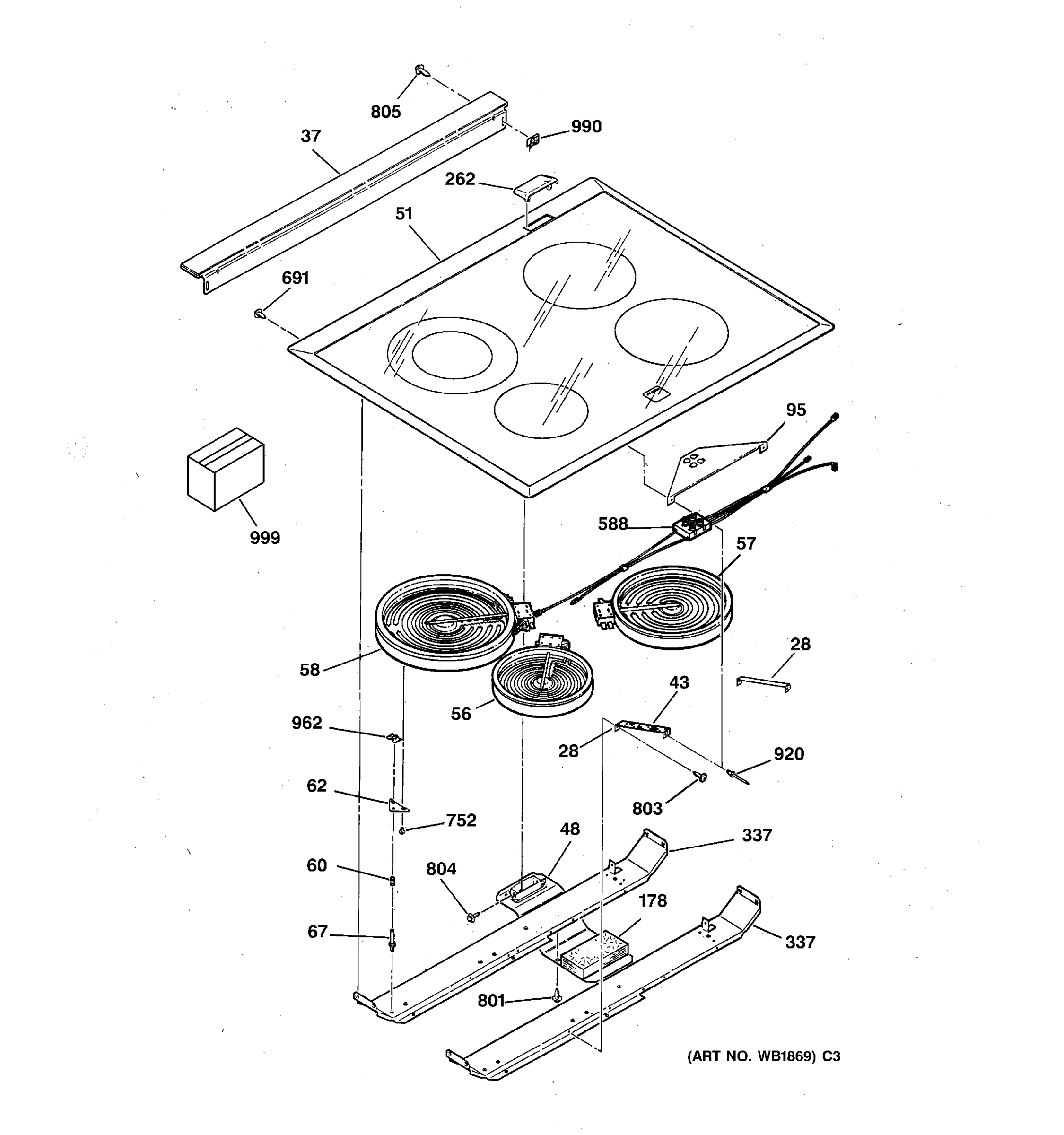

COOKTOP

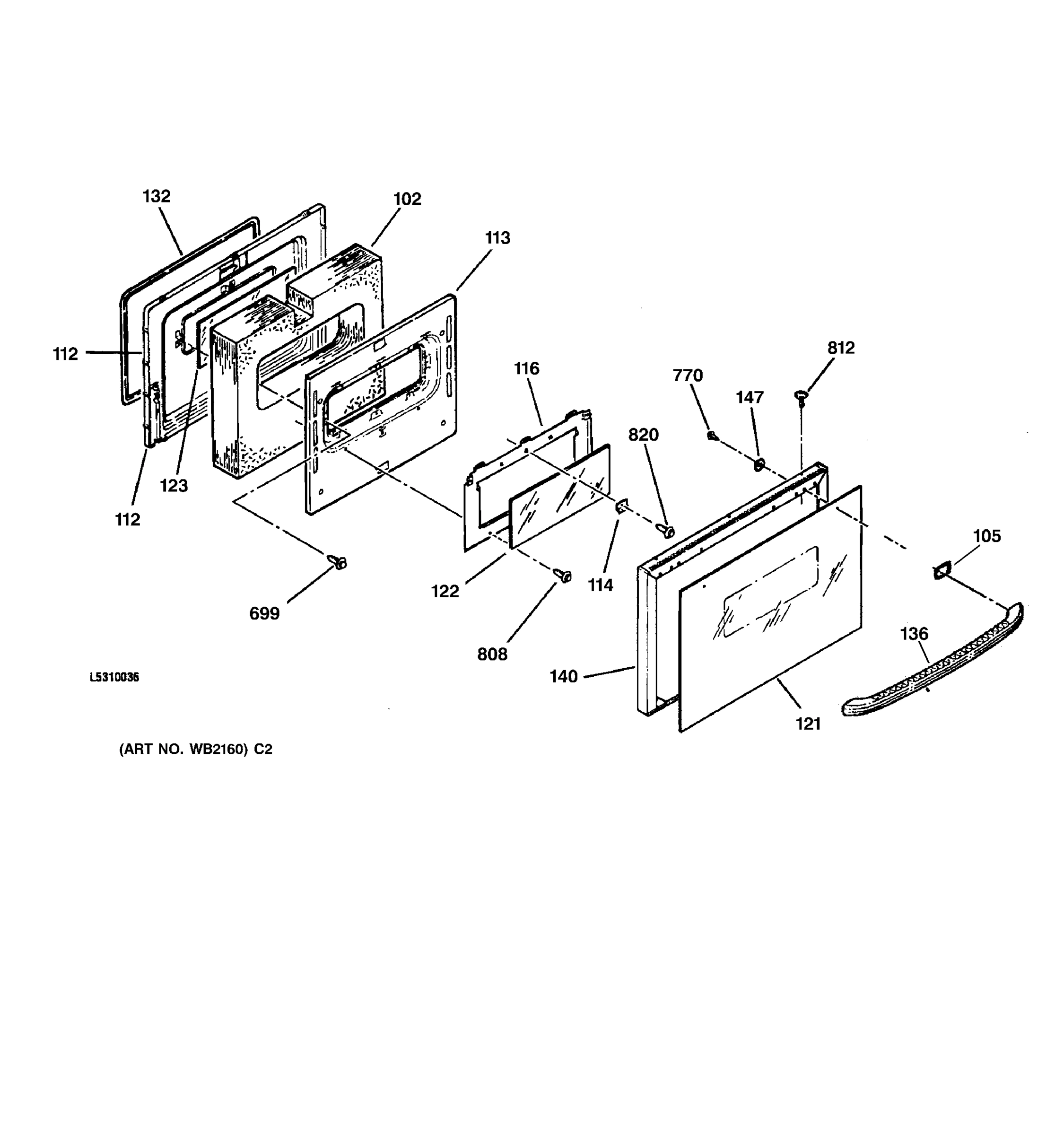

DOOR

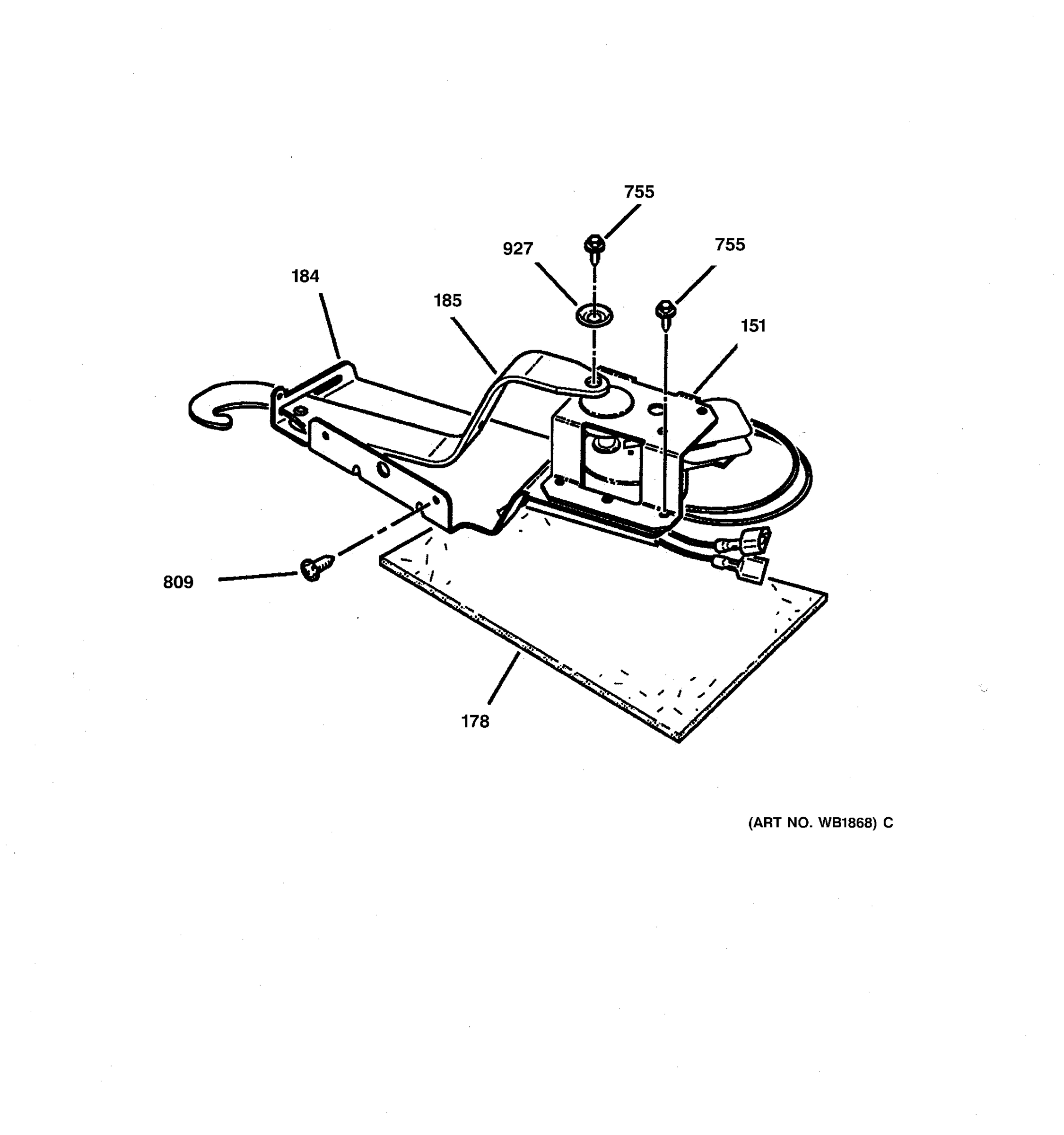

DOOR LOCK

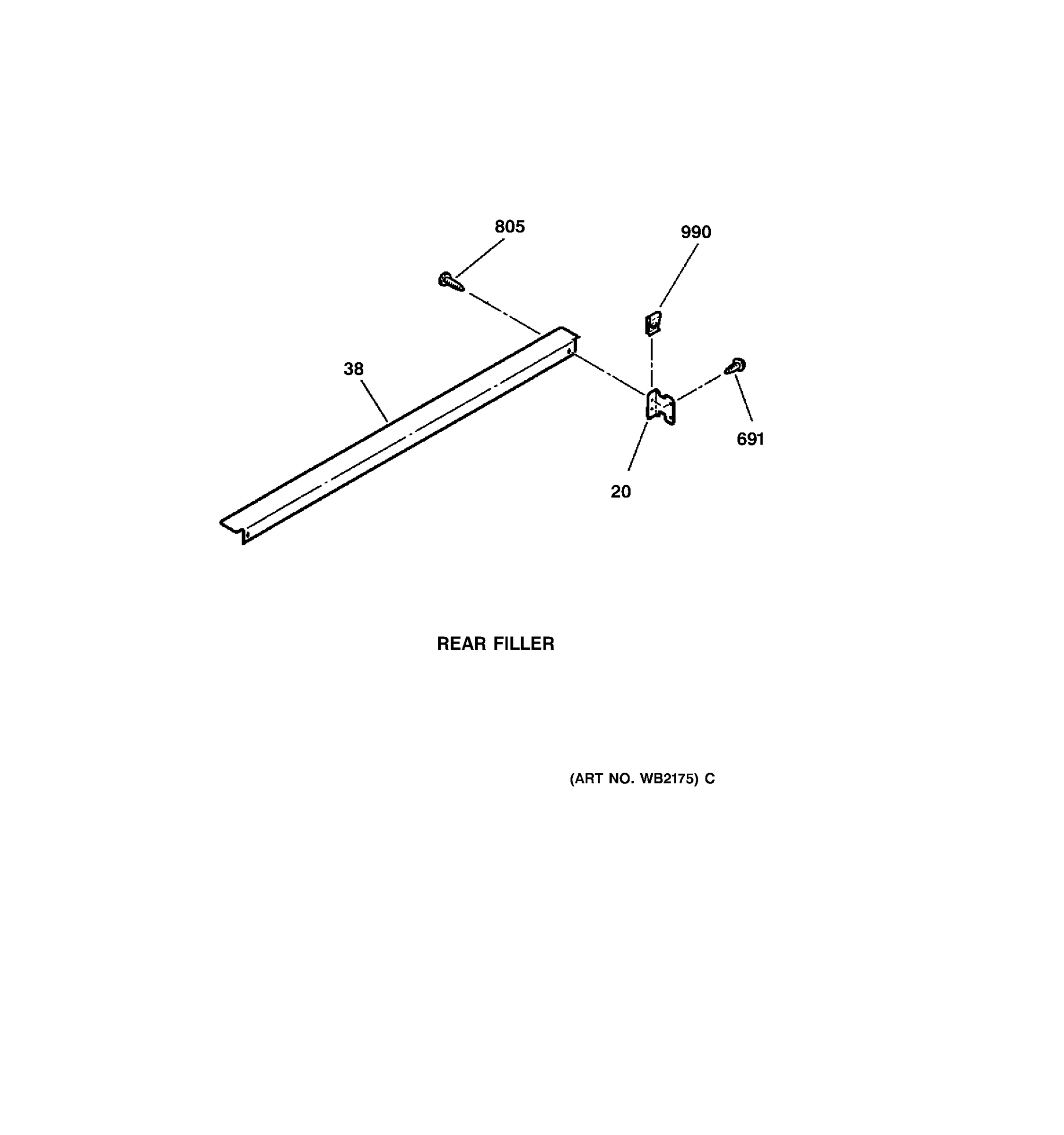

REAR FILLER
Common parts from model GE JSP40AW3AA Electric Range
1
GEN WB36K5676 GEN WB36K5676 Contact Us For Availability
2
GEN WB36K5498 GEN WB36K5498 Contact Us For Availability
2
GEN WB36K5439 GEN WB36K5439 Contact Us For Availability
2
GEN WB36K5440 GEN WB36K5440 Contact Us For Availability
2
GEN WB36K5497 GEN WB36K5497 Contact Us For Availability
11
GEN WB36K5047 GEN WB36K5047 Contact Us For Availability
11
EXTENSION BURN BOX SDE GEN WB64K5038 Contact Us For Availability
14
GEN WB34K5120 GEN WB34K5120 Contact Us For Availability
16
GEN WB27K5306 GEN WB27K5306 Contact Us For Availability
18
GEN WB27K5339 GEN WB27K5339 Contact Us For Availability
19
GEN WB23M0023 GEN WB23M0023 Contact Us For Availability
19
ELEMENT CONTROL 2400W GEN WB24M0025 Contact Us For Availability
20
GEN WB02M0075 GEN WB02M0075 Contact Us For Availability
20
GEN WB02M0077 GEN WB02M0077 Contact Us For Availability
21
GEN WB24K5081 GEN WB24K5081 Contact Us For Availability
21
ROCKER SWITCH GEN WB24K5082 Contact Us For Availability
28
MAINTOP BRACKET GEN WB02K5280 Contact Us For Availability
29
GEN WB03K5259 GEN WB03K5259 Contact Us For Availability
37
GEN WB36K5581 GEN WB36K5581 Contact Us For Availability
38
GEN WB07K5412 GEN WB07K5412 Contact Us For Availability
38
GEN WB07K5413 GEN WB07K5413 Contact Us For Availability
38
GEN WB07K5414 GEN WB07K5414 Contact Us For Availability
42
GEN WB34K5128 GEN WB34K5128 Contact Us For Availability
42
GEN WB34K5250 GEN WB34K5250 Contact Us For Availability
42
GEN WB34K5251 GEN WB34K5251 Contact Us For Availability
43
INSULATOR SLEEVE GEN WB35K5131 Contact Us For Availability
44
GROMMET STRIP GEN WB02X9725 Contact Us For Availability
46
EXTENSION WIRE COVER GEN WB34K5111 Contact Us For Availability
48
GEN WB38K5031 GEN WB38K5031 Contact Us For Availability
51
GEN WB61K5019 GEN WB61K5019 Contact Us For Availability
60
GEN WB09K5014 GEN WB09K5014 Contact Us For Availability
61
GEN WB61K5101 GEN WB61K5101 Contact Us For Availability
62
GEN WB02K5318 GEN WB02K5318 Contact Us For Availability
62
GEN WB02M0083 GEN WB02M0083 Contact Us For Availability
71
GEN WB35K5075 GEN WB35K5075 Contact Us For Availability
77
GEN WB32M0016 GEN WB32M0016 Contact Us For Availability
95
GEN WB02K5407 GEN WB02K5407 Contact Us For Availability
102
OVEN DOOR INSULATION GEN WB35K5026 Contact Us For Availability
105
GEN WB07K5505 GEN WB07K5505 Contact Us For Availability
112
GEN WB55T10018 GEN WB55T10018 Contact Us For Availability
113
INSULATION RETAINER GEN WB56X1910 Contact Us For Availability
114
GEN WB02M0001 GEN WB02M0001 Contact Us For Availability
116
GEN WB02X9178 GEN WB02X9178 Contact Us For Availability
121
GEN WB57K5244 GEN WB57K5244 Contact Us For Availability
122
GEN WB57K5102 GEN WB57K5102 Contact Us For Availability
123
CENTER GLASS GEN WB56X1907 Contact Us For Availability
136
HANDLE DOOR ALMOND GEN WB15X5225 Contact Us For Availability
140
GEN WB55T10031 GEN WB55T10031 Contact Us For Availability
147
GEN WB02K5312 GEN WB02K5312 Contact Us For Availability
159
LIMIT SWITCH GEN WB24M0015 Contact Us For Availability
178
GEN WB35M0015 GEN WB35M0015 Contact Us For Availability
178
GEN WB35M0023 GEN WB35M0023 Contact Us For Availability
187
GEN WB34M0036 GEN WB34M0036 Contact Us For Availability
201
GEN WB63T10002 GEN WB63T10002 Contact Us For Availability
202
GEN WB63T10028 GEN WB63T10028 Contact Us For Availability
203
GEN WB63M0056 GEN WB63M0056 Contact Us For Availability
204
GEN WB58X0065 GEN WB58X0065 Contact Us For Availability
211
GEN WB02M0038 GEN WB02M0038 Contact Us For Availability
212
INS RETAINER-LO GEN WB02K5093 Contact Us For Availability
216
GEN WB34M0041 GEN WB34M0041 Contact Us For Availability
217
UPPER WIRE COVER GEN WB34K5093 Contact Us For Availability
218
GEN WB34K5133 GEN WB34K5133 Contact Us For Availability
219
GEN WB34K5221 GEN WB34K5221 Contact Us For Availability
220
GEN WB34K5235 GEN WB34K5235 Contact Us For Availability
221
GEN WB63K5192 GEN WB63K5192 Contact Us For Availability
221
GEN WB63K5195 GEN WB63K5195 Contact Us For Availability
222
GEN WB56K5018 GEN WB56K5018 Contact Us For Availability
226
GEN WB15K5083 GEN WB15K5083 Contact Us For Availability
228
GEN WB35K5122 GEN WB35K5122 Contact Us For Availability
229
GEN WB35K5123 GEN WB35K5123 Contact Us For Availability
230
GEN WB06K5046 GEN WB06K5046 Contact Us For Availability
230
GEN WB35M0014 GEN WB35M0014 Contact Us For Availability
231
GEN WB02X9676 GEN WB02X9676 Contact Us For Availability
232
INSULATION-BACK BTM GEN WB35K5113 Contact Us For Availability
233
INSULATION-TOP SIDES GEN WB35M0024 Contact Us For Availability
234
OV SIDE FRT INSULATION GEN WB35M0017 Contact Us For Availability
241
GEN WB48X0208 GEN WB48X0208 Contact Us For Availability
257
GEN BUY LOCAL GEN BUY LOCAL Contact Us For Availability
262
GEN WB07K5333 GEN WB07K5333 Contact Us For Availability
262
GEN WB07K5334 GEN WB07K5334 Contact Us For Availability
262
GEN WB07K5515 GEN WB07K5515 Contact Us For Availability
266
GEN WB02K5334 GEN WB02K5334 Contact Us For Availability
267
GEN WB02M0080 GEN WB02M0080 Contact Us For Availability
267
GEN WB56M0003 GEN WB56M0003 Contact Us For Availability
269
PLATE RANGE SERVICE MTG GEN WB02X9427 Contact Us For Availability
271
GEN W02X9749 GEN W02X9749 Contact Us For Availability
273
GEN WB34M0027 GEN WB34M0027 Contact Us For Availability
282
GEN WB38M0014 GEN WB38M0014 Contact Us For Availability
286
OV DR SPRING GEN WB09X0244 Contact Us For Availability
290
GEN WB63M0021 GEN WB63M0021 Contact Us For Availability
291
GEN WB02X9152 GEN WB02X9152 Contact Us For Availability
292
GEN WB02X9146 GEN WB02X9146 Contact Us For Availability
293
GEN WB02X9148 GEN WB02X9148 Contact Us For Availability
296
GEN WB01M0018 GEN WB01M0018 Contact Us For Availability
337
GEN WB02K5374 GEN WB02K5374 Contact Us For Availability
588
GEN WB18K5639 GEN WB18K5639 Contact Us For Availability
673
TORQUE LIMITING SCREW GEN WB01T10003 Contact Us For Availability
691
GEN WB01K5176 GEN WB01K5176 Contact Us For Availability
691
GEN WB01K5192 GEN WB01K5192 Contact Us For Availability
805
GEN WB01X1113 GEN WB01X1113 Contact Us For Availability
807
GEN WB01K5168 GEN WB01K5168 Contact Us For Availability
811
GEN WB01X1172 GEN WB01X1172 Contact Us For Availability
812
SCREW-ALMOND GEN WB01K5158 Contact Us For Availability
815
GEN WB01K5184 GEN WB01K5184 Contact Us For Availability
815
SCREW-BLK GEN WB01K5212 Contact Us For Availability
826
GEN WB01X1167 GEN WB01X1167 Contact Us For Availability
871
GEN WB01K5122 GEN WB01K5122 Contact Us For Availability
920
GEN WB01K5147 GEN WB01K5147 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
934
GEN WB01K5054 GEN WB01K5054 Contact Us For Availability
936
GEN WB02M0021 GEN WB02M0021 Contact Us For Availability
950
CABLE CLIP GEN WB01K5135 Contact Us For Availability
962
GEN WB17M0004 GEN WB17M0004 Contact Us For Availability
968
GEN WB02X9393 GEN WB02X9393 Contact Us For Availability
979
SPACER GEN WB01X1177 Contact Us For Availability
990
GEN WB01X1432 GEN WB01X1432 Contact Us For Availability
999
GEN 31-10026 GEN 31-10026 Contact Us For Availability
999
CLEANING INSTRUCTION GEN 31-10034 Contact Us For Availability
999
GEN 31-10070 GEN 31-10070 Contact Us For Availability
999
GEN 31-10197 GEN 31-10197 Contact Us For Availability
999
GEN 31-13298 GEN 31-13298 Contact Us For Availability
999
MANUAL USE & CARE GEN 49-8868 Contact Us For Availability
999
GEN SR10099 GEN SR10099 Contact Us For Availability
999
GEN WB18K5318 GEN WB18K5318 Contact Us For Availability
999
GEN WB18K5319 GEN WB18K5319 Contact Us For Availability
999
GEN WB18K5363 GEN WB18K5363 Contact Us For Availability
999
GEN WB18K5623 GEN WB18K5623 Contact Us For Availability
999
GEN WB18K5640 GEN WB18K5640 Contact Us For Availability
999
GEN WB50T10028 GEN WB50T10028 Contact Us For Availability
999
GEN WB50T10029 GEN WB50T10029 Contact Us For Availability
999
GEN WB50T10030 GEN WB50T10030 Contact Us For Availability
× ![]()
