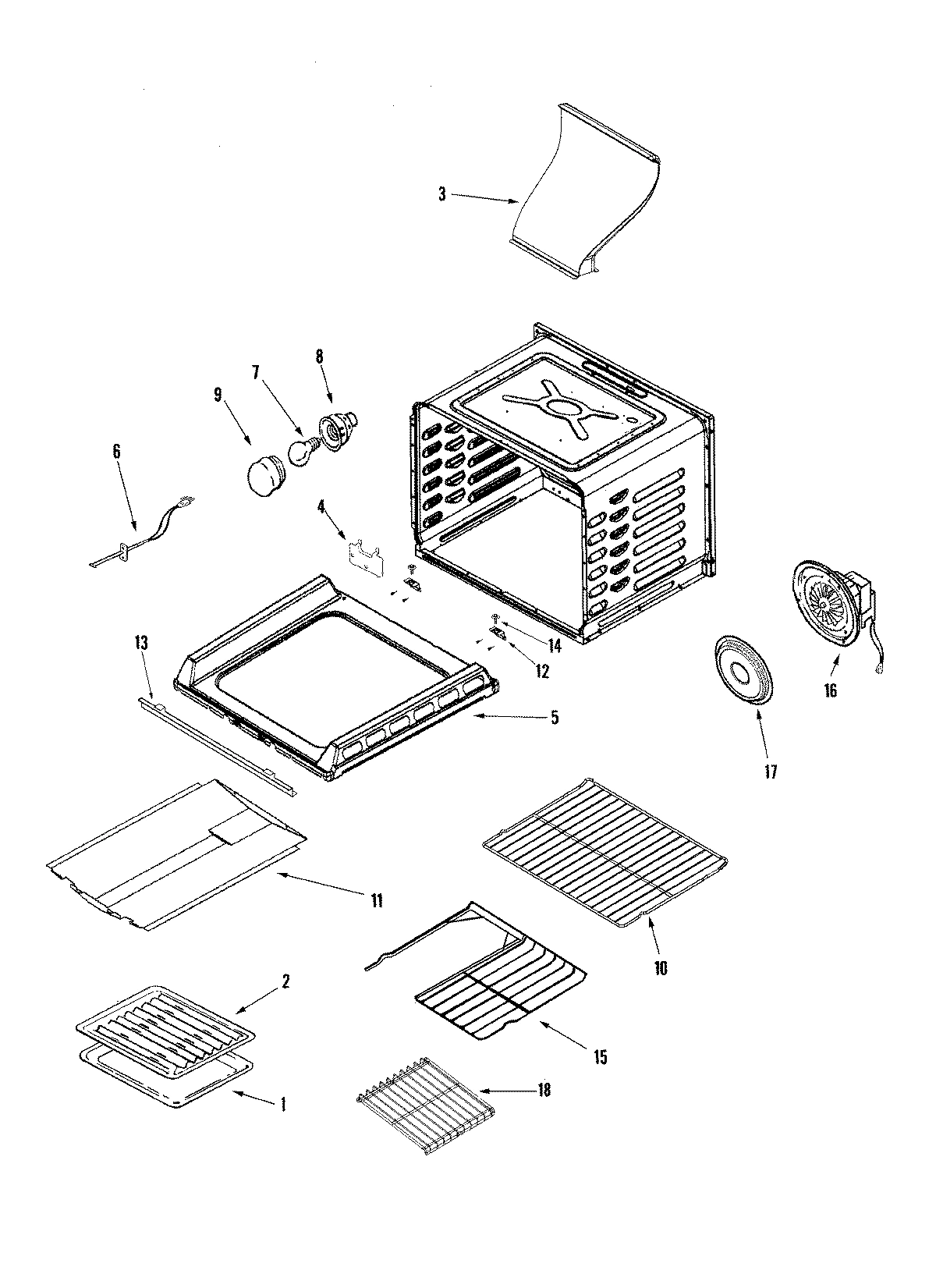

Model Maytag JGR8875QDB GAS RANGE – Common Parts &amp; Diagrams

1

MAY 12002236 MAY 12002236 Contact Us For Availability

1

MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability

1

MAY 74008671 MAY 74008671 Contact Us For Availability

1

MAY 74008926 MAY 74008926 Contact Us For Availability

1

MAY 12002235 MAY 12002235 Contact Us For Availability

1

MAY 74008810 MAY 74008810 Contact Us For Availability

1

MAY 74008811 MAY 74008811 Contact Us For Availability

1

MAY 74008812 MAY 74008812 Contact Us For Availability

1

MAY 74008814 MAY 74008814 Contact Us For Availability

1

MAY 74009391 MAY 74009391 Contact Us For Availability

1

VALVE, BURNER (5K COPRECI) MAY 74010629 Contact Us For Availability

1

VALVE, 16K (COPRECI) MAY 74010751 Contact Us For Availability

1

VALVE, 12K (COPRECI) MAY 74010752 Contact Us For Availability

1

MAY 74009141 MAY 74009141 Contact Us For Availability

2

74010546 Whirlpool Range Oven Door Hinge In Stock WPL 74010546 $49.06

2

WP400021-1 Whirlpool Screw In Stock WPL WP400021-1 $4.56

2

WPW10406243 Whirlpool Burner Head Auxiliary 6 In Stock WPL WPW10406243 $14.18

2

WPW10406797 Whirlpool Range Burner Base (12K In Stock WPL WPW10406797 $34.61

2

WPW10406878 Whirlpool Burner Base (16K) In Stock WPL WPW10406878 $39.25

2

MAY 74009154 MAY 74009154 Contact Us For Availability

2

MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability

2

MAY 74009107 MAY 74009107 Contact Us For Availability

2

MAY 74009674 MAY 74009674 Contact Us For Availability

3

74005230 Whirlpool Oven Lock Nut (8-32) Backorder WPL 74005230 $9.59

3

WP3191898 Whirlpool Surface Burner Cap Black Backorder WPL WP3191898 $44.27

3

WP74007925 Whirlpool Burner Cap Backorder WPL WP74007925 $54.41

3

MAY 74008817 MAY 74008817 Contact Us For Availability

3

MAY 74008716 MAY 74008716 Contact Us For Availability

3

FRAME, GLASS MAY 74003644 Contact Us For Availability

3

MAY 74007414 MAY 74007414 Contact Us For Availability

3

MAY 74007136 MAY 74007136 Contact Us For Availability

4

74003645 Whirlpool Range Oven Door Inner Glas In Stock WPL 74003645 $90.66

4

74008761 Whirlpool Spacer Snap-In Backorder WPL 74008761 $5.71

4

W10919249 Whirlpool Burner Grate Foot In Stock WPL W10919249 $5.05

4

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

4

MAY 4005F421-45 MAY 4005F421-45 Contact Us For Availability

4

MAY 74009143 MAY 74009143 Contact Us For Availability

4

MAY M0275597 MAY M0275597 Contact Us For Availability

4

MAY 74009138 MAY 74009138 Contact Us For Availability

4

MAY 8113P398-60 MAY 8113P398-60 Contact Us For Availability

4

MAY 8113P463-60 MAY 8113P463-60 Contact Us For Availability

5

WP74009958 Whirlpool Spark Electrode Assembly In Stock WPL WP74009958 $9.91

5

WPW10211368 Whirlpool Range Bottom In Stock WPL WPW10211368 $187.82

5

MAY 74009070 MAY 74009070 Contact Us For Availability

5

END CAP (RT-BLK) MAY 74009022 Contact Us For Availability

5

END CAP (LT-BLK) MAY 74009023 Contact Us For Availability

5

INSULATION, OVEN DOOR MAY 74003647 Contact Us For Availability

6

12001655 Whirlpool Oven Sensor In Stock WPL 12001655 $19.87

6

W10154209 Whirlpool Orifice Holder Backorder WPL W10154209 $62.17

6

WP74009099 Whirlpool Orifice Holder Backorder WPL WP74009099 $78.26

6

MAY 74008876 MAY 74008876 Contact Us For Availability

6

MAY 74008725 MAY 74008725 Contact Us For Availability

6

MAY 74008744 MAY 74008744 Contact Us For Availability

6

MAY 74009101 MAY 74009101 Contact Us For Availability

6

MAY 74009102 MAY 74009102 Contact Us For Availability

6

MAY 74009103 MAY 74009103 Contact Us For Availability

7

WP74010753 Whirlpool Harness Assembly Backorder WPL WP74010753 $89.87

7

MAY 74008816 MAY 74008816 Contact Us For Availability

7

MAY Y707319 MAY Y707319 Contact Us For Availability

7

MAY 74009086 MAY 74009086 Contact Us For Availability

7

RETAINER, DOOR GLASS (LWR) MAY 74008745 Contact Us For Availability

7

MAY 74009392 MAY 74009392 Contact Us For Availability

8

WP74011278 Whirlpool Light Backorder WPL WP74011278 $65.58

8

SCREW, SHOULDER MAY 74003640 Contact Us For Availability

8

MAY 74008825 MAY 74008825 Contact Us For Availability

8

SHIELD, HEAT VISOR (BLK) MAY 74010577 Contact Us For Availability

8

GLASS, DOOR MAY 74003649 Contact Us For Availability

8

MAY 74008815 MAY 74008815 Contact Us For Availability

9

MAY 71001867 MAY 71001867 Contact Us For Availability

9

SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability

9

MAY 74008730 MAY 74008730 Contact Us For Availability

9

MAY 74008836 MAY 74008836 Contact Us For Availability

9

MAY 74009093 MAY 74009093 Contact Us For Availability

9

COVER, BROIL ACCESS FITTING MAY 74009653 Contact Us For Availability

9

MAY 74008746 MAY 74008746 Contact Us For Availability

9

MAY 71003231 MAY 71003231 Contact Us For Availability

9

TUBING, SUPPLY MAY 74008829 Contact Us For Availability

10

WP74008763 Whirlpool Range Rack Backorder WPL WP74008763 $105.61

10

MAY 74008920 MAY 74008920 Contact Us For Availability

10

MAY 74008808 MAY 74008808 Contact Us For Availability

74009098 Whirlpool Spark Module In Stock WPL 74009098 $136.94

BAFFLE, BAKE BURNER MAY 74008846 Contact Us For Availability

MAY 74008890 MAY 74008890 Contact Us For Availability

SCREW (8ABX1/2``-BLK) MAY 790448 Contact Us For Availability

MAY 74008702 MAY 74008702 Contact Us For Availability

SUPPORT, OVEN BOTTOM (REAR) MAY 74008694 Contact Us For Availability

MAY 715634 MAY 715634 Contact Us For Availability

MAY 74008819 MAY 74008819 Contact Us For Availability

74007498 Whirlpool Range Flat Igniter In Stock WPL 74007498 $35.10

74008703 Whirlpool Door Switch Backorder WPL 74008703 $54.33

SUPPORT, OVEN BOTTOM (FRONT) MAY 74008695 Contact Us For Availability

MAY 74008749 MAY 74008749 Contact Us For Availability

MAY 74008750 MAY 74008750 Contact Us For Availability

74008835 Whirlpool Clip Retainer Backorder WPL 74008835 $4.85

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $2.51

WP74004224 Whirlpool Tape Backorder WPL WP74004224 $3.82

WP7432P136-60 Whirlpool Range Igniter In Stock WPL WP7432P136-60 $45.93

SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability

74008818 Whirlpool Broil Burner Fitting Backorder WPL 74008818 $30.25

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

MAY 74008924 MAY 74008924 Contact Us For Availability

TRIM, BOTTOM (BLK) MAY 74008889 Contact Us For Availability

16

74008830 Whirlpool Range Broil Tubing Backorder WPL 74008830 $33.03

16

FAN, CONVECTION ASSY. MAY 74009142 Contact Us For Availability

MAY 71001394 MAY 71001394 Contact Us For Availability

COVER, CONVECT MAY 74005783 Contact Us For Availability

MAY 74008902 MAY 74008902 Contact Us For Availability

BURNER, BROIL MAY 74008820 Contact Us For Availability

INSULATION, WRAPPER MAY 74008700 Contact Us For Availability

INSERT, HALF RACK 30`` MAY 74008473 Contact Us For Availability

TRIM, SIDE (BLK) MAY 74010560 Contact Us For Availability

MAY 74008901 MAY 74008901 Contact Us For Availability

MAY 31945701 MAY 31945701 Contact Us For Availability

19

WP74009147 Whirlpool Control Knob In Stock WPL WP74009147 $32.31

19

MAY 74008686 MAY 74008686 Contact Us For Availability

20

WP3405F037-80 Whirlpool Utility Drawer Backorder WPL WP3405F037-80 $177.93

20

NUT, WING MAY 7103P030-60 Contact Us For Availability

21

PANEL, DRAWER (BLK) MAY 74009035 Contact Us For Availability

23

WP74004078 Whirlpool Door Roller In Stock WPL WP74004078 $5.00

24

WP488130 Whirlpool Air Conditioner Nut Backorder WPL WP488130 $3.09

25

MAY 74009026 MAY 74009026 Contact Us For Availability

26

SHAFT, STORAGE DRAWER ROLLER MAY 74005231 Contact Us For Availability

27

TAPE, DBL SIDED (BLK) MAY 74009025 Contact Us For Availability

28

74007237 Whirlpool Spacer Backorder WPL 74007237 $34.09

28

MAY 74009060 MAY 74009060 Contact Us For Availability

NI

MAY 15003327 MAY 15003327 Contact Us For Availability
