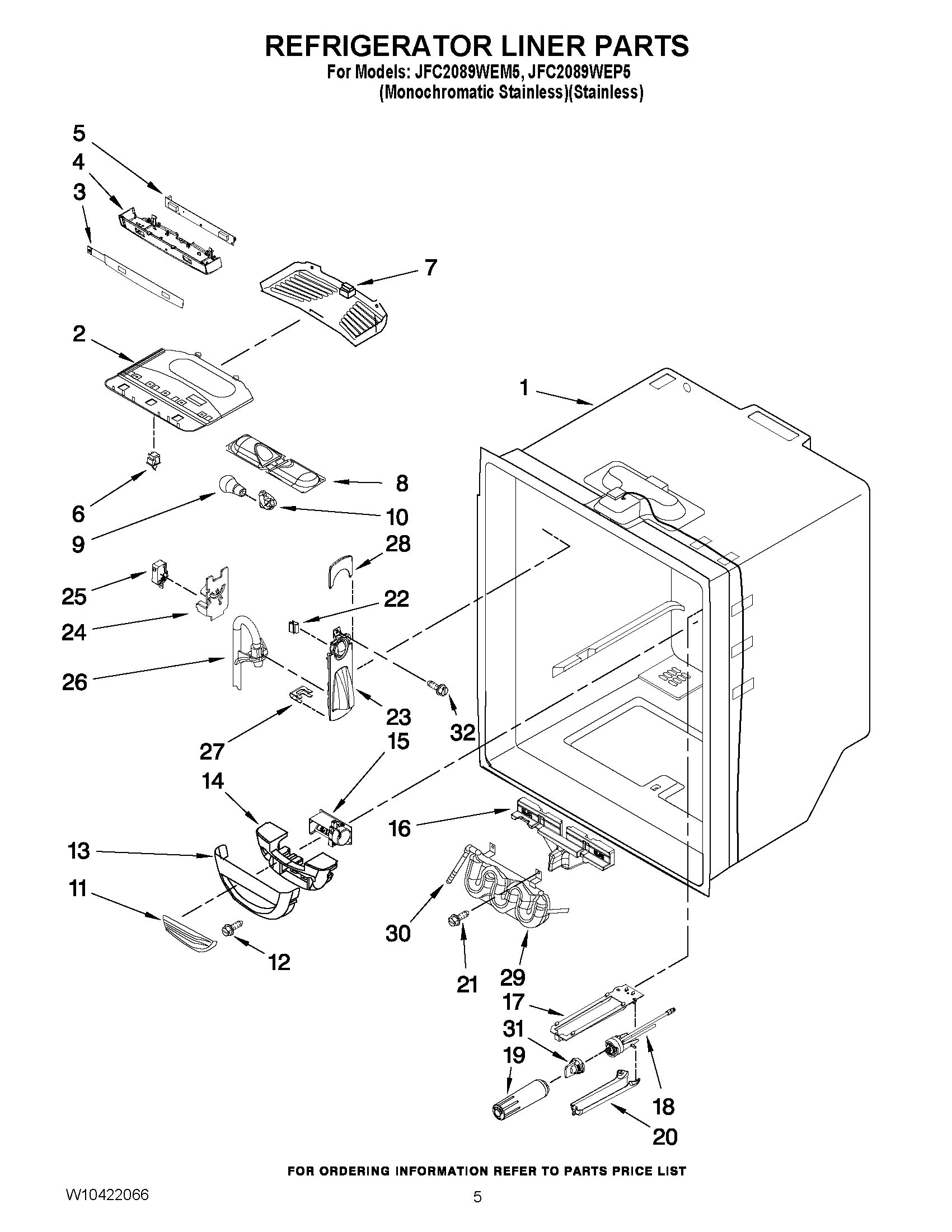

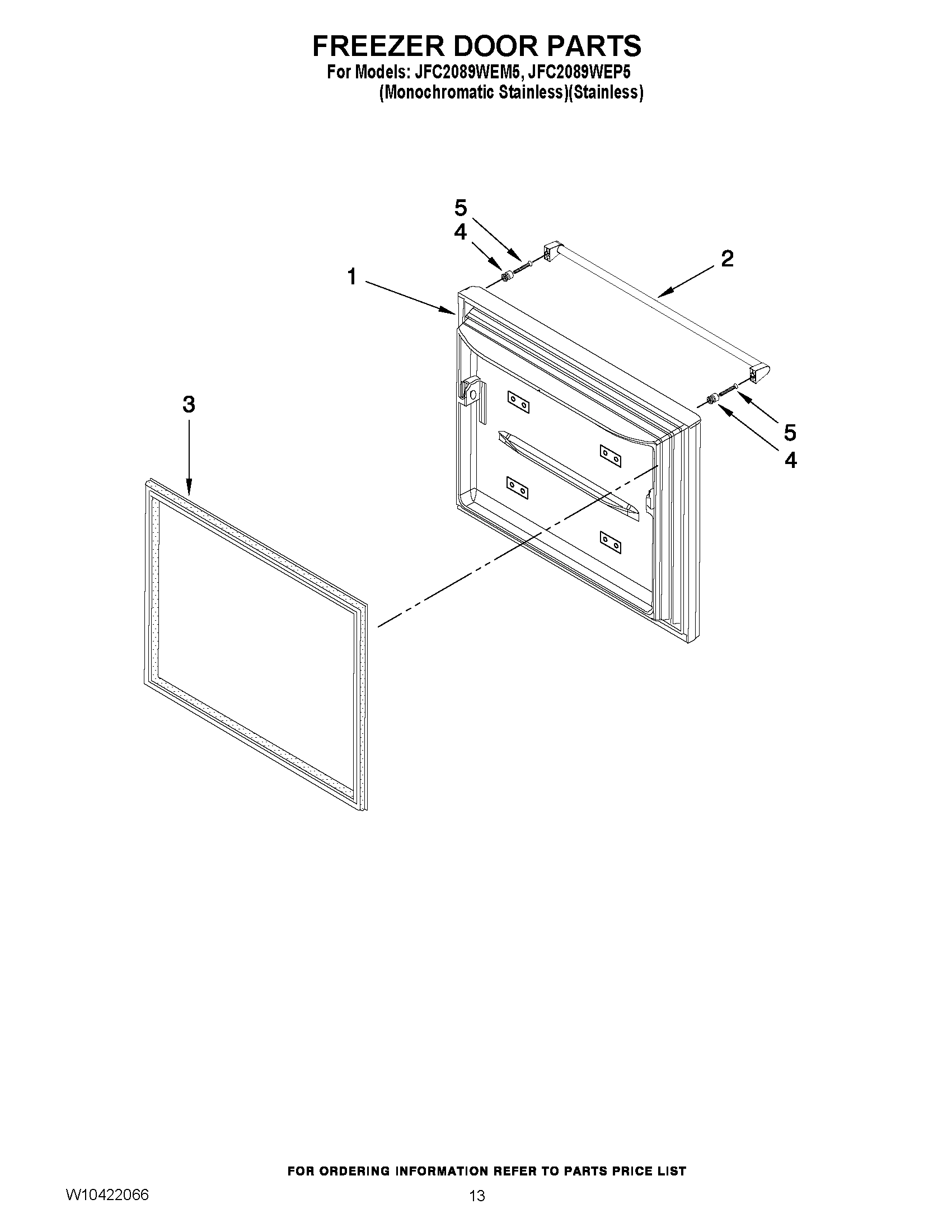

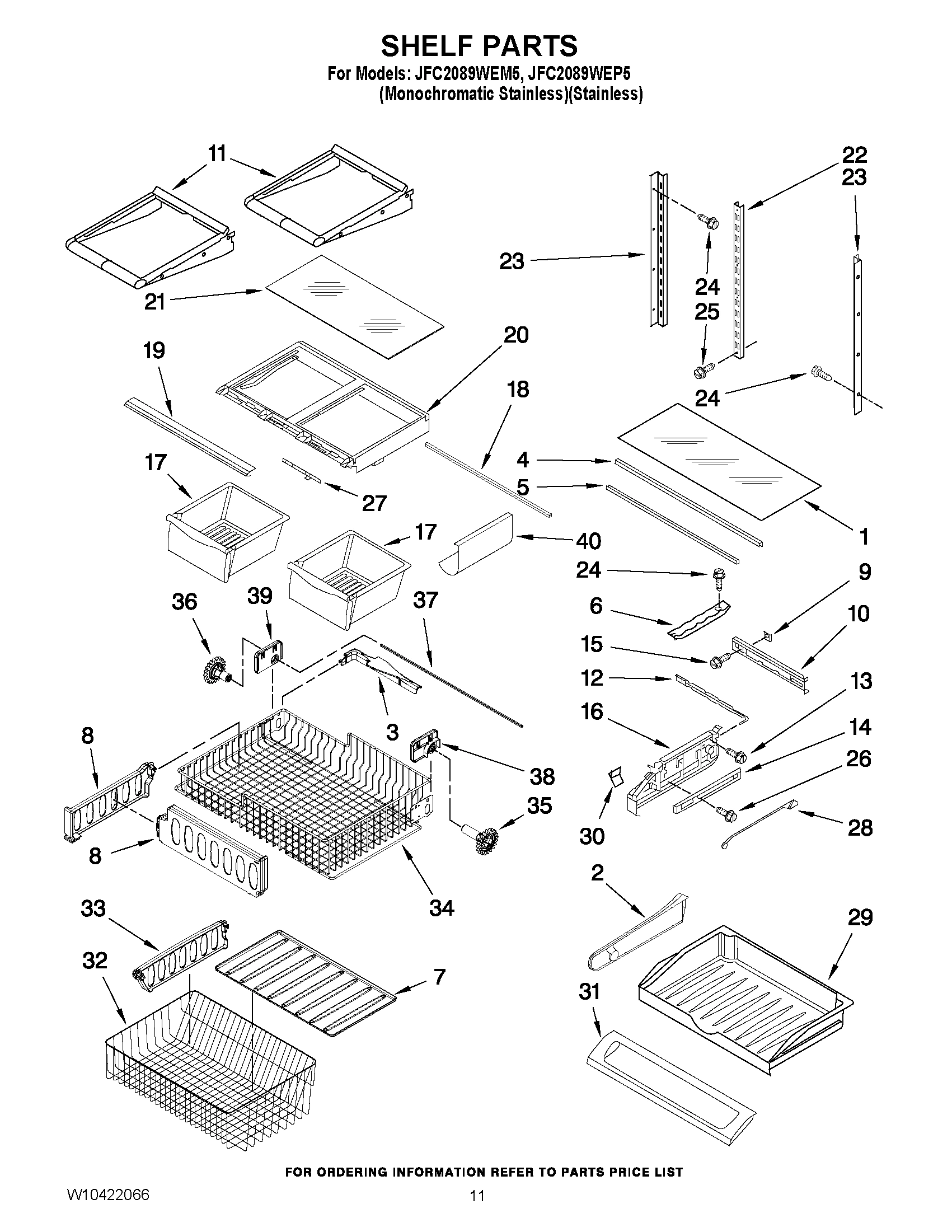

Model Whirlpool JFC2089WEM5 REFRIGERATOR – Common Parts &amp; Diagrams

1

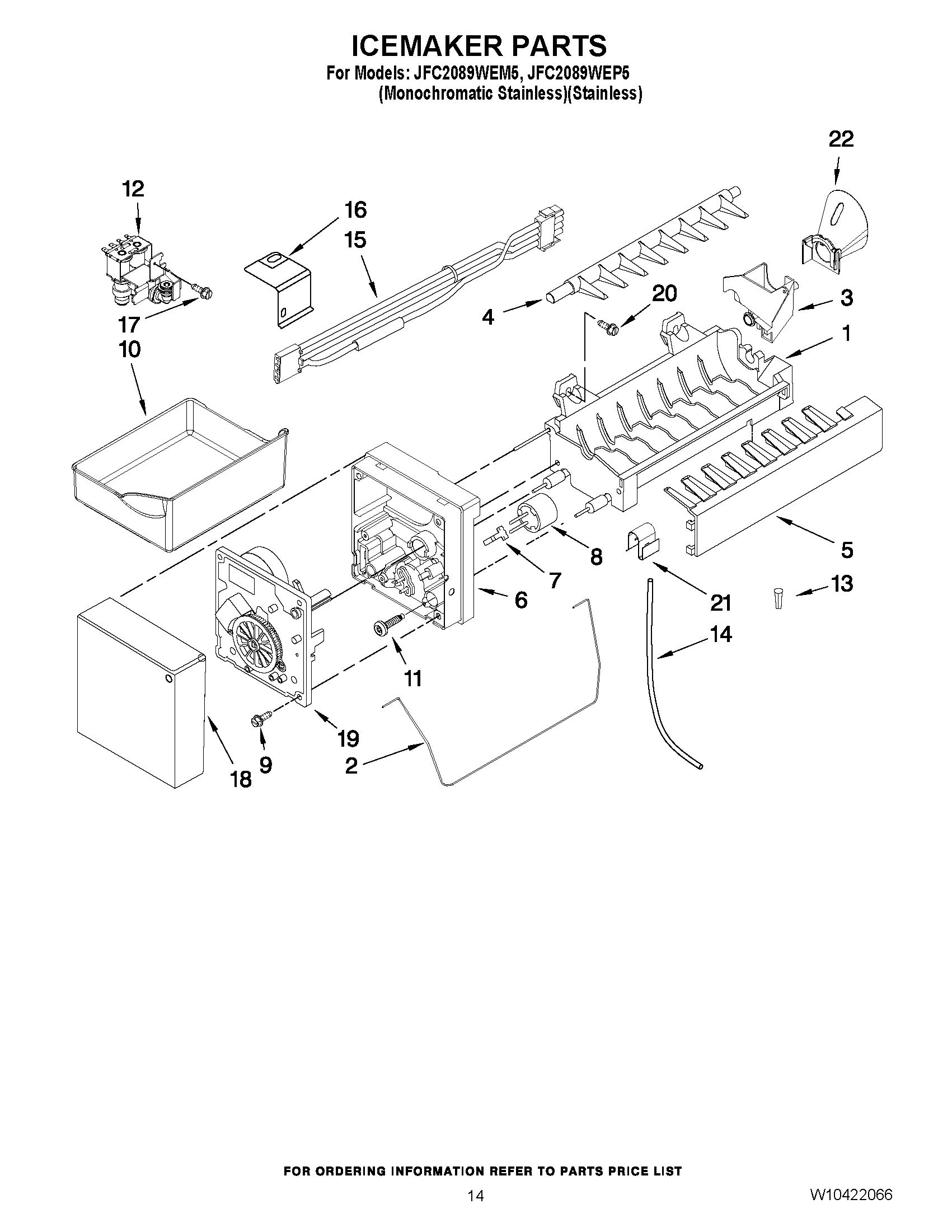

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $159.53

1

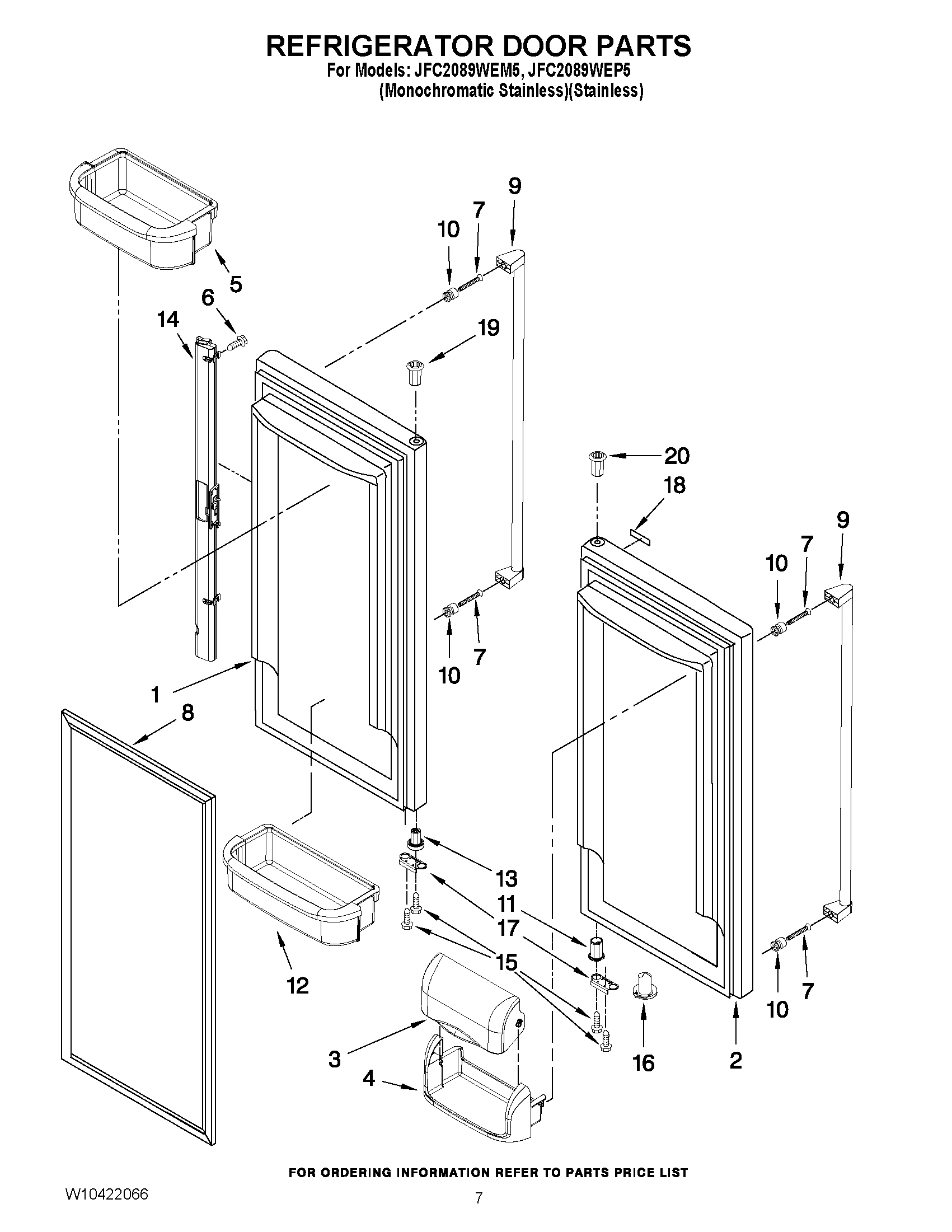

DOOR, LEFT (STAINLESS) WPL 13107711S Contact Us For Availability

2

W11285509 Whirlpool Refrigerator Shut-Off Arm Backorder WPL W11285509 $57.23

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $40.95

2

WPW10210625 Whirlpool Refrigerator Handle Backorder WPL WPW10210625 $222.97

2

WPW10298179 Whirlpool Refrigerator Handle Backorder WPL WPW10298179 $228.27

2

DOOR, RIGHT (STAINLESS) WPL 13107712S Contact Us For Availability

3

W10122561 Whirlpool Refrigerator Cup Fill In Stock WPL W10122561 $10.60

3

W10149389 Whirlpool Refrigerator Handle Backorder WPL W10149389 $33.29

3

WP67003637 Whirlpool Dairy Door Backorder WPL WP67003637 $48.32

3

KEYBOARD WPL W10316408 Contact Us For Availability

4

B5759655 Whirlpool Refrigerator Gasket Backorder WPL B5759655 $7.98

4

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $33.29

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $53.90

5

67004748 Whirlpool Refrigerator Door Bucket Backorder WPL 67004748 $53.83

5

W10267047 Whirlpool Screw Backorder WPL W10267047 $9.96

5

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $30.97

5

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $37.53

5

WPW10319823-includeCORE Whirlpool WPW10319823 Backorder WPL WPW10319823-includeCORE $213.93

5

COVER, RIGHT HINGE (BLACK) WPL 12629801AP Contact Us For Availability

6

W11311945 Whirlpool Refrigerator Screw Backorder WPL W11311945 $9.96

6

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $42.88

6

WPW10233569 Whirlpool Refrigerator Tube Backorder WPL WPW10233569 $49.91

7

W10157765 Whirlpool Refrigerator Deflector Backorder WPL W10157765 $33.29

7

W10292242 Whirlpool Refrigerator Wire Harness Backorder WPL W10292242 $109.17

7

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.77

7

SCREW, MOUNT WPL W10290759 Contact Us For Availability

8

W10241046 Whirlpool Refrigerator Divider Backorder WPL W10241046 $12.92

8

W10830162 Whirlpool Refrigerator Right Hand D In Stock WPL W10830162 $138.29

8

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $48.45

9

W10829281 Whirlpool Refrigerator Screw Backorder WPL W10829281 $5.21

9

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.84

9

WPW10298244 Whirlpool Refrigerator Handle Backorder WPL WPW10298244 $231.07

9

HANDLE-DOOR ((JFC2089WEP2)) WPL W10210624 Contact Us For Availability

12626910ED Whirlpool Refrigerator Door Hinge Backorder WPL 12626910ED $44.99

12656202 Whirlpool Refrigerator Housing Backorder WPL 12656202 $60.35

W10825088 Whirlpool Refrigerator Defrost Heat In Stock WPL W10825088 $88.42

W11469652 Whirlpool Refrigerator Shield Backorder WPL W11469652 $11.17

WP67006113 Whirlpool Stud Bolt In Stock WPL WP67006113 $5.19

WPW10171529 Whirlpool Refrigerator Ice Pan In Stock WPL WPW10171529 $65.69

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.96

W11661170 Whirlpool Clip Backorder WPL W11661170 $4.56

W11727809 Whirlpool Evaporator Cover Backorder WPL W11727809 $37.91

WP12463911 Whirlpool Refrigerator Glass Shelf Backorder WPL WP12463911 $138.51

BUSHING, DOOR (BOTTOM RIGHT) WPL 12028601AP Contact Us For Availability

12

67004749 Whirlpool Refrigerator Door Shelf Ga Backorder WPL 67004749 $54.85

12

WP12544124 Whirlpool Refrigerator Valve In Stock WPL WP12544124 $126.56

12

WPW10194431 Whirlpool Start Device In Stock WPL WPW10194431 $67.38

W10121318 Whirlpool Refrigerator Grommet Backorder WPL W10121318 $31.54

W10217487 Whirlpool Refrigerator Cover Backorder WPL W10217487 $11.46

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $43.72

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $3.84

BUSHING, DOOR (BOTTOM LEFT) WPL 12699301AP Contact Us For Availability

W11120581 Whirlpool Refrigerator Water Tube In Stock WPL W11120581 $50.31

W11750607 Whirlpool Insulation Backorder WPL W11750607 $21.15

WP12722803AP Whirlpool Refrigerator Mullion R In Stock WPL WP12722803AP $110.90

WPW10235370 Whirlpool Refrigerator Glide Backorder WPL WPW10235370 $125.32

WPW10277025 Whirlpool Refrigerator Housing Backorder WPL WPW10277025 $60.44

WPW10317076-includeCORE Whirlpool WPW10317076 Backorder WPL WPW10317076-includeCORE $302.03

12655102AP Whirlpool Refrigerator Door Hinge Backorder WPL 12655102AP $55.40

CLIP, EVAP. MOTOR WPL 13058002 No Longer Available

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.60

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $30.76

WPW10594329 Whirlpool Control Damper In Stock WPL WPW10594329 $106.14

WP12028505AP Whirlpool Closing Cam In Stock WPL WP12028505AP $32.03

WP12656018 Whirlpool Drawer Support In Stock WPL WP12656018 $32.60

WP12656105 Whirlpool Drawer Support In Stock WPL WP12656105 $35.70

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $33.29

WPW10163893 Whirlpool Refrigerator Insulation Backorder WPL WPW10163893 $33.29

Block, Fill Tube WPL 12777701 Contact Us For Availability

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $9.20

W11401472 Whirlpool Refrigerator Door Stop Backorder WPL W11401472 $11.17

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.84

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.73

12626911ED Whirlpool Refrigerator Door Hinge Backorder WPL 12626911ED $33.29

W11636815 Whirlpool Nameplate Backorder WPL W11636815 $28.27

WP12227304WD Whirlpool Refrigerator Drawer Su Backorder WPL WP12227304WD $49.86

WPW10214168 Whirlpool Refrigerator Nameplate Backorder WPL WPW10214168 $43.11

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.74

WPW10346415 Whirlpool Refrigerator Condenser Backorder WPL WPW10346415 $168.41

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $90.00

EDR4RXD1 Whirlpool EveryDrop® Refrigerator W In Stock WPL EDR4RXD1 $57.82

Trim, Crisper WPL W10231478 Contact Us For Availability

BUSHING, DOOR (UPPER LEFT) (BALCK) WPL 12395501AP Contact Us For Availability

10961006AP Whirlpool Refrigerator Hinge Bushi Backorder WPL 10961006AP $5.93

W11159728 Whirlpool Refrigerator Gasket In Stock WPL W11159728 $10.49

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $33.95

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.60

21

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.79

22

12918001 Whirlpool Refrigerator Funnel Backorder WPL 12918001 $7.98

22

W10273463 Whirlpool Refrigerator Ladder Backorder WPL W10273463 $11.82

22

W11256565 Whirlpool Refrigerator Evaporator In Stock WPL W11256565 $164.50

23

DAM (LEFT SIDE) WPL 12225602 Contact Us For Availability

24

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $55.02

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $14.17

25

W10215666 Whirlpool Refrigerator Screw Backorder WPL W10215666 $5.87

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $69.09

26

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $7.43

W10208593 Whirlpool Refrigerator Valve Cover Backorder WPL W10208593 $9.60

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $15.24

WPW10281115 Whirlpool Refrigerator Bracket Backorder WPL WPW10281115 $30.59

WPW10281116 Whirlpool Bracket Backorder WPL WPW10281116 $30.59

28

W11658403 Whirlpool Slides In Stock WPL W11658403 $86.57

12831101 Whirlpool Refrigerator Tube Clamp Backorder WPL 12831101 $7.98

W11229977 Whirlpool Refrigerator Reservoir In Stock WPL W11229977 $56.06

WPW10284692 Whirlpool Refrigerator Bracket Backorder WPL WPW10284692 $48.96

WPW10284693 Whirlpool Mounting Bracket Backorder WPL WPW10284693 $48.93

30

WPW10211855 Whirlpool Refrigerator Back Cover Backorder WPL WPW10211855 $88.79

W10827015 Whirlpool Refrigerator Pantry Drawe In Stock WPL W10827015 $120.38

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $11.74

W11395888 Whirlpool Refrigerator Bypass Filte In Stock WPL W11395888 $28.10

W11556315 Whirlpool Shroud Backorder WPL W11556315 $32.13

32

Insulation, Sound WPL 12820505 Contact Us For Availability

33

W10150061 Whirlpool Refrigerator Divider Backorder WPL W10150061 $33.29

33

W11226688 Whirlpool Refrigerator Cover Backorder WPL W11226688 $35.00

33

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $4.03

35

12961602 Whirlpool Refrigerator Wire Cover Backorder WPL 12961602 $45.24

37

W11173556 Whirlpool Refrigerator Shaft Backorder WPL W11173556 $11.29

38

W10348260 Whirlpool Refrigerator Bracket Backorder WPL W10348260 $35.11

39

W10348259 Whirlpool Refrigerator Bracket Asse Backorder WPL W10348259 $35.11

100

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $64.55

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.41

350930 Whirlpool White Spray Paint In Stock WPL 350930 $22.23

350942 Whirlpool Spray Paint Backorder WPL 350942 $52.25

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $45.60

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $30.29

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $10.93

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $10.93

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.84

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $37.34

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $39.24

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $41.04

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $45.28

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $66.85

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $25.50

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $29.93

WPW10224292 Whirlpool Refrigerator Wire Harne In Stock WPL WPW10224292 $61.85

Valve, Access (5/8``) WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
