Model Maytag JFC2089BEP03 REFRIGERATOR, FRENCH DOOR, BOTTOM MOUNT – Common Parts & Diagrams
01 - COVER SHEET
02 - CABINET PARTS

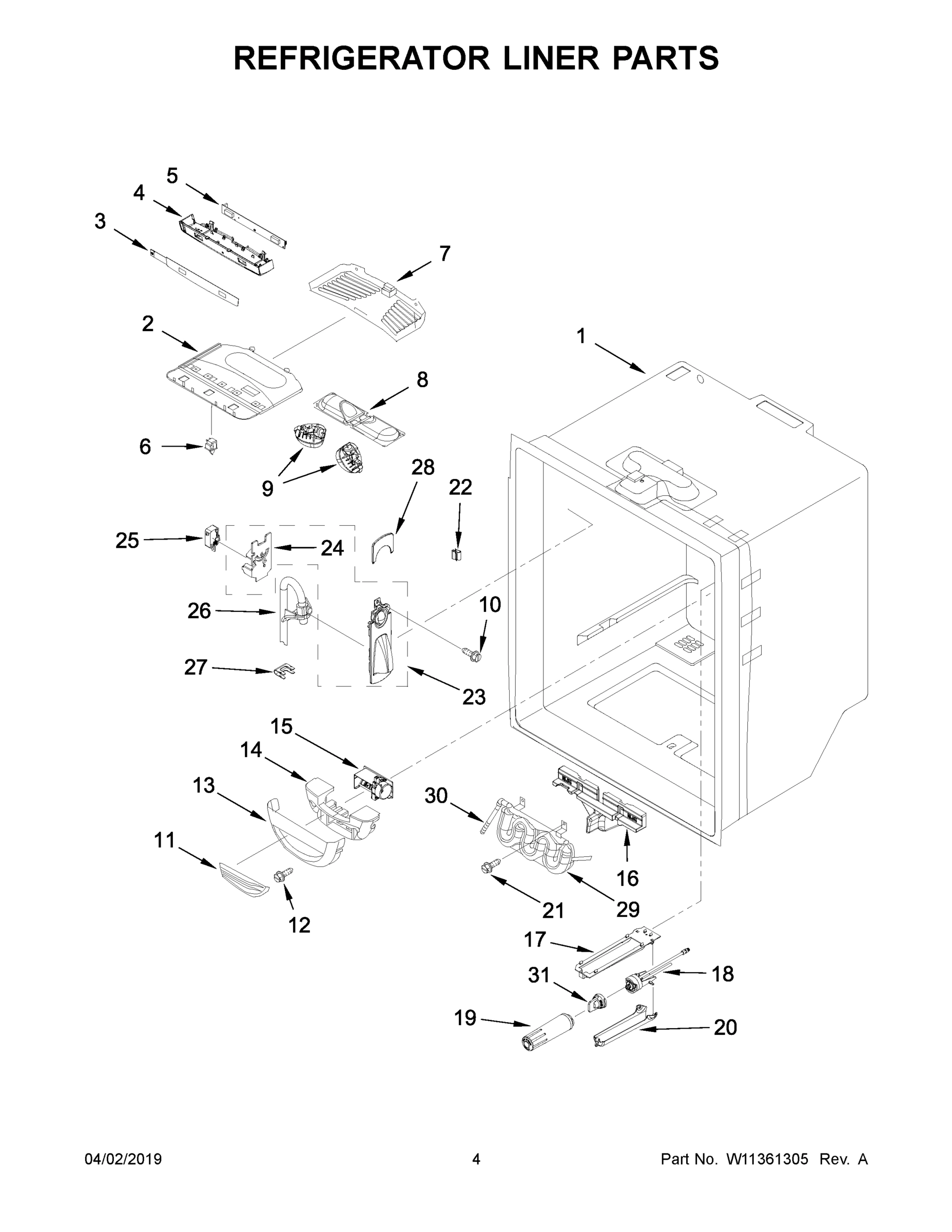

03 - REFRIGERATOR LINER PARTS

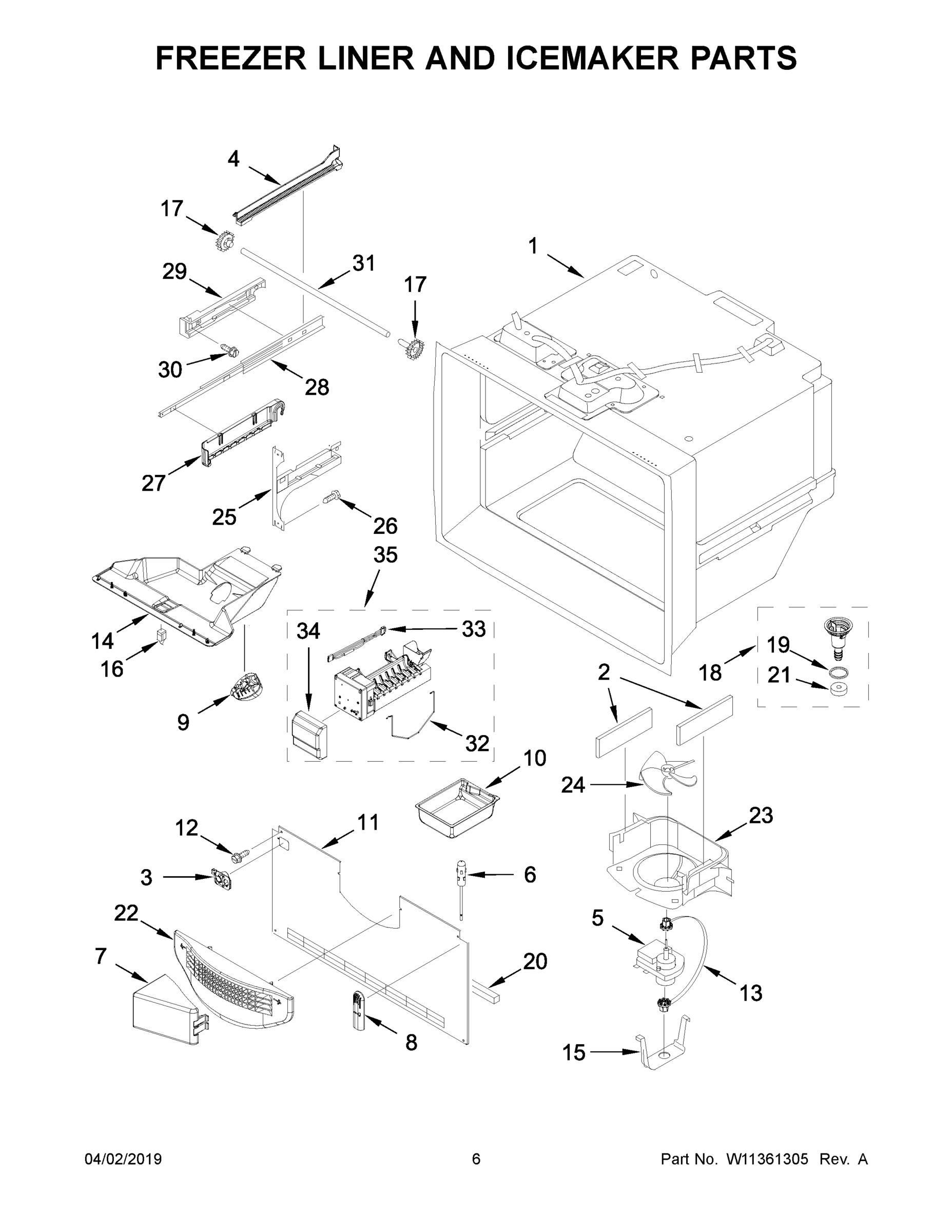

04 - FREEZER LINER AND ICEMAKER PARTS

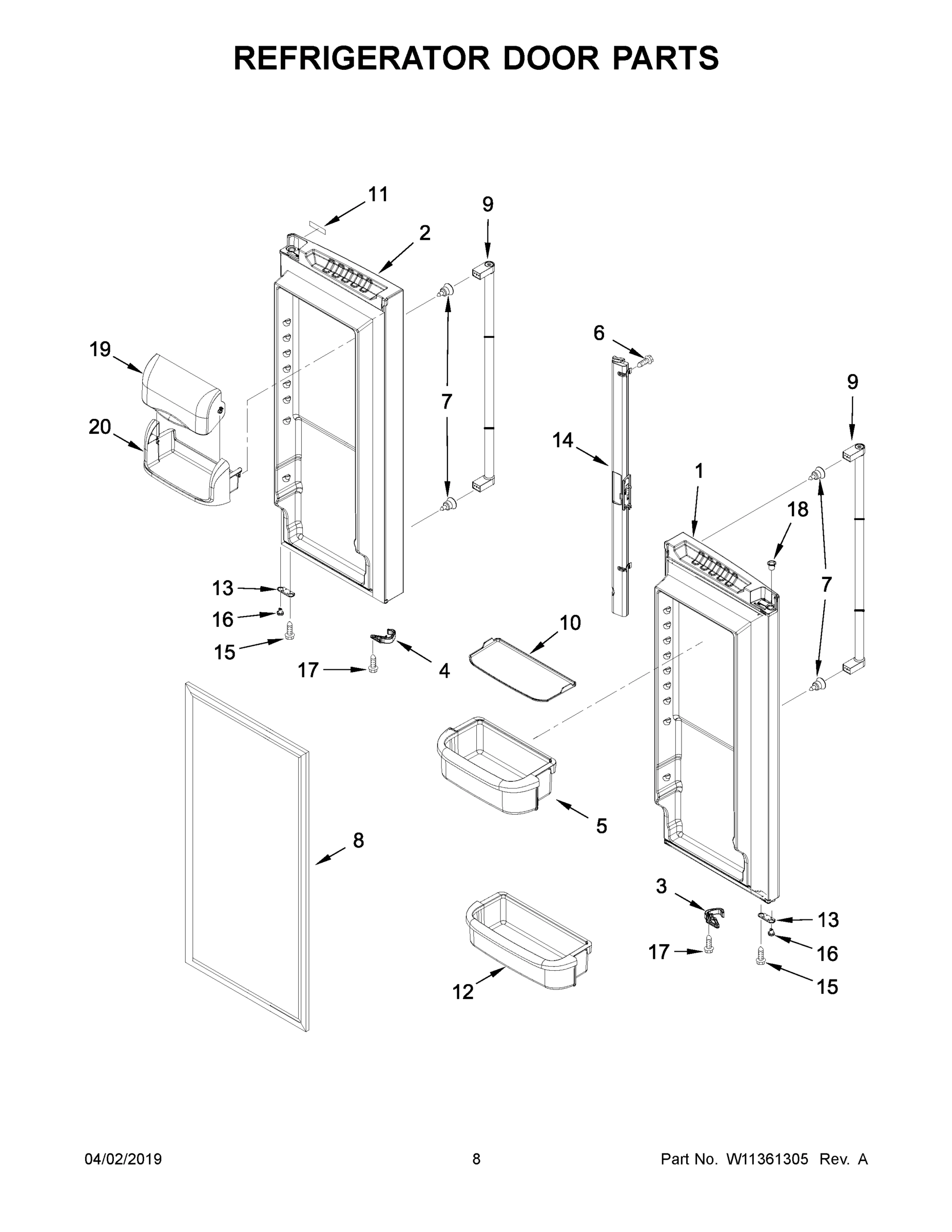

05 - REFRIGERATOR DOOR PARTS

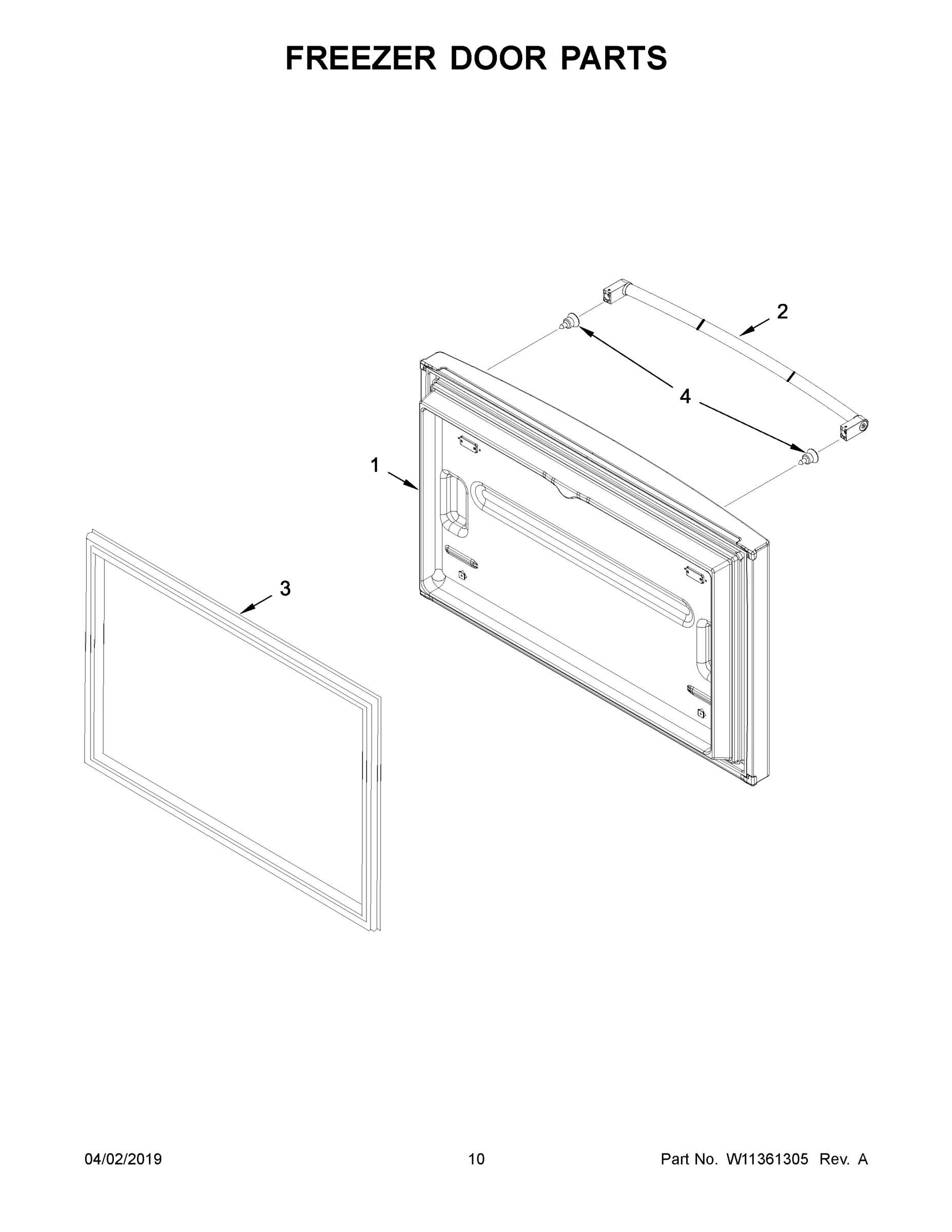

06 - FREEZER DOOR PARTS

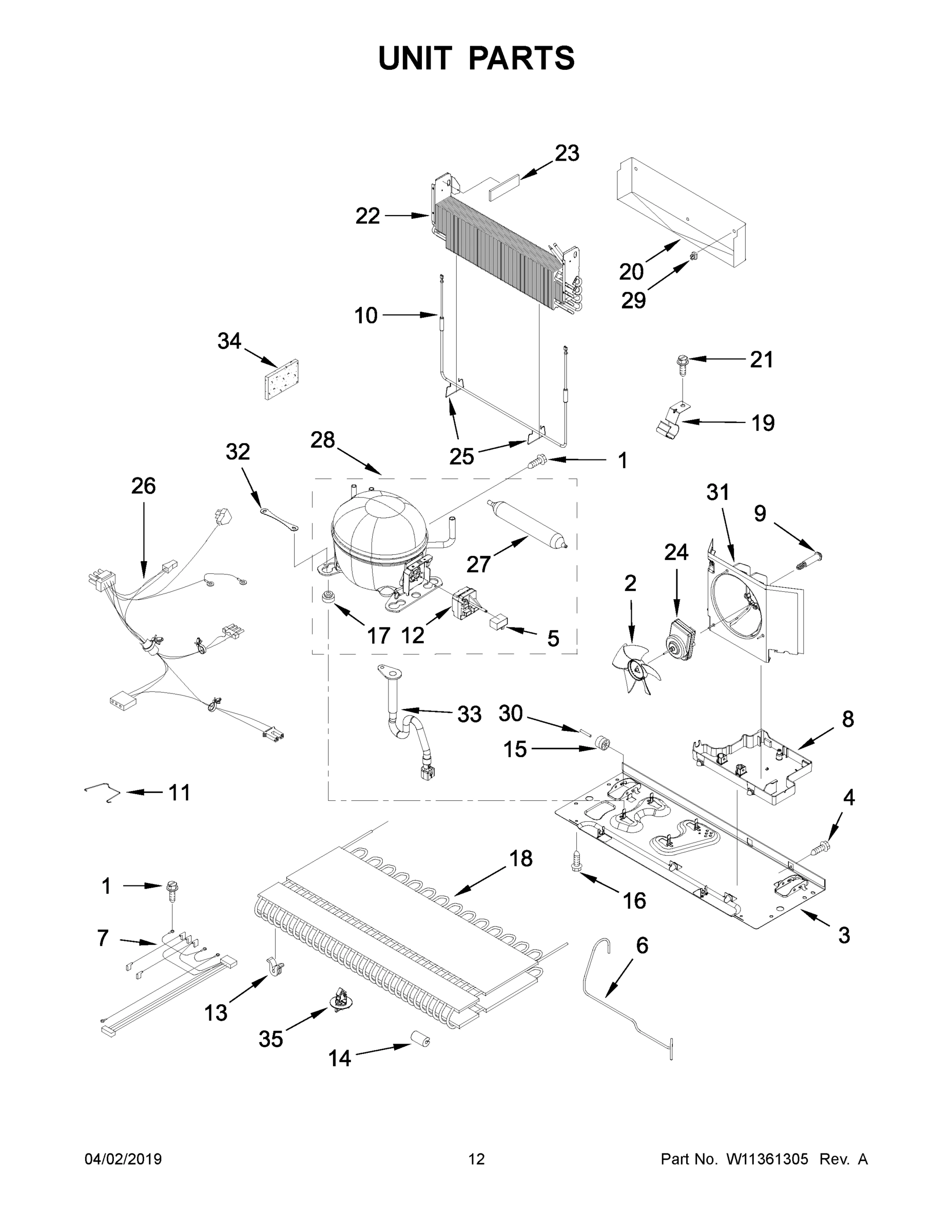

07 - UNIT PARTS

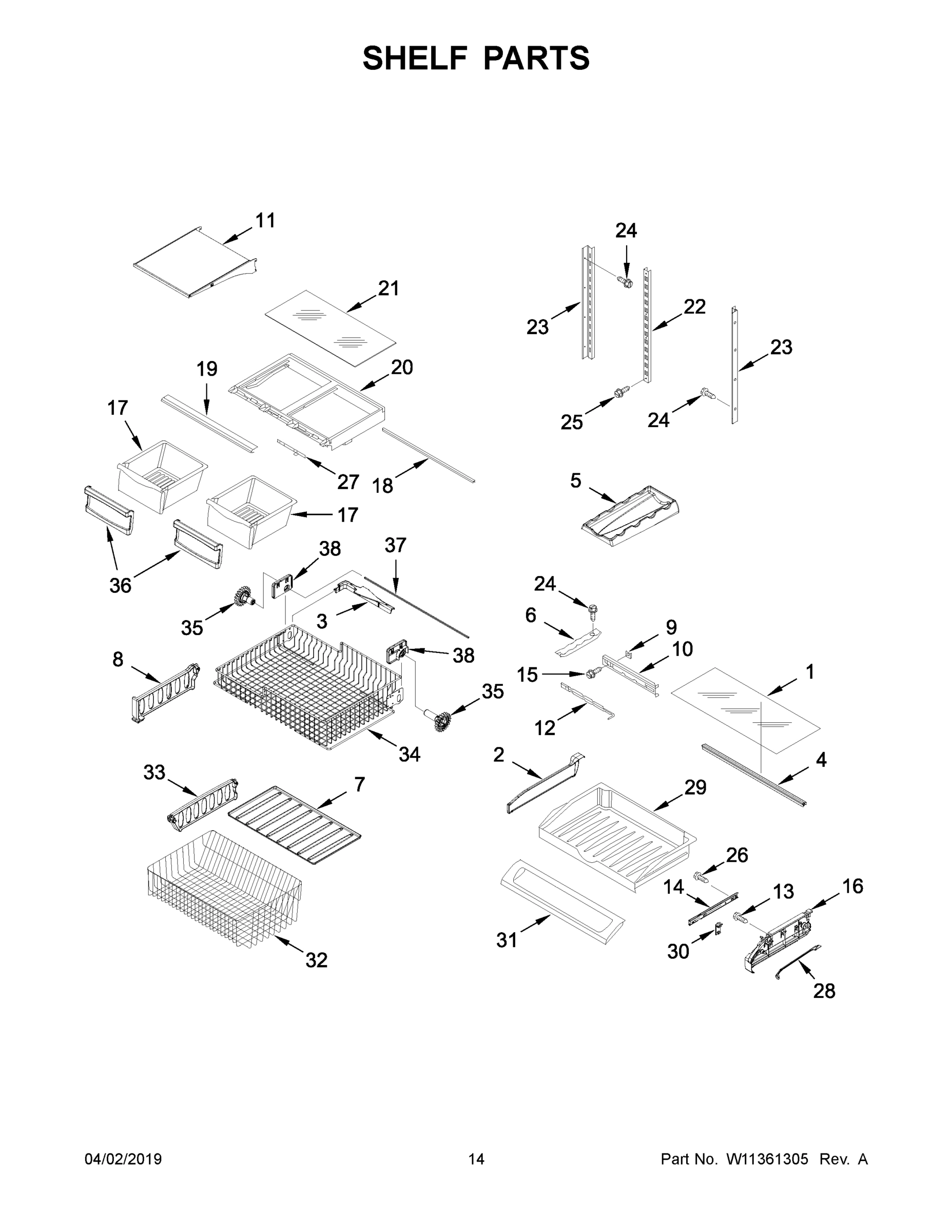

08 - SHELF PARTS
09 - OPTIONAL PARTS
Common parts from model Maytag JFC2089BEP03 REFRIGERATOR, FRENCH DOOR, BOTTOM MOUNT
1
DOOR, REFRIGERATOR LEFT HAND (STAINLESS) MAY 13107881S Contact Us For Availability
1
DOOR, FREEZER (STAINLESS) MAY 12977864S Contact Us For Availability
1
SCREW MAY 12992301 Contact Us For Availability
1
GLASS, PANTRY MAY W10893771 Contact Us For Availability
2
MODULE, LIGHT MAY W10464764 Contact Us For Availability
2
GASKET, FOAM MAY A3189392 Contact Us For Availability
2
DOOR, REFRIGERATOR RIGHT HAND (STAINLESS) MAY 13107855S Contact Us For Availability
2
HANDLE, DOOR (PRO STYLE) MAY W10605389 Contact Us For Availability
2
BLADE, FAN MAY 12825803 Contact Us For Availability
2
DIVIDER, PANTRY MAY 12709301 Contact Us For Availability
3
OVERLAY MAY W10632601 Contact Us For Availability
3
MAY W11261524 MAY W11261524 Contact Us For Availability
3
LATCH, DOOR CLOSER LEFT HAND (GREY) MAY W10833741 Contact Us For Availability
3
GASKET, DOOR (GREY) MAY W10443320 Contact Us For Availability
3
BASEPAN MAY W10480111 Contact Us For Availability
3
LIFT, BAIL ARM MAY W10149389N Contact Us For Availability
4
GASKET MAY B5759655 Contact Us For Availability
4
SCREW MAY 12990511 Contact Us For Availability
4
MODULE, CONTROL MAY W10464767 Contact Us For Availability
4
RACK, SIDE (LEFT HAND) MAY W10516605 Contact Us For Availability
4
LATCH, DOOR CLOSER RIGHT HAND (GREY) MAY W10833739 Contact Us For Availability
4
SCREW MAY W10460893 Contact Us For Availability
4
SUPPORT, GLASS (INCLUDES PANTRY BRACE) MAY W10528933 Contact Us For Availability
4A
RACK, SIDE (RIGHT HAND) MAY W10516604 Contact Us For Availability
5
COVER, TOP HINGE LEFT HAND (GREY) MAY W10337648 Contact Us For Availability
5
BOARD, CONTROL MAY W10746274 Contact Us For Availability
5
MOTOR, EVAPORATOR MAY 13062901 Contact Us For Availability
5
BUCKET, MEDIUM MAY W10371194 Contact Us For Availability
5
CAPACITOR MAY W10350564 Contact Us For Availability
5
TRIVET, WINE MAY 12525101 Contact Us For Availability
6
COVER, TOP HINGE RIGHT HAND (GREY) MAY 12962302AP Contact Us For Availability
6
SWITCH, LIGHT MAY W10847853 Contact Us For Availability
6
THERMISTOR MAY 12791419SP Contact Us For Availability
6
SCREW MAY 12990204 Contact Us For Availability
6
TUBE, DISCHARGE MAY W10233569 Contact Us For Availability
6
TRACK, DELI DRAWER MAY 12531901 Contact Us For Availability
7
SWEEP, DUAL TUBE MAY W10528513 Contact Us For Availability
7
COVER, LIGHT MAY W11132917 Contact Us For Availability
7
DIVERTER, AIR MAY W10157765 Contact Us For Availability
7
MAY W11174745 MAY W11174745 Contact Us For Availability
7
TRAY, LOWER BASKET MAY 12727304 Contact Us For Availability
8
HOUSING, LIGHT MAY W10443023 Contact Us For Availability
8
COVER, THERMISTOR MAY 12815301 Contact Us For Availability
8
GASKET, DOOR (GREY) MAY W10830162 Contact Us For Availability
8
PAN, DRAIN MAY W10655368 Contact Us For Availability
8
DIVIDER, BASKET (UPPER) MAY W10241046 Contact Us For Availability
9
SCREW MAY 12992602 Contact Us For Availability
9
MAY W11251749 MAY W11251749 Contact Us For Availability
9
HANDLE, DOOR (STAINLESS) MAY W10605387 Contact Us For Availability
9
SCREW MAY W10622701 Contact Us For Availability
9
GASKET, PANTRY MAY 12656901 Contact Us For Availability
10
HINGE, TOP (LEFT HAND) MAY 12963204ED Contact Us For Availability
10
PAN, ICE MAY W10171529N Contact Us For Availability
10
GRIPPER, GALLON MAY W10449760 Contact Us For Availability
10
HEATER, DEFROST MAY 12729123 Contact Us For Availability
10
HOUSING, CONTROL MAY 12656202 Contact Us For Availability
10A
HINGE, TOP (RIGHT HAND) MAY 12963205ED Contact Us For Availability
10A
GRIPPER, MEDIUM MAY W10450021 Contact Us For Availability
11
SCREW (STAINLESS) MAY W10673840 Contact Us For Availability
11
INSERT, DAMPER COVER MAY 12806801 Contact Us For Availability
11
COVER, EVAPORATOR MAY W10308416 Contact Us For Availability
11
NAMEPLATE (STAINLESS) MAY W10214168 Contact Us For Availability
11
STRAP, BALE MAY W10216075 Contact Us For Availability
11
ASSEMBLY, SHELF MAY W10878956 Contact Us For Availability
12
COVER, CONTROL BOX MAY 12961602 Contact Us For Availability
12
SCREW MAY 12990604 Contact Us For Availability
12
BUCKET, GALLON MAY W10289497 Contact Us For Availability
12
DEVICE, START MAY W10796752 Contact Us For Availability
12
SLIDE, TEMPERATURE CONTROL MAY 12655402 Contact Us For Availability
13
LID, HV BOX MAY 12957702SP Contact Us For Availability
13
COVER, DAMPER MAY 12806701 Contact Us For Availability
13
SCREW MAY 12990512 Contact Us For Availability
13
GROMMET, FAN MOTOR MAY W10150583 Contact Us For Availability
13
STOP, DOOR (GREY) MAY 12968202AP Contact Us For Availability
13
GROMMET, CONDENSER MAY W10137529 Contact Us For Availability
14
SCREW MAY 12992403 Contact Us For Availability
14
INSULATION, DAMPER MAY 13012402 Contact Us For Availability
14
MODULE, LIGHT MAY W10277025 Contact Us For Availability
14
MULLION, DOOR (GREY) MAY 12722803APN Contact Us For Availability
14
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
14
GLIDE, PANTRY MAY W10235370 Contact Us For Availability
15
HINGE, CENTER LEFT HAND (GREY) MAY W10740150 Contact Us For Availability
15
CONTROL, DAMPER MAY W10594329 Contact Us For Availability
15
CLIP, EVAPORATOR MOTOR MAY 13058002 Contact Us For Availability
15
ROLLER MAY 12477102 Contact Us For Availability
16
HINGE, CENTER RIGHT HAND (GREY) MAY W10740146 Contact Us For Availability
16
INSULATION, TANK MAY W10163893 Contact Us For Availability
16
SWITCH, LIGHT MAY W10847849 Contact Us For Availability
16
CLOSURE, DOOR (GREY) MAY 12028505AP Contact Us For Availability
16
SCREW MAY 12992101 Contact Us For Availability
16
ENDCAP, PANTRY (LEFT HAND) MAY 12656105 Contact Us For Availability
16A
ENDCAP, PANTRY (RIGHT HAND) MAY 12656018 Contact Us For Availability
17
COVER, CORNER (GREY) MAY 12587703AP Contact Us For Availability
17
PLATE, FILTER MAY 12704801 Contact Us For Availability
17
SCREW MAY 12990519 Contact Us For Availability
17
GROMMET MAY 10835903 Contact Us For Availability
17
PAN, CRISPER MAY 12531105SP Contact Us For Availability
18
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
18
MAY W11308018 MAY W11308018 Contact Us For Availability
18
ASSEMBLY, DRAIN FUNNEL MAY W10662407 Contact Us For Availability
18
CLIP, BUSHING MAY 12996601 Contact Us For Availability
18
CONDENSER MAY W10346415 Contact Us For Availability
18
BRACE, CRISPER COVER MAY W10832723 Contact Us For Availability
19
ASSEMBLY, ROLLER (LEFT HAND) MAY W10515763 Contact Us For Availability
19
MAY W11256384 MAY W11256384 Contact Us For Availability
19
SEAL MAY M0500703 Contact Us For Availability
19
DOOR, DAIRY MAY 12804701SP Contact Us For Availability
19
CLIP, DRIER MAY W10281329 Contact Us For Availability
19
TRIM, CRISPER MAY W10231485N Contact Us For Availability
19A
ASSEMBLY, ROLLER (RIGHT HAND) MAY W10515762 Contact Us For Availability
20
SCREW MAY W10709365 Contact Us For Availability
20
GASKET MAY A3189396 Contact Us For Availability
20
TRAY, DAIRY MAY 12369502SP Contact Us For Availability
20
TRAY, DRIP MAY W10292803 Contact Us For Availability
20
FRAME, CRISPER MAY 12531202SP Contact Us For Availability
21
SHIM, TOP HINGE (LEFT HAND) MAY 12999501 Contact Us For Availability
21
GASKET, DRAIN MAY B8381501 Contact Us For Availability
21
SCREW MAY 12990701 Contact Us For Availability
21
GLASS, CRISPER MAY 12204821 Contact Us For Availability
21A
SHIM, TOP HINGE (RIGHT HAND) MAY 12999502 Contact Us For Availability
22
GRILLE, TOE (GREY) MAY W10534155 Contact Us For Availability
22
CLIP, FACADE MAY B8390302 Contact Us For Availability
22
GRILLE, FREEZER AIR MAY 13024803 Contact Us For Availability
22
EVAPORATOR MAY W10669255 Contact Us For Availability
22
LADDER, CENTER MAY W10273463 Contact Us For Availability
23
CLAMP, TUBE MAY M0108107 Contact Us For Availability
23
FACADE, DISPENSER MAY W10585703 Contact Us For Availability
23
SHROUD, EVAPORATOR FAN MAY 13057901 Contact Us For Availability
23
GASKET, FOAM MAY A3189397 Contact Us For Availability
23
LADDER, SIDE MAY W10569182 Contact Us For Availability
24
GASKET, CONTROL BOX MAY 12957801 Contact Us For Availability
24
SCREW MAY 12990513 Contact Us For Availability
24
PLATE, DISPENSER MAY W10585699 Contact Us For Availability
24
BLADE, FAN MAY 2169142 Contact Us For Availability
24
MOTOR, CONDENSER FAN MAY W10909377 Contact Us For Availability
25
BRACKET, DOOR (LEFT HAND) MAY W10330994 Contact Us For Availability
25
SCREW MAY W10215666 Contact Us For Availability
25A
BRACKET, DOOR (RIGHT HAND) MAY W10330995 Contact Us For Availability
26
SCREW MAY 12990504 Contact Us For Availability
26
COVER, WATER LINE MAY 12726003 Contact Us For Availability
26
GUIDE, WATERLINE MAY W11031909 Contact Us For Availability
26
SCREW MAY 12990521 Contact Us For Availability
26
MAY W11224411 MAY W11224411 Contact Us For Availability
27
GUARD, DUAL WATER VALVE MAY W10208593 Contact Us For Availability
27
CLIP, WATER TUBE MAY 12251001 Contact Us For Availability
27
CRADLE, BASKET (LEFT HAND) MAY W10281115 Contact Us For Availability
27
DRIER MAY W10177049 Contact Us For Availability
27
SLIDE, HUMIDITY CONTROL MAY 12530805SP Contact Us For Availability
27A
CRADLE, BASKET (RIGHT HAND) MAY W10281116 Contact Us For Availability
28
SCREW MAY 688983 Contact Us For Availability
28
FACADE, DISPENSER (TOP) MAY 12707005 Contact Us For Availability
28
SLIDE, DRAWER MAY 13055901 Contact Us For Availability
28
COMPRESSOR MAY W10879296 Contact Us For Availability
28
BAR, TEMPERATURE CONTROL MAY 12655303 Contact Us For Availability
29
BOARD, HV CONTROL MAY W10317076 Contact Us For Availability
29
TANK, WATER MAY W11097710 Contact Us For Availability
29
ADAPTER, SLIDE (LEFT HAND) MAY W10284692 Contact Us For Availability
29
CLIP, EVAPORATOR MAY 10623002 Contact Us For Availability
29
DRAWER, PANTRY MAY 12655702 Contact Us For Availability
29A
ADAPTER, SLIDE (RIGHT HAND) MAY W10284693 Contact Us For Availability
30
COVER, UNIT MAY W10211855 Contact Us For Availability
30
SCREW MAY 12990501 Contact Us For Availability
30
AXLE, ROLLER MAY 12477202 Contact Us For Availability
30
KNOB, TEMPERATURE CONTROL MAY 12655204 Contact Us For Availability
31
CARTRIDGE, BYPASS MAY 12664501SP Contact Us For Availability
31
SHAFT, RACK MAY W10802332 Contact Us For Availability
31
SHROUD, CONDENSER FAN MAY W10189184 Contact Us For Availability
31
LID, PANTRY MAY 12656813 Contact Us For Availability
32
VALVE, WATER INLET MAY W10420083 Contact Us For Availability
32
ARM, SHUT OFF MAY W11260635 Contact Us For Availability
32
STRAP, COMPRESSOR MAY W10236396 Contact Us For Availability
32
BASKET, LOWER MAY W11115782 Contact Us For Availability
33
HARNESS, ICEMAKER WIRE MAY W10793621 Contact Us For Availability
33
EXTENSION, DRAIN TUBE MAY W10622099 Contact Us For Availability
33
DIVIDER, BASKET (LOWER) MAY W10150061 Contact Us For Availability
34
BLOCK, FILL TUBE MAY W10658542 Contact Us For Availability
34
COVER, ICEMAKER MAY W10289690 Contact Us For Availability
34
INSULATION, SOUND DEADENING MAY 2169104 Contact Us For Availability
34
BASKET, FREEZER (UPPER) MAY W11115548 Contact Us For Availability
35
ASSEMBLY, ICEMAKER (COMPLETE) MAY W10793298 Contact Us For Availability
35
CLIP, CONDENSER MAY W10815863 Contact Us For Availability
35
GEAR, SPUR (LEFT HAND) MAY W10474716 Contact Us For Availability
35A
GEAR, SPUR (RIGHT HAND) MAY W10474715 Contact Us For Availability
36
FRONT, CRISPER PAN MAY 12802602SP Contact Us For Availability
37
SHAFT, RACK MAY W10802333 Contact Us For Availability
38
MOUNT, GEAR (LEFT HAND) MAY W10348259 Contact Us For Availability
38A
MOUNT, GEAR (RIGHT HAND) MAY W10348260 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
HARNESS, CONTROLS (REFRIGERATOR) MAY W10224292 Contact Us For Availability
NI
VALVE, ACCESS (3/16") MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4") MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS (5/16") MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8") MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS (5/8") MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS (3/4") MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, CLEANER, STAINLESS STEEL MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, WATER INLET MAY 8003RP Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3" MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3" X 24" MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
NI
PAINT, TOUCH-UP (1 MAY W10917540 Contact Us For Availability
× ![]()
