Model Whirlpool JF42SEFXDB01 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS

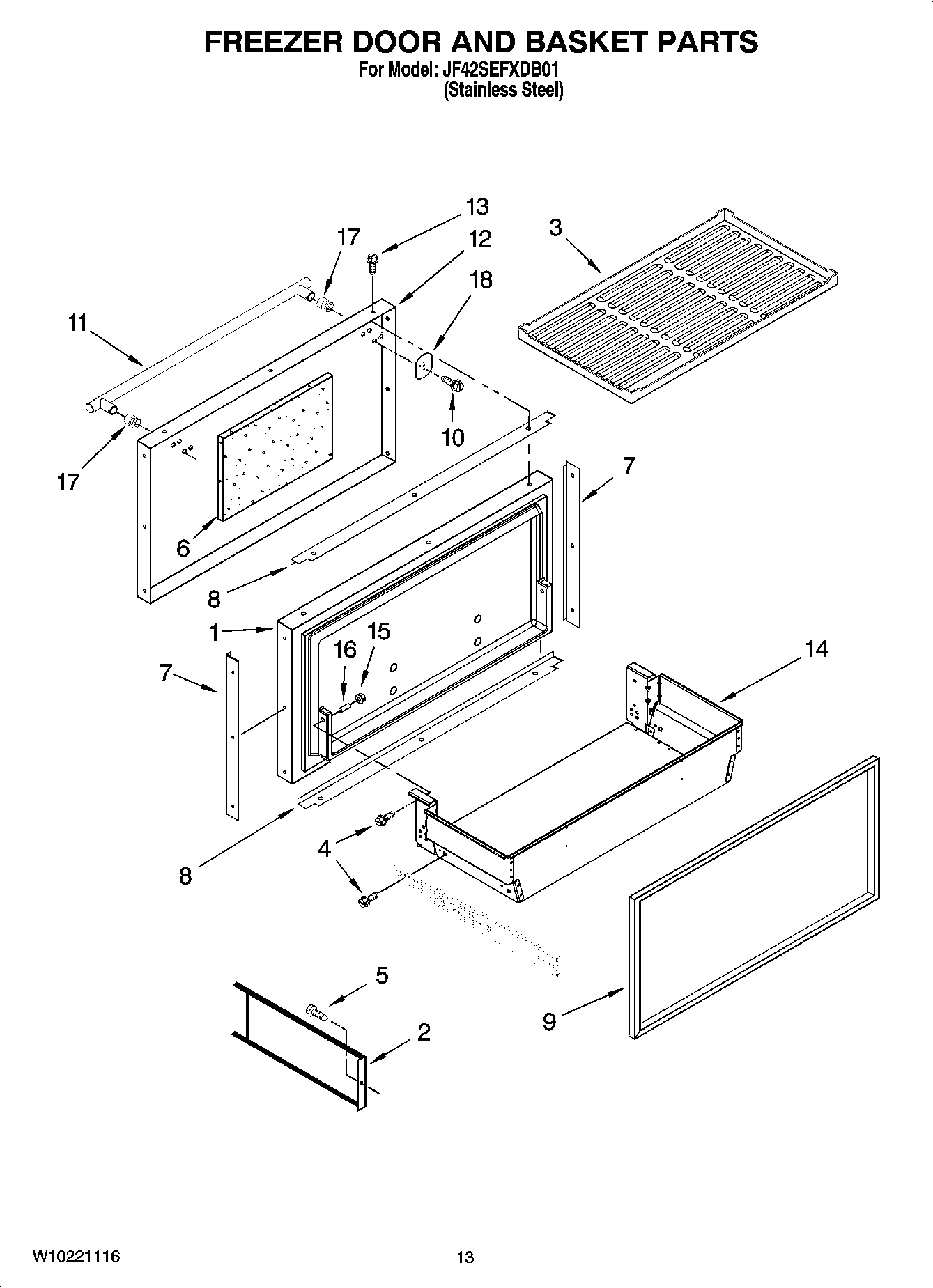

08 - FREEZER DOOR AND BASKET PARTS
02 - CABINET AND BREAKER TRIM PARTS

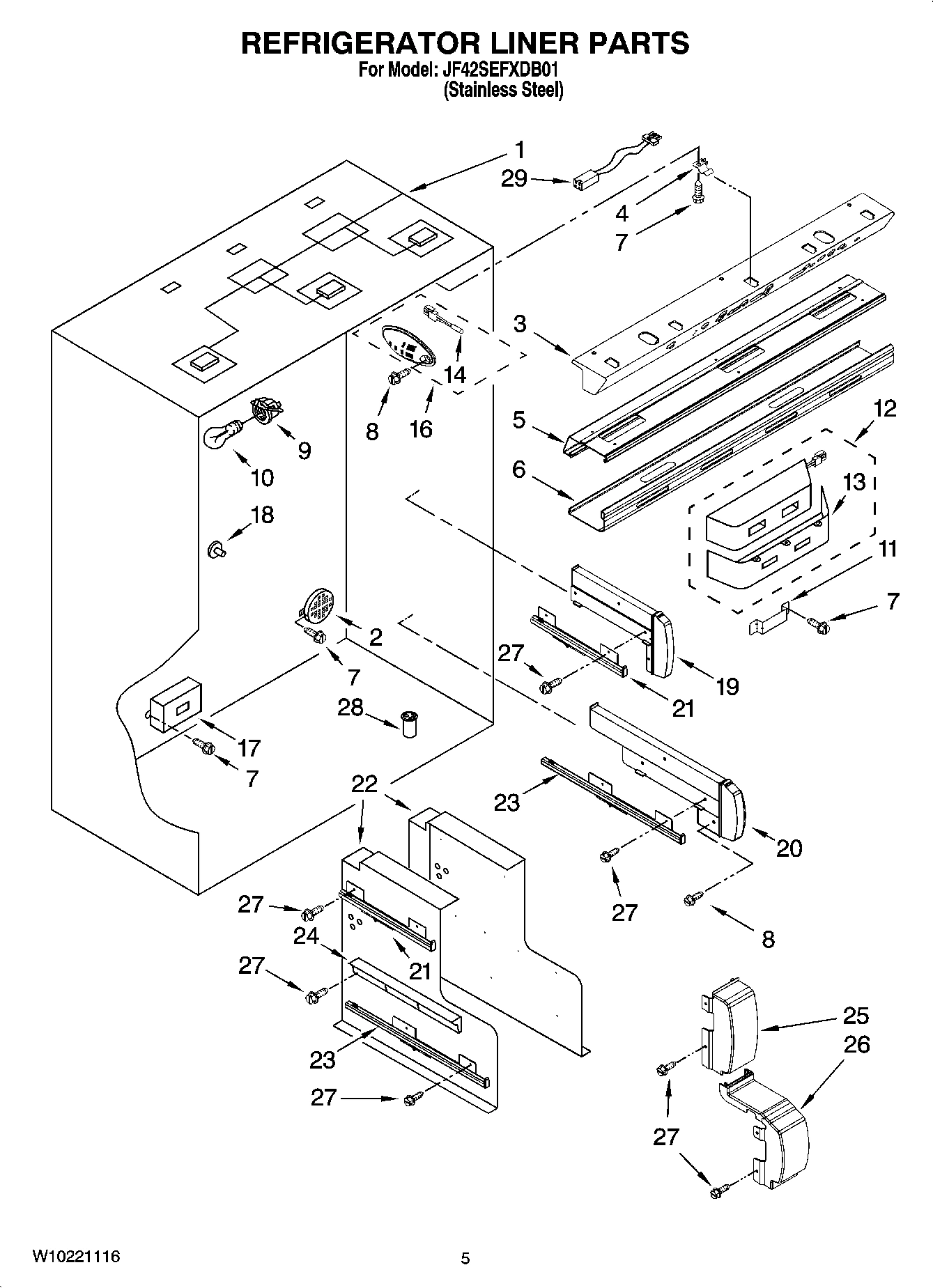

04 - REFRIGERATOR LINER PARTS

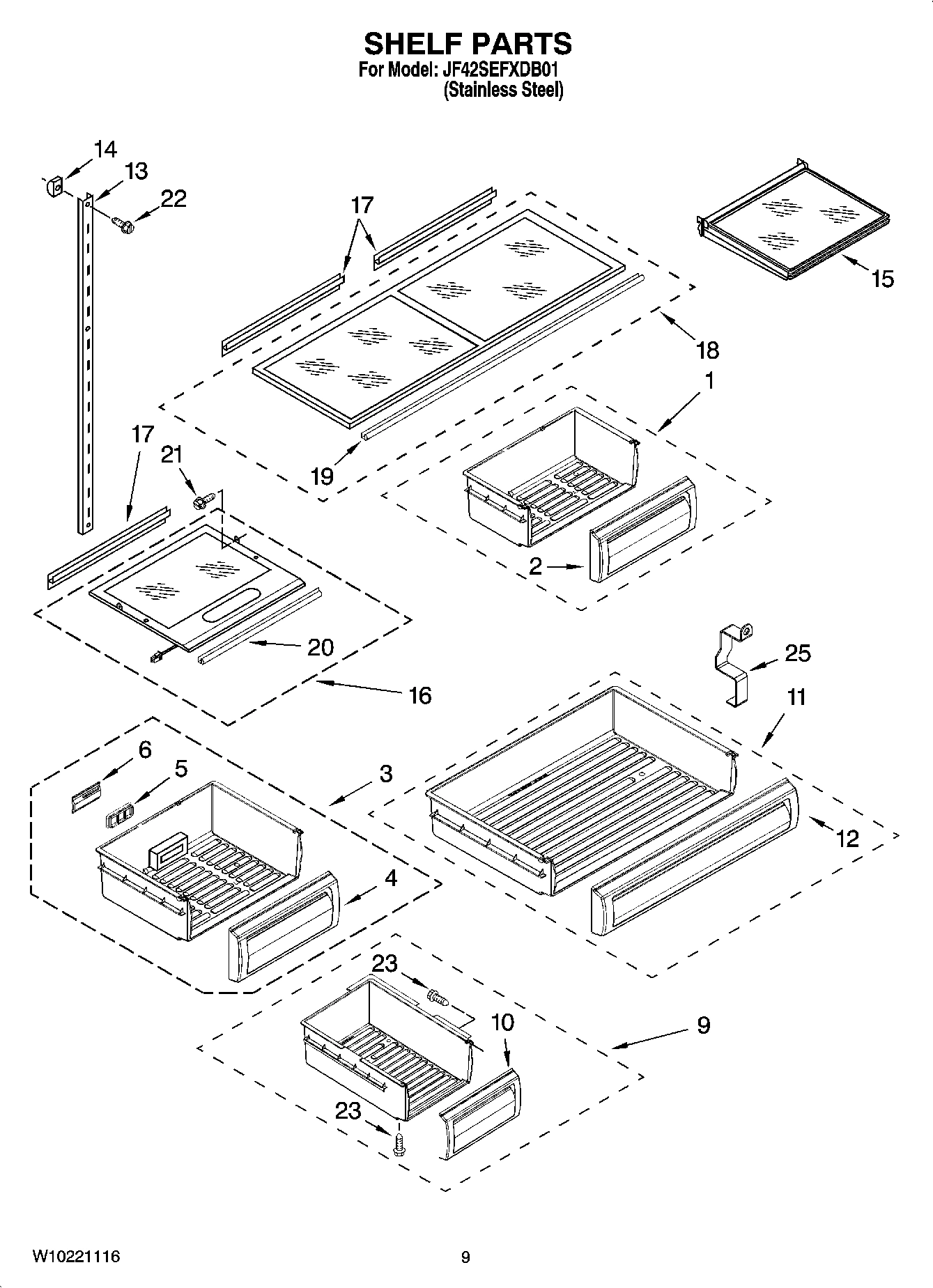

06 - SHELF PARTS

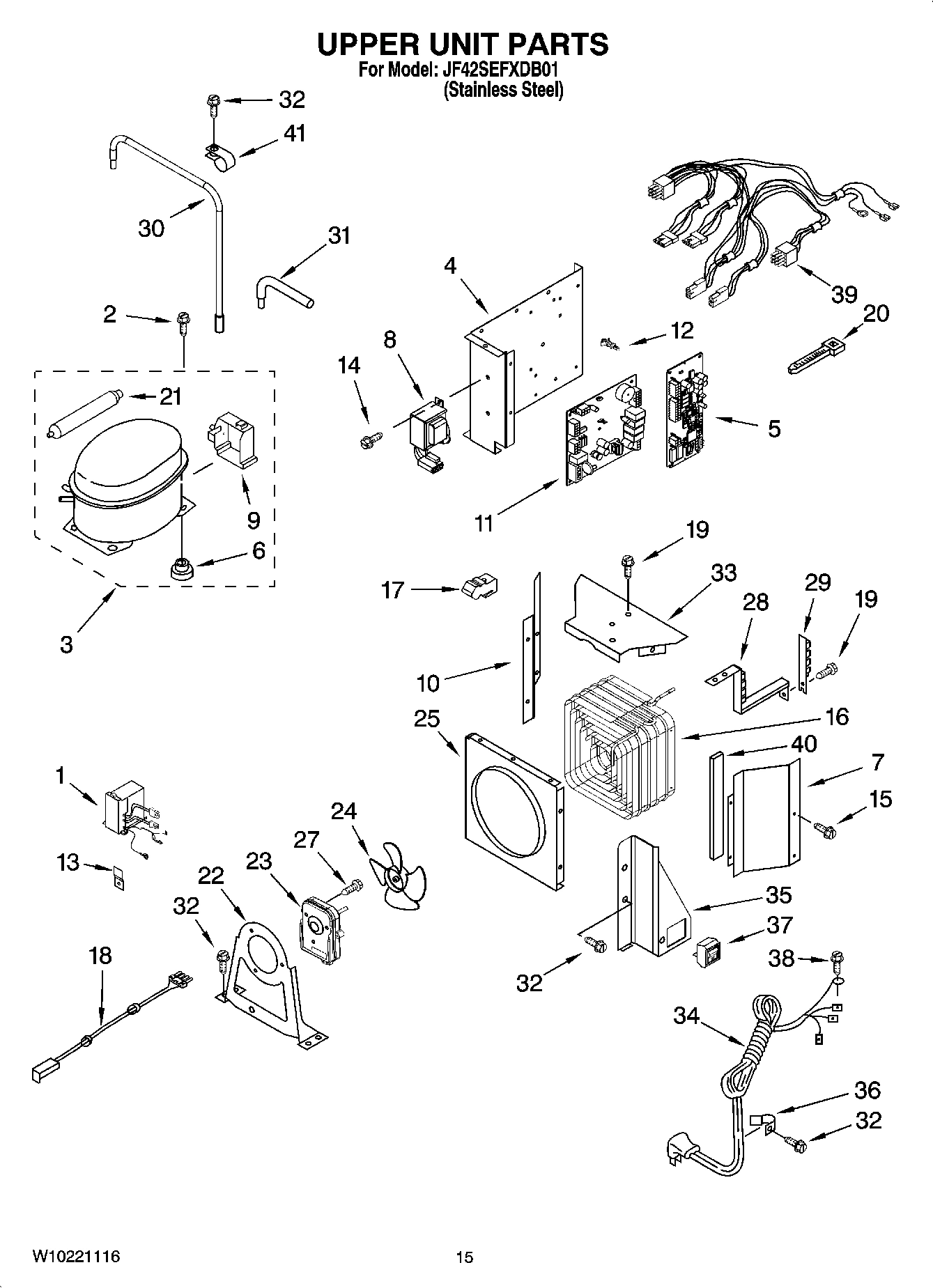

09 - UPPER UNIT PARTS

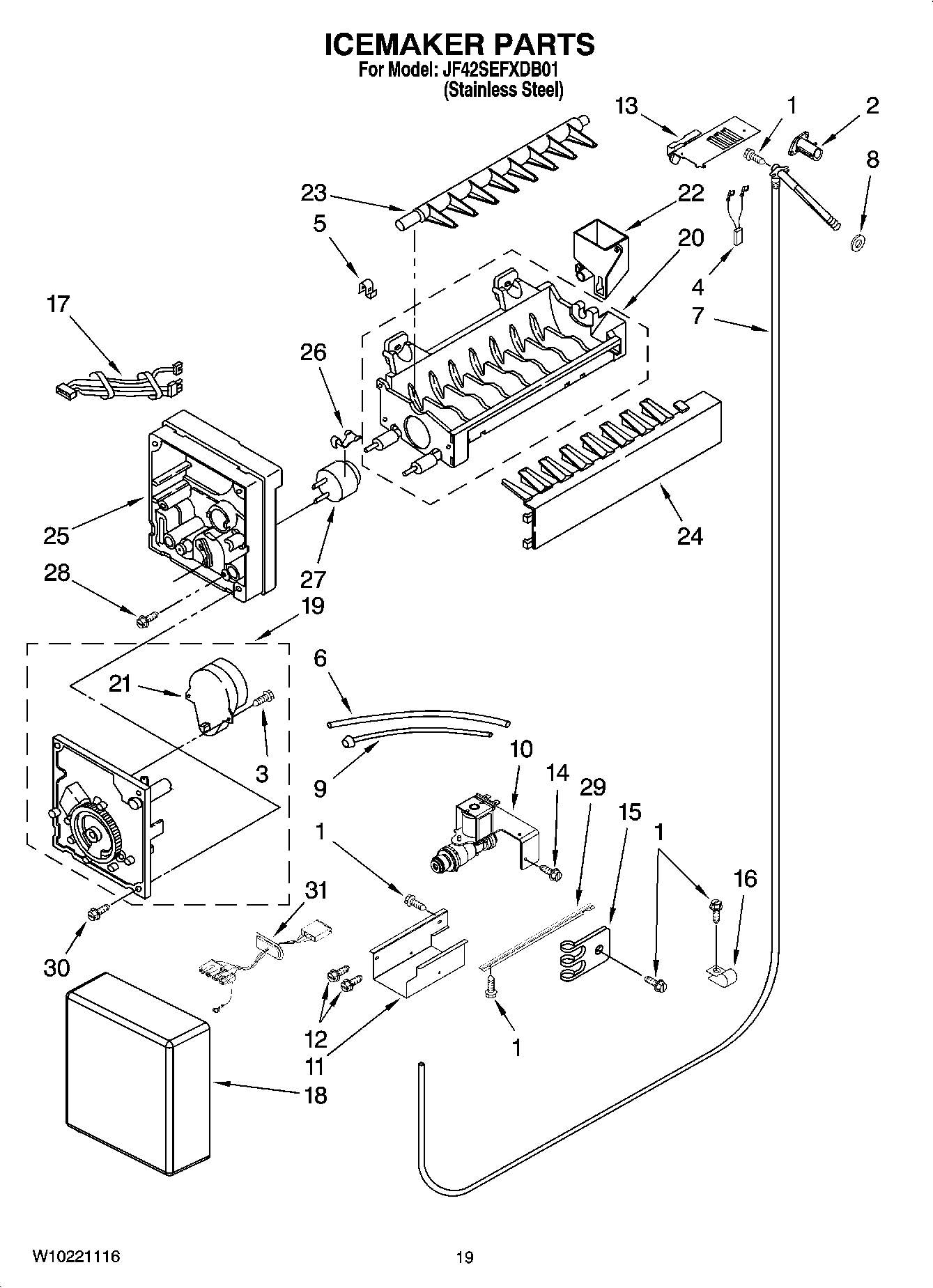

11 - ICEMAKER PARTS

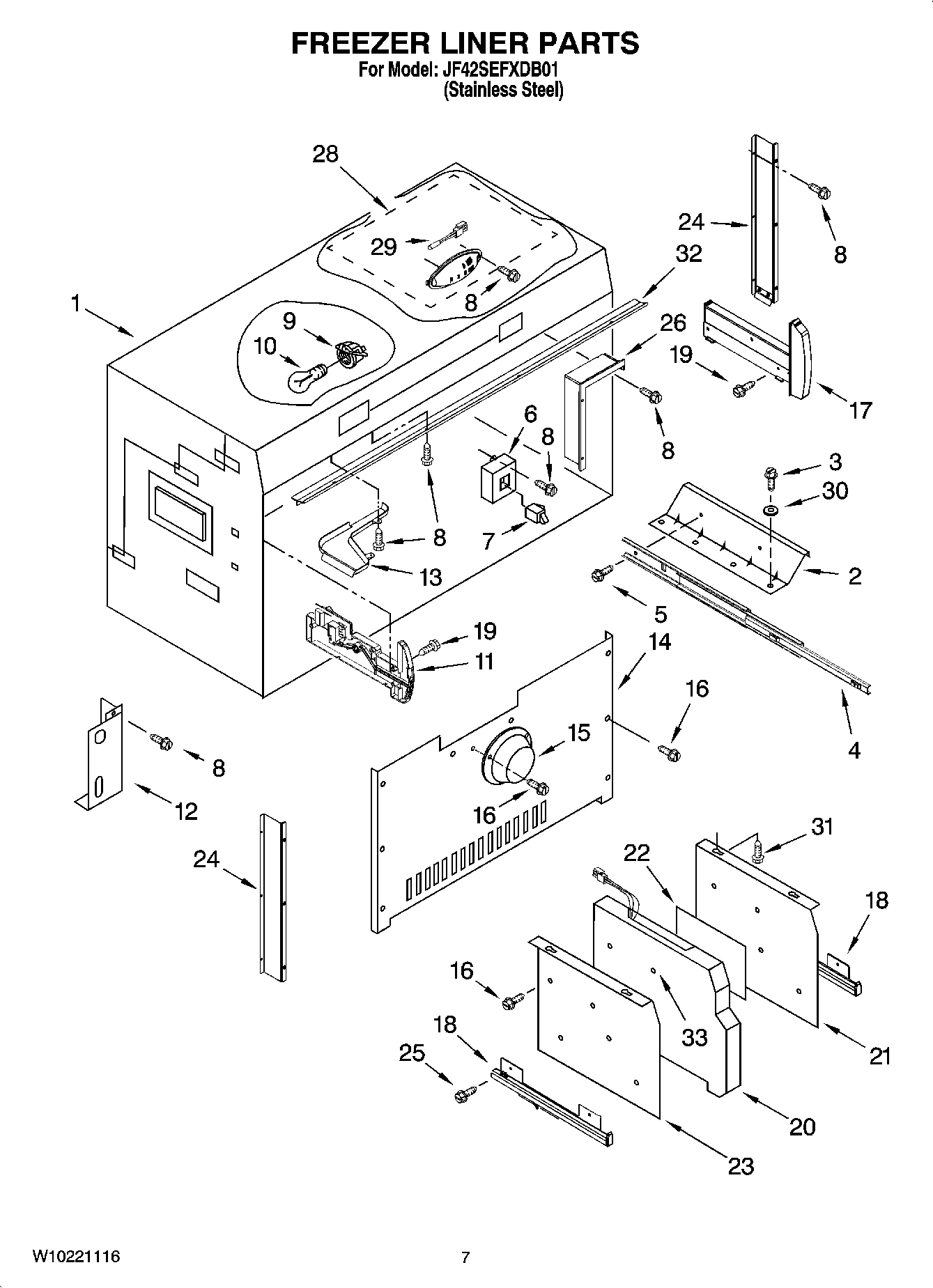

05 - FREEZER LINER PARTS

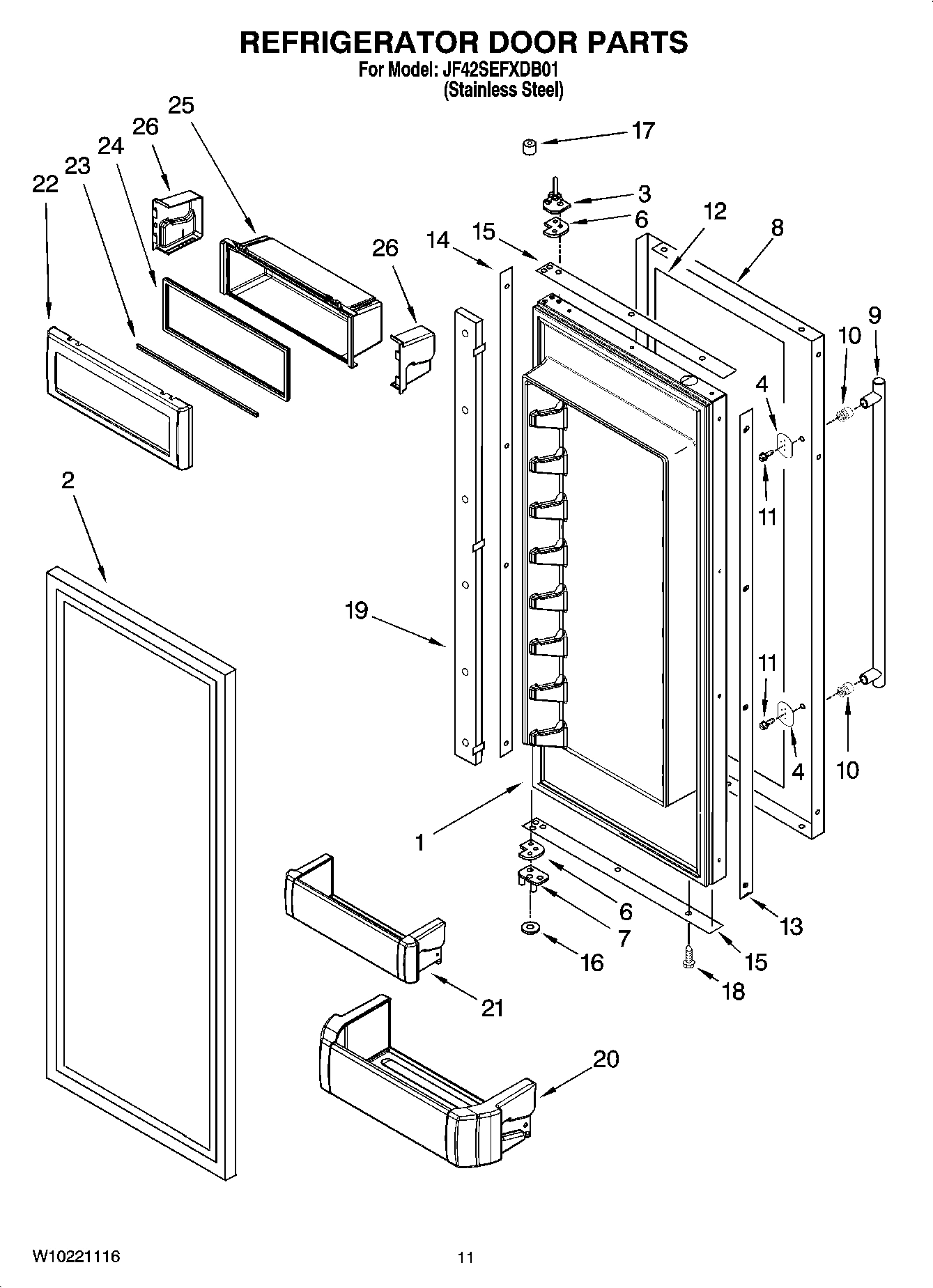

07 - REFRIGERATOR DOOR PARTS

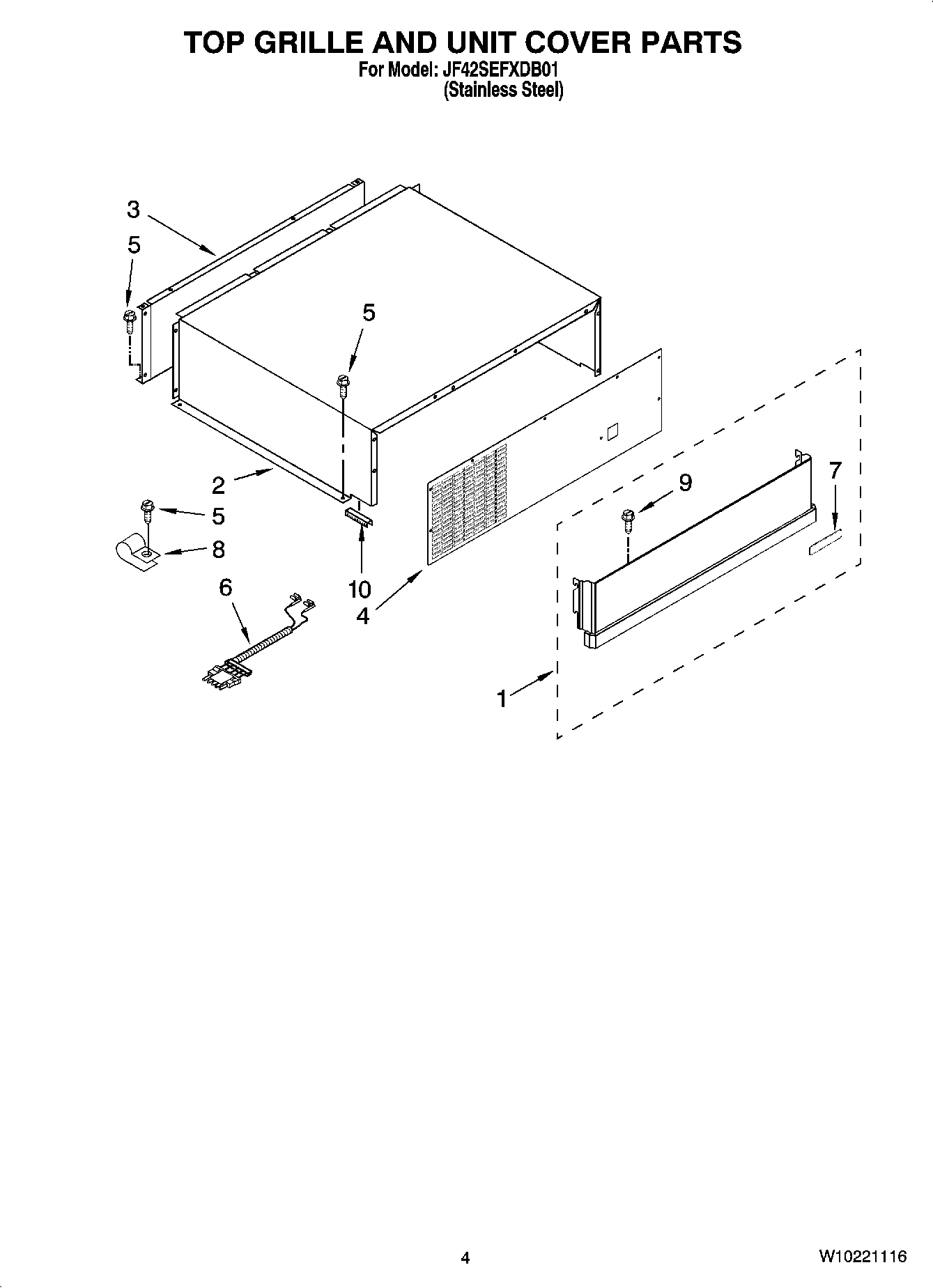

03 - TOP GRILLE AND UNIT COVER PARTS

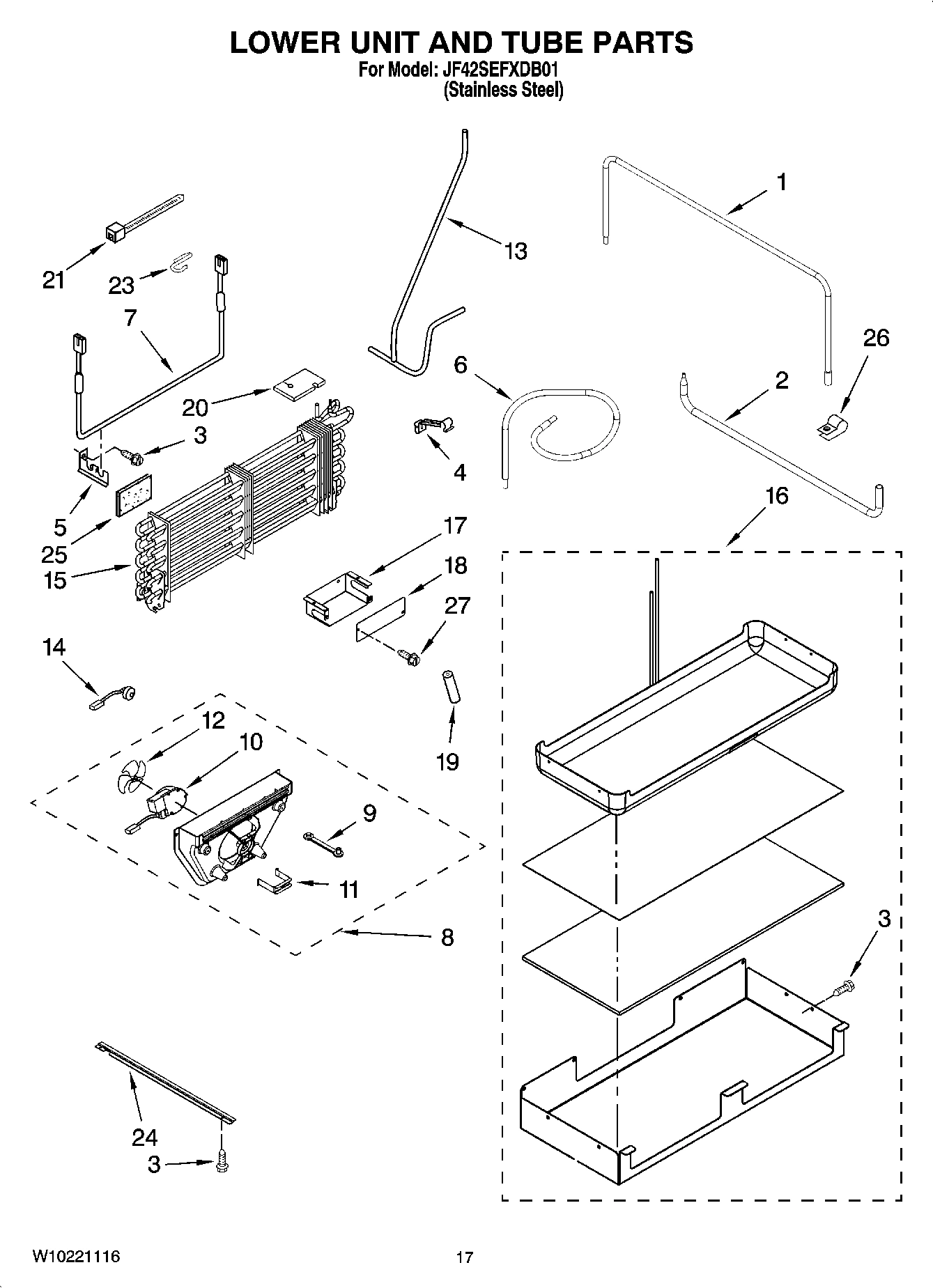

10 - LOWER UNIT AND TUBE PARTS
Common parts from model Whirlpool JF42SEFXDB01 REFRIGERATOR
1
Crisper Pan Assembly (Includes 2) (Right) WPL 2268171 Contact Us For Availability
1
Liner, Freezer (Not Servicable) WPL ARI3299A86 Contact Us For Availability
1
Door, Refrigerator (Includes Item 2) (Right) WPL W10192508 Contact Us For Availability
1
Door, Refrigerator (Includes Item 2) (Left) WPL W10192510 Contact Us For Availability
1
Top Grille Assembly WPL W10162618 Contact Us For Availability
1
Tube, Transition (Condenser) WPL 2309072 Contact Us For Availability
2
Cover, Unit WPL W10161693 Contact Us For Availability
4
Front, Unit Cover WPL 2307682 Contact Us For Availability
5
SCREW WPL W10061370 Contact Us For Availability
5
Bracket, Mounting WPL 2307945 Contact Us For Availability
6
Tube, Suction WPL 2309076 Contact Us For Availability
6
Cover, Light Switch WPL 2314022 Contact Us For Availability
7
Cam, Mullion (Bottom) WPL 2316858 Contact Us For Availability
7
Bottom Hinge Assembly (Right) WPL 2316751 Contact Us For Availability
7
Cam, Mullion (Top) WPL 2316857 Contact Us For Availability
7
Nameplate WPL W10159580 Contact Us For Availability
8
Transformer WPL 2303033 Contact Us For Availability
8
Skin, Door WPL W10183779 Contact Us For Availability
8
Scroll Assembly WPL 2306178 Contact Us For Availability
9
SEAL-TRIM, SIDE WPL 2005925 Contact Us For Availability
9
Ice Pan Assembly (Includes 10) WPL 2306174 Contact Us For Availability
10
SCREW WPL W10004850 Contact Us For Availability
10
Motor, Fan WPL 2259385 Contact Us For Availability
11
Switch Assembly, Icemaker (Includes Emitter) WPL 2268299 Contact Us For Availability
12
Cover, Wiring (Icemaker) WPL 2306187 No Longer Available
12
Diffuser Assembly WPL 2320523 Contact Us For Availability
12
Filler, Foam WPL 2309218 Contact Us For Availability
13
Spacer, Door Edge (Handle Side) WPL 2314068 Contact Us For Availability
14
Defrost Bi-Metal WPL W10139165 Contact Us For Availability
14
Cover, Evaporator WPL 2306100 Contact Us For Availability
14
Spacer, Door Edge (Hinge Side) WPL 2316768 Contact Us For Availability
15
Spacer, Door Edge (Top / Bottom) WPL 2309204 Contact Us For Availability
17
Diffuser, Crisper (Complete)(2) WPL 2268249 Contact Us For Availability
17
Screw, Door Stop WPL W10005070 Contact Us For Availability
17
Cover, Box WPL W10153595 Contact Us For Availability
18
Cover WPL 2257538 Contact Us For Availability
18
Cover, Wiring WPL W10151288 Contact Us For Availability
19
Mullion Assembly WPL 2307938 Contact Us For Availability
20
Divider, Freezer Bins (Includes Receiver) WPL 2317925 Contact Us For Availability
20
Block, Evaporator Water Filter WPL 2306180 Contact Us For Availability
22
SHIELD WPL 2317927 Contact Us For Availability
23
Support, Slide (Left) WPL 2306105 Contact Us For Availability
23
Clip, Heater WPL 2317920 Contact Us For Availability
24
Bracket, Evaporator Cover (Right Side) WPL 2317893 Contact Us For Availability
24
Bracket, Evaporator Cover (Left Side) WPL 2320512 Contact Us For Availability
26
Bracket, Air Return WPL W10121940 Contact Us For Availability
26
Clamp, Tube WPL 488937 Contact Us For Availability
30
WASHER WPL W10075920 Contact Us For Availability
32
Skirt, Grille (Bottom) WPL 2209025B Contact Us For Availability
32
Air Deflector Asy WPL W10135430 Contact Us For Availability
34
Grille Base, Front WPL 2325188B Contact Us For Availability
35
Bracket, Mounting (Power Switch) WPL 2307684 Contact Us For Availability
NI
Valve, Access (5/8``) WPL 978029 Contact Us For Availability
NI
Cleaner, Stainless Steel WPL 8537055 Contact Us For Availability
NI
Following Parts Not Illustrated (Optional Par WPL ARI3302A49 Contact Us For Availability
× ![]()
