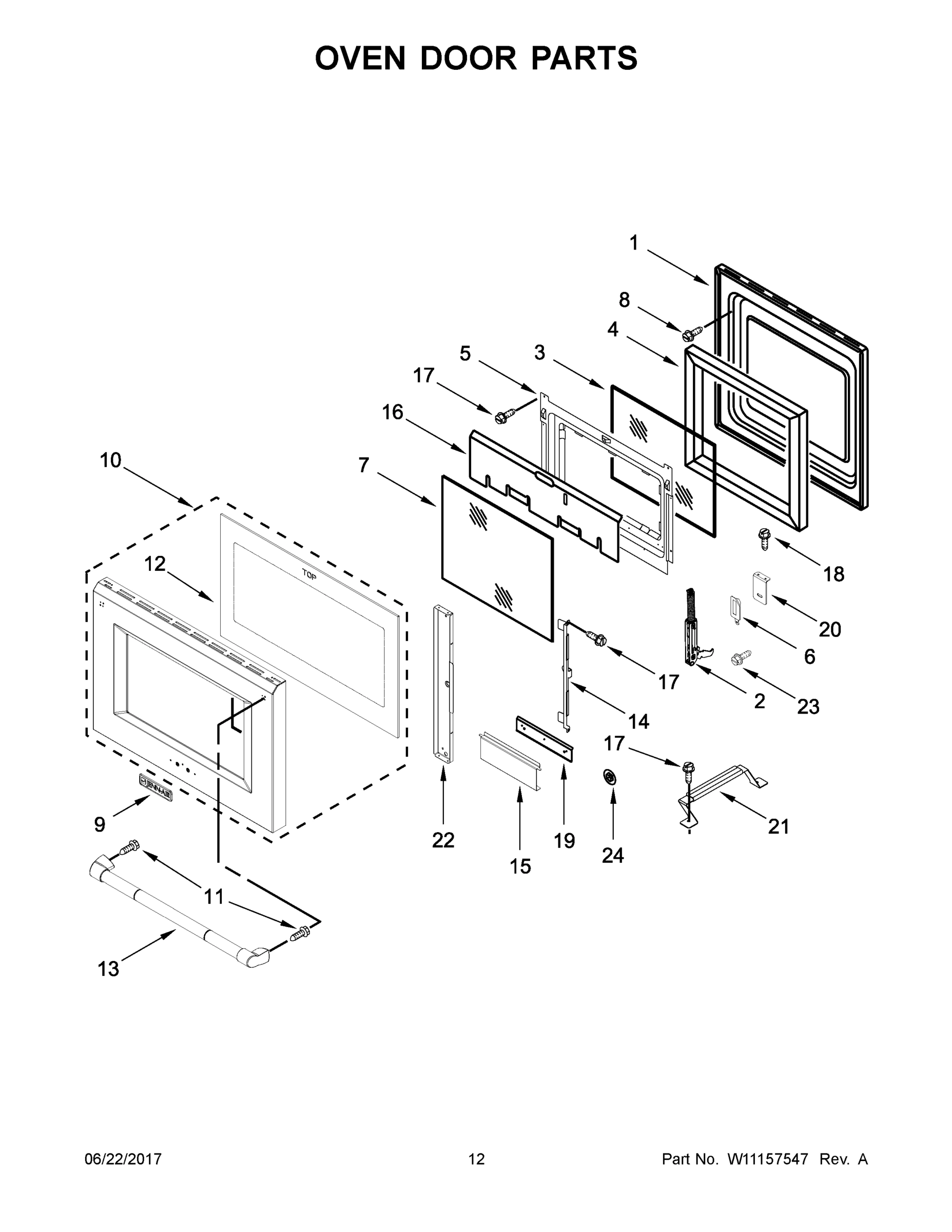

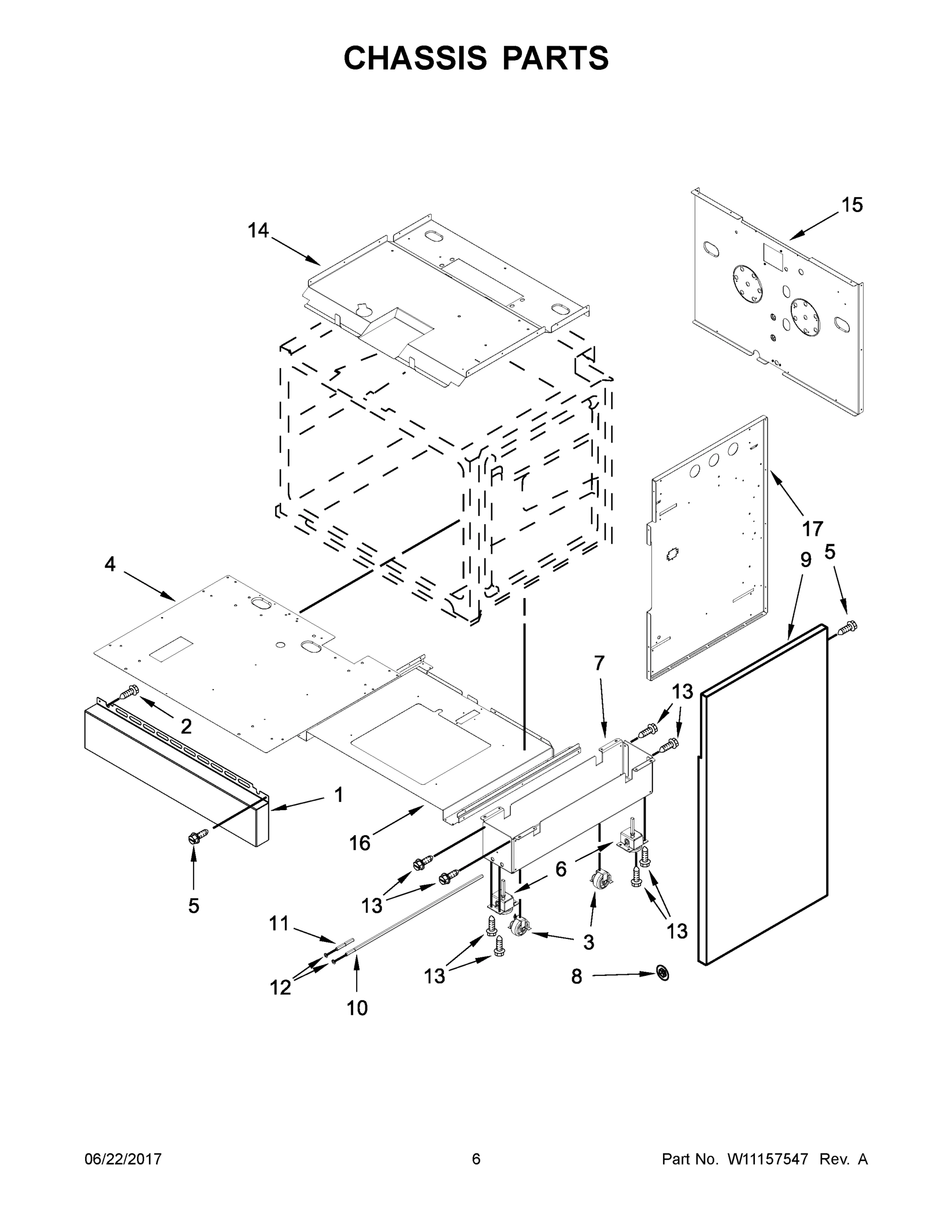

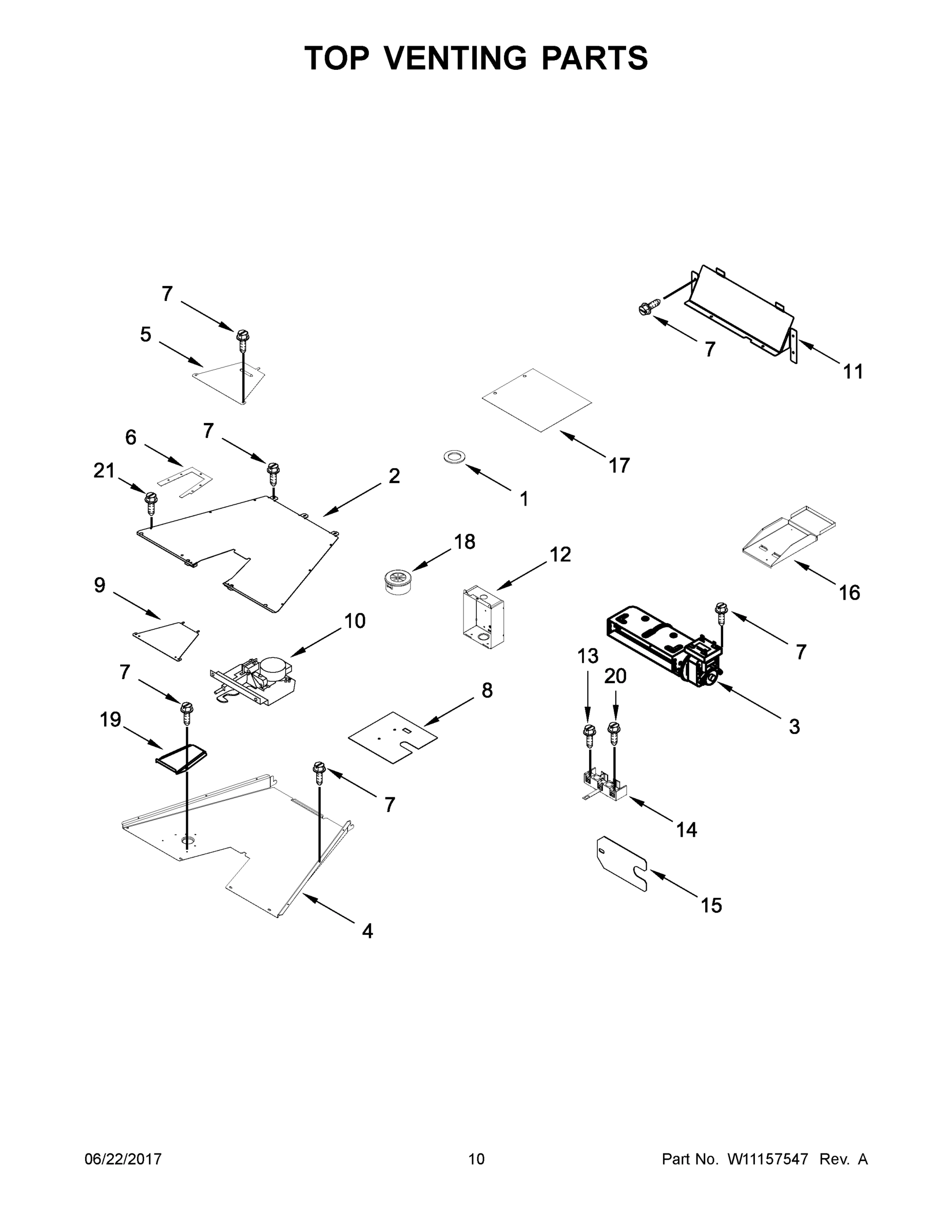

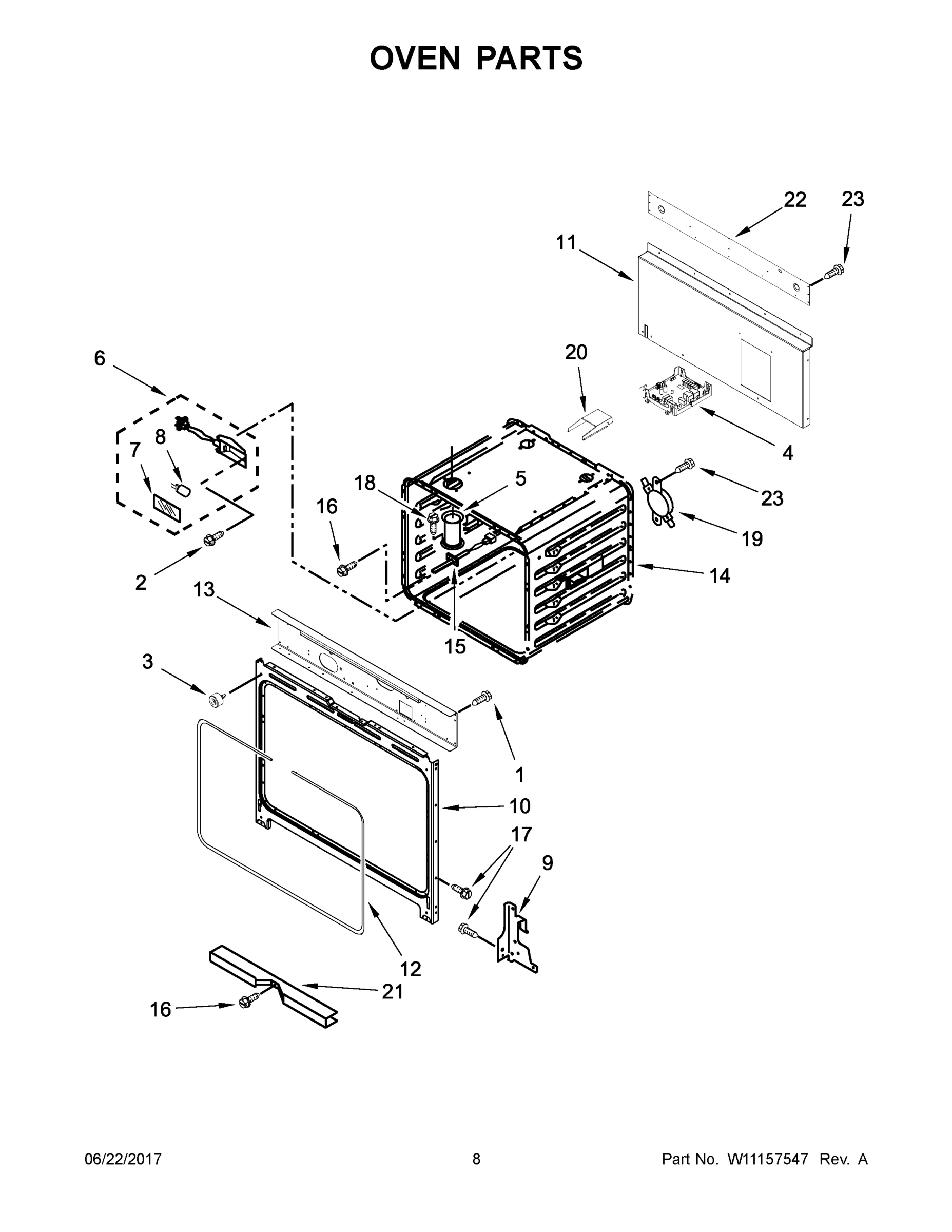

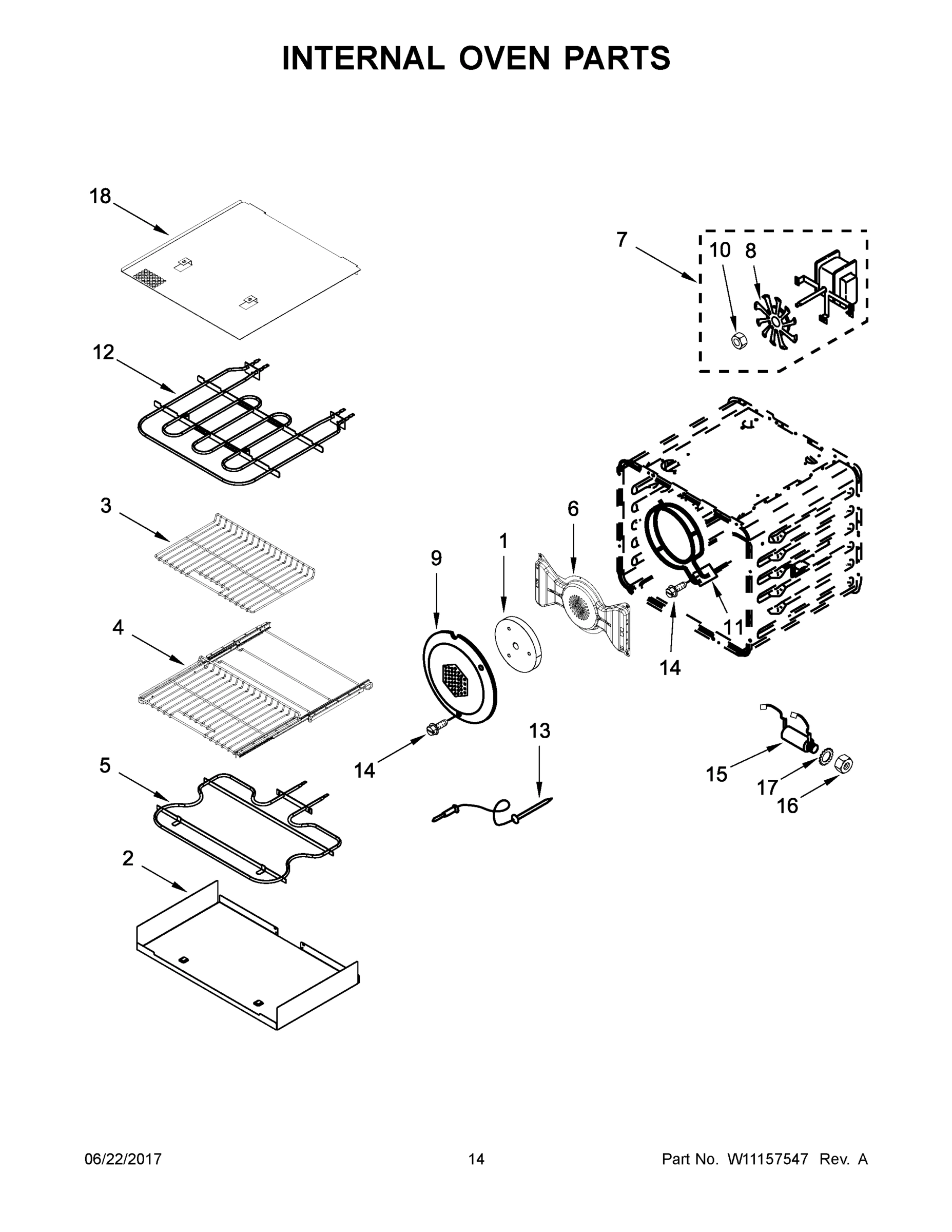

Model Whirlpool JDRP430WP02 RANGE/OVEN, COMMERCIAL-STYLE, 30 INCH – Common Parts &amp; Diagrams

1

WP9759413 Whirlpool Door Liner Backorder WPL WP9759413 $152.55

1

WPW10371235 Whirlpool Burner Valve Backorder WPL WPW10371235 $153.22

2

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $7.28

2

W10657945 Whirlpool Orifice Spud Backorder WPL W10657945 $38.63

2

TRAY, HIDDEN BAKE WPL W10160845 Contact Us For Availability

2B

W11051480 Whirlpool Orifice Assembly Backorder WPL W11051480 $38.63

3

W10105790 Whirlpool Bumper Backorder WPL W10105790 $5.04

3

W10846622 Whirlpool Orifice Holder Backorder WPL W10846622 $47.67

3

W11550107 Whirlpool Oven Rack Backorder WPL W11550107 $65.20

3

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $91.82

3

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $14.40

3

WPW10245511 Whirlpool Blower In Stock WPL WPW10245511 $190.49

4

W10846623 Whirlpool Orifice Holder Backorder WPL W10846623 $47.67

4

W11186364 Whirlpool Oven Rack Backorder WPL W11186364 $147.96

4

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $75.50

5

W10883622 Whirlpool Orifice Holder Backorder WPL W10883622 $45.39

5

WP4457132 Whirlpool Retainer Backorder WPL WP4457132 $116.40

5

ELEMENT, HIDDEN BAKE WPL W10115995 Contact Us For Availability

6

4453115 Whirlpool Range Adapter Backorder WPL 4453115 $50.14

6

W10115876 Whirlpool Cover Backorder WPL W10115876 $35.91

6

W10246060 Whirlpool Baffle Conv Backorder WPL W10246060 $77.04

6

W10269218 Whirlpool Trim Top Backorder WPL W10269218 $116.72

6

W10270397 Whirlpool Vent Seal Backorder WPL W10270397 $12.58

6

W10859931 Whirlpool Foot Level Backorder WPL W10859931 $50.81

6

WPW10307114 Whirlpool Light Backorder WPL WPW10307114 $56.18

7

W10169756 Whirlpool Light Lens Backorder WPL W10169756 $30.59

7

W10249333 Whirlpool Range Mounting Bracket Backorder WPL W10249333 $131.02

7

W10860984 Whirlpool Fan Motor In Stock WPL W10860984 $74.84

7

WP9759225 Whirlpool Inner Door Glass In Stock WPL WP9759225 $87.13

7

SCREW WPL 3400099 Contact Us For Availability

8

9759721 Whirlpool Range Insulator Backorder WPL 9759721 $45.47

8

W10819914 Whirlpool Convection Fan In Stock WPL W10819914 $39.25

8

WPW10169757 Whirlpool Light Bulb In Stock WPL WPW10169757 $25.07

8

WPW10292297 Whirlpool Screw Backorder WPL WPW10292297 $2.60

8

WPW10385582 Whirlpool Burner Valve Backorder WPL WPW10385582 $155.70

9

W10261523 Whirlpool Plate Backorder WPL W10261523 $29.85

9

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $61.78

9

WPW10159578 Whirlpool Refrigerator Nameplate Backorder WPL WPW10159578 $45.33

9A

WP4455606 Whirlpool Right Hand Hinge Backorder WPL WP4455606 $61.78

10

W10115869 Whirlpool Shaft Backorder WPL W10115869 $47.96

10

W10794042 Whirlpool Nut Backorder WPL W10794042 $5.49

W10115793 Whirlpool Shaft Backorder WPL W10115793 $37.07

W10116434 Whirlpool Element Backorder WPL W10116434 $141.43

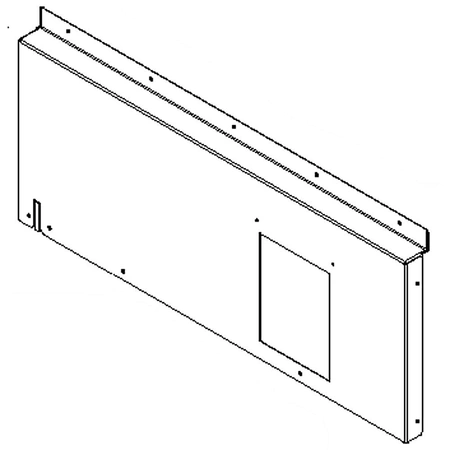

W10145392 Whirlpool Rear Cover Backorder WPL W10145392 $37.91

W10271524 Whirlpool Trim Top Backorder WPL W10271524 $97.84

W10449141 Whirlpool Regulator Backorder WPL W10449141 $128.24

489504 Whirlpool Range Ring Backorder WPL 489504 $5.04

W10115994 Whirlpool Broil Element Backorder WPL W10115994 $136.62

W10467022 Whirlpool Box Terminal Backorder WPL W10467022 $57.25

W11124797 Whirlpool Glass Door Backorder WPL W11124797 $132.74

ASSEMBLY, KEYPAD WPL W10464535 Contact Us For Availability

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $45.06

WPW10256034 Whirlpool Burner Cap Backorder WPL WPW10256034 $81.31

BRACKET, BURNER WPL W10560553 Contact Us For Availability

HANDLE, DOOR WPL 7701P47560 Contact Us For Availability

13A

WPW10256032 Whirlpool Burner Cap Backorder WPL WPW10256032 $51.02

13B

WPW10364463 Whirlpool Burner Cap Backorder WPL WPW10364463 $30.88

WP9759229 Whirlpool Mounting Bracket Backorder WPL WP9759229 $70.16

WP9761958 Whirlpool Range Terminal Block In Stock WPL WP9761958 $15.05

WPW10385583 Whirlpool Burner Valve Backorder WPL WPW10385583 $142.30

SCREW WPL 7101P50060 Contact Us For Availability

14A

WPW10256027 Whirlpool Burner Head Backorder WPL WPW10256027 $52.55

14B

WPW10282515 Whirlpool Burner Head Backorder WPL WPW10282515 $74.05

8186589 Whirlpool Jack Probe Backorder WPL 8186589 $69.84

W10145763 Whirlpool Glass Bracket Backorder WPL W10145763 $30.29

W11684564 Whirlpool Clip Assembly Backorder WPL W11684564 $4.66

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $56.96

15A

8286863 Whirlpool Oven Clip Backorder WPL 8286863 $28.84

W10854967 Whirlpool Surface Igniter In Stock WPL W10854967 $17.84

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.60

WP9755546 Whirlpool Locknut Backorder WPL WP9755546 $2.60

WPW10475147 Whirlpool Spark Module In Stock WPL WPW10475147 $160.69

SHIELD, HEAT TOP WPL 4457104 Contact Us For Availability

W10189177 Whirlpool Seal Switch Backorder WPL W10189177 $6.52

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.60

WP9755547 Whirlpool Lockwasher Backorder WPL WP9755547 $3.65

WPW10145531-includeCORE Whirlpool WPW10145531 Backorder WPL WPW10145531-includeCORE $226.35

SCREW WPL 4449040 Contact Us For Availability

18

W10160856 Whirlpool Heat Shield Backorder WPL W10160856 $75.86

18

W10352969 Whirlpool Cooktop Assembly Backorder WPL W10352969 $149.44

18

SCREW WPL 7101P42660 Contact Us For Availability

18A

W10352968 Whirlpool Cooktop Backorder WPL W10352968 $144.91

19

4457114 Whirlpool Oven Heat Shield Backorder WPL 4457114 $95.43

19

W10130760 Whirlpool Bracket Mounting Backorder WPL W10130760 $30.29

19

WP4449751 Whirlpool Range Oven Thermostat Fix In Stock WPL WP4449751 $72.41

19A

W10130759 Whirlpool Mounting Bracket Backorder WPL W10130759 $30.29

4453116 Whirlpool Range Adapter Backorder WPL 4453116 $79.67

W10115715 Whirlpool Bracket Mounting Backorder WPL W10115715 $13.72

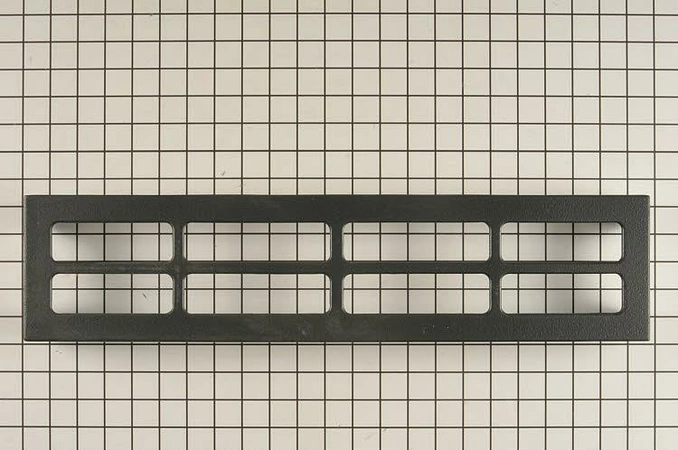

W11241675 Whirlpool Burner Grate Backorder WPL W11241675 $111.33

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.60

21

WP3196163 Whirlpool Screw In Stock WPL WP3196163 $2.60

21

BRACKET, CENTRAL WPL 9759230 Contact Us For Availability

22

W10145761 Whirlpool Glass Bracket Backorder WPL W10145761 $30.29

23

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.60

23

PANEL, CONTROL WPL W10789952 Contact Us For Availability

24

WP3400968 Whirlpool Nut Backorder WPL WP3400968 $3.84

26

8286930 Whirlpool Oven Gasket Backorder WPL 8286930 $35.85

28

W11344501 Whirlpool Burner Grate Backorder WPL W11344501 $113.41

29

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $2.60

30

W11676349 Whirlpool Screw Backorder WPL W11676349 $8.42

W10123240 Whirlpool Broil Pan and Roasting Ra Backorder WPL W10123240 $75.20

W10145988 Whirlpool Wire Harness Backorder WPL W10145988 $87.70

W10160195 Whirlpool Cover Backorder WPL W10160195 $166.50

W10216179 Whirlpool Wok Ring In Stock WPL W10216179 $27.08

W10344051 Whirlpool Wire Harness Backorder WPL W10344051 $64.71

W10830809 Whirlpool Harness Wire Backorder WPL W10830809 $239.00

W11321066 Whirlpool Power Cord Backorder WPL W11321066 $57.90

W11544575 Whirlpool Anti-Tip Bracket Backorder WPL W11544575 $23.28

W11675299 Whirlpool Tie Wire Backorder WPL W11675299 $8.02

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $27.40

MISCELLANEOUS, APPLIANCE CLEANER WPL 31682 Contact Us For Availability
