Model Maytag JDRP430WP01 RANGE/OVEN, DUAL FUEL, COMMERCIAL-STYLE – Common Parts & Diagrams

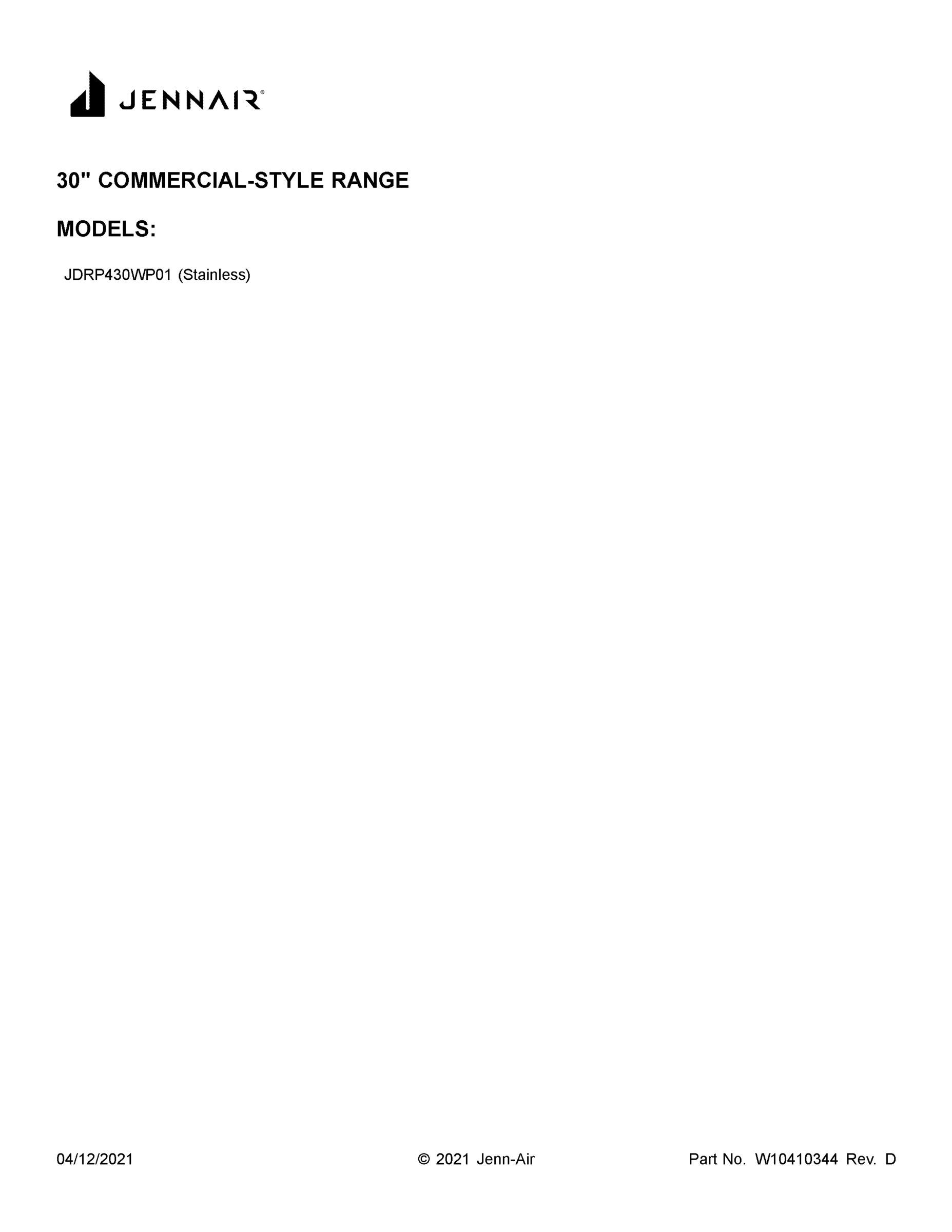

01 - COVER SHEET

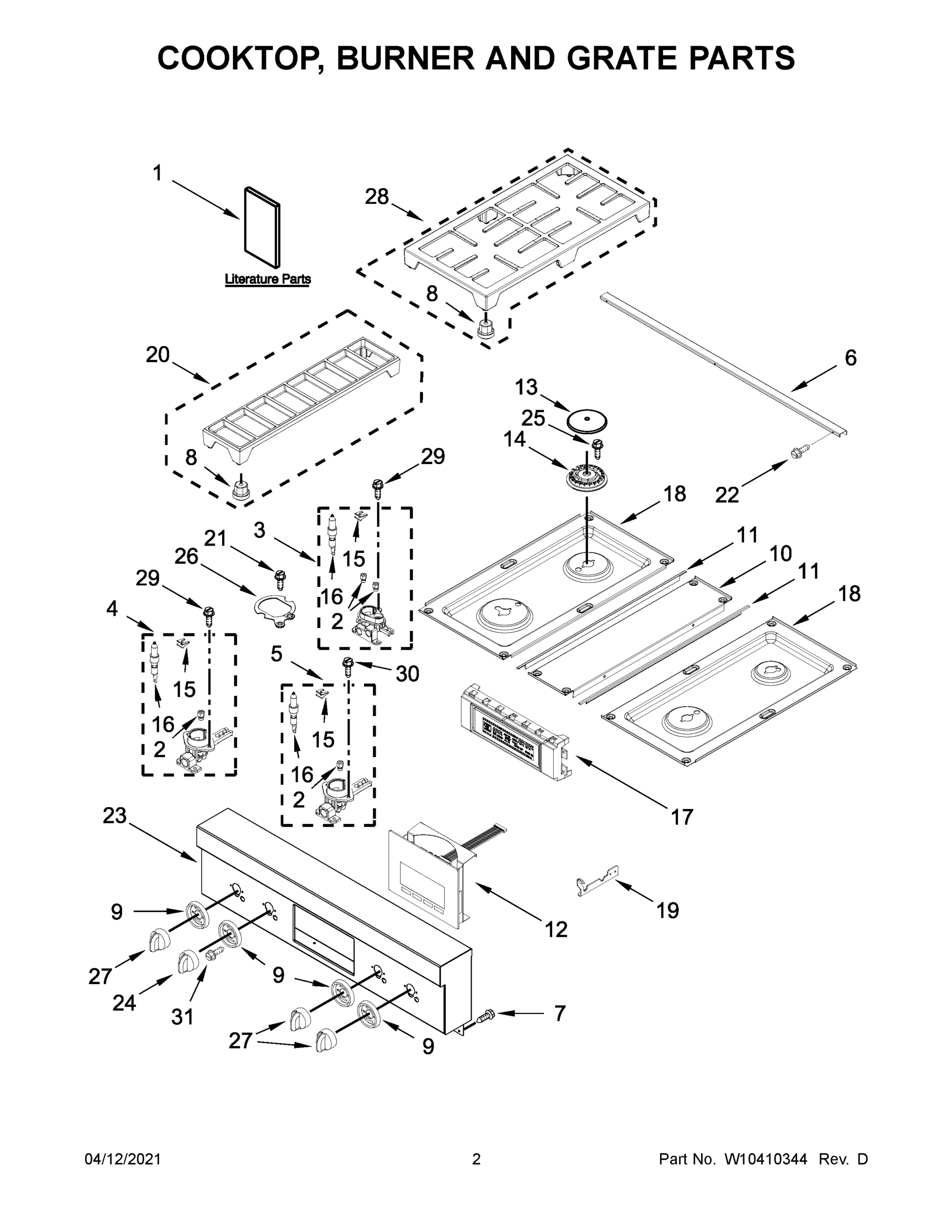

02 - COOKTOP, BURNER AND GRATE PARTS

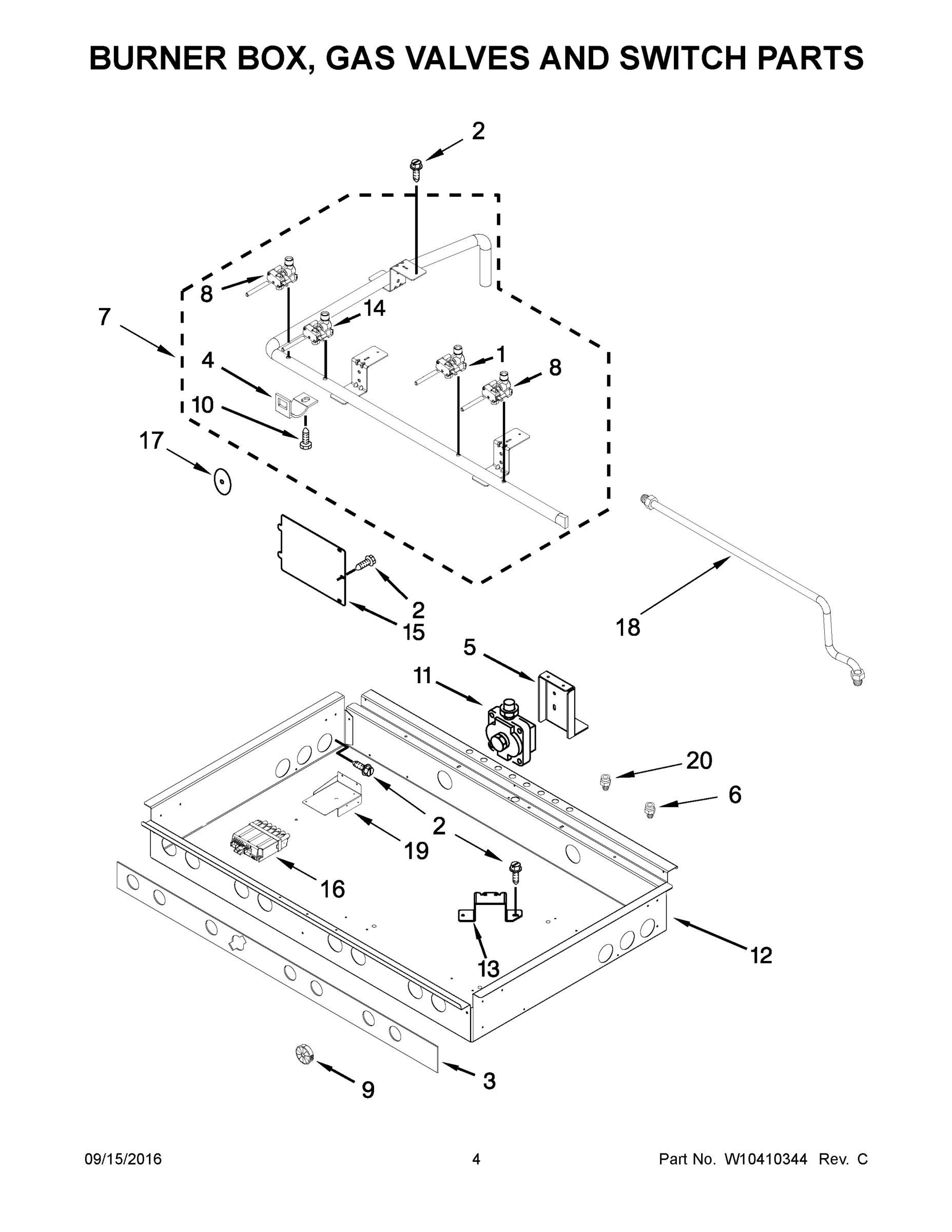

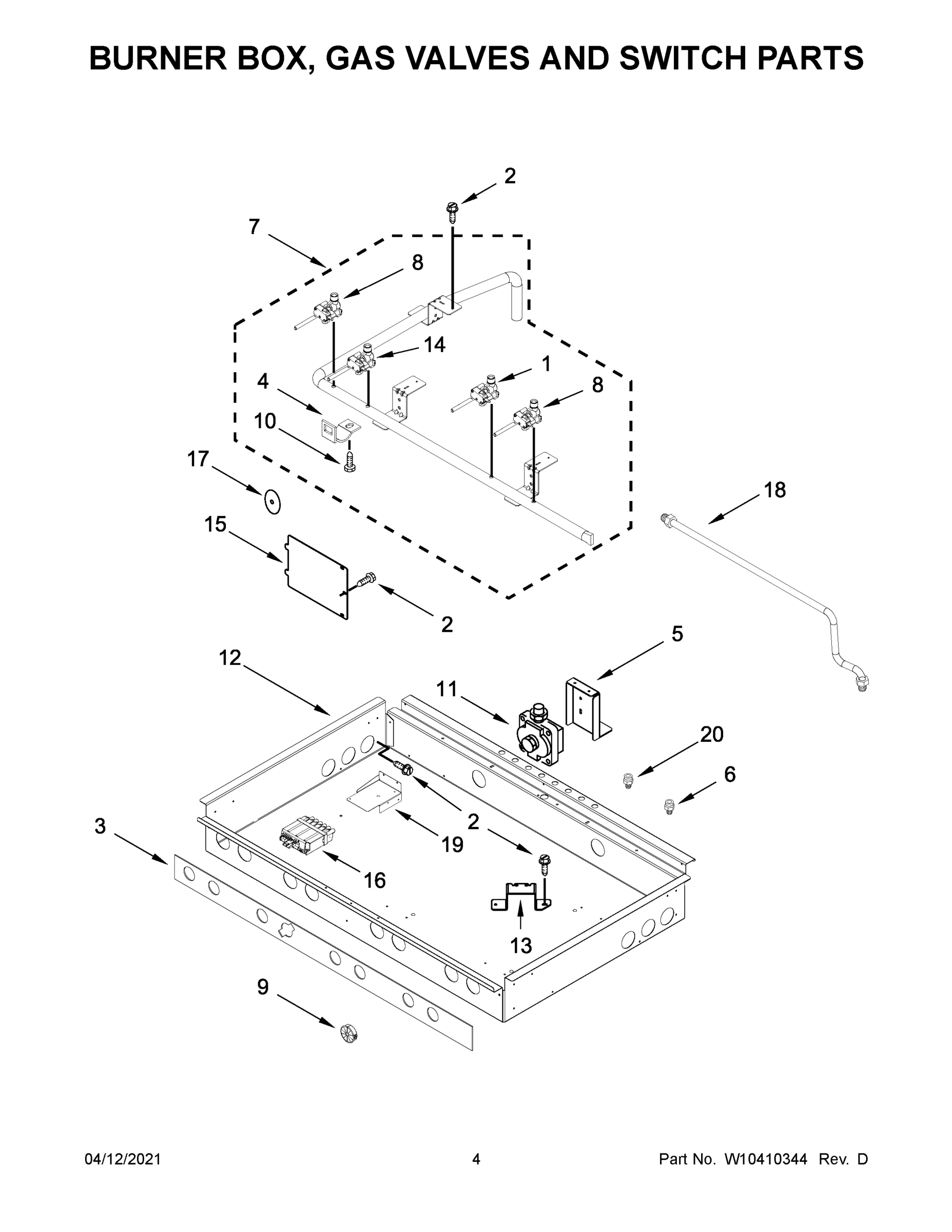

03 - BURNER BOX, GAS VALVES AND SWITCH PARTS

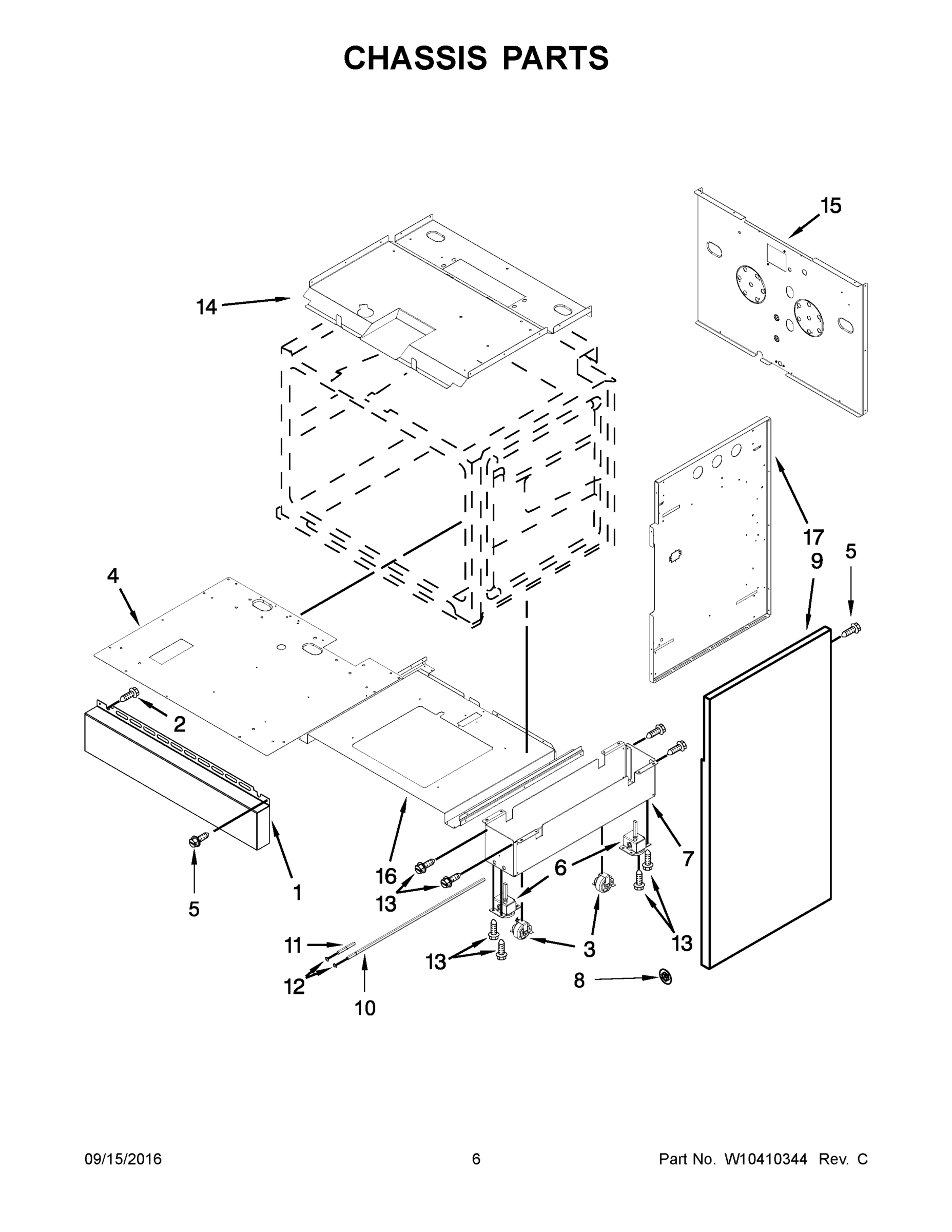

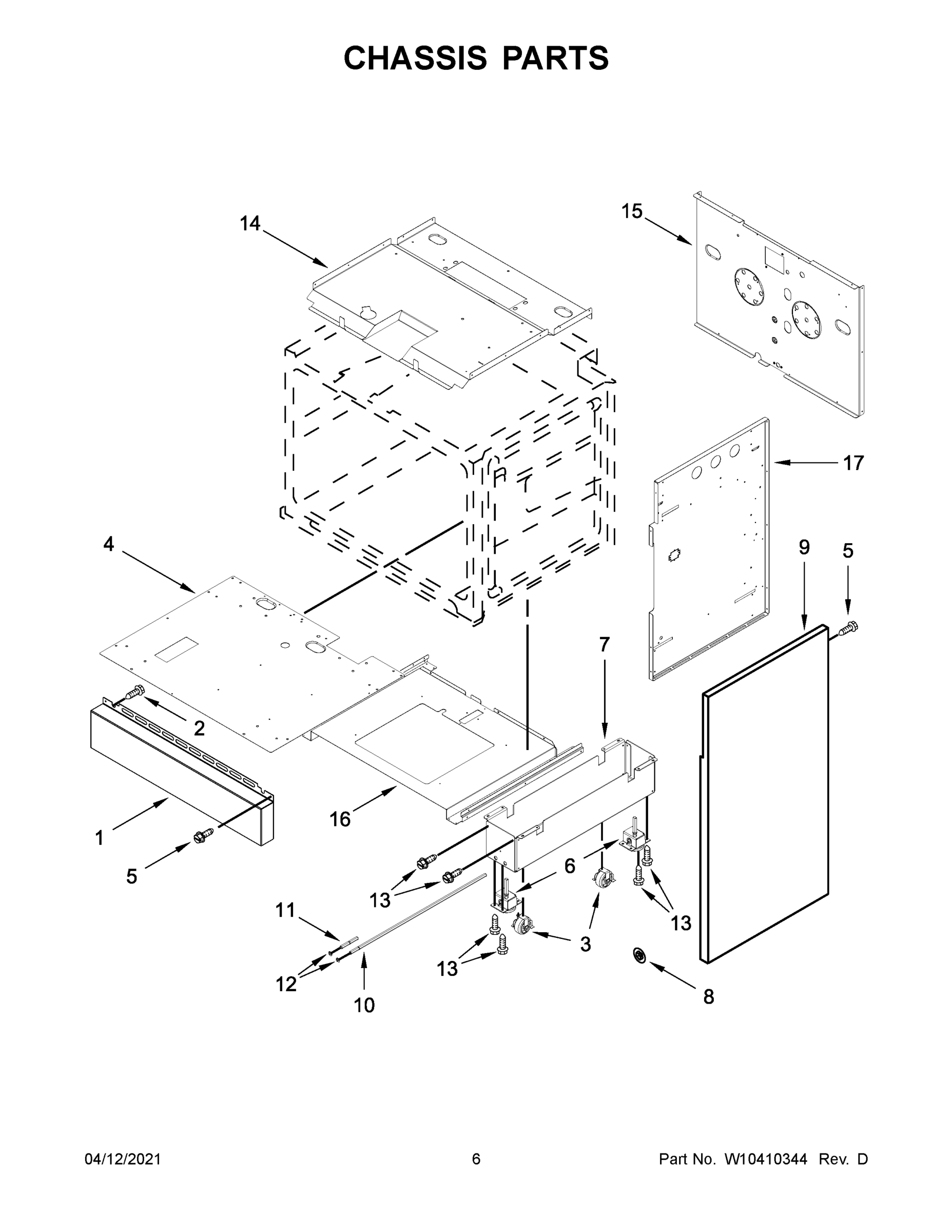

04 - CHASSIS PARTS

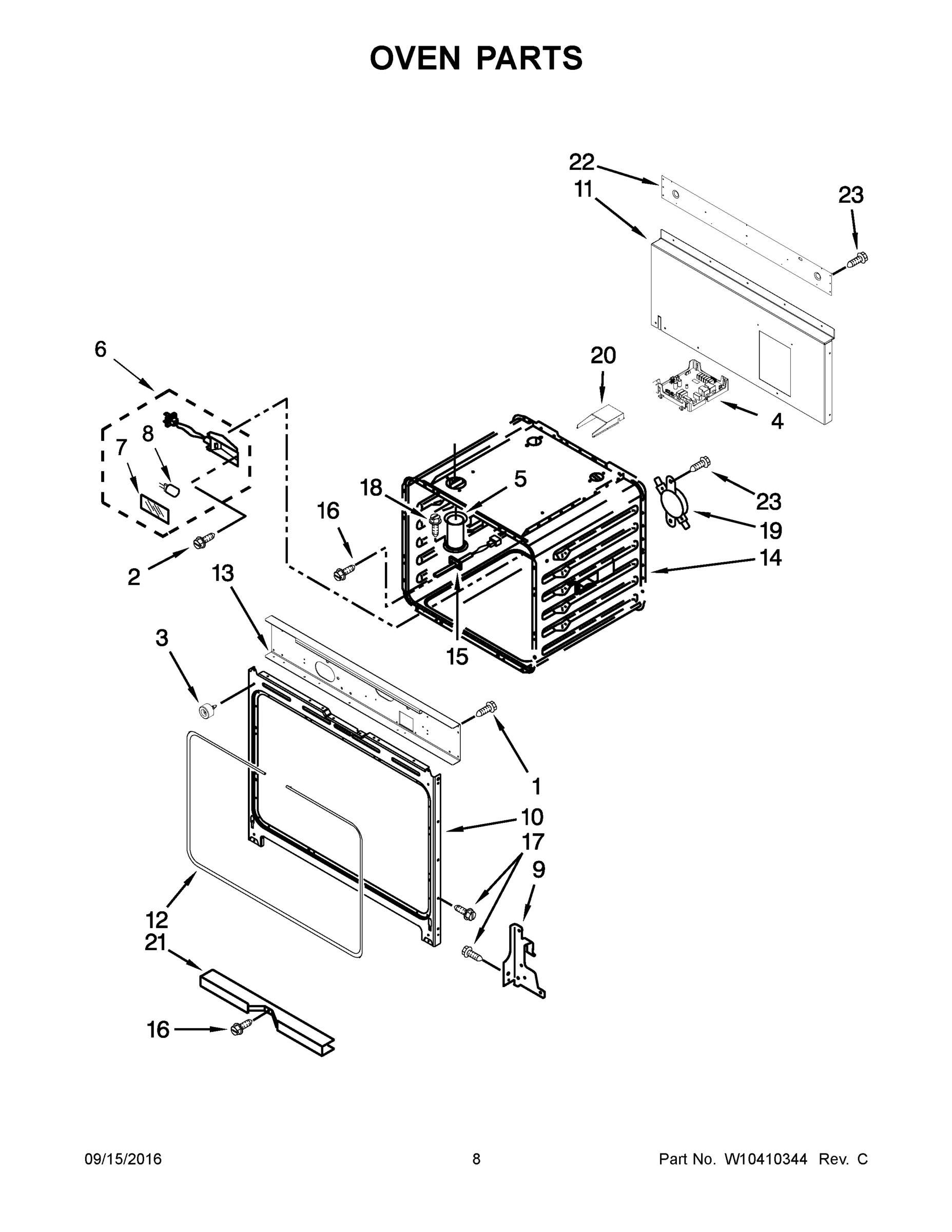

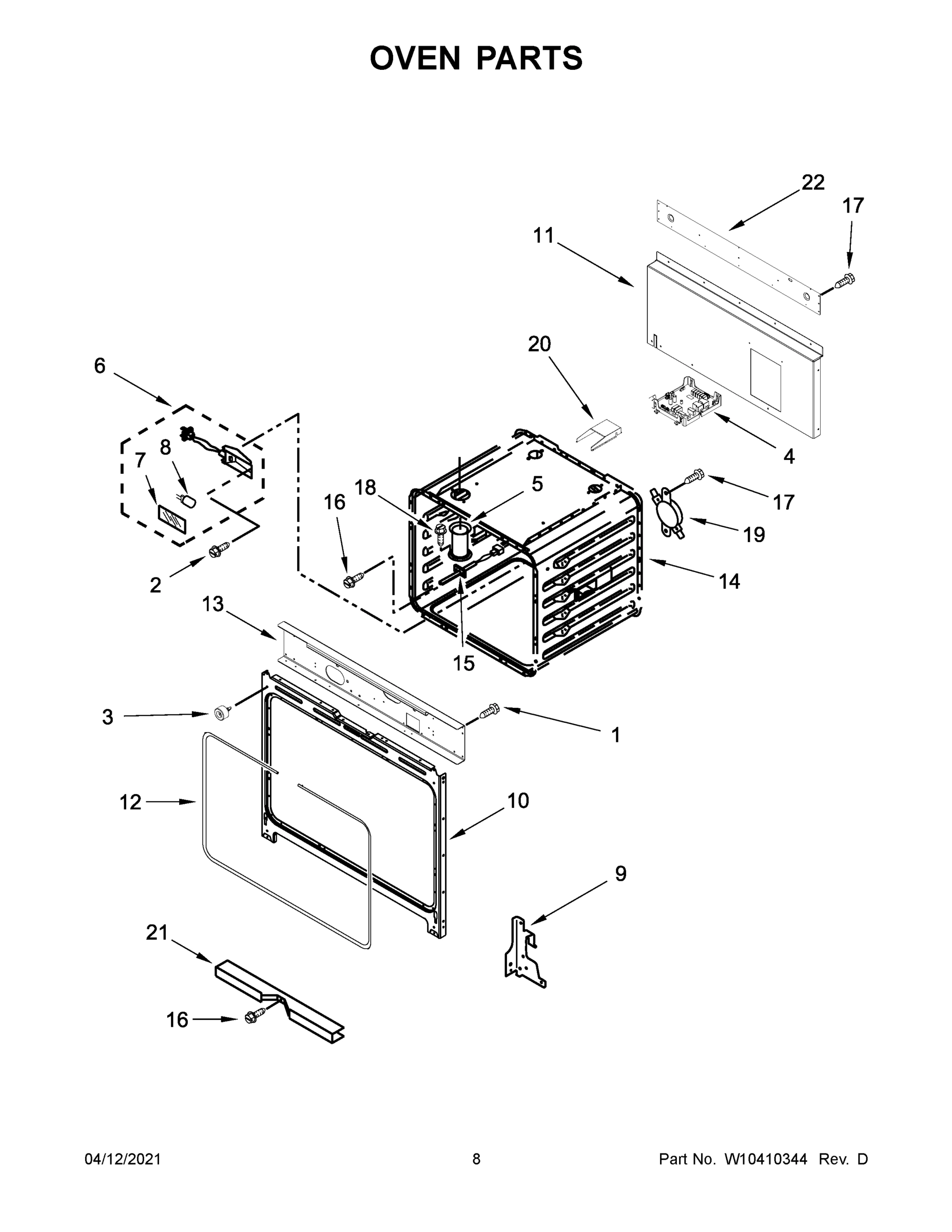

05 - OVEN PARTS

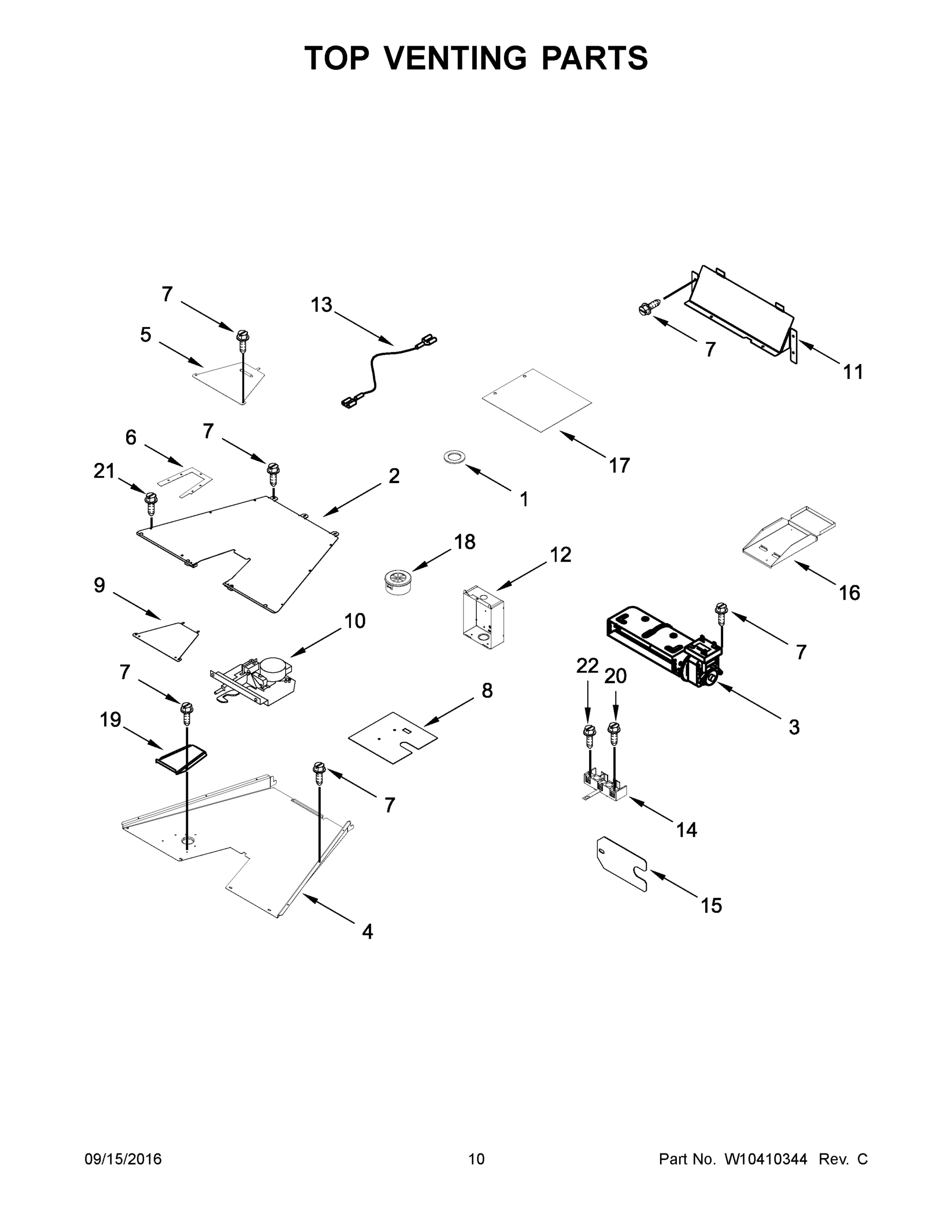

06 - TOP VENTING PARTS

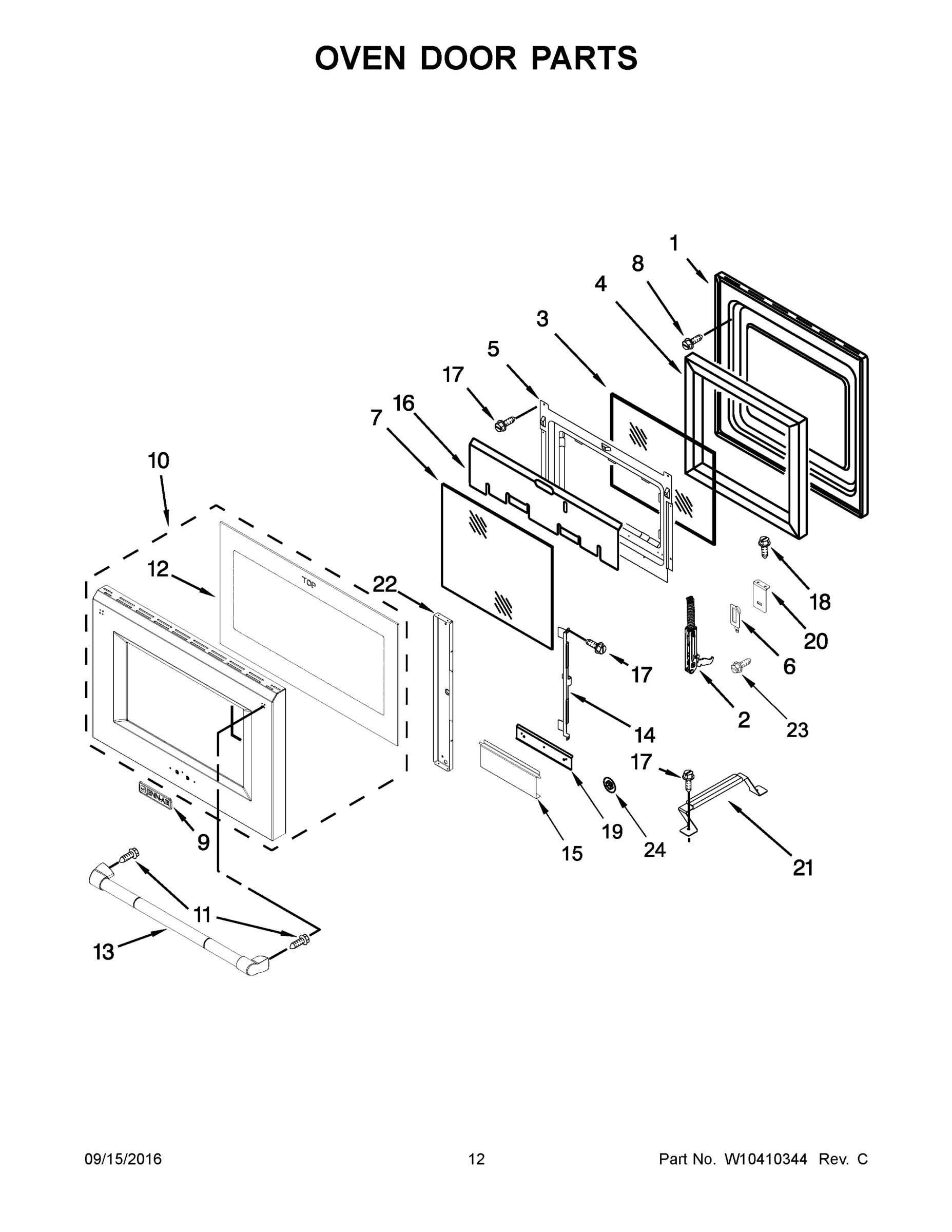

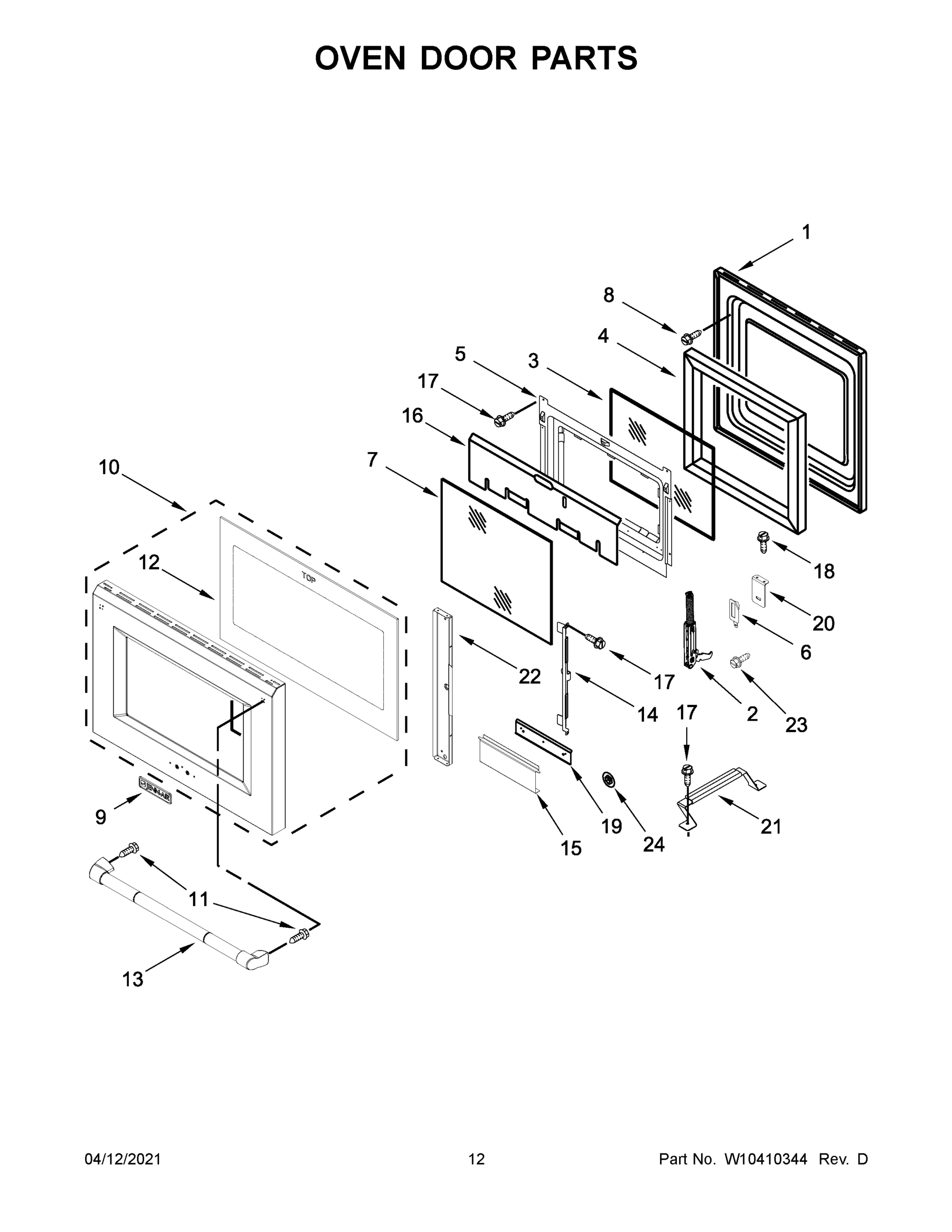

07 - OVEN DOOR PARTS

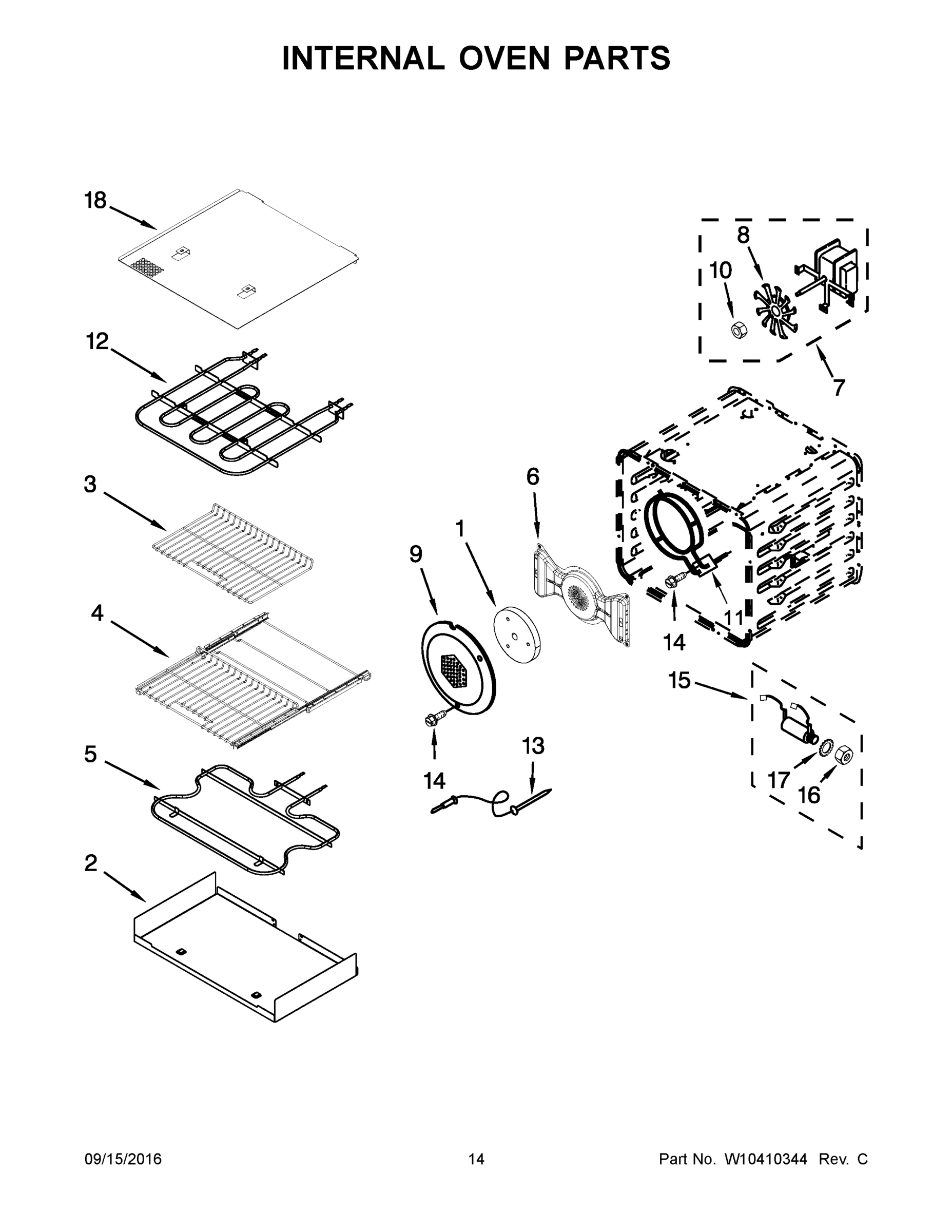

08 - INTERNAL OVEN PARTS
09 - OPTIONAL PARTS
Common parts from model Maytag JDRP430WP01 RANGE/OVEN, DUAL FUEL, COMMERCIAL-STYLE
1
MAY W10403301 MAY W10403301 Contact Us For Availability
1
VALVE, DUAL MAY W10371235 Contact Us For Availability
1
MAY W10145765 MAY W10145765 Contact Us For Availability
1
MAY W10270396 MAY W10270396 Contact Us For Availability
1
LINER, DOOR MAY 9759413 Contact Us For Availability
1
MAY W10282821 MAY W10282821 Contact Us For Availability
1A
MAY W10403302 MAY W10403302 Contact Us For Availability
1B
MAY W10837387 MAY W10837387 Contact Us For Availability
1C
MAY W10821685 MAY W10821685 Contact Us For Availability
1D
MAY 9762761 MAY 9762761 Contact Us For Availability
1E
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
2
ORIFICE (17K) (LEFT FRONT, HIGH) MAY W10340424 Contact Us For Availability
2
MAY W10129030 MAY W10129030 Contact Us For Availability
2
MAY 4449748 MAY 4449748 Contact Us For Availability
2
VENT, COOLING TOP (30") MAY W10160896 Contact Us For Availability
2
MAY W10774095 MAY W10774095 Contact Us For Availability
2
MAY W10160845 MAY W10160845 Contact Us For Availability
2A
ORIFICE (1.2K) (LEFT FRONT, LOW) MAY W10256132 Contact Us For Availability
2A
MAY W10774094 MAY W10774094 Contact Us For Availability
2B
ORIFICE (15K) (LEFT REAR & RIGHT FRONT) MAY W10364221 Contact Us For Availability
2C
ORIFICE (5K) (RIGHT REAR) MAY W10282663 Contact Us For Availability
3
ASSEMBLY, ORIFICE HOLDER (LEFT FRONT) MAY W10364555 Contact Us For Availability
3
MAY W10276534 MAY W10276534 Contact Us For Availability
3
MAY W10138054 MAY W10138054 Contact Us For Availability
3
BUMPER & SCREW MAY W10105790 Contact Us For Availability
3
MAY W10245511 MAY W10245511 Contact Us For Availability
3
GLASS, INNER (SINGLE COATED) MAY 4449259 Contact Us For Availability
3
MAY W10570887 MAY W10570887 Contact Us For Availability
4
ASSEMBLY, ORIFICE HOLDER (LEFT REAR & RIGHT F MAY W10364556 Contact Us For Availability
4
MAY W10432260 MAY W10432260 Contact Us For Availability
4
MAY W10145380 MAY W10145380 Contact Us For Availability
4
MAY W10859105 MAY W10859105 Contact Us For Availability
4
VENT, COOLING BOTTOM (30") MAY W10246078 Contact Us For Availability
4
MAY 4451722 MAY 4451722 Contact Us For Availability
4
MAY W10570865 MAY W10570865 Contact Us For Availability
5
MAY W10282659 MAY W10282659 Contact Us For Availability
5
MAY W10115850 MAY W10115850 Contact Us For Availability
5
MAY W10288061 MAY W10288061 Contact Us For Availability
5
MAY W10160875 MAY W10160875 Contact Us For Availability
5
MAY 4457132 MAY 4457132 Contact Us For Availability
5
MAY W10115995 MAY W10115995 Contact Us For Availability
6
MAY W10269218 MAY W10269218 Contact Us For Availability
6
ADAPTER, FEMALE MAY 4453115 Contact Us For Availability
6
MAY 9760860 MAY 9760860 Contact Us For Availability
6
MAY W10307114 MAY W10307114 Contact Us For Availability
6
SEAL, VENT SLOPE (30") MAY W10270397 Contact Us For Availability
6
MAY W10115876 MAY W10115876 Contact Us For Availability
6
MAY W10246060 MAY W10246060 Contact Us For Availability
6A
MAY W10115877 MAY W10115877 Contact Us For Availability
7
MAY 3400099 MAY 3400099 Contact Us For Availability
7
MAY W10402605 MAY W10402605 Contact Us For Availability
7
MAY W10249333 MAY W10249333 Contact Us For Availability
7
MAY W10169756 MAY W10169756 Contact Us For Availability
7
GLASS, INNER (DOUBLE COATED) MAY 9759225 Contact Us For Availability
7
MAY W10722667 MAY W10722667 Contact Us For Availability
8
BUMPER, GRATE MAY 8286695 Contact Us For Availability
8
VALVE, SINGLE MAY W10385582 Contact Us For Availability
8
MAY W10292297 MAY W10292297 Contact Us For Availability
8
MAY W10169757 MAY W10169757 Contact Us For Availability
8
INSULATOR, TERMINAL BOX MAY 9759721 Contact Us For Availability
8
MAY W10631503 MAY W10631503 Contact Us For Availability
9
BEZEL, FRONT MAY W10276494 Contact Us For Availability
9
MAY W10189097 MAY W10189097 Contact Us For Availability
9
MAY W10250465 MAY W10250465 Contact Us For Availability
9
RECEIVER, HINGE (LEFT) MAY 4455605 Contact Us For Availability
9
MAY W10160858 MAY W10160858 Contact Us For Availability
9
BADGE (STAINLESS) MAY W10159578 Contact Us For Availability
9
MAY W10261523 MAY W10261523 Contact Us For Availability
9A
MAY W10250464 MAY W10250464 Contact Us For Availability
9A
RECEIVER, HINGE (RIGHT) MAY 4455606 Contact Us For Availability
10
MAY W10189105 MAY W10189105 Contact Us For Availability
10
MAY W10189140 MAY W10189140 Contact Us For Availability
10
MAY W10115869 MAY W10115869 Contact Us For Availability
10
MAY W10115831 MAY W10115831 Contact Us For Availability
10
MAY W10830016 MAY W10830016 Contact Us For Availability
10
MAY W10145759 MAY W10145759 Contact Us For Availability
10
NUT, ACORN (LH) MAY W10631504 Contact Us For Availability
11
T-STRIP MAY W10271524 Contact Us For Availability
11
MAY W10449141 MAY W10449141 Contact Us For Availability
11
MAY W10115793 MAY W10115793 Contact Us For Availability
11
MAY W10145392 MAY W10145392 Contact Us For Availability
11
BRACKET, BLOWER (18") MAY W10160844 Contact Us For Availability
11
MAY W10276043 MAY W10276043 Contact Us For Availability
11
MAY W10116434 MAY W10116434 Contact Us For Availability
12
MAY W10464535 MAY W10464535 Contact Us For Availability
12
MAY W10371508 MAY W10371508 Contact Us For Availability
12
MAY 489504 MAY 489504 Contact Us For Availability
12
MAY W10850858 MAY W10850858 Contact Us For Availability
12
MAY W10467022 MAY W10467022 Contact Us For Availability
12
MAY W10145850 MAY W10145850 Contact Us For Availability
12
MAY W10115994 MAY W10115994 Contact Us For Availability
13
CAP, BURNER (BLACK (LEFT FRONT)) MAY W10256034 Contact Us For Availability
13
MAY W10560553 MAY W10560553 Contact Us For Availability
13
MAY W10145377 MAY W10145377 Contact Us For Availability
13
ELECTRODE, BURNER MAY 8286725 Contact Us For Availability
13
HANDLE, DOOR MAY 7701P475-60 Contact Us For Availability
13
MAY 9755542 MAY 9755542 Contact Us For Availability
13A
CAP, BURNER (BLACK (LEFT REAR & RIGHT FRONT)) MAY W10256032 Contact Us For Availability
13B
CAP, BURNER (BLACK (RIGHT REAR)) MAY W10364463 Contact Us For Availability
14
SPREADER, FLAME (LEFT FRONT) MAY W10495853 Contact Us For Availability
14
VALVE, SIMMER MAY W10385583 Contact Us For Availability
14
MAY W10267897 MAY W10267897 Contact Us For Availability
14
BLOCK, TERMINAL MAY 9761958 Contact Us For Availability
14
BRACKET, SIDE MAY 9759229 Contact Us For Availability
14
MAY 7101P500-60 MAY 7101P500-60 Contact Us For Availability
14A
SPREADER, FLAME (LEFT REAR & RIGHT FRONT) MAY W10256027 Contact Us For Availability
14B
SPREADER, FLAME (RIGHT REAR) MAY W10282515 Contact Us For Availability
15
CLIP, SPRING (ELECTRODE) (LEFT FRONT, LEFT RE MAY W10256046 Contact Us For Availability
15
MAY W10115843 MAY W10115843 Contact Us For Availability
15
MAY W10324086 MAY W10324086 Contact Us For Availability
15
MAY W10131825 MAY W10131825 Contact Us For Availability
15
MAY W10145382 MAY W10145382 Contact Us For Availability
15
BRACKET, CENTER OUTER GLASS MAY W10145763 Contact Us For Availability
15
MAY 9755543 MAY 9755543 Contact Us For Availability
15A
SPRING, ELECTRODE (RIGHT REAR) MAY 8286863 Contact Us For Availability
16
ELECTRODE, BURNER (LEFT FRONT, LEFT REAR, RIG MAY W10256047 Contact Us For Availability
16
MAY W10475147 MAY W10475147 Contact Us For Availability
16
MAY W10235537 MAY W10235537 Contact Us For Availability
16
MAY 4449154 MAY 4449154 Contact Us For Availability
16
MAY W10853036 MAY W10853036 Contact Us For Availability
16
SHIELD, HEAT TOP MAY 4457104 Contact Us For Availability
16
MAY 9755546 MAY 9755546 Contact Us For Availability
16A
ELECTRODE, BURNER (RIGHT REAR) MAY W10145991 Contact Us For Availability
17
ASSEMBLY, POWER SUPPLY MAY W10145531 Contact Us For Availability
17
MAY W10189177 MAY W10189177 Contact Us For Availability
17
SCREW MAY 3196537 Contact Us For Availability
17
MAY W10269206 MAY W10269206 Contact Us For Availability
17
MAY 4449040 MAY 4449040 Contact Us For Availability
17
MAY W10239444 MAY W10239444 Contact Us For Availability
17
MAY 9755547 MAY 9755547 Contact Us For Availability
17A
MAY W10269205 MAY W10269205 Contact Us For Availability
18
COOKTOP (BLACK (LEFT)) MAY W10352969 Contact Us For Availability
18
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
18
MAY W10452066 MAY W10452066 Contact Us For Availability
18
SCREW MAY 3196176 Contact Us For Availability
18
BUSHING, SNAP SPLIT MAY 9757778 Contact Us For Availability
18
MAY W10160856 MAY W10160856 Contact Us For Availability
18A
COOKTOP (BLACK (RIGHT)) MAY W10352968 Contact Us For Availability
19
MAY W10130760 MAY W10130760 Contact Us For Availability
19
MAY W10498407 MAY W10498407 Contact Us For Availability
19
MAY 4449751 MAY 4449751 Contact Us For Availability
19
MAY W10818234 MAY W10818234 Contact Us For Availability
19
SHIELD, HEAT BOTTOM MAY 4457114 Contact Us For Availability
19A
MAY W10130759 MAY W10130759 Contact Us For Availability
20
MAY W10276495 MAY W10276495 Contact Us For Availability
20
ADAPTER, MALE MAY 4453116 Contact Us For Availability
20
ASSEMBLY, DRAWER MAY W10235557 Contact Us For Availability
20
NUT, HEX MAY 112432 Contact Us For Availability
20
MAY W10115715 MAY W10115715 Contact Us For Availability
21
MAY 3196160 MAY 3196160 Contact Us For Availability
21
RETAINER, GASKET (30") MAY W10157511 Contact Us For Availability
21
SCREW MAY 3196163 Contact Us For Availability
21
BRACKET, CENTRAL MAY 9759230 Contact Us For Availability
22
MAY 7101P338-60 MAY 7101P338-60 Contact Us For Availability
22
MAY W10269207 MAY W10269207 Contact Us For Availability
22
SCREW, GROUNDING MAY 3400015 Contact Us For Availability
22
BRACKET, OUTER GLASS SIDE MAY W10145761 Contact Us For Availability
23
MAY W10789952 MAY W10789952 Contact Us For Availability
23
MAY 4449743 MAY 4449743 Contact Us For Availability
24
KNOB, DUAL (STAINLESS) MAY W10145568 Contact Us For Availability
24
MAY 3400968 MAY 3400968 Contact Us For Availability
25
SCREW MAY W10078270 Contact Us For Availability
26
MAY 8286930 MAY 8286930 Contact Us For Availability
27
KNOB, SINGLE (STAINLESS) MAY W10145454 Contact Us For Availability
28
ASSEMBLY, GRATE (BLACK) MAY W10276551 Contact Us For Availability
29
SCREW MAY 3177991 Contact Us For Availability
30
MAY 8286921 MAY 8286921 Contact Us For Availability
NI
MAY 313438 MAY 313438 Contact Us For Availability
NI
SCREW, GROUNDING MAY 4450800 Contact Us For Availability
NI
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
NI
CLIP, WIRE LOCK MAY 8019P013-60 Contact Us For Availability
NI
MAY 9759877 MAY 9759877 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
HARNESS, CONVECTION FAN MAY W10116142 Contact Us For Availability
NI
MAY W10145988 MAY W10145988 Contact Us For Availability
NI
GROMMET, FLEXIBLE 60MM MAY W10177363 Contact Us For Availability
NI
MAY W10183556 MAY W10183556 Contact Us For Availability
NI
BRACKET, ANTI-TIP MAY W10253333 Contact Us For Availability
NI
REDUCER, STEM MAY W10340850 Contact Us For Availability
NI
MAY W10344051 MAY W10344051 Contact Us For Availability
NI
MAY W10363279 MAY W10363279 Contact Us For Availability
NI
TIE, CA MAY W10368807 Contact Us For Availability
NI
MAY W10766100 MAY W10766100 Contact Us For Availability
NI
MAY W10780278 MAY W10780278 Contact Us For Availability
NI
MAY W10830809 MAY W10830809 Contact Us For Availability
NI
TUBE (RIGHT REAR) MAY W10276501 Contact Us For Availability
NI
MAY W10368165 MAY W10368165 Contact Us For Availability
NI
MAY W10368166 MAY W10368166 Contact Us For Availability
NI
MAY W10368167 MAY W10368167 Contact Us For Availability
NI
TUBE (RIGHT FRONT) MAY W10368335 Contact Us For Availability
NI
INSULATION, WRAP, 30" MAY W10282810 Contact Us For Availability
NI
INSULATION, BACK, 30" MAY W10282816 Contact Us For Availability
NI
MISCELLANEOUS, CLEANER, STAINLESS STEEL MAY 31462 Contact Us For Availability
NI
MISCELLANEOUS, APPLIANCE CLEANER MAY 31682 Contact Us For Availability
NI
ADHESIVE, SEAL, ACCESS PANEL MAY 4453191 Contact Us For Availability
NI
ADHESIVE, SEAL, RIBBON CABLE MAY 4453192 Contact Us For Availability
NI
ADHESIVE, SEALER, SILASTIC MAY 482338 Contact Us For Availability
NI
ADHESIVE, ADHESIVE, LOCTITE MAY 591014 Contact Us For Availability
NI
MISCELLANEOUS, BACKSPLASH, (ADJUSTABLE) MAY 8285148 Contact Us For Availability
NI
MISCELLANEOUS, STAINLESS STEEL WALLSPLASH MAY JXA9003CDP Contact Us For Availability
NI
MISCELLANEOUS, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
MISCELLANEOUS, COVER, GRILL/GRIDDLE MAY W10160195 Contact Us For Availability
NI
MISCELLANEOUS, RACK, OVEN (SLIDING) MAY W10208155 Contact Us For Availability
NI
MISCELLANEOUS, RING, WOK MAY W10216179 Contact Us For Availability
× ![]()
