Model Whirlpool JDB4000AWQ DISHWASHER – Common Parts &amp; Diagrams

1

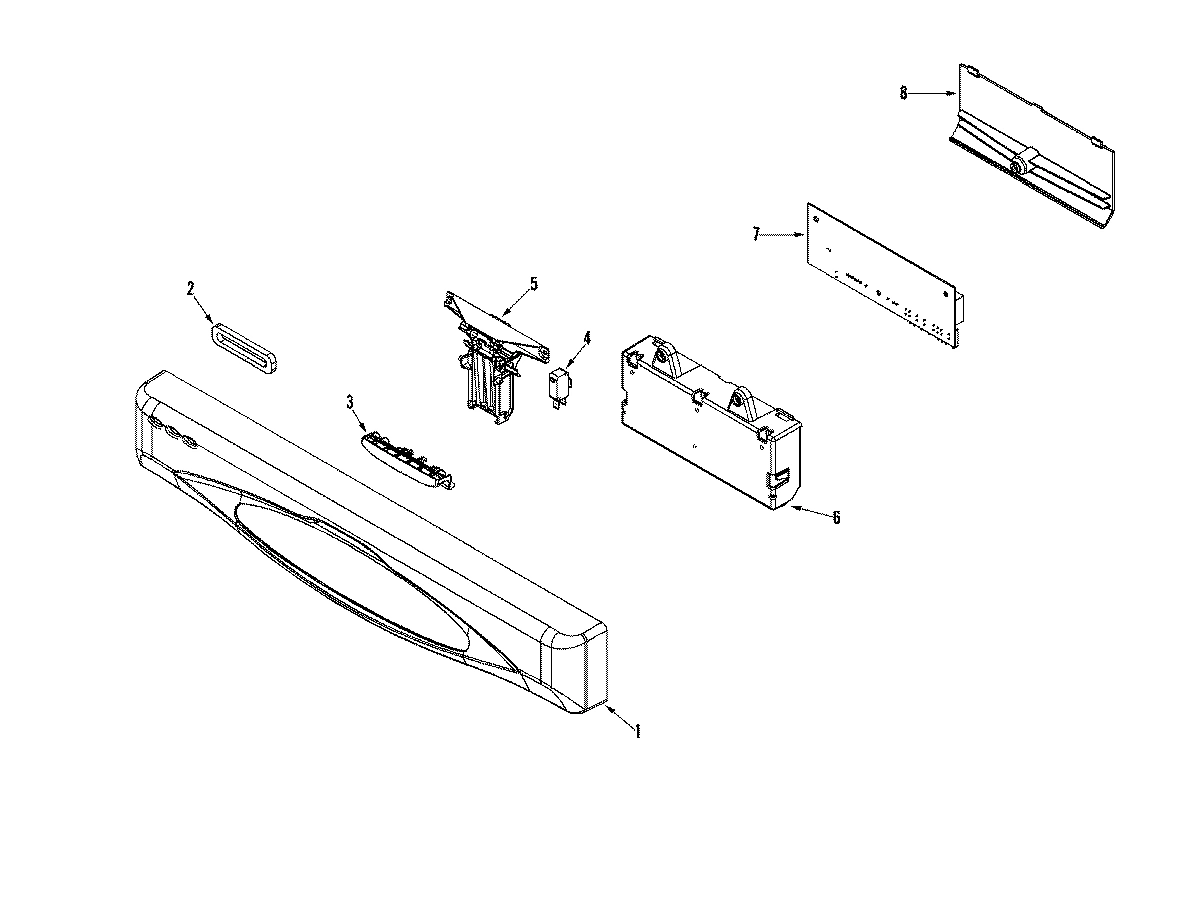

PANEL, CONTROL (BSQ) WPL 99002798 Contact Us For Availability

1

PANEL, DECO (W/DAMPER-BSQ) WPL 99002769 Contact Us For Availability

1

CAP, RACK (LIGHT GRAY) WPL 99002017 Contact Us For Availability

1

RACK ASSEMBLY (UPR) WPL 99002615 Contact Us For Availability

1

RACK ASSEMBLY (UPR) WPL 99003018 Contact Us For Availability

1

MANUAL, USE & CARE (JDB-2) WPL 99002564 Contact Us For Availability

1

Guide, Use & Care WPL W10164024 Contact Us For Availability

1

MANUAL, USE & CARE (JDB-2) WPL Y6918350 Contact Us For Availability

2

WPW10261227 Whirlpool Dishwasher Stop Assembl Backorder WPL WPW10261227 $3.84

2

VENT HOUSING ASSEMBLY WPL 99002673 Contact Us For Availability

2

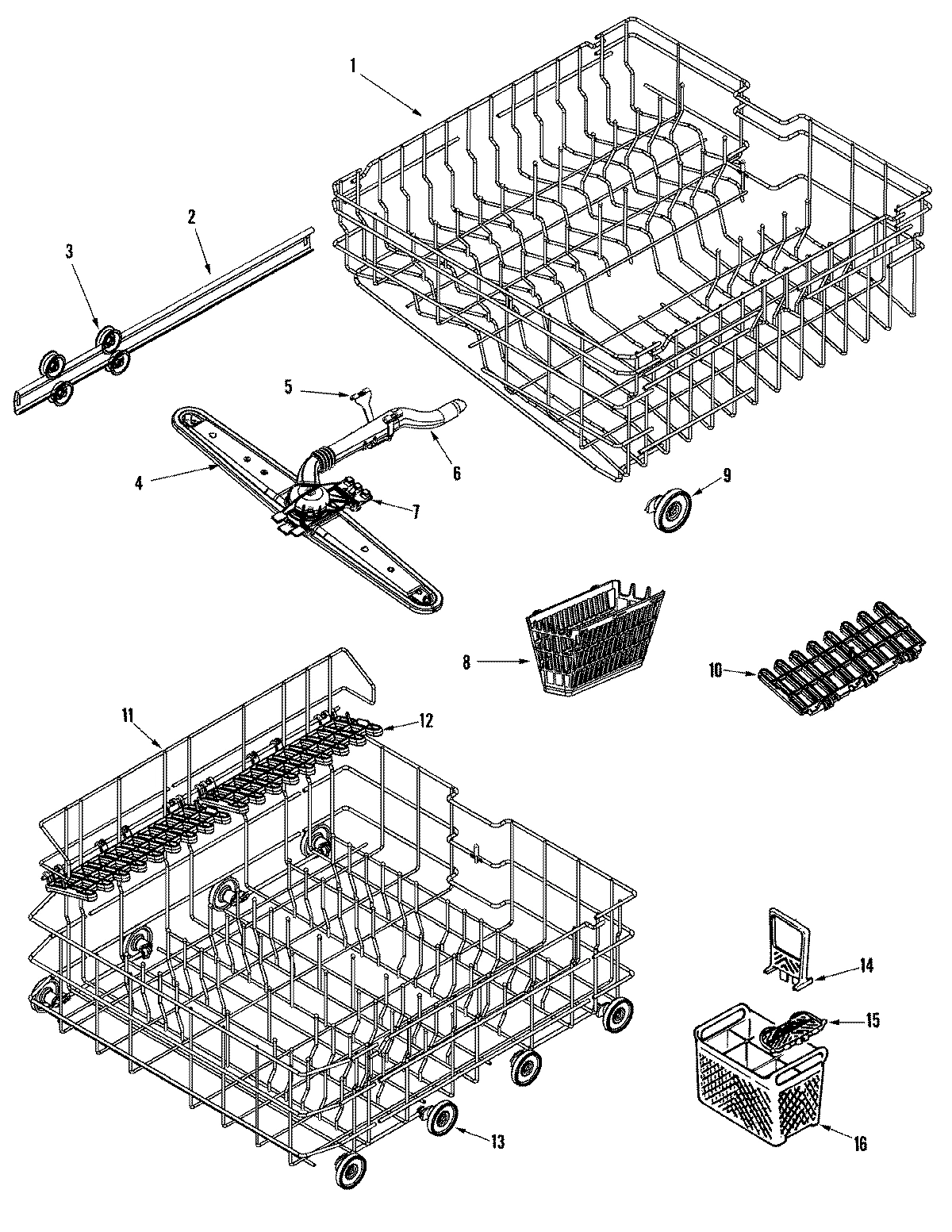

TRACK, RACK WPL 99002621 Contact Us For Availability

2

TALL TUB SERVICE MANUAL WPL 16021814 Contact Us For Availability

3

WP99002947 Whirlpool Tub Wheel In Stock WPL WP99002947 $5.85

3

WPW10130695 Whirlpool Dishwasher Door Latch A In Stock WPL WPW10130695 $22.35

3

WPY912798 Whirlpool Dishwasher Tub Washer Whe Backorder WPL WPY912798 $2.60

3

SHIELD, RADIANT WPL 99002653 Contact Us For Availability

3

CROSSBRACE, HINGE WPL 99002604 Contact Us For Availability

3

NOT REQUIRED PART OR SEE NOTE (PART NO LONGER WPL W10124350 Contact Us For Availability

3

FILTER, OVER-PRESSURE (W/CVR) WPL 99002846 Contact Us For Availability

3

GUIDE, ENERGY WPL 99002755 Contact Us For Availability

3

GUIDE, ENERGY WPL 99002909 Contact Us For Availability

3

GUIDE, ENERGY WPL 99003086 Contact Us For Availability

3

GUIDE, ENERGY WPL W10114397 Contact Us For Availability

4

WPW10118637 Whirlpool Dishwasher Bracket Backorder WPL WPW10118637 $103.21

4

SWITCH, DOOR WPL 99002751 Contact Us For Availability

4

SCREW WPL 99002666 Contact Us For Availability

4

SCREW WPL 99001075 Contact Us For Availability

4

BRACKET, HINGE (LT) WPL 99002929 Contact Us For Availability

4

ARM, WASH (UPR) WPL 99002624 Contact Us For Availability

4

SCREW, TRUSS HEAD (10-18X.75) WPL 99002740 Contact Us For Availability

4

STATION, DOCKING (W/FLAPPER) WPL 99002674 Contact Us For Availability

4

MISC. PARTS PACKAGE WPL 99002854 Contact Us For Availability

4

MISC PARTS PACKAGE WPL W10182534 Contact Us For Availability

5

WPW10275768 Whirlpool Door Latch In Stock WPL WPW10275768 $34.89

5

SCREW, DISCHARGE HOUSING WPL 99002664 Contact Us For Availability

5

COVER, AIR/WATER INLET WPL 99002647 Contact Us For Availability

5

FOAM INSERT, AIR/WATER INLET WPL 99002867 Contact Us For Availability

5

FELT, AIR/WATER INLET WPL 99002954 Contact Us For Availability

5

FOAM BLOCK, AIR/WATER INLET WPL 99002955 Contact Us For Availability

5

DISCHARGE HOUSING ASSY (UPR) WPL 99002677 Contact Us For Availability

5

INSULATION, DOOR WPL Y99002587 Contact Us For Availability

5

WASH ARM, TOP (W/RETAINER) WPL 99002676 Contact Us For Availability

5

TOE PANEL SPACER KIT (BSQ) WPL DAX3400AXN Contact Us For Availability

6

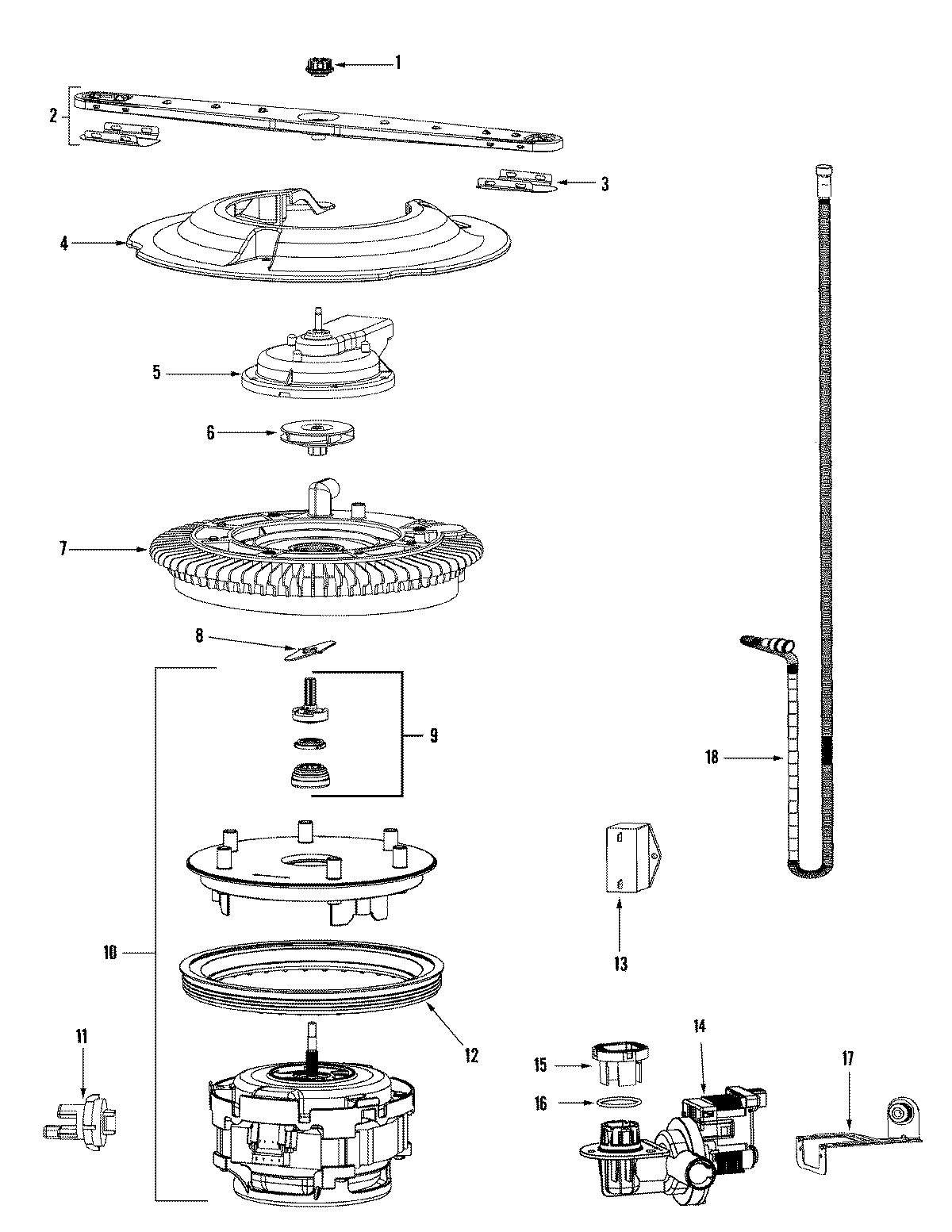

WP99002659 Whirlpool Impeller Backorder WPL WP99002659 $33.57

6

SEAL, DOOR WPL 99002588 Contact Us For Availability

6

SCREW, IMPELLER WPL 99002660 Contact Us For Availability

6

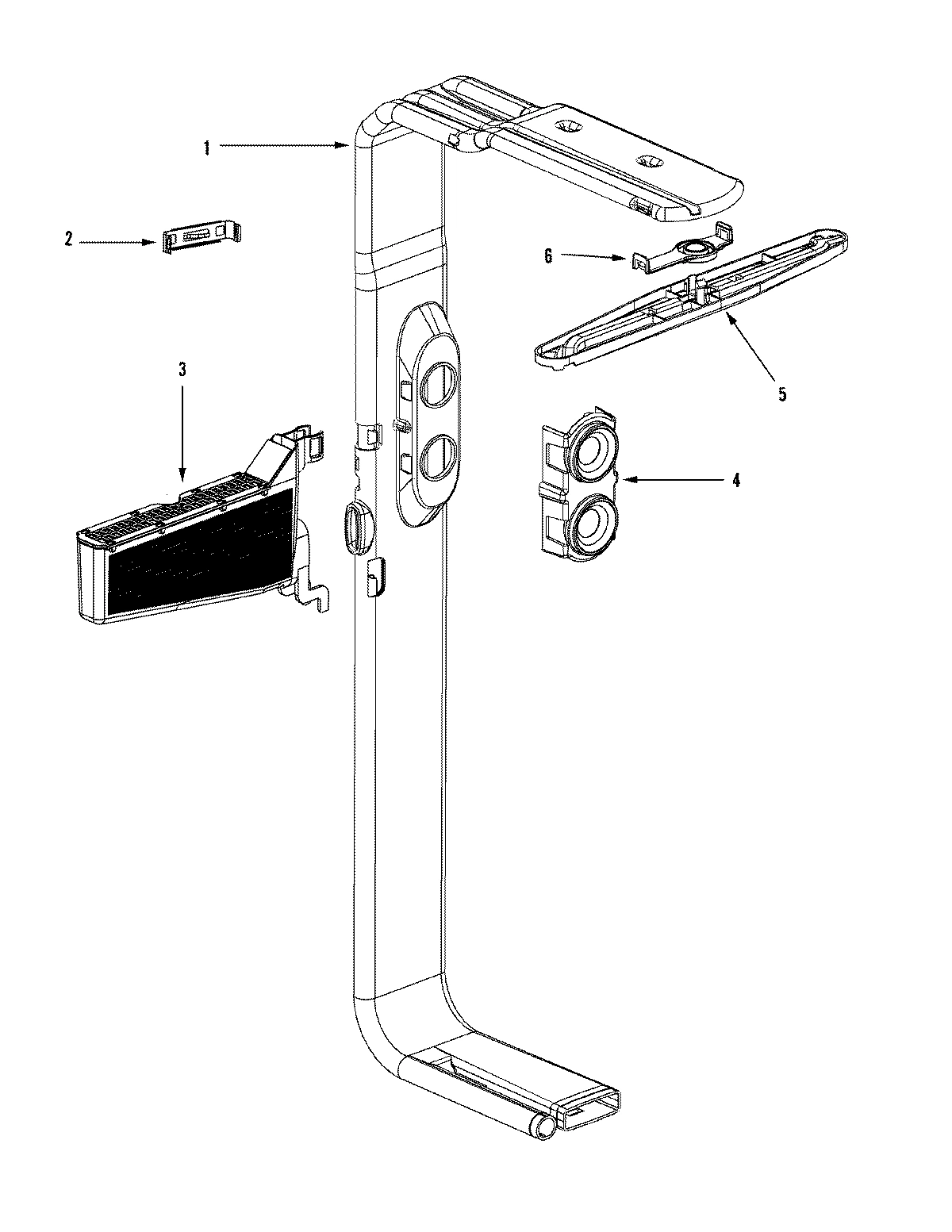

WASH MANIFOLD ASSY (UPR) WPL 99002679 Contact Us For Availability

6

TRIM STRIP KIT (WHT) WPL DAX3200AXE Contact Us For Availability

6

TRIM STRIP KIT (BSQ) WPL DAX3200AXN Contact Us For Availability

7

BOARD, CONTROL WPL 12002709 No Longer Available

7

WP99002589 Whirlpool Dishwasher Door Seal Backorder WPL WP99002589 $35.11

7

WPW10192799 Whirlpool Dishwasher Accumulator In Stock WPL WPW10192799 $135.57

7

BRACKET, CABINET MOUNTING WPL 99002648 Contact Us For Availability

7

BOARD, CONTROL WPL 99002574 Contact Us For Availability

7

BOARD, CONTROL WPL 99002842 Contact Us For Availability

7

BOARD- CON WPL 99003622 Contact Us For Availability

7

BOARD- CON WPL W10111822 Contact Us For Availability

7

SCREW, STAINLESS PAN HEAD WPL 99002668 Contact Us For Availability

7

PUSHNUT, STAINLESS WPL 99002756 Contact Us For Availability

7

CLIP, UPR WASH MANIFOLD (FRT) WPL 99002669 Contact Us For Availability

7

WOOD PANEL KIT (BLK) WPL DAX3000AXB Contact Us For Availability

7

WOOD PANEL KIT (BSQ) WPL DAX3000AXQ Contact Us For Availability

7

WOOD PANEL KIT (WHT) WPL DAX3000AXW Contact Us For Availability

8

WP99002644 Whirlpool Dishwasher Door Striker Backorder WPL WP99002644 $3.84

8

Foam Strip(Short) WPL 99003482 Contact Us For Availability

8

STRIKER, DOOR WPL 99003357 Contact Us For Availability

8

HOUSING, BOARD (TOP) WPL 99002575 Contact Us For Availability

8

CHOPPER WPL 99003427 Contact Us For Availability

8

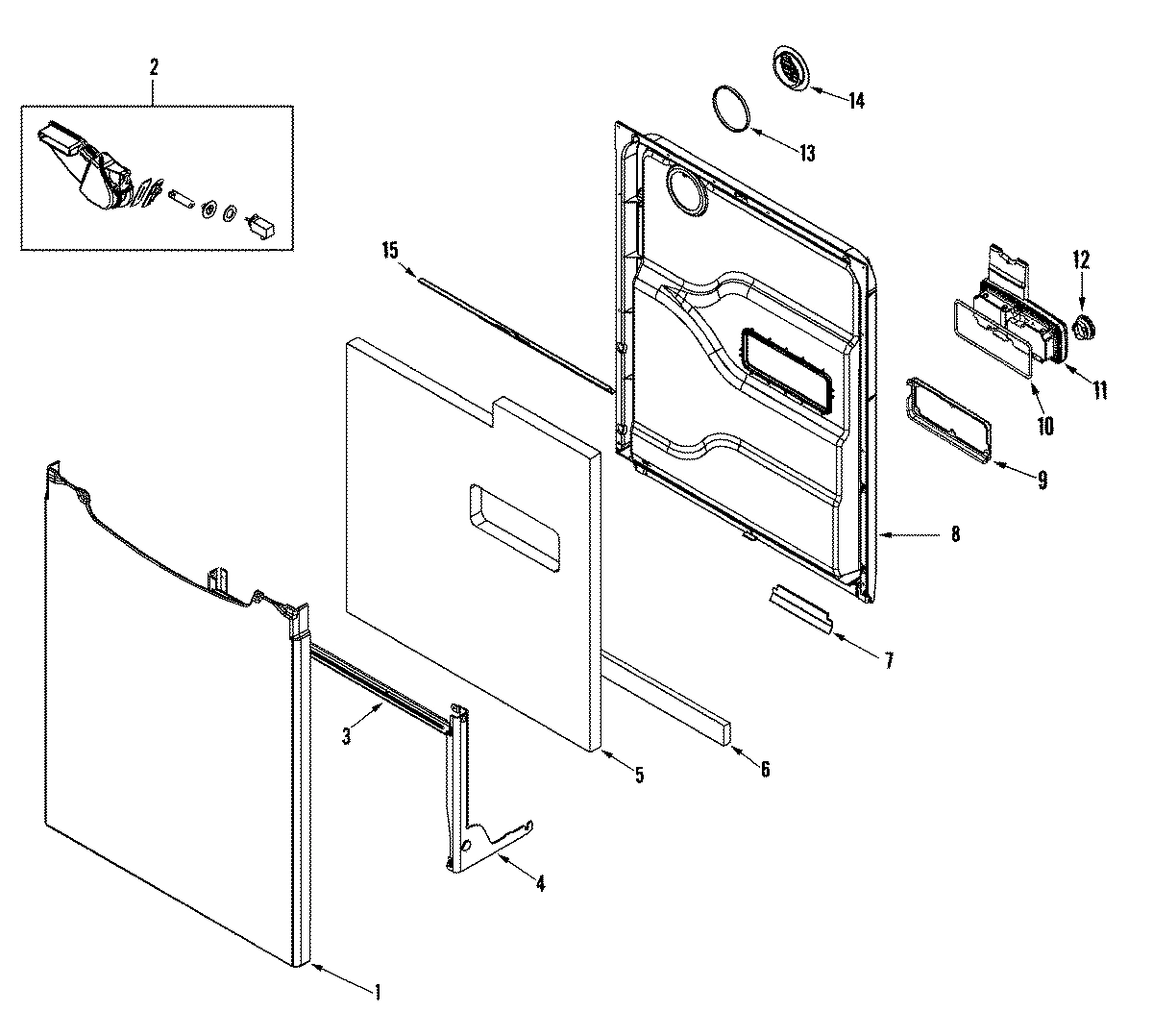

DOOR, INNER (W/DAMPER) WPL 99002776 Contact Us For Availability

8

DOOR, INNER (W/DAMPER) WPL 99002970 Contact Us For Availability

8

Foam Strip(Long) WPL 99003481 Contact Us For Availability

8

DOOR LINER, SECONDARY WPL 99003540 Contact Us For Availability

8

BRACKET, SECONDARY DOOR LINER WPL 99003541 Contact Us For Availability

9

WP33002917 Whirlpool Screw Backorder WPL WP33002917 $2.60

9

WP99002781 Whirlpool Dishwasher Wheel In Stock WPL WP99002781 $4.96

9

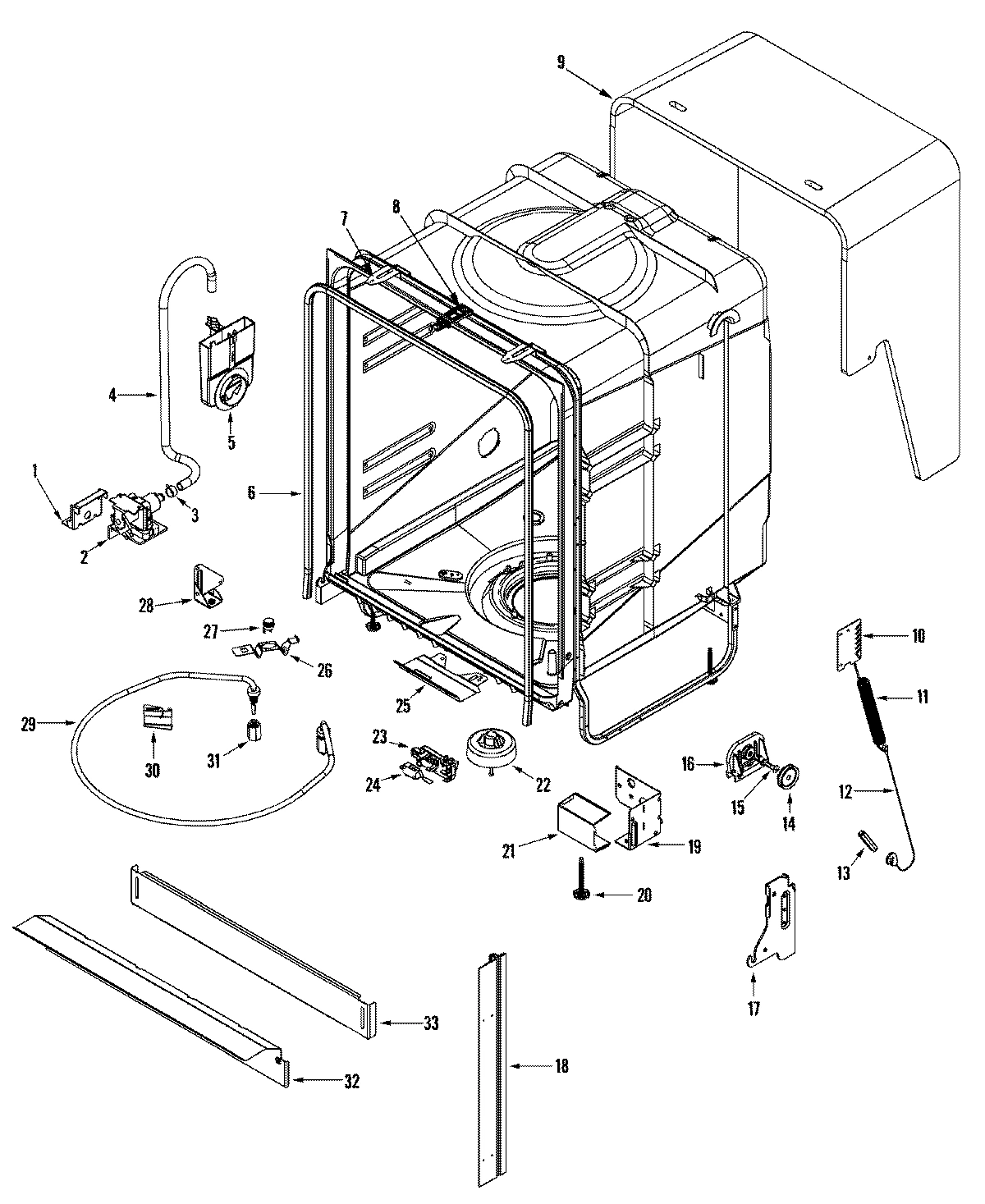

INSULATION, TUB WPL 99002639 Contact Us For Availability

9

FASTENER, INSULATION WPL 99002640 Contact Us For Availability

9

WIRE HARNESS, MICROPROCESSOR WPL 99002581 Contact Us For Availability

9

WIRE HARNESS, MICROPROCESSOR WPL 99002845 Contact Us For Availability

9

WIRE HARNESS, MICROPROCESSOR WPL 99002986 Contact Us For Availability

9

HARNESS, WIRE WPL 99003537 Contact Us For Availability

9

WASH MOTOR SEAL KIT WPL 99002760 Contact Us For Availability

9

WASH MOTOR SEAL KIT WPL 99002981 Contact Us For Availability

SHELF, CUP (UPR) WPL 99002671 Contact Us For Availability

WASH MOTOR ASSY SEAL NOT INCL WPL 99002759 Contact Us For Availability

WASH MOTOR ASSY SEAL NOT INCL WPL 99002980 Contact Us For Availability

WASH MOTOR ASSY SEAL NOT INCL WPL 99003430 Contact Us For Availability

SEAL, BASE WPL 99002270 Contact Us For Availability

99002651 Whirlpool Dishwasher Turbidity Senso Backorder WPL 99002651 $11.17

WPW10120019 Whirlpool Dishwasher Sensor Backorder WPL WPW10120019 $149.00

SPRING, DOOR WPL 99002598 Contact Us For Availability

RINSE AID/DETERGENT DISPENSER WPL 99002611 Contact Us For Availability

RACK ASSEMBLY (LWR) WPL 99002616 Contact Us For Availability

RACK ASSEMBLY (LWR) WPL 99002964 Contact Us For Availability

WP99002614 Whirlpool Dishwasher Rinse Knob Backorder WPL WP99002614 $11.17

WP99003446 Whirlpool Door Cable In Stock WPL WP99003446 $4.03

GASKET, PUMP WPL 99002663 Contact Us For Availability

SHELF, CUP (LWR) WPL 99002672 Contact Us For Availability

WP99002780 Whirlpool Lower Wheel Assembly In Stock WPL WP99002780 $4.60

SCREW 10-32X.400 (T-20 HEAD) WPL 99002601 Contact Us For Availability

CAPACITOR, MOTOR WPL 99002665 Contact Us For Availability

SEAL, DOOR VENT WPL 99002186 Contact Us For Availability

DRAIN PUMP ASSEMBLY WPL 99002750 Contact Us For Availability

FLAPPER, DRAIN PUMP VALVE WPL 99002815 Contact Us For Availability

Drain Pump Assy. WPL W10200518 Contact Us For Availability

BEZEL, DOOR VENT WPL 99002590 Contact Us For Availability

HANDLE, SILVERWARE BASKET WPL 99002619 Contact Us For Availability

SHOULDER BOLT, CABLE BRACKET WPL 99002609 Contact Us For Availability

SHOULDER BOLT, CABLE BRACKET WPL 99003687 Contact Us For Availability

NUT, 10-24 WPL 99003688 Contact Us For Availability

FLAPPER, DRAIN FILTER WPL 99003058 Contact Us For Availability

REINFORCEMENT, INNER DOOR WPL 99002586 Contact Us For Availability

COVER, SILVERWARE BASKET WPL 99002618 Contact Us For Availability

WP6-918873 Whirlpool Silverware Basket In Stock WPL WP6-918873 $27.55

BRACKET, CABLE WPL 99002607 Contact Us For Availability

BRACKET, CABLE WPL 99003686 Contact Us For Availability

O-RING, DRAIN PUMP WPL 99002857 Contact Us For Availability

SUPPORT, HINGE (RT) WPL 99002763 Contact Us For Availability

SUPPORT, HINGE (LT) WPL 99002764 Contact Us For Availability

SCREW, DRAIN PUMP MOUNTING WPL 99002657 Contact Us For Availability

BRKT, DRAIN PUMP (W/GROMMET) WPL 99002752 Contact Us For Availability

18

WP99002652 Whirlpool Drain Hose In Stock WPL WP99002652 $75.46

18

STRIP, TRIM WPL 99002649 Contact Us For Availability

18

SCREW, TRIM MOUNTING WPL 99002692 Contact Us For Availability

19

BRACKET, JUNCTION BOX SUPPORT WPL 99002637 Contact Us For Availability

20

WPW10143258 Whirlpool Dishwasher Leg Leveler Backorder WPL WPW10143258 $5.57

21

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.73

21

COVER, JUNCTION BOX WPL 99002638 Contact Us For Availability

22

FLOAT WPL 99002630 Contact Us For Availability

23

PLATE, SWITCH MOUNTING WPL 99002632 Contact Us For Availability

24

FLOAT WPL W10202535 Contact Us For Availability

24

SWITCH, FLOAT WPL 99002631 Contact Us For Availability

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.60

SHIELD, TUB WPL 99002641 Contact Us For Availability

CLIP, WIRE WPL 99002754 Contact Us For Availability

CLAMP, HARNESS WPL 99002855 Contact Us For Availability

SHIELD, TUB WPL 99002856 Contact Us For Availability

CLIP, TINNE WPL 99002858 Contact Us For Availability

26

WPL 99002634 WPL 99002634 Contact Us For Availability

27

WPL 99002633 WPL 99002633 Contact Us For Availability

28

WPL 99002636 WPL 99002636 Contact Us For Availability

29

W10283681 Whirlpool Dishwasher Heater Backorder WPL W10283681 $74.96

29

WPL 99002973 WPL 99002973 Contact Us For Availability

30

WP6-917262 Whirlpool Dishwasher Heater Bracke Backorder WPL WP6-917262 $115.03

31

WPL 99002627 WPL 99002627 Contact Us For Availability

31

WPL 99002972 WPL 99002972 Contact Us For Availability

31

WPL Y913079 WPL Y913079 Contact Us For Availability

32

WPL 99002861 WPL 99002861 Contact Us For Availability

33

WPL 99002114 WPL 99002114 Contact Us For Availability

33

WPL 99002767 WPL 99002767 Contact Us For Availability

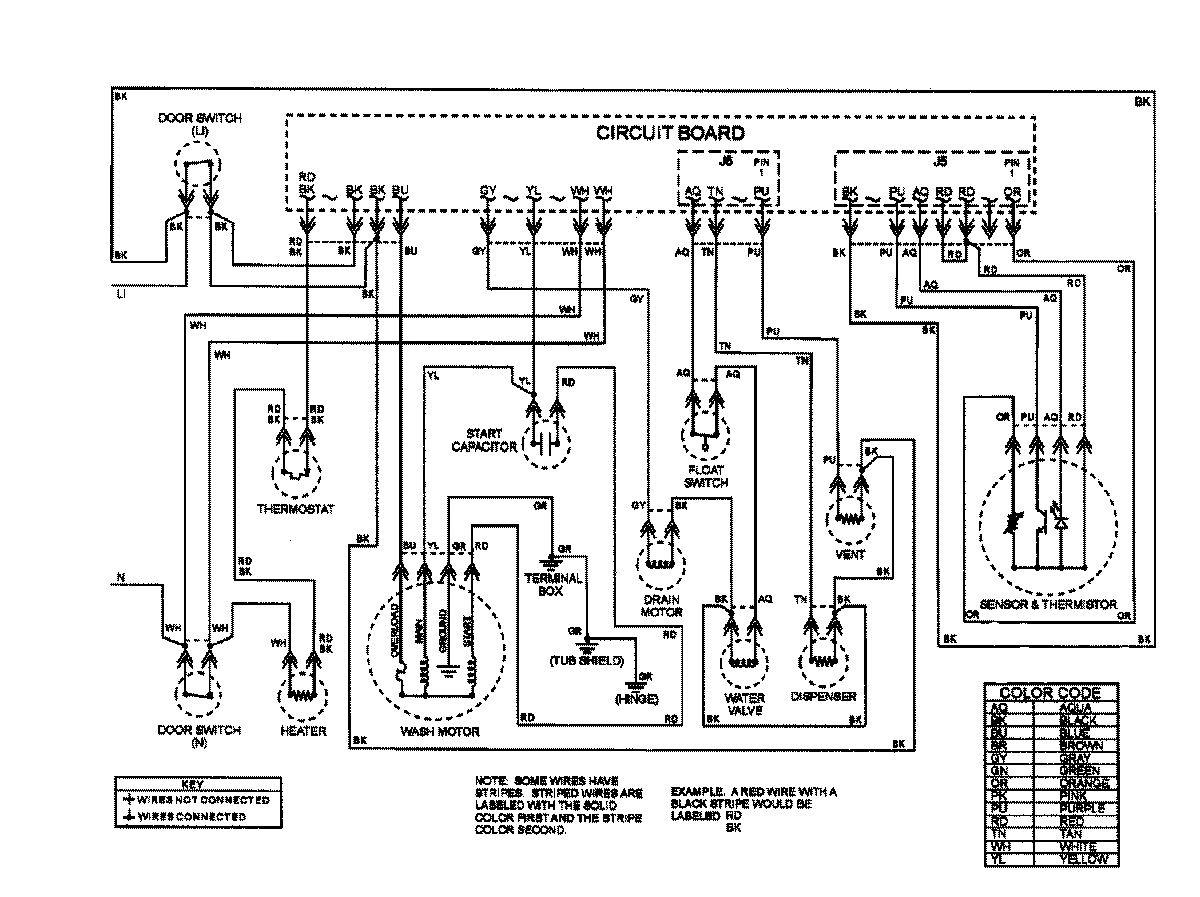

NI

WIRING INFORMATION WPL 15003043 Contact Us For Availability

NI

WIRING INFORMATION WPL 15003316 Contact Us For Availability
