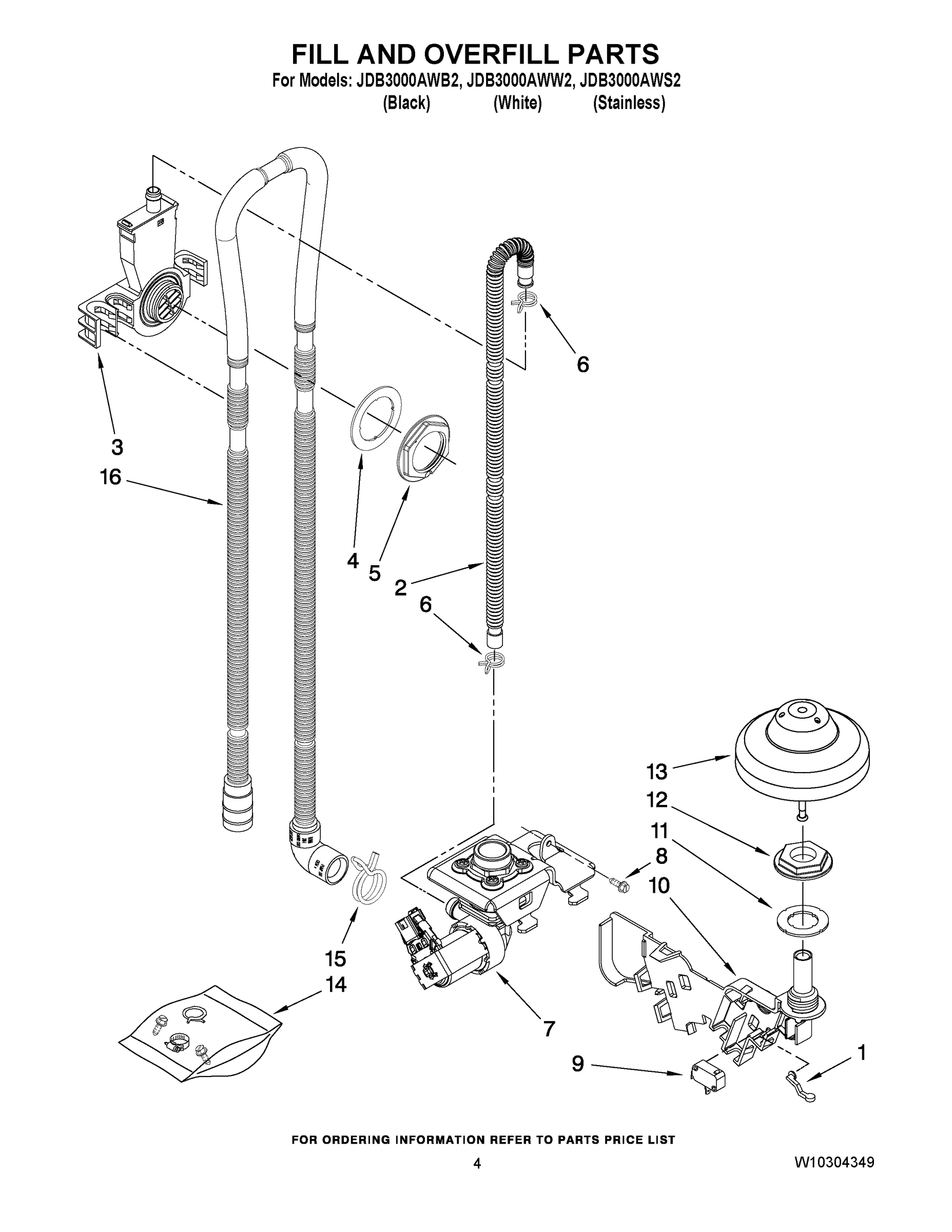

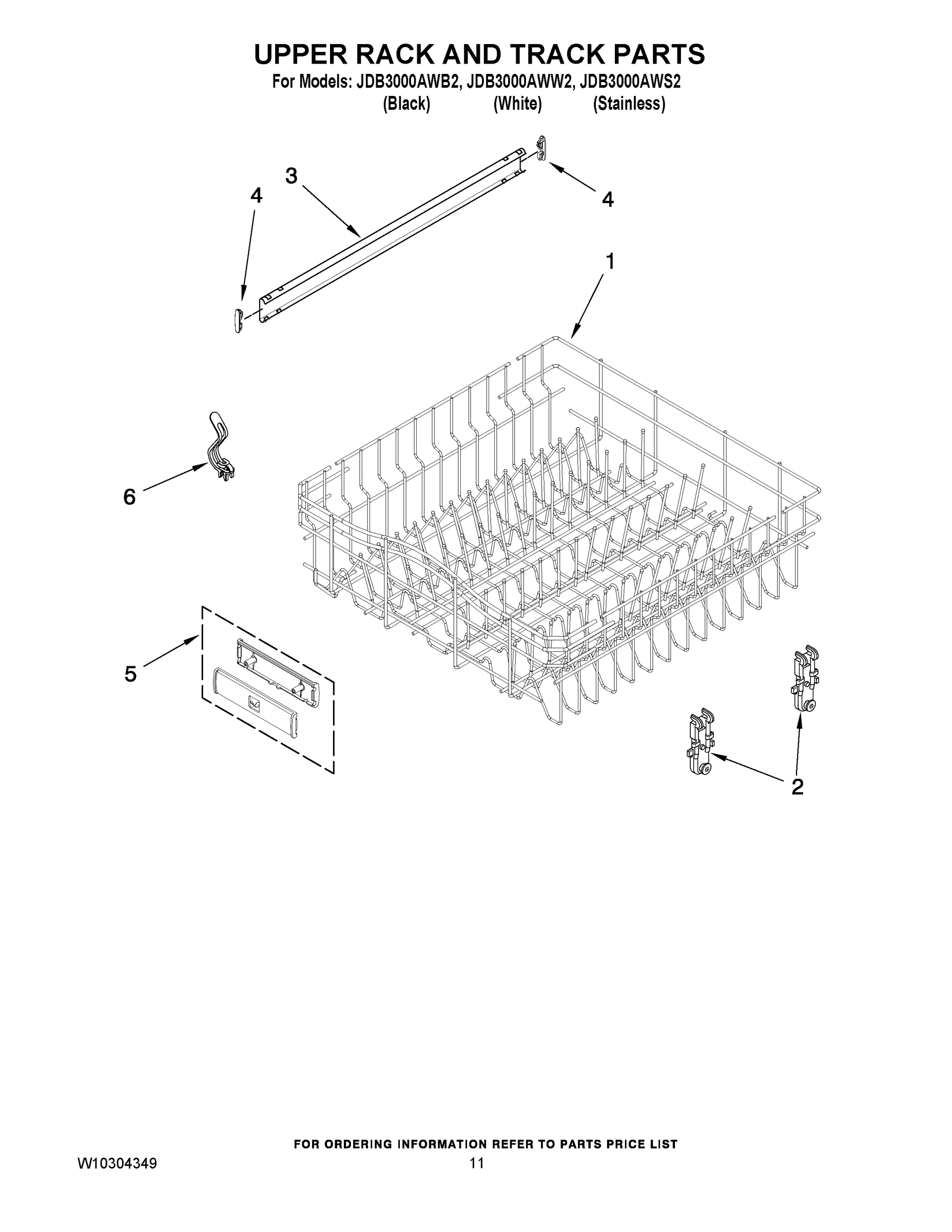

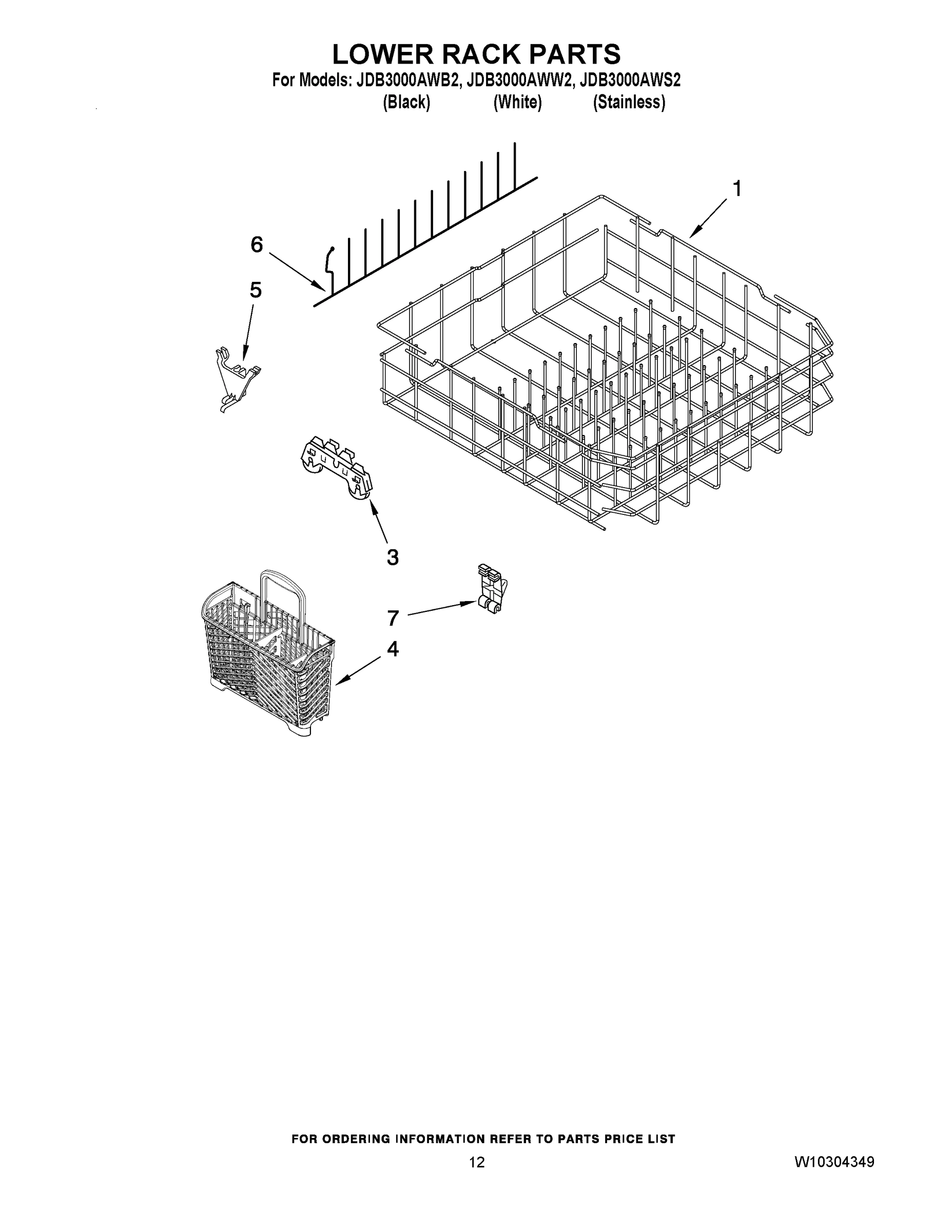

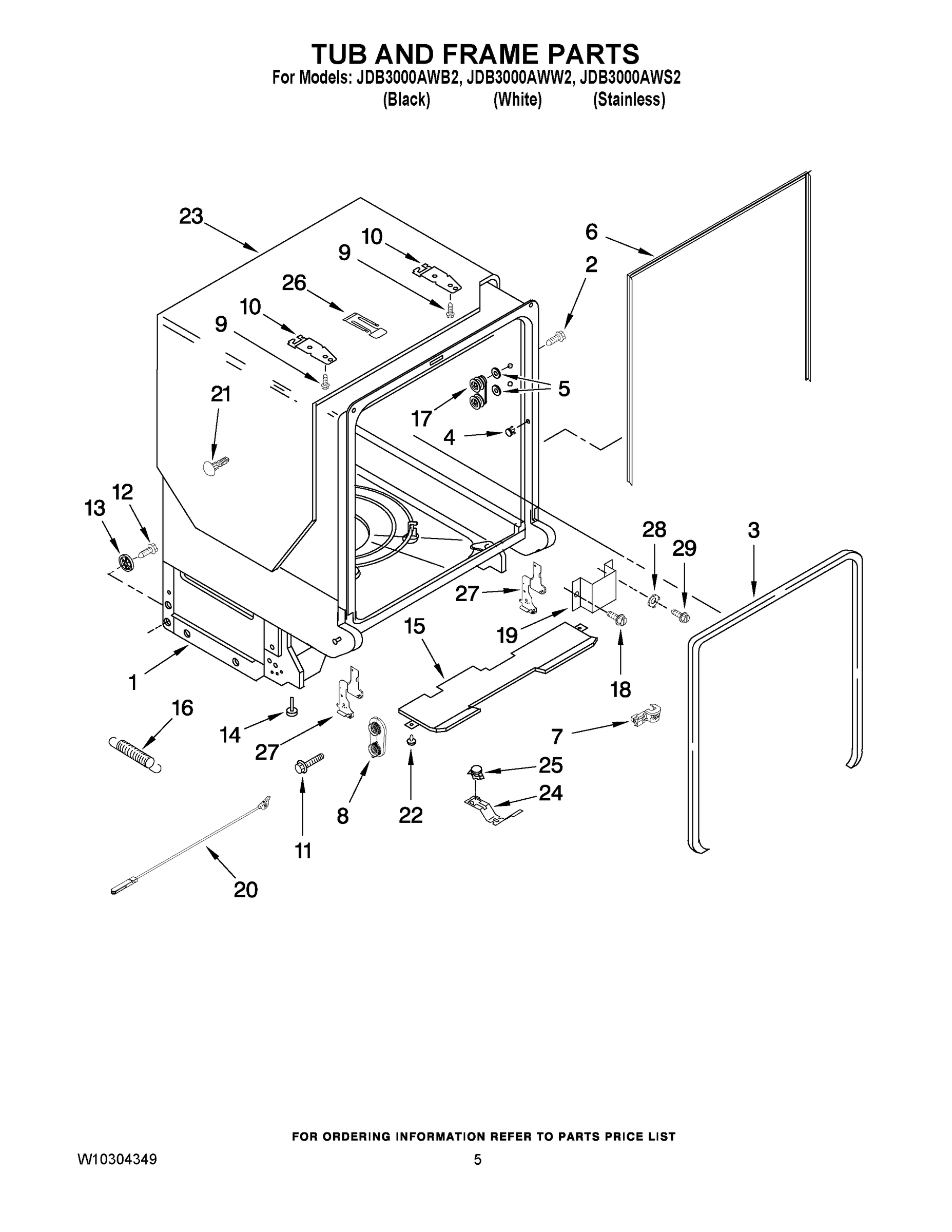

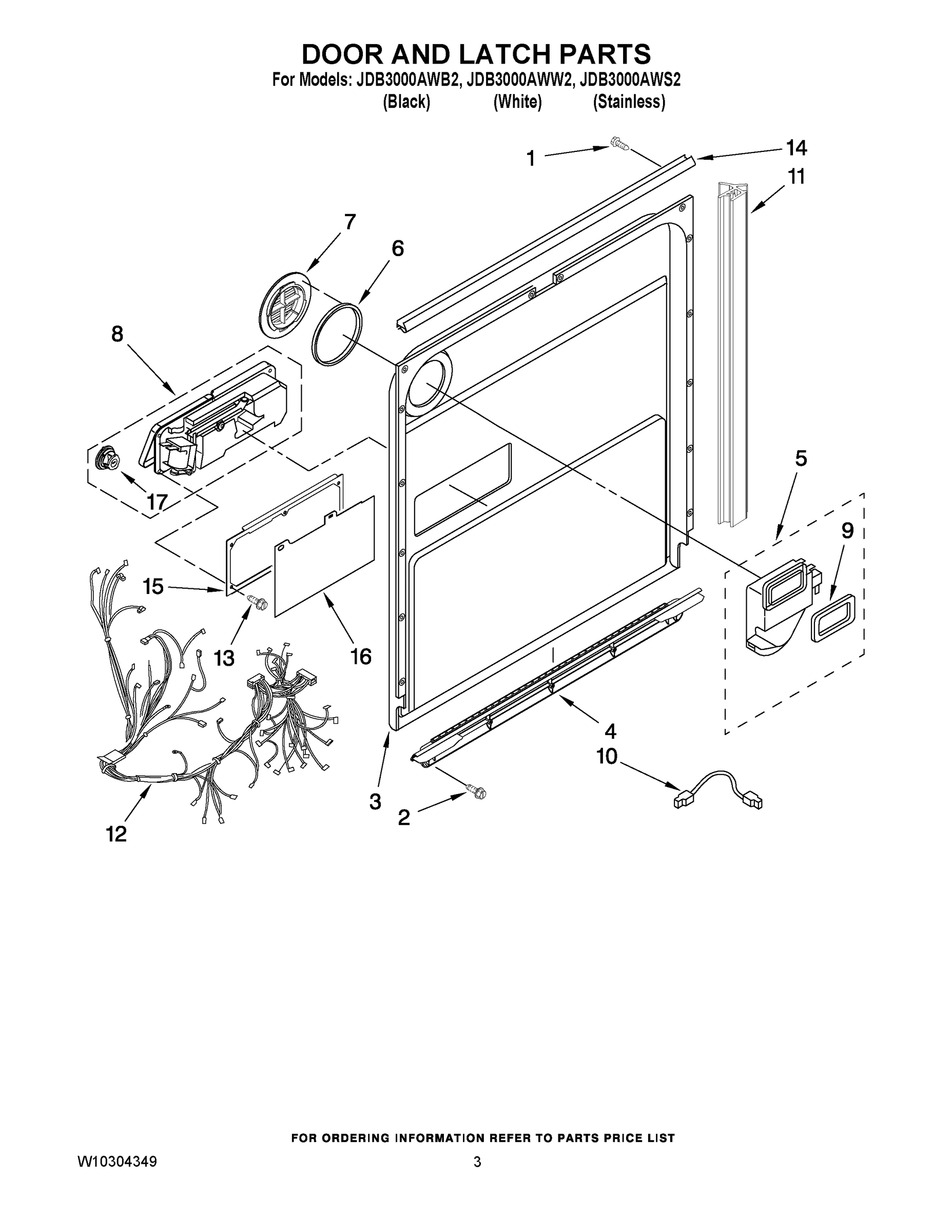

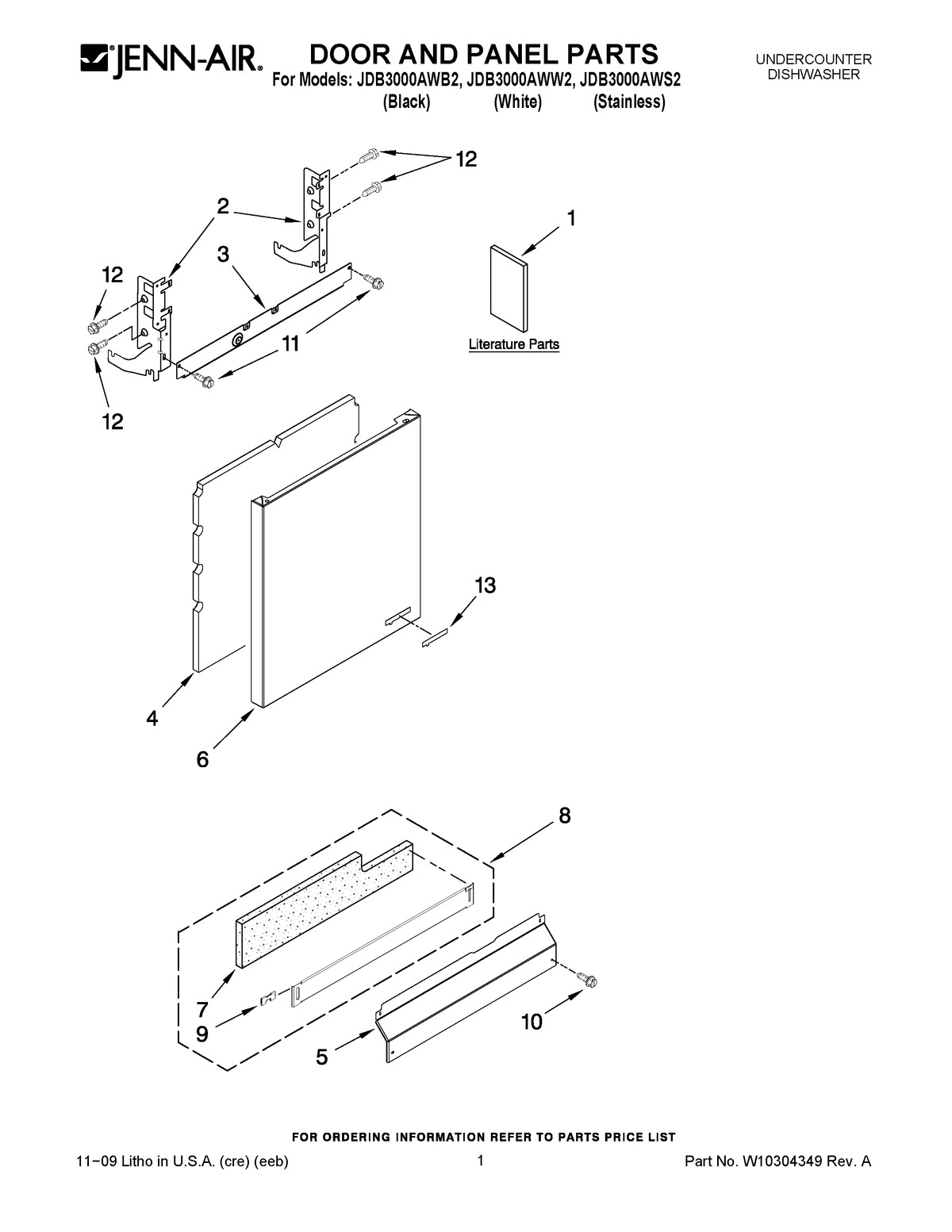

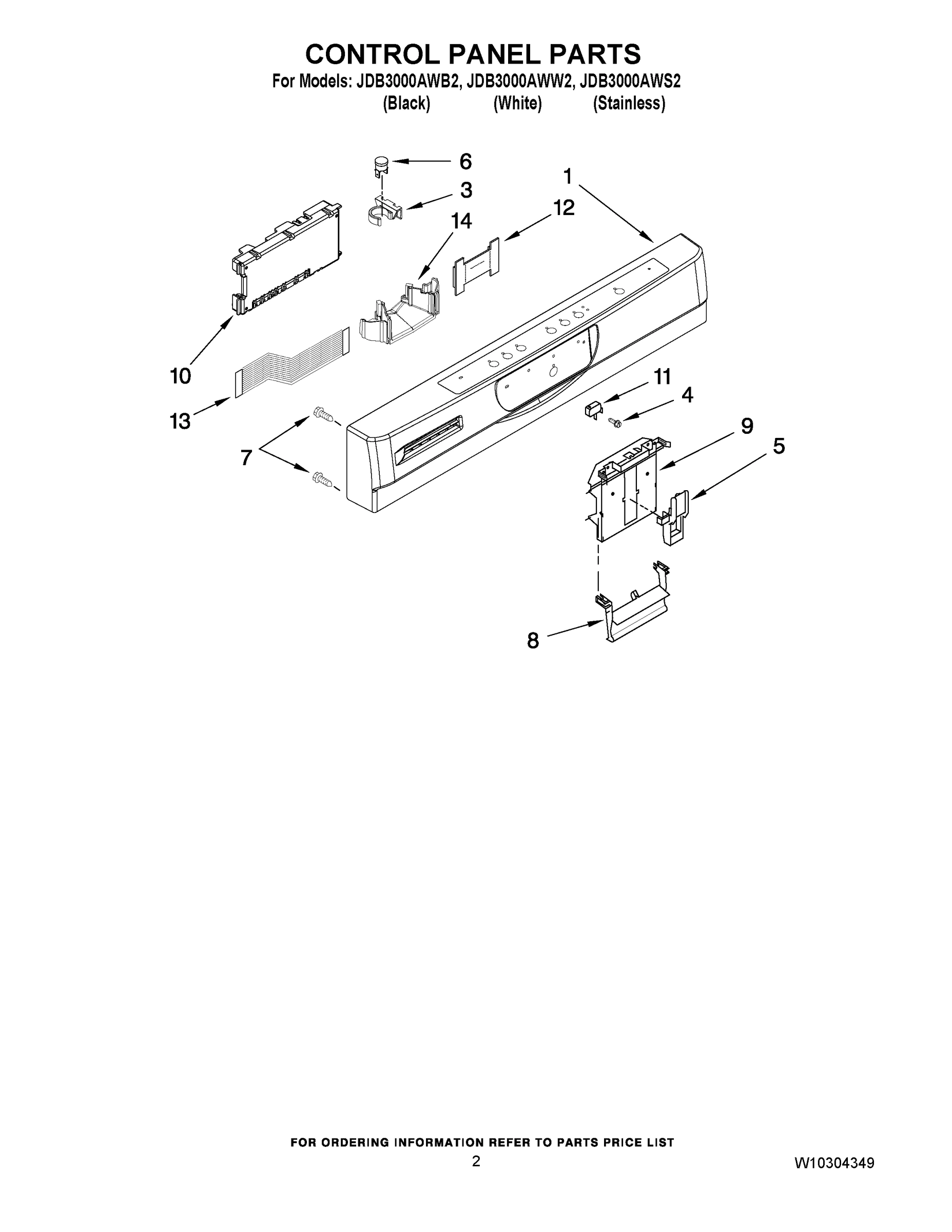

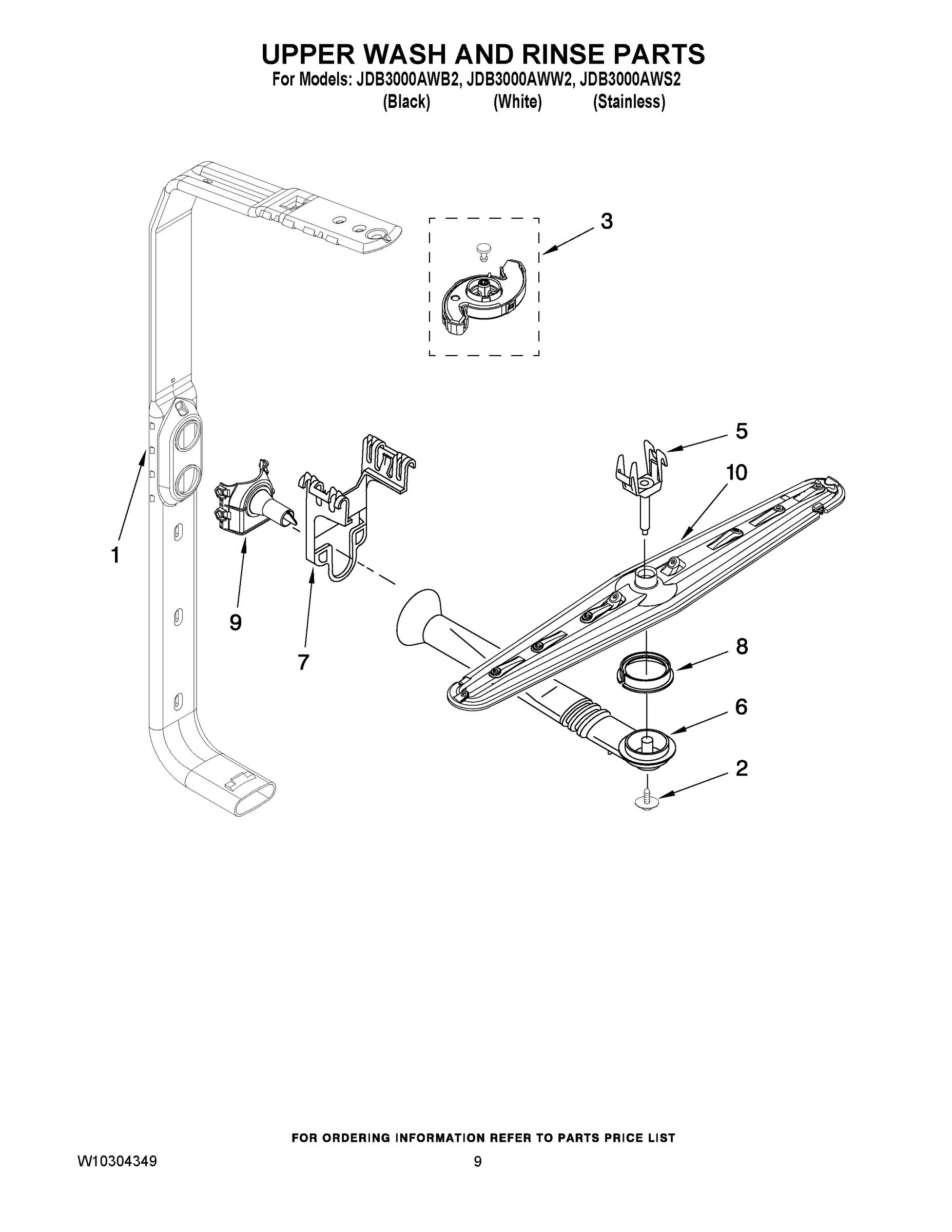

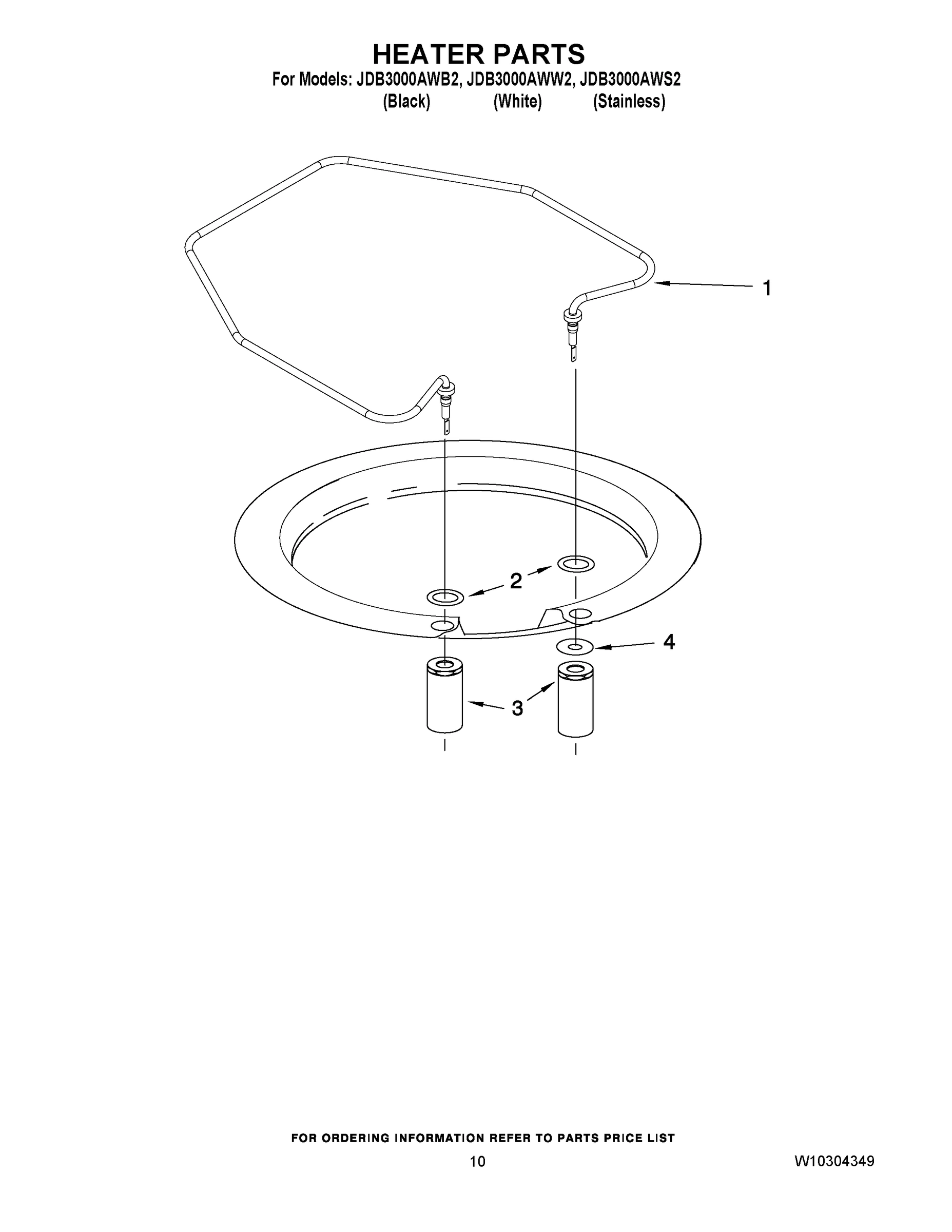

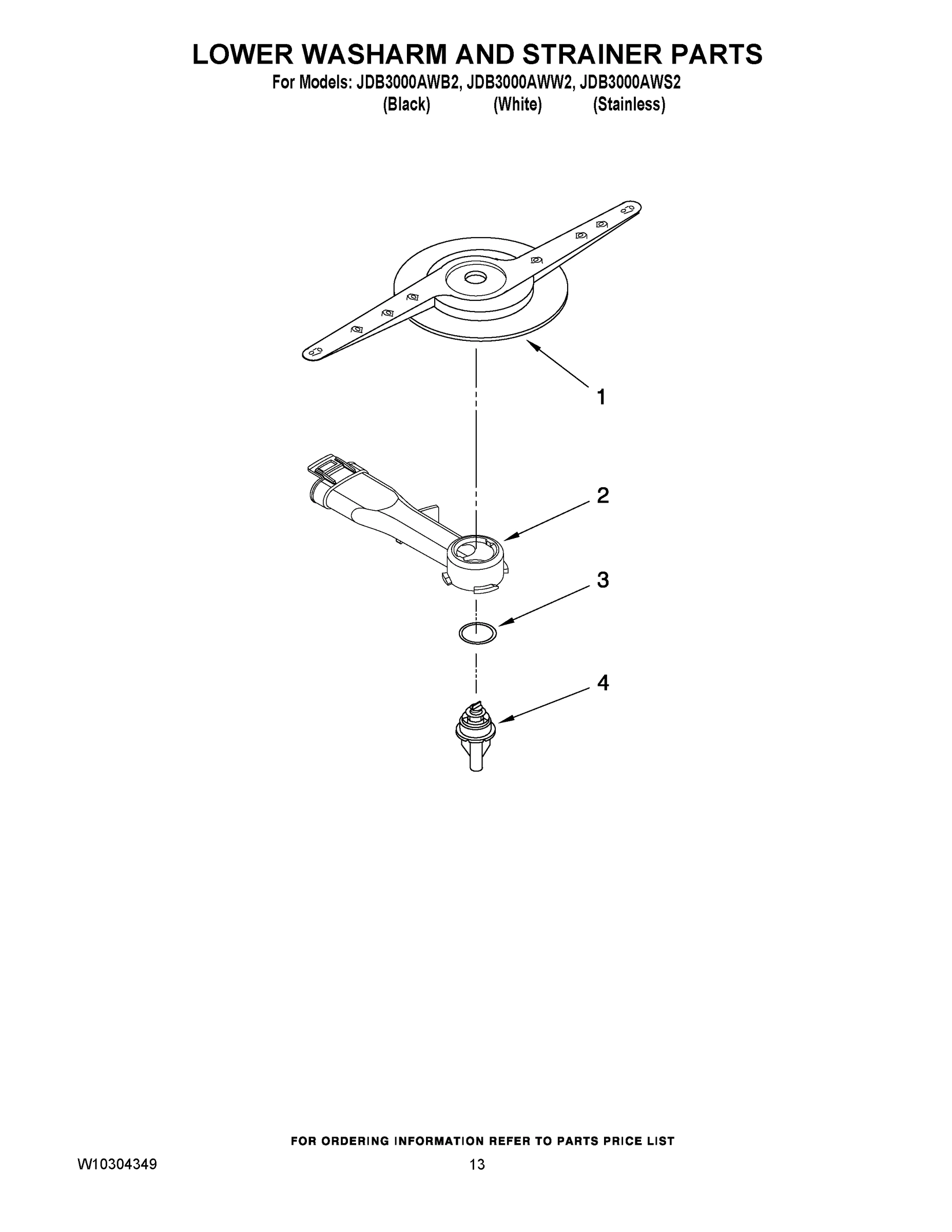

Model Whirlpool JDB3000AWW2 DISHWASHER – Common Parts &amp; Diagrams

1

WP8268892 Whirlpool Dishwasher Lever Backorder WPL WP8268892 $32.59

1

FEED TUBE ASSEMBLY WPL W10077896 Contact Us For Availability

2

W10878507 Whirlpool Inlet Hose In Stock WPL W10878507 $35.68

2

W11631670 Whirlpool Screw In Stock WPL W11631670 $9.59

2

W11806565 Whirlpool Hinge-Door In Stock WPL W11806565 $56.84

2

HINGE-DOOR In Stock WPL W11806608 $55.91

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.64

2

WPW10077899 Whirlpool Dishwasher Cap Backorder WPL WPW10077899 $38.34

2

WPW10078214 Whirlpool Upper Bracket Roller In Stock WPL WPW10078214 $16.01

3

W11196317 Whirlpool Dishwasher Door Gasket In Stock WPL W11196317 $66.43

3

WP3385089 Whirlpool Track In Stock WPL WP3385089 $44.01

3

WP8268340 Whirlpool Bearing In Stock WPL WP8268340 $2.64

3

WPW10195536 Whirlpool Water Inlet Valve In Stock WPL WPW10195536 $41.73

3

WPW10477552 Whirlpool Dishwasher Terminal Nut In Stock WPL WPW10477552 $3.70

3

INNER DOOR MASTIC ASSEMBLY (ALSO ORDER ITEM 6 WPL W10056249 Contact Us For Availability

3

CLIP, BI-METAL WPL 8546546 Contact Us For Availability

3

WHEEL & TRANSPORT ASSEMBLY WPL W10261336 Contact Us For Availability

4

W10795980 Whirlpool Cap In Stock WPL W10795980 $5.62

4

WP8531323 Whirlpool Gasket Seal In Stock WPL WP8531323 $13.05

4

WP8572618 Whirlpool Dishwasher Sump Assembly Backorder WPL WP8572618 $127.99

4

WPW10073520 Whirlpool Dishwasher Insulation P Backorder WPL WPW10073520 $32.59

4

WPW10077883 Whirlpool Dishwasher Air Inlet In Stock WPL WPW10077883 $30.56

4

WPW10077898 Whirlpool Dishwasher Arm Support Backorder WPL WPW10077898 $82.16

4

RETAINER, SPRING GRIP WPL 3400931 Contact Us For Availability

5

W10587967 Whirlpool Dishwasher Handle Backorder WPL W10587967 $7.96

5

WP8268375 Whirlpool Dishwasher Check Valve Backorder WPL WP8268375 $26.22

5

WP8524471 Whirlpool Dishwasher Actuator In Stock WPL WP8524471 $32.34

5

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $3.95

5

WPW10164259 Whirlpool Dishwasher Vent Assembl Backorder WPL WPW10164259 $87.46

5

WPW10213825 Whirlpool Dishwasher Tube Nut Backorder WPL WPW10213825 $3.76

5

WPW10238412 Whirlpool Dishwasher Pivot Backorder WPL WPW10238412 $9.13

6

W10083957V Whirlpool Dishwasher Chopper In Stock WPL W10083957V $20.47

6

WP8269259 Whirlpool Air Vent Gasket In Stock WPL WP8269259 $29.23

6

WPW10056351 Whirlpool Dishwasher Tine Row Backorder WPL WPW10056351 $35.01

6

CLIP, NO FLIP WPL W10238406 Contact Us For Availability

7

W11384788 Whirlpool Dishwasher Relief Straine Backorder WPL W11384788 $10.94

7

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

7

WPW10077877 Whirlpool Air Vent Deflector Backorder WPL WPW10077877 $12.03

7

WPW10238411 Whirlpool Dishwasher Retainer Backorder WPL WPW10238411 $3.76

8

W10799406 Whirlpool Dishwasher Toe Panel Backorder WPL W10799406 $65.91

8

WP8268433 Whirlpool Seal Assembly In Stock WPL WP8268433 $4.67

8

WP8531857 Whirlpool Dishwasher Protector Backorder WPL WP8531857 $68.04

8

WPW10084086 Whirlpool Dishwasher Mount Backorder WPL WPW10084086 $13.56

8

WPW10238413 Whirlpool Dishwasher Dispenser Backorder WPL WPW10238413 $128.33

8

HANDLE, LATCH (BLACK) WPL 8269632 Contact Us For Availability

9

WP8268909 Whirlpool Dishwasher Switch In Stock WPL WP8268909 $32.08

9

WP8269016 Whirlpool Clip Assembly Backorder WPL WP8269016 $4.52

9

WP8269258 Whirlpool Dishwasher Gasket Backorder WPL WP8269258 $32.59

3400217 Whirlpool Dishwasher Screw Backorder WPL 3400217 $4.93

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

WP8269145 Whirlpool Dishwasher Mounting Brack In Stock WPL WP8269145 $6.17

HARNESS, VENT MOTOR WPL 8545608 Contact Us For Availability

8574160 Whirlpool Dishwasher Seal Backorder WPL 8574160 $34.09

W10084567 Whirlpool Dishwasher Screen Backorder WPL W10084567 $32.59

WP3400074 Whirlpool Dishwasher Screw Backorder WPL WP3400074 $2.51

WP8269209 Whirlpool Door Switch In Stock WPL WP8269209 $15.63

WP8531743 Whirlpool Dishwasher Float Switch B In Stock WPL WP8531743 $19.89

12

WP3400071 Whirlpool Screw In Stock WPL WP3400071 $2.51

12

WP9741998 Whirlpool Dishwasher Nut Backorder WPL WP9741998 $3.76

WP8268977 Whirlpool Dishwasher Wheel In Stock WPL WP8268977 $4.72

WP8539449 Whirlpool Dishwasher Ribbon Cable Backorder WPL WP8539449 $78.92

WPW10077871 Whirlpool Dishwasher Float Assemb In Stock WPL WPW10077871 $39.09

WPW10177098 Whirlpool Dishwasher Screw In Stock WPL WPW10177098 $3.62

WPW10214168 Whirlpool Refrigerator Nameplate Backorder WPL WPW10214168 $42.20

14

WP8535660 Whirlpool Dishwasher Seal Backorder WPL WP8535660 $63.46

15

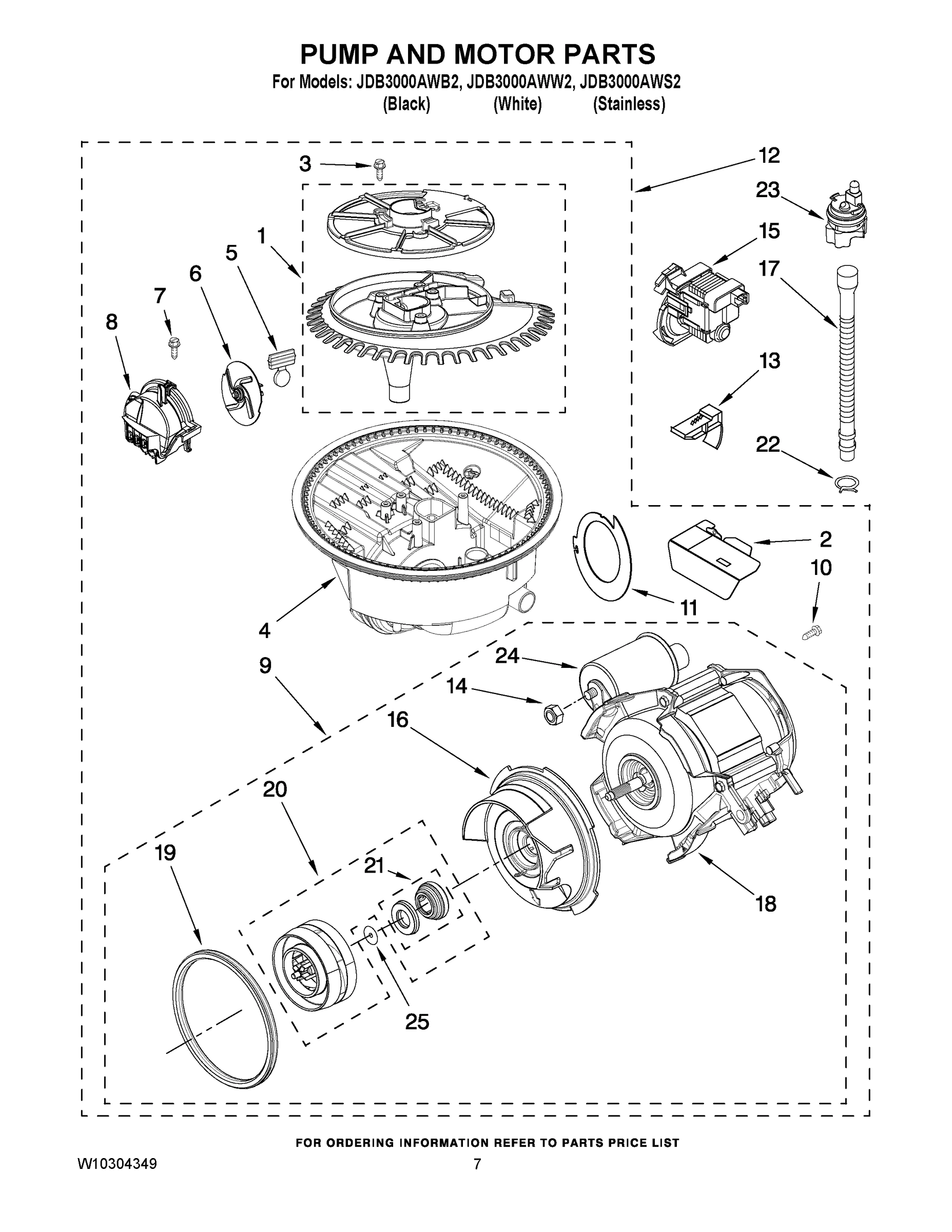

WPW10348269 Whirlpool Dishwasher Drain Pump In Stock WPL WPW10348269 $36.81

16

W11622922 Whirlpool Dishwasher Volute Backorder WPL W11622922 $8.20

16

WP8270020 Whirlpool Dishwasher Spring In Stock WPL WP8270020 $12.77

17

8269144A Whirlpool Dishwasher Drain Hose In Stock WPL 8269144A $11.55

17

WP8564929 Whirlpool Rinse Aid Cap Backorder WPL WP8564929 $13.99

17

WPW10078083 Whirlpool Dishwasher Dishrack Whe In Stock WPL WPW10078083 $32.13

18

W10200940 Whirlpool Dishwasher Pump Motor Backorder WPL W10200940 $192.16

18

WP3400892 Whirlpool Dishwasher Screw Backorder WPL WP3400892 $2.55

19

COVR-BOX Backorder WPL W11779375 $11.68

20

W10648041 Whirlpool Water Inlet Valve In Stock WPL W10648041 $42.35

22

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.76

23

W10877094 Whirlpool Shield In Stock WPL W10877094 $88.74

24

BRACKET, THERMOSTAT WPL 9742648 Contact Us For Availability

25

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $14.44

25

WP8531018 Whirlpool Dishwasher Washer Backorder WPL WP8531018 $2.55

26

WP8580309 Whirlpool Dishwasher Strike In Stock WPL WP8580309 $32.15

28

WP3378128 Whirlpool Dishwasher Washer Backorder WPL WP3378128 $2.55

29

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.55

285006 Whirlpool Spray In Stock WPL 285006 $44.38

3385556 Whirlpool Drain Hose In Stock WPL 3385556 $13.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $9.97

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $10.52

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $43.92

4396277 Whirlpool Barrier Assembly Backorder WPL 4396277 $13.95

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $10.52

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $10.52

8171477 Whirlpool Dishwasher Mounting Bracket Backorder WPL 8171477 $16.74

8212489 Whirlpool Dishwasher Panel Backorder WPL 8212489 $127.95

WP676453 Whirlpool Dishwasher Touch-Up In Stock WPL WP676453 $28.82

WP676455 Whirlpool Dishwasher Touch-Up In Stock WPL WP676455 $28.82

SIDE PANEL KITS (STAINLESS STEEL) WPL 8171659 Contact Us For Availability

SIDE PANEL KITS (WHITE) WPL 8171656 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability

SIDE PANEL KITS (BLACK) WPL 8171657 Contact Us For Availability
