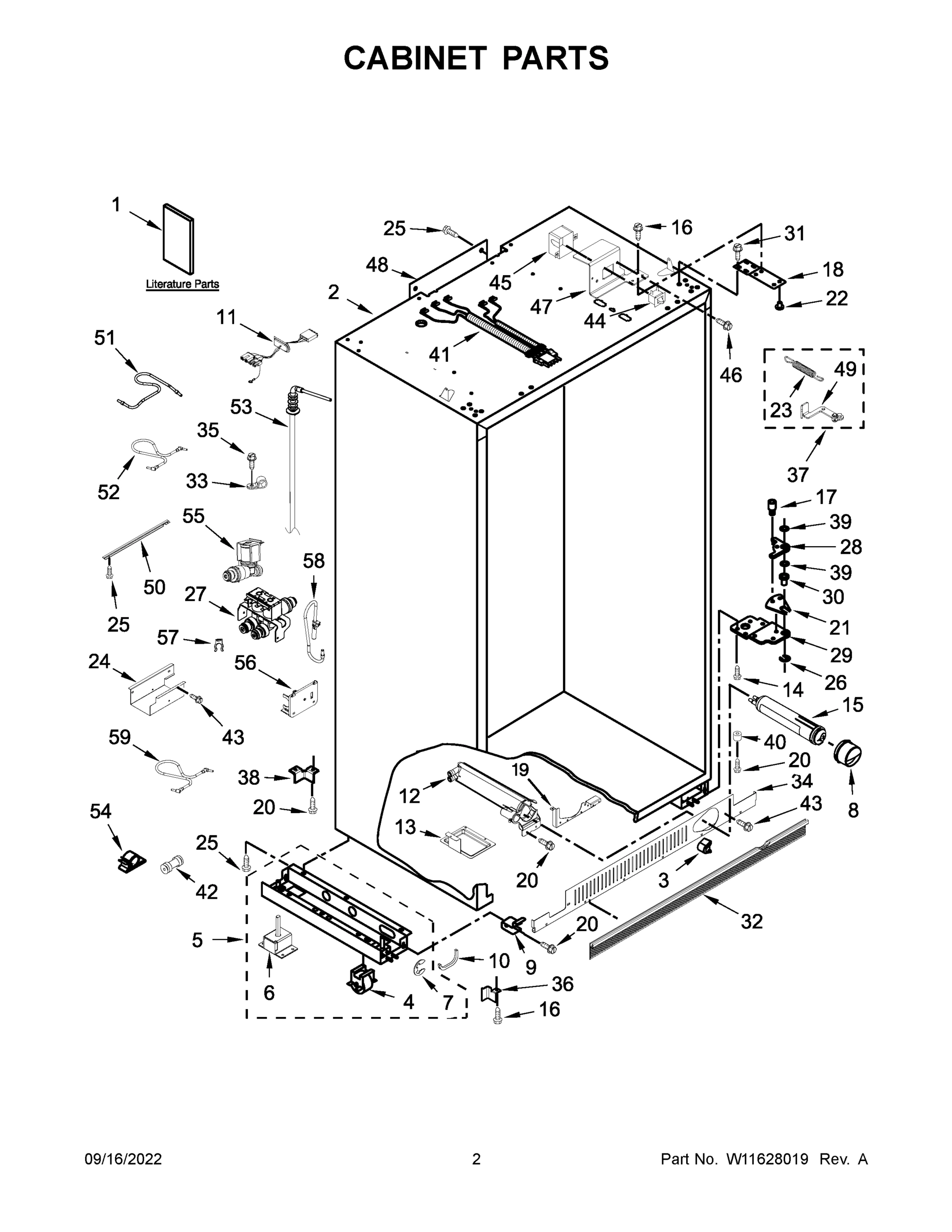

Model Whirlpool JBSS48E22L00 REFRIGERATOR, ALL – Common Parts &amp; Diagrams

1

W11623097 Whirlpool Inverter Box Backorder WPL W11623097 $169.21

1

W11633128 Whirlpool Door FIP Backorder WPL W11633128 $1,088.14

1

Backorder WPL W11747351 $275.05

1

WP2222970 Whirlpool Refrigerator Ice Bin Backorder WPL WP2222970 $99.17

1

BRACKET, EVAPORATOR RIGHT TOP WPL W11463140 Contact Us For Availability

2

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

2

W10545068 Whirlpool Refrigerator Unit Cover Backorder WPL W10545068 $71.97

2

WPW10121451 Whirlpool Refrigerator Insert Backorder WPL WPW10121451 $3.70

2

BIN, GALLON DOOR WPL W11450421 Contact Us For Availability

2

STUD, HANDLE MOUNTING WPL W11564087 Contact Us For Availability

3

W10542660 Whirlpool Refrigerator Bracket Backorder WPL W10542660 $30.14

3

W11557671 Whirlpool Refrigerator Compressor In Stock WPL W11557671 $445.05

3

W11629268 Whirlpool Thermistor In Stock WPL W11629268 $19.03

3

W11752085 Whirlpool Door Hinge In Stock WPL W11752085 $22.36

3A

W11504415 Whirlpool Refrigerator Coupler In Stock WPL W11504415 $13.69

3B

W11504431 Whirlpool Microwave Coupler In Stock WPL W11504431 $14.24

3C

W11504416 Whirlpool Refrigerator Coupler In Stock WPL W11504416 $14.57

4

2256466 Whirlpool Refrigerator Unit Cover Backorder WPL 2256466 $151.83

4

2305447 Whirlpool Refrigerator Clip Backorder WPL 2305447 $7.78

4

W10134785 Whirlpool Refrigerator Bin Latch Backorder WPL W10134785 $32.61

4

W10550831 Whirlpool Refrigerator Housing Backorder WPL W10550831 $33.58

4

W11173662 Whirlpool Refrigerator Cabinet Trim In Stock WPL W11173662 $129.26

4

TUBE Backorder WPL W11444578 $42.80

4

W11474472 Whirlpool Screw In Stock WPL W11474472 $2.51

4

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $15.79

5

W10844011 Whirlpool Refrigerator Slide Backorder WPL W10844011 $123.50

5

COVER-UNIT Backorder WPL W11435372 $25.62

5

TUBE Backorder WPL W11530767 $42.80

5

CNTRL-ELEC+CORE Backorder WPL W11752963-includeCORE $200.85

5

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

5

WPW10205979 Whirlpool Refrigerator Ice Door M In Stock WPL WPW10205979 $37.17

5A

W10732727 Whirlpool Refrigerator Slide Backorder WPL W10732727 $123.50

6

2005032 Whirlpool Refrigerator Leveler Backorder WPL 2005032 $65.09

6

2302878 Whirlpool Refrigerator Door Hinge Backorder WPL 2302878 $34.92

6

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

6

W11673500 Whirlpool Door Hinge In Stock WPL W11673500 $61.63

6

WP2259318 Whirlpool Refrigerator Slide Backorder WPL WP2259318 $144.34

6

WPW10254073 Whirlpool Refrigerator Washer Backorder WPL WPW10254073 $4.15

6

WPW10504458 Whirlpool Refrigerator Door Chute In Stock WPL WPW10504458 $8.27

6

INSULATION, UNIT BACK PANEL WPL W11244166 Contact Us For Availability

6

ASSEMBLY, DRAIN PAN WPL W11491712 Contact Us For Availability

6A

2259317 Whirlpool Refrigerator Slide Backorder WPL 2259317 $106.19

7

2215910 Whirlpool Refrigerator Grommet Backorder WPL 2215910 $28.80

7

W10800818 Whirlpool Refrigerator FIP Gasket Backorder WPL W10800818 $147.60

7

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

7

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

7

WPW10309012 Whirlpool Wire Cover Backorder WPL WPW10309012 $26.21

7

WPW10546285 Whirlpool Refrigerator Motor In Stock WPL WPW10546285 $54.83

7

MAT, DOOR BIN (SHALLOW) WPL W11454934 Contact Us For Availability

7

SUPPORT, CONDENSER (LEFT HAND) WPL W11443116 Contact Us For Availability

7A

MAT, DOOR BIN (GALLON) WPL W11454932 Contact Us For Availability

7A

SUPPORT, CONDENSER (RIGHT HAND) WPL W11443117 Contact Us For Availability

8

W10645086 Whirlpool Refrigerator Divider Backorder WPL W10645086 $37.70

8

W10844010 Whirlpool Refrigerator Slide Backorder WPL W10844010 $123.50

8

W11238395 Whirlpool Refrigerator Filter Cap In Stock WPL W11238395 $26.88

8

TUBE Backorder WPL W11460409 $42.80

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

8

BIN, SHALLOW DOOR WPL W11450407 Contact Us For Availability

8

HANDLE, DOOR (STAINLESS) WPL W11358123 Contact Us For Availability

8

COVER, WIRE BOX WPL W10321048 Contact Us For Availability

8A

W10732303 Whirlpool Refrigerator Slide Backorder WPL W10732303 $123.50

9

W10800810 Whirlpool Refrigerator FIP Gasket Backorder WPL W10800810 $160.31

9

W11247667 Whirlpool Refrigerator Cover Backorder WPL W11247667 $39.18

9

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

9

WP2302937 Whirlpool Refrigerator Thermistor In Stock WPL WP2302937 $28.64

9

WP2305235 Whirlpool Refrigerator Spigot Backorder WPL WP2305235 $48.73

9

TUBE, DISCHARGE WPL W11444570 Contact Us For Availability

2307584 Whirlpool Refrigerator Grommet Backorder WPL 2307584 $12.70

W10800812 Whirlpool Refrigerator Door Skin Backorder WPL W10800812 $553.98

W11633384 Whirlpool Door Skin Backorder WPL W11633384 $881.65

W11649219 Whirlpool Separator Backorder WPL W11649219 $20.95

W11715935 Whirlpool Dampener Backorder WPL W11715935 $7.61

WP2318082 Whirlpool Ice Ejector Bar In Stock WPL WP2318082 $59.35

WP8533928 Whirlpool Refrigerator Screw In Stock WPL WP8533928 $2.51

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

11

W11629714 Whirlpool Evaporator Backorder WPL W11629714 $152.19

11

HOUSING, CONTROL BOARD WPL W11435369 Contact Us For Availability

11A

W11504450 Whirlpool Refrigerator Coupler In Stock WPL W11504450 $24.47

11B

W11506620 Whirlpool Refrigerator Coupler In Stock WPL W11506620 $16.85

W10758114 Whirlpool Refrigerator Spacer Backorder WPL W10758114 $31.42

W10758377 Whirlpool Refrigerator Spacer Backorder WPL W10758377 $61.40

W11626107 Whirlpool Heater Assembly In Stock WPL W11626107 $84.56

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

WPW10121140 Whirlpool Refrigerator Housing In Stock WPL WPW10121140 $106.14

HOUSING, PAD ASSEMBLY WPL W11429558 Contact Us For Availability

2256328 Whirlpool Bracket Assembly Backorder WPL 2256328 $28.20

2318189 Whirlpool Refrigerator Drip Pan Backorder WPL 2318189 $50.98

W10321050 Whirlpool Refrigerator Shield Backorder WPL W10321050 $26.21

W11690161 Whirlpool Support In Stock WPL W11690161 $18.28

ASSEMBLY, WATER PADDLE WPL W11408131 Contact Us For Availability

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

W10766559 Whirlpool Refrigerator Spacer Backorder WPL W10766559 $31.42

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $26.70

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

SCREW WPL 3400525 Contact Us For Availability

ASSEMBLY, ICE PADDLE WPL W11408130 Contact Us For Availability

W10758378 Whirlpool Refrigerator Spacer Backorder WPL W10758378 $50.62

W11629730 Whirlpool Jumper Wire Backorder WPL W11629730 $8.88

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $4.56

SWITCH, POWER DISCONNECT WPL W11311927 Contact Us For Availability

GASKET, EVAPORATOR BYPASS WPL W11475798 Contact Us For Availability

CONDENSER Backorder WPL W11408149 $82.92

W11626108-includeCORE Whirlpool W11626108 Ref Backorder WPL W11626108-includeCORE $186.37

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

SPACER, DOOR (TOP) WPL W10766560 Contact Us For Availability

W10169509 Whirlpool Refrigerator Clip Backorder WPL W10169509 $28.80

W11627456 Whirlpool Sensor Backorder WPL W11627456 $32.28

SCREW Backorder WPL W11769878 $7.72

WP2220377 Whirlpool Refrigerator Air Baffle In Stock WPL WP2220377 $173.69

WP308544 Whirlpool Screw Backorder WPL WP308544 $2.51

ASSEMBLY, DRIP TRAY (GRAY) WPL W11408076 Contact Us For Availability

2257644 Whirlpool Refrigerator Door Hinge Backorder WPL 2257644 $62.10

2310195 Whirlpool Refrigerator Wire Jumper Backorder WPL 2310195 $46.67

2320554 Whirlpool Bracket Backorder WPL 2320554 $26.21

W10542663 Whirlpool Refrigerator Support Backorder WPL W10542663 $27.07

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

BIN, SHALLOW WPL W11450414 Contact Us For Availability

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $7.78

W10141518 Whirlpool Refrigerator Screw Backorder WPL W10141518 $5.65

W10674648 Whirlpool Refrigerator Bracket Backorder WPL W10674648 $8.55

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $18.70

SPACER, DOOR (BOTTOM) WPL W10766561 Contact Us For Availability

SCREW WPL W10068580 Contact Us For Availability

20

W10127710 Whirlpool Refrigerator Plate Backorder WPL W10127710 $8.55

20

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $9.59

21

W11109499 Whirlpool Refrigerator Tube In Stock WPL W11109499 $20.17

21

WP2004994 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2004994 $3.70

21A

W11504445 Whirlpool Refrigerator Coupler In Stock WPL W11504445 $15.56

21B

W11504432 Whirlpool Refrigerator Coupler In Stock WPL W11504432 $13.58

22

W11500952 Whirlpool Refrigerator Hinge Bushin Backorder WPL W11500952 $12.32

22

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

23

W11623099 Whirlpool Condenser Motor Backorder WPL W11623099 $50.00

24

BRACKET, CONDENSER BOTTOM WPL W11443119 Contact Us For Availability

25

W11234470 Whirlpool Refrigerator Clamp Backorder WPL W11234470 $10.76

26

W11421662 Whirlpool Wire Harness Backorder WPL W11421662 $79.21

27

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $3.70

27

WPW10279866 Whirlpool Refrigerator Inlet Valv In Stock WPL WPW10279866 $95.69

28

W11700297 Whirlpool Refrigerator Gap Hinge Backorder WPL W11700297 $13.29

28

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $27.27

28

TUBE, DRIER TRANSITION WPL W11411473 Contact Us For Availability

29

W10527053 Whirlpool Refrigerator Door Hinge Backorder WPL W10527053 $70.12

29

TUBE, PROCESS WPL W11482820 Contact Us For Availability

29A

WP2006780 Whirlpool Refrigerator Door Hinge Backorder WPL WP2006780 $102.66

30

WP2302876 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2302876 $27.05

30

GROMMET WPL W10587113 Contact Us For Availability

31

COVER, CONDENSER S WPL W11443120 Contact Us For Availability

32

2310196 Whirlpool Refrigerator Power Cord Backorder WPL 2310196 $31.55

33

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

33

WPL W11435371 WPL W11435371 Contact Us For Availability

34

Backorder WPL W11739148 $72.71

36

2006616 Whirlpool Refrigerator Bracket Backorder WPL 2006616 $28.80

37A

WP2307857 Whirlpool Refrigerator Extension In Stock WPL WP2307857 $32.17

38

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $28.80

39

WP2006346 Whirlpool Refrigerator Washer In Stock WPL WP2006346 $4.59

40

2005433 Whirlpool Refrigerator Spacer Backorder WPL 2005433 $10.23

49A

W10847927 Whirlpool Refrigerator Extension In Stock WPL W10847927 $35.81

53

W11212166 Whirlpool Refrigerator Inlet Tube In Stock WPL W11212166 $15.77

55

W11246413 Whirlpool Refrigerator Inlet Valve In Stock WPL W11246413 $72.49

57

W10782424 Whirlpool Refrigerator Ring Backorder WPL W10782424 $8.53

57A

W10782423 Whirlpool Refrigerator Ring Backorder WPL W10782423 $8.53

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $21.98

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

W10134625 Whirlpool Refrigerator Touch-Up Pai In Stock WPL W10134625 $7.48

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

TOUCH-UP PAINT (MIDNIGHT GREY) WPL W10917540 Contact Us For Availability

KIT, FOAM SLAB (30" X 32 1/2" X 1 1/2") WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability

TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability

WPL NP WPL NP Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
