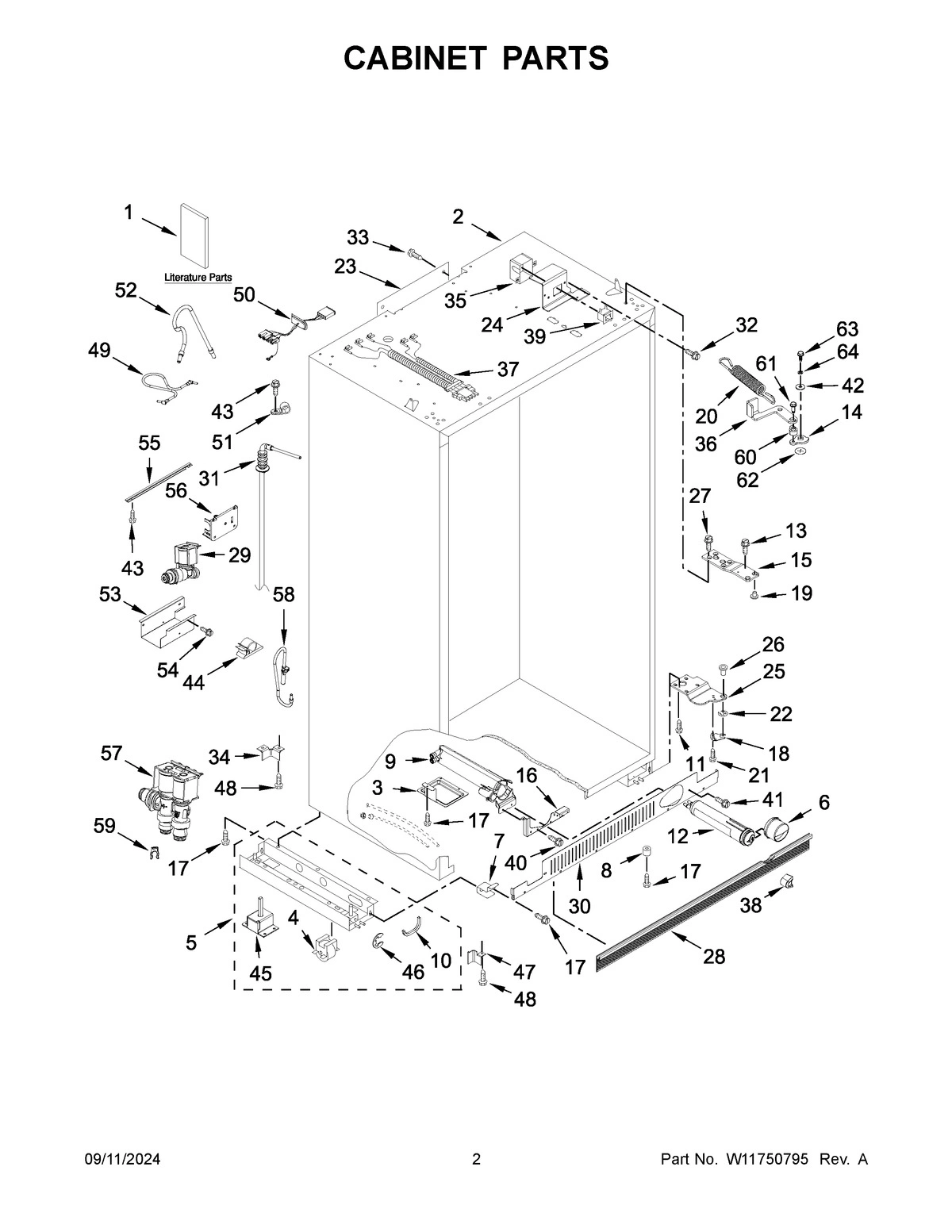

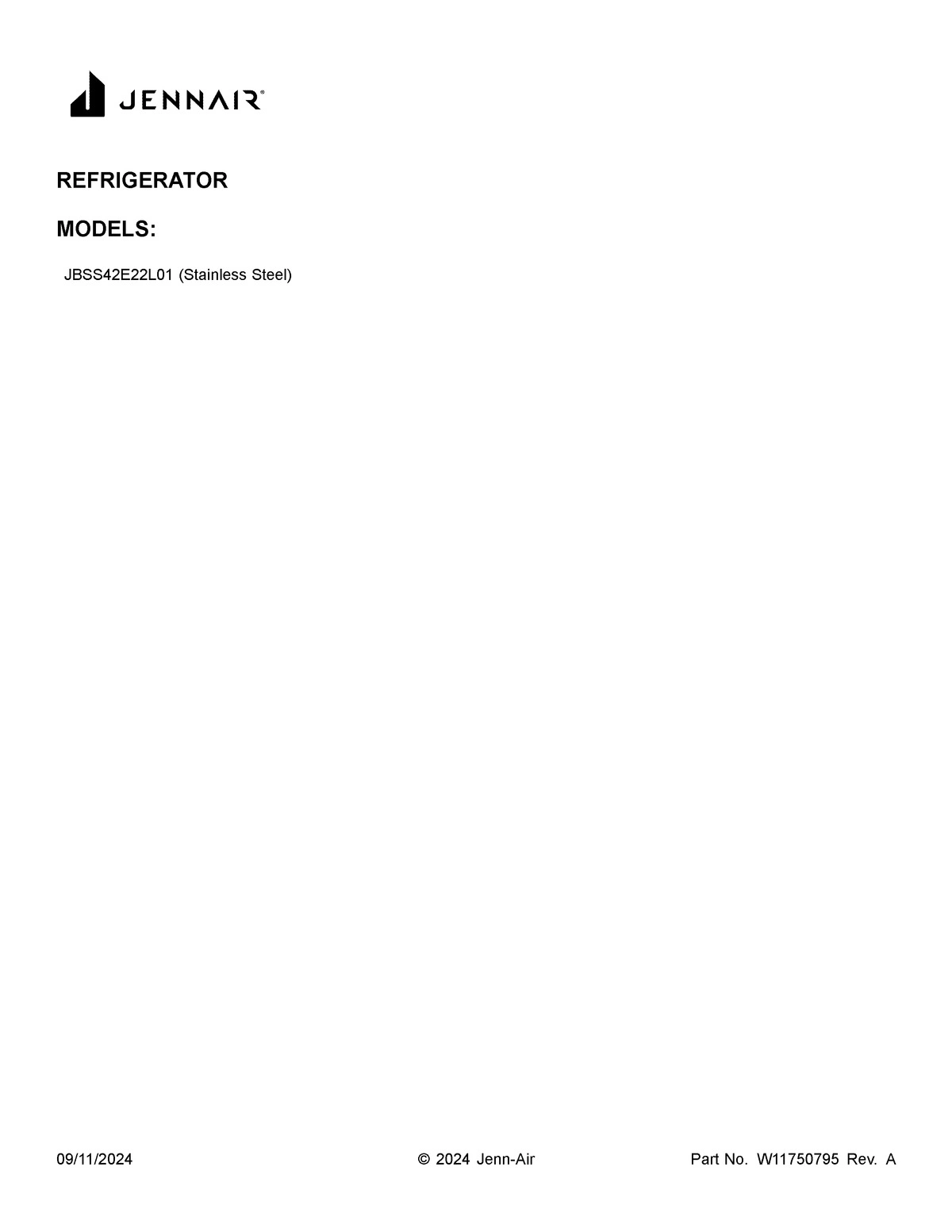

Model Whirlpool JBSS42E22L01 REFRIGERATOR, ALL – Common Parts &amp; Diagrams

1

WPW10187535 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10187535 $133.77

1

SHELF, FC WIRE WPL W11455934 Contact Us For Availability

1

DOOR, REFRIGERATOR WPL W10783289 Contact Us For Availability

1

DOOR, FREEZER WPL W11502203 Contact Us For Availability

1

HOUSING, DISPENSER (NOT SERVICED) WPL ARI0820F7799426DB23CC858392159B72FE Contact Us For Availability

1

GRILLE ASSEMBLY, TOP WPL W11697558 Contact Us For Availability

1

BRACKET, EVAPORATOR RIGHT TOP WPL W11695309 Contact Us For Availability

2

W11530767 Whirlpool Tube Backorder WPL W11530767 $42.80

2

WP2222965 Whirlpool Refrigerator Ice Bin Backorder WPL WP2222965 $96.69

2

PAN ASSEMBLY, CRISPER WPL W11740828 Contact Us For Availability

2

SHELF, FIXED WPL W11455932 Contact Us For Availability

2

COVER, UNIT WPL W11708444 Contact Us For Availability

2

SCREW WPL 489473 Contact Us For Availability

3

2318189 Whirlpool Refrigerator Drip Pan Backorder WPL 2318189 $50.98

3

W10542660 Whirlpool Refrigerator Bracket Backorder WPL W10542660 $30.14

3

W11557671 Whirlpool Refrigerator Compressor In Stock WPL W11557671 $427.63

3

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

3

W11752085 Whirlpool Door Hinge In Stock WPL W11752085 $22.36

3

COVER ASSEMBLY, MEAT PAN WPL W11527867 Contact Us For Availability

3

BASKET ASSEMBLY, FREEZER WPL W11452325 Contact Us For Availability

3

SCREW (BLACK) WPL W10784922 Contact Us For Availability

3A

W11504415 Whirlpool Refrigerator Coupler In Stock WPL W11504415 $13.69

3B

W11504431 Whirlpool Microwave Coupler In Stock WPL W11504431 $14.24

3C

W11504416 Whirlpool Refrigerator Coupler In Stock WPL W11504416 $14.57

4

W10134783 Whirlpool Refrigerator Bin Latch Backorder WPL W10134783 $30.38

4

W10550831 Whirlpool Refrigerator Housing Backorder WPL W10550831 $33.58

4

W11474472 Whirlpool Screw In Stock WPL W11474472 $2.51

4

W11629268 Whirlpool Thermistor In Stock WPL W11629268 $19.03

4

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $15.13

4

WPW10546285 Whirlpool Refrigerator Motor In Stock WPL WPW10546285 $54.83

4

COVER ASSEMBLY, CRISPER WPL W11527871 Contact Us For Availability

4

FRONT ASSEMBLY, BASKET WPL W11452329 Contact Us For Availability

4

PANEL, UNIT BACK WPL W11708420 Contact Us For Availability

5

W11435372 Whirlpool Cover-Unit Backorder WPL W11435372 $25.62

5

W11444578 Whirlpool Tube Backorder WPL W11444578 $42.80

5

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

5

WP2259318 Whirlpool Refrigerator Slide Backorder WPL WP2259318 $144.34

5

WPW10205979 Whirlpool Refrigerator Ice Door M In Stock WPL WPW10205979 $37.17

5

PAN ASSEMBLY, MEAT WPL W11450936 Contact Us For Availability

5

MOUNTING GROMMET, CONDENSER WPL W10587113 Contact Us For Availability

5a

2259317 Whirlpool Refrigerator Slide Backorder WPL 2259317 $106.19

6

2302878 Whirlpool Refrigerator Door Hinge Backorder WPL 2302878 $34.92

6

W11238395 Whirlpool Refrigerator Filter Cap In Stock WPL W11238395 $26.88

6

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

6

W11673500 Whirlpool Door Hinge In Stock WPL W11673500 $61.63

6

W11690161 Whirlpool Support Backorder WPL W11690161 $16.89

6

WPW10504458 Whirlpool Refrigerator Door Chute In Stock WPL WPW10504458 $8.27

6

INSULATION, UNIT BACK PANEL WPL W11244166 Contact Us For Availability

6

PAN ASSEMBLY, DRAIN WPL W11491712 Contact Us For Availability

7

2307810 Whirlpool Refrigerator Air Duct Backorder WPL 2307810 $26.21

7

W10542663 Whirlpool Refrigerator Support Backorder WPL W10542663 $27.07

7

W10645086 Whirlpool Refrigerator Divider Backorder WPL W10645086 $37.70

7

W10800809 Whirlpool Refrigerator FIP Gasket Backorder WPL W10800809 $160.31

7

COVER, ICEMAKER WPL W11567129 Contact Us For Availability

7

SUPPORT, CONDENSER (LEFT HAND) WPL W11695311 Contact Us For Availability

7

COVER, WIRING BOTTOM WPL W11695781 Contact Us For Availability

7A

SUPPORT, CONDENSER (RIGHT HAND) WPL W11695312 Contact Us For Availability

8

2005433 Whirlpool Refrigerator Spacer Backorder WPL 2005433 $10.23

8

W11766462 Whirlpool Bracket Backorder WPL W11766462 $12.37

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

8

SPACER, CRISPER WPL W11451491 Contact Us For Availability

8

HANDLE, DOOR (STAINLESS) WPL W11358123 Contact Us For Availability

8

COVER, SAFETY SWITCH WPL W11356980 Contact Us For Availability

8

BRACKET, CONDENSER BOTTOM WPL W11695784 Contact Us For Availability

8

COVER, WIRE BOX WPL W11695782 Contact Us For Availability

9

W10800817 Whirlpool Refrigerator FIP Gasket Backorder WPL W10800817 $160.31

9

W11247667 Whirlpool Refrigerator Cover Backorder WPL W11247667 $39.18

9

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

9

WP2302937 Whirlpool Refrigerator Thermistor In Stock WPL WP2302937 $28.64

9

WP2305235 Whirlpool Refrigerator Spigot Backorder WPL WP2305235 $48.73

9

WPW10121140 Whirlpool Refrigerator Housing In Stock WPL WPW10121140 $106.14

9

SPACER, SHELF LS WPL W11451492 Contact Us For Availability

9

TUBE, DISCHARGE WPL W11445483 Contact Us For Availability

2307584 Whirlpool Refrigerator Grommet Backorder WPL 2307584 $12.70

W10321050 Whirlpool Refrigerator Shield Backorder WPL W10321050 $26.21

W10800811 Whirlpool Refrigerator Door Skin Backorder WPL W10800811 $553.98

W11633383 Whirlpool Door Skin Backorder WPL W11633383 $881.65

W11649219 Whirlpool Separator Backorder WPL W11649219 $20.95

WP8533928 Whirlpool Refrigerator Screw In Stock WPL WP8533928 $2.51

TUBE, HEAT LOOP TRANSITION WPL W11602251 Contact Us For Availability

W11629713 Whirlpool Evaporator Backorder WPL W11629713 $152.19

CNTRL-ELEC+CORE Backorder WPL W11752963-includeCORE $200.85

SCREW WPL 3400525 Contact Us For Availability

SPACER, MEAT WPL W11451493 Contact Us For Availability

SCREW (STAINLESS) WPL W11672062 Contact Us For Availability

HOUSING, MIDDLE (NOT AVAILABLE ORDER ITEM 12) WPL ARI8659AC7004BCB431455DB56FB8661A77 Contact Us For Availability

11A

W11504450 Whirlpool Refrigerator Coupler In Stock WPL W11504450 $24.47

11B

W11506620 Whirlpool Refrigerator Coupler In Stock WPL W11506620 $16.85

W10758377 Whirlpool Refrigerator Spacer Backorder WPL W10758377 $61.40

W10844011 Whirlpool Refrigerator Slide Backorder WPL W10844011 $123.50

W11267071 Whirlpool Heater Backorder WPL W11267071 $84.65

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

SPACER, DOOR SKIN (TOP) WPL W10758115 Contact Us For Availability

HOUSING, PAD ASSEMBLY WPL W11429558 Contact Us For Availability

12A

W10732727 Whirlpool Refrigerator Slide Backorder WPL W10732727 $123.50

2256328 Whirlpool Bracket Assembly Backorder WPL 2256328 $28.20

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

W10844010 Whirlpool Refrigerator Slide Backorder WPL W10844010 $123.50

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

ASSEMBLY, WATER PADDLE WPL W11408131 Contact Us For Availability

13A

W10732303 Whirlpool Refrigerator Slide Backorder WPL W10732303 $123.50

W10141518 Whirlpool Refrigerator Screw Backorder WPL W10141518 $5.65

W11627456 Whirlpool Sensor Backorder WPL W11627456 $32.28

W11715935 Whirlpool Dampener Backorder WPL W11715935 $7.61

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $25.86

WP2320509 Whirlpool Refrigerator Door Cam Backorder WPL WP2320509 $9.92

WP3400886 Whirlpool Refrigerator Screw Backorder WPL WP3400886 $3.70

SPACER, DOOR SKIN (BOTTOM) WPL W10758142 Contact Us For Availability

ASSEMBLY, ICE PADDLE WPL W11408130 Contact Us For Availability

2257644 Whirlpool Refrigerator Door Hinge Backorder WPL 2257644 $62.10

W10758378 Whirlpool Refrigerator Spacer Backorder WPL W10758378 $50.62

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $9.59

W11626108-includeCORE Whirlpool W11626108 Ref Backorder WPL W11626108-includeCORE $186.37

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.42

SPACER, DOOR SKIN (TOP) WPL W10761892 Contact Us For Availability

W10432308 Whirlpool Gasket Backorder WPL W10432308 $8.86

W11629730 Whirlpool Jumper Wire Backorder WPL W11629730 $8.88

WP308544 Whirlpool Screw In Stock WPL WP308544 $2.51

WPW10254073 Whirlpool Refrigerator Washer Backorder WPL WPW10254073 $4.15

CONDENSER (ALSO ORDER THE FOLLOWING LOKRING WPL W11601407 Contact Us For Availability

W11421662 Whirlpool Wire Harness Backorder WPL W11421662 $79.21

W11737191 Whirlpool Icemaker Backorder WPL W11737191 $140.67

WP2220377 Whirlpool Refrigerator Air Baffle In Stock WPL WP2220377 $173.69

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.42

SPACER, DOOR SKIN BOTTOM WPL W10761895 Contact Us For Availability

ASSEMBLY, DRIP TRAY (GRAY) WPL W11408076 Contact Us For Availability

W10169509 Whirlpool Refrigerator Clip Backorder WPL W10169509 $28.80

W10678210 Whirlpool Screw Backorder WPL W10678210 $7.21

W11450392 Whirlpool Bin Containment Backorder WPL W11450392 $221.60

W11700297 Whirlpool Refrigerator Gap Hinge Backorder WPL W11700297 $13.29

WP2004994 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2004994 $3.70

HOUSING, CONTROL BOARD WPL W11435369 Contact Us For Availability

2320554 Whirlpool Bracket Backorder WPL 2320554 $26.21

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

W10127710 Whirlpool Refrigerator Plate Backorder WPL W10127710 $8.55

W11500952 Whirlpool Refrigerator Hinge Bushin Backorder WPL W11500952 $12.32

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.42

STUD, HANDLE MOUNTING WPL W11564087 Contact Us For Availability

20

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $7.78

20

WP2006346 Whirlpool Refrigerator Washer In Stock WPL WP2006346 $4.43

20

BIN, GALLON DOOR WPL W11450399 Contact Us For Availability

21

W11109499 Whirlpool Refrigerator Tube In Stock WPL W11109499 $20.17

21

W11769878 Whirlpool Screw Backorder WPL W11769878 $7.72

21

BIN, SHALLOW DOOR WPL W11450385 Contact Us For Availability

21A

W11504445 Whirlpool Refrigerator Coupler In Stock WPL W11504445 $15.56

21B

W11504432 Whirlpool Refrigerator Coupler In Stock WPL W11504432 $13.58

22

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

22

MAT, DOOR BIN (GALLON) WPL W11454933 Contact Us For Availability

22A

MAT, DOOR BIN (SHALLOW) WPL W11454931 Contact Us For Availability

23

W11623099 Whirlpool Condenser Motor Backorder WPL W11623099 $50.00

24

W10833902 Whirlpool Refrigerator Clamp Backorder WPL W10833902 $4.45

25

W10527053 Whirlpool Refrigerator Door Hinge Backorder WPL W10527053 $70.12

25

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $3.57

25A

WP2006780 Whirlpool Refrigerator Door Hinge Backorder WPL WP2006780 $102.66

26

WP2302876 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2302876 $27.05

26

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

27

SCREW WPL W10068580 Contact Us For Availability

28

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.40

28

WPW10188549 Whirlpool Refrigerator Front Gril Backorder WPL WPW10188549 $53.40

29

2310195 Whirlpool Refrigerator Wire Jumper Backorder WPL 2310195 $46.67

29

W11246413 Whirlpool Refrigerator Inlet Valve In Stock WPL W11246413 $72.49

29

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $18.70

30

TUBE, DRIER TRANSITI WPL W11602250 Contact Us For Availability

31

W11212166 Whirlpool Refrigerator Inlet Tube In Stock WPL W11212166 $15.77

31

WPL W11482820 WPL W11482820 Contact Us For Availability

33

WPL W11695783 WPL W11695783 Contact Us For Availability

34

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $28.80

34

2310196 Whirlpool Refrigerator Power Cord Backorder WPL 2310196 $31.55

35

WPL W11435371 WPL W11435371 Contact Us For Availability

36

W11234470 Whirlpool Refrigerator Clamp Backorder WPL W11234470 $10.76

36

W11298172 Whirlpool Refrigerator Extension Backorder WPL W11298172 $30.43

36A

W10847927 Whirlpool Refrigerator Extension In Stock WPL W10847927 $34.39

37

WPL W11311927 WPL W11311927 Contact Us For Availability

40

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

45

2005032 Whirlpool Refrigerator Leveler Backorder WPL 2005032 $65.09

47

2006616 Whirlpool Refrigerator Bracket Backorder WPL 2006616 $28.80

51

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

57

WPW10279866 Whirlpool Refrigerator Inlet Valv In Stock WPL WPW10279866 $95.69

59

W10782424 Whirlpool Refrigerator Ring Backorder WPL W10782424 $8.53

59A

W10782423 Whirlpool Refrigerator Ring Backorder WPL W10782423 $8.53

60

WP2316859 Whirlpool Refrigerator Bushing In Stock WPL WP2316859 $22.56

61

W11177574 Whirlpool Refrigerator Screw Backorder WPL W11177574 $9.59

NI

WPL ARIE8C9863F932DA503F825189A61422F70 WPL ARIE8C9863F932DA503F825189A61422F70 Contact Us For Availability
