Model GE JBS60RK6SS Electric Range – Common Parts & Diagrams

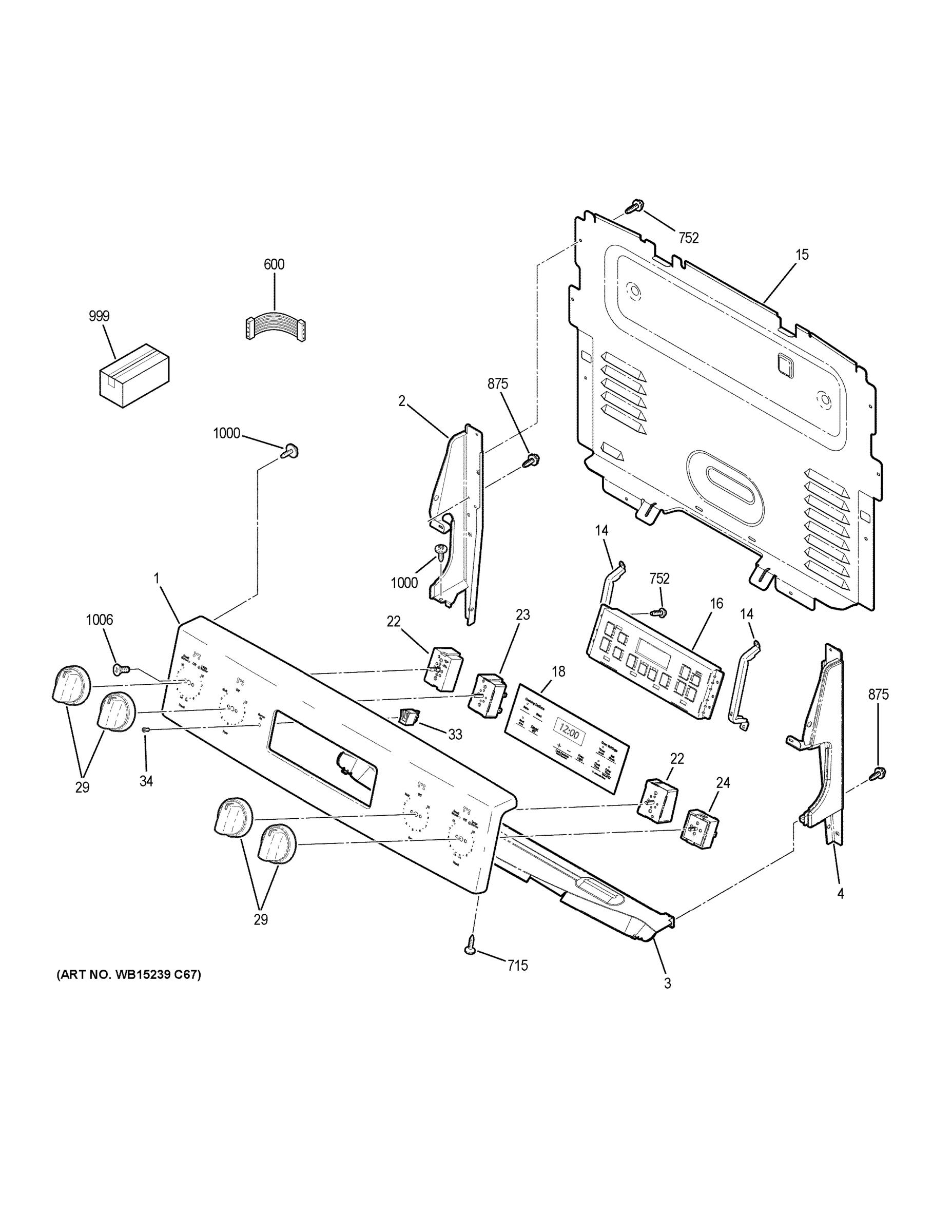

CONTROL PANEL

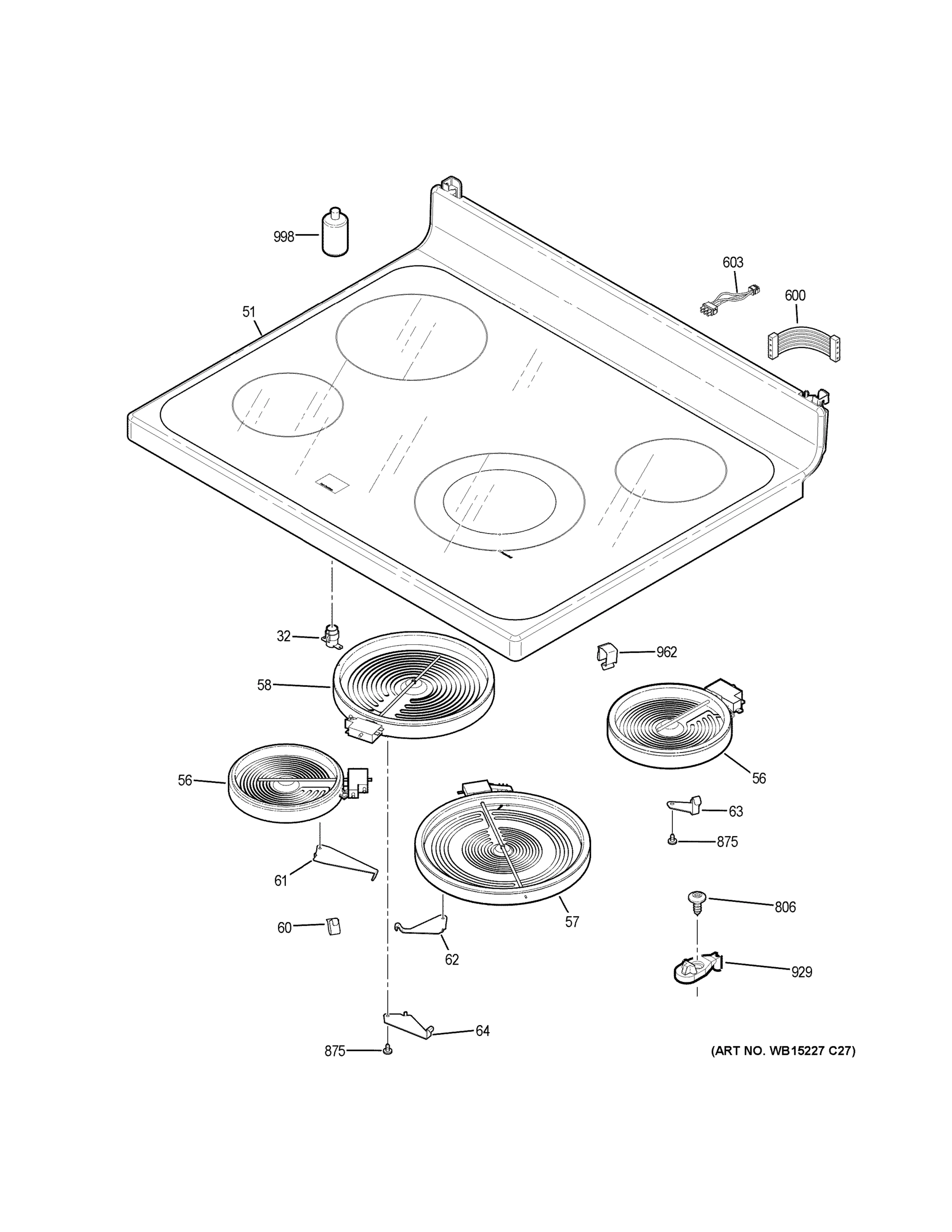

COOKTOP
BODY PARTS
DOOR
Common parts from model GE JBS60RK6SS Electric Range
2
END PLATE LT BK GEN WB07X27830 Contact Us For Availability
3
BACKGUARD SHIELD HEAT GEN WB34X28565 Contact Us For Availability
4
END PLATE RT BK GEN WB07X27826 Contact Us For Availability
14
CONTROL PANEL BRACKET GEN WB34X31189 Contact Us For Availability
15
CONTROL PANEL BACK COVER GEN WB34X29564 Contact Us For Availability
18
FACEPLATE GRAPHICS (BK) GEN WB07X26634 Contact Us For Availability
23
CONTROL SURF ELEM GEN WB24T10146 Contact Us For Availability
29
KNOB INFINITE (BK) GEN WB03X24904 Contact Us For Availability
32
LIGHT INDICATOR GEN WB27T10668 Contact Us For Availability
33
LIGHT INDICATOR PILOT GEN WB25X20005 Contact Us For Availability
34
LENS GEN WB25X24023 Contact Us For Availability
51
RANGETOP GLASS ASM (BK) GEN WB62X20903 Contact Us For Availability
55
BADGE ASM GEN WB02X29479 Contact Us For Availability
56
ELEMENT RADIANT 5.5 IN GEN WB30T10145 Contact Us For Availability
57
ELEMENT RADIANT 9" DUAL GEN WB30X24111 Contact Us For Availability
58
ELEMENT RADIANT 8 IN GEN WB30T10132 Contact Us For Availability
61
BRACKET RADIANT ELEMENT GEN WB02X20901 Contact Us For Availability
62
BRACKET RADIANT ELEMENT GEN WB02T10480 Contact Us For Availability
63
BRACKET RADIANT ELEMENT GEN WB02X20902 Contact Us For Availability
64
BRACKET RADIANT ELEMENT GEN WB02T10609 Contact Us For Availability
101
INSULATION DOOR GEN WB35T10077 Contact Us For Availability
111
GASKET OVEN GEN WB04T10086 Contact Us For Availability
112
LINER OVEN DOOR ASM (GY) GEN WB55T10200 Contact Us For Availability
113
RETAINER OVN DR INSLN GEN WB56T10178 Contact Us For Availability
132
DOOR PAD GEN WB01T10026 Contact Us For Availability
136
HANDLE AND END CAP ASM GEN WB15X33521 Contact Us For Availability
217
WIRE COVER BACK GEN WB34X29563 Contact Us For Availability
221
SIDE PANEL BK GEN WB56X28881 Contact Us For Availability
229
VENT TUBE INSULATION GEN WB35T10017 Contact Us For Availability
241
RACK OVEN GEN WB48T10063 Contact Us For Availability
242
DRAWER WEDGE GEN WB02X29072 Contact Us For Availability
249
GASKET OVEN LIGHT GEN WB02T10027 Contact Us For Availability
251
BAKE ELEMENT GEN WB44T10060 Contact Us For Availability
254
TERMINAL BLOCK ASM GEN WB17T10011 Contact Us For Availability
256
RECEPTACLE PUSH-IN GEN WB08T10026 Contact Us For Availability
258
OVEN LIGHT CUP GEN WB02T10037 Contact Us For Availability
268
BRACKET ANTI-TIP ASM GEN WB02T10578 Contact Us For Availability
269
TERMINAL BLOCK MOUNT GEN WB34X29565 Contact Us For Availability
272
SIDE PANEL SUPPORT GEN WB02T10034 Contact Us For Availability
277
HINGE RECEIVER GEN WB10X29566 Contact Us For Availability
281
DOOR HINGE ASM GEN WB10X29280 Contact Us For Availability
282
TUBE VNT ASM GEN WB38T10030 Contact Us For Availability
293
DRAWER SUPPORT FRT GEN WB48T10013 Contact Us For Availability
296
LEG LEVELER GEN WB02X10521 Contact Us For Availability
338
PACK WINDOW ASM GEN WB55X24938 Contact Us For Availability
696
SCR 10-32 TR3 PNT 1.41 S GEN WB01T10137 Contact Us For Availability
919
SPACER GEN WB02T10175 Contact Us For Availability
929
MAINTOP STRIKE GEN WB02T10026 Contact Us For Availability
1002
SCREW 8-18 AB IHW 3/8 S GEN WB01T10017 Contact Us For Availability
1003
SCR 10-32 CA TRT15 3.06 GEN WB02X24268 Contact Us For Availability
1005
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
1006
SCR 8-32 TT FLP .270 GEN WB01X23501 Contact Us For Availability
1008
SCR 8-18 BA GEN WB1X5904 Contact Us For Availability
× ![]()
