Model GE JBS60RF4SS – Common Parts & Diagrams

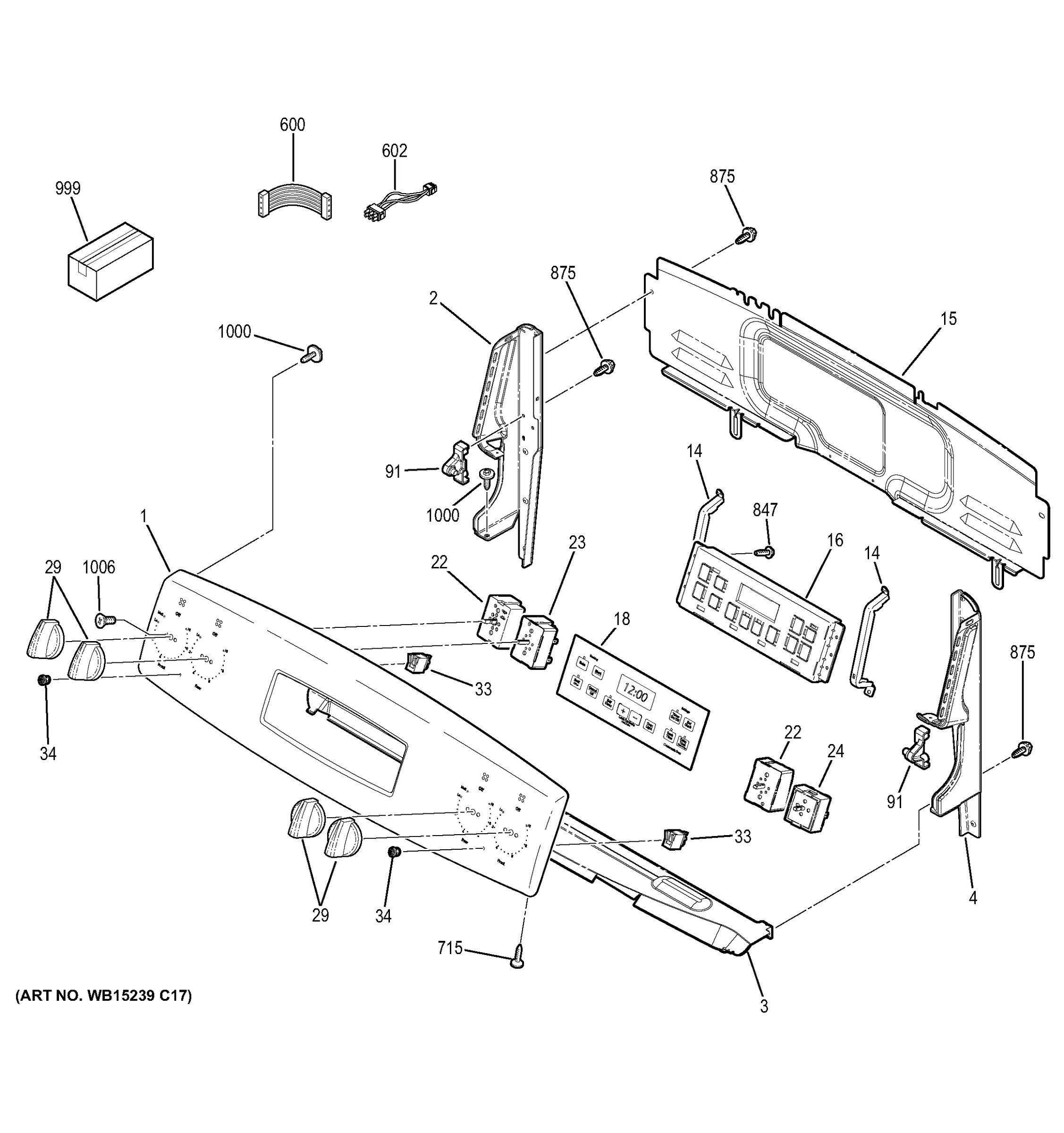

CONTROL PANEL

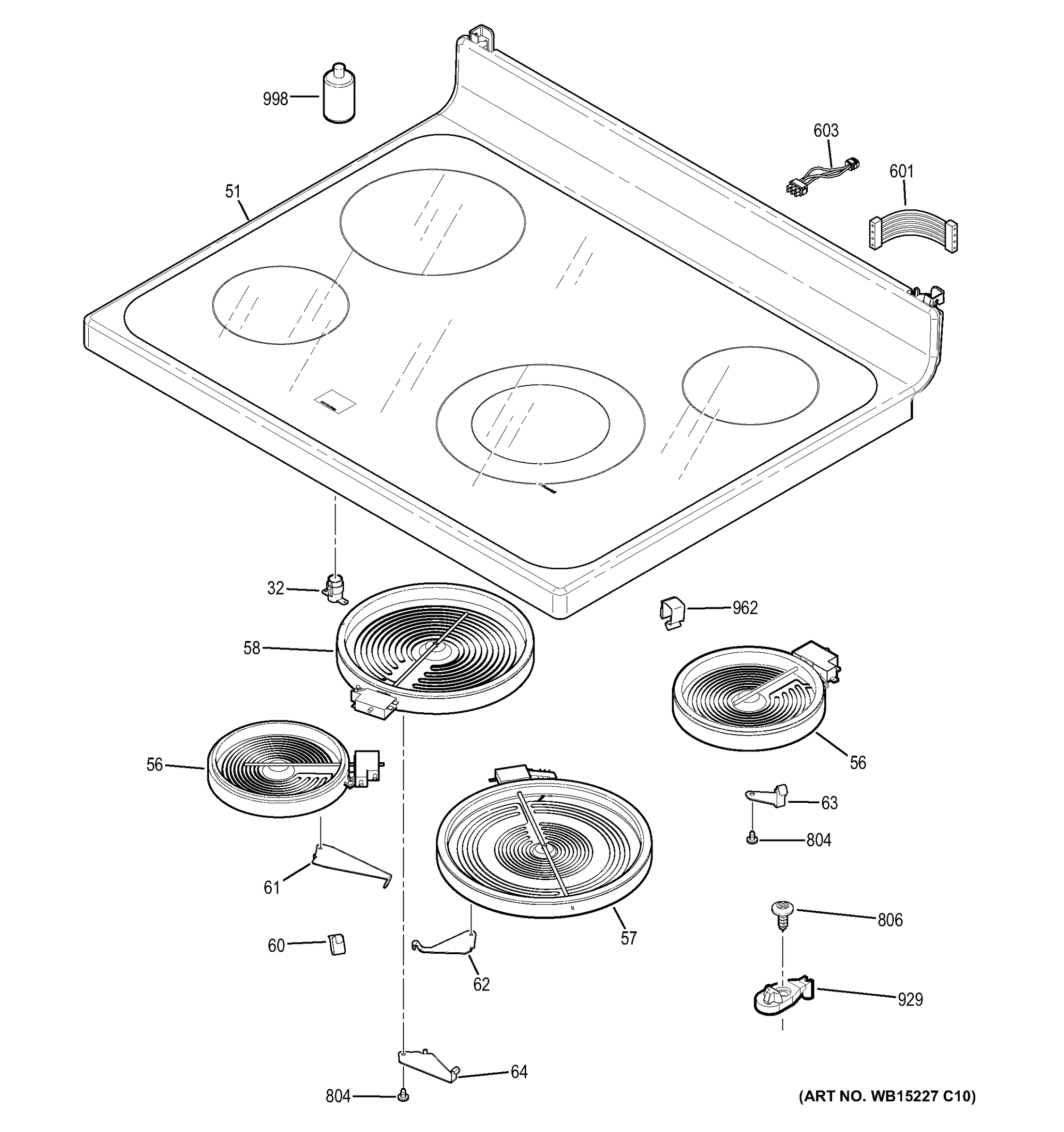

COOKTOP
BODY PARTS
DOOR
Common parts from model GE JBS60RF4SS
1
TRIM & BRACKET ASM GEN WB07X24034 Contact Us For Availability
15
COVER CONTROL GEN WB02T10532 Contact Us For Availability
18
FACEPLATE GRAPHICS (BK) GEN WB27T11515 Contact Us For Availability
23
CONTROL SURF ELEM GEN WB24T10146 Contact Us For Availability
32
LIGHT INDICATOR GEN WB27T10668 Contact Us For Availability
34
LENS GEN WB25T10103 Contact Us For Availability
51
RANGETOP GLASS ASM (BK) GEN WB62X20903 Contact Us For Availability
55
BADGE GE GEN WB02T10589 Contact Us For Availability
56
ELEMENT RADIANT 5.5 IN GEN WB30T10145 Contact Us For Availability
57
ELEMENT RADIANT 9" DUAL GEN WB30X24111 Contact Us For Availability
58
ELEMENT RADIANT 8 IN GEN WB30T10132 Contact Us For Availability
61
BRACKET RADIANT ELEMENT GEN WB02X20901 Contact Us For Availability
62
BRACKET RADIANT ELEMENT GEN WB02T10480 Contact Us For Availability
63
BRACKET RADIANT ELEMENT GEN WB02X20902 Contact Us For Availability
64
BRACKET RADIANT ELEMENT GEN WB02T10609 Contact Us For Availability
91
PIN RANGETOP HINGE GEN WB10T10116 Contact Us For Availability
112
LINER OVEN DOOR ASM (GY) GEN WB55T10200 Contact Us For Availability
113
RETAINER OVN DR INSLN GEN WB56T10178 Contact Us For Availability
121
PANEL DOOR OTR ASM (SS) GEN WB56X26242 Contact Us For Availability
132
DOOR PAD GEN WB01T10026 Contact Us For Availability
136
HANDLE AND END CAP ASM GEN WB15X25580 Contact Us For Availability
140
FRAME DOOR SIDE (BK) GEN WB56T10287 Contact Us For Availability
204
DRAWER BODY ASM MECH GEN WB55T10178 Contact Us For Availability
217
COVER BACK GEN WB34T10128 Contact Us For Availability
229
VENT TUBE INSULATION GEN WB35T10017 Contact Us For Availability
231
INSULATION OVN WRPR GEN WB35T10221 Contact Us For Availability
241
RACK OVEN GEN WB48T10063 Contact Us For Availability
242
WEDGE DRAWER GEN WB48T10068 Contact Us For Availability
249
GASKET OVEN LIGHT GEN WB02T10027 Contact Us For Availability
251
UNIT BAKE AS GEN WB44T10011 Contact Us For Availability
254
TERMINAL BLOCK ASM GEN WB17T10011 Contact Us For Availability
256
RECEPTACLE PUSH-IN GEN WB08T10026 Contact Us For Availability
258
OVEN LIGHT CUP GEN WB02T10037 Contact Us For Availability
268
BRACKET ANTI-TIP ASM GEN WB02T10578 Contact Us For Availability
269
MOUNT TERMINAL BLOCK GEN WB17T10021 Contact Us For Availability
272
SIDE PANEL SUPPORT GEN WB02T10034 Contact Us For Availability
277
HINGE RECEIVER GEN WB10T10068 Contact Us For Availability
282
TUBE VNT ASM GEN WB38T10030 Contact Us For Availability
293
DRAWER SUPPORT FRT GEN WB48T10013 Contact Us For Availability
296
LEG LEVELER GEN WB02X10521 Contact Us For Availability
602
LEAD WIRE 18 GA Y GEN WB18T10466 Contact Us For Availability
603
LEAD WIRE 14 GA GN GEN WB18T10470 Contact Us For Availability
696
SCR 10-32 TR3 PNT 1.41 S GEN WB01T10137 Contact Us For Availability
761
SCREW MTG GEN WB1X5364 Contact Us For Availability
804
SCR 6-20 GXB IHXW 3/8 NI GEN WB02T10324 Contact Us For Availability
919
SPACER GEN WB02T10175 Contact Us For Availability
929
MAINTOP STRIKE GEN WB02T10026 Contact Us For Availability
1002
SCREW 8-18 AB IHW 3/8 S GEN WB01T10017 Contact Us For Availability
1003
SCR 10-32 CA TRT15 3.06 GEN WB02X24268 Contact Us For Availability
1005
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
1006
SCR 8-32 TT FLP .270 GEN WB01X23501 Contact Us For Availability
1008
SCR 8-18 BA GEN WB1X5904 Contact Us For Availability
× ![]()
