GE JB655DKBWW Electric Range Parts List

2

END PLATE LT WH GEN WB07X27829 Contact Us For Availability

View on Model

3

BACKGUARD SHIELD HEAT GEN WB34X28565 Contact Us For Availability

View on Model

4

END PLATE RT WH GEN WB07X27825 Contact Us For Availability

View on Model

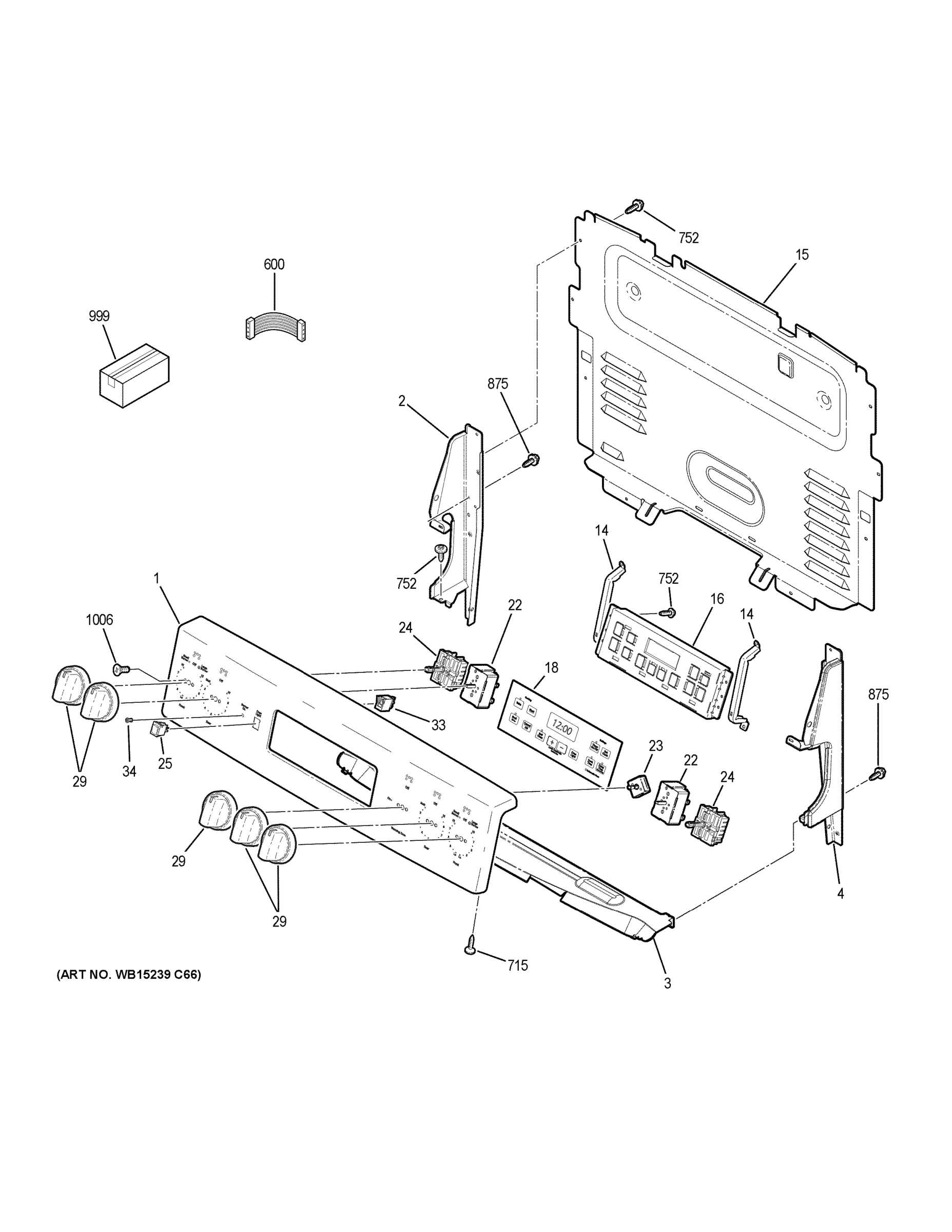

14

CONTROL PANEL BRACKET GEN WB34X31189 Contact Us For Availability

View on Model

15

CONTROL PANEL BACK COVER GEN WB34X29564 Contact Us For Availability

View on Model

22

INF SWITCH CONTROL 1250W GEN WB24T10022 Contact Us For Availability

View on Model

24

WB24X25013 GE Range Control Infinite Switch In Stock GEN WB24X25013 $39.52

View on Model

25

OVEN ROCKER SWITCH GEN WB24T10043 Contact Us For Availability

View on Model

29

KNOB INFINITE (WH) GEN WB03X24952 Contact Us For Availability

View on Model

32

WB27T10668 GE Range Light Indicator In Stock GEN WB27T10668 $7.12

View on Model

33

WB25X20005 GE Range Light Indicator Pilot In Stock GEN WB25X20005 $5.20

View on Model

34

WB25X24023 GE Range Indicator Light Lens In Stock GEN WB25X24023 $4.11

View on Model

43

HUB BLADE ASM GEN WB02X26501 Contact Us For Availability

View on Model

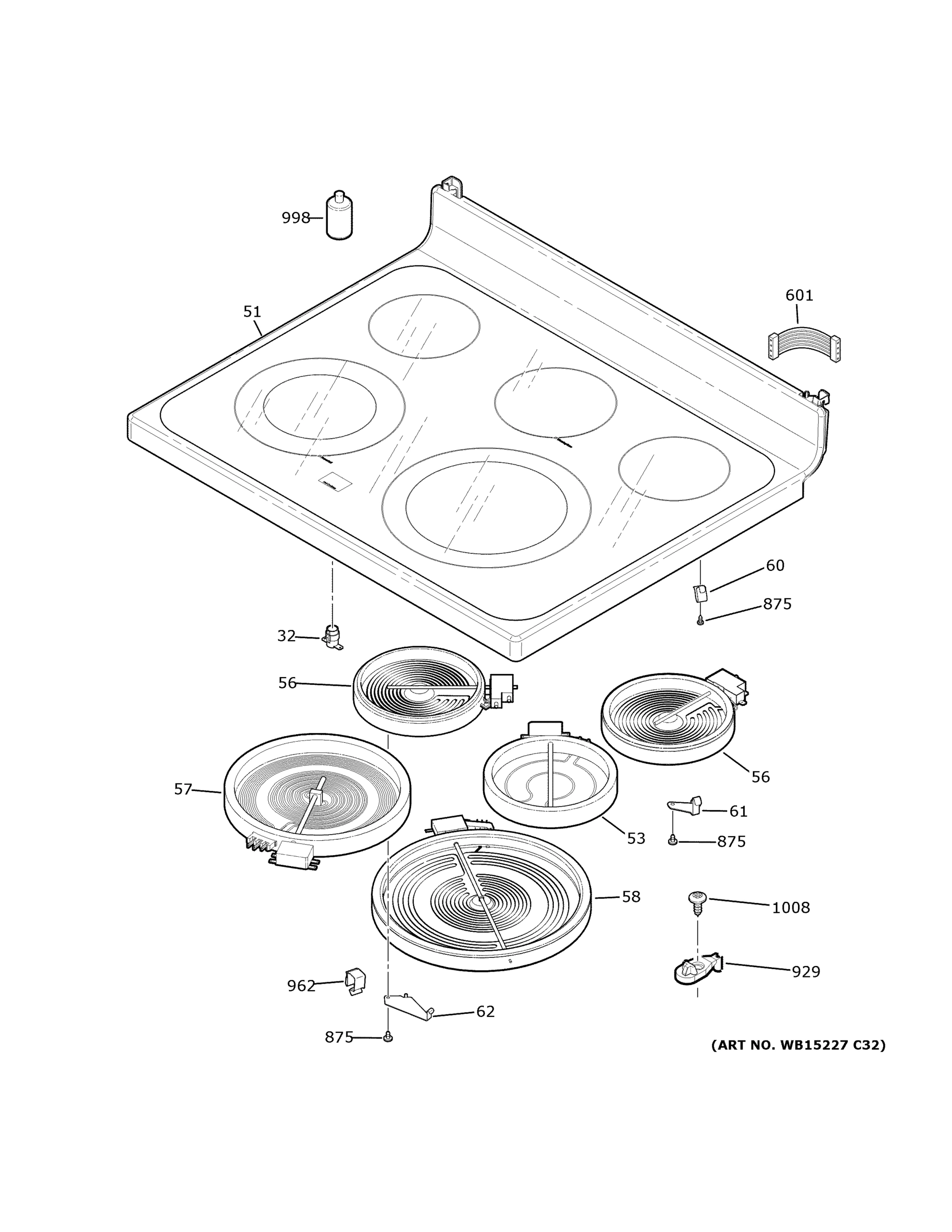

51

WB62X25977 GE Range Top Glass Assembly, White Backorder GEN WB62X25977 $856.45

View on Model

56

WB30T10145 GE Oven Radiant Surface Element In Stock GEN WB30T10145 $94.08

View on Model

57

WB30X24111 GE Oven Dual Radiant Element In Stock GEN WB30X24111 $82.14

View on Model

58

WB30T10130 GE Oven Radiant Surface Element In Stock GEN WB30T10130 $119.38

View on Model

60

SPRING RADIANT ELEMENT GEN WB09X40389 Contact Us For Availability

View on Model

61

BRACKET RADIANT ELEMENT GEN WB02X20902 Contact Us For Availability

View on Model

62

WB02X20940 GE Range Radiant Element Bracket Backorder GEN WB02X20940 $5.20

View on Model

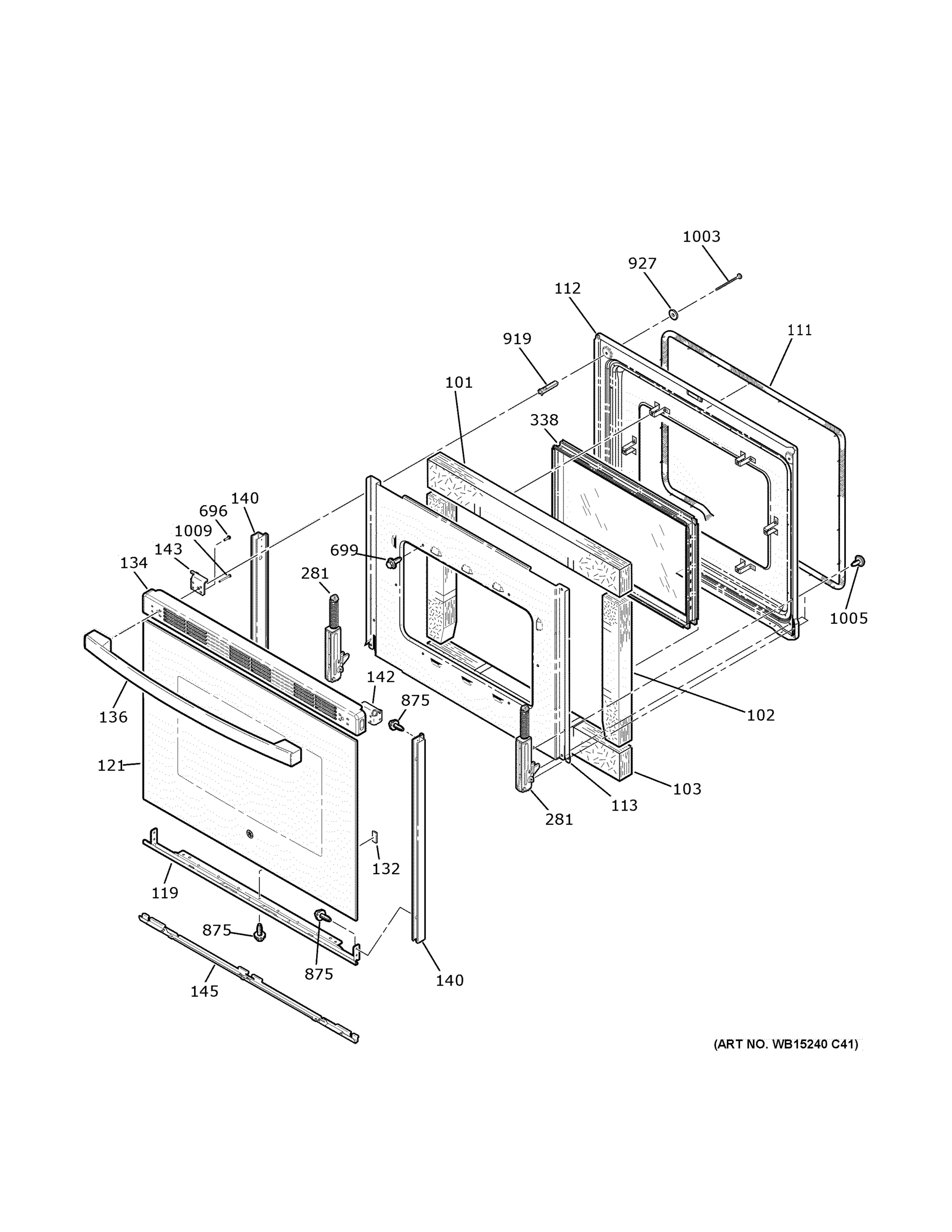

111

WB04T10086 GE Oven Door Gasket In Stock GEN WB04T10086 $37.09

View on Model

112

LINER OVEN DOOR ASM (BK) GEN WB55T10203 Contact Us For Availability

View on Model

113

WB56T10178 GE Oven Door Insulation Retainer Backorder GEN WB56T10178 $76.78

View on Model

121

WB56X26641 GE Range Outer Door Glass Backorder GEN WB56X26641 $65.97

View on Model

132

DOOR PAD GEN WB01T10026 Contact Us For Availability

View on Model

134

WB07X27236 GE Range Vent Door Trim (White) Backorder GEN WB07X27236 $122.61

View on Model

140

WB56T10290 GE Range Door Side Frame (White) Backorder GEN WB56T10290 $14.04

View on Model

150

WB14T10093 GE Range Handle Latch Assembly In Stock GEN WB14T10093 $62.54

View on Model

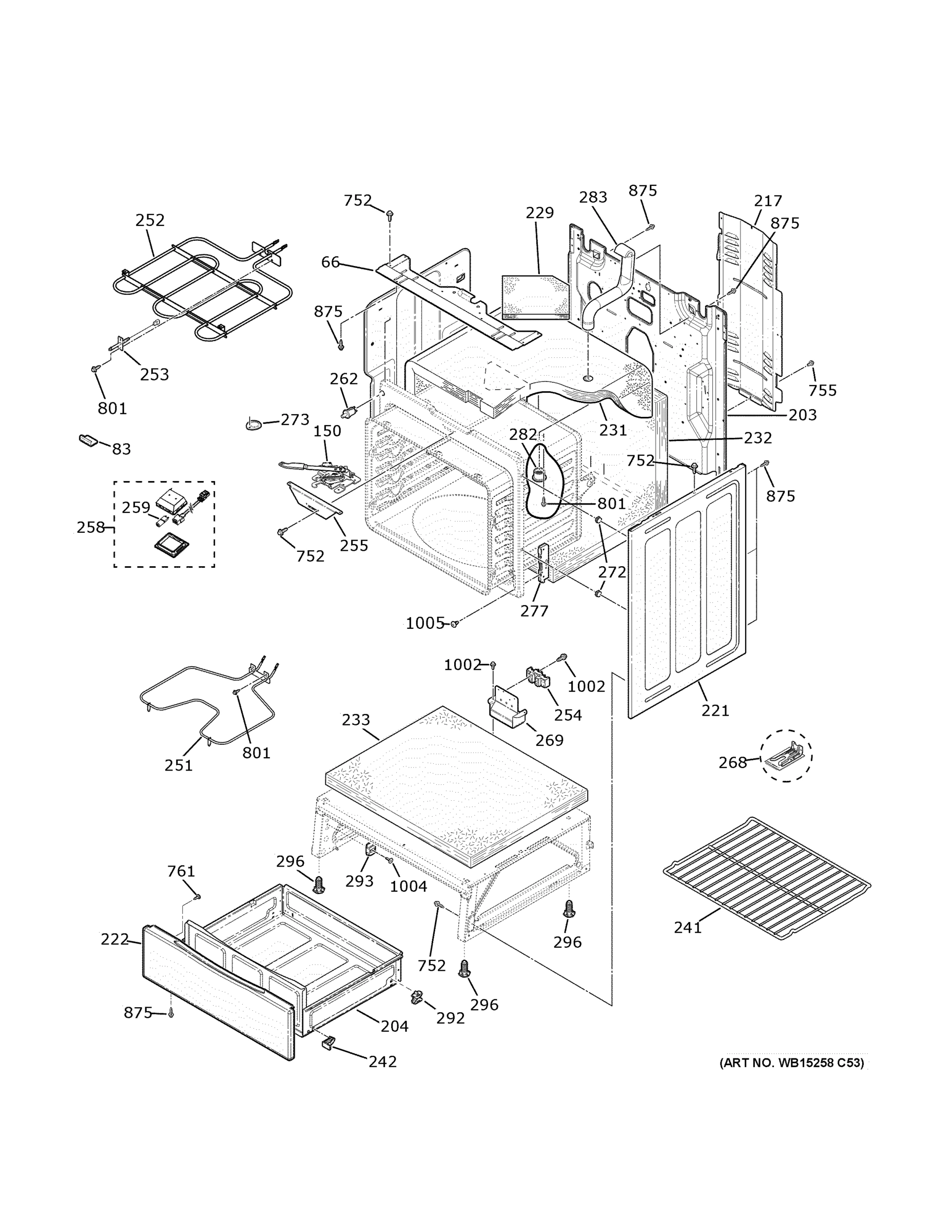

217

WIRE COVER BACK GEN WB34X29563 Contact Us For Availability

View on Model

221

SIDE PANEL WH GEN WB56X28884 Contact Us For Availability

View on Model

229

WB35T10017 GE Oven Vent Tube Insulation Backorder GEN WB35T10017 $5.20

View on Model

241

WB48T10063 GE Range Rack In Stock GEN WB48T10063 $43.16

View on Model

242

DRAWER WEDGE GEN WB02X29072 Contact Us For Availability

View on Model

253

WB21X22134 GE Oven Sensor Assembly In Stock GEN WB21X22134 $14.04

View on Model

254

BLOCK TERMINAL ASM GEN WB17X38438 Contact Us For Availability

View on Model

259

WB25T10102 GE Oven Top-Mounted Halogen Bulb G In Stock GEN WB25T10102 $9.99

View on Model

262

WB24T10147 GE Oven SPDT Light Switch In Stock GEN WB24T10147 $11.73

View on Model

268

WB02T10578 GE Oven Anti-Tip Bracket Assembly In Stock GEN WB02T10578 $21.72

View on Model

269

TERMINAL BLOCK MOUNT GEN WB34X29565 Contact Us For Availability

View on Model

272

SIDE PANEL SUPPORT GEN WB02T10034 Contact Us For Availability

View on Model

277

HINGE RECEIVER GEN WB10X29566 Contact Us For Availability

View on Model

281

WB10T10070 GE Range Door Hinge Backorder GEN WB10T10070 $54.39

View on Model

292

REAR SUPPORT GEN WB02X33180 Contact Us For Availability

View on Model

293

DRAWER SUPPORT FRT GEN WB48T10013 Contact Us For Availability

View on Model

296

LEG LEVELER GEN WB02X10521 Contact Us For Availability

View on Model

338

WB56X22160 GE Stove Inner Door Glass Assembly Backorder GEN WB56X22160 $312.68

View on Model

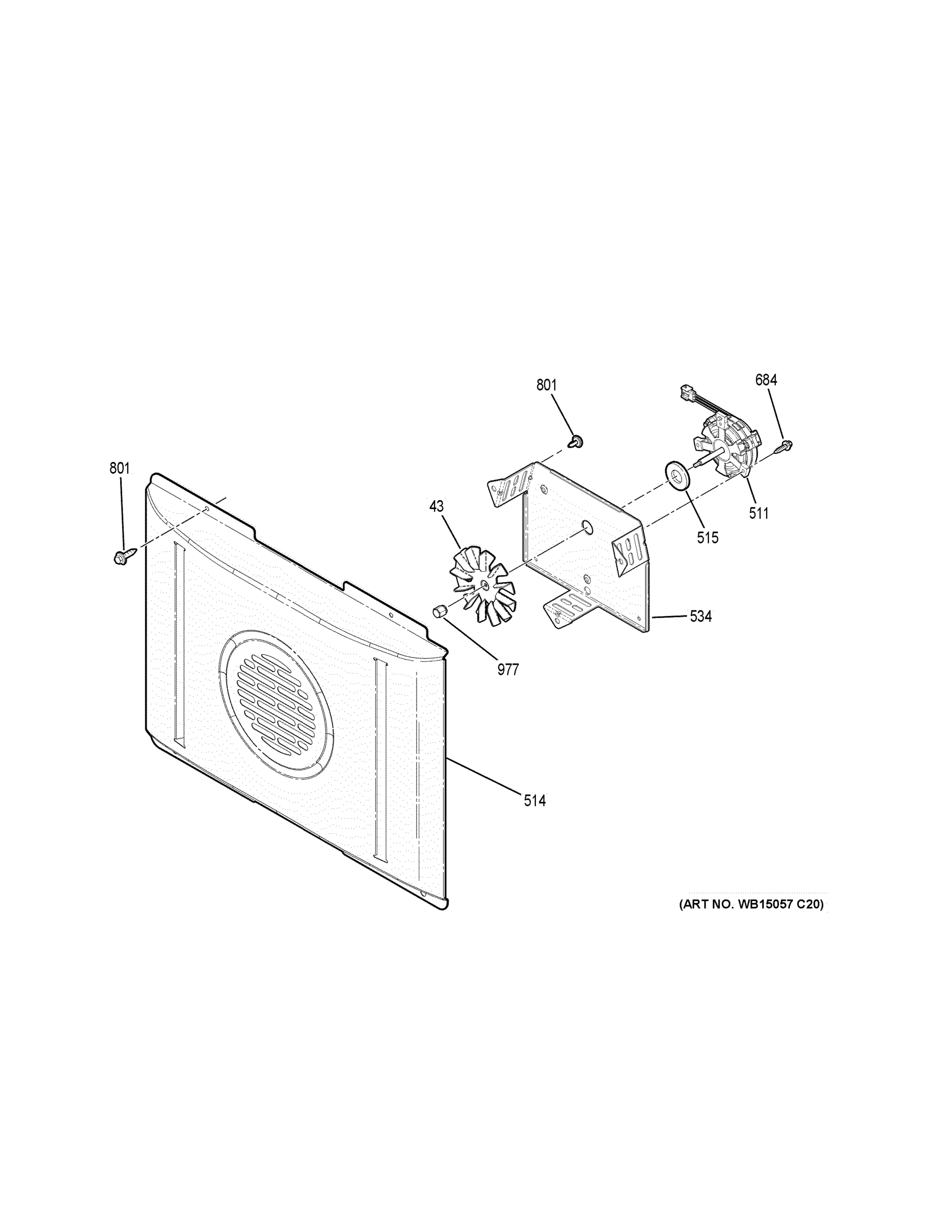

511

CONVECTION MOTOR GEN WB26X29574 Contact Us For Availability

View on Model

515

GASKET CONV FAN GEN WB04T10080 Contact Us For Availability

View on Model

696

WB01T10103 GE Oven Screw 10-16 AB HXW .532 Backorder GEN WB01T10103 $5.20

View on Model

761

WB1X5904 GE Oven Screw 8-18 BA In Stock GEN WB1X5904 $5.20

View on Model

875

WH2X930 GE Screw Backorder GEN WH2X930 $5.20

View on Model

929

WB02T10026 GE Oven Strike Maintop Backorder GEN WB02T10026 $5.20

View on Model

962

CLIP CABLE GEN WB02X25982 Contact Us For Availability

View on Model

1002

WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS Backorder GEN WB01T10017 $5.20

View on Model

1003

SCR 10-32 CA TRT15 3.06 GEN WB02X24268 Contact Us For Availability

View on Model

1005

SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability

View on Model

1006

SCR 8-32 TT FLP .270 GEN WB01X23501 Contact Us For Availability

View on Model
