Model GE JB645FK4DS Electric Range – Common Parts & Diagrams
CONTROL PANEL
COOKTOP

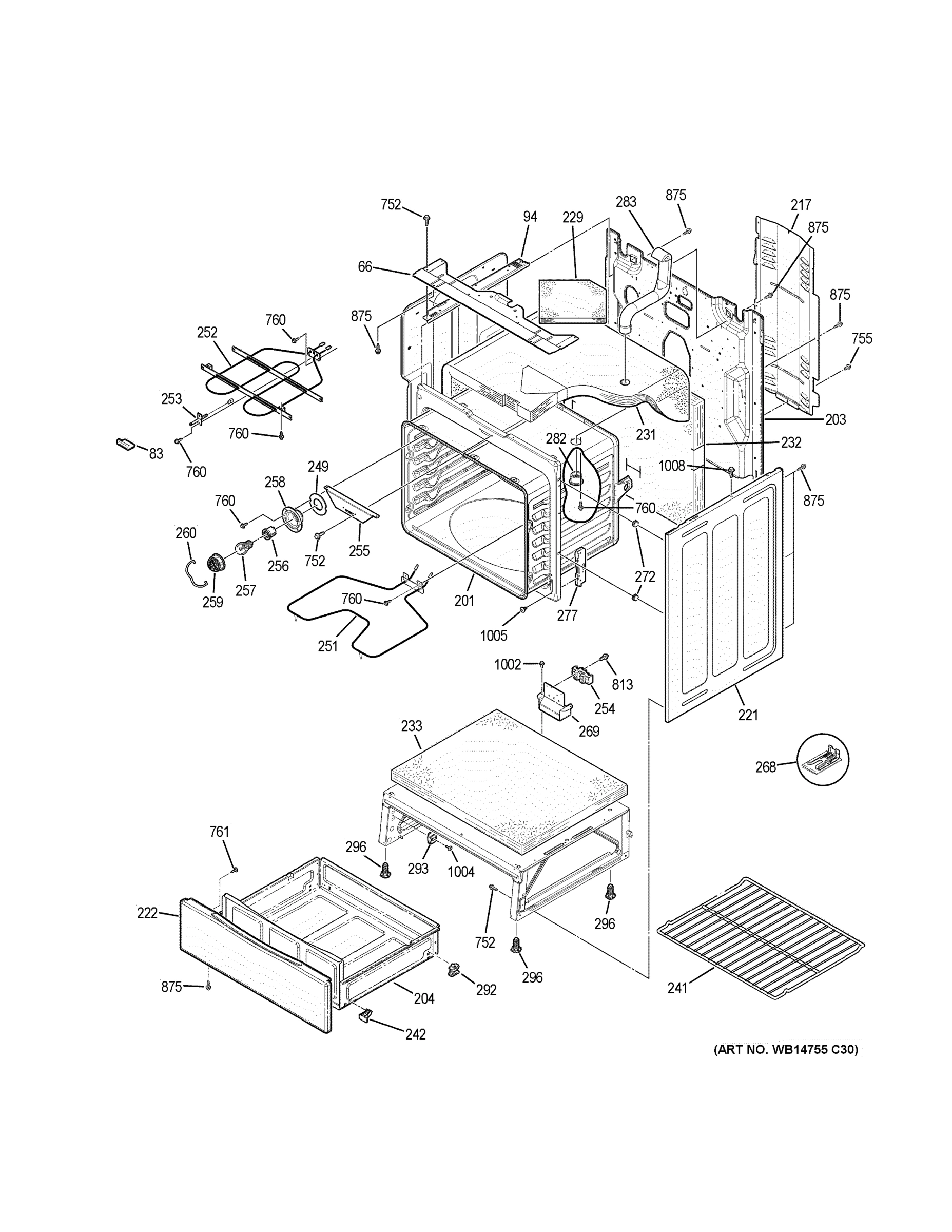

BODY PARTS

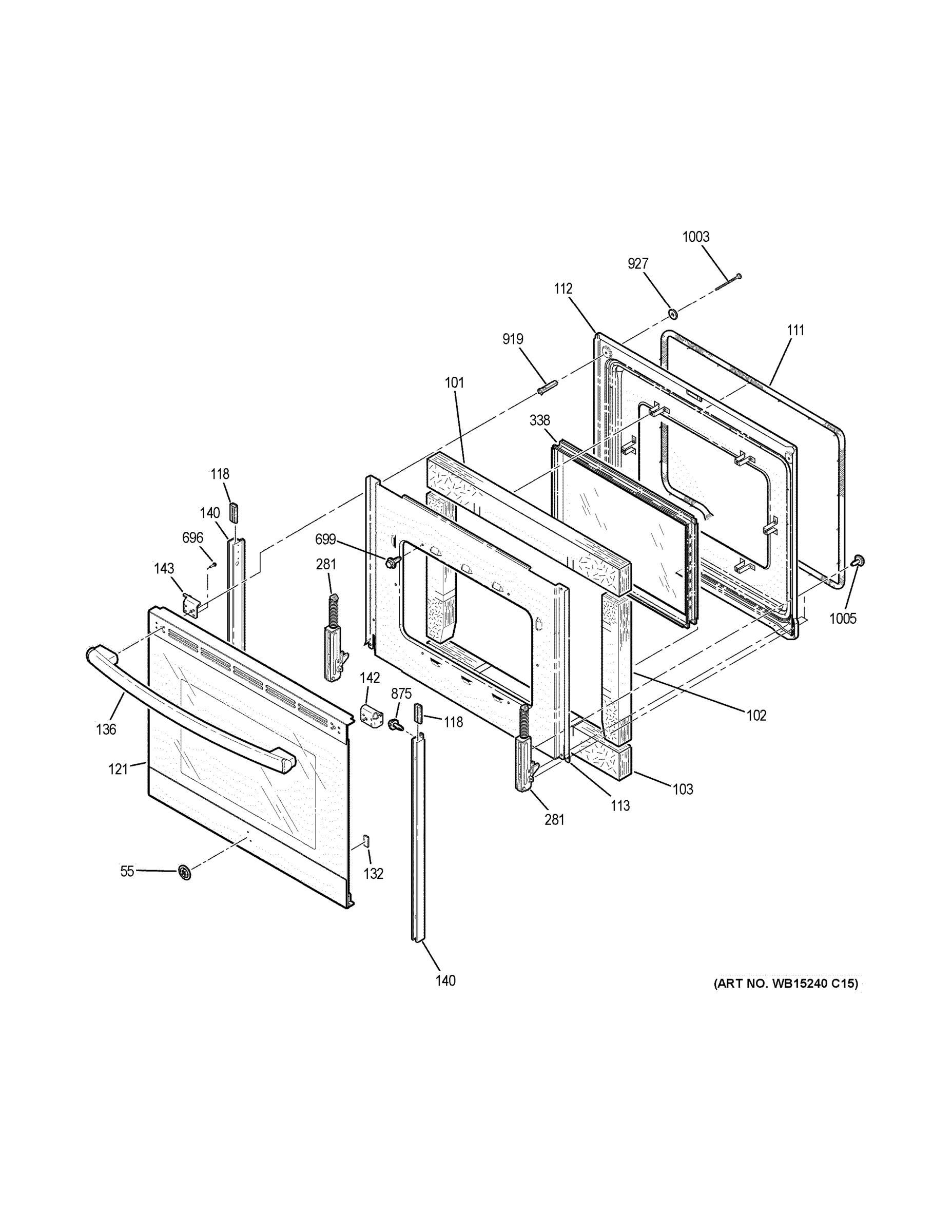

DOOR

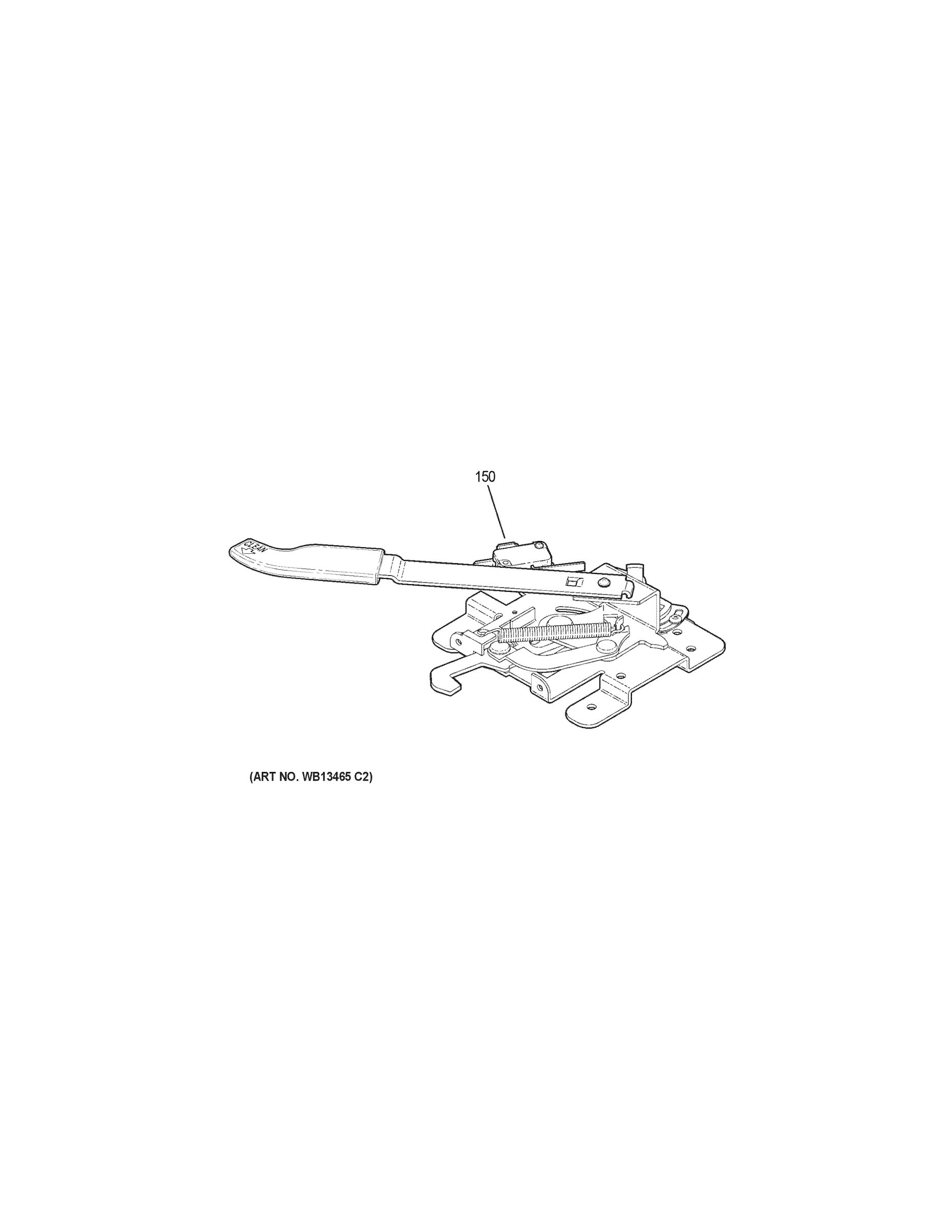

DOOR LOCK
Common parts from model GE JB645FK4DS Electric Range
2
END PLATE LH DG GEN WB07X29534 Contact Us For Availability
3
BACKGUARD SHIELD HEAT GEN WB34X28565 Contact Us For Availability
4
END PLATE RH DG GEN WB07X29535 Contact Us For Availability
14
CONTROL PANEL BRACKET GEN WB34X31189 Contact Us For Availability
15
CONTROL PANEL BACK COVER GEN WB34X29564 Contact Us For Availability
18
FACEPLATE GRAPHICS (GY) GEN WB07X26713 Contact Us For Availability
22
CONTROL INFINITE SWITCH GEN WB24T10029 Contact Us For Availability
23
SWITCH INFINITE CONTROL GEN WB24X25013 Contact Us For Availability
29
KNOB ASM TS GEN WB03X29165 Contact Us For Availability
33
LIGHT INDICATOR PILOT GEN WB25X20005 Contact Us For Availability
34
LENS GEN WB25X24023 Contact Us For Availability
51
RANGETOP GLASS ASM (BK) GEN WB62X26650 Contact Us For Availability
55
BADGE ASM GEN WB02X29637 Contact Us For Availability
56
ELEMENT RADIANT 5.5 IN GEN WB30T10145 Contact Us For Availability
58
ELEMENT RADIANT 9" DUAL GEN WB30X24111 Contact Us For Availability
61
BRACKET RADIANT ELEMENT GEN WB02X20940 Contact Us For Availability
62
BRACKET RADIANT ELEMENT GEN WB02T10480 Contact Us For Availability
64
BRACKET RADIANT ELEMENT GEN WB02X20902 Contact Us For Availability
91
PIN RANGETOP HINGE GEN WB10T10116 Contact Us For Availability
103
INSULATION DOOR GEN WB35T10255 Contact Us For Availability
111
GASKET OVEN GEN WB04T10086 Contact Us For Availability
112
LINER OVEN DOOR ASM (GY) GEN WB55T10200 Contact Us For Availability
132
DOOR PAD GEN WB01T10026 Contact Us For Availability
136
HANDLE AND END CAP ASM GEN WB15X29162 Contact Us For Availability
217
WIRE COVER BACK GEN WB34X29563 Contact Us For Availability
221
SIDE PANEL DG GEN WB63X28679 Contact Us For Availability
241
RACK OVEN GEN WB48T10063 Contact Us For Availability
242
DRAWER WEDGE GEN WB02X29072 Contact Us For Availability
249
GASKET OVEN LIGHT GEN WB02T10027 Contact Us For Availability
253
SENSOR ASM GEN WB21X22134 Contact Us For Availability
256
RECEPTACLE PUSH-IN GEN WB08T10026 Contact Us For Availability
268
BRACKET ANTI-TIP ASM GEN WB02T10578 Contact Us For Availability
269
TERMINAL BLOCK MOUNT GEN WB34X29565 Contact Us For Availability
272
SIDE PANEL SUPPORT GEN WB02T10034 Contact Us For Availability
277
HINGE RECEIVER GEN WB10X29566 Contact Us For Availability
281
HINGE DOOR GEN WB10T10070 Contact Us For Availability
293
DRAWER SUPPORT FRT GEN WB48T10013 Contact Us For Availability
296
LEG LEVELER GEN WB02X10521 Contact Us For Availability
338
WINDOW PACK ASM GEN WB56X22160 Contact Us For Availability
603
LEAD WIRE 14 GA GN GEN WB18T10470 Contact Us For Availability
696
SCR 10-16 AB HXW .532 GEN WB01T10103 Contact Us For Availability
919
SPACER GEN WB02T10175 Contact Us For Availability
1002
SCREW 8-18 AB IHW 3/8 S GEN WB01T10017 Contact Us For Availability
1003
SCR 10-32 CA TRT15 3.06 GEN WB02X24268 Contact Us For Availability
1005
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
1006
SCR 8-32 TT FLP .270 GEN WB01X23501 Contact Us For Availability
1008
SCR 8-18 BA GEN WB1X5904 Contact Us For Availability
× ![]()
