Model GE JB620GF2SA Electric Range – Common Parts & Diagrams

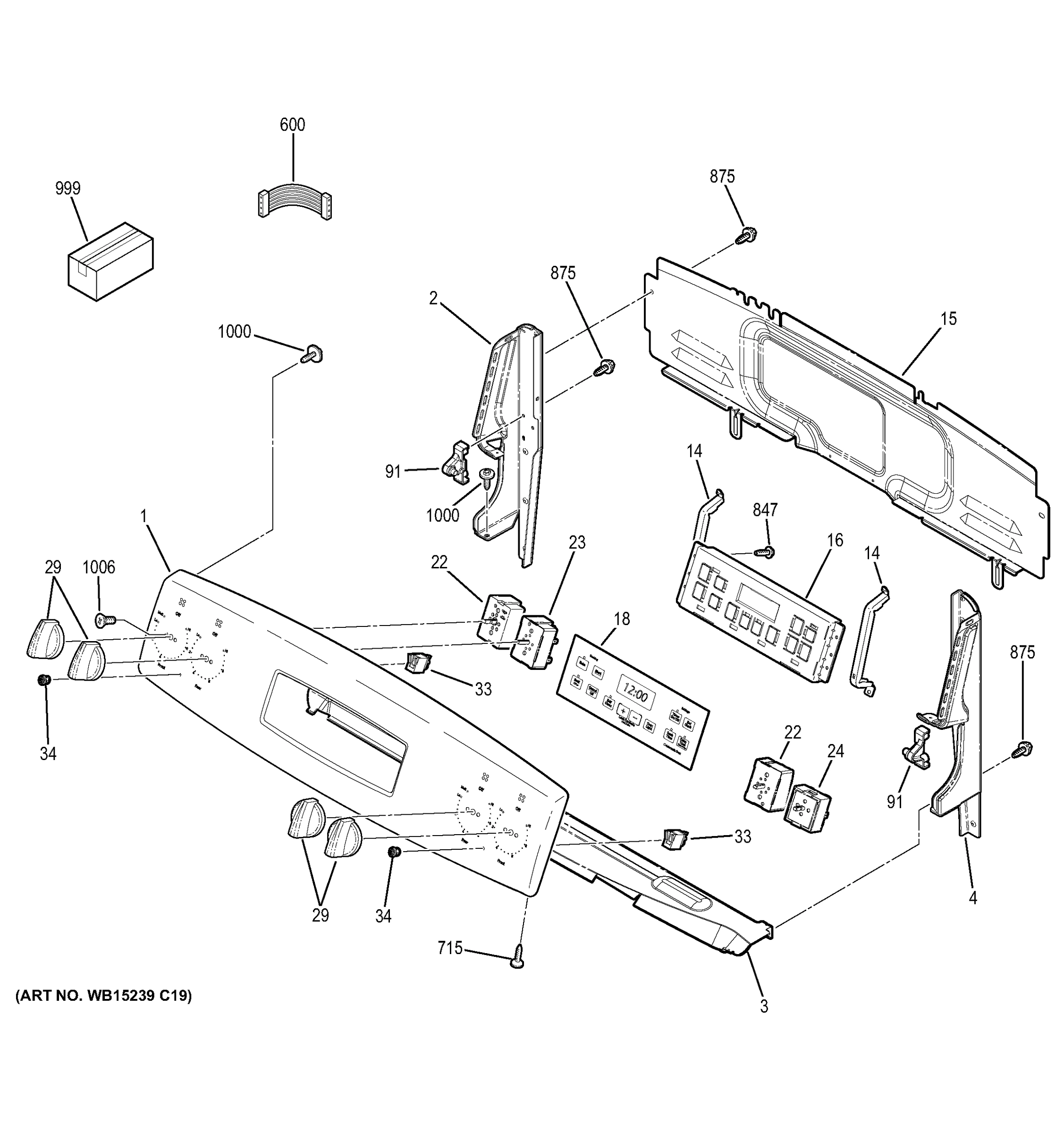

CONTROL PANEL

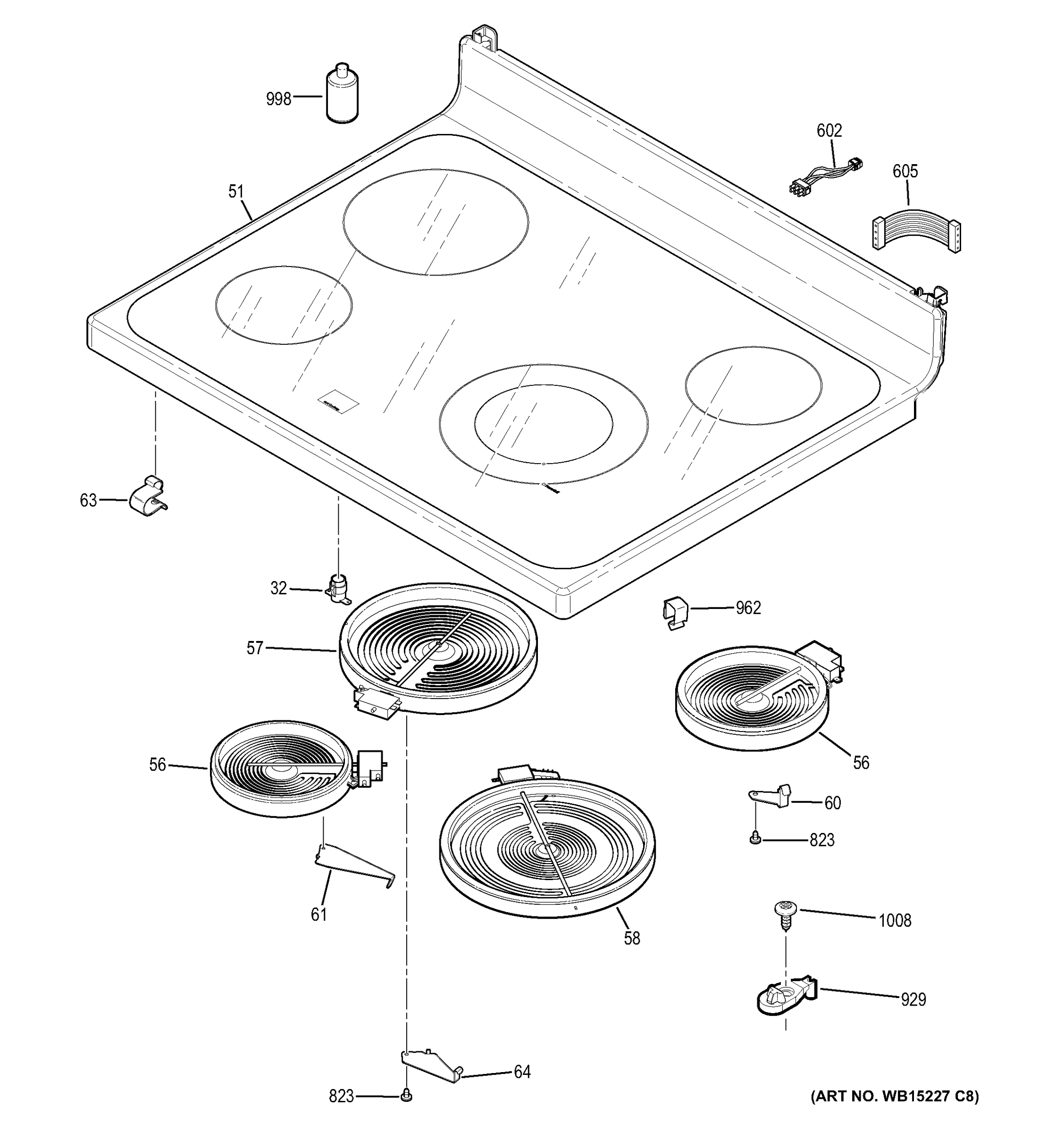

COOKTOP
BODY PARTS
DOOR
DOOR LOCK
Common parts from model GE JB620GF2SA Electric Range
1
TRIM & BRACKET ASM (WM) GEN WB07X24039 Contact Us For Availability
15
COVER CONTROL GEN WB02T10532 Contact Us For Availability
18
FACEPLATE GRAPHICS (BK) GEN WB27T11511 Contact Us For Availability
23
CONTROL SURF ELEM GEN WB24T10146 Contact Us For Availability
32
LIGHT INDICATOR GEN WB27T10668 Contact Us For Availability
34
LENS GEN WB25X24023 Contact Us For Availability
51
RANGETOP GLASS ASM (BK) GEN WB62X20907 Contact Us For Availability
55
BADGE GE GEN WB02T10589 Contact Us For Availability
56
ELEMENT RADIANT 5.5 IN GEN WB30T10145 Contact Us For Availability
57
ELEMENT RADIANT 8 IN GEN WB30T10132 Contact Us For Availability
58
ELEMENT HALIANT 8 IN GEN WB30T10136 Contact Us For Availability
60
BRACKET RADIANT ELEMENT GEN WB02X20902 Contact Us For Availability
61
BRACKET RADIANT ELEMENT GEN WB02X20901 Contact Us For Availability
64
BRACKET RADIANT ELEMENT GEN WB02T10609 Contact Us For Availability
91
PIN RANGETOP HINGE GEN WB10T10116 Contact Us For Availability
102
INSULATION DOOR GEN WB35T10114 Contact Us For Availability
103
INSULATION DOOR GEN WB35T10255 Contact Us For Availability
112
LINER OVEN DOOR ASM (GY) GEN WB55T10200 Contact Us For Availability
113
RETAINER OVN DR INSLN GEN WB56T10178 Contact Us For Availability
117
RETAINER GLASS OVN DR GEN WB56T10320 Contact Us For Availability
118
RETAINER GLASS OVN DR GEN WB56T10321 Contact Us For Availability
119
TRIM OVN DR BTTM GEN WB07T10462 Contact Us For Availability
122
OVEN DOOR GLASS-INNER GEN WB57K5230 Contact Us For Availability
132
DOOR PAD GEN WB01T10026 Contact Us For Availability
136
HANDLE (LE-BK) GEN WB15T10213 Contact Us For Availability
140
FRAME DOOR SIDE (BK) GEN WB56T10287 Contact Us For Availability
204
DRAWER BODY ASM MECH GEN WB55T10178 Contact Us For Availability
217
COVER BACK GEN WB34T10128 Contact Us For Availability
222
PANEL DRAWER (WM) GEN WB56X22307 Contact Us For Availability
229
VENT TUBE INSULATION GEN WB35T10017 Contact Us For Availability
231
INSULATION OVN WRPR GEN WB35T10209 Contact Us For Availability
232
INSULATION OVN BACK/BTTM GEN WB35T10113 Contact Us For Availability
241
RACK OVEN GEN WB48T10063 Contact Us For Availability
242
WEDGE DRAWER GEN WB48T10068 Contact Us For Availability
249
GASKET OVEN LIGHT GEN WB02T10027 Contact Us For Availability
251
UNIT BAKE AS GEN WB44T10011 Contact Us For Availability
254
TERMINAL BLOCK ASM GEN WB17T10011 Contact Us For Availability
256
RECEPTACLE PUSH-IN GEN WB08T10026 Contact Us For Availability
258
OVEN LIGHT CUP GEN WB02T10037 Contact Us For Availability
268
BRACKET ANTI-TIP ASM GEN WB02T10578 Contact Us For Availability
269
MOUNT TERMINAL BLOCK GEN WB17T10021 Contact Us For Availability
272
SIDE PANEL SUPPORT GEN WB02T10034 Contact Us For Availability
277
HINGE RECEIVER GEN WB10T10068 Contact Us For Availability
281
HINGE DOOR GEN WB10T10067 Contact Us For Availability
293
DRAWER SUPPORT FRT GEN WB48T10013 Contact Us For Availability
296
LEG LEVELER GEN WB02X10521 Contact Us For Availability
338
WINDOW PACK ASM GEN WB56X22160 Contact Us For Availability
600
LEAD WIRE 18 GA Y GEN WB18T10466 Contact Us For Availability
602
LEAD WIRE 14 GA GN GEN WB18T10470 Contact Us For Availability
605
HARNESS WIRE MAINTOP GEN WB18T10591 Contact Us For Availability
696
SCR 10-16 AB HXW .532 GEN WB01T10103 Contact Us For Availability
761
SCREW MTG GEN WB1X5364 Contact Us For Availability
847
SCR 6-20 GXB IHXW 3/8 NI GEN WB02T10324 Contact Us For Availability
919
SPACER GEN WB02T10175 Contact Us For Availability
929
MAINTOP STRIKE GEN WB02T10026 Contact Us For Availability
1002
SCREW 8-18 AB IHW 3/8 S GEN WB01T10017 Contact Us For Availability
1003
SCR 10-16 PL PNT 2.5 S GEN WB01T10067 Contact Us For Availability
1005
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
1006
SCR 8-32 TT FLP .270 GEN WB01X23501 Contact Us For Availability
× ![]()
