Model Maytag JB36NXFXLW00 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - CABINET AND BREAKER TRIM PARTS
03 - TOP GRILLE AND UNIT COVER PARTS

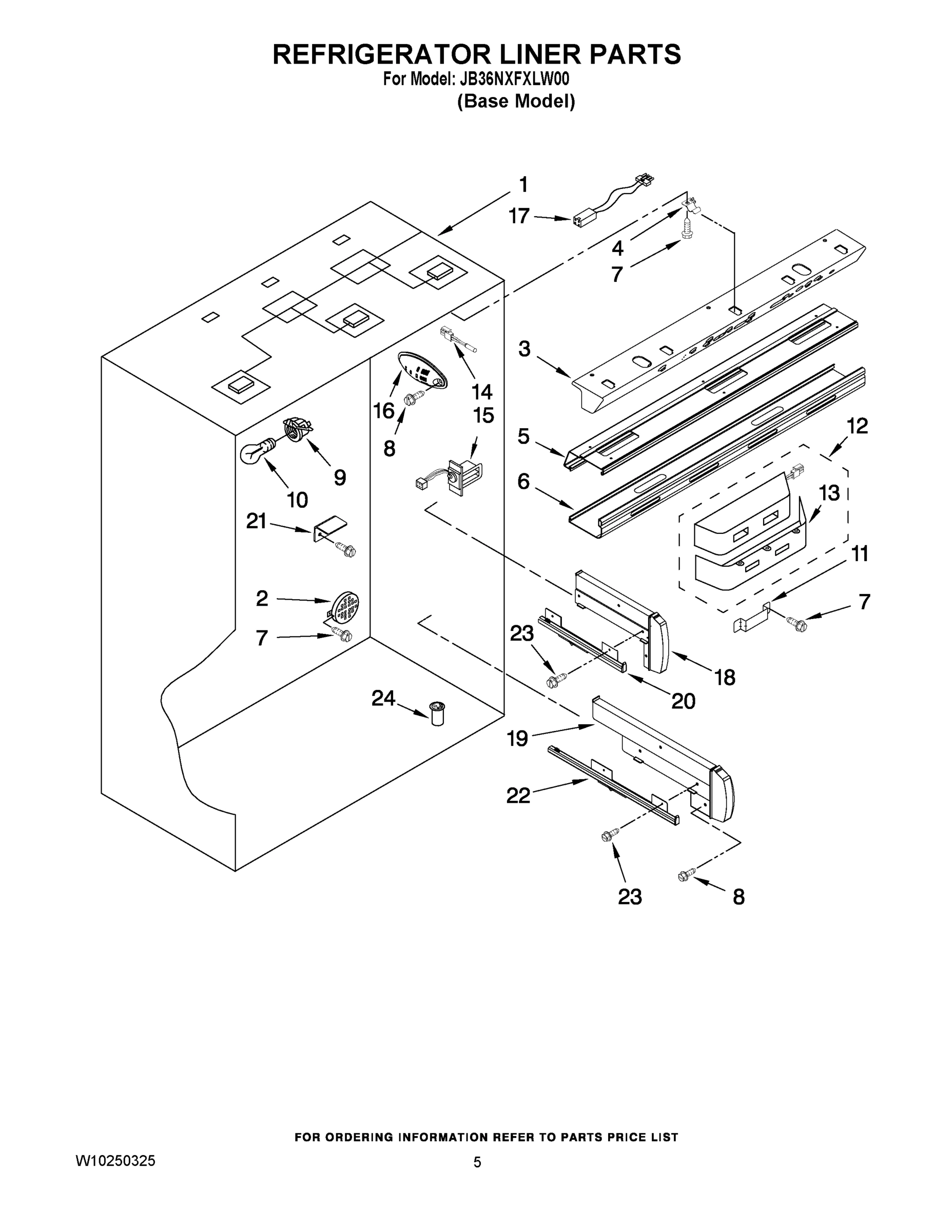

04 - REFRIGERATOR LINER PARTS

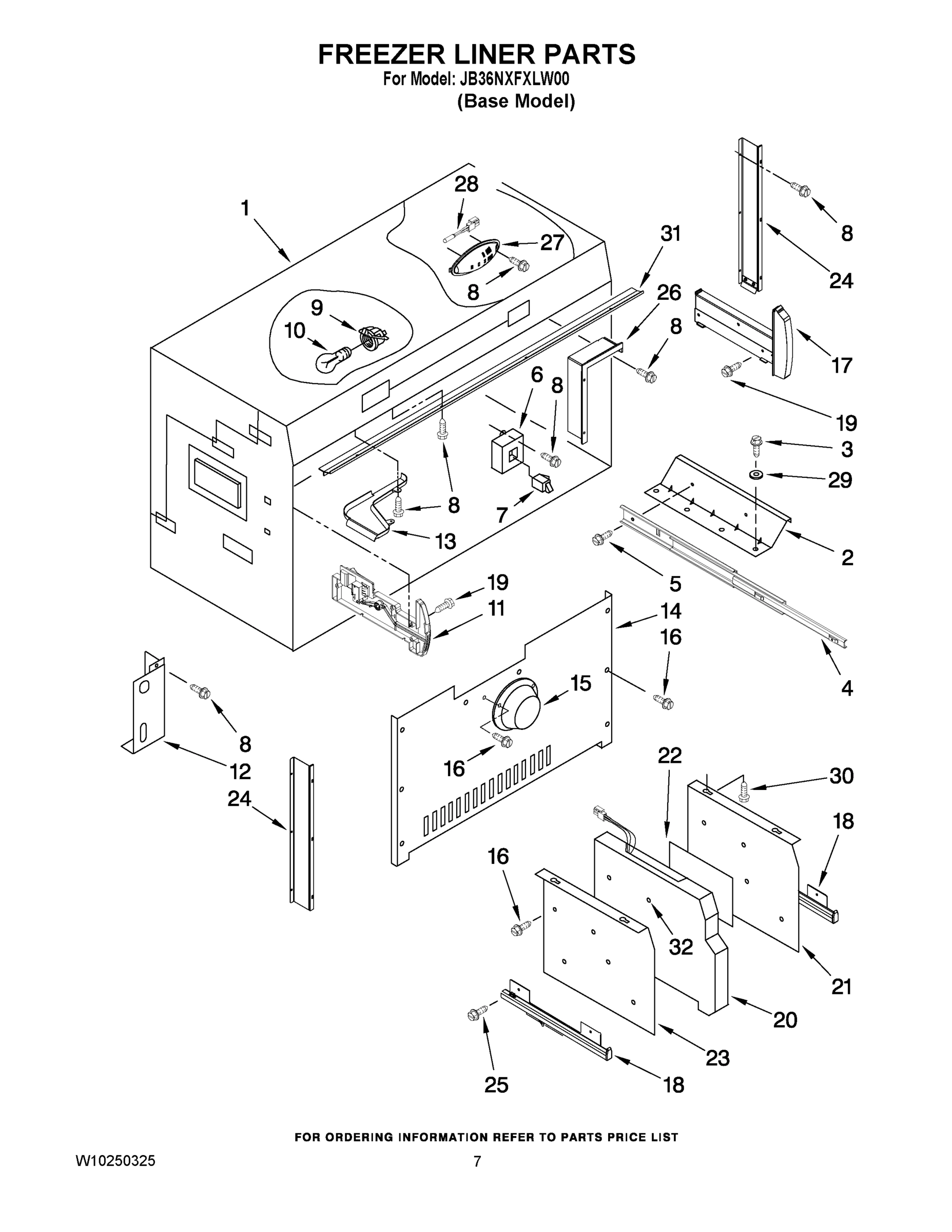

05 - FREEZER LINER PARTS

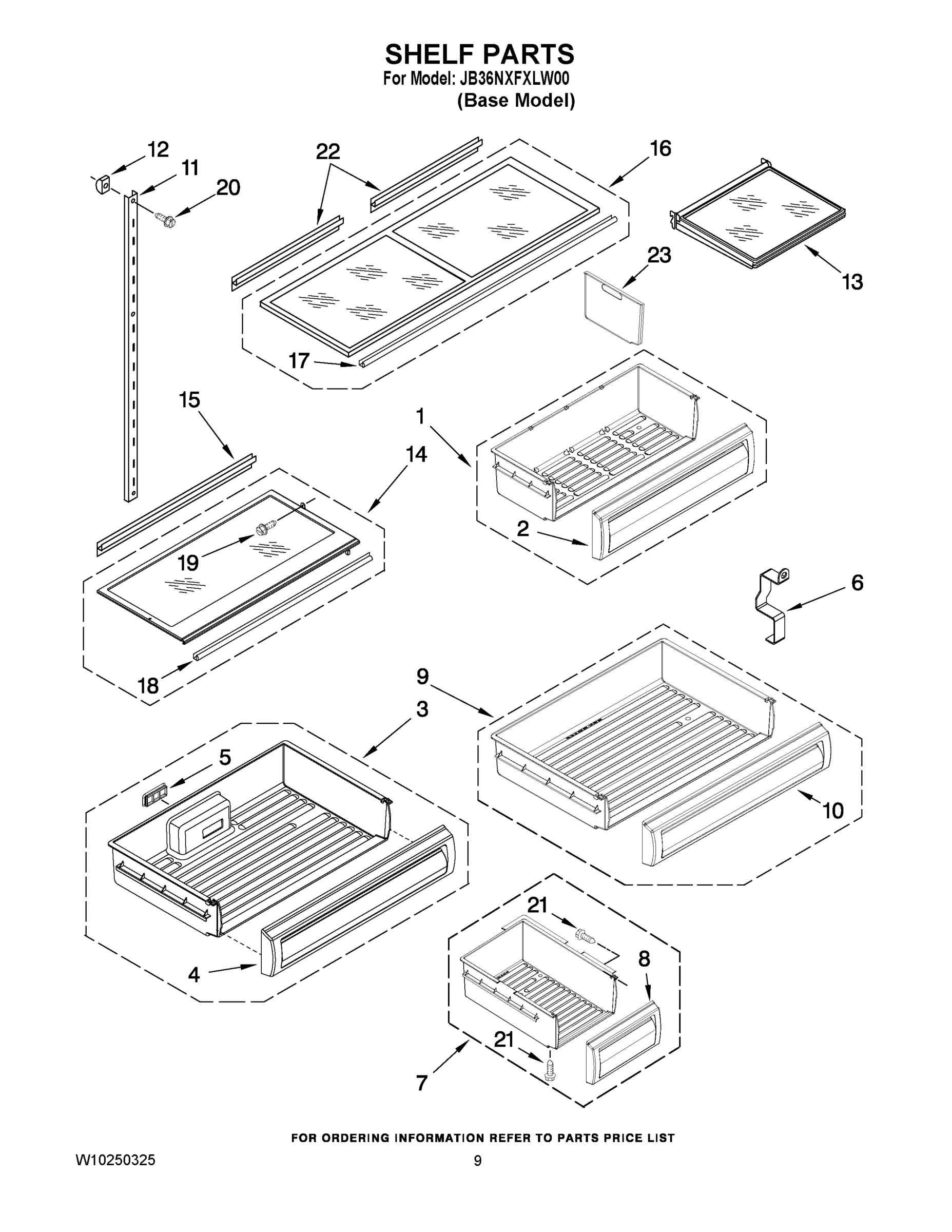

06 - SHELF PARTS

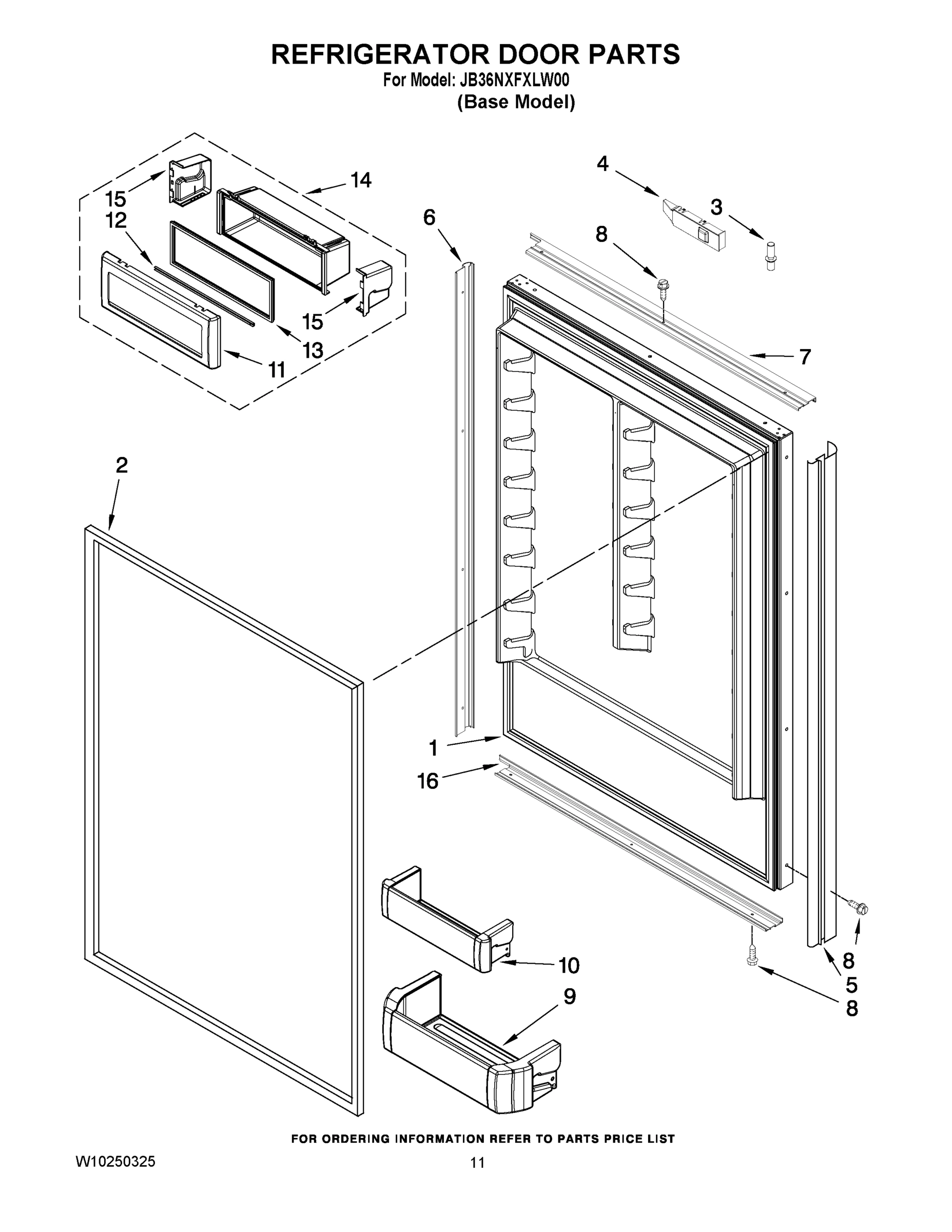

07 - REFRIGERATOR DOOR PARTS

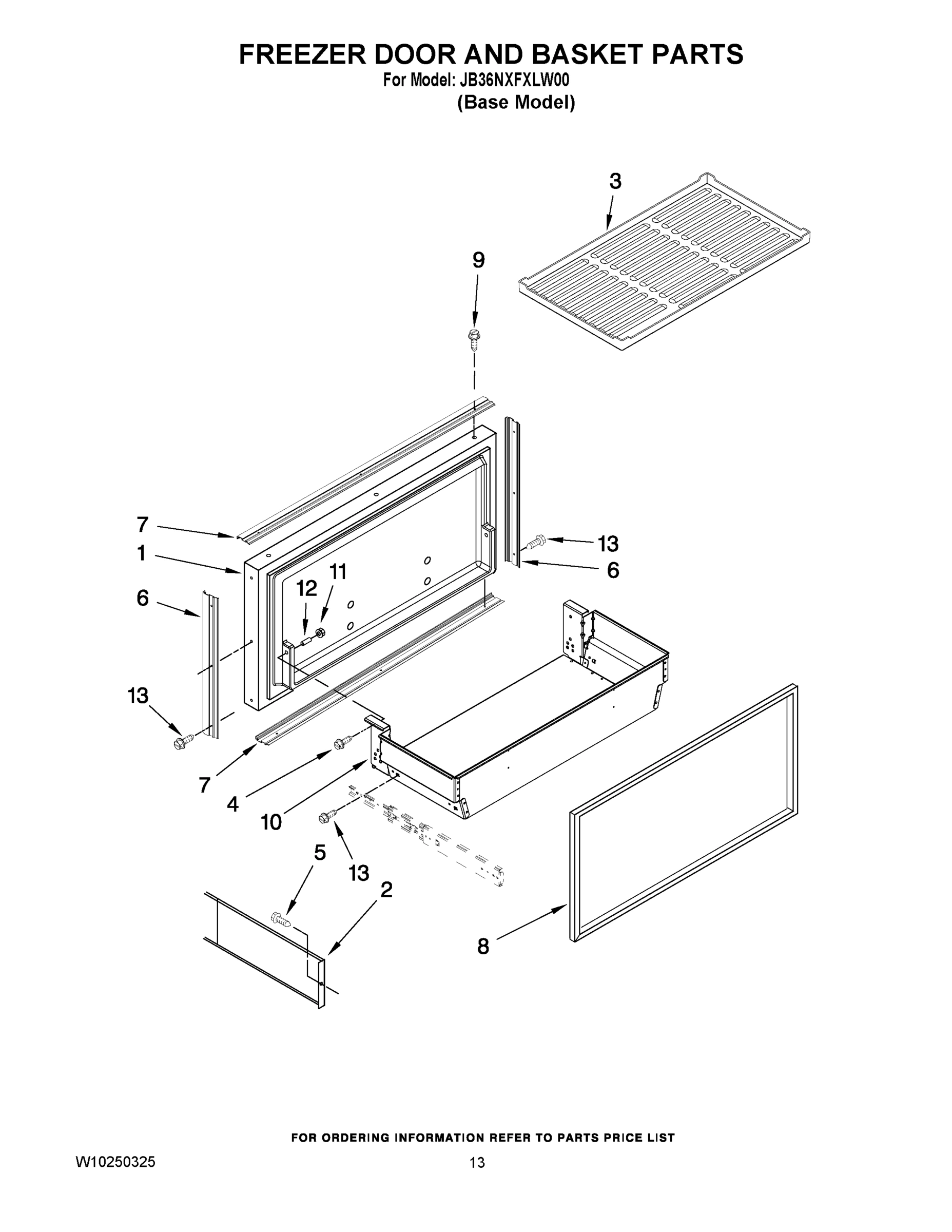

08 - FREEZER DOOR AND BASKET PARTS

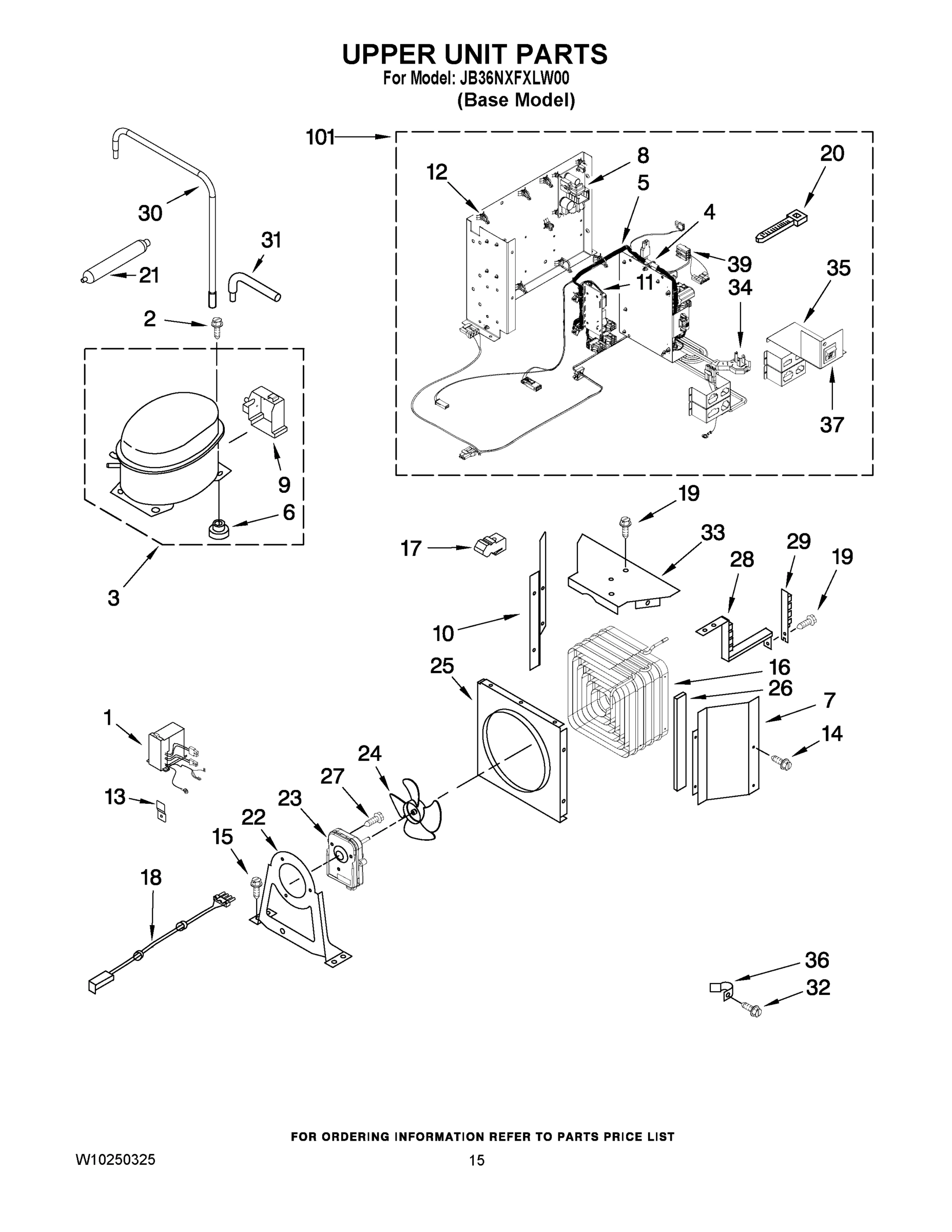

09 - UPPER UNIT PARTS

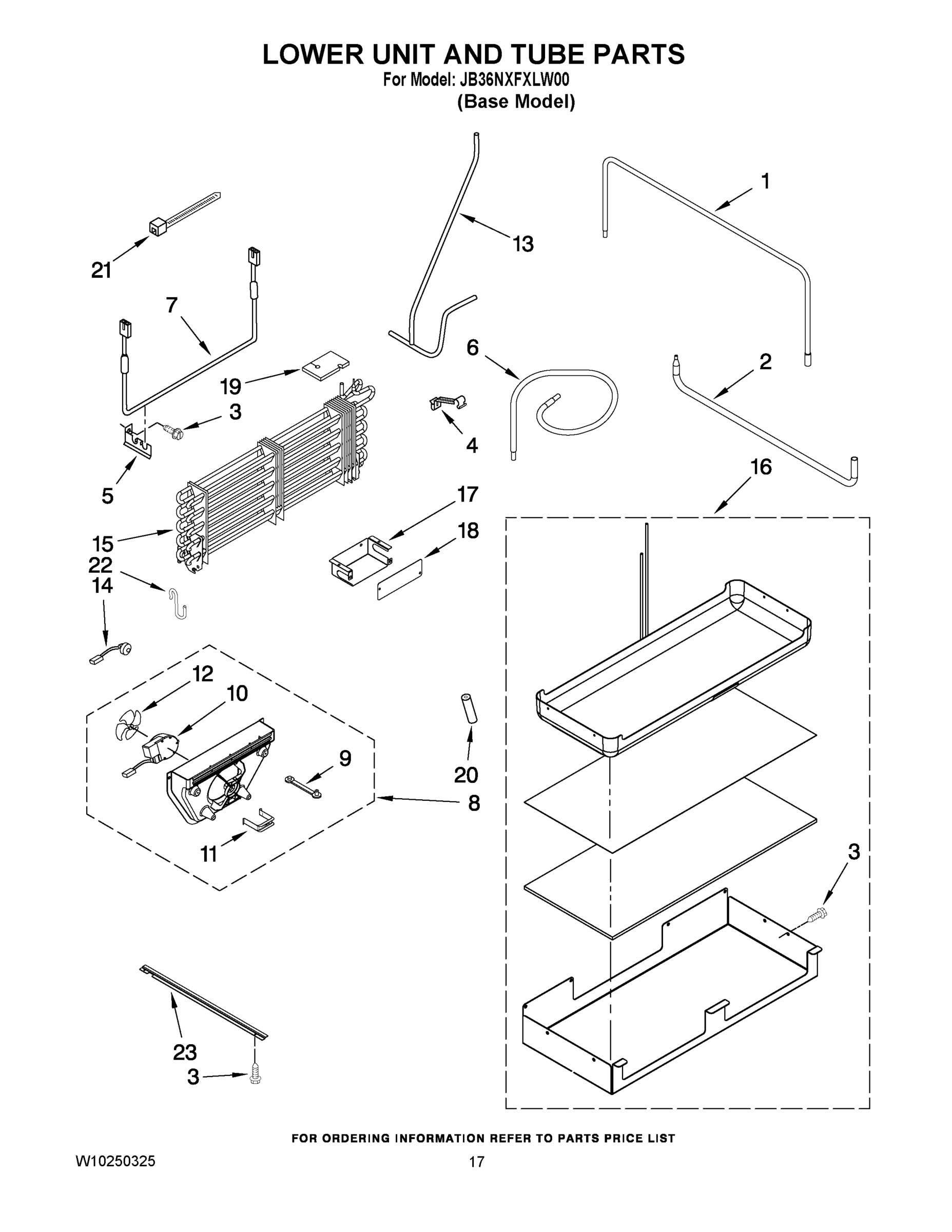

10 - LOWER UNIT AND TUBE PARTS
11 - ICEMAKER PARTS
Common parts from model Maytag JB36NXFXLW00 REFRIGERATOR
1
MAY 2317840 MAY 2317840 Contact Us For Availability
1
MAY W10231365 MAY W10231365 Contact Us For Availability
1
MAY W10231367 MAY W10231367 Contact Us For Availability
1
MAY W10234136 MAY W10234136 Contact Us For Availability
1
MAY W10234145 MAY W10234145 Contact Us For Availability
1
MAY W10246774 MAY W10246774 Contact Us For Availability
1
SCREW MAY 486194 Contact Us For Availability
1
MAY W10188584 MAY W10188584 Contact Us For Availability
1
CRISPER PAN ASSEMBLY (INCLUDES No. 2) MAY 2256375 Contact Us For Availability
1
MAY W10202908 MAY W10202908 Contact Us For Availability
1
MAY W10138398 MAY W10138398 Contact Us For Availability
1
MAY W10133449 MAY W10133449 Contact Us For Availability
1
MAY 2309072 MAY 2309072 Contact Us For Availability
2
MAY W10207244 MAY W10207244 Contact Us For Availability
2
Back Panel MAY 2256466 Contact Us For Availability
2
Cover, Air Return (2) MAY 2317004 Contact Us For Availability
2
MAY 2306425 MAY 2306425 Contact Us For Availability
2
MAY 2256374 MAY 2256374 Contact Us For Availability
2
Gasket, Door MAY 2300184 Contact Us For Availability
2
Divider, Basket (2) MAY 2317101 Contact Us For Availability
2
Screw, Compressor Mounting (4) MAY 489373 Contact Us For Availability
2
MAY 2309070 MAY 2309070 Contact Us For Availability
2
MAY 2221240 MAY 2221240 Contact Us For Availability
3
MAY W10188499 MAY W10188499 Contact Us For Availability
3
MAY W10188500 MAY W10188500 Contact Us For Availability
3
SCREW MAY 1163283 Contact Us For Availability
3
FRONT, UNIT COVER MAY W10188580 Contact Us For Availability
3
MAY W10196640 MAY W10196640 Contact Us For Availability
3
MAY W10061370 MAY W10061370 Contact Us For Availability
3
DELI PAN ASSEMBLY (INCL. No.4 & 5) MAY 2268397 Contact Us For Availability
3
PIN-DOOR MAY W10234194 Contact Us For Availability
3
MAY W10168937 MAY W10168937 Contact Us For Availability
3
Compressor (Includes Items 6, 9 & 21) (Also O MAY 2223801 Contact Us For Availability
3
Screw (2) MAY 489136 Contact Us For Availability
4
Roller, Front & Rear (4) MAY W10138054 Contact Us For Availability
4
MAY W10207387 MAY W10207387 Contact Us For Availability
4
MAY 2317000 MAY 2317000 Contact Us For Availability
4
MAY 2320616 MAY 2320616 Contact Us For Availability
4
MAY 2257548 MAY 2257548 Contact Us For Availability
4
MAY W10197748 MAY W10197748 Contact Us For Availability
4
MAY W10197766 MAY W10197766 Contact Us For Availability
4
Screw, 5/16 x 1 MAY W10135775 Contact Us For Availability
4
CTRL-ELEK, I/O MAY W10200659 Contact Us For Availability
4
Clip, Heater MAY 2307944 Contact Us For Availability
4
MAY 2310108 MAY 2310108 Contact Us For Availability
5
Support, Leveler Assembly (Refrigerator Side) MAY W10138423 Contact Us For Availability
5
Support, Leveler Assembly (Freezer Side) MAY W10138425 Contact Us For Availability
5
MAY W10209520 MAY W10209520 Contact Us For Availability
5
MAY 2324970 MAY 2324970 Contact Us For Availability
5
SCREW MAY 8533929 Contact Us For Availability
5
MAY 2307810 MAY 2307810 Contact Us For Availability
5
MAY W10188556 MAY W10188556 Contact Us For Availability
5
MAY W10135792 MAY W10135792 Contact Us For Availability
5
MAY W10209460 MAY W10209460 Contact Us For Availability
5
Bracket, Mounting MAY 2307945 Contact Us For Availability
5
CLIP,FUSE MAY 628379 Contact Us For Availability
6
Clip, Conduit MAY 2004514 Contact Us For Availability
6
MAY W10138449 MAY W10138449 Contact Us For Availability
6
GROMMET MAY 2215910 Contact Us For Availability
6
MAY 2309270 MAY 2309270 Contact Us For Availability
6
MAY 2314022 MAY 2314022 Contact Us For Availability
6
MAY 2327393 MAY 2327393 Contact Us For Availability
6
MAY 2327394 MAY 2327394 Contact Us For Availability
6
MAY W10202602 MAY W10202602 Contact Us For Availability
6
MAY W10203452 MAY W10203452 Contact Us For Availability
6
Grommet, Mounting MAY 1100826 Contact Us For Availability
6
MAY 2309076 MAY 2309076 Contact Us For Availability
6
MAY W10174395 MAY W10174395 Contact Us For Availability
7
LEVELER ASSY MAY 2005032 Contact Us For Availability
7
SWITCH, ROCKER MAY C3680314 Contact Us For Availability
7
SEAL-TRIM, SIDE MAY 2005925 Contact Us For Availability
7
MAY 489348 MAY 489348 Contact Us For Availability
7
ICE PAN ASSEMBLY (INCLUDES No. 18) MAY 2306174 Contact Us For Availability
7
MAY W10217464 MAY W10217464 Contact Us For Availability
7
MAY W10203448 MAY W10203448 Contact Us For Availability
7
MAY 2309002 MAY 2309002 Contact Us For Availability
7
MAY 2268393 MAY 2268393 Contact Us For Availability
7
Tube Assembly, Water Inlet MAY 2317847 Contact Us For Availability
8
MAY 8281164 MAY 8281164 Contact Us For Availability
8
MAY W10207207 MAY W10207207 Contact Us For Availability
8
Front, Ice Pan MAY 2306175 Contact Us For Availability
8
SCREW, 8-15 X 1/2 MAY W10142233 Contact Us For Availability
8
MAY W10144009 MAY W10144009 Contact Us For Availability
8
MAY W10184634 MAY W10184634 Contact Us For Availability
8
MAY 2306178 MAY 2306178 Contact Us For Availability
8
MAY 1106508 MAY 1106508 Contact Us For Availability
9
Mounting Bracket, Grill MAY 2307640 Contact Us For Availability
9
MAY 2223857 MAY 2223857 Contact Us For Availability
9
FREEZER PAN ASSEMBLY (INCLUDES No. 10) MAY 2327512 Contact Us For Availability
9
MAY 2307975 MAY 2307975 Contact Us For Availability
9
Screw, 8-15 x 1/2 MAY 8281250 Contact Us For Availability
9
Terminal Cover MAY 2215676 Contact Us For Availability
9
Grommet, Motor MAY 2223986 Contact Us For Availability
9
MAY 2317912 MAY 2317912 Contact Us For Availability
10
Ring, Retainer MAY 2006841 Contact Us For Availability
10
Nutsert (4) MAY W10121451 Contact Us For Availability
10
Bulb, Light MAY 2326255 Contact Us For Availability
10
Front, Freezer Pan MAY 2268383 Contact Us For Availability
10
MAY 2222777 MAY 2222777 Contact Us For Availability
10
Basket Assembly, Freezer MAY 2327533 Contact Us For Availability
10
MAY 2309001 MAY 2309001 Contact Us For Availability
10
Motor, Fan MAY 2259385 Contact Us For Availability
10
MAY 2307650 MAY 2307650 Contact Us For Availability
11
MAY 2005921 MAY 2005921 Contact Us For Availability
11
MAY 2317917 MAY 2317917 Contact Us For Availability
11
Switch Assembly, Icemaker (Includes Emitter) MAY W10194086 Contact Us For Availability
11
MAY W10213472 MAY W10213472 Contact Us For Availability
11
MAY 2309255 MAY 2309255 Contact Us For Availability
11
MAY 2207454 MAY 2207454 Contact Us For Availability
11
CTRL-ELEK, FLASH MAY W10120824 Contact Us For Availability
11
MAY 2223733 MAY 2223733 Contact Us For Availability
11
MAY W10129653 MAY W10129653 Contact Us For Availability
12
Clip (5) MAY W10129069 Contact Us For Availability
12
MAY 489464 MAY 489464 Contact Us For Availability
12
MAY 2320523 MAY 2320523 Contact Us For Availability
12
MAY 2306187 MAY 2306187 Contact Us For Availability
12
MAY W10246602 MAY W10246602 Contact Us For Availability
12
MAY 2309256 MAY 2309256 Contact Us For Availability
12
MAY W10001190 MAY W10001190 Contact Us For Availability
12
Spacer (9) MAY 2203075 Contact Us For Availability
12
MAY 2169142 MAY 2169142 Contact Us For Availability
13
MAY 2314064 MAY 2314064 Contact Us For Availability
13
Cover, Diffuser MAY 2320519 Contact Us For Availability
13
MAY 2317006 MAY 2317006 Contact Us For Availability
13
SHELF (4) MAY W10198700 Contact Us For Availability
13
MAY 2309257 MAY 2309257 Contact Us For Availability
13
Screw, 10-24 x 1/4 (Basket to Slide) MAY W10109030 Contact Us For Availability
13
Bracket, Inverter Box MAY 2256328 Contact Us For Availability
13
MAY W10121368 MAY W10121368 Contact Us For Availability
13
Heat Shield MAY 2221231 Contact Us For Availability
14
Screw MAY 487415 Contact Us For Availability
14
MAY 2268380 MAY 2268380 Contact Us For Availability
14
MAY W10203635 MAY W10203635 Contact Us For Availability
14
MAY 2309252 MAY 2309252 Contact Us For Availability
14
MAY 2321803 MAY 2321803 Contact Us For Availability
14
MAY 2208136 MAY 2208136 Contact Us For Availability
15
MAY 2221296 MAY 2221296 Contact Us For Availability
15
MAY 2317829 MAY 2317829 Contact Us For Availability
15
MAY 2309399 MAY 2309399 Contact Us For Availability
15
MAY 2222919 MAY 2222919 Contact Us For Availability
15
MAY 2222920 MAY 2222920 Contact Us For Availability
15
MAY 1157158 MAY 1157158 Contact Us For Availability
15
MAY W10195909 MAY W10195909 Contact Us For Availability
15
Clamp, Tubing MAY 488946 Contact Us For Availability
16
Clamp, Tube MAY 488937 Contact Us For Availability
16
SCREW MAY 487539 Contact Us For Availability
16
MAY W10183749 MAY W10183749 Contact Us For Availability
16
MAY W10202901 MAY W10202901 Contact Us For Availability
16
MAY 2307998 MAY 2307998 Contact Us For Availability
16
DRAIN PAN ASY MAY W10196999 Contact Us For Availability
16
MAY 2310136 MAY 2310136 Contact Us For Availability
17
MAY W10167398 MAY W10167398 Contact Us For Availability
17
MAY W10209498 MAY W10209498 Contact Us For Availability
17
MAY 2306106 MAY 2306106 Contact Us For Availability
17
MAY 2309431 MAY 2309431 Contact Us For Availability
17
Cover, Box MAY W10151288 Contact Us For Availability
17
MAY 2257538 MAY 2257538 Contact Us For Availability
18
MAY 2221070 MAY 2221070 Contact Us For Availability
18
MAY 2309410 MAY 2309410 Contact Us For Availability
18
MAY 2309411 MAY 2309411 Contact Us For Availability
18
Slide, Freezer Bin (Right (2)) MAY 2306116 Contact Us For Availability
18
Slide, Freezer Bin (Left (2)) MAY 2306117 Contact Us For Availability
18
Gasket, Front (Deli Cover) MAY 2309397 Contact Us For Availability
18
Wire Assembly (Condenser Fan) MAY 2310207 Contact Us For Availability
18
Cover, Wiring MAY W10153595 Contact Us For Availability
18
MAY W10139195 MAY W10139195 Contact Us For Availability
19
Bracket, Support Door MAY 2006617 Contact Us For Availability
19
MAY 2268411 MAY 2268411 Contact Us For Availability
19
MAY 2268412 MAY 2268412 Contact Us For Availability
19
MAY 8281251 MAY 8281251 Contact Us For Availability
19
MAY 489399 MAY 489399 Contact Us For Availability
19
Block, Evaporator MAY 2306180 Contact Us For Availability
19
Mold & Heater (Also Order 542638 Silicone Gre MAY W10122527 Contact Us For Availability
20
MAY 2260526 MAY 2260526 Contact Us For Availability
20
MAY 2302952 MAY 2302952 Contact Us For Availability
20
MAY 2302953 MAY 2302953 Contact Us For Availability
20
MAY W10193684 MAY W10193684 Contact Us For Availability
20
SCREW MAY 2006475 Contact Us For Availability
20
DAMPER, HEATER MAY 2215648 Contact Us For Availability
20
MAY 626683 MAY 626683 Contact Us For Availability
21
MAY 2302788 MAY 2302788 Contact Us For Availability
21
Support, Slide (Right) MAY 2306104 Contact Us For Availability
21
MAY 488886 MAY 488886 Contact Us For Availability
21
Wire Tie MAY 2155774 Contact Us For Availability
21
MAY W10175593 MAY W10175593 Contact Us For Availability
21
Cup-Water Fill MAY 628356 Contact Us For Availability
22
Filter, Water MAY 4396841 Contact Us For Availability
22
MAY 2302956 MAY 2302956 Contact Us For Availability
22
MAY 2302957 MAY 2302957 Contact Us For Availability
22
MAY 2317927 MAY 2317927 Contact Us For Availability
22
MAY 2309398 MAY 2309398 Contact Us For Availability
22
MAY W10136614 MAY W10136614 Contact Us For Availability
22
Clip, Heater Defrost MAY 2317920 Contact Us For Availability
22
MAY 627843 MAY 627843 Contact Us For Availability
23
MAY W10223655 MAY W10223655 Contact Us For Availability
23
Screw, 8-32 x 1/2 MAY W10001160 Contact Us For Availability
23
Support, Slide (Left) MAY 2306105 Contact Us For Availability
23
Divider, (Crisper Pan) MAY 2256474 Contact Us For Availability
23
Motor, Fan MAY 2188875 Contact Us For Availability
23
Bracket, Drain Pan MAY 2320554 Contact Us For Availability
23
MAY 2182124 MAY 2182124 Contact Us For Availability
24
MAY W10136731 MAY W10136731 Contact Us For Availability
24
VALVE TUBE, BODY MAY 2171931 Contact Us For Availability
24
MAY 2320512 MAY 2320512 Contact Us For Availability
24
MAY 2327339 MAY 2327339 Contact Us For Availability
24
MAY W10139483 MAY W10139483 Contact Us For Availability
24
MAY 2195914 MAY 2195914 Contact Us For Availability
25
MAY 488163 MAY 488163 Contact Us For Availability
25
MAY 2003169 MAY 2003169 Contact Us For Availability
25
Retainer Thermostat (2) MAY 2315522 Contact Us For Availability
26
MAY 3400525 MAY 3400525 Contact Us For Availability
26
MAY W10121940 MAY W10121940 Contact Us For Availability
26
MAY 2309432 MAY 2309432 Contact Us For Availability
26
Thermostat (Also Order 542639 Cement Alumilas MAY 627985 Contact Us For Availability
27
SKIRT, GRILLE (BOTTOM) MAY W10188547 Contact Us For Availability
27
MAY 2317105 MAY 2317105 Contact Us For Availability
27
MAY 8533993 MAY 8533993 Contact Us For Availability
27
MAY 8533917 MAY 8533917 Contact Us For Availability
28
GRILLE BASE, FRONT MAY W10189196 Contact Us For Availability
28
MAY 2188820 MAY 2188820 Contact Us For Availability
28
BRACKET, VIBRATION CONDENSER MAY 2317031 Contact Us For Availability
28
MAY 2320559 MAY 2320559 Contact Us For Availability
29
MAY 2215612 MAY 2215612 Contact Us For Availability
29
MAY W10075920 MAY W10075920 Contact Us For Availability
29
ARM, VIBRATION CONDENSER MAY 2317030 Contact Us For Availability
29
MAY 489276 MAY 489276 Contact Us For Availability
30
COVER, SWITCH MAY W10167387 Contact Us For Availability
30
Screw MAY 8533928 Contact Us For Availability
30
MAY 2307566 MAY 2307566 Contact Us For Availability
30
MODULE ASSEMBLY (INCLUDES 3 & 20) MAY 626691 Contact Us For Availability
31
Cap, Water Filter MAY 2260518B Contact Us For Availability
31
MAY W10135431 MAY W10135431 Contact Us For Availability
31
MAY 2194319 MAY 2194319 Contact Us For Availability
32
MAY 8533913 MAY 8533913 Contact Us For Availability
32
Lens, Receiver MAY 2198643 Contact Us For Availability
33
MAY 2309000 MAY 2309000 Contact Us For Availability
34
Screw, 8-18 x 1/2 MAY W10005050 Contact Us For Availability
34
Service Cord MAY 2310196 Contact Us For Availability
35
Screw, 8-16 x 1/2 MAY 8281163 Contact Us For Availability
35
MAY W10209446 MAY W10209446 Contact Us For Availability
36
Button, Filter MAY 2260503B Contact Us For Availability
36
MAY 549193 MAY 549193 Contact Us For Availability
37
Tray, Drip Filter MAY 2318189 Contact Us For Availability
37
Switch, Power Disconnect MAY 2266802 Contact Us For Availability
39
MAY W10209462 MAY W10209462 Contact Us For Availability
46
Pin-Stop, Door MAY W10234202 Contact Us For Availability
100
MAY W10190971 MAY W10190971 Contact Us For Availability
101
MAY W10193384 MAY W10193384 Contact Us For Availability
101
MAY W10160031 MAY W10160031 Contact Us For Availability
NI
REFRIGERANT CHARGE (5.50 OZ. (R-134A)) MAY N/P Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 8537055 MAY 8537055 Contact Us For Availability
NI
MAY W10222279 MAY W10222279 Contact Us For Availability
NI
MAY W10222283 MAY W10222283 Contact Us For Availability
NI
BLOCK, INSTALL TEMPLATE, WOOD PANELS MAY W10234156 Contact Us For Availability
NI
MAY W10249830 MAY W10249830 Contact Us For Availability
× ![]()
