Model Hotpoint HDB727-01 Dishwasher – Common Parts & Diagrams
0
1

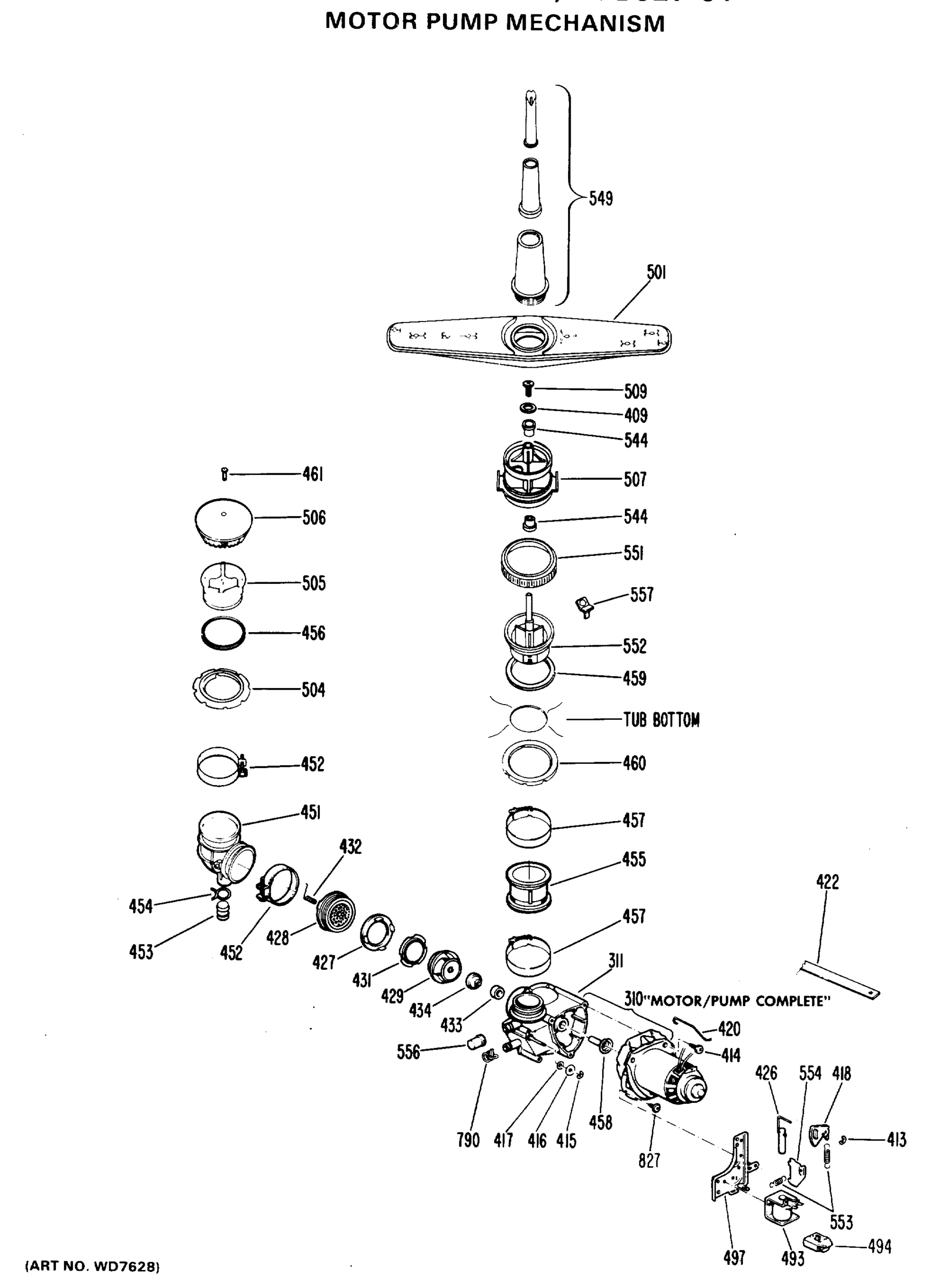

MOTOR PUMP MECHANISM
Common parts from model Hotpoint HDB727-01 Dishwasher
25
INSUL SOUND BACK GEN WD01X1328 Contact Us For Availability
30
GEN WD14X5073 GEN WD14X5073 Contact Us For Availability
31
GEN WD01X5364 GEN WD01X5364 Contact Us For Availability
31
EXTENSION SPRING 4.2 IN GEN WD01X5425 Contact Us For Availability
50
GEN WZ06X0127 GEN WZ06X0127 Contact Us For Availability
89
GEN WD03X5103 GEN WD03X5103 Contact Us For Availability
91
GEN WD01X5391 GEN WD01X5391 Contact Us For Availability
91
GEN WD01X5392 GEN WD01X5392 Contact Us For Availability
101
GEN WD05X0063 GEN WD05X0063 Contact Us For Availability
103
GEN WD03X0724 GEN WD03X0724 Contact Us For Availability
105
GEN WD02X5172 GEN WD02X5172 Contact Us For Availability
106
GEN WD03X5118 GEN WD03X5118 Contact Us For Availability
107
GEN WD03X0723 GEN WD03X0723 Contact Us For Availability
302
GEN WD12X5016 GEN WD12X5016 Contact Us For Availability
305
FLOAT TUBE & GASKET GEN WD12X5019 Contact Us For Availability
306
GEN WD02X5171 GEN WD02X5171 Contact Us For Availability
306
NUT 10X32 GEN WD03X0687 Contact Us For Availability
311
GEN WD19X0042 GEN WD19X0042 Contact Us For Availability
409
GEN WD01X1097 GEN WD01X1097 Contact Us For Availability
414
GEN WD02X5183 GEN WD02X5183 Contact Us For Availability
415
GEN WD01X1057 GEN WD01X1057 Contact Us For Availability
416
GEN WD01X1037 GEN WD01X1037 Contact Us For Availability
420
MOTOR HANGER GEN WD01X5485 Contact Us For Availability
422
GEN WD01X5486 GEN WD01X5486 Contact Us For Availability
427
GEN WD12X0354 GEN WD12X0354 Contact Us For Availability
428
GEN WD12X0378 GEN WD12X0378 Contact Us For Availability
429
PUMP IMPELLER GEN WD19X0053 Contact Us For Availability
431
GEN WD01X1341 GEN WD01X1341 Contact Us For Availability
432
GEN WD01X1339 GEN WD01X1339 Contact Us For Availability
433
GEN WD19X0051 GEN WD19X0051 Contact Us For Availability
434
GEN WD19X0052 GEN WD19X0052 Contact Us For Availability
451
PUMP INLET CONNECTOR GEN WD18X5014 Contact Us For Availability
453
GEN WD12X0213 GEN WD12X0213 Contact Us For Availability
455
SPRAY ARM TUBE GEN WD18X0175 Contact Us For Availability
456
SUPPORT GASKET GEN WD08X5092 Contact Us For Availability
458
GEN WD12X0106 GEN WD12X0106 Contact Us For Availability
459
SPRAY BASE GASKET GEN WD08X5093 Contact Us For Availability
460
SPRAY BASE NUT GEN WD03X0627 Contact Us For Availability
461
SUMP COVER MTG SCREW GEN WZ04X0250 Contact Us For Availability
494
GEN WD12X0350 GEN WD12X0350 Contact Us For Availability
496
GEN WD12X0349 GEN WD12X0349 Contact Us For Availability
497
SOLENOID BRACKET GEN WD01X1282 Contact Us For Availability
501
SPRAY ARM GEN WD22X5056 Contact Us For Availability
504
SUMP INLET NUT GEN WD03X5119 Contact Us For Availability
505
GEN WD12X5027 GEN WD12X5027 Contact Us For Availability
506
SUMP COVER GEN WD12X5028 Contact Us For Availability
507
GEN WD22X0110 GEN WD22X0110 Contact Us For Availability
509
GEN WD03X0707 GEN WD03X0707 Contact Us For Availability
544
GEN WD12X0235 GEN WD12X0235 Contact Us For Availability
549
GEN WD22X0124 GEN WD22X0124 Contact Us For Availability
551
LIP SEAL & NUT GEN WD19X0044 Contact Us For Availability
552
SUPPORT SPRAY ARM ASM PS GEN WD22X0114 Contact Us For Availability
556
GEN WD01X5405 GEN WD01X5405 Contact Us For Availability
574
GEN WD01X5491 GEN WD01X5491 Contact Us For Availability
615
RACK UPPER & WHEEL ASM GEN WD28X5081 Contact Us For Availability
650
SLIDE RACK & CAP ASM GEN WD30X0084 Contact Us For Availability
652
GEN WD12X0113 GEN WD12X0113 Contact Us For Availability
653
GEN WD03X5114 GEN WD03X5114 Contact Us For Availability
654
ROLLER & STUD UPR RACK GEN WD12X5050 Contact Us For Availability
701
GEN WD28X5083 GEN WD28X5083 Contact Us For Availability
703
ROLLER & STUD LWR RACK GEN WD12X5026 Contact Us For Availability
704
GEN WD12X5044 GEN WD12X5044 Contact Us For Availability
706
GEN WD03X0772 GEN WD03X0772 Contact Us For Availability
707
TUB ROLLER GEN WD12X5024 Contact Us For Availability
708
GEN WD03X0744 GEN WD03X0744 Contact Us For Availability
711
PANEL OUTER DOOR HA GEN WD27X5384 Contact Us For Availability
711
PANEL OUTER DOOR AD GEN WD27X5385 Contact Us For Availability
711
PANEL OUTER DOOR WH GEN WD27X5386 Contact Us For Availability
718
GEN WD24X5087 GEN WD24X5087 Contact Us For Availability
720
GEN WD01X1375 GEN WD01X1375 Contact Us For Availability
721
GEN WD03X5127 GEN WD03X5127 Contact Us For Availability
722
GEN WD03X5128 GEN WD03X5128 Contact Us For Availability
723
GEN WD01X1374 GEN WD01X1374 Contact Us For Availability
724
GEN WD12X5047 GEN WD12X5047 Contact Us For Availability
725
PRESSURE RELEASE LEVER GEN WD12X5048 Contact Us For Availability
726
RELEASE ACTUATOR GEN WD12X5049 Contact Us For Availability
728
GASKET ADAPT EXT THD GEN WD03X0588 Contact Us For Availability
731
GEN WD01X5389 GEN WD01X5389 Contact Us For Availability
731
GEN WD01X5390 GEN WD01X5390 Contact Us For Availability
732
GEN WD01X5370 GEN WD01X5370 Contact Us For Availability
735
GEN WD01X5178 GEN WD01X5178 Contact Us For Availability
735
GEN WD01X5496 GEN WD01X5496 Contact Us For Availability
735
GEN WD06X5013 GEN WD06X5013 Contact Us For Availability
736
GEN WD01X5494 GEN WD01X5494 Contact Us For Availability
737
GEN WD34X5138 GEN WD34X5138 Contact Us For Availability
738
GEN WD01X1311 GEN WD01X1311 Contact Us For Availability
740
GEN WD02X5187 GEN WD02X5187 Contact Us For Availability
741
GEN WD01X5388 GEN WD01X5388 Contact Us For Availability
744
GEN WD15X0081 GEN WD15X0081 Contact Us For Availability
747
GEN WD10X0327 GEN WD10X0327 Contact Us For Availability
749
GEN WD03X5082 GEN WD03X5082 Contact Us For Availability
750
GEN WD02X5107 GEN WD02X5107 Contact Us For Availability
750
GEN WD34X5051 GEN WD34X5051 Contact Us For Availability
751
GEN WD34X5050 GEN WD34X5050 Contact Us For Availability
752
BRACKET HOLD DOWN GEN WD01X5433 Contact Us For Availability
752
GEN WD01X5461 GEN WD01X5461 Contact Us For Availability
752
GEN WD02X5058 GEN WD02X5058 Contact Us For Availability
752
GEN WD17X5032 GEN WD17X5032 Contact Us For Availability
752
SCR 8-18X1/2 AB RECESS GEN WZ04X0401 Contact Us For Availability
753
GEN WD01X5190 GEN WD01X5190 Contact Us For Availability
754
GEN WD34X5203 GEN WD34X5203 Contact Us For Availability
754
GEN WD34X5204 GEN WD34X5204 Contact Us For Availability
756
PANEL & INSL SERVICE HA GEN WD27X5392 Contact Us For Availability
756
PANEL & INSL SERVICE AD GEN WD27X5393 Contact Us For Availability
756
PANEL & INSL SERVICE WH GEN WD27X5394 Contact Us For Availability
759
GEN WD27X5338 GEN WD27X5338 Contact Us For Availability
779
GEN WD03X0289 GEN WD03X0289 Contact Us For Availability
780
GEN WD24X0191 GEN WD24X0191 Contact Us For Availability
781
GEN WD08X0192 GEN WD08X0192 Contact Us For Availability
782
GEN WD24X5083 GEN WD24X5083 Contact Us For Availability
784
GEN WD02X5186 GEN WD02X5186 Contact Us For Availability
785
GEN WD10X0316 GEN WD10X0316 Contact Us For Availability
791
GEN WD01X5499 GEN WD01X5499 Contact Us For Availability
795
GEN WD01X5468 GEN WD01X5468 Contact Us For Availability
796
GEN WD01X1146 GEN WD01X1146 Contact Us For Availability
798
GEN WD03X5111 GEN WD03X5111 Contact Us For Availability
801
GEN WD24X5086 GEN WD24X5086 Contact Us For Availability
802
GEN WD13X5015 GEN WD13X5015 Contact Us For Availability
802
GEN WD01X5493 GEN WD01X5493 Contact Us For Availability
803
GEN WD06X0183 GEN WD06X0183 Contact Us For Availability
804
GEN WD24X5071 GEN WD24X5071 Contact Us For Availability
805
PUSHNUT A GEN WD03X5112 Contact Us For Availability
806
DOOR LATCH INSERT GEN WD01X5477 Contact Us For Availability
807
GEN WD35X5072 GEN WD35X5072 Contact Us For Availability
814
GEN WD01X5504 GEN WD01X5504 Contact Us For Availability
817
GEN WD02X5065 GEN WD02X5065 Contact Us For Availability
818
GEN WD14X5076 GEN WD14X5076 Contact Us For Availability
818
GEN WD14X5077 GEN WD14X5077 Contact Us For Availability
821
GEN WD12X5039 GEN WD12X5039 Contact Us For Availability
823
GEN WD16X5039 GEN WD16X5039 Contact Us For Availability
824
GEN WD08X5101 GEN WD08X5101 Contact Us For Availability
826
GEN WD01X5483 GEN WD01X5483 Contact Us For Availability
827
GEN WD02X0425 GEN WD02X0425 Contact Us For Availability
828
GEN WD16X0283 GEN WD16X0283 Contact Us For Availability
832
GEN WD08X5098 GEN WD08X5098 Contact Us For Availability
836
GEN WD01X0781 GEN WD01X0781 Contact Us For Availability
837
GEN WD12X0027 GEN WD12X0027 Contact Us For Availability
839
GEN WD02X0266 GEN WD02X0266 Contact Us For Availability
841
GEN WD17X5053 GEN WD17X5053 Contact Us For Availability
843
DOOR GASKET WITH CLIPS GEN WD08X5097 Contact Us For Availability
843
GEN WD17X5049 GEN WD17X5049 Contact Us For Availability
844
GASKET & RTNR ASM TUB FL GEN WD08X5100 Contact Us For Availability
847
GEN WD03X0659 GEN WD03X0659 Contact Us For Availability
853
GEN WD16X5042 GEN WD16X5042 Contact Us For Availability
855
GEN WD12X0117 GEN WD12X0117 Contact Us For Availability
864
COMPRESSION RING GEN WD01X1030 Contact Us For Availability
900
GEN WD02X5157 GEN WD02X5157 Contact Us For Availability
901
GEN WD34X0635 GEN WD34X0635 Contact Us For Availability
904
GEN WD21X0589 GEN WD21X0589 Contact Us For Availability
910
GEN WD09X5161 GEN WD09X5161 Contact Us For Availability
910
GEN WD09X5181 GEN WD09X5181 Contact Us For Availability
915
PLUG TIMER BLACK GEN WD01X1258 Contact Us For Availability
927
TRIM ESCUT HANDLE GEN WD34X5247 Contact Us For Availability
935
TERMINAL TIMER GEN WH12X0603 Contact Us For Availability
937
GEN WD12X5041 GEN WD12X5041 Contact Us For Availability
940
GEN WD02X5184 GEN WD02X5184 Contact Us For Availability
940
GEN WD12X5042 GEN WD12X5042 Contact Us For Availability
944
GEN WD01X1380 GEN WD01X1380 Contact Us For Availability
946
GEN WD21X0581 GEN WD21X0581 Contact Us For Availability
947
GEN WD01X1377 GEN WD01X1377 Contact Us For Availability
948
GEN WD02X5169 GEN WD02X5169 Contact Us For Availability
949
SCREW-VENT LEVER MTG GEN WD02X0319 Contact Us For Availability
980
SCR 8-15X7/16 A PR SS GEN WD02X5100 Contact Us For Availability
1014
GEN WD24X5088 GEN WD24X5088 Contact Us For Availability
1035
GEN WD01X5359 GEN WD01X5359 Contact Us For Availability
1052
ANTI-TIP ARM LH GEN WD01X5408 Contact Us For Availability
1052
ANTI-TIP ARM RH GEN WD01X5409 Contact Us For Availability
1092
GEN WD01X1152 GEN WD01X1152 Contact Us For Availability
1101
GEN WD27X5436 GEN WD27X5436 Contact Us For Availability
1298
GEN WD01X5222 GEN WD01X5222 Contact Us For Availability
1299
GEN WD08X5064 GEN WD08X5064 Contact Us For Availability
1299
PALNUT GEN WZ07X0037 Contact Us For Availability
1307
8-18X1/2 BT PH PAN GEN WD02X5105 Contact Us For Availability
1417
GEN 39-5153 GEN 39-5153 Contact Us For Availability
32767
GEN 39-5162 GEN 39-5162 Contact Us For Availability
32767
GEN WD00X0026 GEN WD00X0026 Contact Us For Availability
32767
GEN WD00X0027 GEN WD00X0027 Contact Us For Availability
32767
GEN WD00X0077 GEN WD00X0077 Contact Us For Availability
32767
GEN WD00X0094 GEN WD00X0094 Contact Us For Availability
32767
GEN WD00X0444 GEN WD00X0444 Contact Us For Availability
32767
GEN WD00X0445 GEN WD00X0445 Contact Us For Availability
32767
GEN WD00X0589 GEN WD00X0589 Contact Us For Availability
32767
GEN WD00X715 GEN WD00X715 Contact Us For Availability
32767
GEN WD24X5089 GEN WD24X5089 Contact Us For Availability
32767
GEN WD27X5435 GEN WD27X5435 Contact Us For Availability
× ![]()
