Model GE HDA797-02BA – Common Parts & Diagrams

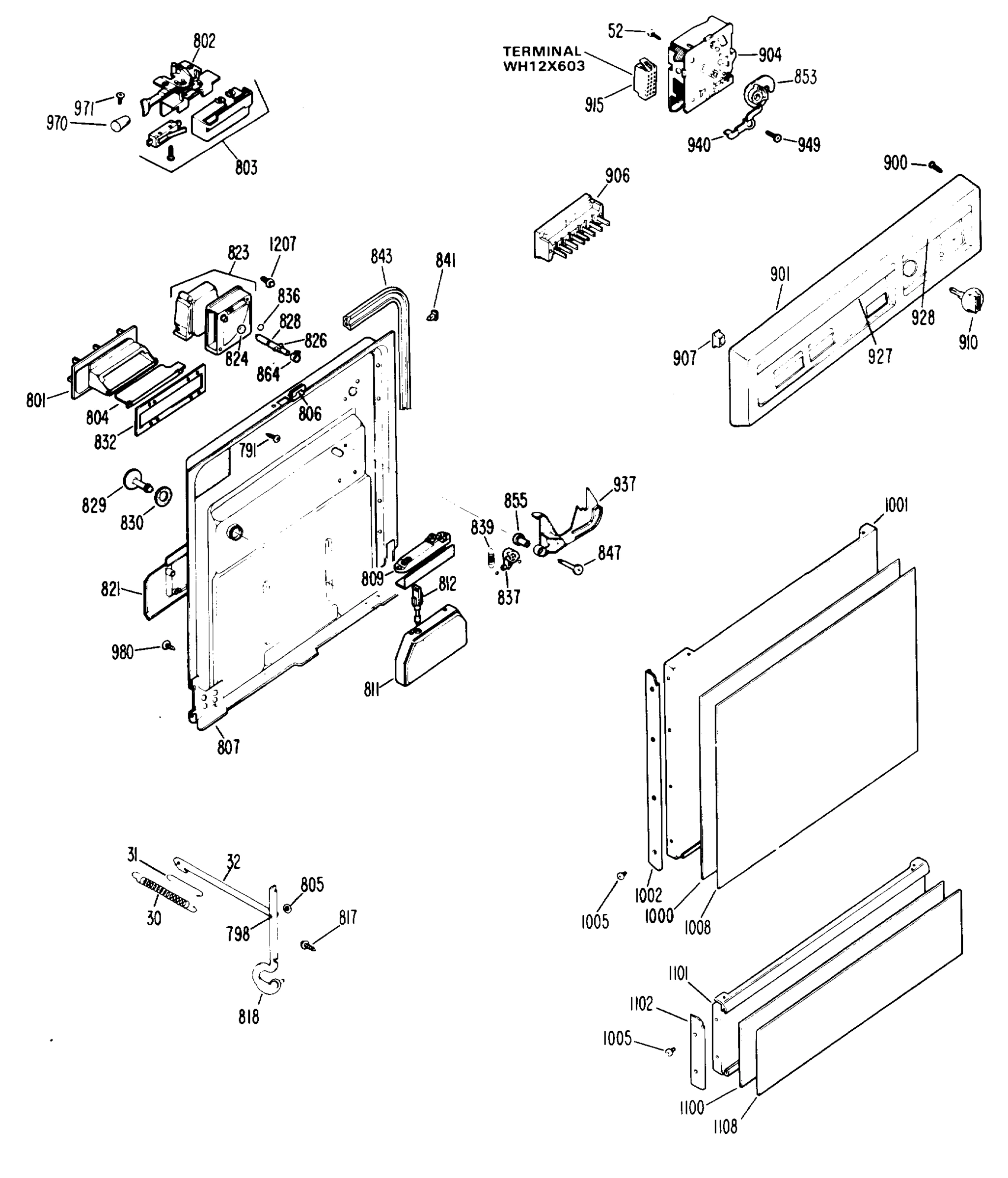

0

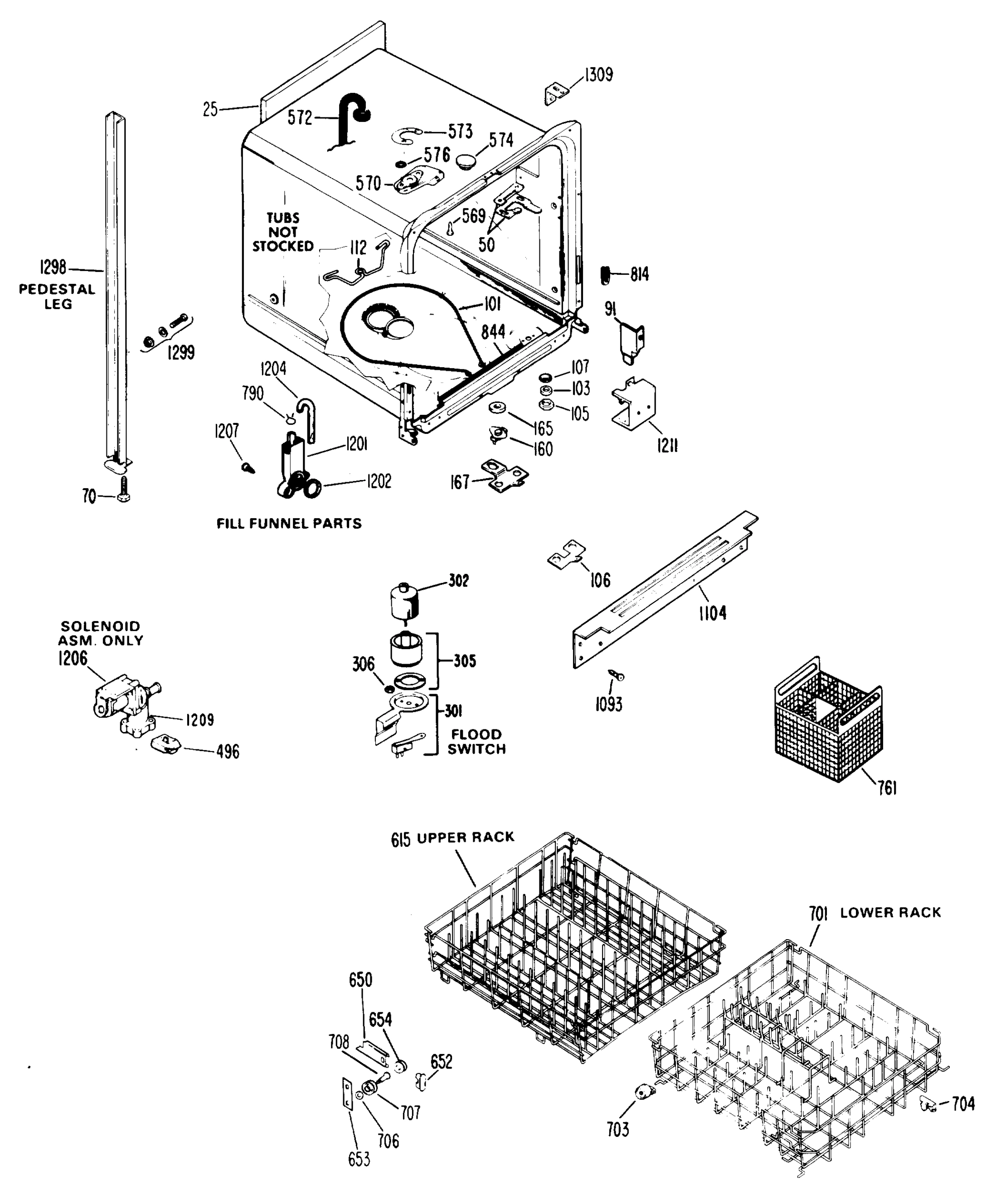

1

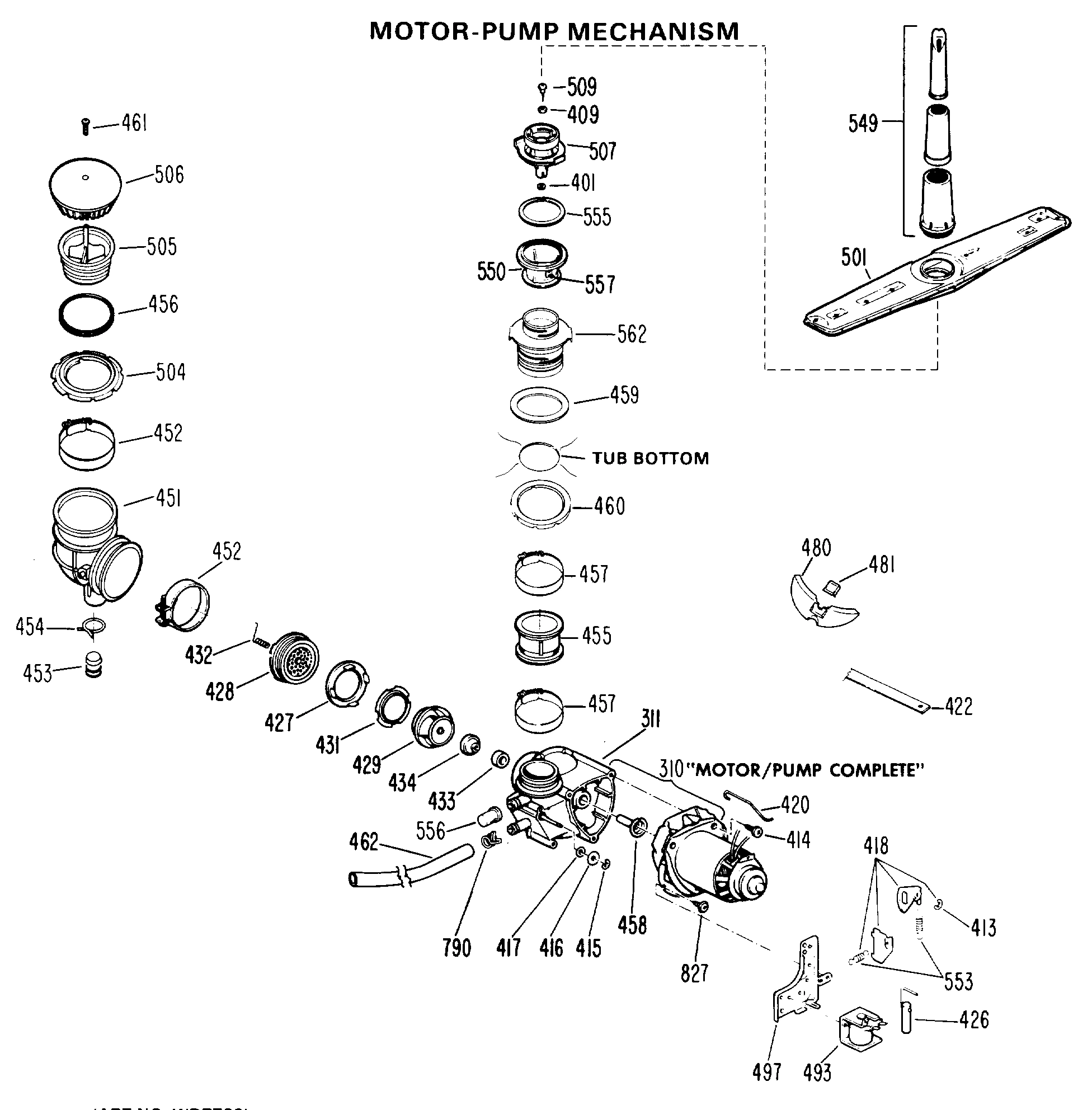

MOTOR-PUMP MECHANISM
Common parts from model GE HDA797-02BA
25
INSUL SOUND BACK GEN WD01X1328 Contact Us For Availability
50
GEN WZ06X0127 GEN WZ06X0127 Contact Us For Availability
70
GEN WD01X1223 GEN WD01X1223 Contact Us For Availability
91
GEN WD01X5391 GEN WD01X5391 Contact Us For Availability
91
GEN WD01X5392 GEN WD01X5392 Contact Us For Availability
101
GEN WD05X0063 GEN WD05X0063 Contact Us For Availability
103
GEN WD03X0724 GEN WD03X0724 Contact Us For Availability
105
GEN WD02X5172 GEN WD02X5172 Contact Us For Availability
106
GEN WD03X5118 GEN WD03X5118 Contact Us For Availability
107
GEN WD03X0723 GEN WD03X0723 Contact Us For Availability
112
GEN WD01X5484 GEN WD01X5484 Contact Us For Availability
302
GEN WD12X5016 GEN WD12X5016 Contact Us For Availability
305
FLOAT TUBE & GASKET GEN WD12X5019 Contact Us For Availability
306
GEN WD02X5171 GEN WD02X5171 Contact Us For Availability
306
NUT 10X32 GEN WD03X0687 Contact Us For Availability
311
GEN WD19X0042 GEN WD19X0042 Contact Us For Availability
409
GEN WD03X0766 GEN WD03X0766 Contact Us For Availability
414
GEN WD02X5183 GEN WD02X5183 Contact Us For Availability
415
GEN WD01X1057 GEN WD01X1057 Contact Us For Availability
416
GEN WD01X1037 GEN WD01X1037 Contact Us For Availability
418
GEN WD35X0190 GEN WD35X0190 Contact Us For Availability
420
MOTOR HANGER GEN WD01X5485 Contact Us For Availability
422
GEN WD01X5486 GEN WD01X5486 Contact Us For Availability
427
GEN WD12X0354 GEN WD12X0354 Contact Us For Availability
428
GEN WD12X0378 GEN WD12X0378 Contact Us For Availability
429
PUMP IMPELLER GEN WD19X0053 Contact Us For Availability
431
GEN WD01X1341 GEN WD01X1341 Contact Us For Availability
432
GEN WD01X1339 GEN WD01X1339 Contact Us For Availability
433
GEN WD19X0051 GEN WD19X0051 Contact Us For Availability
434
GEN WD19X0052 GEN WD19X0052 Contact Us For Availability
451
PUMP INLET CONNECTOR GEN WD18X5014 Contact Us For Availability
453
GEN WD12X0213 GEN WD12X0213 Contact Us For Availability
455
SPRAY ARM TUBE GEN WD18X0175 Contact Us For Availability
456
SUPPORT GASKET GEN WD08X5092 Contact Us For Availability
458
GEN WD12X0106 GEN WD12X0106 Contact Us For Availability
459
SPRAY BASE GASKET GEN WD08X5093 Contact Us For Availability
460
SPRAY BASE NUT GEN WD03X0627 Contact Us For Availability
461
SUMP COVER MTG SCREW GEN WZ04X0250 Contact Us For Availability
462
HOSE DRAIN 1/2" ID X 78" GEN WD24X0205 Contact Us For Availability
480
GEN WD01X5505 GEN WD01X5505 Contact Us For Availability
481
GEN WD01X5506 GEN WD01X5506 Contact Us For Availability
494
GEN WD12X0350 GEN WD12X0350 Contact Us For Availability
496
GEN WD12X0349 GEN WD12X0349 Contact Us For Availability
497
GEN WD01X1282 GEN WD01X1282 Contact Us For Availability
501
GEN WD22X0132 GEN WD22X0132 Contact Us For Availability
504
SUMP INLET NUT GEN WD03X5119 Contact Us For Availability
505
GEN WD12X5027 GEN WD12X5027 Contact Us For Availability
506
SUMP COVER GEN WD12X5028 Contact Us For Availability
507
GEN WD22X0121 GEN WD22X0121 Contact Us For Availability
509
GEN WD03X0765 GEN WD03X0765 Contact Us For Availability
528
NUT, HEX 8-32 GEN WC01X5096 Contact Us For Availability
529
GEN WC01X0203 GEN WC01X0203 Contact Us For Availability
549
GEN WD22X0124 GEN WD22X0124 Contact Us For Availability
556
GEN WD01X5405 GEN WD01X5405 Contact Us For Availability
562
GEN WD22X0130 GEN WD22X0130 Contact Us For Availability
563
GEN WD22X0126 GEN WD22X0126 Contact Us For Availability
615
RACK UPPER & WHEEL ASM GEN WD28X5081 Contact Us For Availability
653
GEN WD03X5114 GEN WD03X5114 Contact Us For Availability
654
ROLLER & STUD UPR RACK GEN WD12X5050 Contact Us For Availability
701
GEN WD28X5083 GEN WD28X5083 Contact Us For Availability
703
ROLLER & STUD LWR RACK GEN WD12X5026 Contact Us For Availability
704
GEN WD12X5044 GEN WD12X5044 Contact Us For Availability
706
GEN WD03X0772 GEN WD03X0772 Contact Us For Availability
707
TUB ROLLER GEN WD12X5024 Contact Us For Availability
708
GEN WD03X0744 GEN WD03X0744 Contact Us For Availability
711
GEN WD27X0514 GEN WD27X0514 Contact Us For Availability
712
GEN WD34X0622 GEN WD34X0622 Contact Us For Availability
712
GEN WD34X0623 GEN WD34X0623 Contact Us For Availability
717
GEN WD27X5439 GEN WD27X5439 Contact Us For Availability
740
GEN WD02X5187 GEN WD02X5187 Contact Us For Availability
745
JUNCTION BOX COVER GEN WD01X0816 Contact Us For Availability
745
GEN WD01X5443 GEN WD01X5443 Contact Us For Availability
748
GEN WD01X5384 GEN WD01X5384 Contact Us For Availability
749
GEN WD03X5082 GEN WD03X5082 Contact Us For Availability
749
GROMMET TUB GEN WD08X5064 Contact Us For Availability
752
BRACKET HOLD DOWN GEN WD01X5433 Contact Us For Availability
752
SCR 8-18X1/2 AB RECESS GEN WZ04X0401 Contact Us For Availability
756
GEN WD27X0516 GEN WD27X0516 Contact Us For Availability
757
GEN WD34X0624 GEN WD34X0624 Contact Us For Availability
757
GEN WD34X0627 GEN WD34X0627 Contact Us For Availability
759
GEN WD27X5331 GEN WD27X5331 Contact Us For Availability
774
GEN WD27X5440 GEN WD27X5440 Contact Us For Availability
780
GEN WD24X0191 GEN WD24X0191 Contact Us For Availability
781
GEN WD08X0192 GEN WD08X0192 Contact Us For Availability
782
GEN WD24X5082 GEN WD24X5082 Contact Us For Availability
784
GEN WD02X5186 GEN WD02X5186 Contact Us For Availability
791
GEN WD01X5499 GEN WD01X5499 Contact Us For Availability
795
GEN WD01X5468 GEN WD01X5468 Contact Us For Availability
796
GEN WD01X1146 GEN WD01X1146 Contact Us For Availability
798
GEN WD03X5111 GEN WD03X5111 Contact Us For Availability
801
GEN WD24X5086 GEN WD24X5086 Contact Us For Availability
802
GEN WD13X5014 GEN WD13X5014 Contact Us For Availability
802
GEN WD01X5493 GEN WD01X5493 Contact Us For Availability
803
GEN WD06X0183 GEN WD06X0183 Contact Us For Availability
804
GEN WD24X5071 GEN WD24X5071 Contact Us For Availability
805
PUSHNUT A GEN WD03X5112 Contact Us For Availability
806
DOOR LATCH INSERT GEN WD01X5477 Contact Us For Availability
807
GEN WD35X5072 GEN WD35X5072 Contact Us For Availability
814
GEN WD01X5504 GEN WD01X5504 Contact Us For Availability
817
GEN WD02X5065 GEN WD02X5065 Contact Us For Availability
818
GEN WD14X5076 GEN WD14X5076 Contact Us For Availability
818
GEN WD14X5077 GEN WD14X5077 Contact Us For Availability
821
GEN WD12X5039 GEN WD12X5039 Contact Us For Availability
823
GEN WD16X5039 GEN WD16X5039 Contact Us For Availability
824
GEN WD08X5101 GEN WD08X5101 Contact Us For Availability
826
GEN WD01X5483 GEN WD01X5483 Contact Us For Availability
827
GEN WD02X0425 GEN WD02X0425 Contact Us For Availability
828
GEN WD16X0283 GEN WD16X0283 Contact Us For Availability
832
GEN WD08X5098 GEN WD08X5098 Contact Us For Availability
836
GEN WD01X0781 GEN WD01X0781 Contact Us For Availability
837
GEN WD12X0027 GEN WD12X0027 Contact Us For Availability
839
GEN WD02X0266 GEN WD02X0266 Contact Us For Availability
841
GEN WD17X5053 GEN WD17X5053 Contact Us For Availability
843
DOOR GASKET WITH CLIPS GEN WD08X5097 Contact Us For Availability
843
GEN WD17X5049 GEN WD17X5049 Contact Us For Availability
844
GASKET & RTNR ASM TUB FL GEN WD08X5100 Contact Us For Availability
847
GEN WD03X0659 GEN WD03X0659 Contact Us For Availability
853
GEN WD16X5042 GEN WD16X5042 Contact Us For Availability
855
GEN WD12X0117 GEN WD12X0117 Contact Us For Availability
864
COMPRESSION RING GEN WD01X1030 Contact Us For Availability
900
GEN WD02X5157 GEN WD02X5157 Contact Us For Availability
901
GEN WD34X0634 GEN WD34X0634 Contact Us For Availability
904
GEN WD21X0586 GEN WD21X0586 Contact Us For Availability
906
GEN WD21X0590 GEN WD21X0590 Contact Us For Availability
907
GEN WD01X5492 GEN WD01X5492 Contact Us For Availability
910
GEN WD09X5161 GEN WD09X5161 Contact Us For Availability
910
GEN WD09X5181 GEN WD09X5181 Contact Us For Availability
915
PLUG TIMER BLACK GEN WD01X1258 Contact Us For Availability
927
TRIM ESCUT HANDLE GEN WD34X5247 Contact Us For Availability
935
TERMINAL TIMER GEN WH12X0603 Contact Us For Availability
936
GEN WD01X5490 GEN WD01X5490 Contact Us For Availability
937
GEN WD12X5041 GEN WD12X5041 Contact Us For Availability
939
SCR 6-20 X 5/16 HEXW S GEN NOT STOCKD Contact Us For Availability
940
GEN WD02X5184 GEN WD02X5184 Contact Us For Availability
940
GEN WD12X5042 GEN WD12X5042 Contact Us For Availability
948
GEN WD02X5169 GEN WD02X5169 Contact Us For Availability
949
SCREW-VENT LEVER MTG GEN WD02X0319 Contact Us For Availability
970
GEN WD09X5162 GEN WD09X5162 Contact Us For Availability
971
GEN WZ02X0045 GEN WZ02X0045 Contact Us For Availability
980
GEN WD02X5100 GEN WD02X5100 Contact Us For Availability
1000
GEN WD01X1378 GEN WD01X1378 Contact Us For Availability
1005
SCREW TRIM 8-18X1/4 PH GEN WD01X1313 Contact Us For Availability
1100
GEN WD01X1379 GEN WD01X1379 Contact Us For Availability
1299
PALNUT GEN WZ07X0037 Contact Us For Availability
32767
PM INSTRUCTION INSTL GEN 31-3498 Contact Us For Availability
32767
GEN 39-5159 GEN 39-5159 Contact Us For Availability
32767
GEN WD00X0026 GEN WD00X0026 Contact Us For Availability
32767
GEN WD00X0027 GEN WD00X0027 Contact Us For Availability
32767
PLATE SPRING GEN WD00X0077 Contact Us For Availability
32767
GEN WD00X0444 GEN WD00X0444 Contact Us For Availability
32767
GEN WD00X0445 GEN WD00X0445 Contact Us For Availability
32767
GEN WD00X0589 GEN WD00X0589 Contact Us For Availability
32767
GEN WD00X715 GEN WD00X715 Contact Us For Availability
× ![]()
