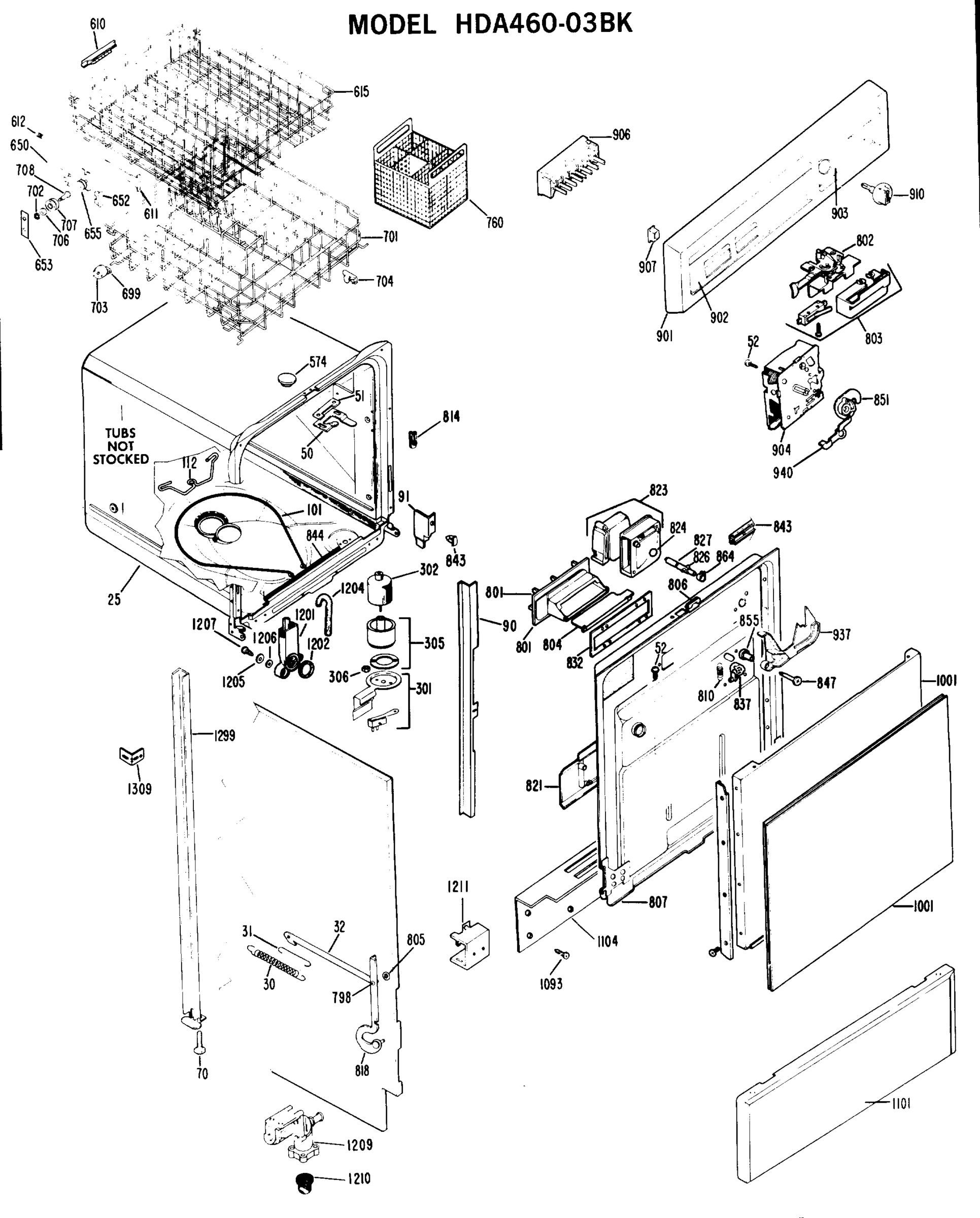

Model Hotpoint HDA460-03BK Dishwasher – Common Parts & Diagrams
0

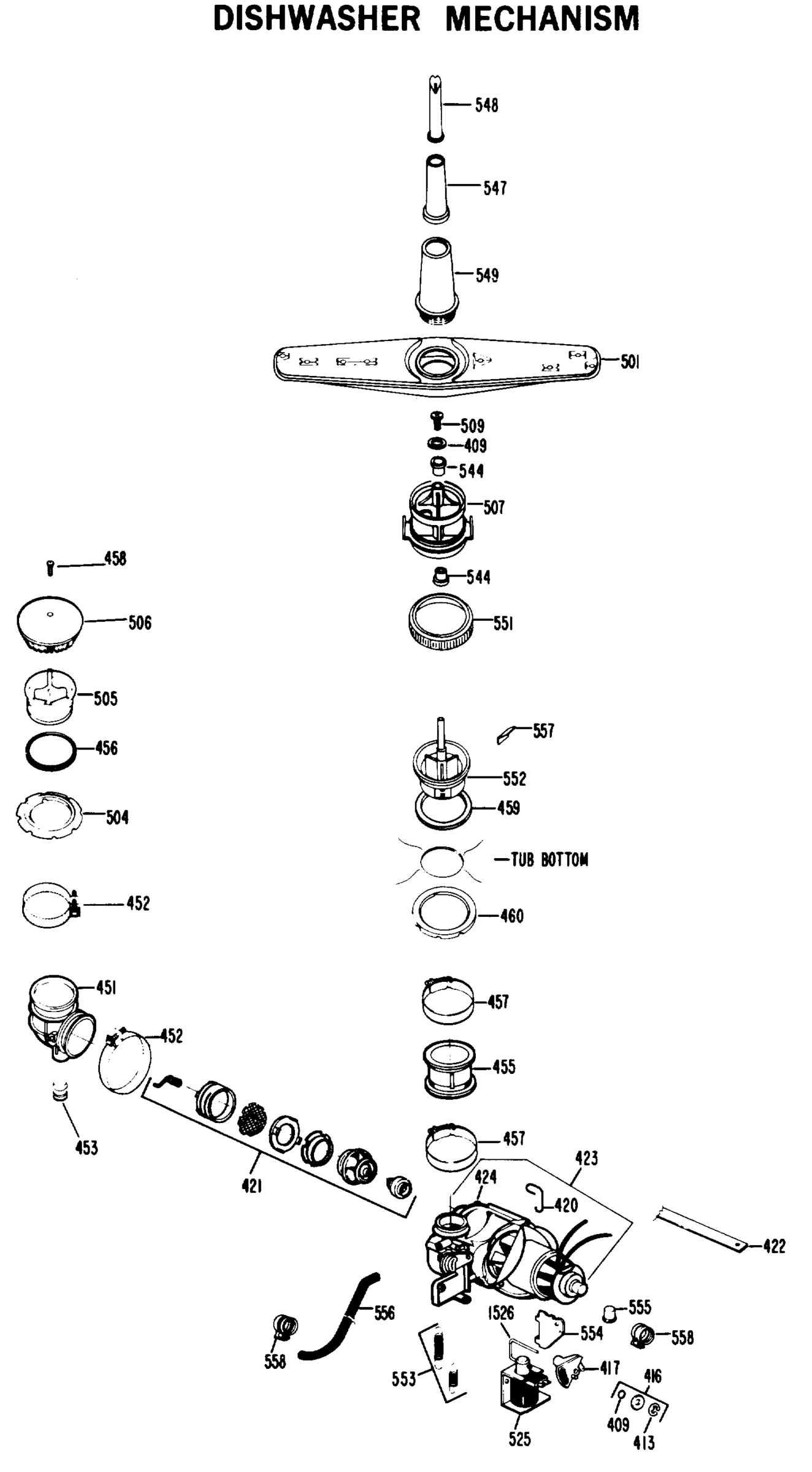

DISHWASHER MECHANISM
Common parts from model Hotpoint HDA460-03BK Dishwasher
50
GEN WD13X5012 GEN WD13X5012 Contact Us For Availability
51
GEN WD13X0048 GEN WD13X0048 Contact Us For Availability
51
GEN WZ06X0127 GEN WZ06X0127 Contact Us For Availability
52
GEN WD02X5177 GEN WD02X5177 Contact Us For Availability
70
GEN WD01X1130 GEN WD01X1130 Contact Us For Availability
91
GEN WD01X5391 GEN WD01X5391 Contact Us For Availability
91
GEN WD01X5392 GEN WD01X5392 Contact Us For Availability
101
GEN WD02X5172 GEN WD02X5172 Contact Us For Availability
101
GEN WD03X0723 GEN WD03X0723 Contact Us For Availability
101
GEN WD03X0724 GEN WD03X0724 Contact Us For Availability
101
GEN WD03X5118 GEN WD03X5118 Contact Us For Availability
101
GEN WD05X0047 GEN WD05X0047 Contact Us For Availability
112
GEN WD01X5484 GEN WD01X5484 Contact Us For Availability
302
GEN WD12X5016 GEN WD12X5016 Contact Us For Availability
305
GEN WD12X5019 GEN WD12X5019 Contact Us For Availability
306
GEN WD02X5171 GEN WD02X5171 Contact Us For Availability
306
GEN WD03X0687 GEN WD03X0687 Contact Us For Availability
409
WASHER THRUST GEN WD01X1097 Contact Us For Availability
417
PS ARM GATE VALVE GEN WD12X0201 Contact Us For Availability
420
GEN WD01X5485 GEN WD01X5485 Contact Us For Availability
421
GEN WD17X0057 GEN WD17X0057 Contact Us For Availability
422
GEN WD01X5486 GEN WD01X5486 Contact Us For Availability
424
PS PUMP HOUSING GEN WD19X0042 Contact Us For Availability
451
GEN WD18X5014 GEN WD18X5014 Contact Us For Availability
453
GEN WD12X0213 GEN WD12X0213 Contact Us For Availability
455
GEN WD18X0175 GEN WD18X0175 Contact Us For Availability
456
GEN WD08X5092 GEN WD08X5092 Contact Us For Availability
458
SCREW # 8-15 X 3/4 GEN WZ04X0250 Contact Us For Availability
459
GEN WD08X5093 GEN WD08X5093 Contact Us For Availability
460
GEN WD03X0627 GEN WD03X0627 Contact Us For Availability
501
GEN WD22X5056 GEN WD22X5056 Contact Us For Availability
504
NUT,SUMP INLET GEN WD03X5119 Contact Us For Availability
505
GEN WD12X5027 GEN WD12X5027 Contact Us For Availability
506
COVER,SUMP GEN WD12X5028 Contact Us For Availability
507
GEN WD22X0089 GEN WD22X0089 Contact Us For Availability
509
SCREW GEN WD03X0707 Contact Us For Availability
544
BEARING SPRAY ARM GEN WD12X0235 Contact Us For Availability
547
GEN WD22X0105 GEN WD22X0105 Contact Us For Availability
548
TOP POWER TOWER GEN WD22X5060 Contact Us For Availability
549
BASE CENTER SPRAY 22X5057 GEN WD12X0309 Contact Us For Availability
551
GEN WD19X0044 GEN WD19X0044 Contact Us For Availability
552
SUPPORT SPRAY ARM ASM GEN WD22X0112 Contact Us For Availability
554
PS SPRING PLATE KIT GEN WD01X1283 Contact Us For Availability
555
CAP POWER SHOWER GEN WD01X5405 Contact Us For Availability
556
HOSE DRAIN GEN WD24X0205 Contact Us For Availability
557
CHECK VALVE GEN WD01X5488 Contact Us For Availability
560
HUB - SUPPORT ASM GEN WD22X0115 Contact Us For Availability
574
GEN WD01X5491 GEN WD01X5491 Contact Us For Availability
615
GEN WD28X5081 GEN WD28X5081 Contact Us For Availability
650
GEN WD30X0084 GEN WD30X0084 Contact Us For Availability
652
GEN WD12X0113 GEN WD12X0113 Contact Us For Availability
653
GEN WD03X5114 GEN WD03X5114 Contact Us For Availability
655
GEN WD12X5023 GEN WD12X5023 Contact Us For Availability
699
GEN WD12X5022 GEN WD12X5022 Contact Us For Availability
701
GEN WD28X5083 GEN WD28X5083 Contact Us For Availability
702
GEN WD02X5102 GEN WD02X5102 Contact Us For Availability
703
GEN WD12X5026 GEN WD12X5026 Contact Us For Availability
704
GEN WD12X5044 GEN WD12X5044 Contact Us For Availability
706
GEN WD03X0543 GEN WD03X0543 Contact Us For Availability
707
GEN WD12X5024 GEN WD12X5024 Contact Us For Availability
708
GEN WD03X0744 GEN WD03X0744 Contact Us For Availability
798
GEN WD03X5111 GEN WD03X5111 Contact Us For Availability
801
GEN WD02X5184 GEN WD02X5184 Contact Us For Availability
801
GEN WD24X5086 GEN WD24X5086 Contact Us For Availability
802
GEN WD13X5015 GEN WD13X5015 Contact Us For Availability
802
GEN WD01X5493 GEN WD01X5493 Contact Us For Availability
803
GEN WD01X1146 GEN WD01X1146 Contact Us For Availability
803
GEN WD01X5468 GEN WD01X5468 Contact Us For Availability
803
GEN WD01X5478 GEN WD01X5478 Contact Us For Availability
803
GEN WD21X5170 GEN WD21X5170 Contact Us For Availability
804
GEN WD24X5071 GEN WD24X5071 Contact Us For Availability
805
GEN WD03X5112 GEN WD03X5112 Contact Us For Availability
806
GEN WD01X5477 GEN WD01X5477 Contact Us For Availability
807
GEN WD35X5072 GEN WD35X5072 Contact Us For Availability
810
GEN WD03X0655 GEN WD03X0655 Contact Us For Availability
814
GEN WD14X5040 GEN WD14X5040 Contact Us For Availability
818
GEN WD02X5065 GEN WD02X5065 Contact Us For Availability
818
GEN WD14X5076 GEN WD14X5076 Contact Us For Availability
818
GEN WD14X5077 GEN WD14X5077 Contact Us For Availability
821
GEN WD02X5176 GEN WD02X5176 Contact Us For Availability
821
GEN WD12X5039 GEN WD12X5039 Contact Us For Availability
822
GEN WD03X0698 GEN WD03X0698 Contact Us For Availability
823
GEN WD16X5039 GEN WD16X5039 Contact Us For Availability
824
GEN WD08X5101 GEN WD08X5101 Contact Us For Availability
826
GEN WD01X5483 GEN WD01X5483 Contact Us For Availability
827
GEN WD16X0227 GEN WD16X0227 Contact Us For Availability
832
GEN WD08X5098 GEN WD08X5098 Contact Us For Availability
837
GEN WD12X0027 GEN WD12X0027 Contact Us For Availability
839
GEN WD02X0266 GEN WD02X0266 Contact Us For Availability
843
GEN WD08X5097 GEN WD08X5097 Contact Us For Availability
843
GEN WD17X5049 GEN WD17X5049 Contact Us For Availability
843
GEN WD17X5053 GEN WD17X5053 Contact Us For Availability
844
GEN WD02X5180 GEN WD02X5180 Contact Us For Availability
844
GEN WD08X5100 GEN WD08X5100 Contact Us For Availability
847
GEN WD03X0659 GEN WD03X0659 Contact Us For Availability
851
GEN WD16X5041 GEN WD16X5041 Contact Us For Availability
855
GEN WD12X0117 GEN WD12X0117 Contact Us For Availability
864
GEN WD01X1030 GEN WD01X1030 Contact Us For Availability
901
GEN WD02X5157 GEN WD02X5157 Contact Us For Availability
901
GEN WD34X5183 GEN WD34X5183 Contact Us For Availability
902
GEN WD09X5169 GEN WD09X5169 Contact Us For Availability
903
GEN WD09X5164 GEN WD09X5164 Contact Us For Availability
904
GEN WD01X1180 GEN WD01X1180 Contact Us For Availability
904
GEN WD21X0489 GEN WD21X0489 Contact Us For Availability
906
GEN WD01X5490 GEN WD01X5490 Contact Us For Availability
906
GEN WD02X5156 GEN WD02X5156 Contact Us For Availability
906
GEN WD02X5169 GEN WD02X5169 Contact Us For Availability
906
GEN WD21X5179 GEN WD21X5179 Contact Us For Availability
907
GEN WD01X5492 GEN WD01X5492 Contact Us For Availability
910
GEN WD09X5161 GEN WD09X5161 Contact Us For Availability
937
GEN WD12X5041 GEN WD12X5041 Contact Us For Availability
940
GEN WD12X5042 GEN WD12X5042 Contact Us For Availability
1001
GEN WD02X5100 GEN WD02X5100 Contact Us For Availability
1001
GEN WD27X5384 GEN WD27X5384 Contact Us For Availability
1001
GEN WD27X5385 GEN WD27X5385 Contact Us For Availability
1001
GEN WD27X5386 GEN WD27X5386 Contact Us For Availability
1001
GEN WD27X5387 GEN WD27X5387 Contact Us For Availability
1001
GEN WD27X5391 GEN WD27X5391 Contact Us For Availability
1001
GEN WD27X5420 GEN WD27X5420 Contact Us For Availability
1001
GEN WD27X5421 GEN WD27X5421 Contact Us For Availability
1005
GEN WD01X1313 GEN WD01X1313 Contact Us For Availability
1093
GEN WD02X5076 GEN WD02X5076 Contact Us For Availability
1101
GEN WD27X5392 GEN WD27X5392 Contact Us For Availability
1101
GEN WD27X5393 GEN WD27X5393 Contact Us For Availability
1101
GEN WD27 GEN WD27 Contact Us For Availability
× ![]()
