Model Huebsch HCN100HNF Washer – Common Parts & Diagrams
Decals
Control Module - Design 1 Models

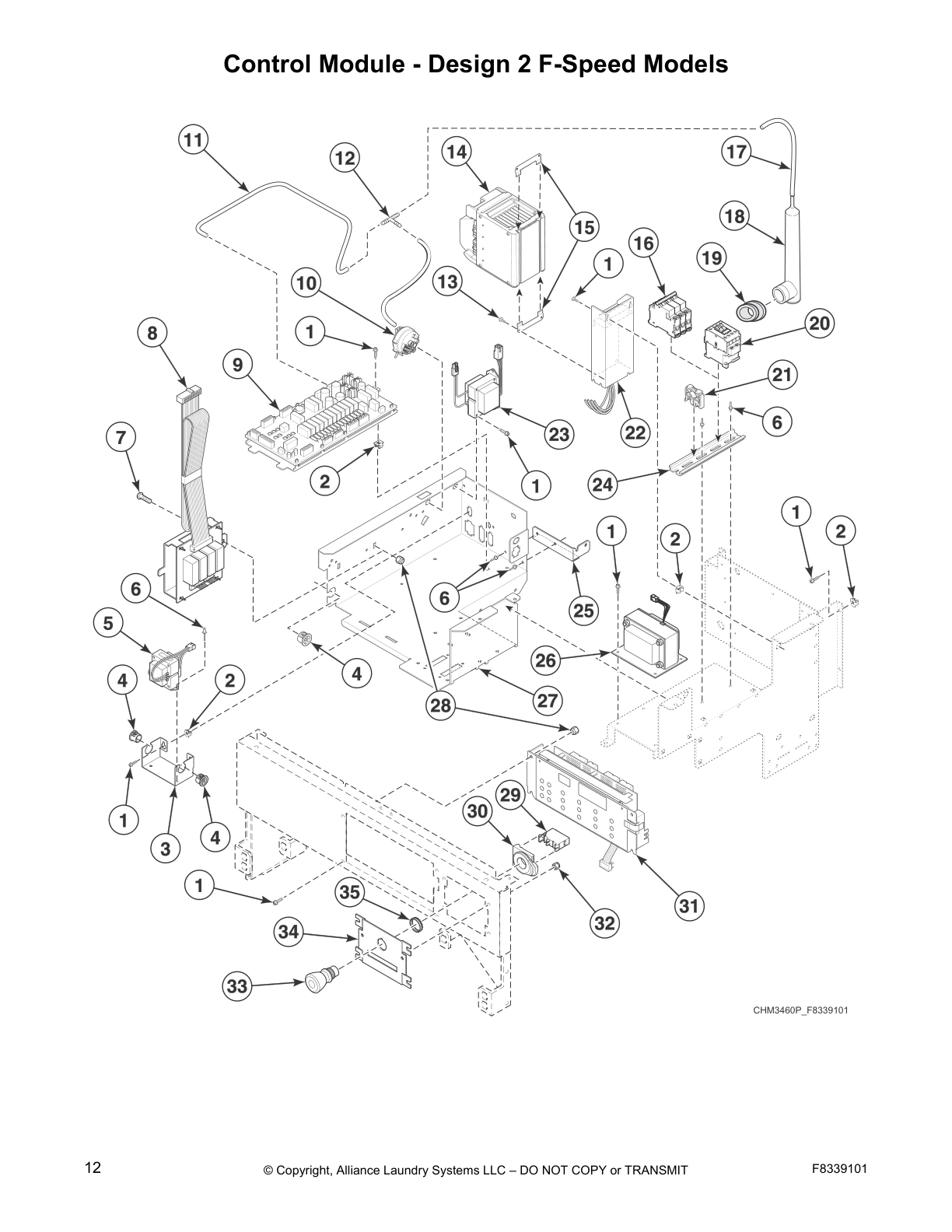

Control Module - Design 2 F-Speed Models
Control Module - Design 2 V-Speed Models

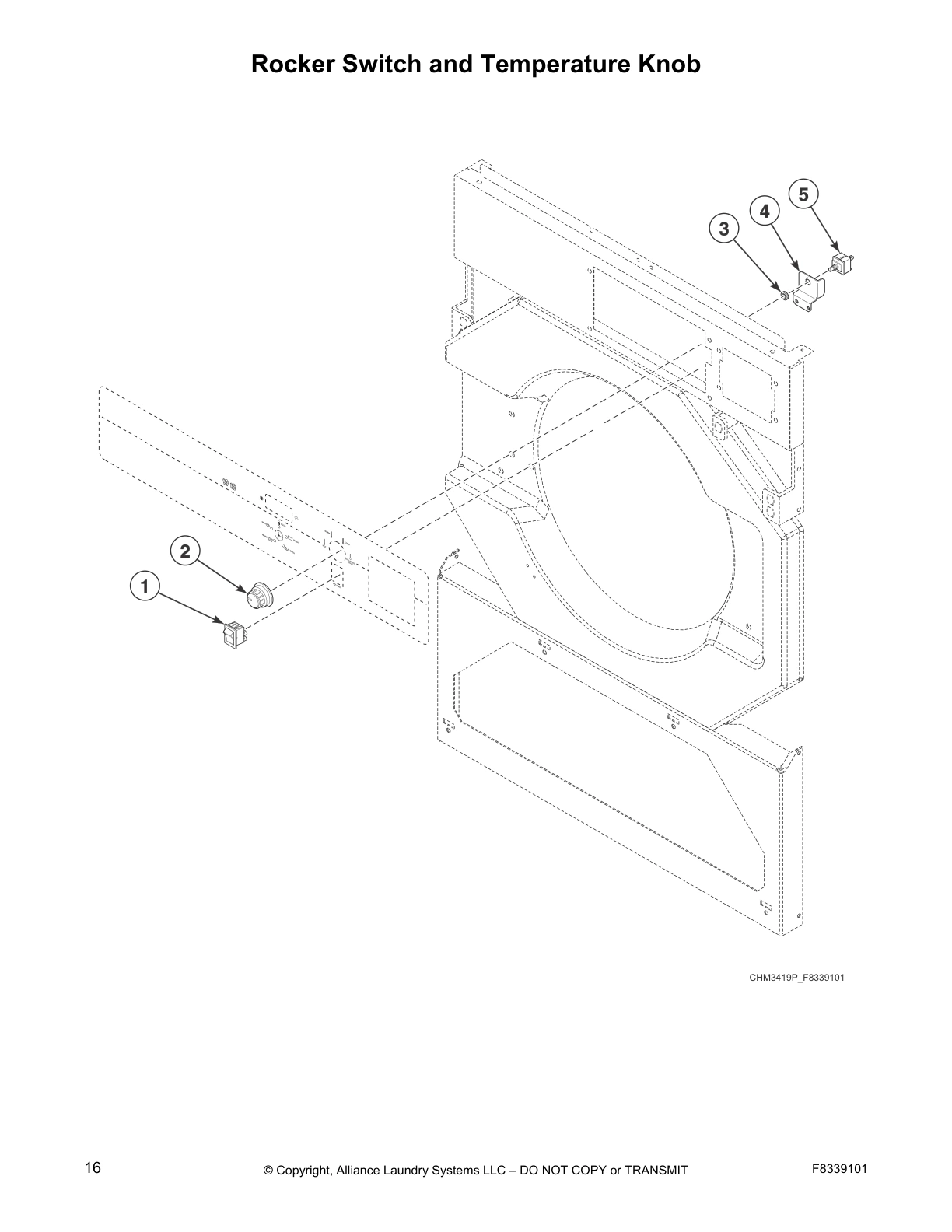

Rocker Switch and Temperature Knob

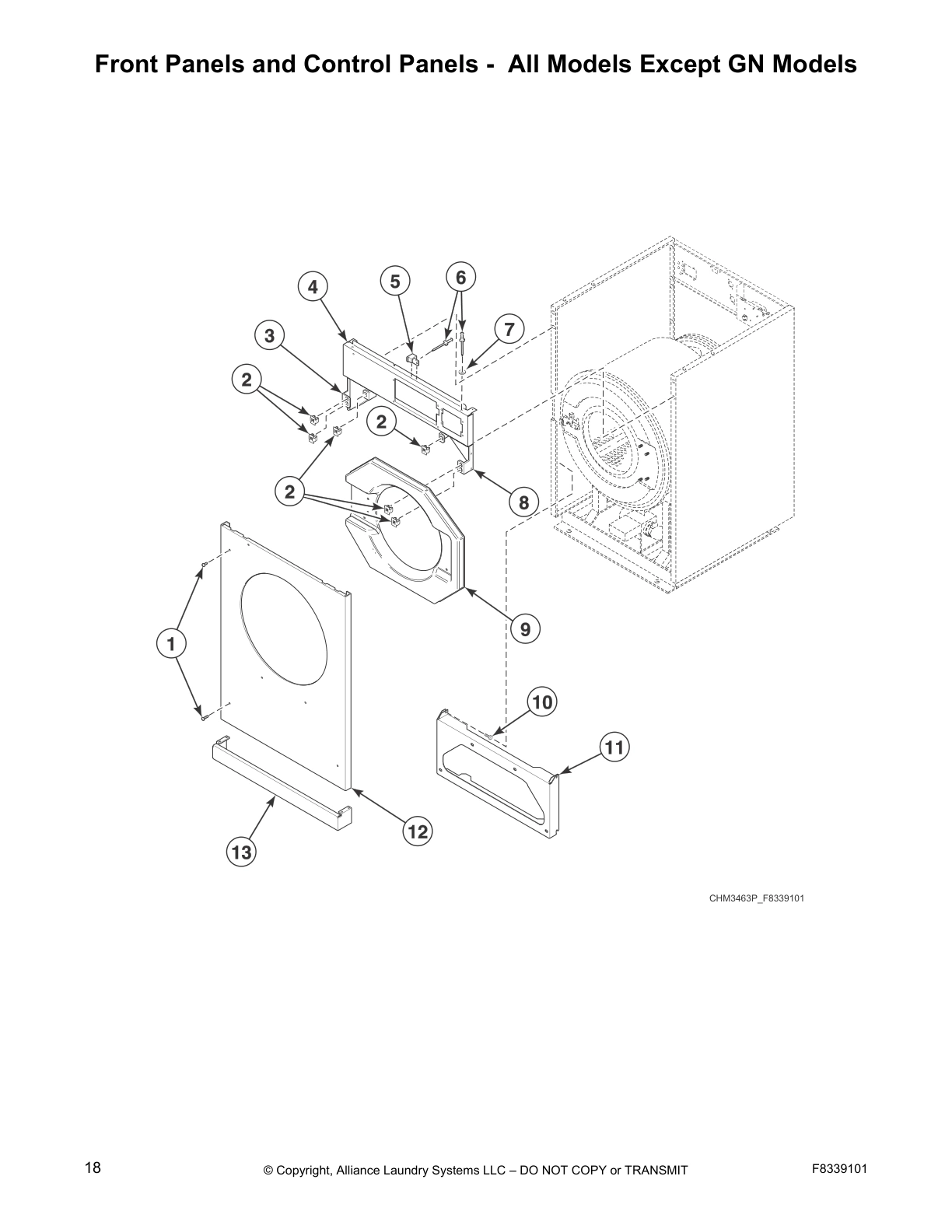

Front Panels and Control Panels - All Models Except GN Models

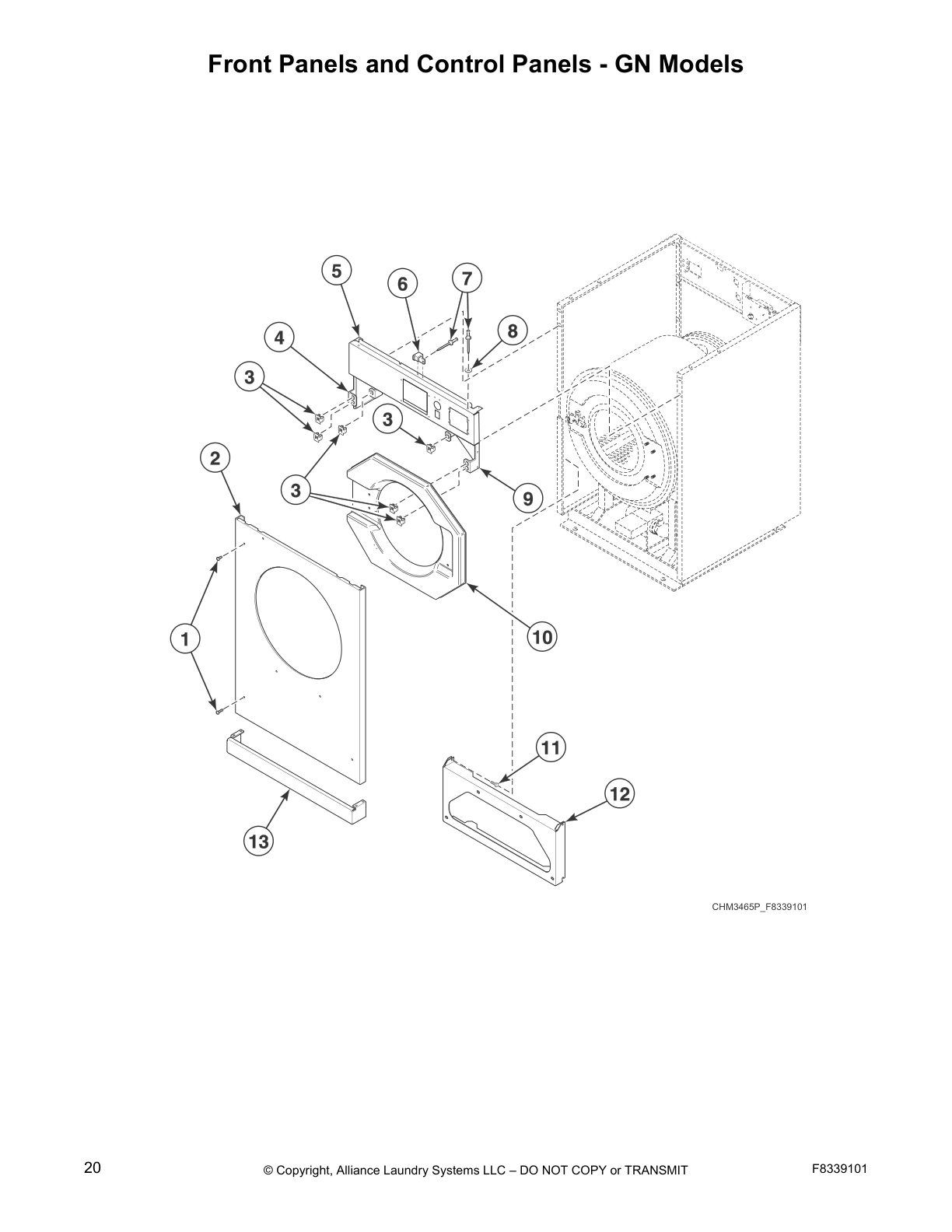

Front Panels and Control Panels - GN Models

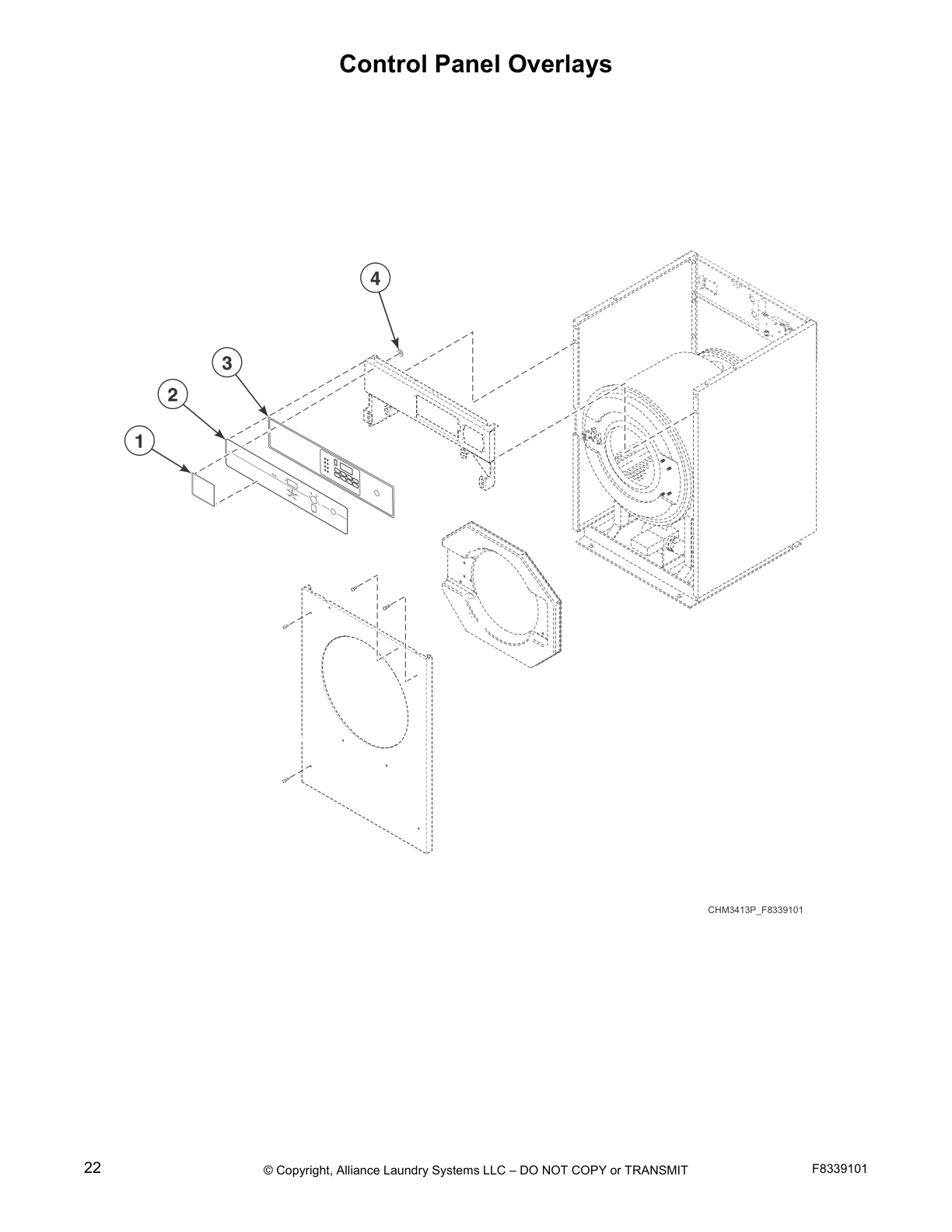

Control Panel Overlays

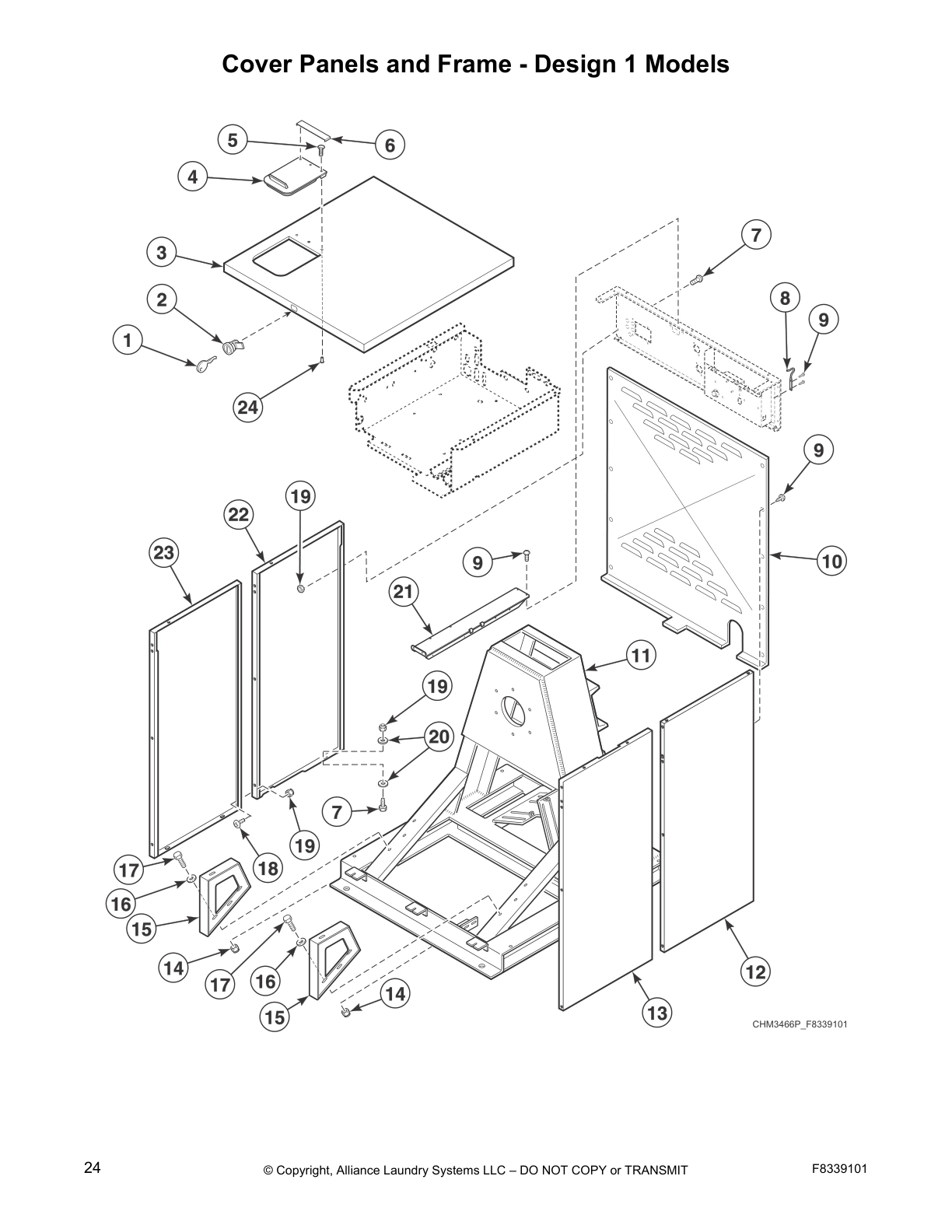

Cover Panels and Frame - Design 1 Models

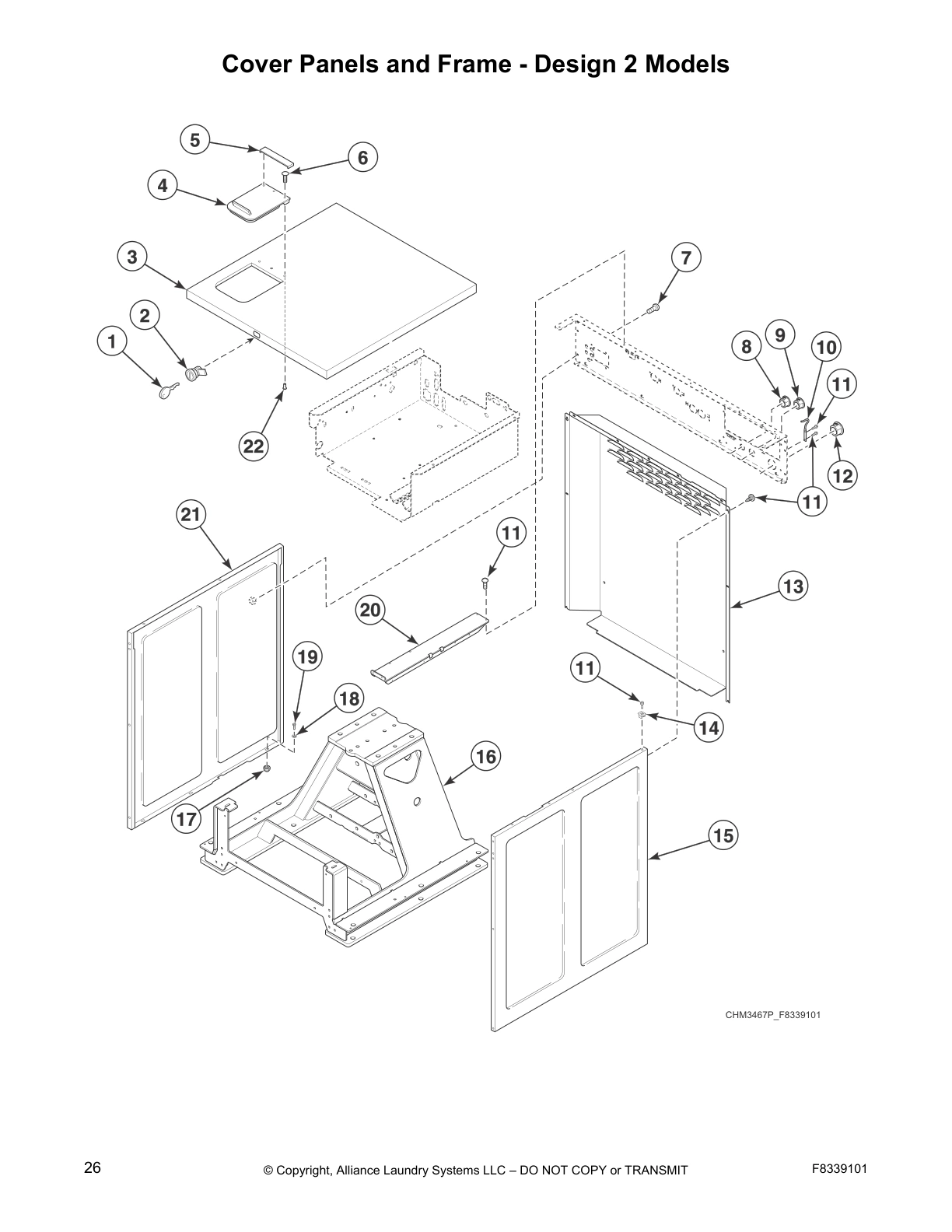

Cover Panels and Frame - Design 2 Models

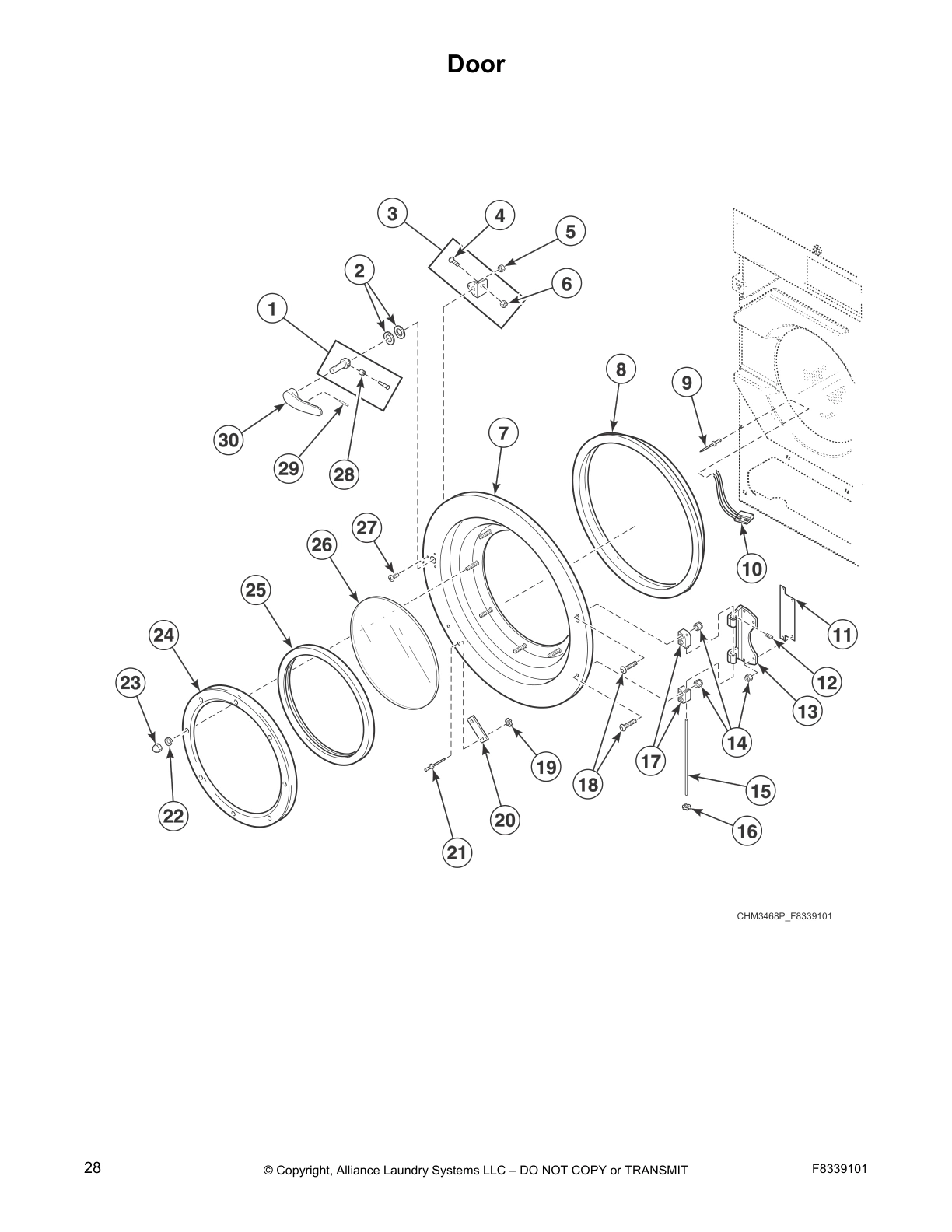

Door

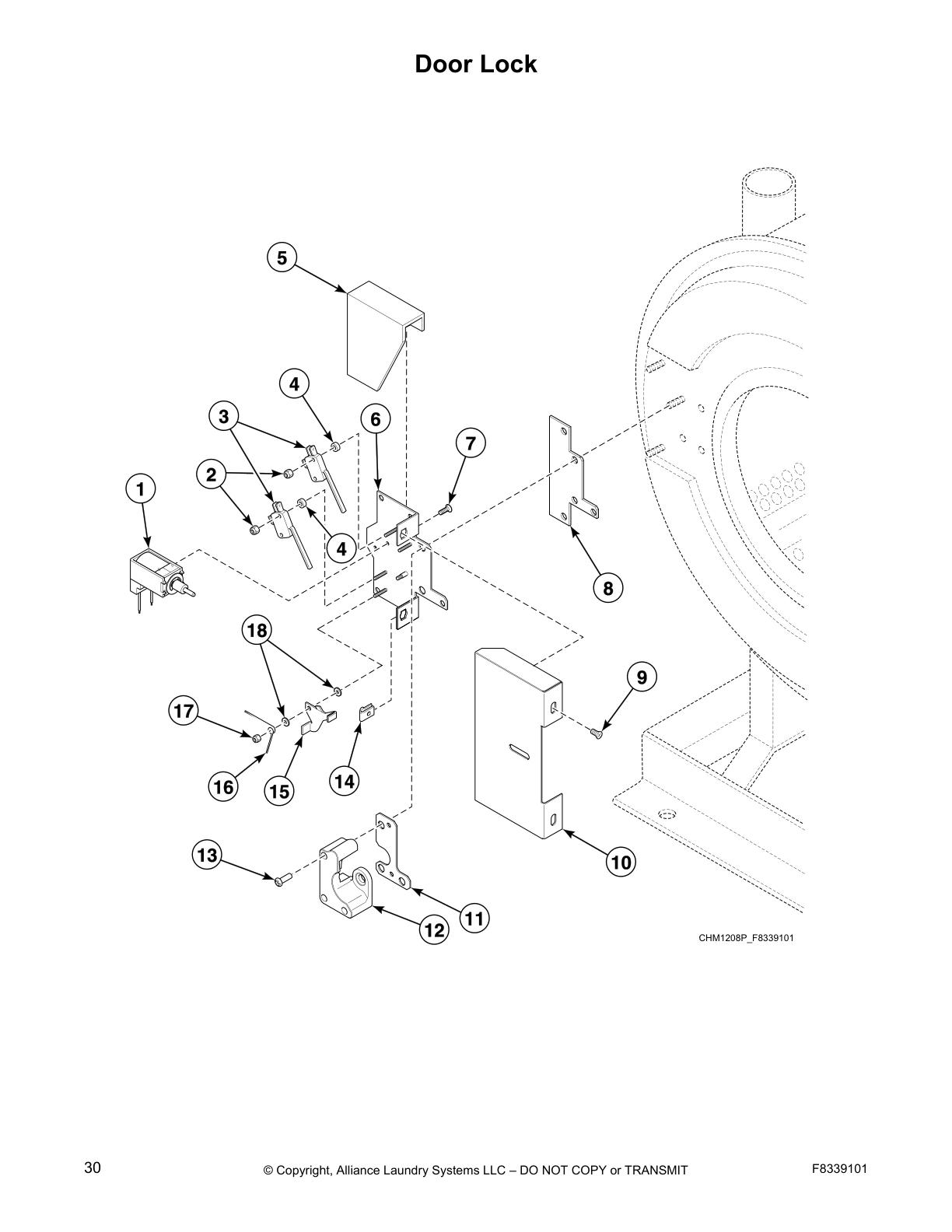

Door Lock

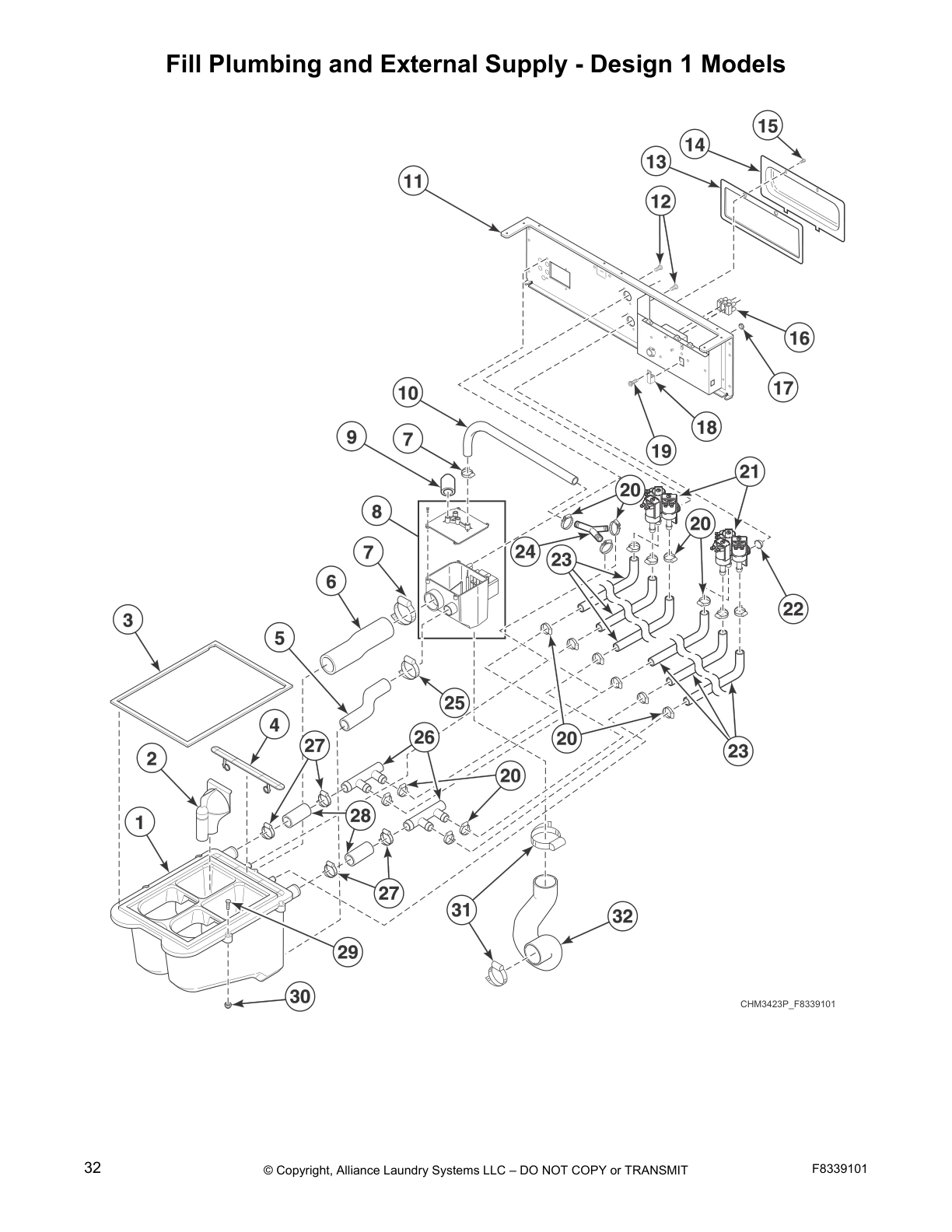

Fill Plumbing and External Supply - Design 1 Models

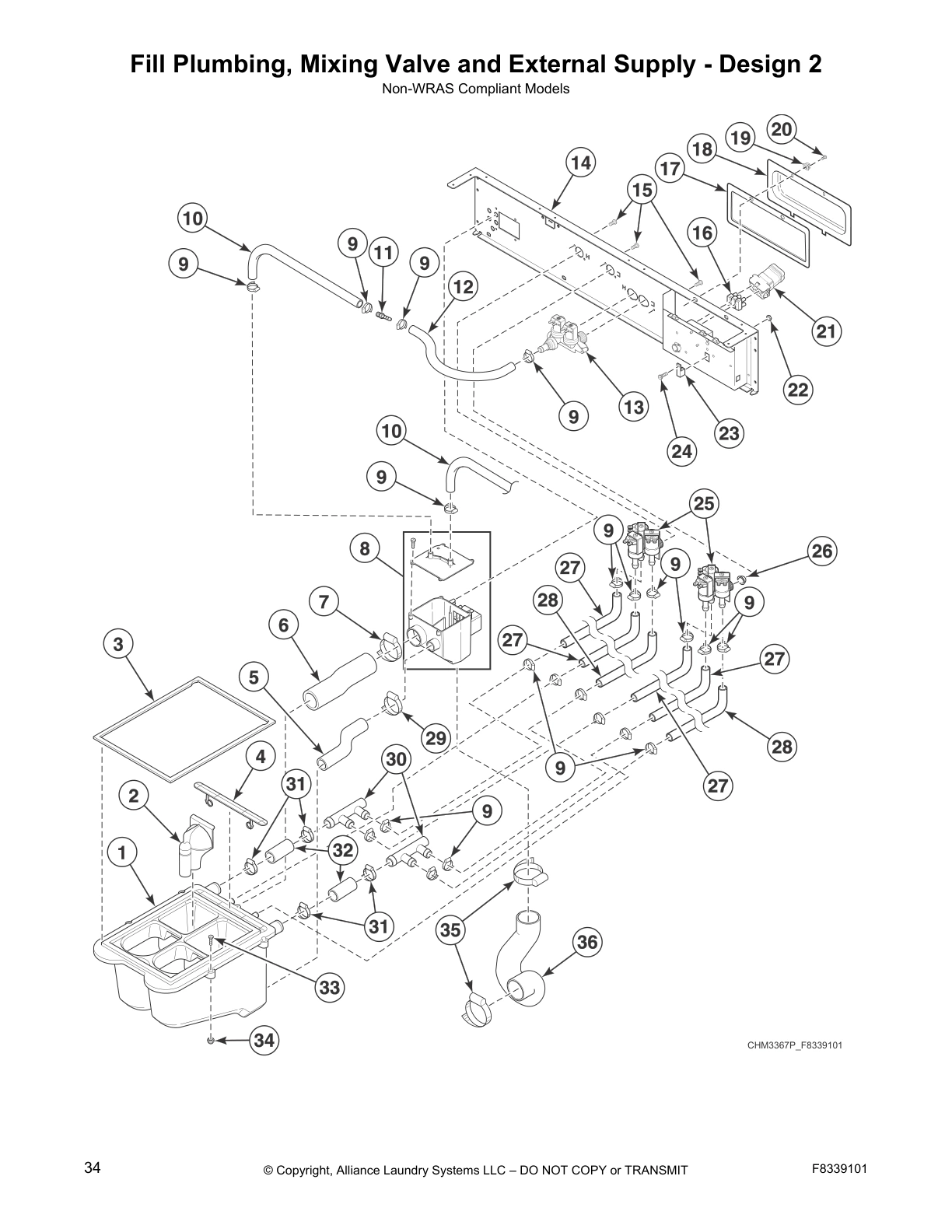

Fill Plumbing, Mixing Valve and External Supply - Design 2

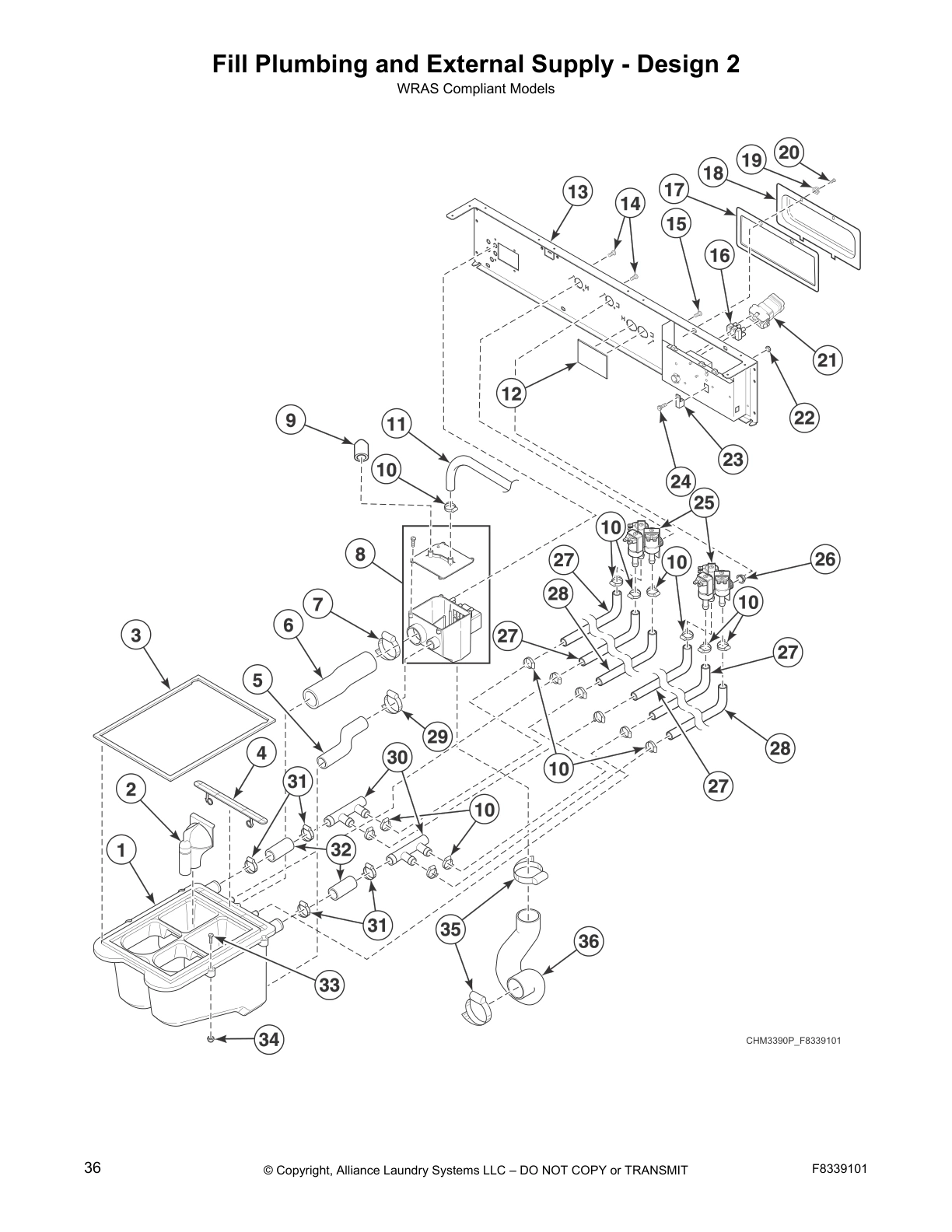

Fill Plumbing and External Supply - Design 2

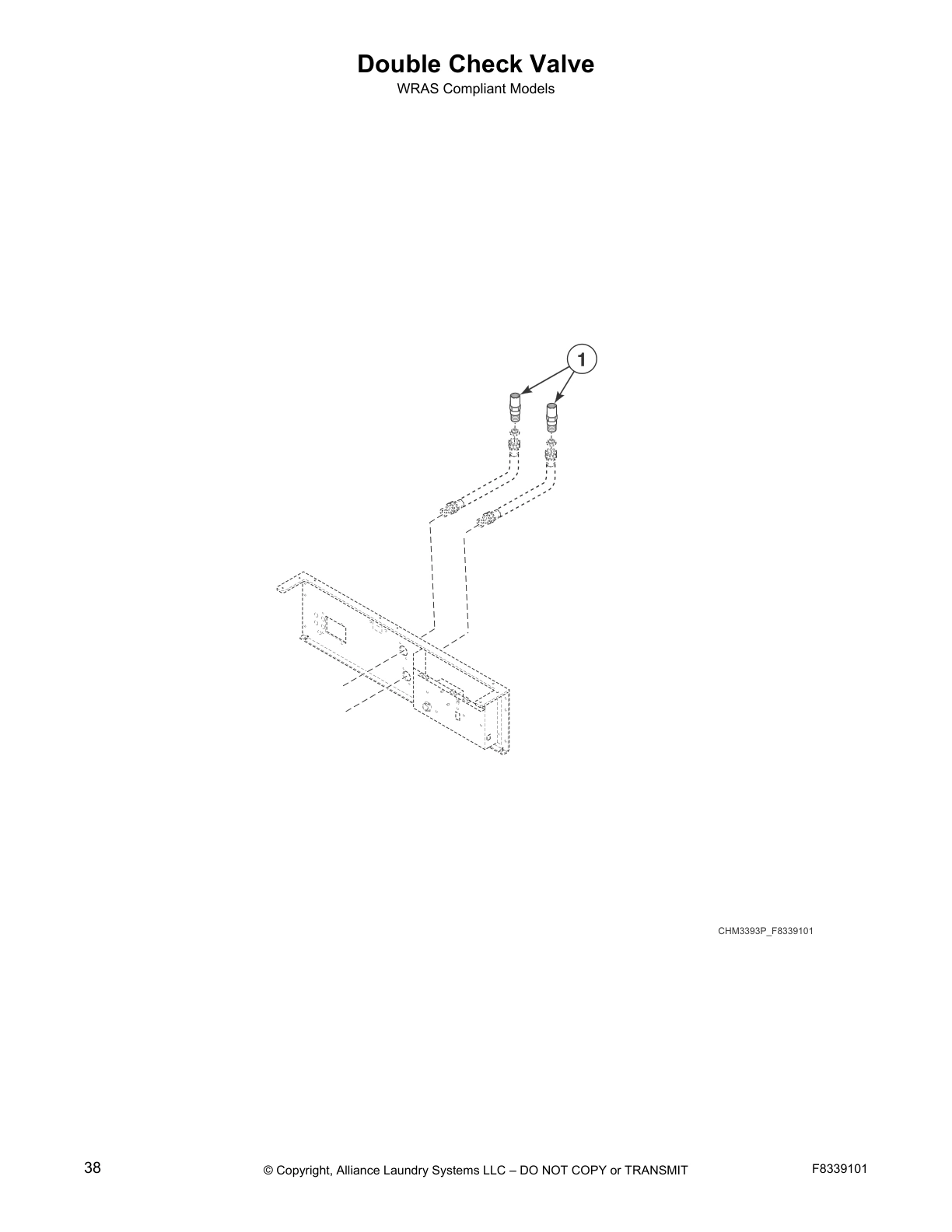

Double Check Valve

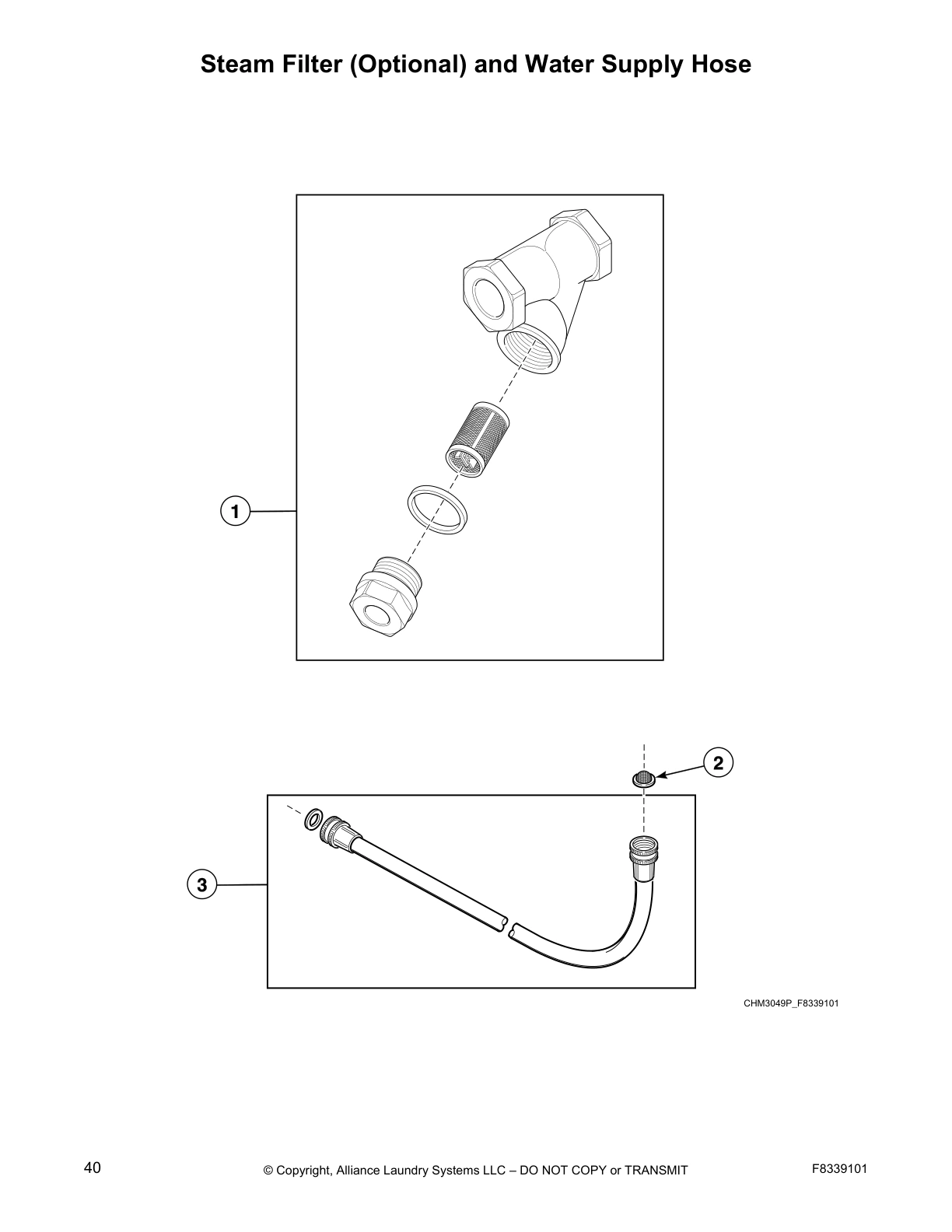

Steam Filter (Optional) and Water Supply Hose

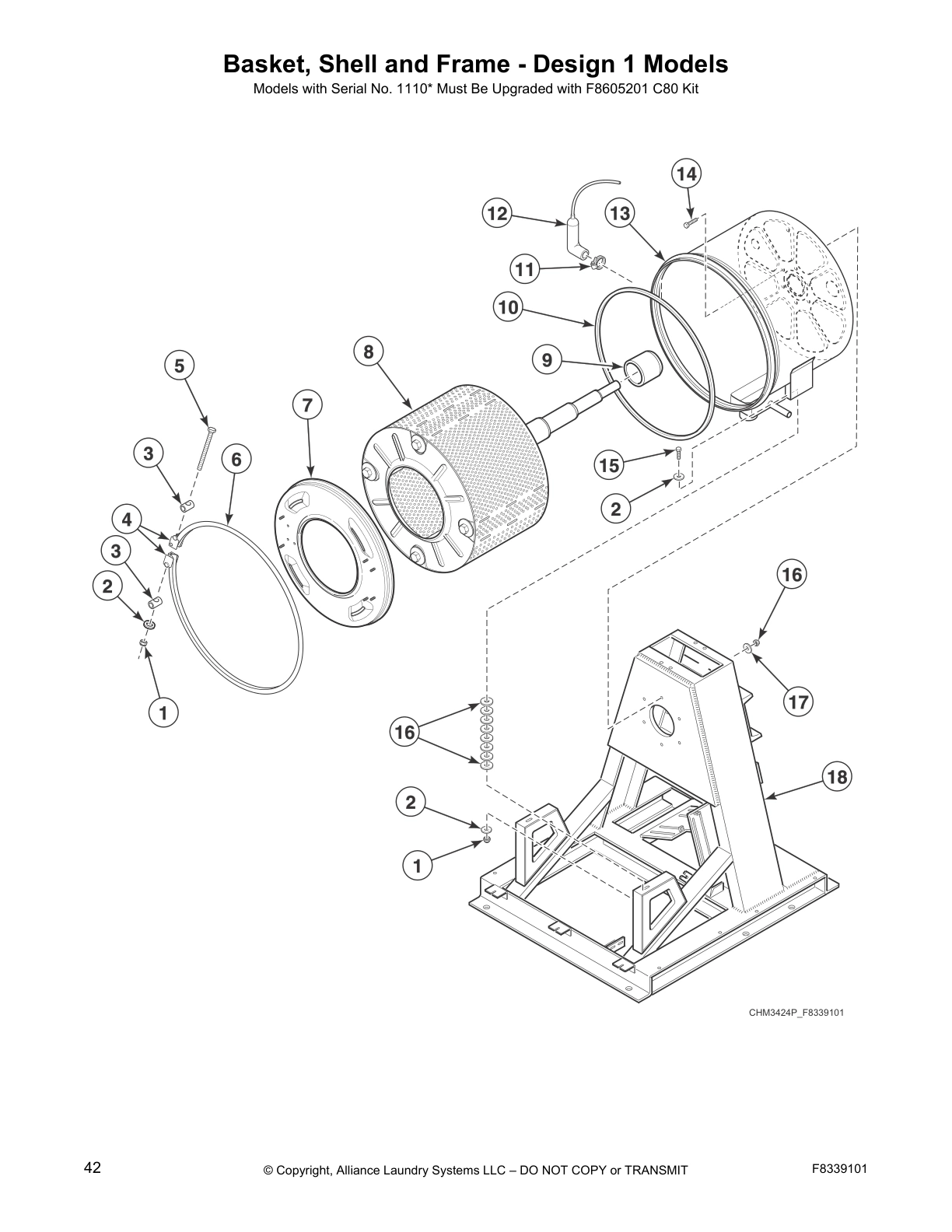

Basket, Shell and Frame - Design 1 Models

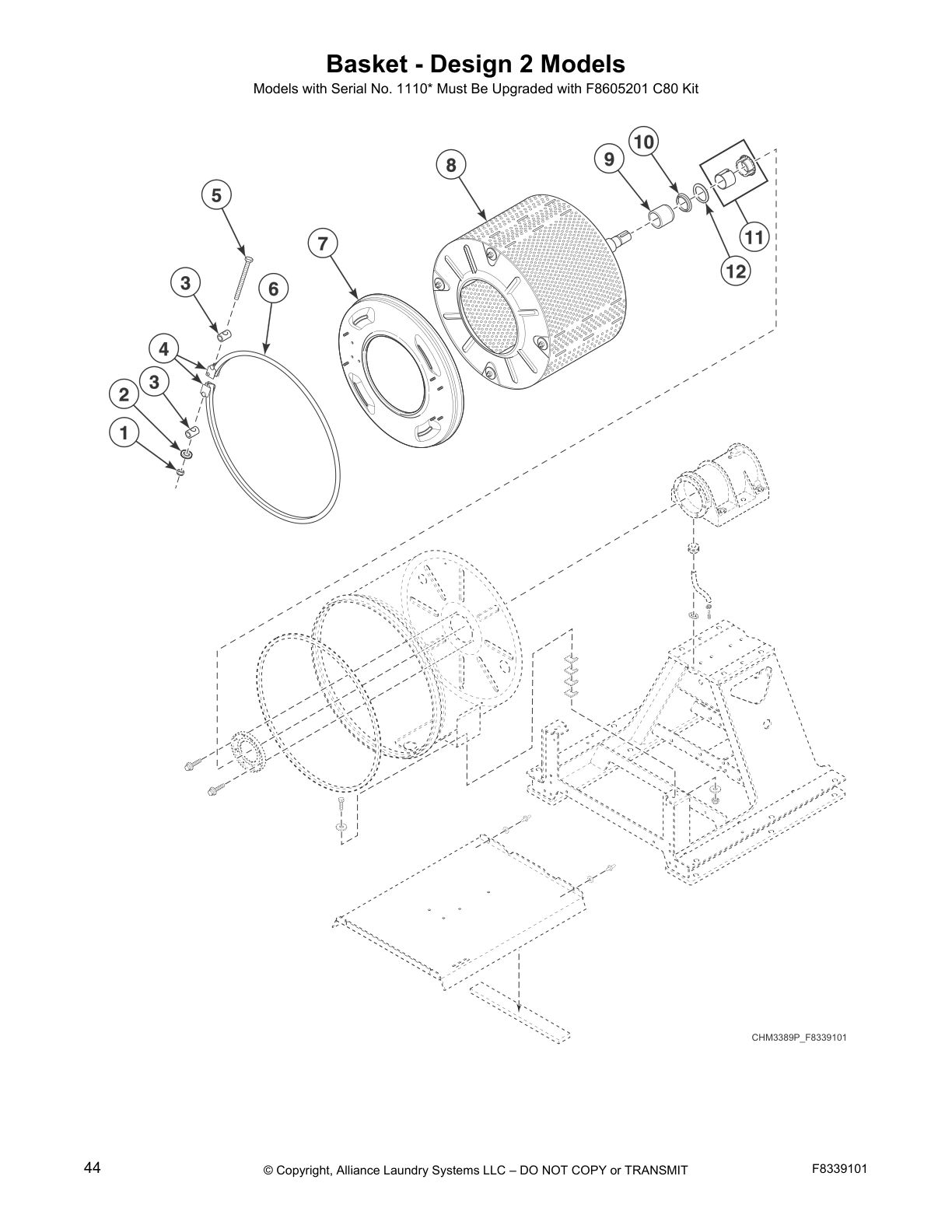

Basket - Design 2 Models

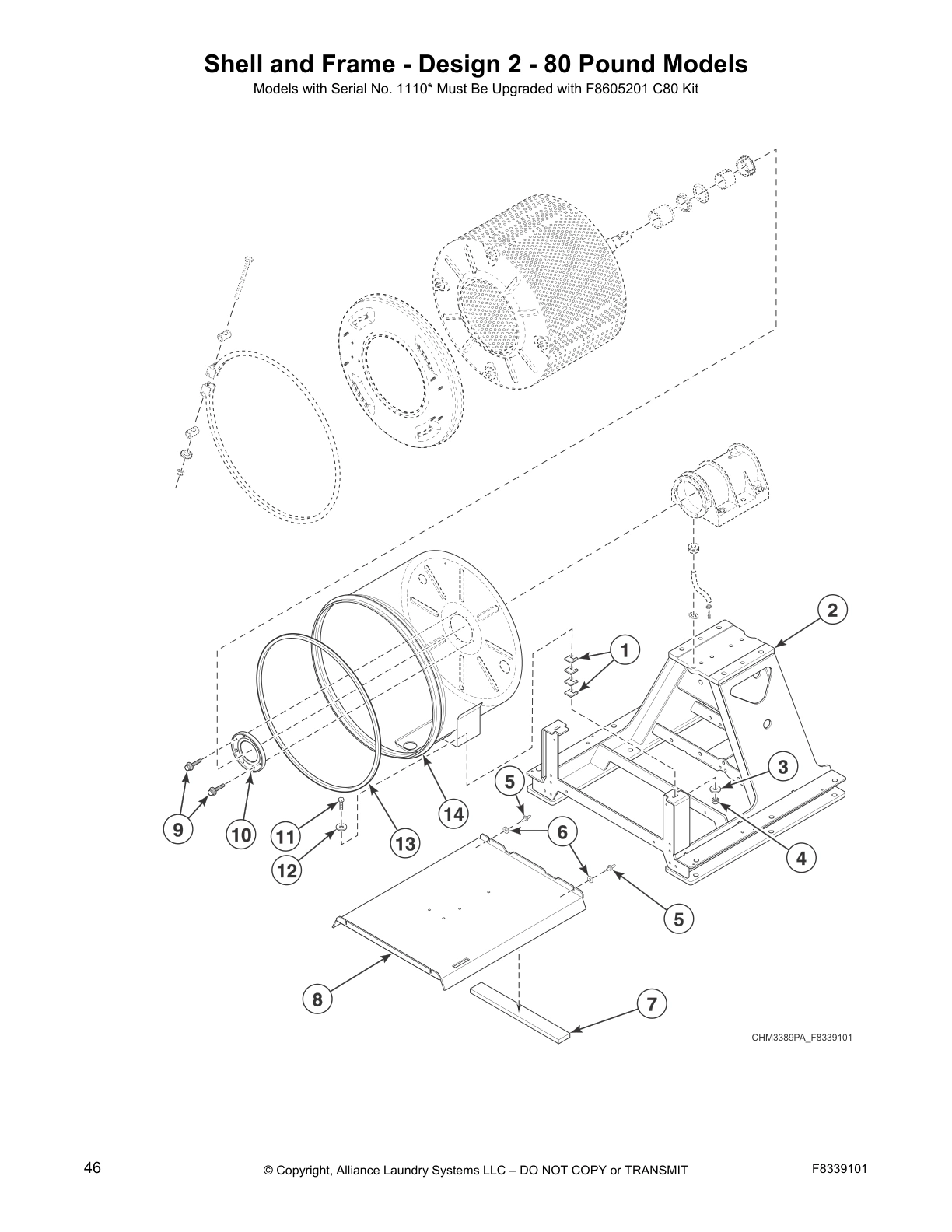

Shell and Frame - Design 2 - 80 Pound Models

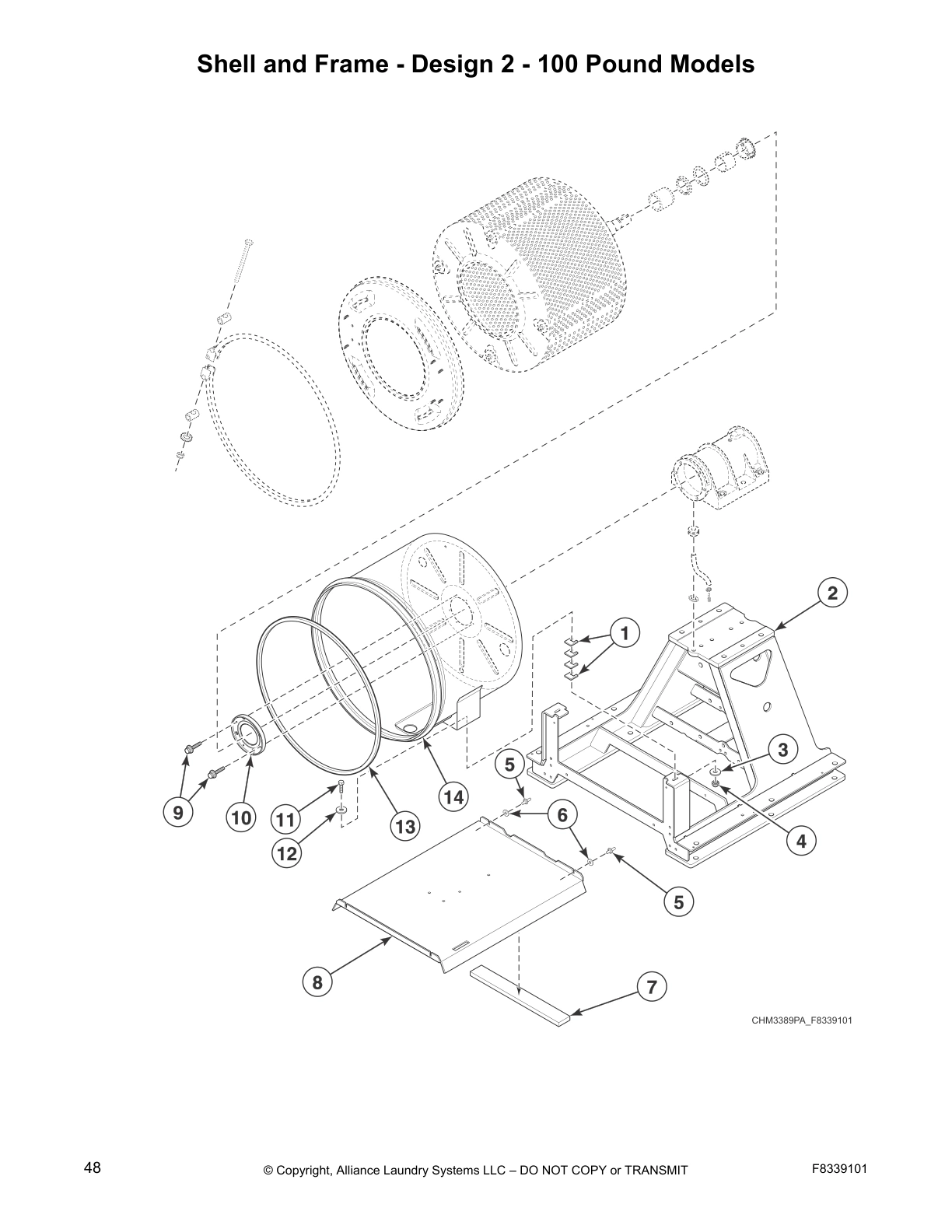

Shell and Frame - Design 2 - 100 Pound Models

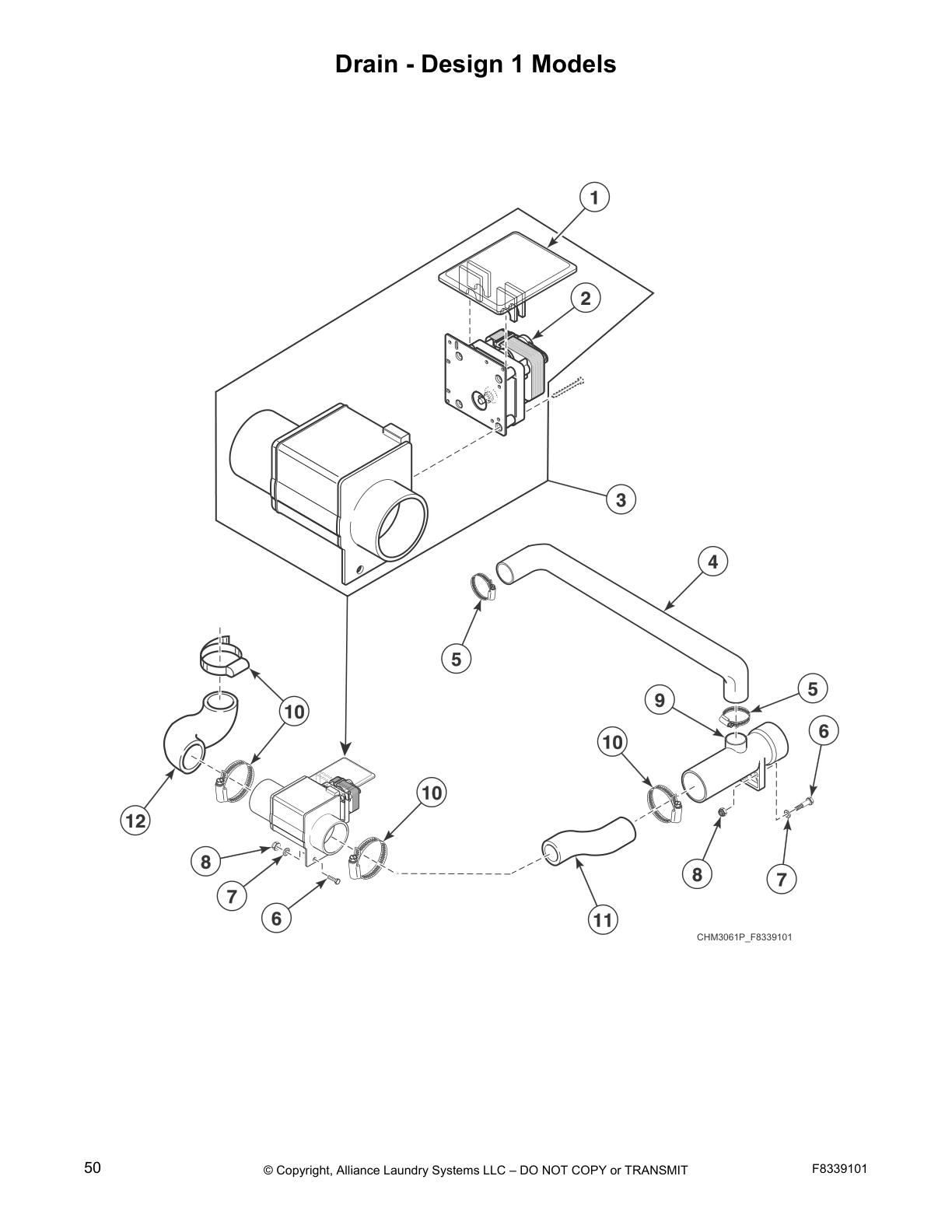

Drain - Design 1 Models

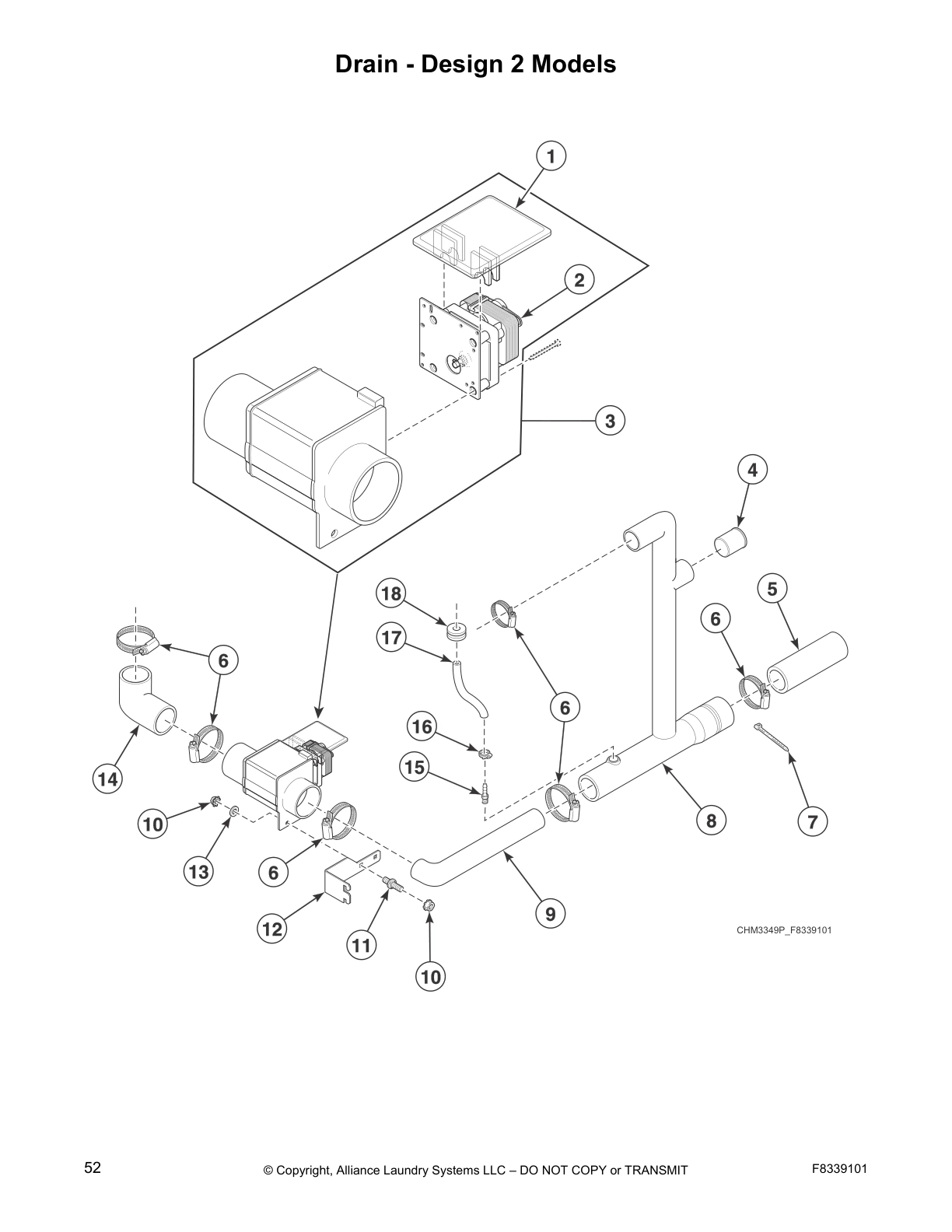

Drain - Design 2 Models

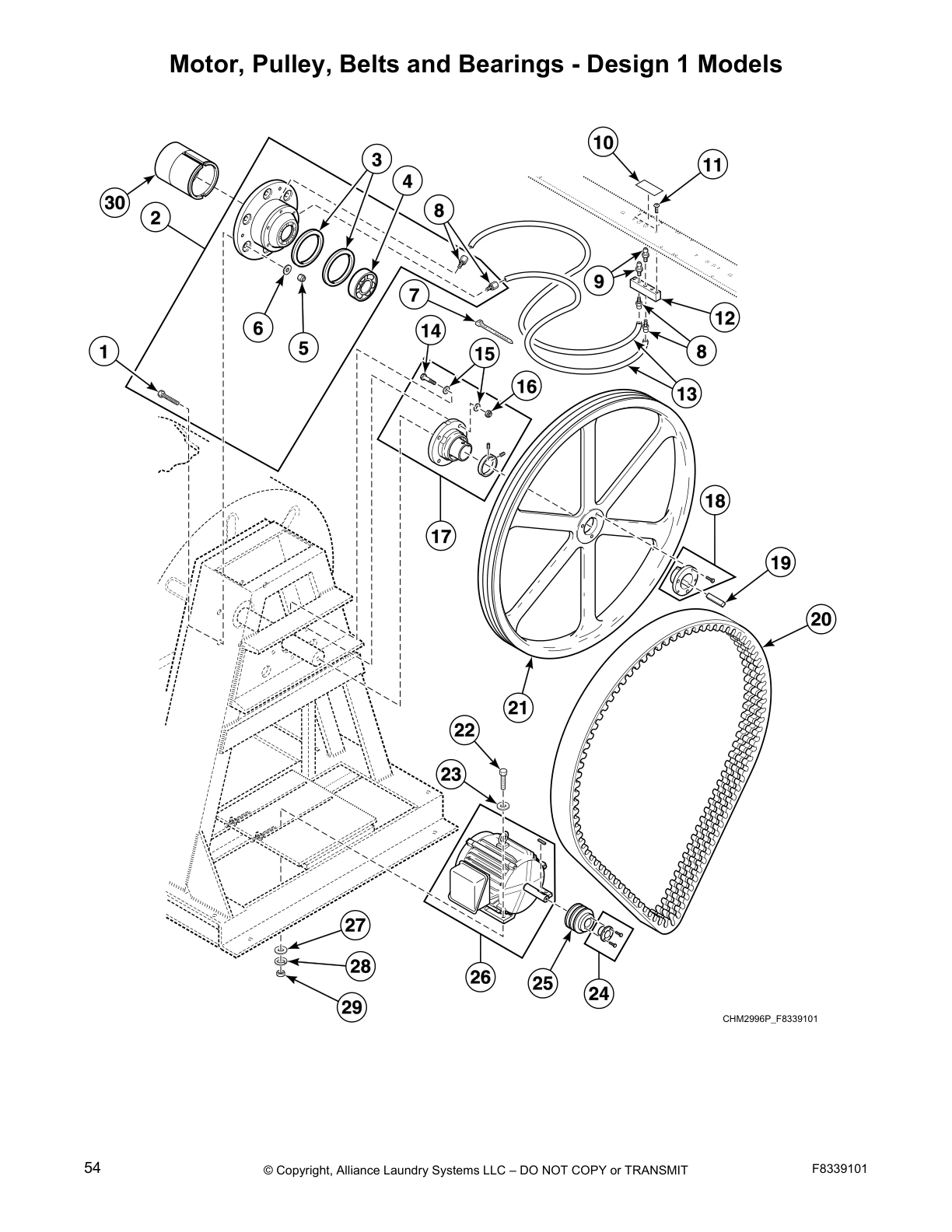

Motor, Pulley, Belts and Bearings - Design 1 Models

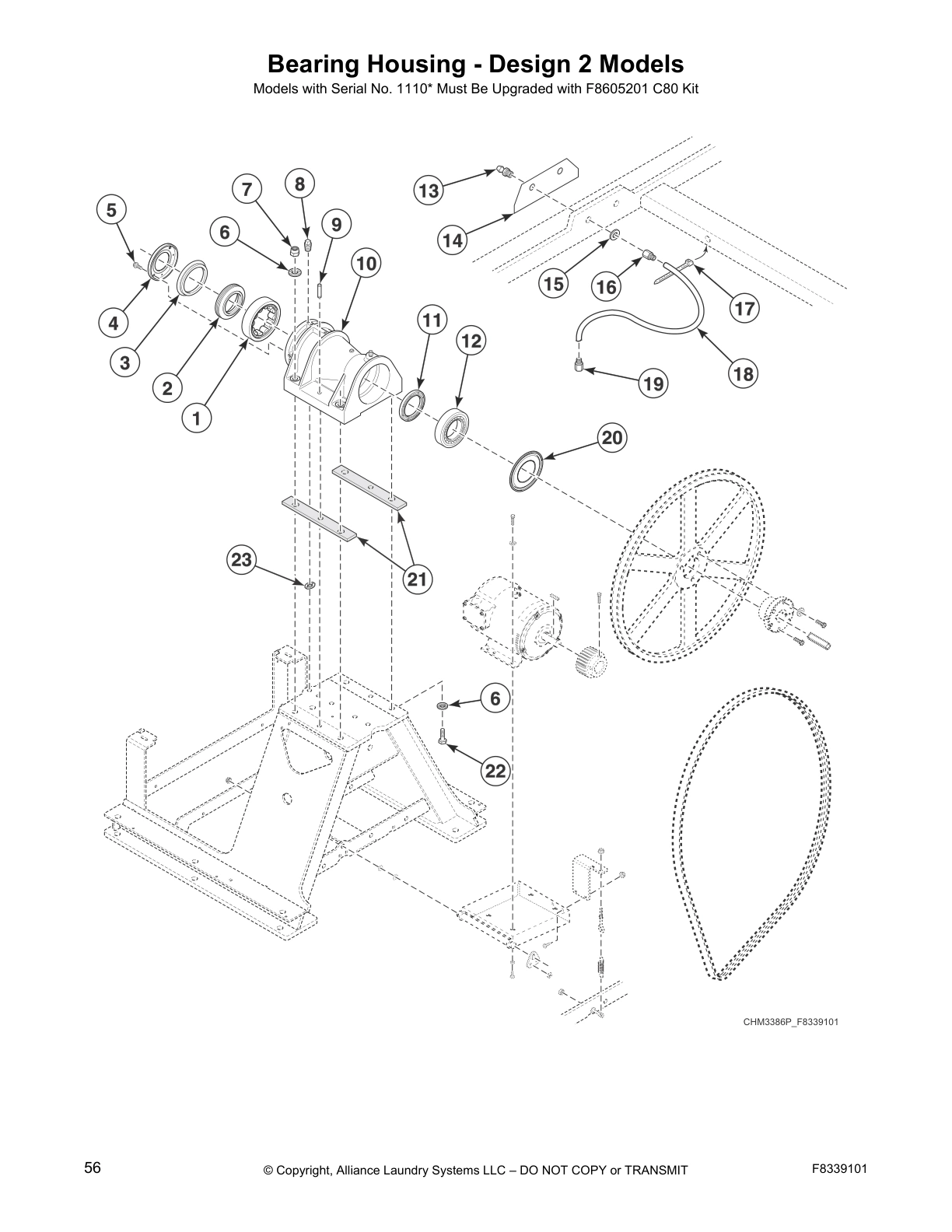

Bearing Housing - Design 2 Models

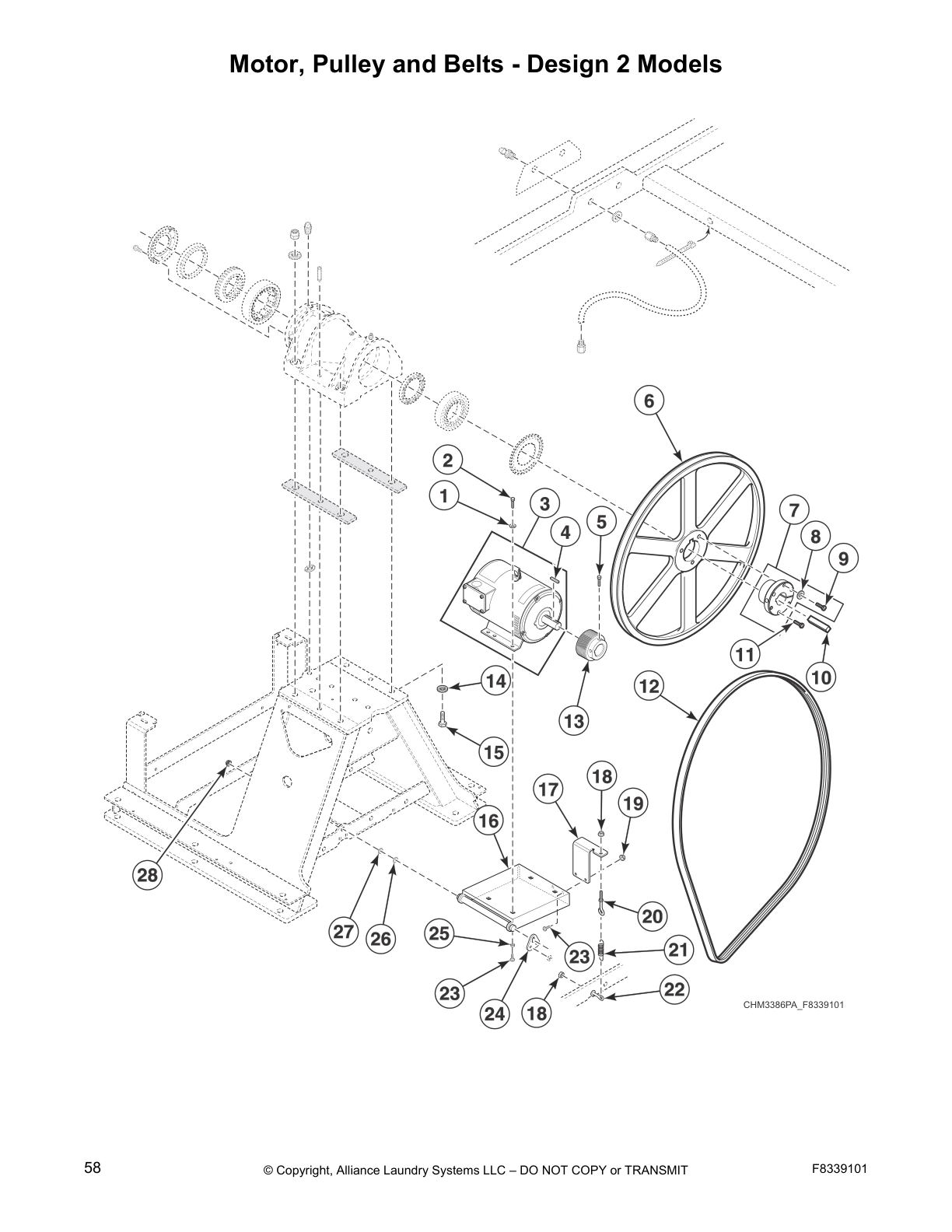

Motor, Pulley and Belts - Design 2 Models

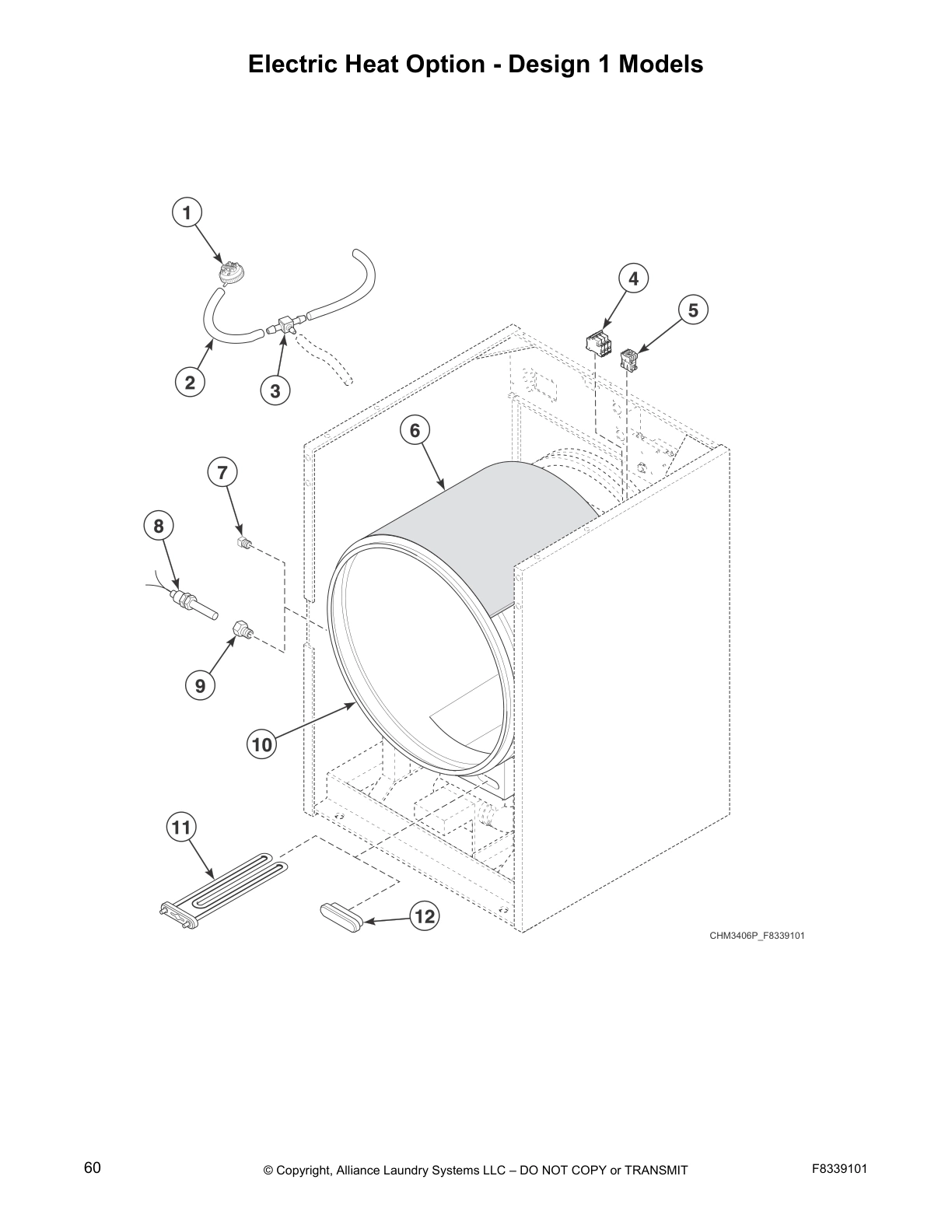

Electric Heat Option - Design 1 Models

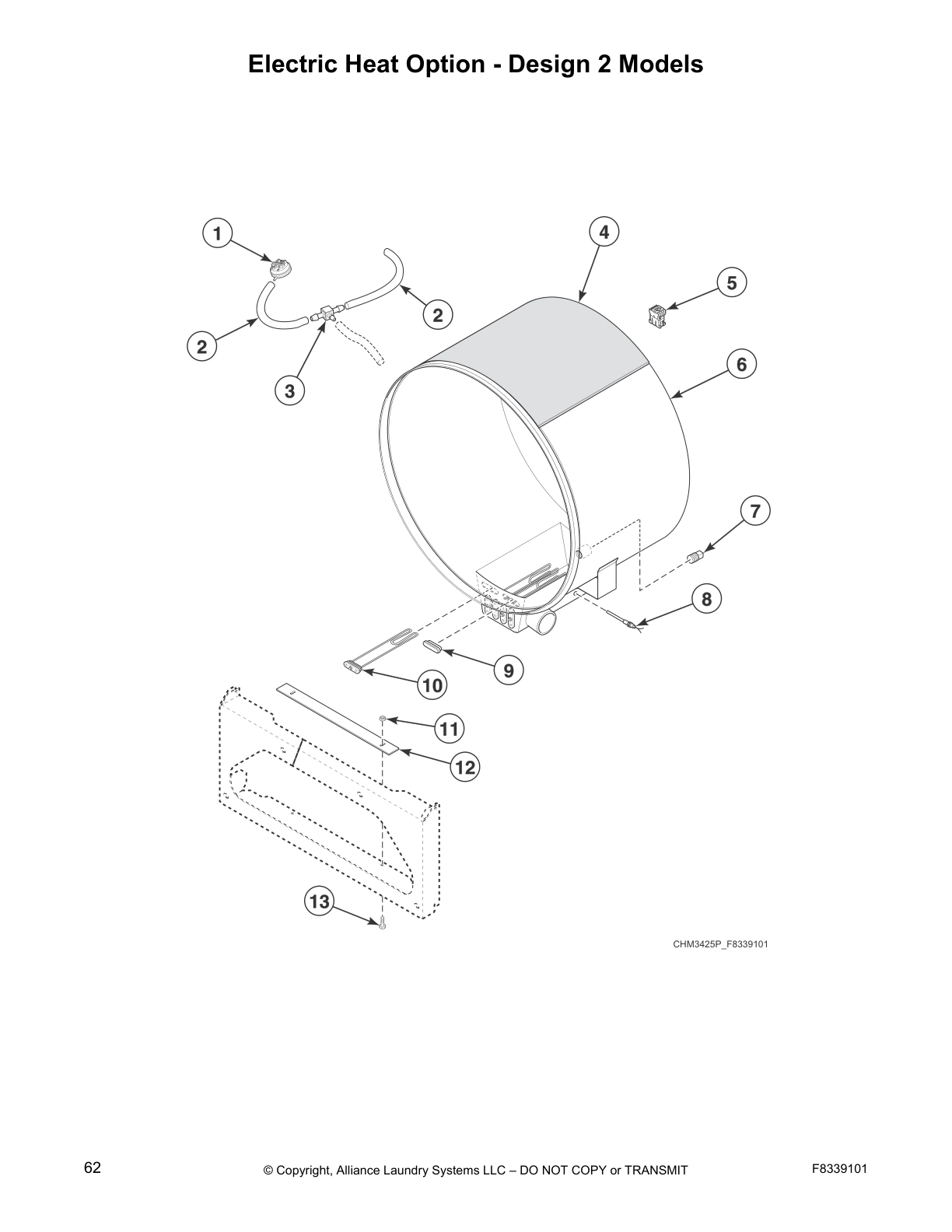

Electric Heat Option - Design 2 Models

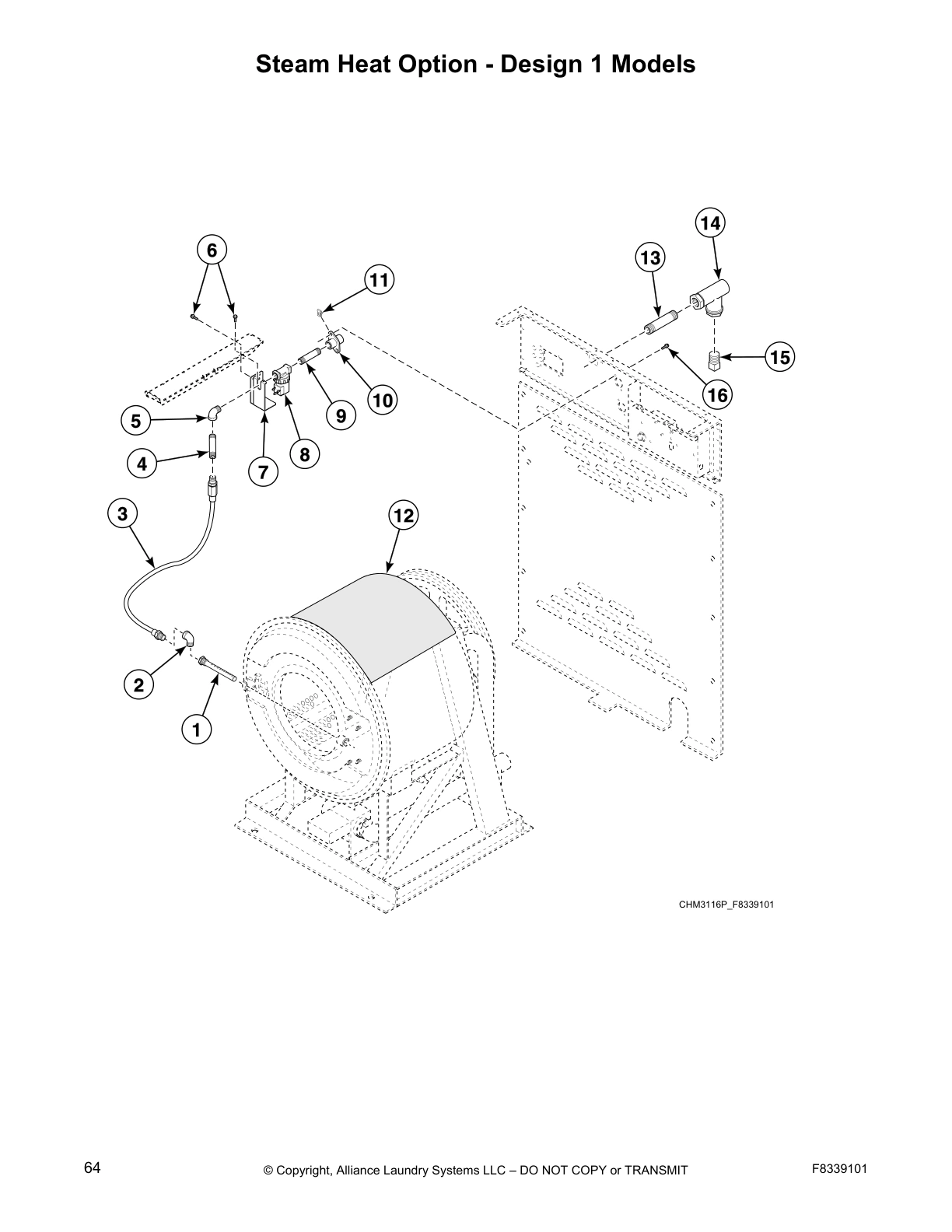

Steam Heat Option - Design 1 Models

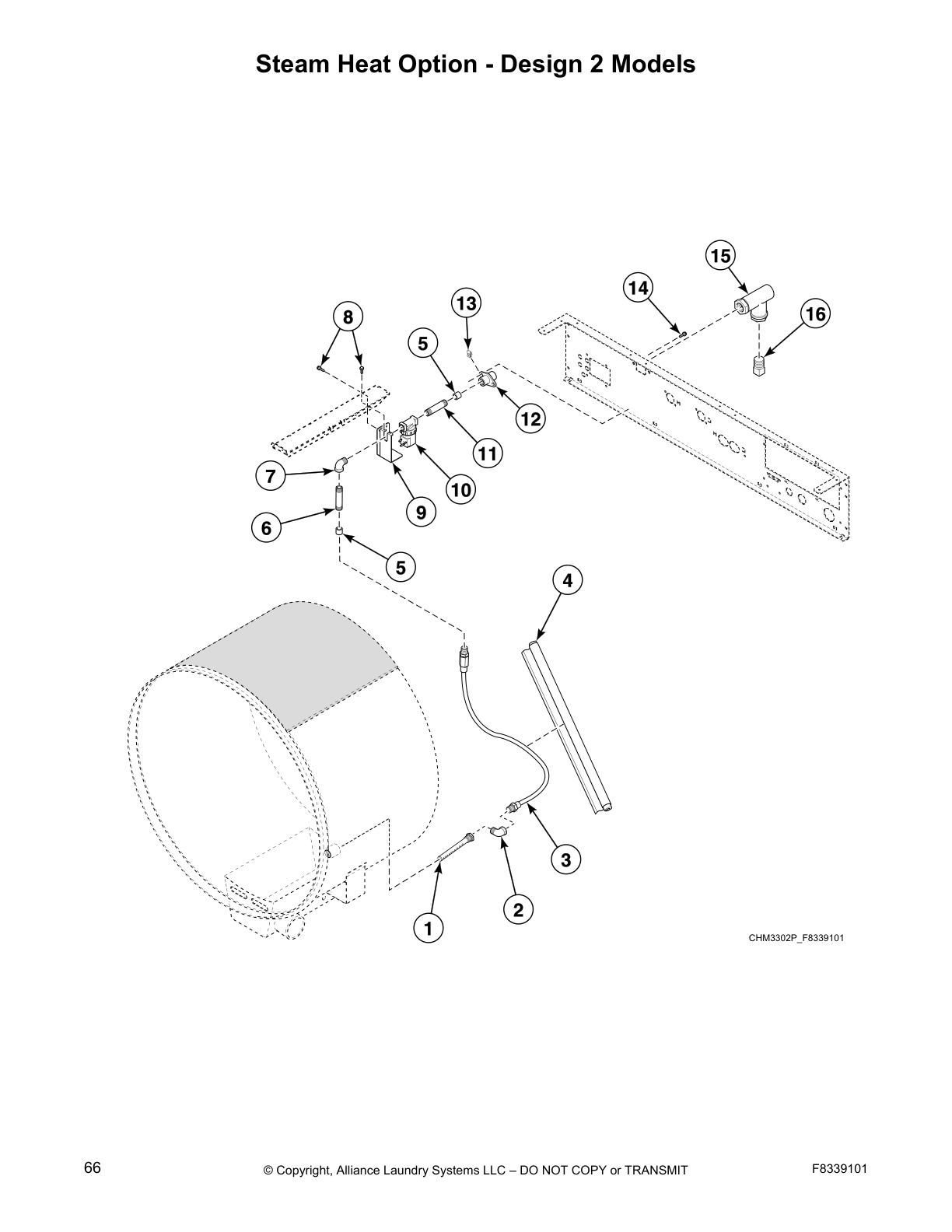

Steam Heat Option - Design 2 Models

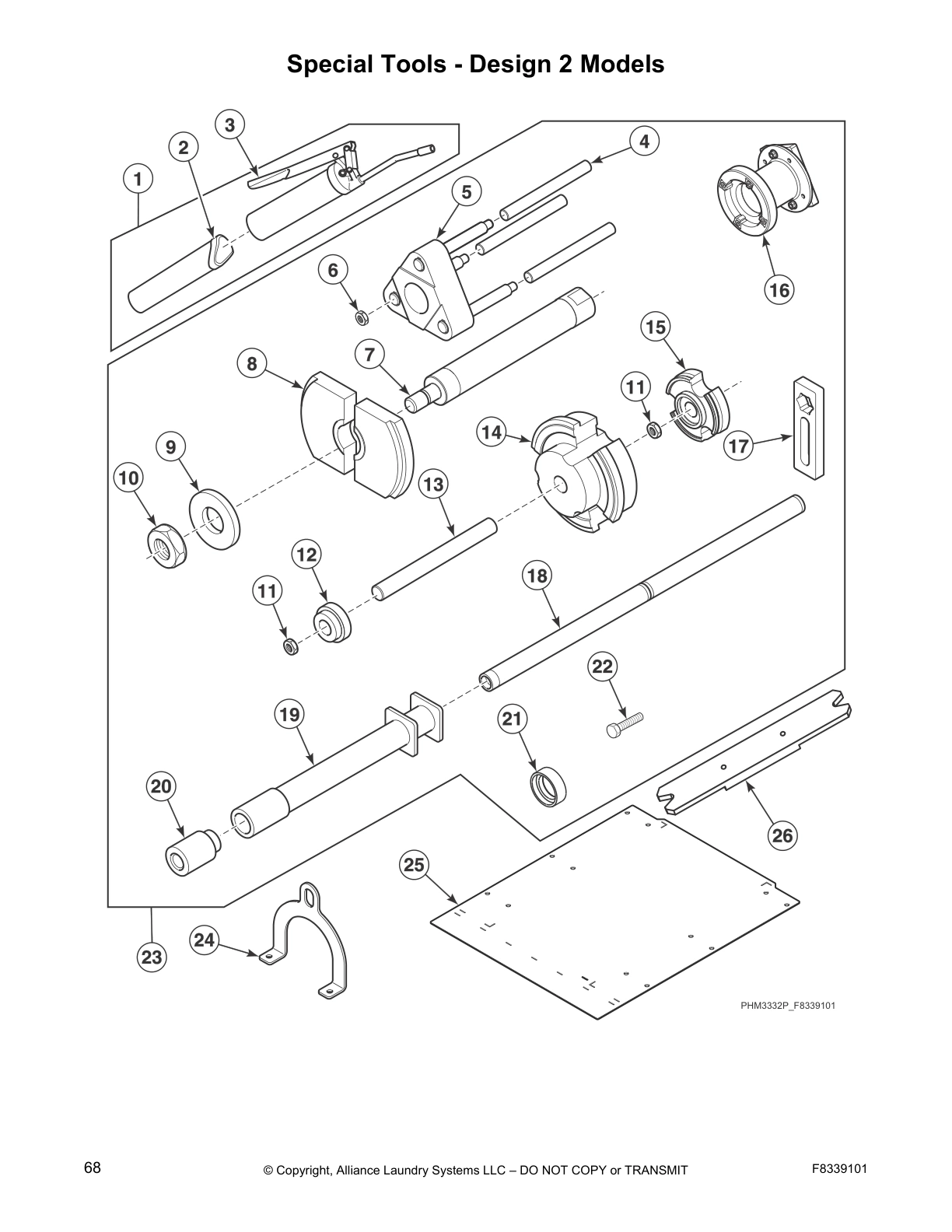

Special Tools - Design 2 Models
Common parts from model Huebsch HCN100HNF Washer
SPQ F8028701 SPQ F8028701 Contact Us For Availability
SPQ F8508801 SPQ F8508801 Contact Us For Availability
SPQ F8245101 SPQ F8245101 Contact Us For Availability
SPQ F8505105 SPQ F8505105 Contact Us For Availability
SPQ F8544601 SPQ F8544601 Contact Us For Availability
Clamp Ring Assembly SPQ F8493301 Contact Us For Availability
Models through 8/20/2014 SPQ F8503801 Contact Us For Availability
Seal Wear Plate SPQ F8474602 Contact Us For Availability
Motor Rod Plate SPQ M400077 Contact Us For Availability
Spacer SPQ F8381801 Contact Us For Availability
1
Water Pressure Switch SPQ F8404401 Contact Us For Availability
1
Screw SPQ F8117601 Contact Us For Availability
1
Key SPQ 70155603 Contact Us For Availability
1
Door Latch Arm Assembly SPQ F8221403 Contact Us For Availability
1
Door Lock Solenoid Replacement Kit SPQ F977P3 Contact Us For Availability
1
Dispenser Assembly SPQ F8047401 Contact Us For Availability
1
Double Check Valve SPQ F8301201 Contact Us For Availability
1
Steam Filter SPQ F270308 Contact Us For Availability
1
Washer SPQ F8402701 Contact Us For Availability
1
Drain Valve Cover SPQ F200133600 Contact Us For Availability
1
Bearing
Front SPQ F8280504 Contact Us For Availability
1
Washer SPQ F8366601 Contact Us For Availability
1
Steam Injector Tube Assembly SPQ F8368201 Contact Us For Availability
2
Temperature Knob SPQ 44104601 Contact Us For Availability
2
Contactor SPQ F8433001 Contact Us For Availability
2
Cabinet Top Brace SPQ 44089303P Contact Us For Availability
2
Expansion Clip SPQ F8388402 Contact Us For Availability
2
Pop Rivet SPQ F431133 Contact Us For Availability
2
Door Lock Microswitch SPQ F430225 Contact Us For Availability
2
Siphon Cover SPQ F8047901 Contact Us For Availability
2
Washer SPQ J1408004 Contact Us For Availability
2
Belt
100 pound models SPQ F8562503 Contact Us For Availability
2
Screw SPQ 28448 Contact Us For Availability
2
Plug SPQ F420409 Contact Us For Availability
3
Spacer SPQ F200203200 Contact Us For Availability
3
Nut SPQ F431017 Contact Us For Availability
3
Tubing SPQ F8153901 Contact Us For Availability
3
Dispenser Lid SPQ F8427701 Contact Us For Availability
3
Door Assembly SPQ F8342001 Contact Us For Availability
3
Manifold SPQ F602586-36 Contact Us For Availability
3
Grommet SPQ F8410501 Contact Us For Availability
3
Radial Seal
Viton SPQ F8313701 Contact Us For Availability
3
HC, S pound models through 11/13/2013 SPQ F8387601 Contact Us For Availability
3
Street Elbow SPQ F421703 Contact Us For Availability
4
Lid Clamp SPQ F8048101 Contact Us For Availability
4
Fuse SPQ F200233500 Contact Us For Availability
4
Tee SPQ F8246601 Contact Us For Availability
4
Circuit Breaker SPQ 70256901P Contact Us For Availability
4
Temperature Selector Switch Bracket SPQ 70391701 Contact Us For Availability
4
Top Cover Latch SPQ F8186702 Contact Us For Availability
4
Nut SPQ M400977 Contact Us For Availability
4
SPQ F8221701 SPQ F8221701 Contact Us For Availability
4
Door Lock Splash Shield SPQ F431901 Contact Us For Availability
4
SPQ F8405003 SPQ F8405003 Contact Us For Availability
4
Drain Valve Kit SPQ F8577201 Contact Us For Availability
4
Triple Lip SPQ F8452701 Contact Us For Availability
4
Motor Isolation Kit
Includes F8535103 Motor P SPQ F8441901 Contact Us For Availability
4
Steam Hose SPQ F200197 Contact Us For Availability
5
SPQ F431222 SPQ F431222 Contact Us For Availability
5
Jumper Configuration Assembly SPQ F8201301 Contact Us For Availability
5
Pop Rivet SPQ F8041804 Contact Us For Availability
5
Plug SPQ F8091701 Contact Us For Availability
5
Door Lock Plate Assembly SPQ F320200 Contact Us For Availability
5
Nut SPQ F200213 Contact Us For Availability
5
Screw SPQ F8302701 Contact Us For Availability
5
Radial Seal
Standard SPQ F8337101 Contact Us For Availability
5
Plug SPQ F0150502-00 Contact Us For Availability
5
Motor Spring Bracket SPQ F8451601 Contact Us For Availability
5
Shell Insulation SPQ F8209105 Contact Us For Availability
5
Pipe Insulation SPQ F8233708 Contact Us For Availability
6
SPQ F8567501 SPQ F8567501 Contact Us For Availability
6
Contactor SPQ F330188P Contact Us For Availability
6
Pop Rivet SPQ F8201001 Contact Us For Availability
6
SPQ F8230601 SPQ F8230601 Contact Us For Availability
6
Screw SPQ F8223202 Contact Us For Availability
6
SPQ F8047801 SPQ F8047801 Contact Us For Availability
6
Triple Lip SPQ F8527701 Contact Us For Availability
6
Cable Tie SPQ F200165100 Contact Us For Availability
6
Nut SPQ F8333302 Contact Us For Availability
7
SPQ F8199501 SPQ F8199501 Contact Us For Availability
7
Output/Logic Harness SPQ 44071501 Contact Us For Availability
7
Washer SPQ 70412601 Contact Us For Availability
7
SPQ F430108 SPQ F430108 Contact Us For Availability
7
Door Lock Plate Shim SPQ F430977 Contact Us For Availability
7
SPQ F8043409 SPQ F8043409 Contact Us For Availability
7
Shell Front Assembly SPQ F8537808 Contact Us For Availability
7
Concrete Hardware Kit SPQ 70414101 Contact Us For Availability
7
Seal SPQ F8550101 Contact Us For Availability
7
Molded Drain SPQ F200201 Contact Us For Availability
7
Cable Tie SPQ F140606 Contact Us For Availability
7
Shell Weldment SPQ F8427401 Contact Us For Availability
7
Steam Bracket SPQ F8116301 Contact Us For Availability
8
SPQ F8201101 SPQ F8201101 Contact Us For Availability
8
SPQ F430215 SPQ F430215 Contact Us For Availability
8
SPQ M400985 SPQ M400985 Contact Us For Availability
8
SPQ F8544701 SPQ F8544701 Contact Us For Availability
8
External Door Lock Harness SPQ F8344401 Contact Us For Availability
8
SPQ F8042809 SPQ F8042809 Contact Us For Availability
8
Basket Assembly SPQ F8229801 Contact Us For Availability
8
SPQ F8509501 SPQ F8509501 Contact Us For Availability
8
Gasket SPQ F8442802 Contact Us For Availability
8
Eye Bolt SPQ F8333301 Contact Us For Availability
8
Plug SPQ F200202600 Contact Us For Availability
8
SPQ H86070034 SPQ H86070034 Contact Us For Availability
9
SPQ F8186701 SPQ F8186701 Contact Us For Availability
9
SPQ F8223901 SPQ F8223901 Contact Us For Availability
9
SPQ F430532 SPQ F430532 Contact Us For Availability
9
Door Lock Assembly SPQ F8059701 Contact Us For Availability
9
SPQ F8048601 SPQ F8048601 Contact Us For Availability
9
Seal Sleeve SPQ F8517001 Contact Us For Availability
9
SPQ F8442702 SPQ F8442702 Contact Us For Availability
9
Screw SPQ F8171201 Contact Us For Availability
9
Extension Spring SPQ F8335201P Contact Us For Availability
9
Thermistor Sensor SPQ F370609 Contact Us For Availability
9
Basket Puller Tool SPQ F8456101 Contact Us For Availability
10
Door Bezel SPQ F170419-3 Contact Us For Availability
10
Top Cover Hinge SPQ F8258601 Contact Us For Availability
10
Reed Switch Assembly SPQ F8066802 Contact Us For Availability
10
Door Lock Cover SPQ F8245001 Contact Us For Availability
10
Insertion Sleeve SPQ F8464901 Contact Us For Availability
10
Heating Element SPQ F360203P Contact Us For Availability
10
DIN Valve Adapter Kit SPQ F8382301 Contact Us For Availability
10
Nut SPQ F8455801 Contact Us For Availability
11
Bottom False Panel SPQ F430174 Contact Us For Availability
11
Front Panel SPQ F8442401 Contact Us For Availability
11
Door Hinge Shim Kit SPQ F200131000P Contact Us For Availability
11
Shim SPQ F8484401 Contact Us For Availability
11
Vacuum Breaker Hose SPQ F0200244-00 Contact Us For Availability
11
Hose Clamp SPQ F200222 Contact Us For Availability
11
Hose Barb Connector SPQ F8429401 Contact Us For Availability
11
Sleeve Adapter SPQ F8382501 Contact Us For Availability
11
Stud SPQ 70334702 Contact Us For Availability
11
Screw SPQ H88213996 Contact Us For Availability
11
Cylindrical SPQ F8528501 Contact Us For Availability
11
Screw SPQ 44048902 Contact Us For Availability
11
Electric Heat Harness SPQ F8056701 Contact Us For Availability
11
Bearing Sleeve Assembly SPQ F8457701 Contact Us For Availability
12
Bottom False Panel SPQ F8388408 Contact Us For Availability
12
Hole Plug SPQ F8223801 Contact Us For Availability
12
Screw SPQ F430536 Contact Us For Availability
12
Door Lock Catch SPQ F8344501 Contact Us For Availability
12
Mixing Valve SPQ F8440401 Contact Us For Availability
12
Fill Cover SPQ F8586301 Contact Us For Availability
12
Shell Front Gasket Kit SPQ F8513501 Contact Us For Availability
12
Bracket SPQ F8387401 Contact Us For Availability
12
Includes basket sleeve and b SPQ F8440001 Contact Us For Availability
12
Belt
100 pound models SPQ F8382817 Contact Us For Availability
12
Valve SPQ F8322801P Contact Us For Availability
13
Front Panel SPQ F8486904 Contact Us For Availability
13
Rear Panel Assembly SPQ F8455302 Contact Us For Availability
13
Washer SPQ M405535 Contact Us For Availability
13
Door Hinge SPQ F190216P Contact Us For Availability
13
Bolt SPQ F8270701 Contact Us For Availability
13
Valve Panel SPQ F8434002 Contact Us For Availability
13
Valve Panel SPQ F8399101 Contact Us For Availability
13
Shell Weldment SPQ F8427402 Contact Us For Availability
13
Radial Lip Seal
Models starting 8/21/2014 SPQ F8375401 Contact Us For Availability
13
Models starting 4/1/2 SPQ F8382815 Contact Us For Availability
13
Coupling SPQ F8362701 Contact Us For Availability
14
Drive Mounting Bracket SPQ F8204801P Contact Us For Availability
14
Screw SPQ F8230301 Contact Us For Availability
14
Screw SPQ F8434001 Contact Us For Availability
14
Nut SPQ F8427403 Contact Us For Availability
14
Water Reuse Hose SPQ C000412 Contact Us For Availability
14
Radial Lip Seal
Double Lip SPQ F190701 Contact Us For Availability
14
Nut SPQ 70030401 Contact Us For Availability
15
Circuit Breaker SPQ F8303601P Contact Us For Availability
15
Right Side Panel SPQ F8427603 Contact Us For Availability
15
Rod SPQ F602813-3 Contact Us For Availability
15
Door Lock Switch Lever SPQ F8223401 Contact Us For Availability
15
Drain Hose SPQ F8395801 Contact Us For Availability
15
Models through 8/20/2014 SPQ F8229901 Contact Us For Availability
15
Screw SPQ 20253 Contact Us For Availability
16
Hose SPQ F8322401 Contact Us For Availability
16
Washer SPQ F431929 Contact Us For Availability
16
Torsion/Door Lock Spring SPQ F8070301 Contact Us For Availability
16
Hose Barb SPQ F8402301 Contact Us For Availability
16
Bearing
Rear SPQ 70292801 Contact Us For Availability
16
Belt
80 pound models SPQ F8382808 Contact Us For Availability
16
Screw SPQ F8530201 Contact Us For Availability
17
Terminal Tray Cover SPQ 430642 Contact Us For Availability
17
Door Mount SPQ F150271 Contact Us For Availability
17
Nut SPQ 44087101 Contact Us For Availability
17
Terminal Tray Cover Gasket SPQ F8230001 Contact Us For Availability
17
Spherical SPQ F422114 Contact Us For Availability
17
100 pound models star 11/14/2013 SPQ F8382807 Contact Us For Availability
18
Grommet SPQ F8405301 Contact Us For Availability
18
Bolt SPQ F430974 Contact Us For Availability
18
Washer SPQ F431902 Contact Us For Availability
18
Terminal Tray Cover SPQ F8177001 Contact Us For Availability
18
Tubing SPQ F8578002 Contact Us For Availability
18
Grease Fitting SPQ F140605 Contact Us For Availability
18
100 pound models through 1 have been convert SPQ F8362602 Contact Us For Availability
19
Panel Lock SPQ 202175 Contact Us For Availability
19
Magnet SPQ F8508101 Contact Us For Availability
19
Grease Instruction Label SPQ C000628P Contact Us For Availability
19
Models starting 4/1/2015 SPQ F8362601 Contact Us For Availability
20
Harness SPQ F8206901 Contact Us For Availability
20
Left Side Panel SPQ F8383302 Contact Us For Availability
20
Door Glass Retainer SPQ F431916 Contact Us For Availability
20
Air Coupling SPQ F8203808 Contact Us For Availability
20
Models through 11/14 SPQ F8342201 Contact Us For Availability
21
Door Glass Gasket SPQ F8390801 Contact Us For Availability
21
Bolt SPQ F8427604 Contact Us For Availability
21
Filter SPQ F8454601 Contact Us For Availability
21
Cable Tie SPQ F8203807 Contact Us For Availability
22
Top Cover SPQ F8230501 Contact Us For Availability
22
Door Glass SPQ F431223 Contact Us For Availability
22
Nut SPQ F8454401 Contact Us For Availability
22
Tubing SPQ F8379301 Contact Us For Availability
22
Bearing Seal Insertion and Removal Kit SPQ M400063 Contact Us For Availability
23
DIN Rail SPQ F8449801 Contact Us For Availability
23
Ground Lug Connector SPQ F430232 Contact Us For Availability
23
Bearing Sleeve SPQ F431100 Contact Us For Availability
23
Connector SPQ F8207001 Contact Us For Availability
23
Frame Template SPQ F8599401 Contact Us For Availability
24
Bracket SPQ F8053902 Contact Us For Availability
24
Spring Pin SPQ F8508001 Contact Us For Availability
24
3-Way Valve SPQ M411283 Contact Us For Availability
25
Control Tray Assembly SPQ F8053901P Contact Us For Availability
25
Door Handle Spacer Kit SPQ F8549401 Contact Us For Availability
25
Diaphragm and Guide Kit SPQ F430909 Contact Us For Availability
25
Washer SPQ F8413101 Contact Us For Availability
25
HC, SC and UC 100 pou through 11/13/2013 tha SPQ F8319503 Contact Us For Availability
26
Door Handle SPQ F8504903 Contact Us For Availability
26
Washer SPQ F8286402P Contact Us For Availability
26
100 pou starting 11/14/2013 SPQ F8440701 Contact Us For Availability
27
Contact Switch SPQ F8385301 Contact Us For Availability
27
Door SPQ F8504902 Contact Us For Availability
27
Water Hose SPQ G582P3 Contact Us For Availability
27
Motor Pulley
3GRV-3V-3.15 SPQ F8402801 Contact Us For Availability
28
Contact Base SPQ F8375202 Contact Us For Availability
28
Door Gasket SPQ F8504901 Contact Us For Availability
28
Hose Clamp SPQ F8286401P Contact Us For Availability
28
80 pound models SPQ F8441101 Contact Us For Availability
29
Emergency Stop Pushbutton SPQ F8401301 Contact Us For Availability
29
Blind Rivet SPQ F8499904 Contact Us For Availability
29
Dispenser Gasket SPQ F8232003 Contact Us For Availability
30
Emergency Stop Plate SPQ F8359703 Contact Us For Availability
30
Door Assembly SPQ F8535501 Contact Us For Availability
31
Access Cover SPQ F8308301 Contact Us For Availability
32
Dispenser Overflow Hose SPQ F8333201 Contact Us For Availability
33
Pop Rivet SPQ F8069501 Contact Us For Availability
34
Auxiliary Control Assembly SPQ F8538101 Contact Us For Availability
34
Auxiliary Control Assembly SPQ F120P3 Contact Us For Availability
34
Vacuum Breaker Assembly SPQ F8137504 Contact Us For Availability
35
Cap SPQ F8535601 Contact Us For Availability
36
SPQ F0431807-00 SPQ F0431807-00 Contact Us For Availability
NI
SPQ F980P3 SPQ F980P3 Contact Us For Availability
NI
SPQ F430903 SPQ F430903 Contact Us For Availability
NI
SPQ F8189401P SPQ F8189401P Contact Us For Availability
NI
SPQ M413506 SPQ M413506 Contact Us For Availability
NI
SPQ F8028116 SPQ F8028116 Contact Us For Availability
NI
SPQ F8182403 SPQ F8182403 Contact Us For Availability
NI
SPQ F431041 SPQ F431041 Contact Us For Availability
NI
SPQ F8440801P SPQ F8440801P Contact Us For Availability
NI
SPQ F8505106 SPQ F8505106 Contact Us For Availability
NI
SPQ F8505103 SPQ F8505103 Contact Us For Availability
NI
SPQ F8505102 SPQ F8505102 Contact Us For Availability
NI
SPQ F8340001 SPQ F8340001 Contact Us For Availability
NI
SPQ F8632401 SPQ F8632401 Contact Us For Availability
NI
SPQ F8197701 SPQ F8197701 Contact Us For Availability
NI
Fill Hose Kit SPQ F200165 Contact Us For Availability
NI
Hose Fitting SPQ F200164 Contact Us For Availability
NI
SPQ 44069101 SPQ 44069101 Contact Us For Availability
NI
SPQ 1112P SPQ 1112P Contact Us For Availability
NI
Basket Assembly Kit SPQ F8517003 Contact Us For Availability
NI
Concrete Hardware Kit SPQ F8343911 Contact Us For Availability
NI
SPQ F8397301 SPQ F8397301 Contact Us For Availability
NI
SPQ F8500501 SPQ F8500501 Contact Us For Availability
NI
SPQ F8500401 SPQ F8500401 Contact Us For Availability
NI
SPQ F8386807 SPQ F8386807 Contact Us For Availability
NI
SPQ F8562001 SPQ F8562001 Contact Us For Availability
NI
Seal Scupper Pad SPQ F430248 Contact Us For Availability
NI
Excluder Seal
Standard SPQ F8406502 Contact Us For Availability
NI
Excluder Seal
Viton SPQ F8503701 Contact Us For Availability
NI
Nut SPQ F822P3 Contact Us For Availability
NI
Dowel Pin SPQ F8474601 Contact Us For Availability
NI
Bolt SPQ F8487102 Contact Us For Availability
NI
O-Ring SPQ F8533801 Contact Us For Availability
NI
Flanged Bushing
Models starting 4/1/2015 SPQ M400013 Contact Us For Availability
NI
Flanged Bushing
Includes screws SPQ 44079203 Contact Us For Availability
NI
Heating Element Plug SPQ F360202 Contact Us For Availability
NI
SPQ F8490301 SPQ F8490301 Contact Us For Availability
NI
SPQ F460129P SPQ F460129P Contact Us For Availability
× ![]()
