Model Huebsch HCL060HEF Washer – Common Parts & Diagrams
Decals
Control Module - 2 Speed OPL Models (Drawing 1 of 2)

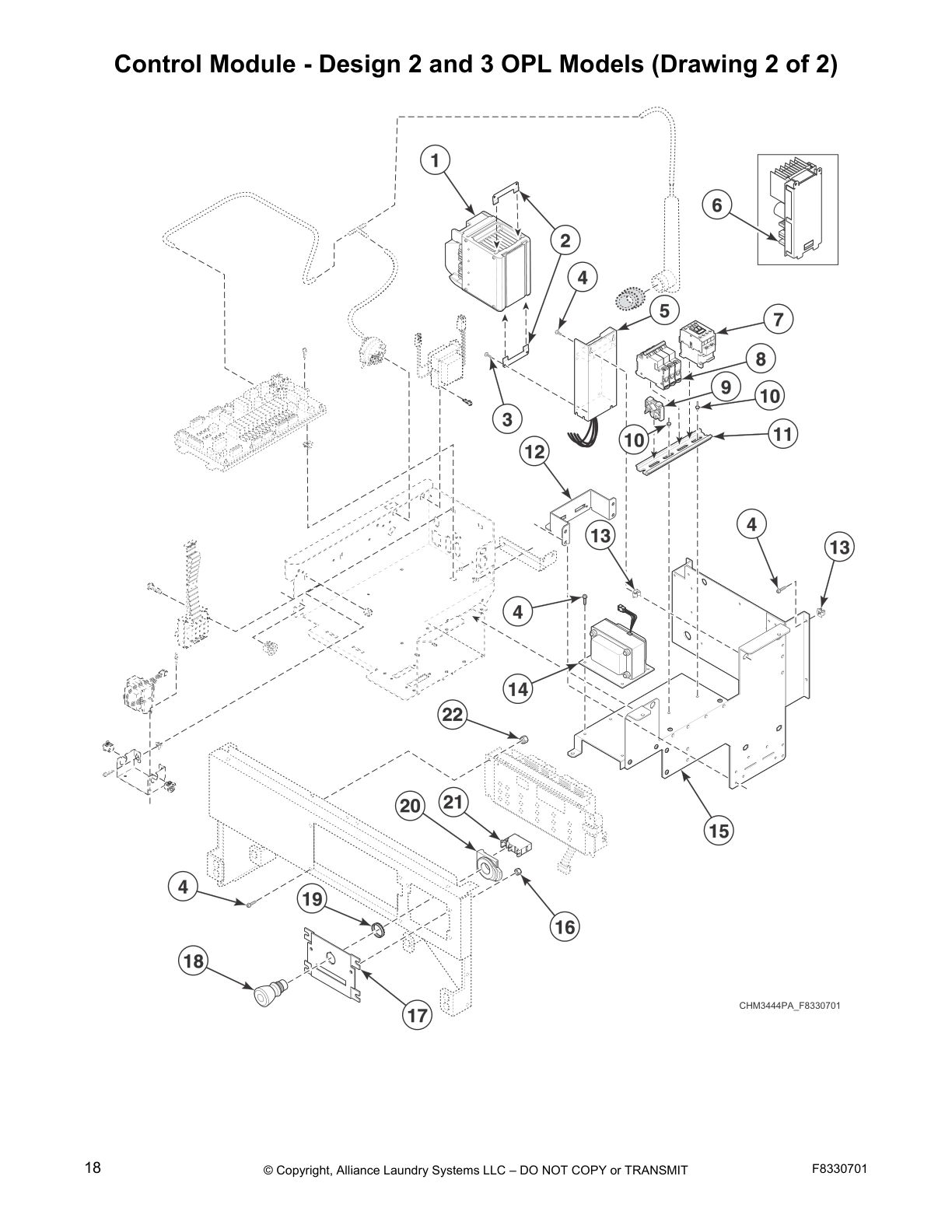

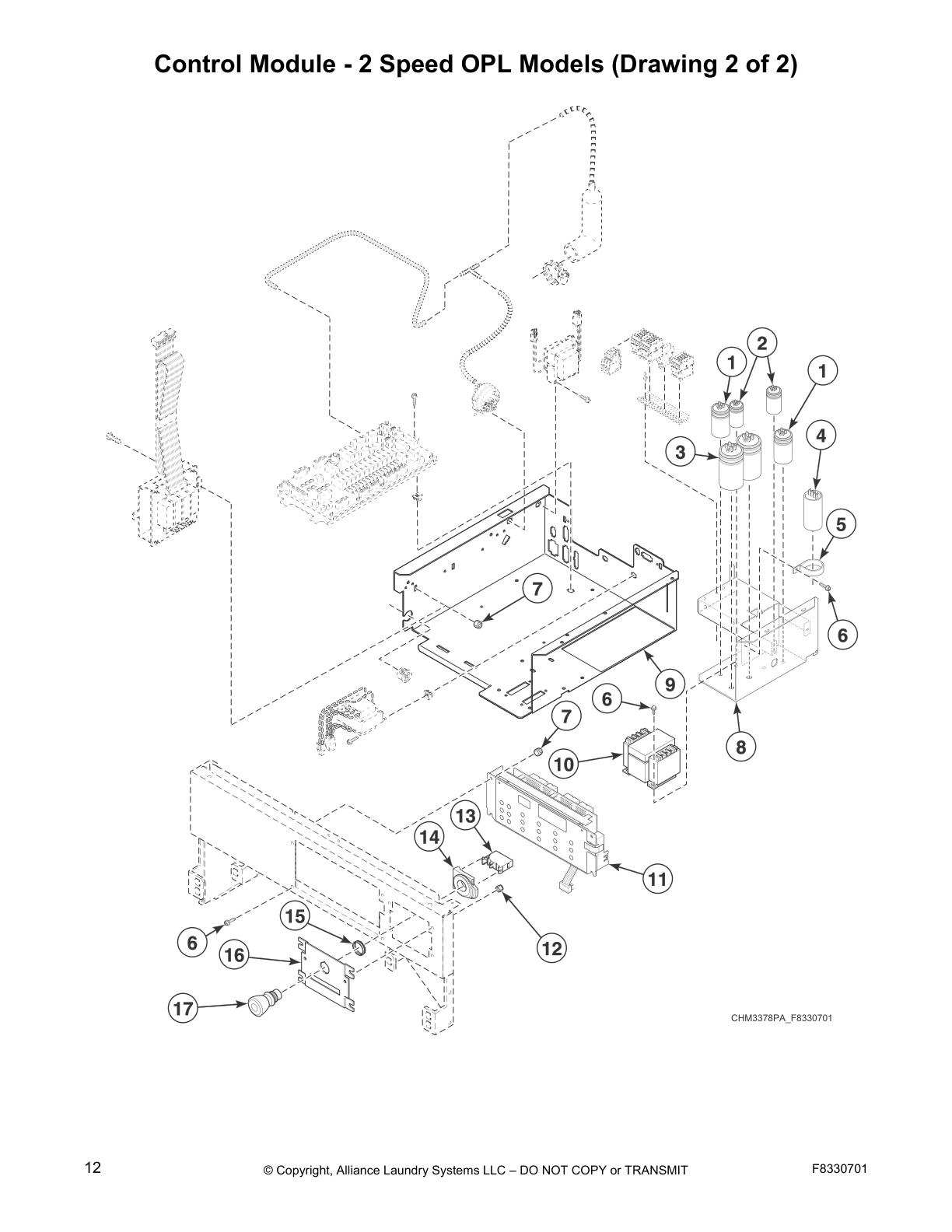

Control Module - 2 Speed OPL Models (Drawing 2 of 2)

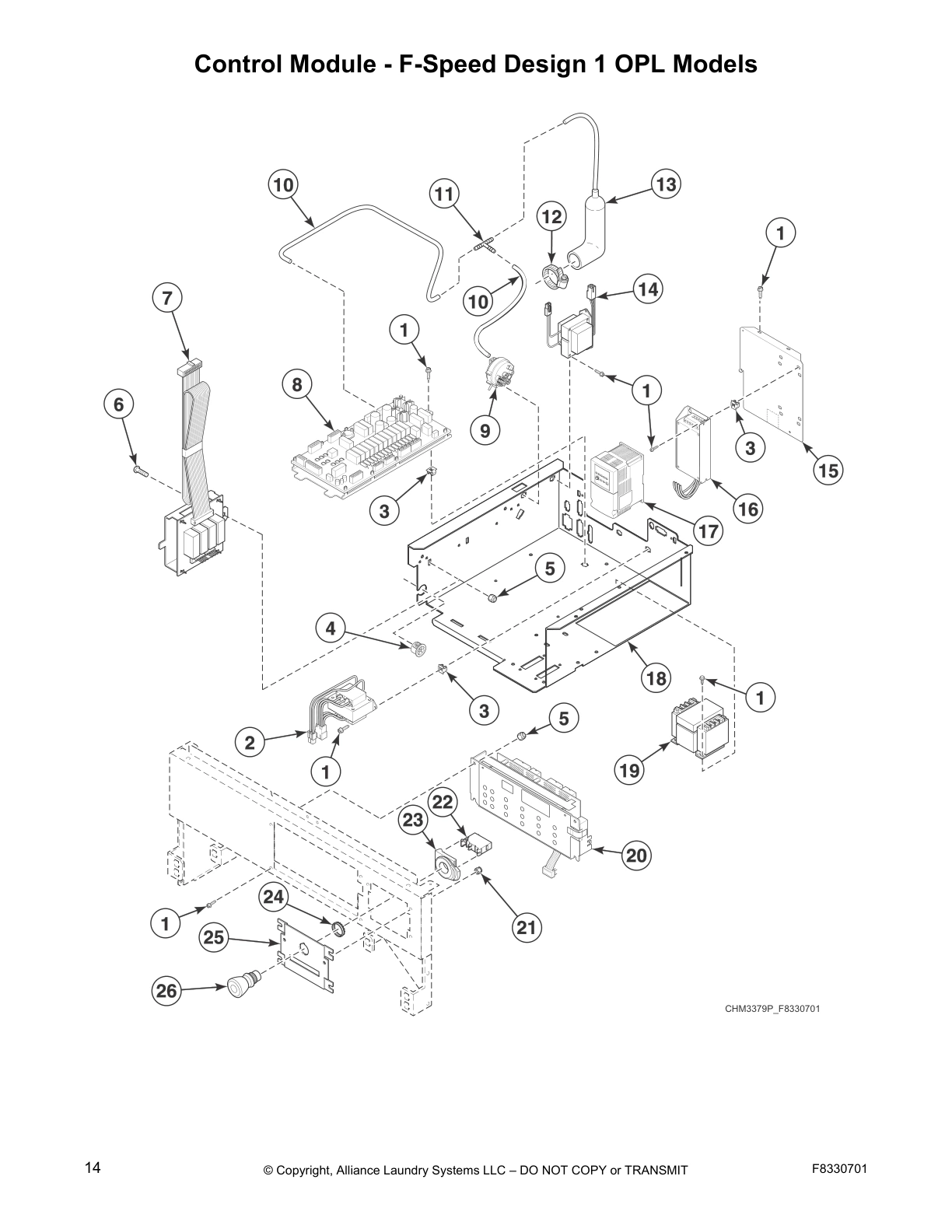

Control Module - F-Speed Design 1 OPL Models

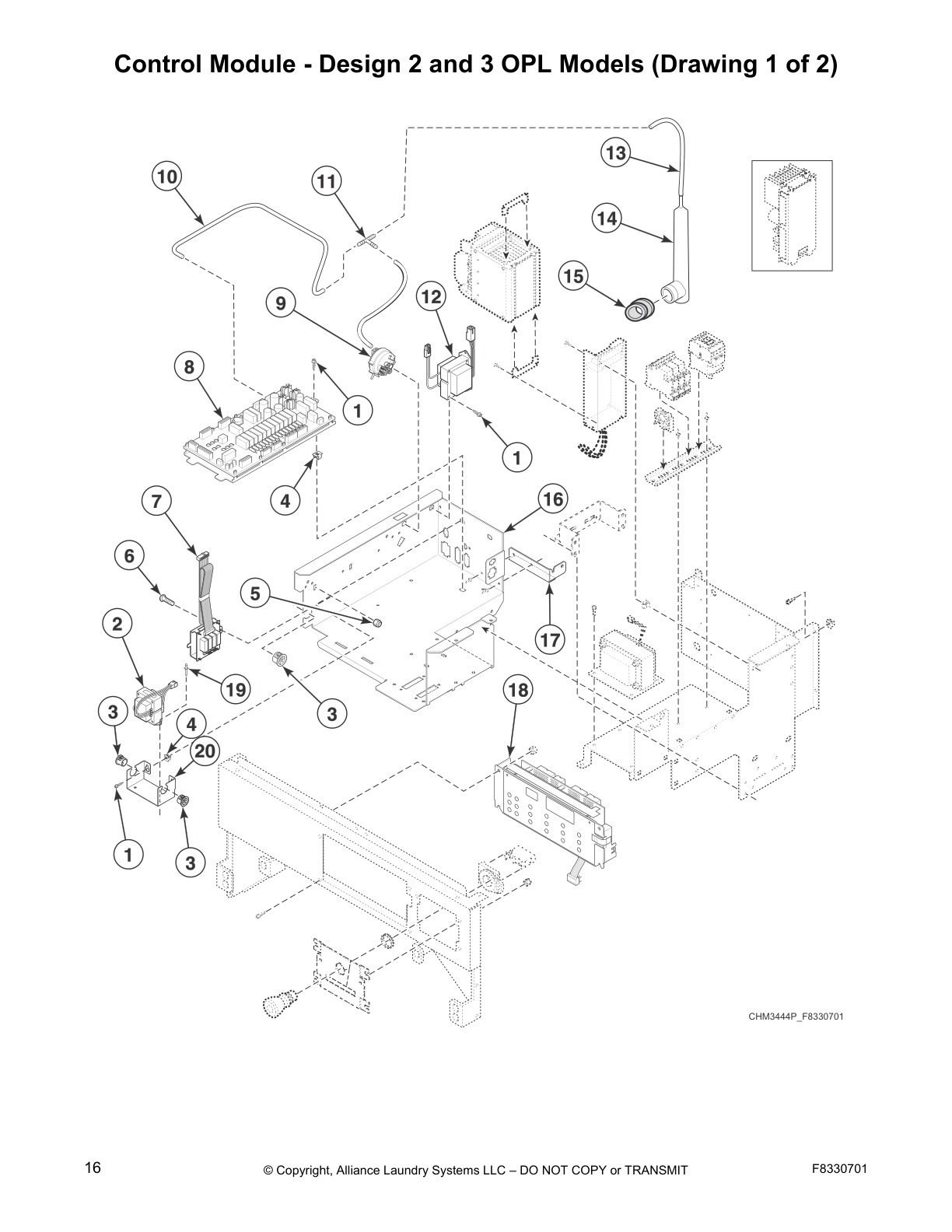

Control Module - Design 2 and 3 OPL Models (Drawing 1 of 2)
Control Module - Design 2 and 3 OPL Models (Drawing 2 of 2)

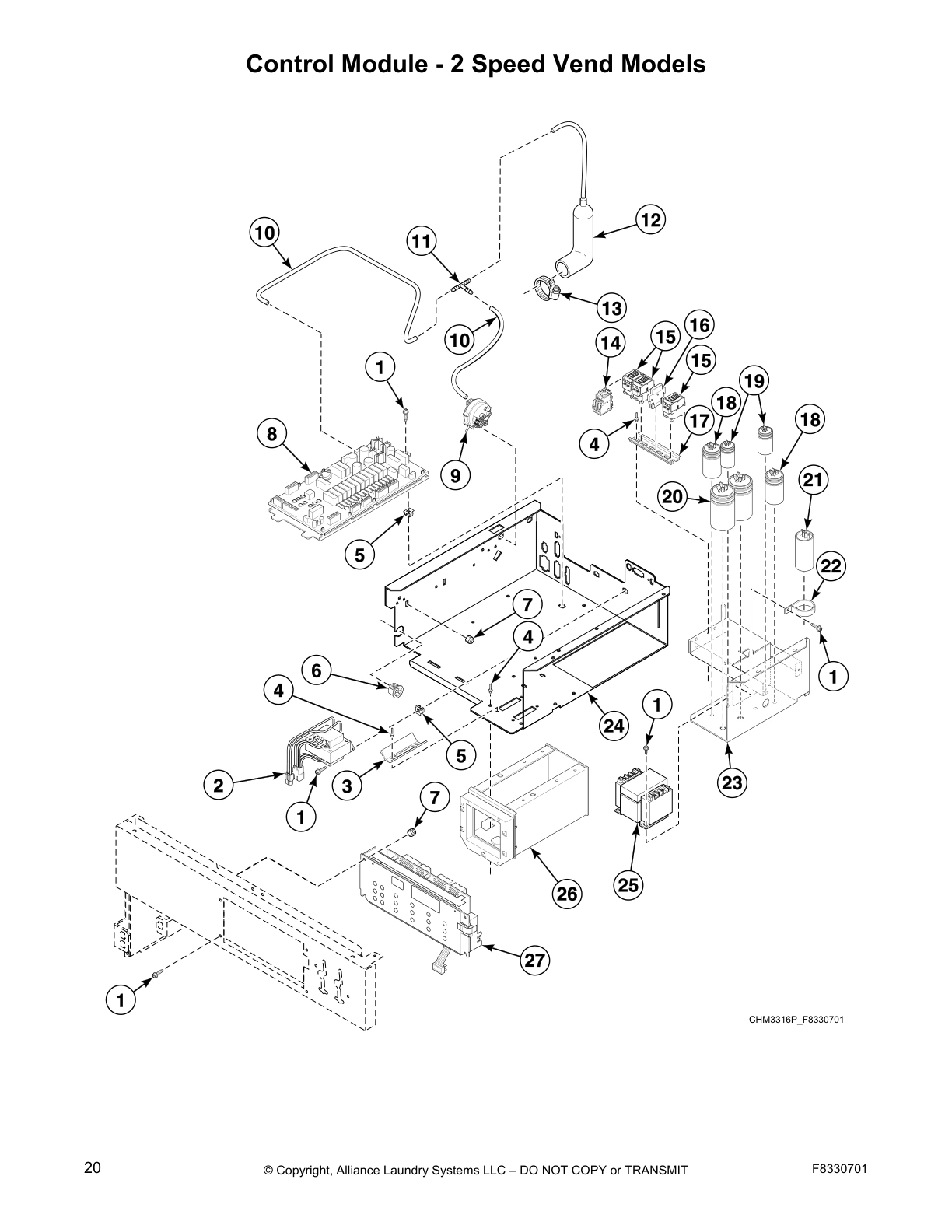

Control Module - 2 Speed Vend Models

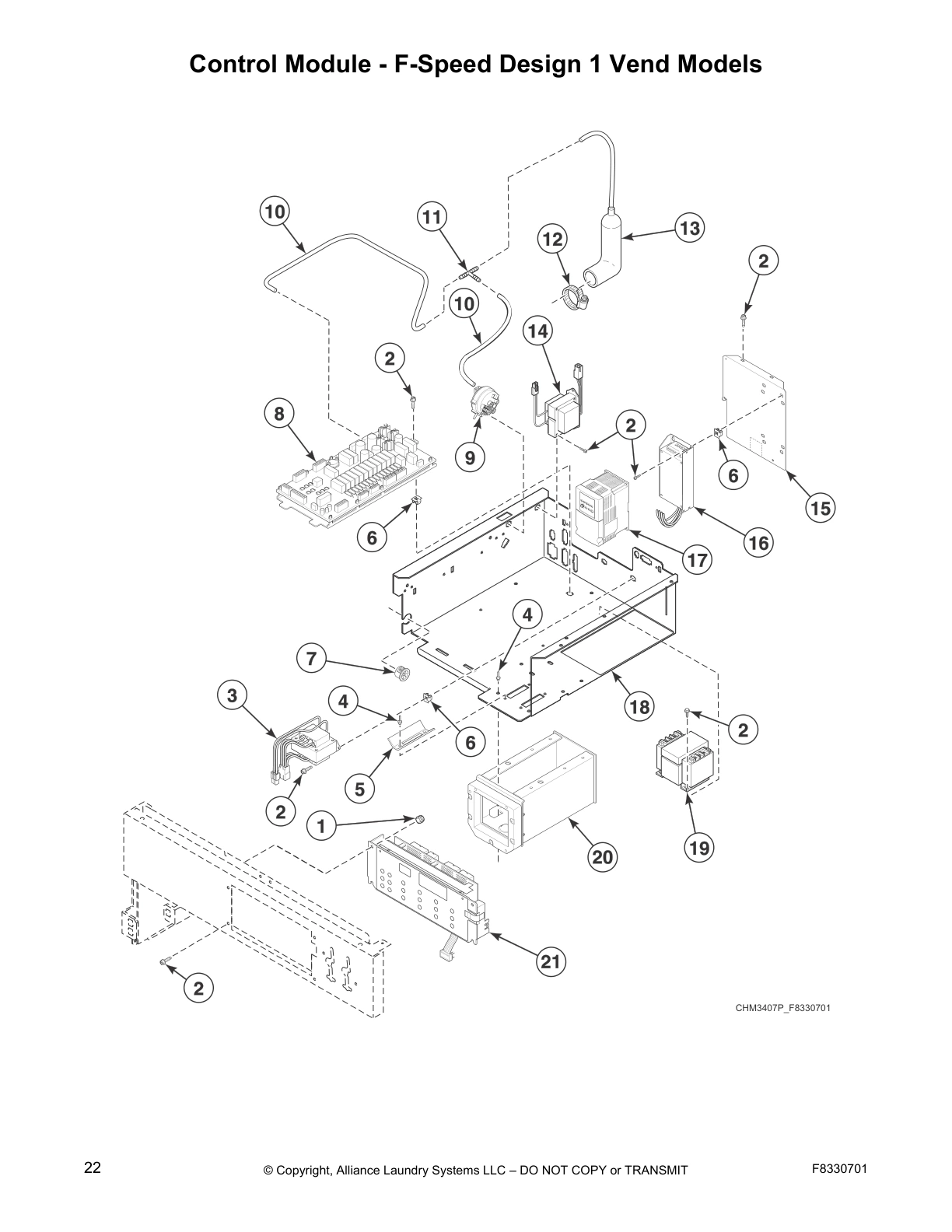

Control Module - F-Speed Design 1 Vend Models

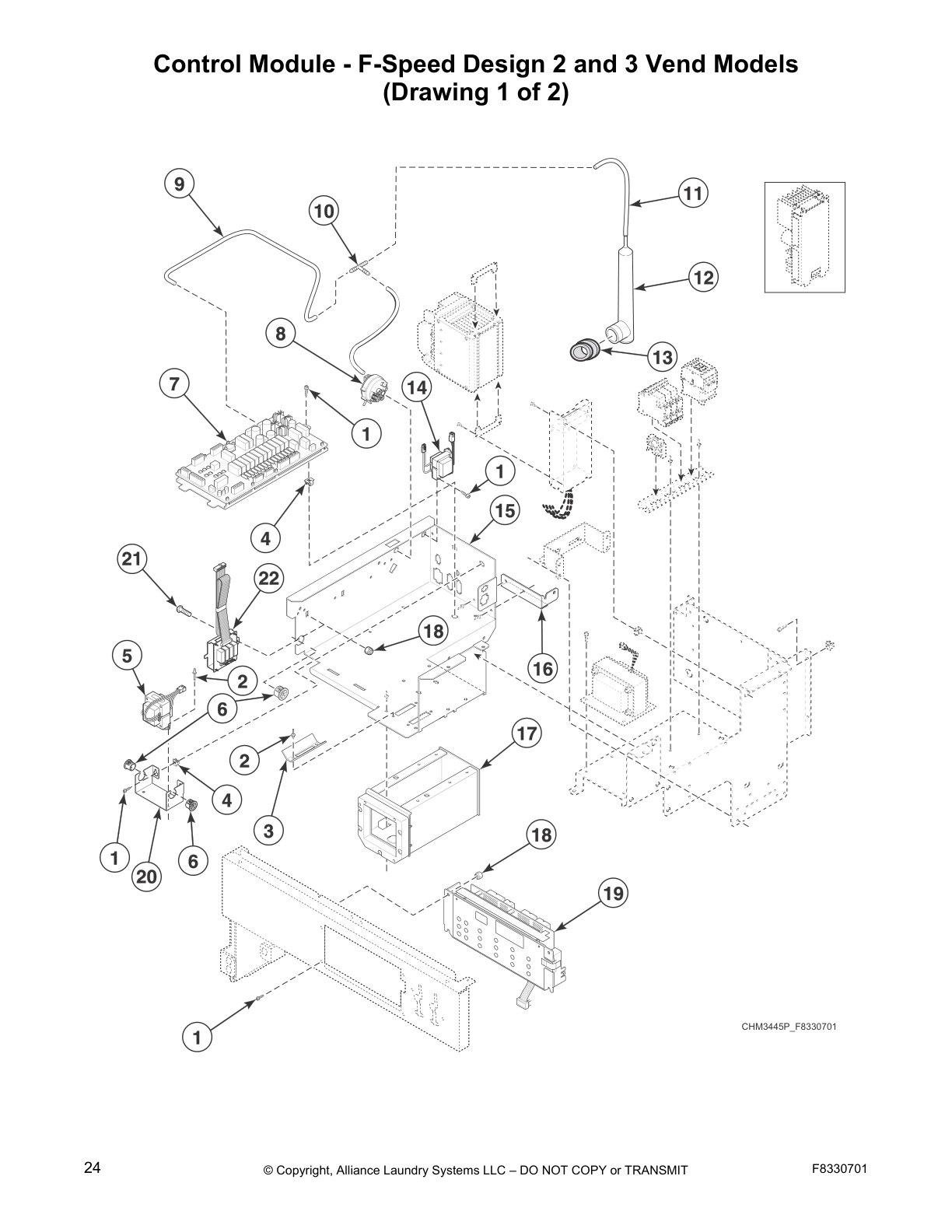

Control Module - F-Speed Design 2 and 3 Vend Models
(Drawing 1 of 2)

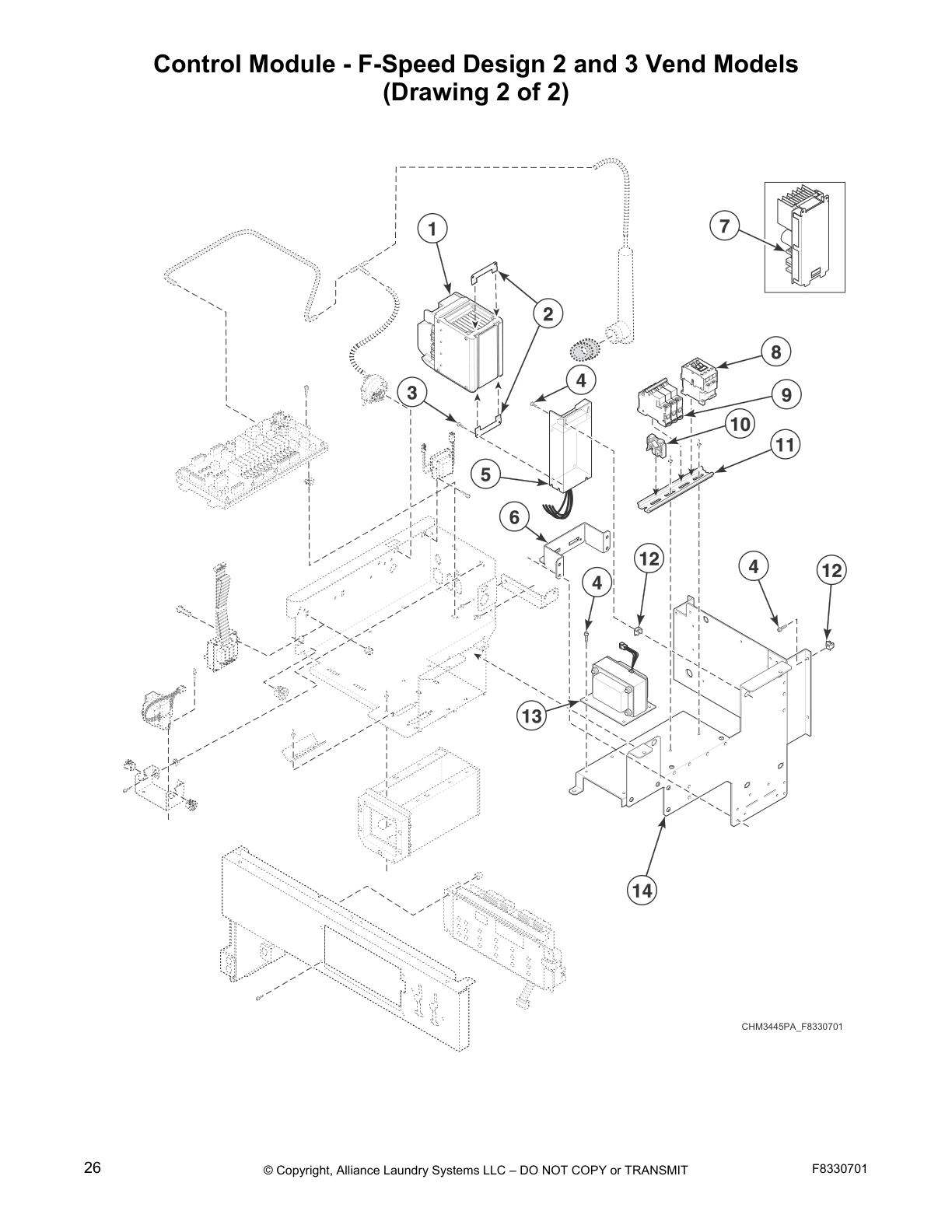

Control Module - F-Speed Design 2 and 3 Vend Models
(Drawing 2 of 2)

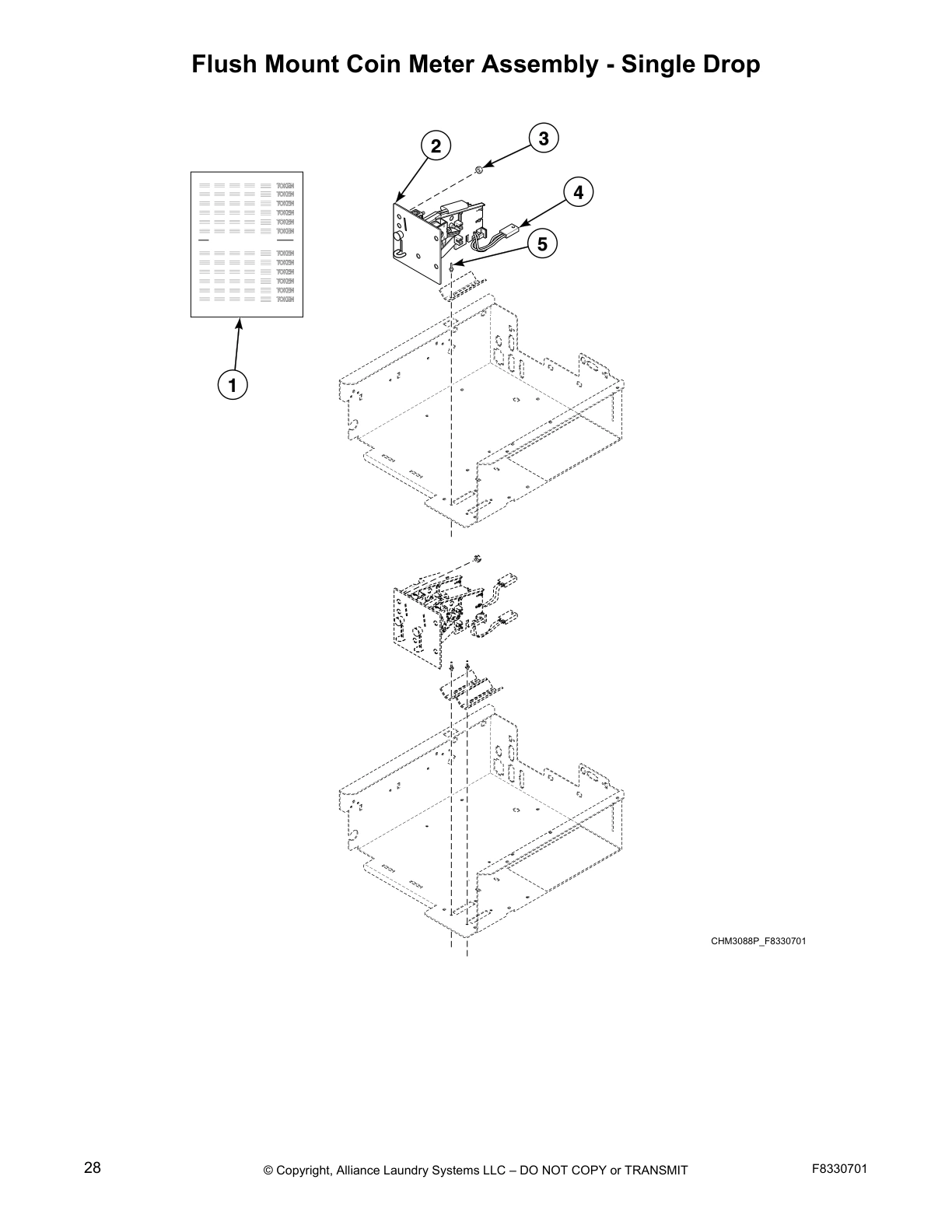

Flush Mount Coin Meter Assembly - Single Drop

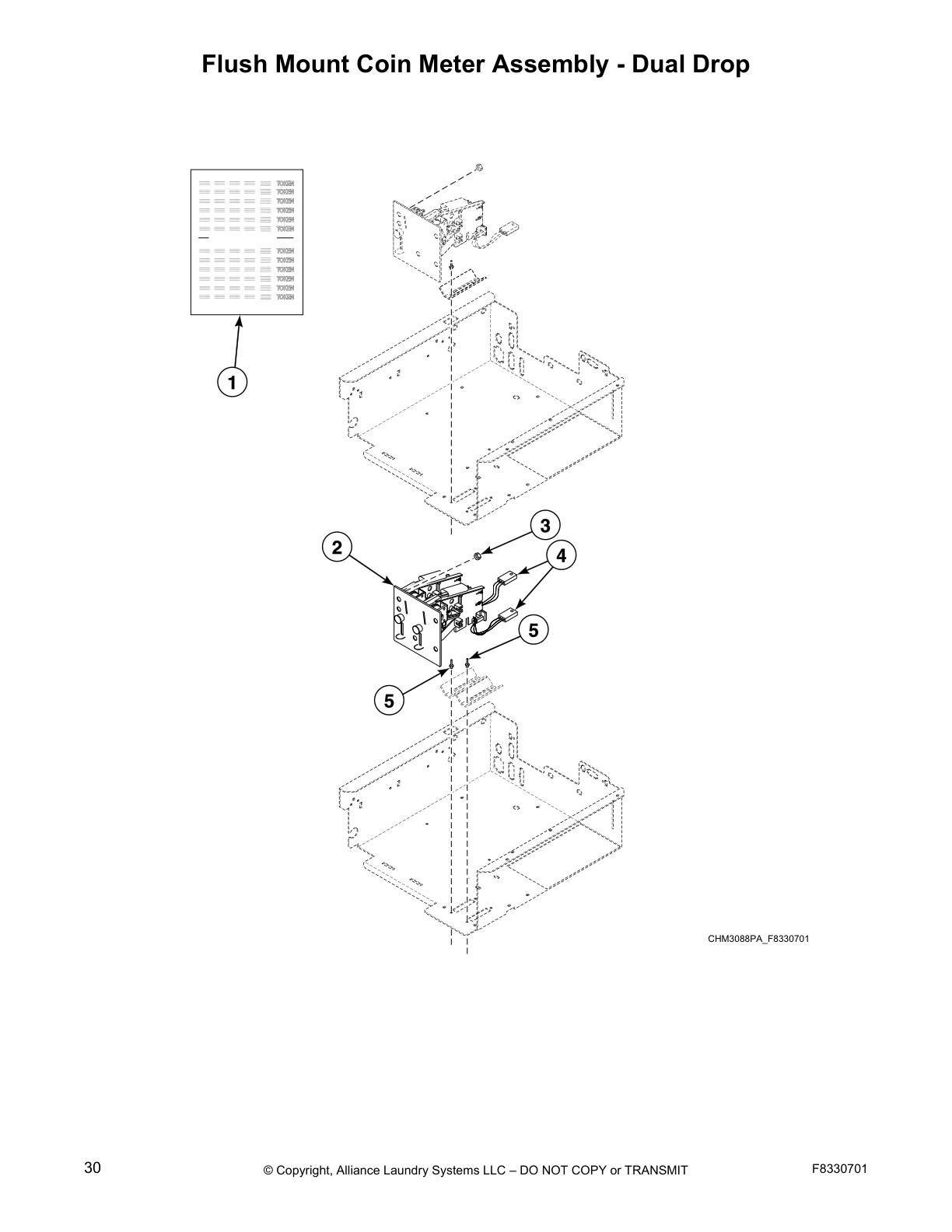

Flush Mount Coin Meter Assembly - Dual Drop

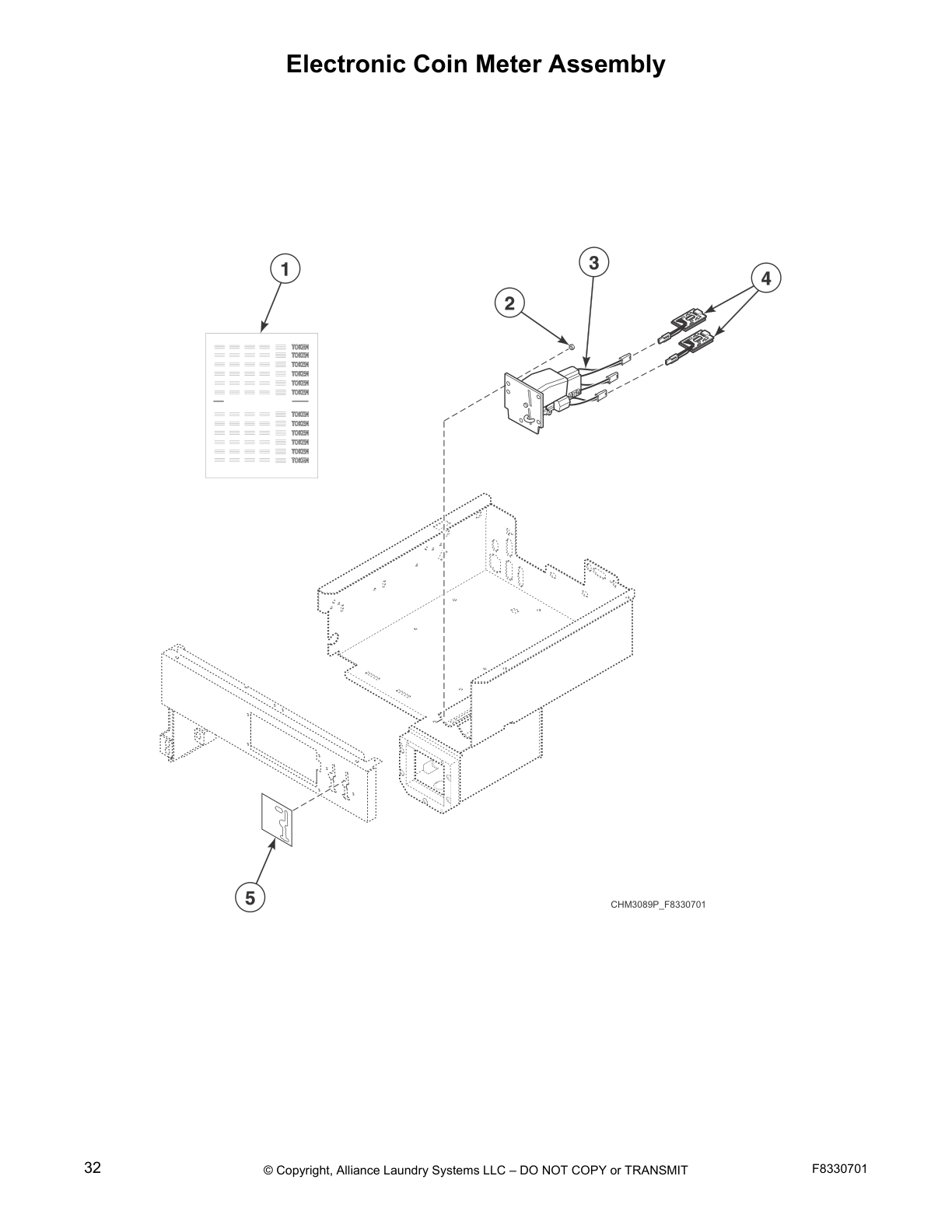

Electronic Coin Meter Assembly

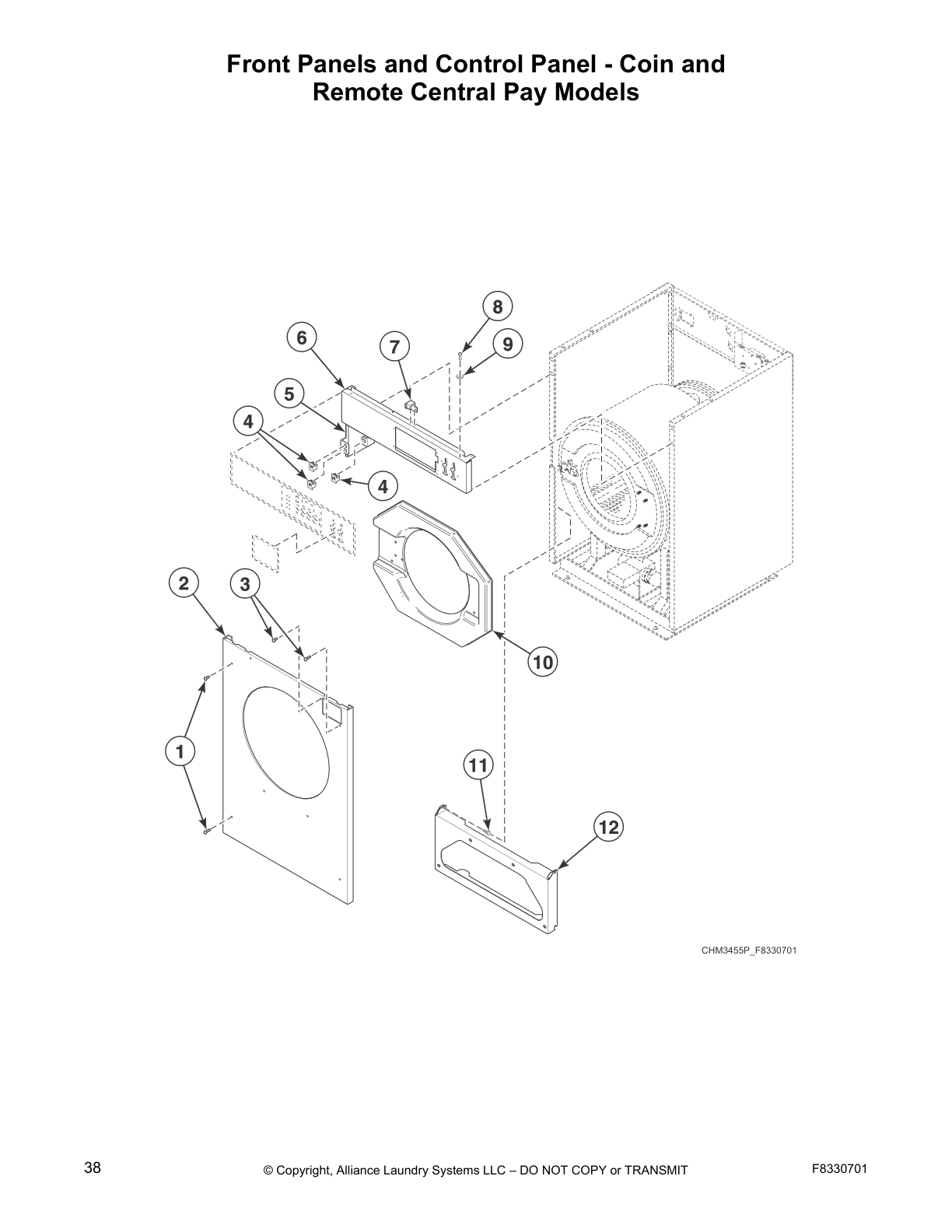

Front Panels and Control Panel - Coin and
Remote Central Pay Models

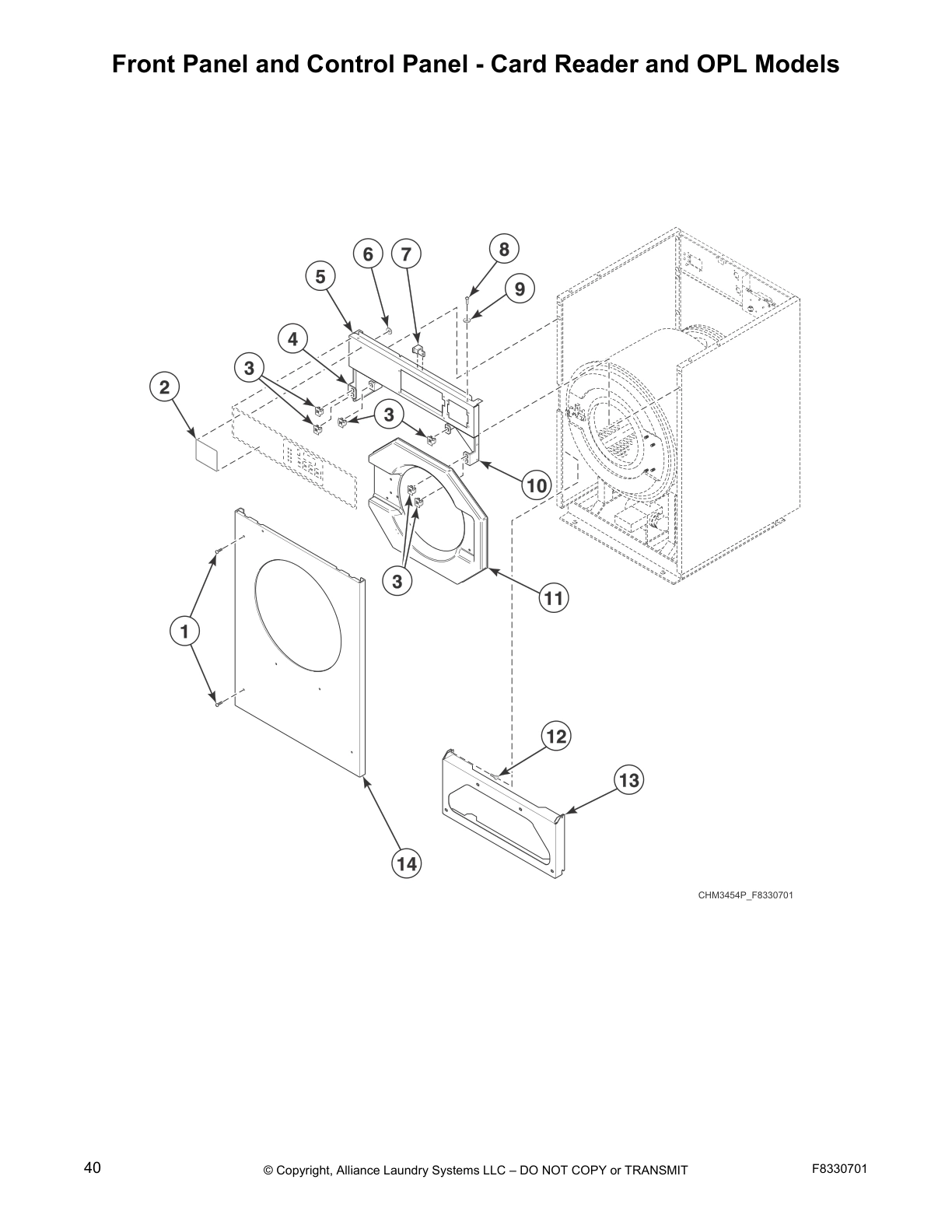

Front Panel and Control Panel - Card Reader and OPL Models

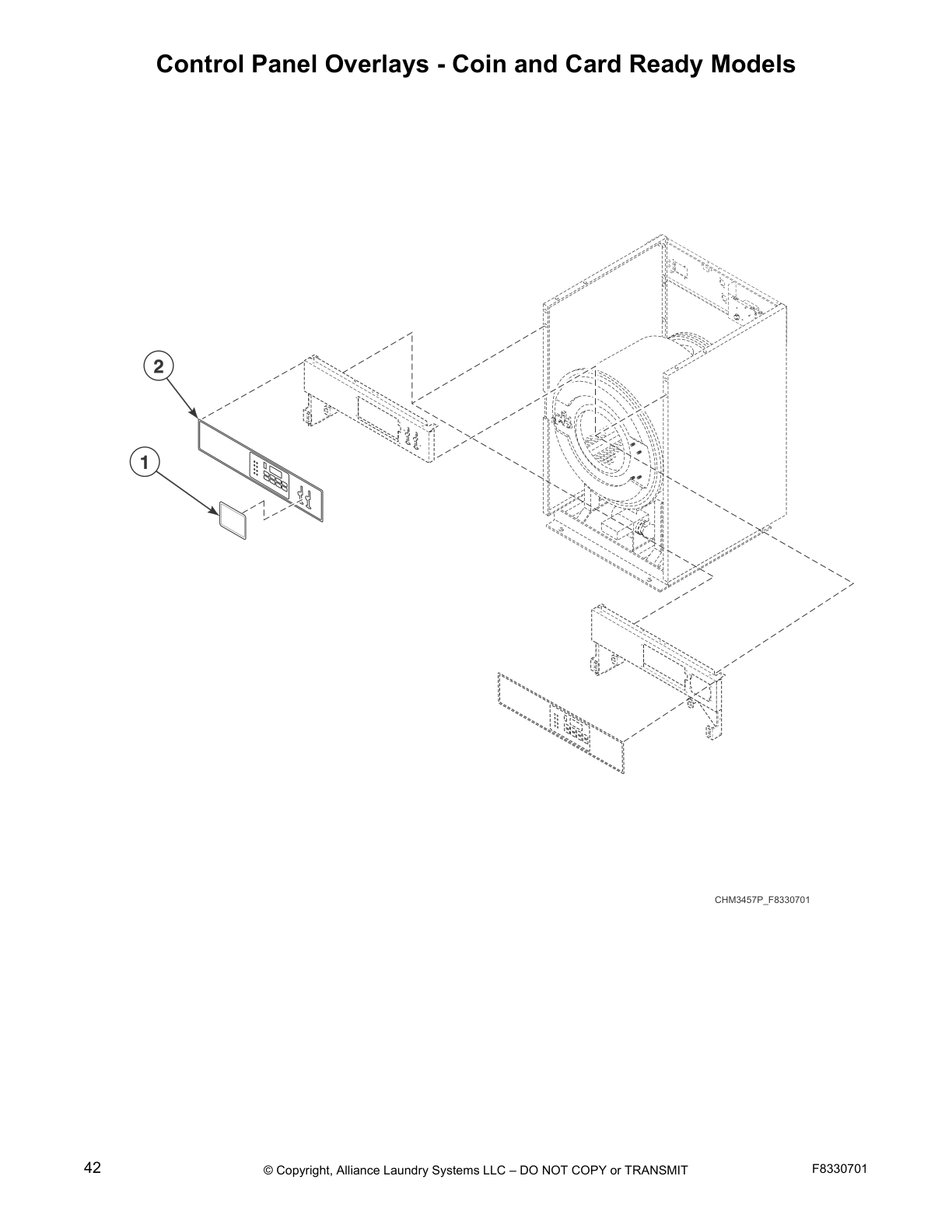

Control Panel Overlays - Coin and Card Ready Models

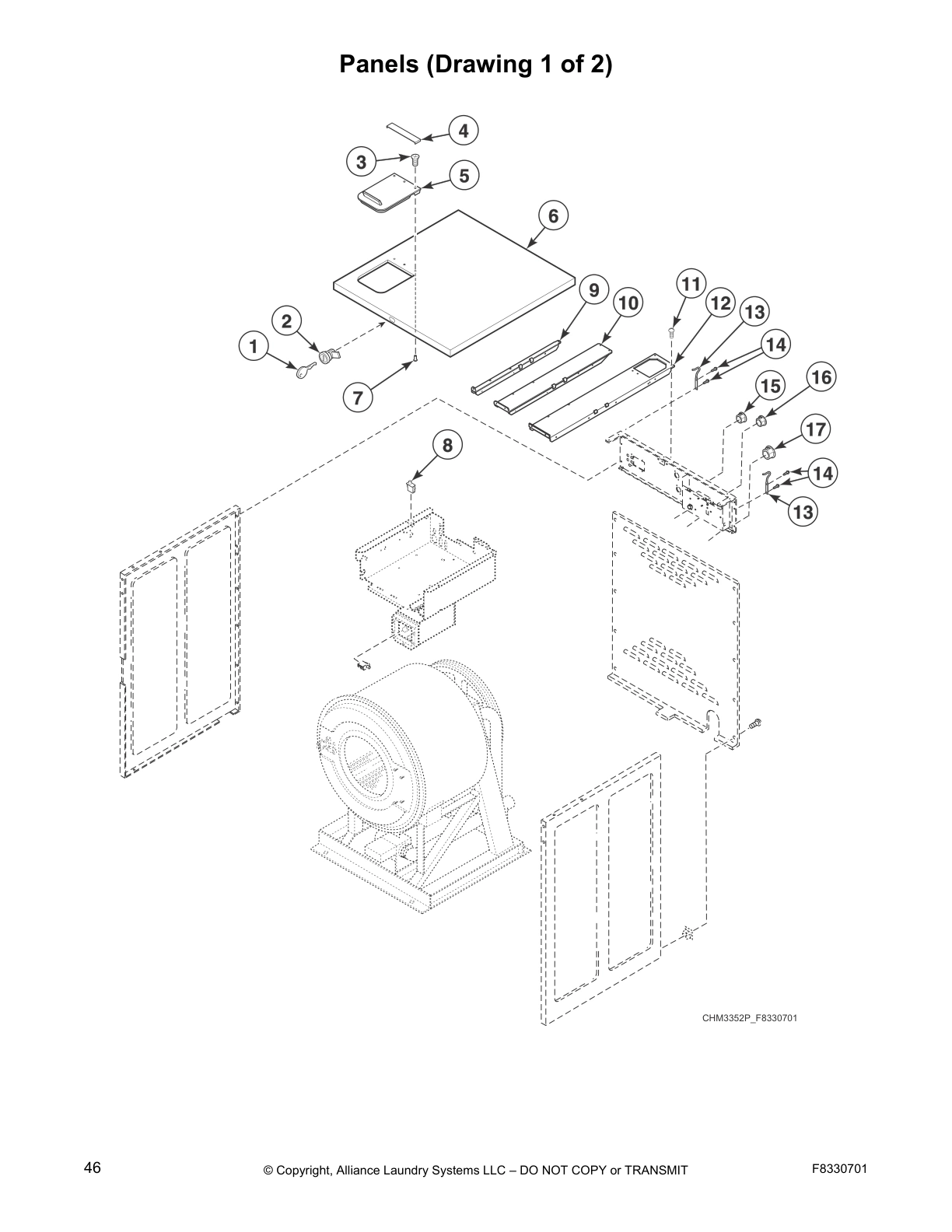

Panels (Drawing 1 of 2)

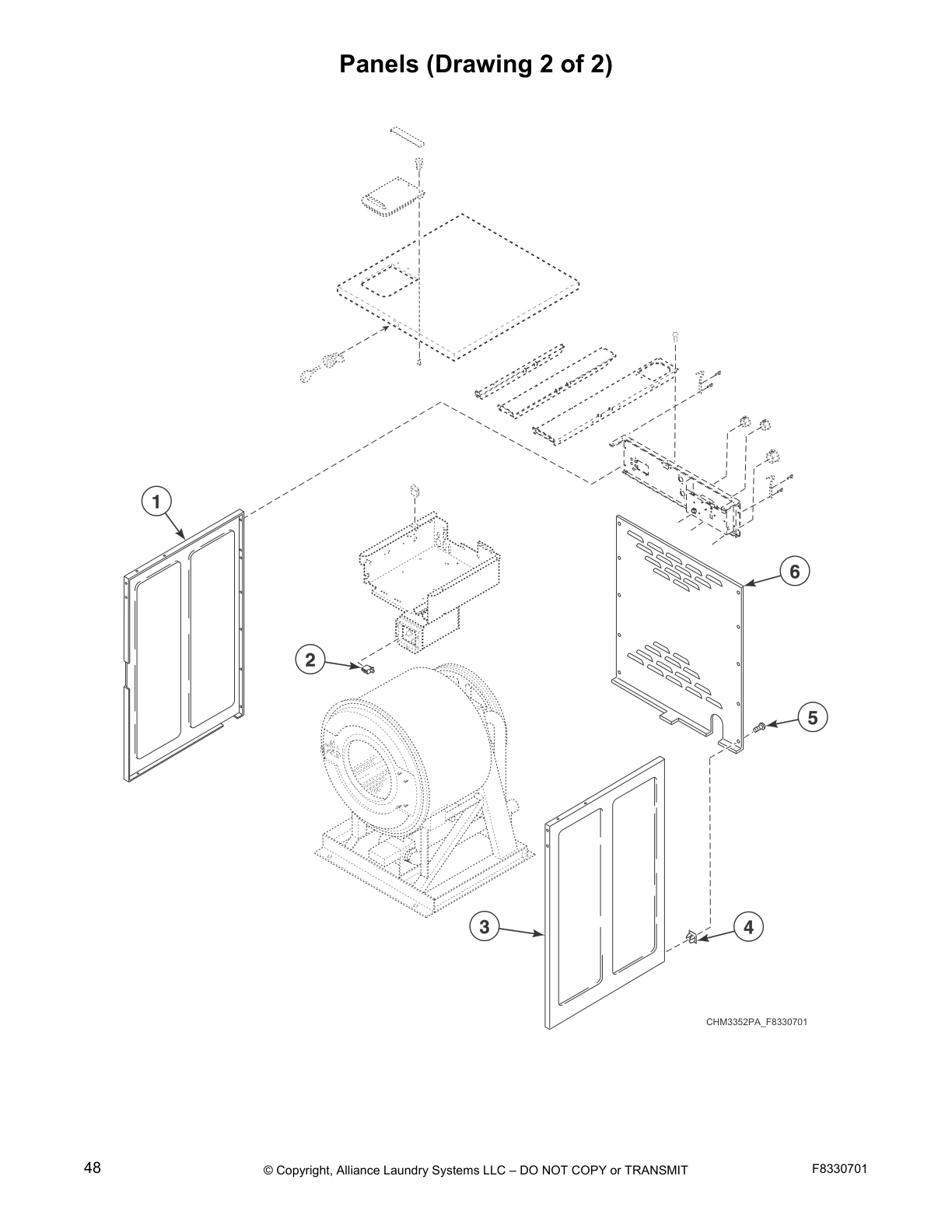

Panels (Drawing 2 of 2)
Door - 20 Pound HC Models
Door - 20 Pound CC, IC, SC and UC Models

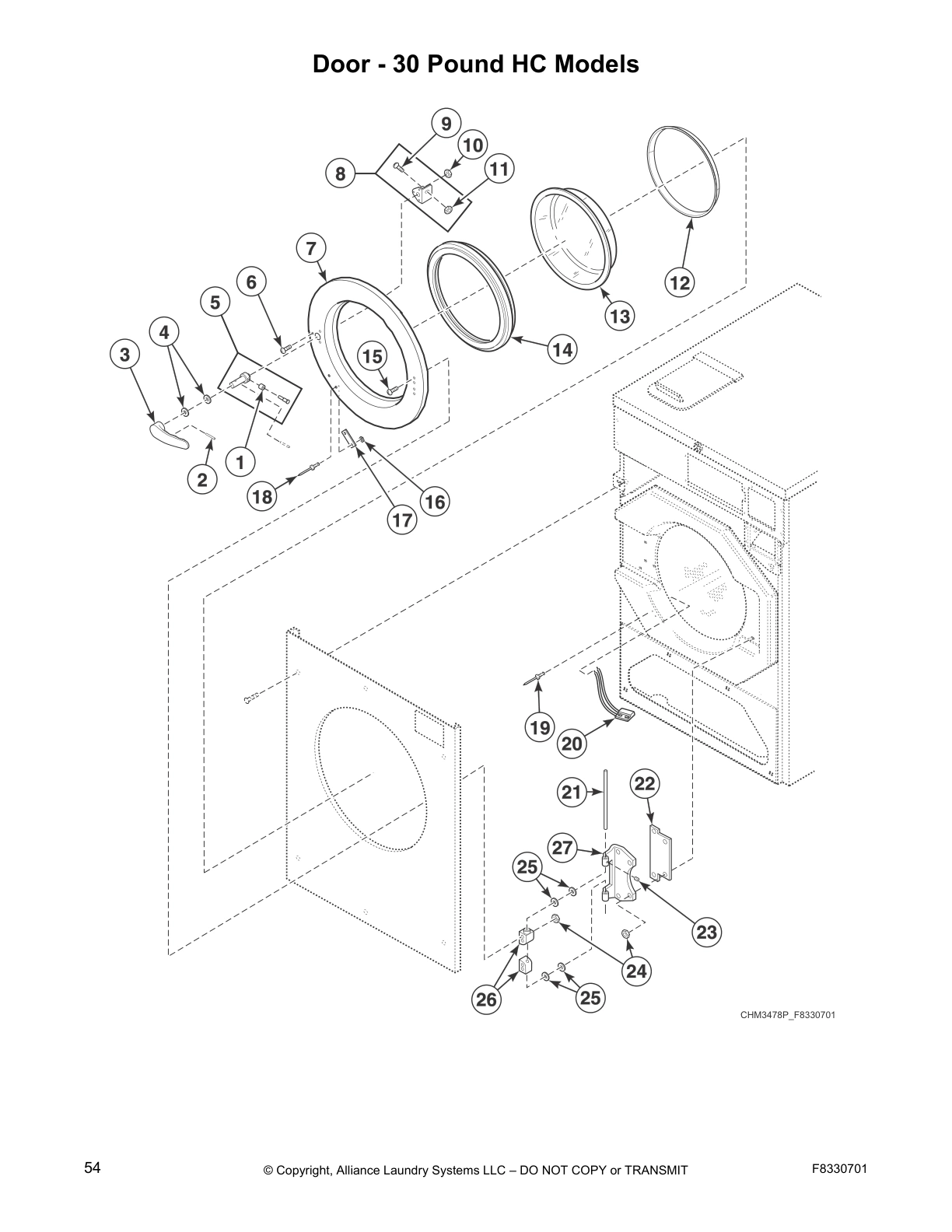

Door - 30 Pound HC Models

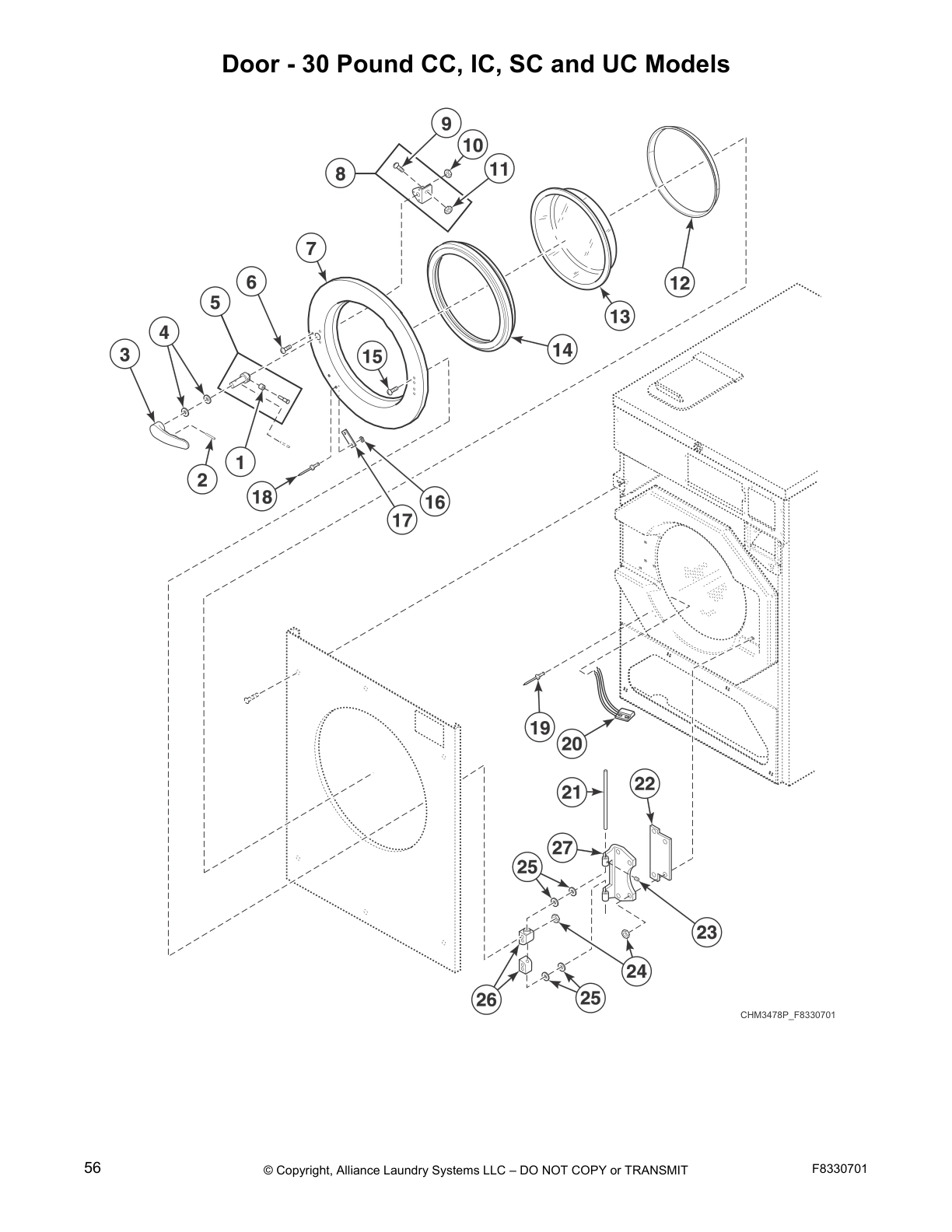

Door - 30 Pound CC, IC, SC and UC Models

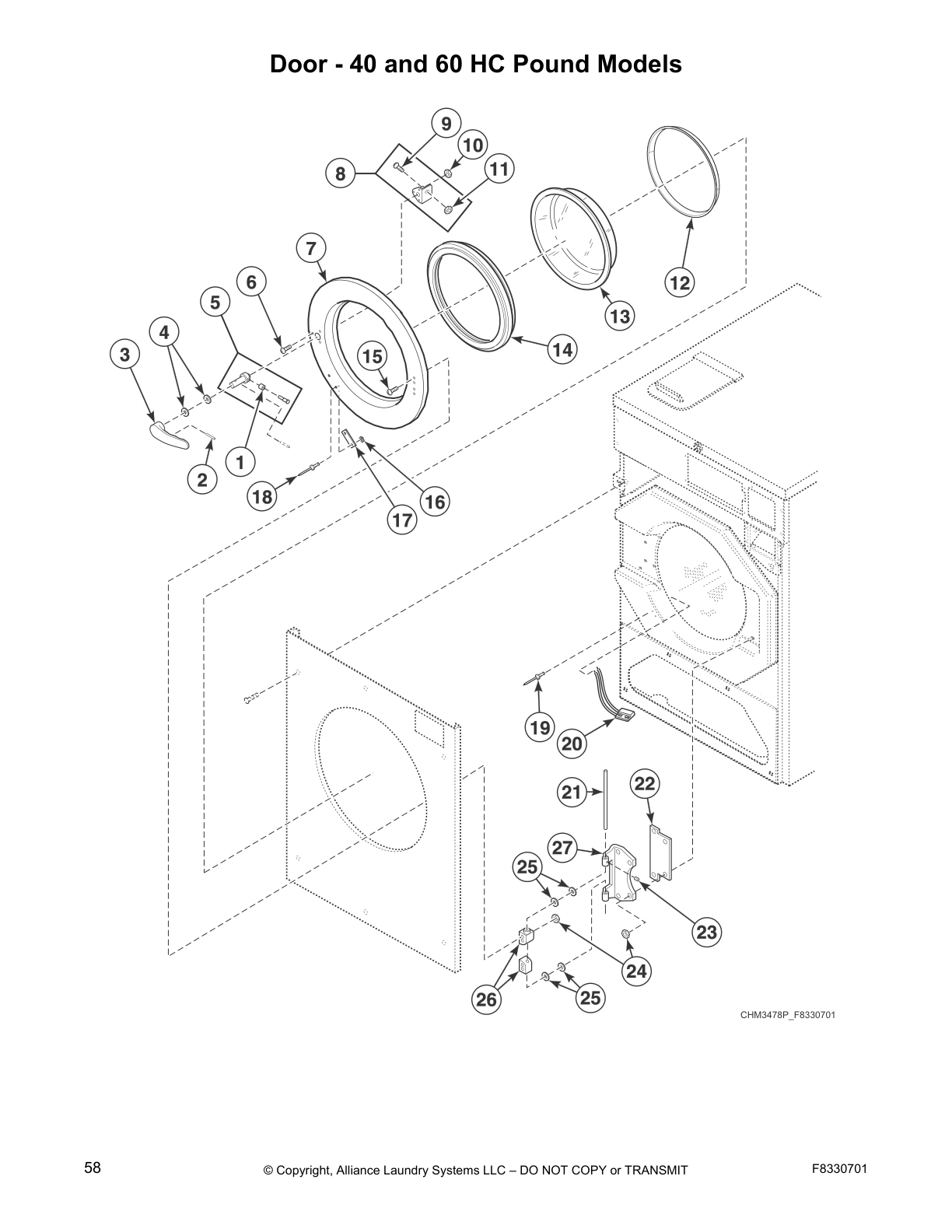

Door - 40 and 60 HC Pound Models

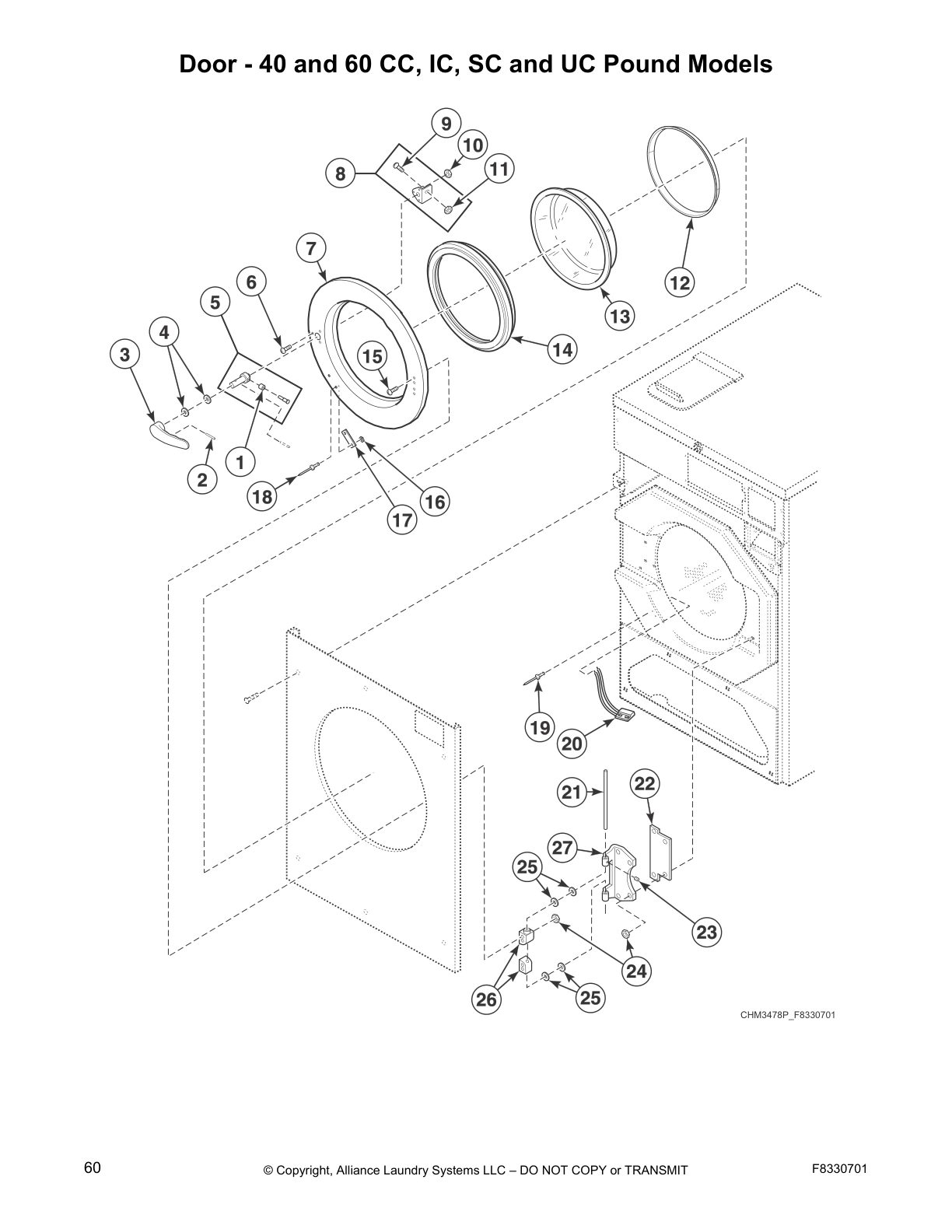

Door - 40 and 60 CC, IC, SC and UC Pound Models

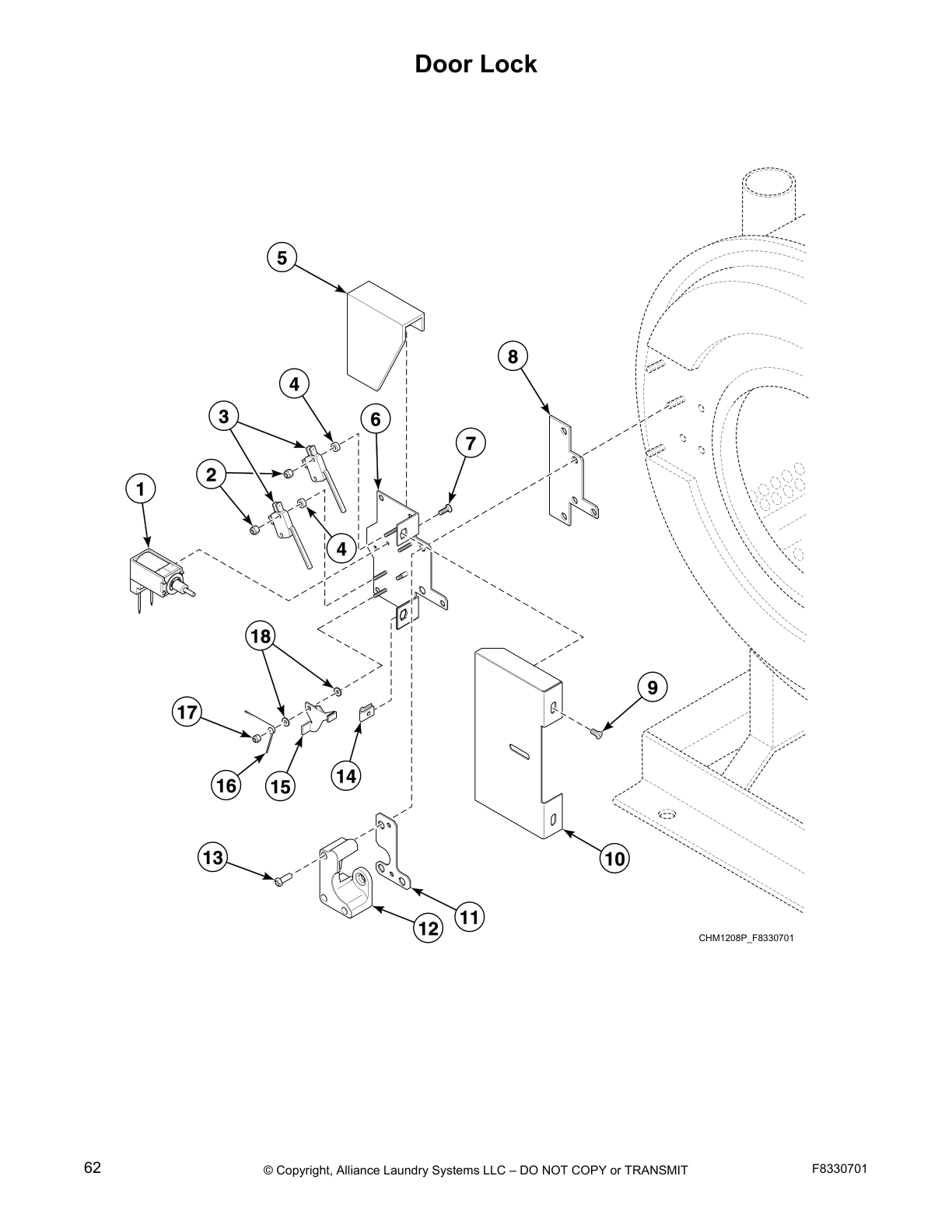

Door Lock

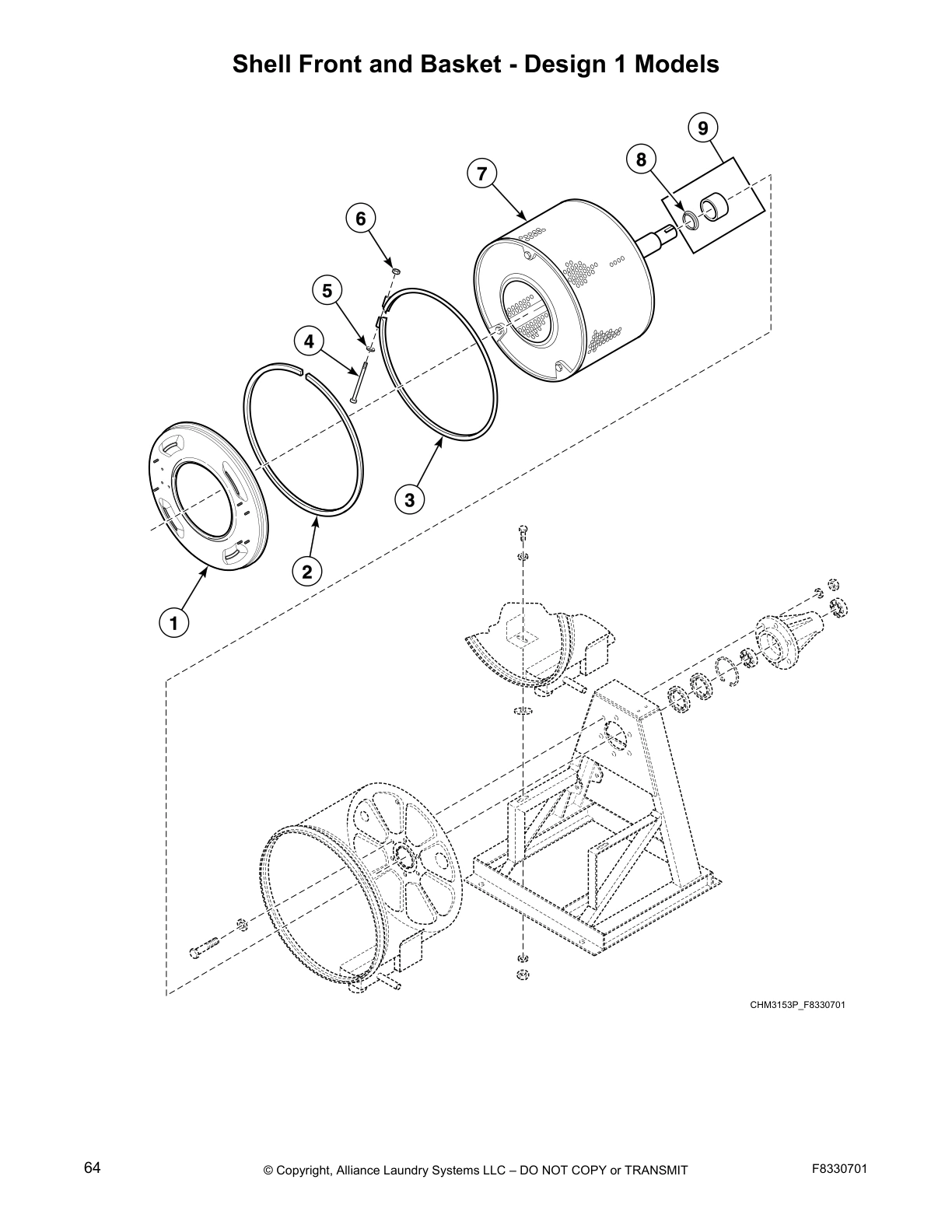

Shell Front and Basket - Design 1 Models

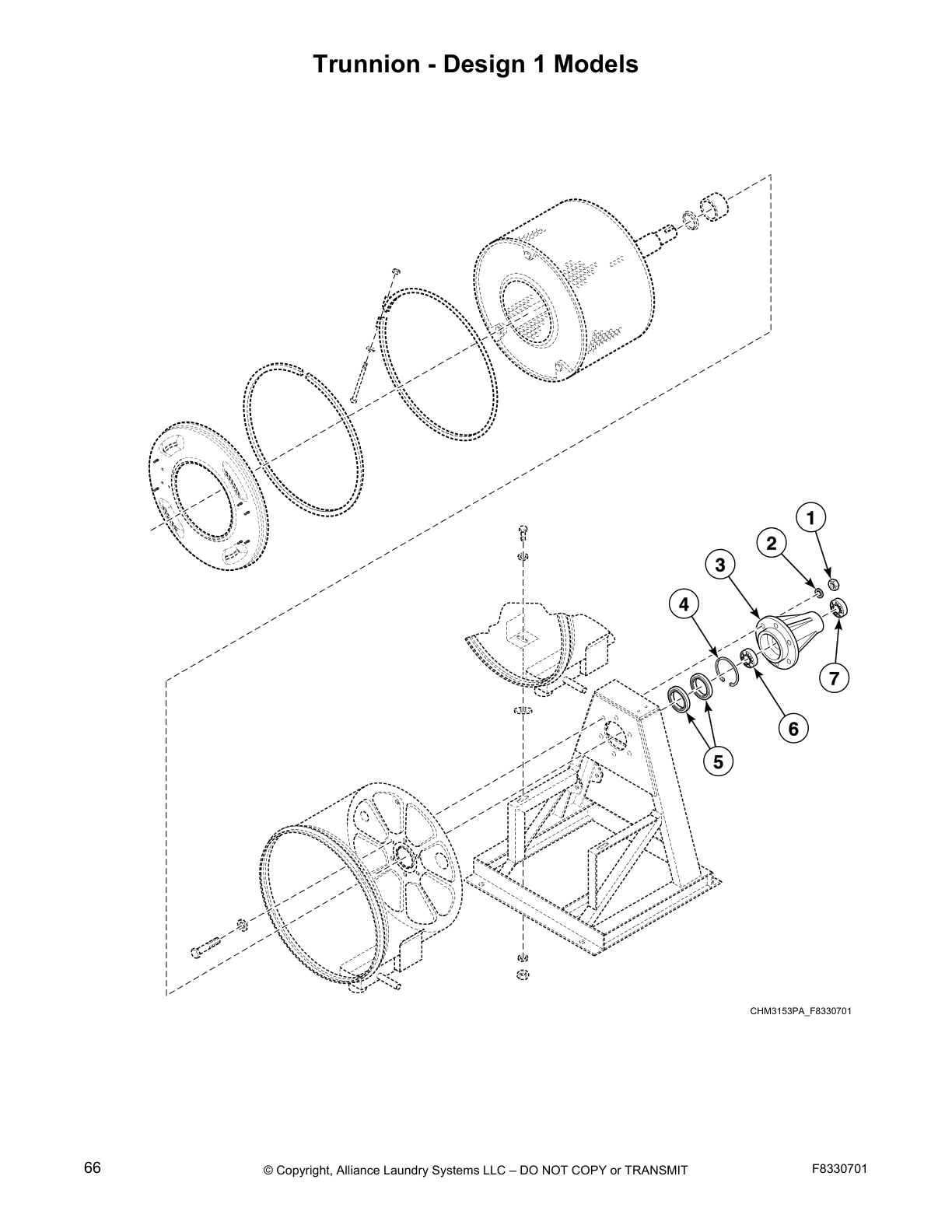

Trunnion - Design 1 Models

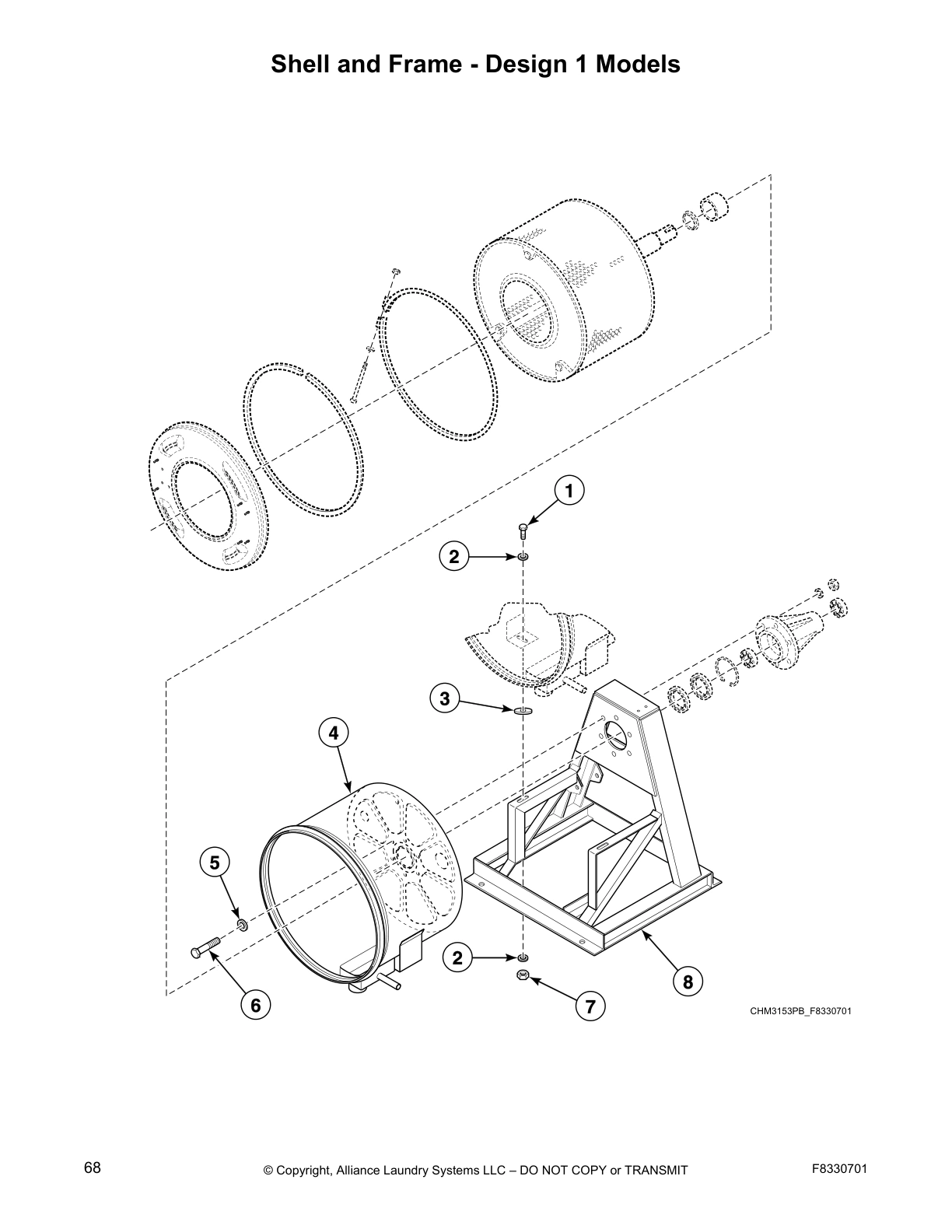

Shell and Frame - Design 1 Models

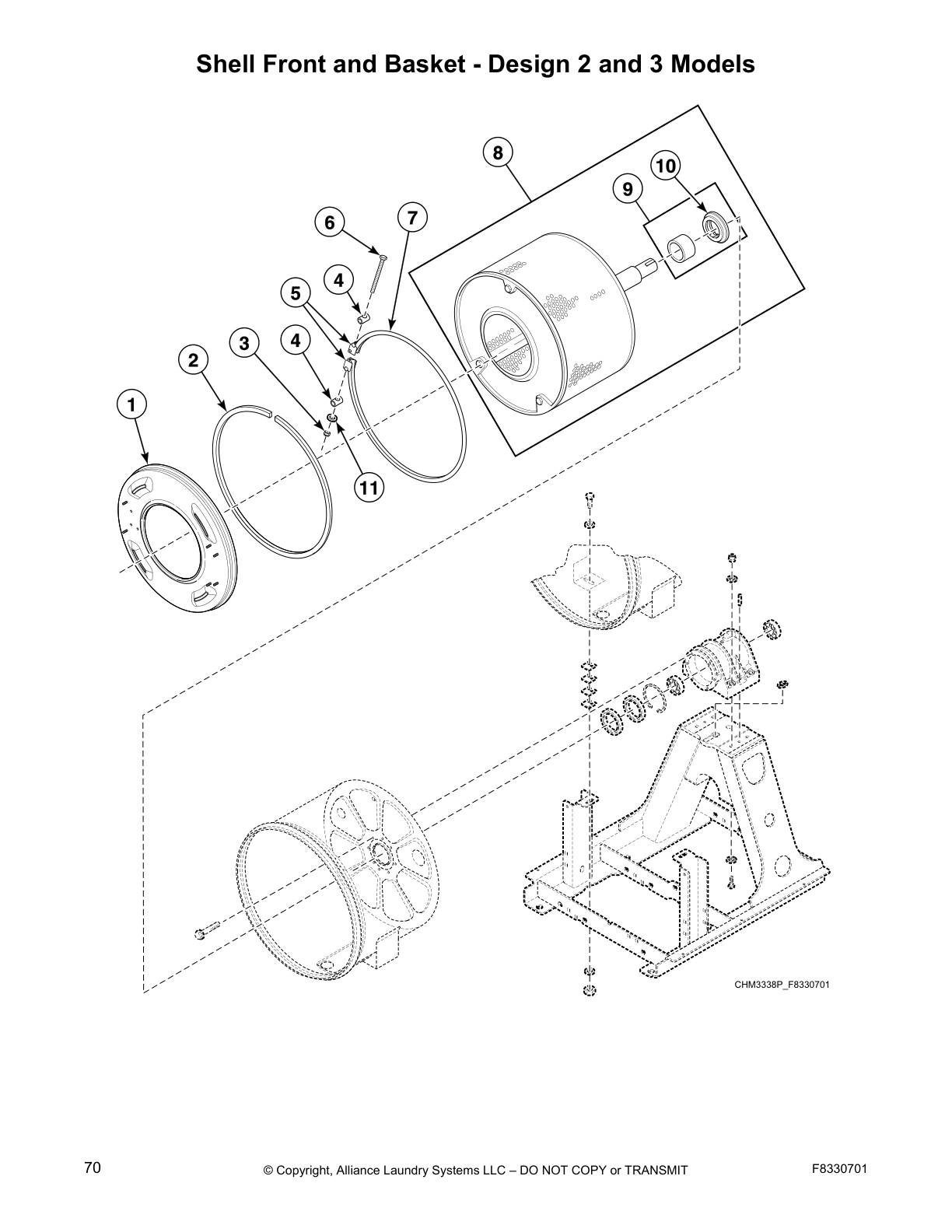

Shell Front and Basket - Design 2 and 3 Models

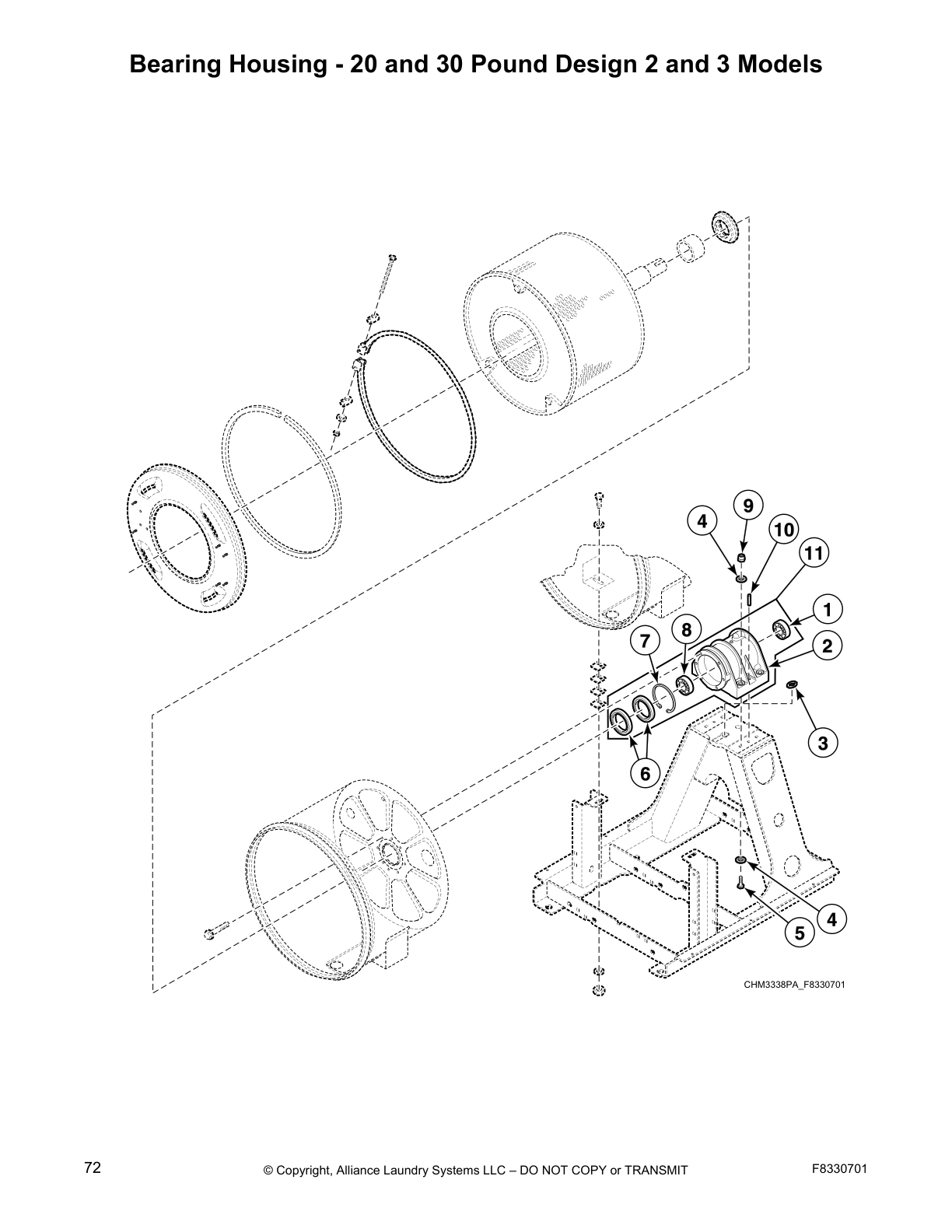

Bearing Housing - 20 and 30 Pound Design 2 and 3 Models
Bearing Housing - 40 and 60 Pound Design 2 and 3 Models

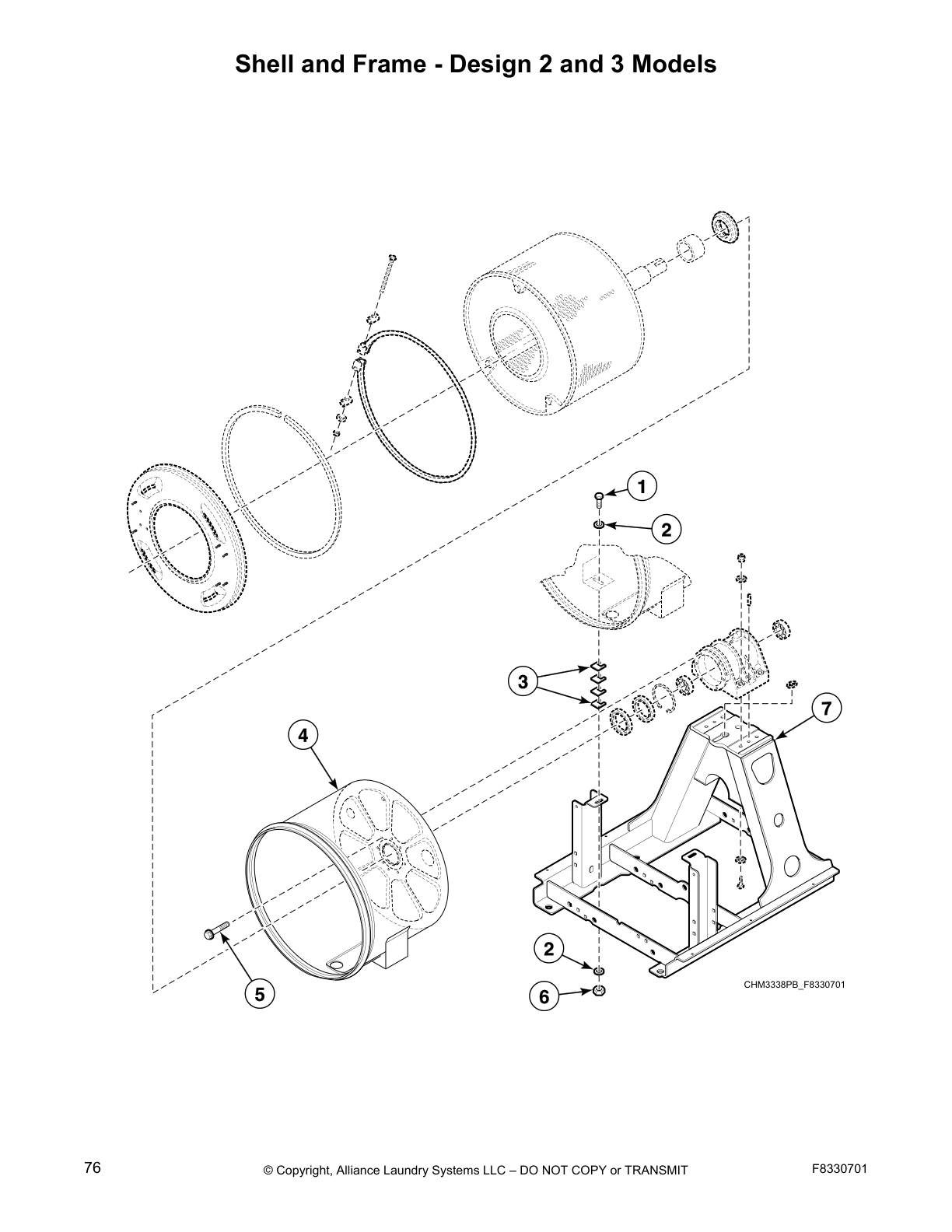

Shell and Frame - Design 2 and 3 Models

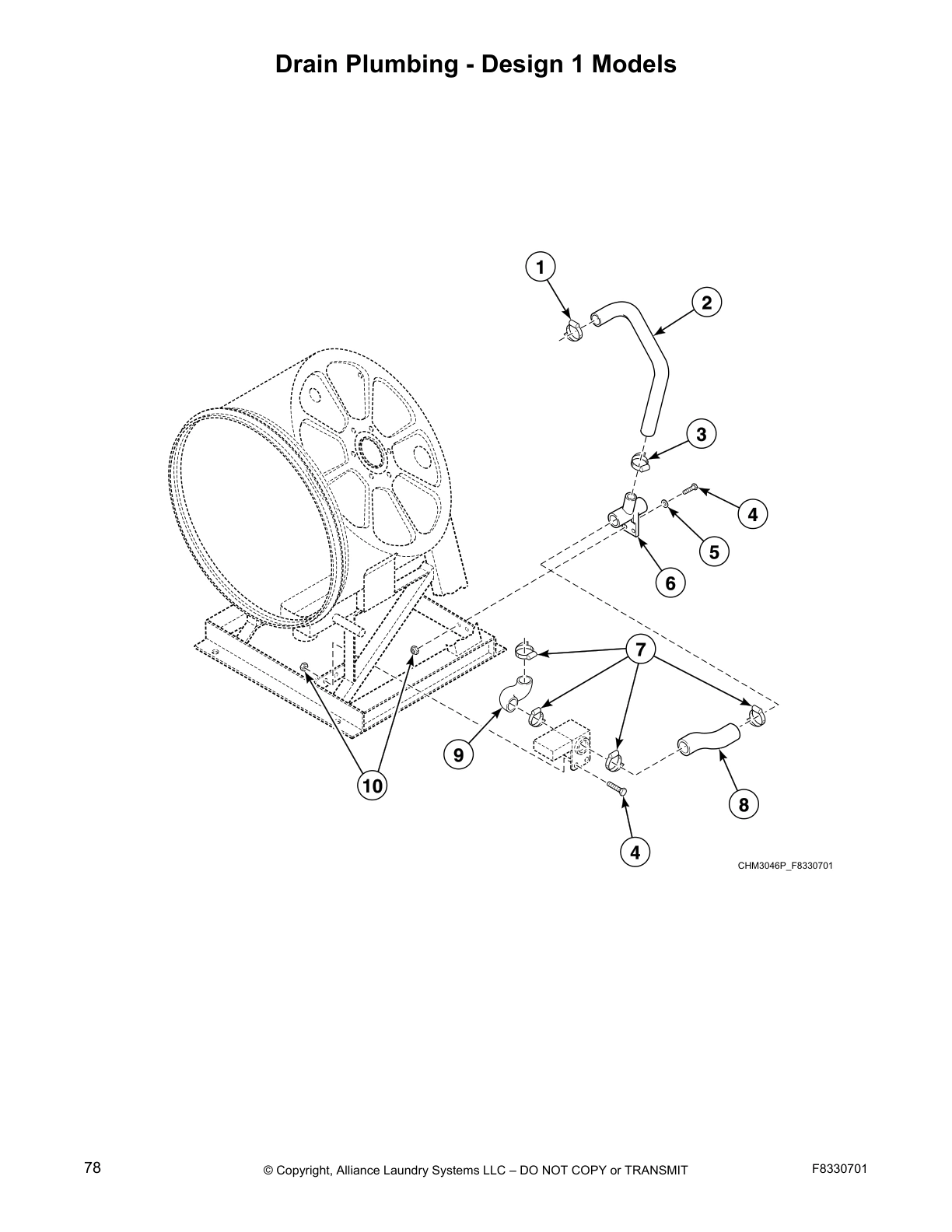

Drain Plumbing - Design 1 Models

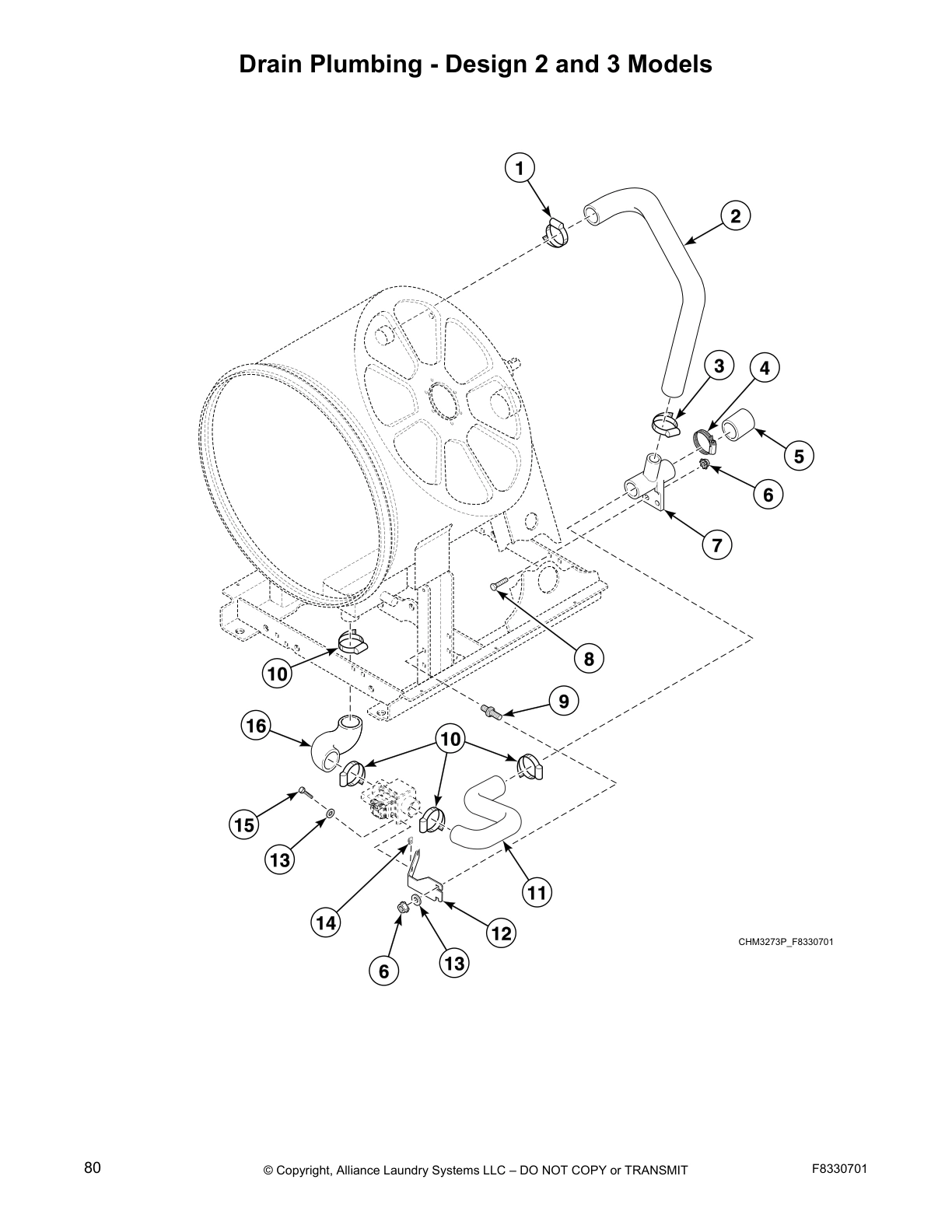

Drain Plumbing - Design 2 and 3 Models

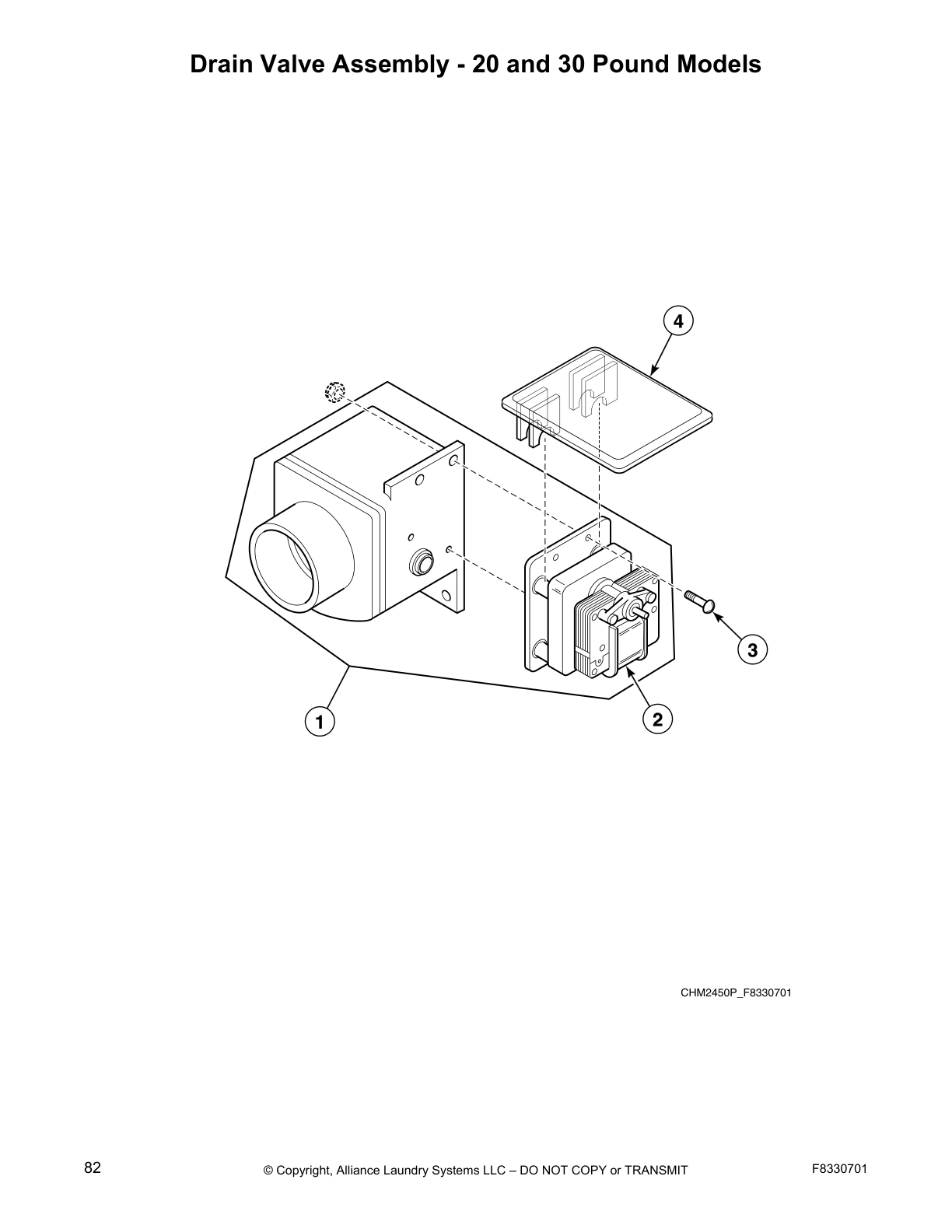

Drain Valve Assembly - 20 and 30 Pound Models

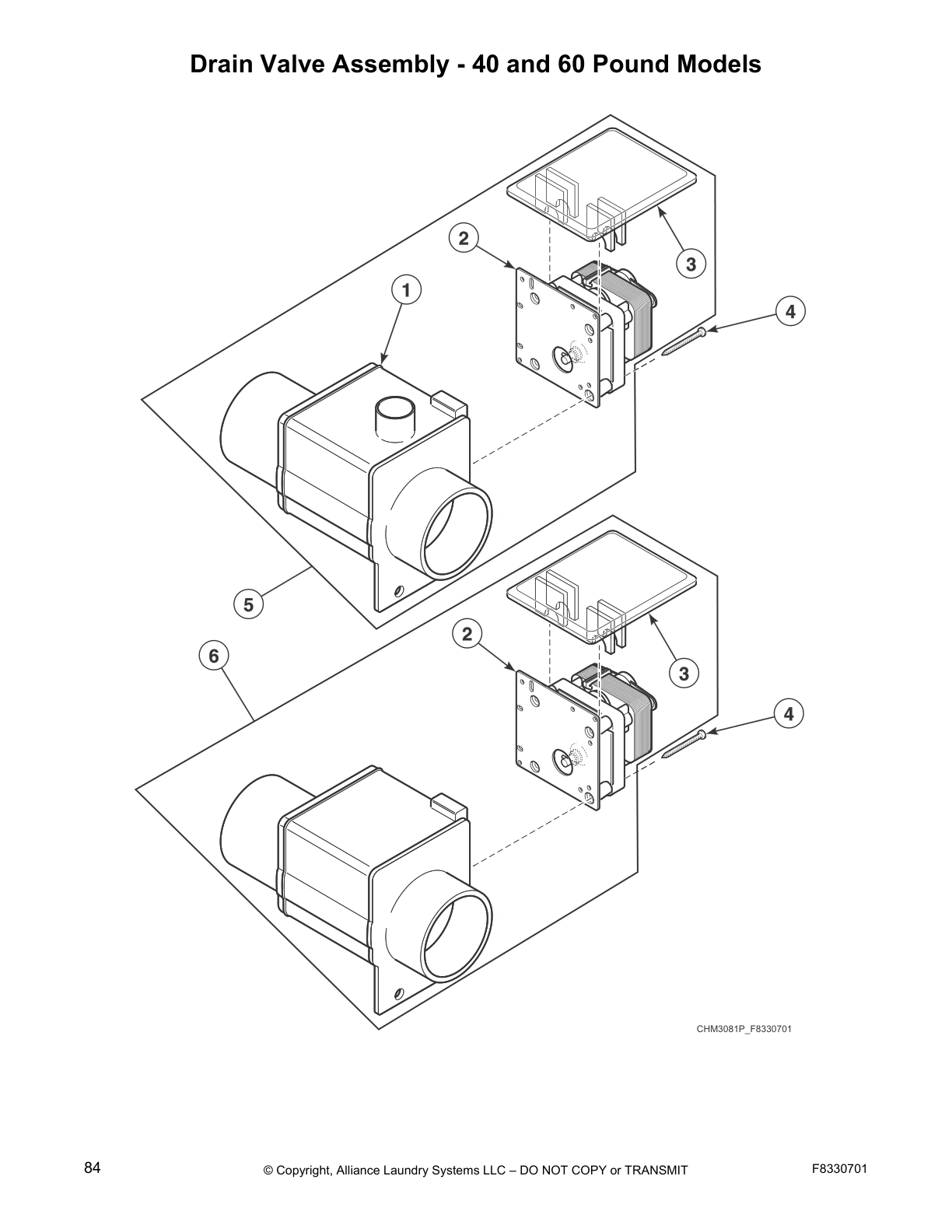

Drain Valve Assembly - 40 and 60 Pound Models

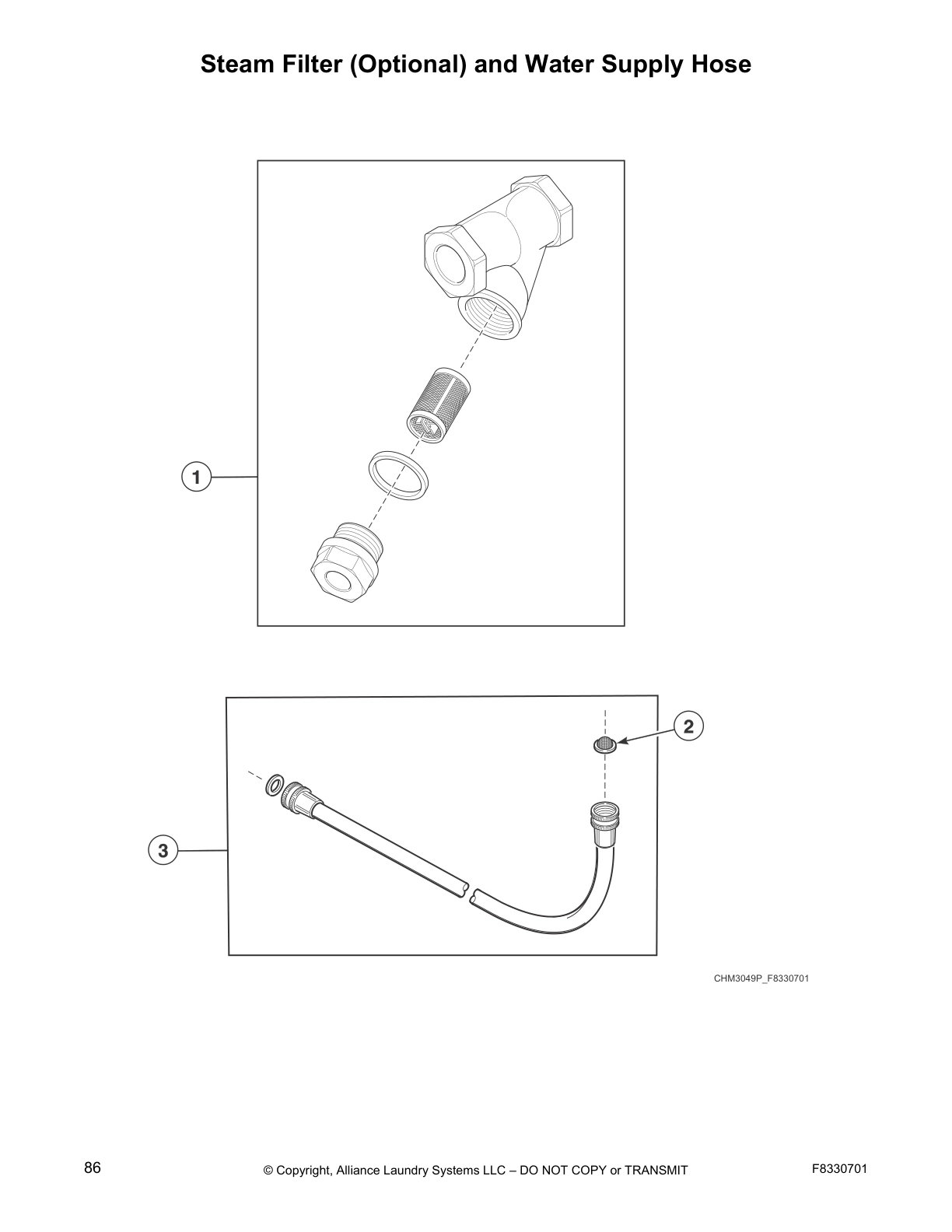

Steam Filter (Optional) and Water Supply Hose

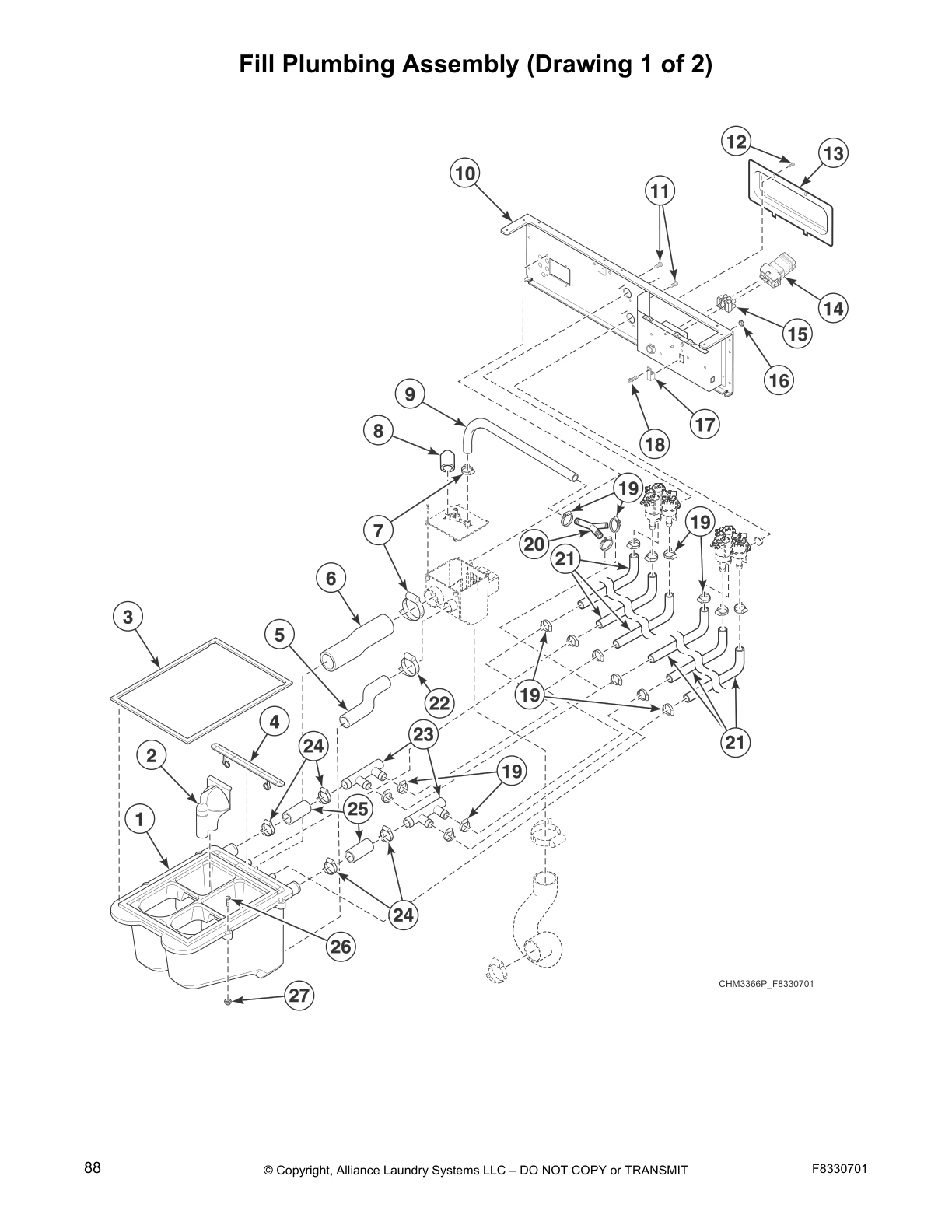

Fill Plumbing Assembly (Drawing 1 of 2)

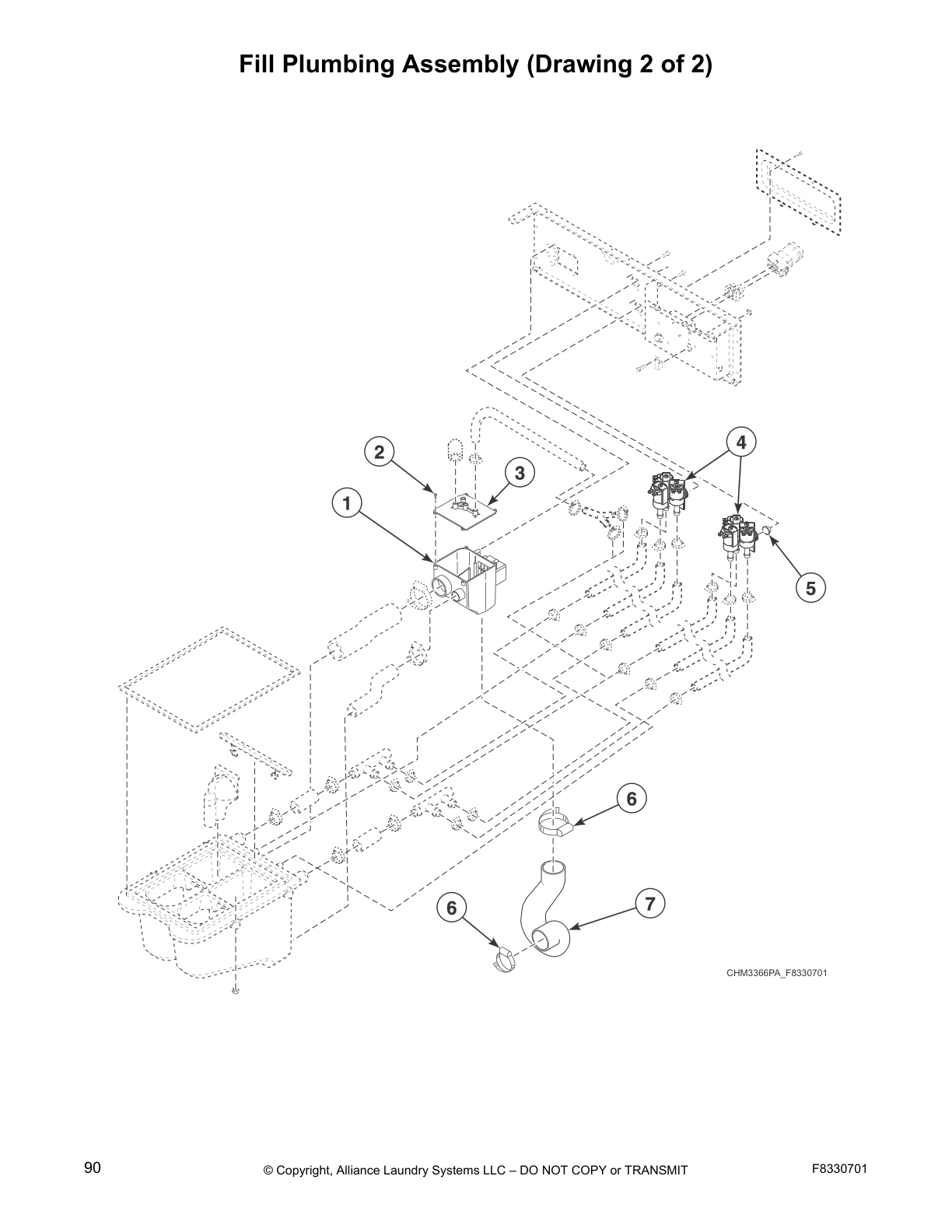

Fill Plumbing Assembly (Drawing 2 of 2)

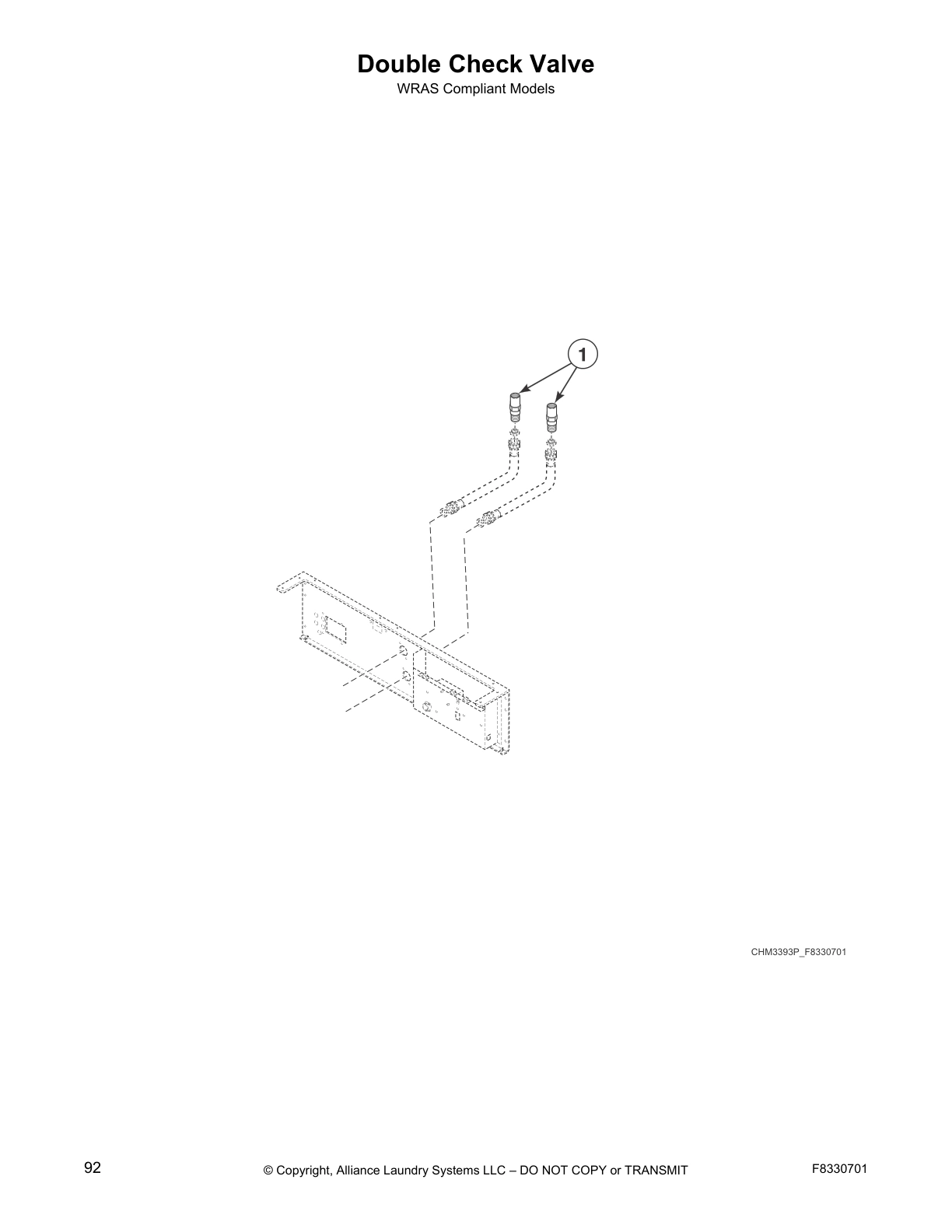

Double Check Valve

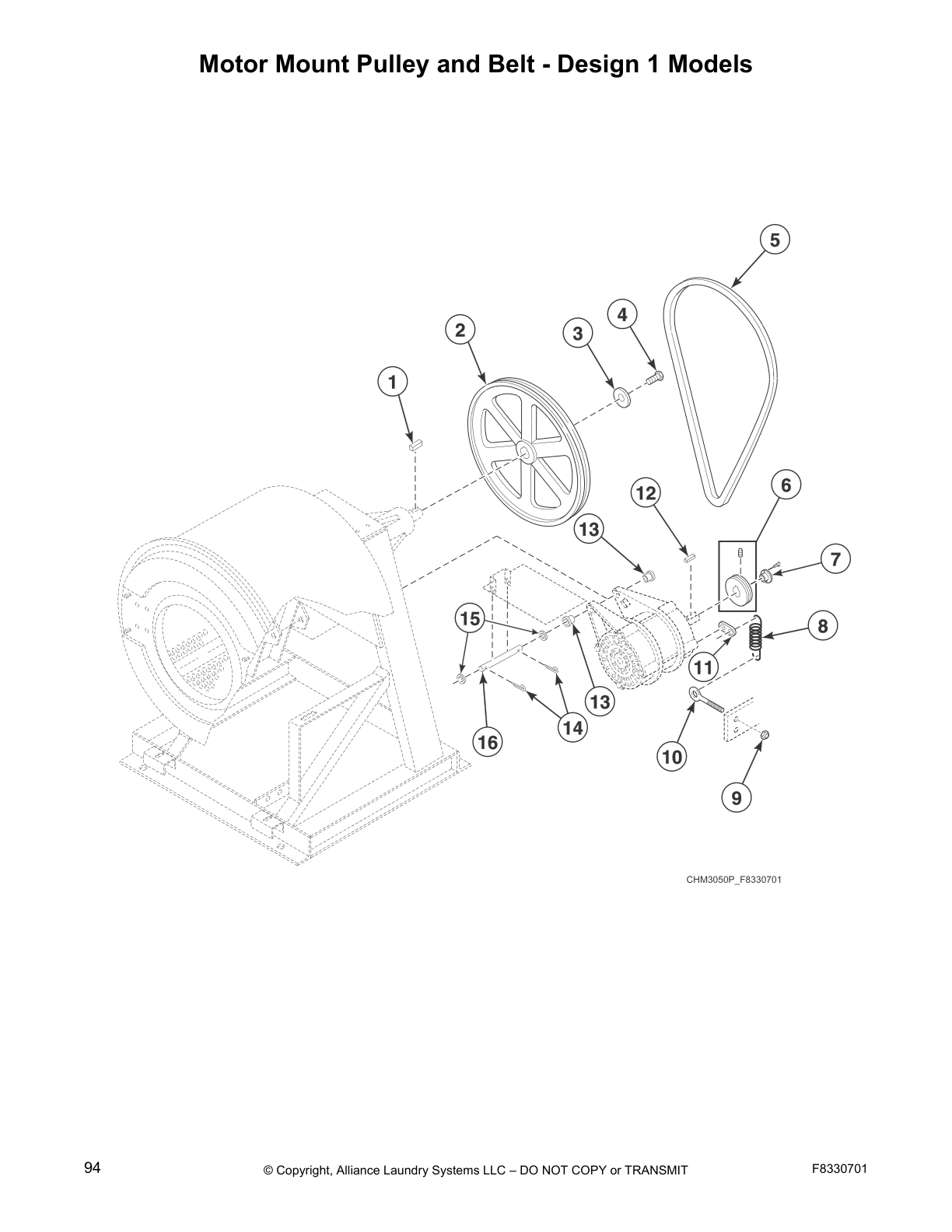

Motor Mount Pulley and Belt - Design 1 Models
Motor, Pulley and Belt (Drawing 1 of 2)

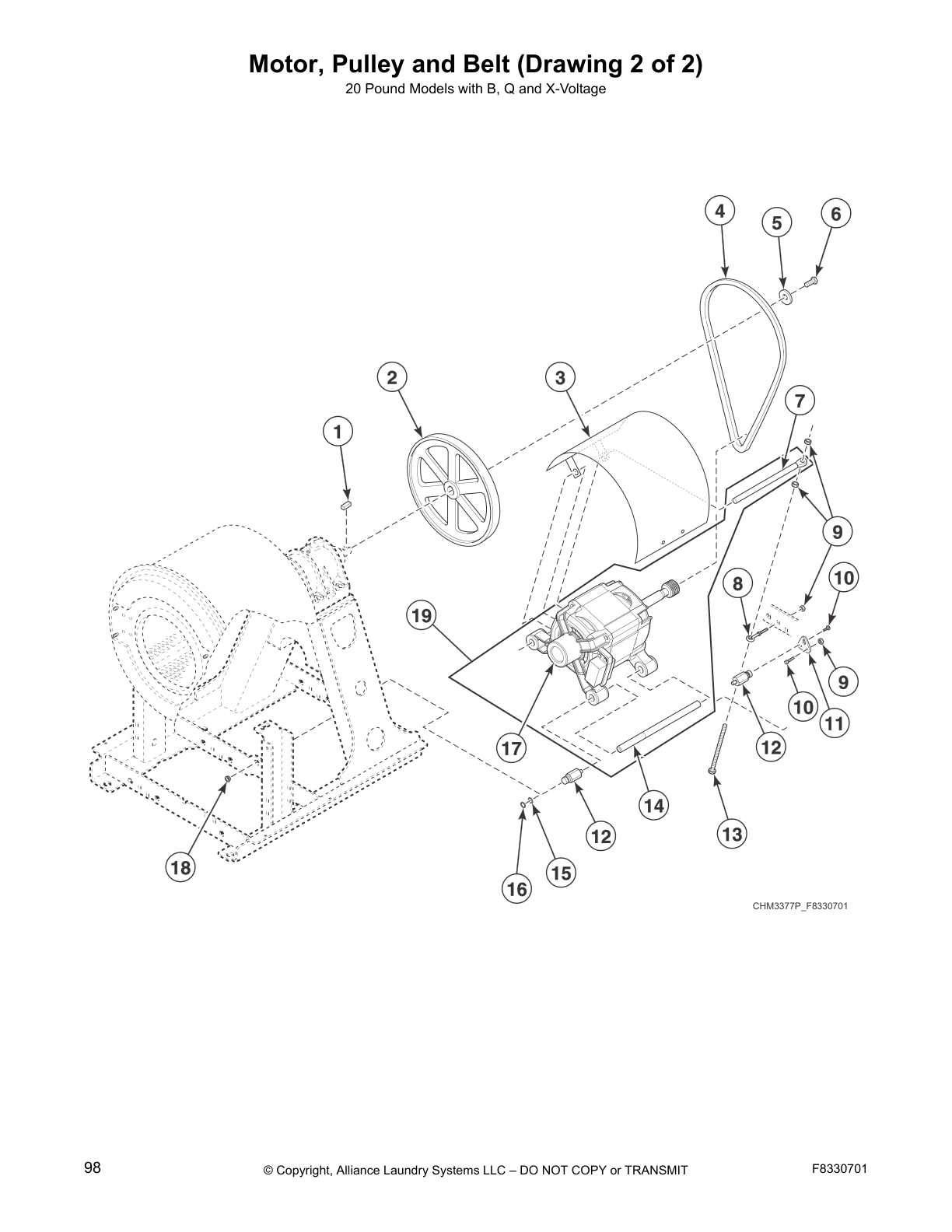

Motor, Pulley and Belt (Drawing 2 of 2)

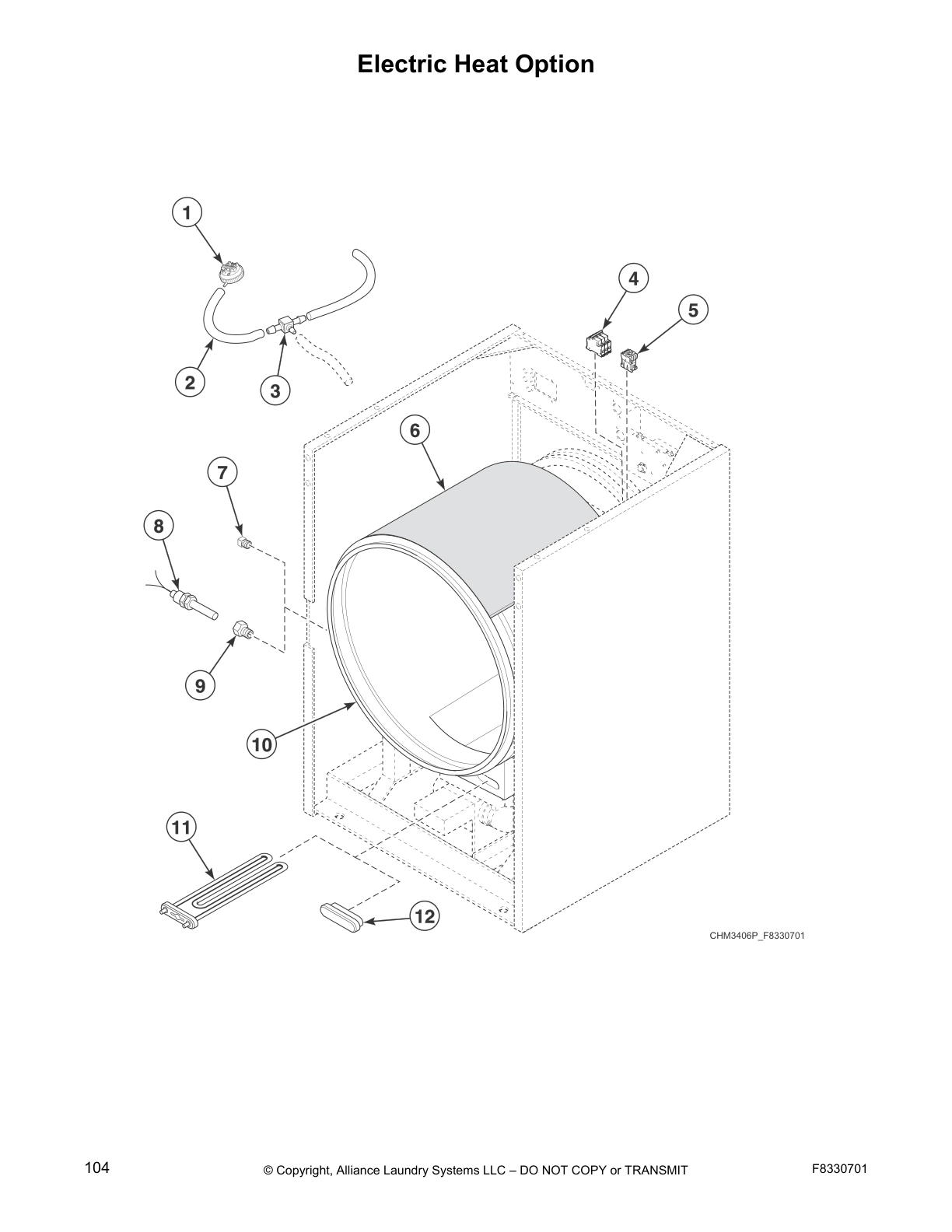

Electric Heat Option

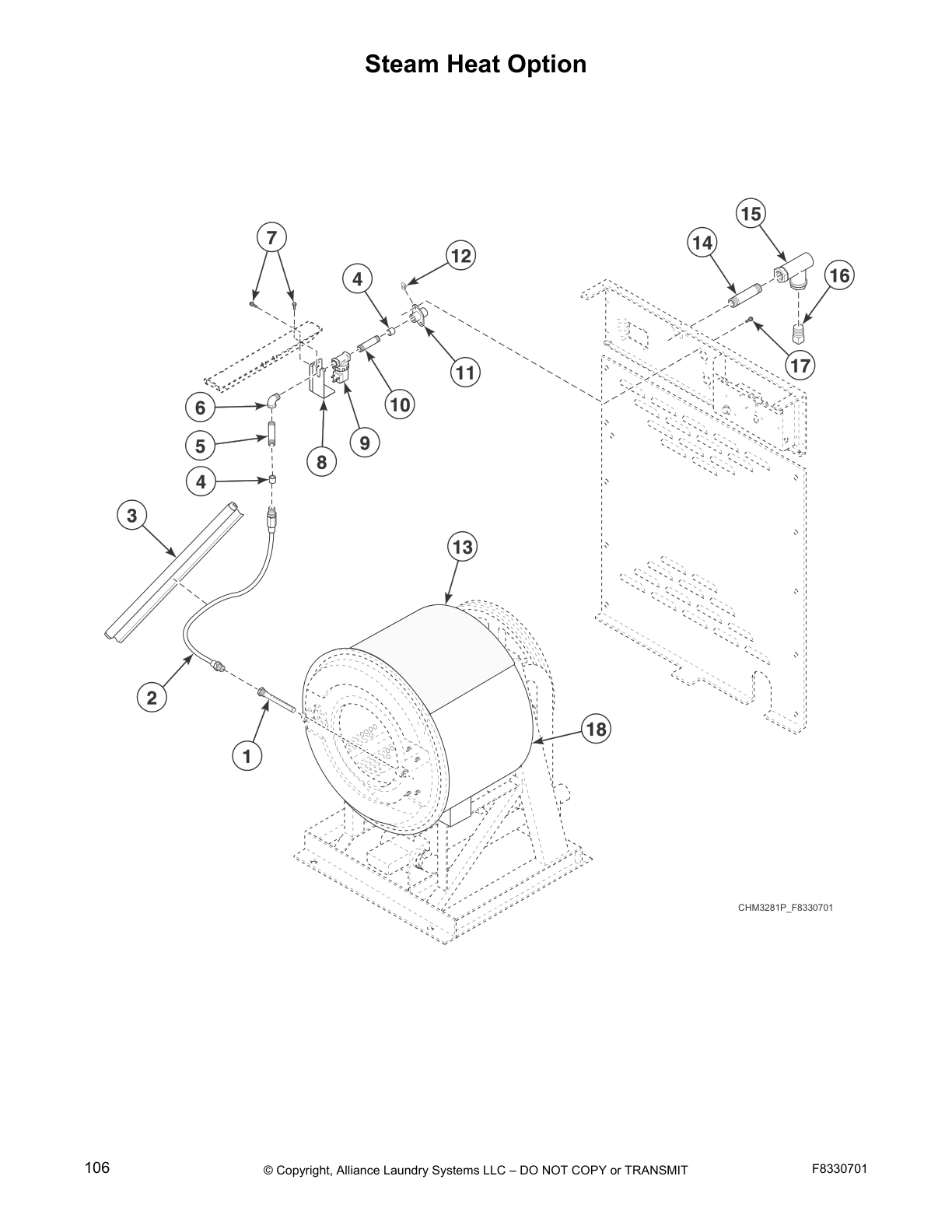

Steam Heat Option
Common parts from model Huebsch HCL060HEF Washer
SPQ F380984P SPQ F380984P Contact Us For Availability
Communication Harness SPQ F937P3 Contact Us For Availability
SPQ F8028701 SPQ F8028701 Contact Us For Availability
External Supply Kit SPQ 802492 Contact Us For Availability
Pulse Expander Assembly SPQ CK099 Contact Us For Availability
SPQ 70294104 SPQ 70294104 Contact Us For Availability
SPQ CK123 SPQ CK123 Contact Us For Availability
SPQ CK121 SPQ CK121 Contact Us For Availability
SPQ CK111 SPQ CK111 Contact Us For Availability
SPQ 70513316 SPQ 70513316 Contact Us For Availability
SPQ 70513314 SPQ 70513314 Contact Us For Availability
SPQ 70513312 SPQ 70513312 Contact Us For Availability
SPQ 70513309 SPQ 70513309 Contact Us For Availability
SPQ 70513303 SPQ 70513303 Contact Us For Availability
SPQ 70482401 SPQ 70482401 Contact Us For Availability
SPQ CK119 SPQ CK119 Contact Us For Availability
SPQ CK116 SPQ CK116 Contact Us For Availability
SPQ 70295301 SPQ 70295301 Contact Us For Availability
SPQ F8444203 SPQ F8444203 Contact Us For Availability
SPQ F8294303 SPQ F8294303 Contact Us For Availability
SPQ F8177501P SPQ F8177501P Contact Us For Availability
SPQ F8187406 SPQ F8187406 Contact Us For Availability
SPQ F8340001 SPQ F8340001 Contact Us For Availability
SPQ F8608502P SPQ F8608502P Contact Us For Availability
Shaft Seal Sleeve Kit SPQ F8343909P Contact Us For Availability
Basket Pulley Puller Tool SPQ F460129P Contact Us For Availability
SPQ F8665603 SPQ F8665603 Contact Us For Availability
SPQ F8665601 SPQ F8665601 Contact Us For Availability
SPQ F0200244-01 SPQ F0200244-01 Contact Us For Availability
SPQ F421936 SPQ F421936 Contact Us For Availability
SPQ F8382301 SPQ F8382301 Contact Us For Availability
1
Drain Valve SPQ F8406303 Contact Us For Availability
1
Drive Assembly SPQ F8303601P Contact Us For Availability
1
Water Pressure Switch SPQ F8223001P Contact Us For Availability
1
Screw SPQ F8117601 Contact Us For Availability
1
Key SPQ 70155603 Contact Us For Availability
1
Left Side Panel SPQ F8043302P Contact Us For Availability
1
Bearing Sleeve SPQ F8221701 Contact Us For Availability
1
Door Lock Solenoid Replacement SPQ F977P3 Contact Us For Availability
1
Shell Front Assembly SPQ F8229701 Contact Us For Availability
1
Nut SPQ F430240 Contact Us For Availability
1
Bearing SPQ F100135 Contact Us For Availability
1
Screw SPQ F430942 Contact Us For Availability
1
Screw SPQ F8621601 Contact Us For Availability
1
Steam Filter SPQ F270308 Contact Us For Availability
1
Dispenser Assembly SPQ F8047401 Contact Us For Availability
1
Vacuum Breaker Assembly SPQ F8048601 Contact Us For Availability
1
Double Check Valve SPQ F8301201 Contact Us For Availability
1
Key SPQ F430801 Contact Us For Availability
1
Steam Injector Tube Assembly SPQ F8368201 Contact Us For Availability
2
Top Cover SPQ 44089303P Contact Us For Availability
2
Drive Mounting Bracket SPQ F8359803 Contact Us For Availability
2
Front End Control Kit SPQ F8182601 Contact Us For Availability
2
Coin Drop Assembly SPQ 38464P Contact Us For Availability
2
Front Panel SPQ F8173201P Contact Us For Availability
2
Control Panel Overlay SPQ F8294302 Contact Us For Availability
2
Pushbutton Switch SPQ F8399502P Contact Us For Availability
2
Reed Switch Assembly SPQ F8245101 Contact Us For Availability
2
Spacer SPQ F431902 Contact Us For Availability
2
Bearing Housing SPQ F8271901P Contact Us For Availability
2
Nipple SPQ F8360902 Contact Us For Availability
2
Bolt SPQ F8464701 Contact Us For Availability
2
Y Connector SPQ M411283 Contact Us For Availability
2
Motor Isolation Kit
40 and 60 pound models SPQ F200299700 Contact Us For Availability
3
Screw SPQ F8322401 Contact Us For Availability
3
Coin Drop SPQ 70256402P Contact Us For Availability
3
Front Panel SPQ F8173207 Contact Us For Availability
3
Bolt SPQ F8230601 Contact Us For Availability
3
Right Side Panel SPQ F8399504 Contact Us For Availability
3
Door Lock Splash Shield SPQ F430225 Contact Us For Availability
3
Shell Front Gasket Kit SPQ F8513501 Contact Us For Availability
3
Nut SPQ F430303 Contact Us For Availability
3
Seal Scupper Pad SPQ F8250902 Contact Us For Availability
3
Shell Weldment SPQ F8402701 Contact Us For Availability
3
Screw SPQ F430107 Contact Us For Availability
3
Stud SPQ F8261303 Contact Us For Availability
3
Drain Valve Cover SPQ F200133600 Contact Us For Availability
3
Fill/External Supply Harness SPQ F606816-1 Contact Us For Availability
3
3-Way Valve SPQ F8286402P Contact Us For Availability
3
Flanged Bushing SPQ F8382805 Contact Us For Availability
3
Tee SPQ F360202 Contact Us For Availability
3
Street Elbow SPQ F200197 Contact Us For Availability
4
Door Lock Plate Assembly SPQ F200203200 Contact Us For Availability
4
SPQ F8199501 SPQ F8199501 Contact Us For Availability
4
Circuit Breaker SPQ F8153901 Contact Us For Availability
4
Expansion Clip SPQ F430903 Contact Us For Availability
4
Nut SPQ 39157 Contact Us For Availability
4
Electronic Coin Drop Kit SPQ CK109 Contact Us For Availability
4
Top Cover Latch SPQ F8186702 Contact Us For Availability
4
Expansion Clip SPQ 70413301 Contact Us For Availability
4
Door Handle Spacer Kit SPQ F190216P Contact Us For Availability
4
Screw SPQ F430518 Contact Us For Availability
4
Washer SPQ F430317 Contact Us For Availability
4
Washer SPQ F8350303 Contact Us For Availability
4
SPQ F8367201 SPQ F8367201 Contact Us For Availability
4
Bolt SPQ F200182700 Contact Us For Availability
4
SPQ F8535601 SPQ F8535601 Contact Us For Availability
4
Regulator SPQ F8286401P Contact Us For Availability
4
Steam Bracket SPQ F8116301 Contact Us For Availability
5
Pushbutton Switch SPQ F8048101 Contact Us For Availability
5
Contactor SPQ F8246601 Contact Us For Availability
5
Snap Bushing SPQ F8189401P Contact Us For Availability
5
Opto Coupler SPQ 210196 Contact Us For Availability
5
Coin Drop Assembly SPQ CK108 Contact Us For Availability
5
Screw SPQ F8043301P Contact Us For Availability
5
SPQ F431916 SPQ F431916 Contact Us For Availability
5
Screw SPQ F431901 Contact Us For Availability
5
SPQ F431131 SPQ F431131 Contact Us For Availability
5
Screw SPQ F430339 Contact Us For Availability
5
Frame Template SPQ F8360901 Contact Us For Availability
5
SPQ F200165100 SPQ F200165100 Contact Us For Availability
5
Drain Valve Kit SPQ F200166400 Contact Us For Availability
5
SPQ F0431807-00 SPQ F0431807-00 Contact Us For Availability
5
Washer SPQ F8402201 Contact Us For Availability
5
Washer SPQ F431115 Contact Us For Availability
5
Valve SPQ F8110601 Contact Us For Availability
6
Contactor SPQ F8053902 Contact Us For Availability
6
Pipe Insulation SPQ 70256901P Contact Us For Availability
6
Control Assembly Kit SPQ F8170801 Contact Us For Availability
6
SPQ F8040401P SPQ F8040401P Contact Us For Availability
6
Rear Panel SPQ F8399503 Contact Us For Availability
6
SPQ F8544701 SPQ F8544701 Contact Us For Availability
6
SPQ F8221403 SPQ F8221403 Contact Us For Availability
6
Door Lock Plate Shim SPQ F320200 Contact Us For Availability
6
Concrete Kit SPQ F8442702 Contact Us For Availability
6
Pin SPQ F8302701 Contact Us For Availability
6
Triple Lip Seal SPQ F8368801 Contact Us For Availability
6
Drain Valve Kit SPQ F200166402 Contact Us For Availability
6
SPQ F8308301 SPQ F8308301 Contact Us For Availability
6
Washer SPQ M400077 Contact Us For Availability
6
DIN Valve Kit SPQ H86070034 Contact Us For Availability
7
Steam Heat Kit SPQ F8206901 Contact Us For Availability
7
Top Cover Latch SPQ F8038802 Contact Us For Availability
7
Pop Rivet SPQ F8201001 Contact Us For Availability
7
SPQ F8230501 SPQ F8230501 Contact Us For Availability
7
SPQ F8535501 SPQ F8535501 Contact Us For Availability
7
External Door Lock Harness SPQ F8223202 Contact Us For Availability
7
Radial Seal SPQ F8203806 Contact Us For Availability
7
P-Trap Hose SPQ F200213 Contact Us For Availability
7
SPQ F8047801 SPQ F8047801 Contact Us For Availability
7
Motor Pulley SPQ F8362501 Contact Us For Availability
7
Plug SPQ F330188P Contact Us For Availability
8
Circuit Breaker SPQ F8053901P Contact Us For Availability
8
Washer SPQ 70412601 Contact Us For Availability
8
SPQ F602842-2 SPQ F602842-2 Contact Us For Availability
8
Door Lock Assembly SPQ F430977 Contact Us For Availability
8
Shell Band Kit SPQ F8537804 Contact Us For Availability
8
Retaining Ring SPQ F8203808 Contact Us For Availability
8
SPQ F8043405 SPQ F8043405 Contact Us For Availability
8
Steam Valve Repair Kit SPQ F8490301 Contact Us For Availability
9
Water Pressure Switch SPQ F980P3 Contact Us For Availability
9
Jumper Configuration Assembly SPQ F8310101 Contact Us For Availability
9
Tubing SPQ 44071501 Contact Us For Availability
9
SPQ F8201101 SPQ F8201101 Contact Us For Availability
9
SPQ F8507702 SPQ F8507702 Contact Us For Availability
9
Door Lock Assembly Kit SPQ F8344401 Contact Us For Availability
9
Nut SPQ F8337901 Contact Us For Availability
9
Basket Assembly SPQ F8502804 Contact Us For Availability
9
SPQ 70334702 SPQ 70334702 Contact Us For Availability
9
SPQ F8042805 SPQ F8042805 Contact Us For Availability
9
SPQ H8752006H SPQ H8752006H Contact Us For Availability
9
Reducer Bushing SPQ F421507 Contact Us For Availability
9
Coil SPQ F8322801P Contact Us For Availability
10
End Stop SPQ F8204701P Contact Us For Availability
10
Shell Weldment SPQ F8404401 Contact Us For Availability
10
Nut SPQ F430215 Contact Us For Availability
10
Door Lock Cover SPQ F8245001 Contact Us For Availability
10
Excluder Seal SPQ F8337101 Contact Us For Availability
10
Dowel Pin SPQ F8388201 Contact Us For Availability
10
Rear Drain Hose SPQ F200201 Contact Us For Availability
10
Bolt SPQ F8402801 Contact Us For Availability
10
Valve Panel SPQ F8047402 Contact Us For Availability
10
Motor
60 pound models SPQ F8335101P Contact Us For Availability
10
Pipe Nipple SPQ 70263801 Contact Us For Availability
11
Hose Barb Connector SPQ F8431001 Contact Us For Availability
11
DIN Rail SPQ 70121001 Contact Us For Availability
11
Door Bezel SPQ F0170426-30 Contact Us For Availability
11
Door Gasket SPQ F431041 Contact Us For Availability
11
Shim SPQ F8484401 Contact Us For Availability
11
Excluder Seal SPQ F8527701 Contact Us For Availability
11
Bearing Housing Assembly SPQ F8271902 Contact Us For Availability
11
Bracket SPQ F8231905 Contact Us For Availability
11
Screw SPQ F8039801 Contact Us For Availability
11
Screw SPQ 23222 Contact Us For Availability
11
Motor Rod Plate SPQ F8441101 Contact Us For Availability
11
Coupling SPQ F8154501 Contact Us For Availability
12
Expansion Clip SPQ F8385301 Contact Us For Availability
12
Hose SPQ F8405301 Contact Us For Availability
12
Lower Cabinet Brace SPQ F430174 Contact Us For Availability
12
Top Cabinet Brace SPQ F8043901 Contact Us For Availability
12
Door Lock Catch SPQ F8344501 Contact Us For Availability
12
Washer SPQ F8434701 Contact Us For Availability
12
Terminal Tray Cover SPQ F8399001 Contact Us For Availability
12
Motor Support Bushing SPQ F430802 Contact Us For Availability
12
Motor Conduit Mounting Bracket SPQ 70321701 Contact Us For Availability
12
Heating Element Plug SPQ F8179602 Contact Us For Availability
12
Nut SPQ F8362701 Contact Us For Availability
13
Expansion Clip SPQ F8174101 Contact Us For Availability
13
Top Cover Hinge SPQ F8258601 Contact Us For Availability
13
Door Gasket SPQ F8485405 Contact Us For Availability
13
Bolt SPQ F8223601 Contact Us For Availability
13
Nut SPQ M405535 Contact Us For Availability
13
Pipe Insulation SPQ 70030401 Contact Us For Availability
13
Harness SPQ F8230301 Contact Us For Availability
13
Cotter Pin SPQ F200186100 Contact Us For Availability
14
Grommet SPQ F8433001 Contact Us For Availability
14
Drive Tray Assembly SPQ F8401301 Contact Us For Availability
14
Bolt SPQ F8111502 Contact Us For Availability
14
Nut SPQ F8270701 Contact Us For Availability
14
Washer SPQ F430401 Contact Us For Availability
14
Steam Filter SPQ F410300 Contact Us For Availability
15
Magnet SPQ F170124 Contact Us For Availability
15
Door Lock Switch Lever SPQ F430264 Contact Us For Availability
15
Hole Plug SPQ M400985 Contact Us For Availability
15
Magnet SPQ F430974 Contact Us For Availability
15
Drain Hose SPQ 202175 Contact Us For Availability
15
Terminal Block SPQ F8177001 Contact Us For Availability
15
Extension Spring SPQ F310124 Contact Us For Availability
15
Basket Pulley SPQ 901690 Contact Us For Availability
15
O-Ring SPQ F8441901 Contact Us For Availability
15
Plug SPQ 431486 Contact Us For Availability
16
Control Tray Assembly SPQ F8359707 Contact Us For Availability
16
Panel Lock SPQ F8223901 Contact Us For Availability
16
Torsion/Door Lock Spring SPQ F8223401 Contact Us For Availability
16
Overflow Hose SPQ F8232901 Contact Us For Availability
16
Nut SPQ F8454601 Contact Us For Availability
16
Spring Plate SPQ F8363901 Contact Us For Availability
16
Flanged Bushing SPQ F8333301 Contact Us For Availability
17
Tray Support Bracket SPQ F8359602P Contact Us For Availability
17
Dispenser Lid SPQ F8223801 Contact Us For Availability
17
Pop Rivet SPQ F8508101 Contact Us For Availability
17
Washer SPQ F8070301 Contact Us For Availability
17
Ground Lug Connector SPQ F8454401 Contact Us For Availability
17
Shell Weldment SPQ F420409 Contact Us For Availability
18
Blind Rivet SPQ F8390801 Contact Us For Availability
18
Hose Clamp SPQ 430642 Contact Us For Availability
18
Coin Vault Assembly SPQ F8359604 Contact Us For Availability
18
Spacer SPQ F8451601 Contact Us For Availability
18
Steam Hose SPQ 20253 Contact Us For Availability
19
Siphon Cover SPQ F430232 Contact Us For Availability
19
Nut SPQ F8375201 Contact Us For Availability
19
Spring Pin SPQ F431223 Contact Us For Availability
19
Basket Pulley
60 pound models SPQ F8387601 Contact Us For Availability
20
Door Hinge Shim Kit SPQ F431222 Contact Us For Availability
20
Hose SPQ F430909 Contact Us For Availability
20
Includes F85350 and F8535201 Isolator SPQ F8562502 Contact Us For Availability
21
Pop Rivet SPQ F431017 Contact Us For Availability
22
Screw SPQ F602813-3 Contact Us For Availability
22
Dispenser Gasket SPQ F8047901 Contact Us For Availability
23
Washer SPQ F200131000P Contact Us For Availability
23
Access Cover SPQ F422816 Contact Us For Availability
24
Door Mount SPQ F430536 Contact Us For Availability
24
Supply Overflow Hose SPQ F8232002 Contact Us For Availability
26
Door Latch Arm Assembly SPQ F431929 Contact Us For Availability
26
Cap SPQ F8333201 Contact Us For Availability
27
Door Latch Arm Assembly SPQ F150271 Contact Us For Availability
27
Vacuum Breaker Hose SPQ F200222 Contact Us For Availability
NI
SPQ F8567501 SPQ F8567501 Contact Us For Availability
NI
SPQ F8261501P SPQ F8261501P Contact Us For Availability
NI
SPQ F8385102 SPQ F8385102 Contact Us For Availability
NI
Output/Logic Harness SPQ M413506 Contact Us For Availability
NI
Machine Size Configuration Harness SPQ F8191201P Contact Us For Availability
NI
SPQ F8028105P SPQ F8028105P Contact Us For Availability
NI
SPQ F200010000P SPQ F200010000P Contact Us For Availability
NI
SPQ 70281102 SPQ 70281102 Contact Us For Availability
NI
Pop Rivet SPQ 210195 Contact Us For Availability
NI
SPQ F200010005P SPQ F200010005P Contact Us For Availability
NI
Electronic Coin Drop Assembly SPQ CK101 Contact Us For Availability
NI
Coin Drop Kit SPQ CK100 Contact Us For Availability
NI
Overlay SPQ 70447301 Contact Us For Availability
NI
SPQ CK122 SPQ CK122 Contact Us For Availability
NI
SPQ CK120 SPQ CK120 Contact Us For Availability
NI
SPQ CK107 SPQ CK107 Contact Us For Availability
NI
SPQ 70513315 SPQ 70513315 Contact Us For Availability
NI
SPQ 70513313 SPQ 70513313 Contact Us For Availability
NI
SPQ 70513310 SPQ 70513310 Contact Us For Availability
NI
SPQ 70513308 SPQ 70513308 Contact Us For Availability
NI
SPQ 70513304 SPQ 70513304 Contact Us For Availability
NI
SPQ 70513302 SPQ 70513302 Contact Us For Availability
NI
SPQ 70513311 SPQ 70513311 Contact Us For Availability
NI
SPQ CK117 SPQ CK117 Contact Us For Availability
NI
SPQ F8034701P SPQ F8034701P Contact Us For Availability
NI
SPQ CK500 SPQ CK500 Contact Us For Availability
NI
SPQ F8294301 SPQ F8294301 Contact Us For Availability
NI
SPQ F8444202 SPQ F8444202 Contact Us For Availability
NI
SPQ F8444201 SPQ F8444201 Contact Us For Availability
NI
SPQ F8399501 SPQ F8399501 Contact Us For Availability
NI
SPQ F8367101 SPQ F8367101 Contact Us For Availability
NI
SPQ F430533 SPQ F430533 Contact Us For Availability
NI
SPQ F8507701 SPQ F8507701 Contact Us For Availability
NI
SPQ F8187407 SPQ F8187407 Contact Us For Availability
NI
SPQ F8187404 SPQ F8187404 Contact Us For Availability
NI
SPQ F8187403 SPQ F8187403 Contact Us For Availability
NI
SPQ F8059701 SPQ F8059701 Contact Us For Availability
NI
SPQ F8632401 SPQ F8632401 Contact Us For Availability
NI
SPQ F8626501 SPQ F8626501 Contact Us For Availability
NI
Basket Assembly SPQ F8502801P Contact Us For Availability
NI
Basket Tool Kit SPQ 390P4-1 Contact Us For Availability
NI
SPQ 389P4 SPQ 389P4 Contact Us For Availability
NI
Basket Puller Tool SPQ F100134 Contact Us For Availability
NI
Shaft Seal Sleeve SPQ F8343914 Contact Us For Availability
NI
Basket Rental Tool Kit SPQ F8387701 Contact Us For Availability
NI
SPQ F8433601 SPQ F8433601 Contact Us For Availability
NI
SPQ 1111P SPQ 1111P Contact Us For Availability
NI
Drain Seal Kit SPQ F8577201 Contact Us For Availability
NI
SPQ F8562001 SPQ F8562001 Contact Us For Availability
NI
Fill Hose Kit SPQ F8665604 Contact Us For Availability
NI
SPQ F8665602 SPQ F8665602 Contact Us For Availability
NI
SPQ F8544601 SPQ F8544601 Contact Us For Availability
NI
SPQ F8197701 SPQ F8197701 Contact Us For Availability
NI
SPQ F8182401P SPQ F8182401P Contact Us For Availability
NI
Diaphragm and Guide Kit SPQ F8042301 Contact Us For Availability
NI
SPQ G582P3 SPQ G582P3 Contact Us For Availability
NI
Jumper Wire SPQ F200202600 Contact Us For Availability
NI
SPQ F370609 SPQ F370609 Contact Us For Availability
NI
SPQ F8056001 SPQ F8056001 Contact Us For Availability
NI
DIN Valve Adapter Kit SPQ F8521501 Contact Us For Availability
NI
Valve Kit SPQ F953P3 Contact Us For Availability
NI
SPQ F8514601P SPQ F8514601P Contact Us For Availability
NI
SPQ F8379501P SPQ F8379501P Contact Us For Availability
× ![]()
