Model Huebsch HCL020GC2 Washer – Common Parts & Diagrams
Decals
Control Module - 2 Speed OPL Models

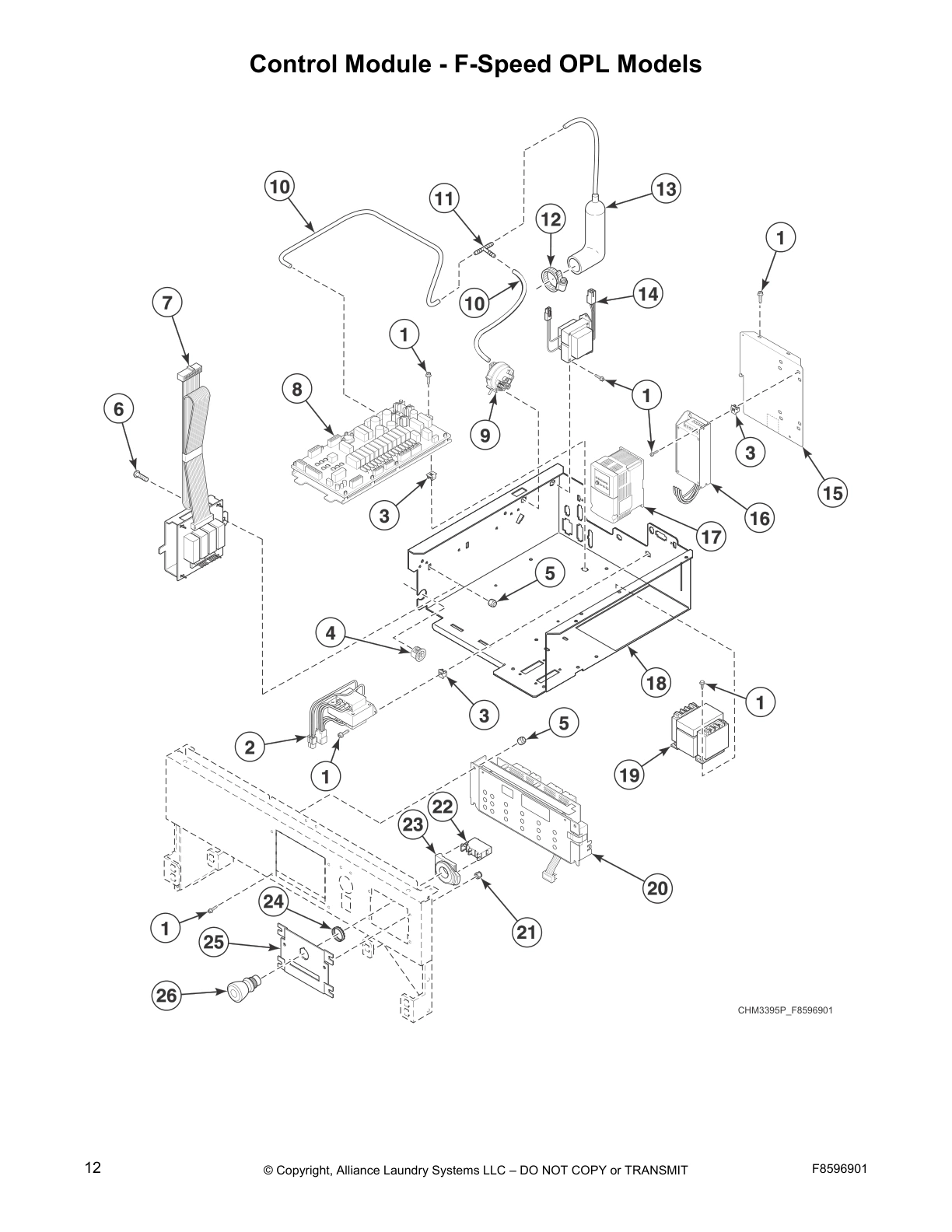

Control Module - F-Speed OPL Models

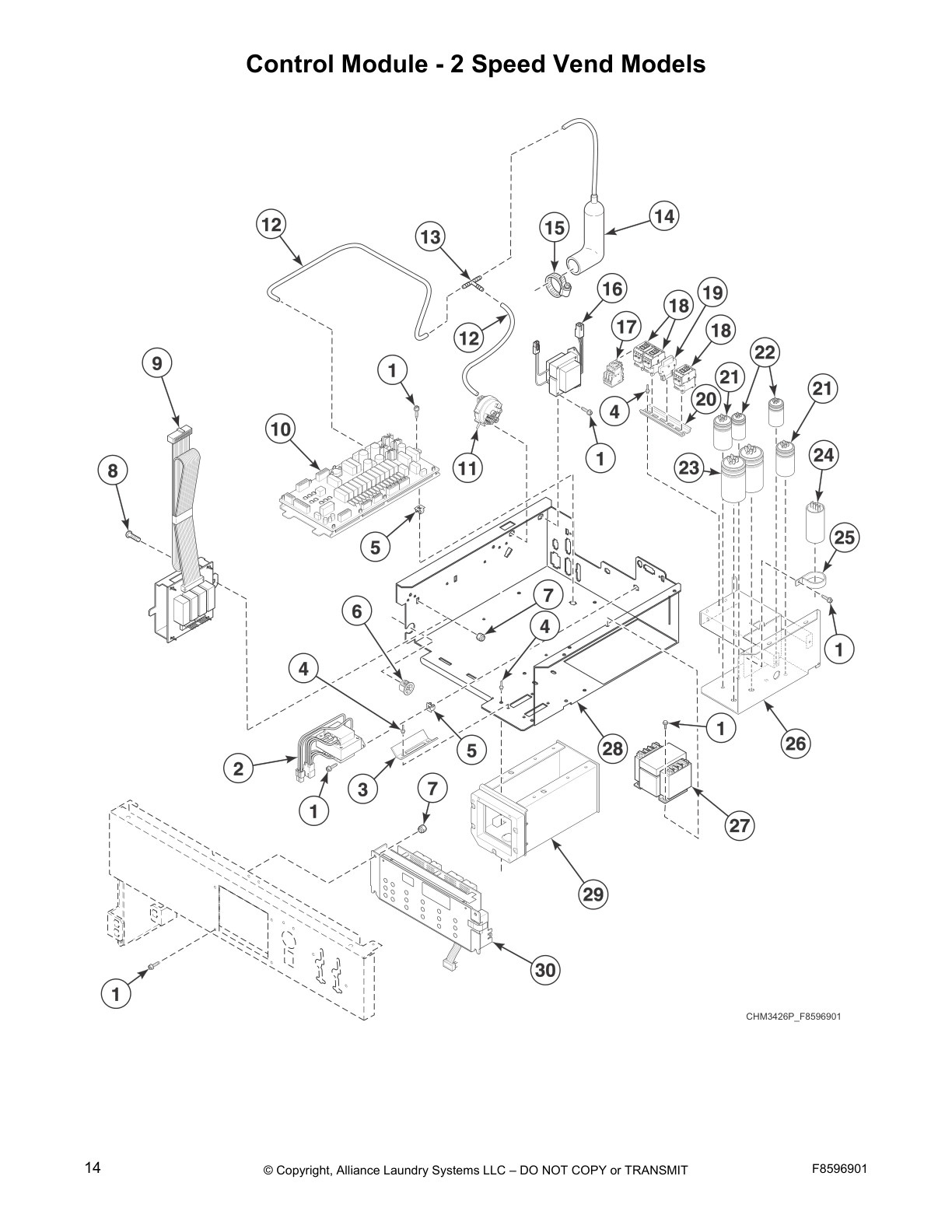

Control Module - 2 Speed Vend Models

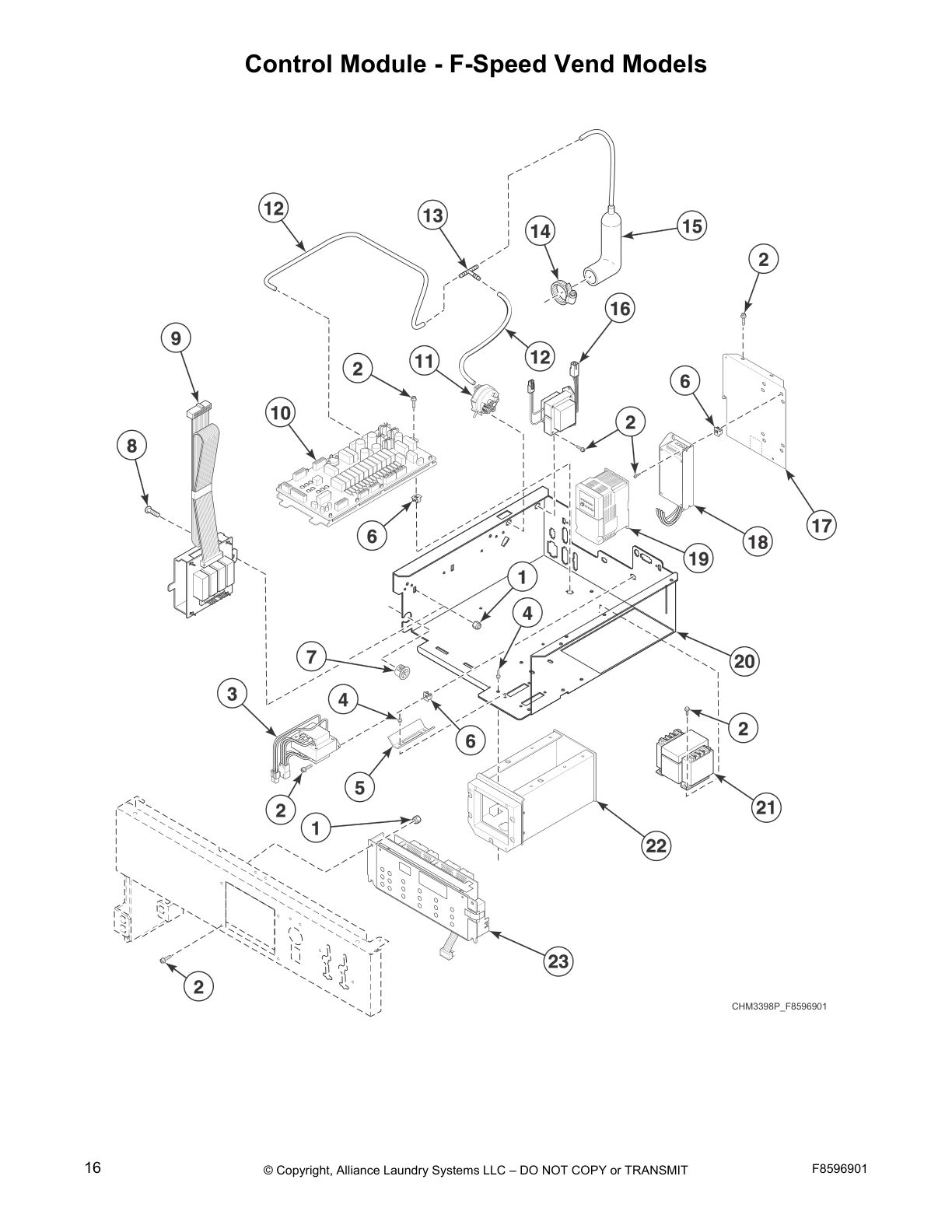

Control Module - F-Speed Vend Models

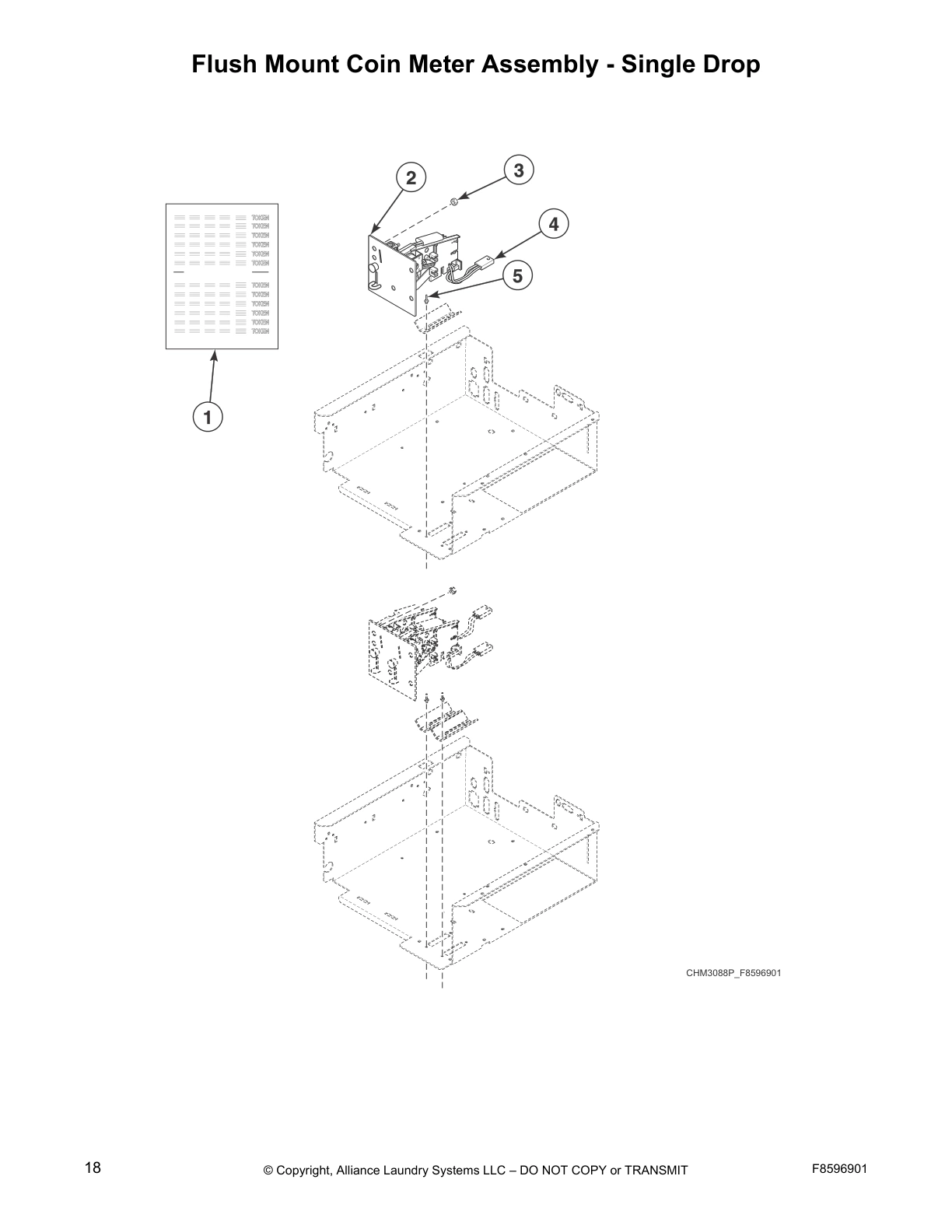

Flush Mount Coin Meter Assembly - Single Drop

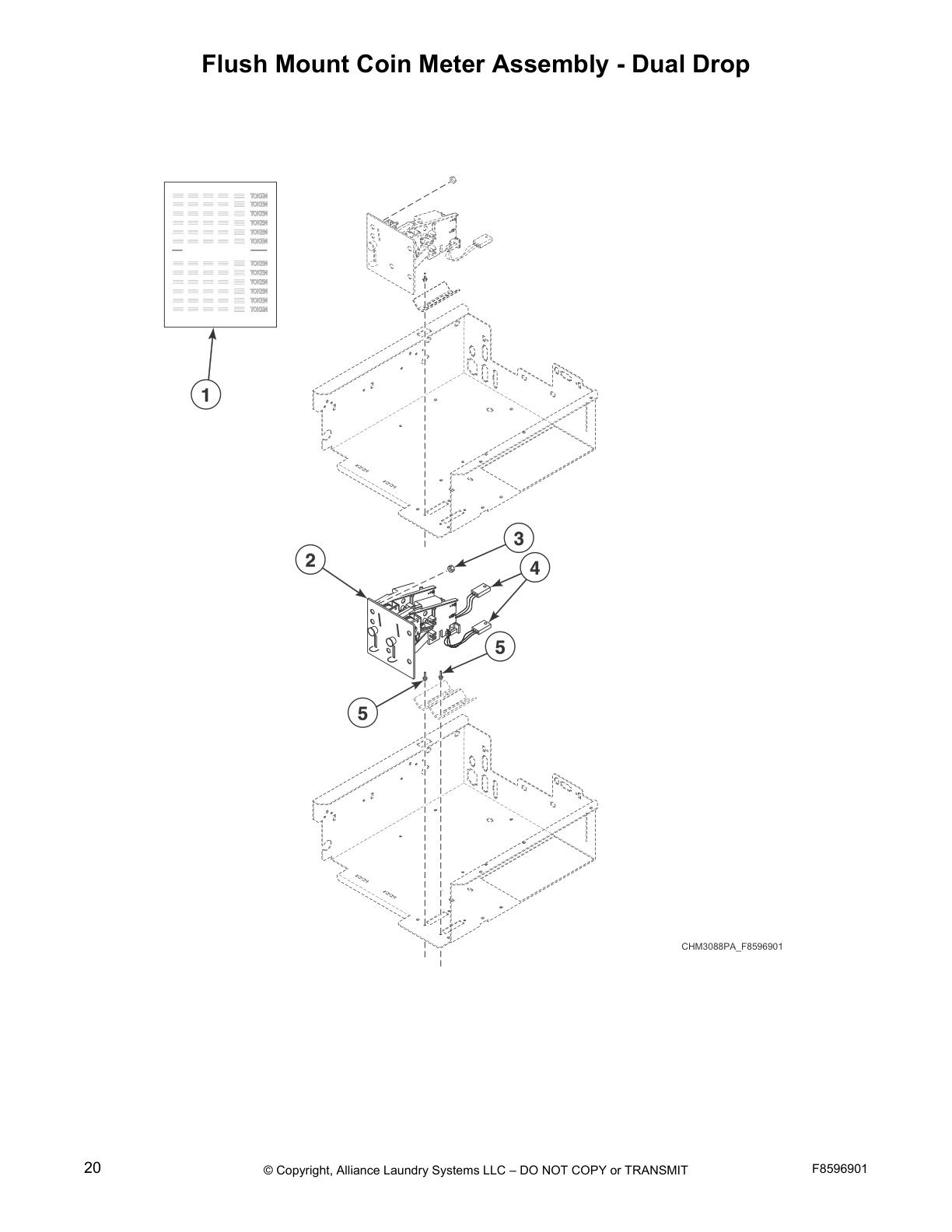

Flush Mount Coin Meter Assembly - Dual Drop

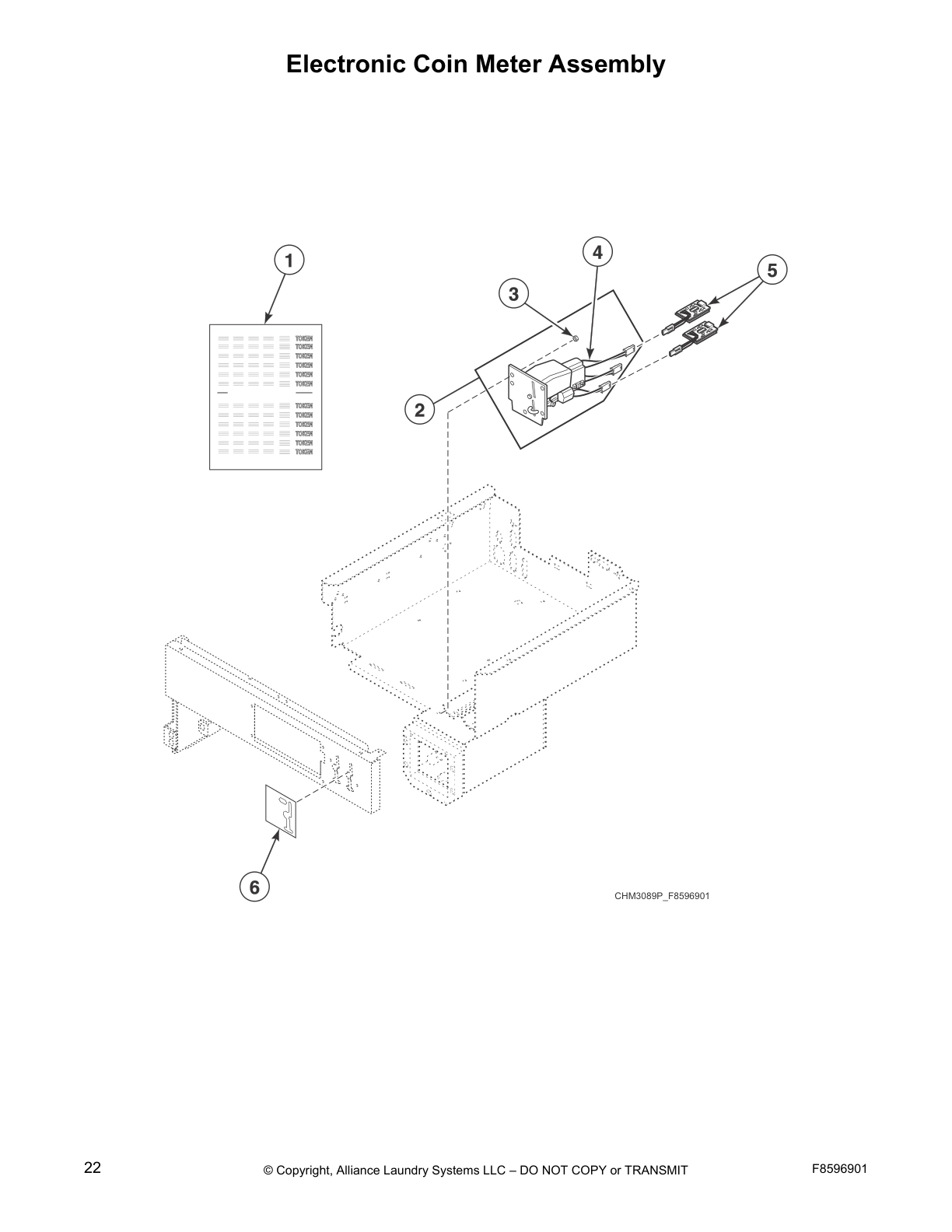

Electronic Coin Meter Assembly

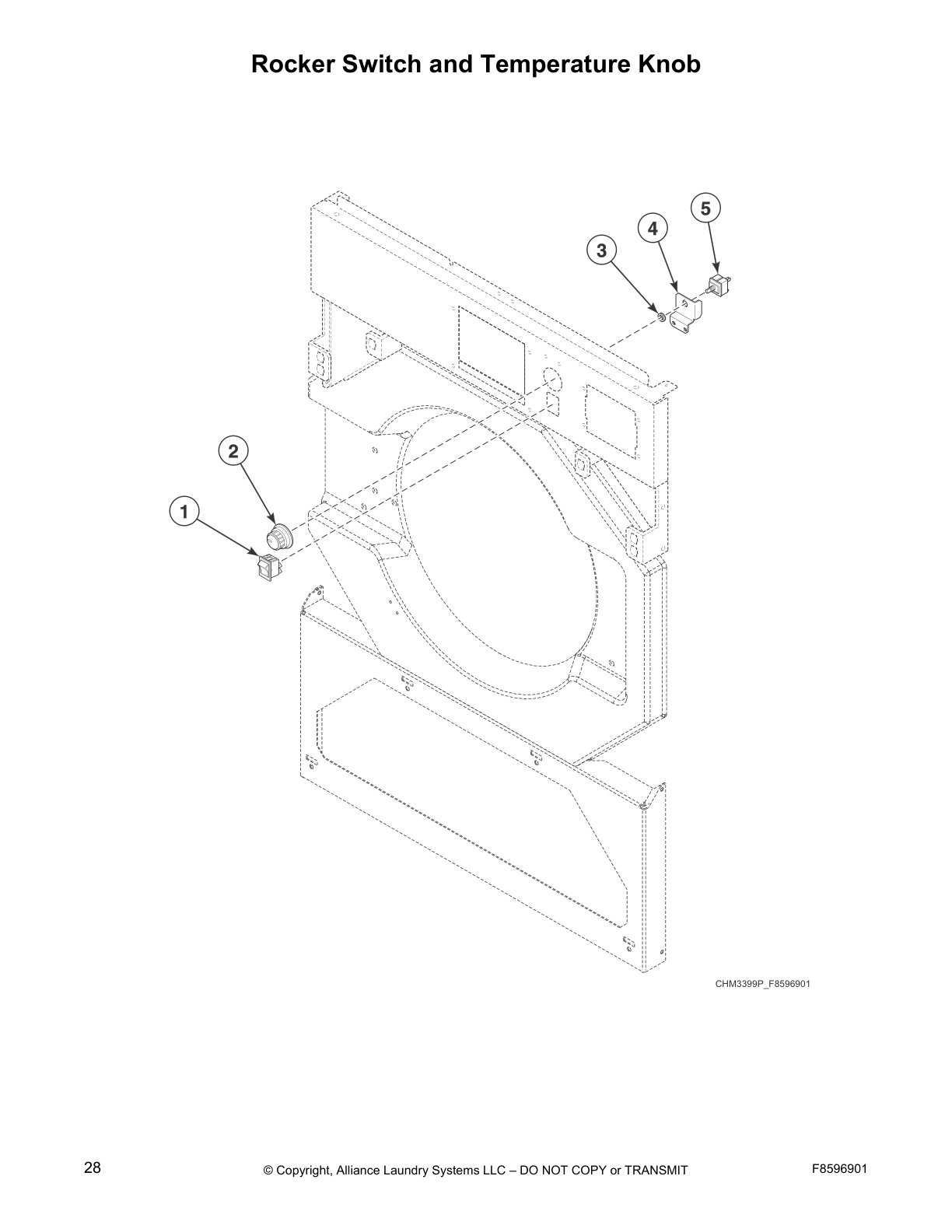

Rocker Switch and Temperature Knob

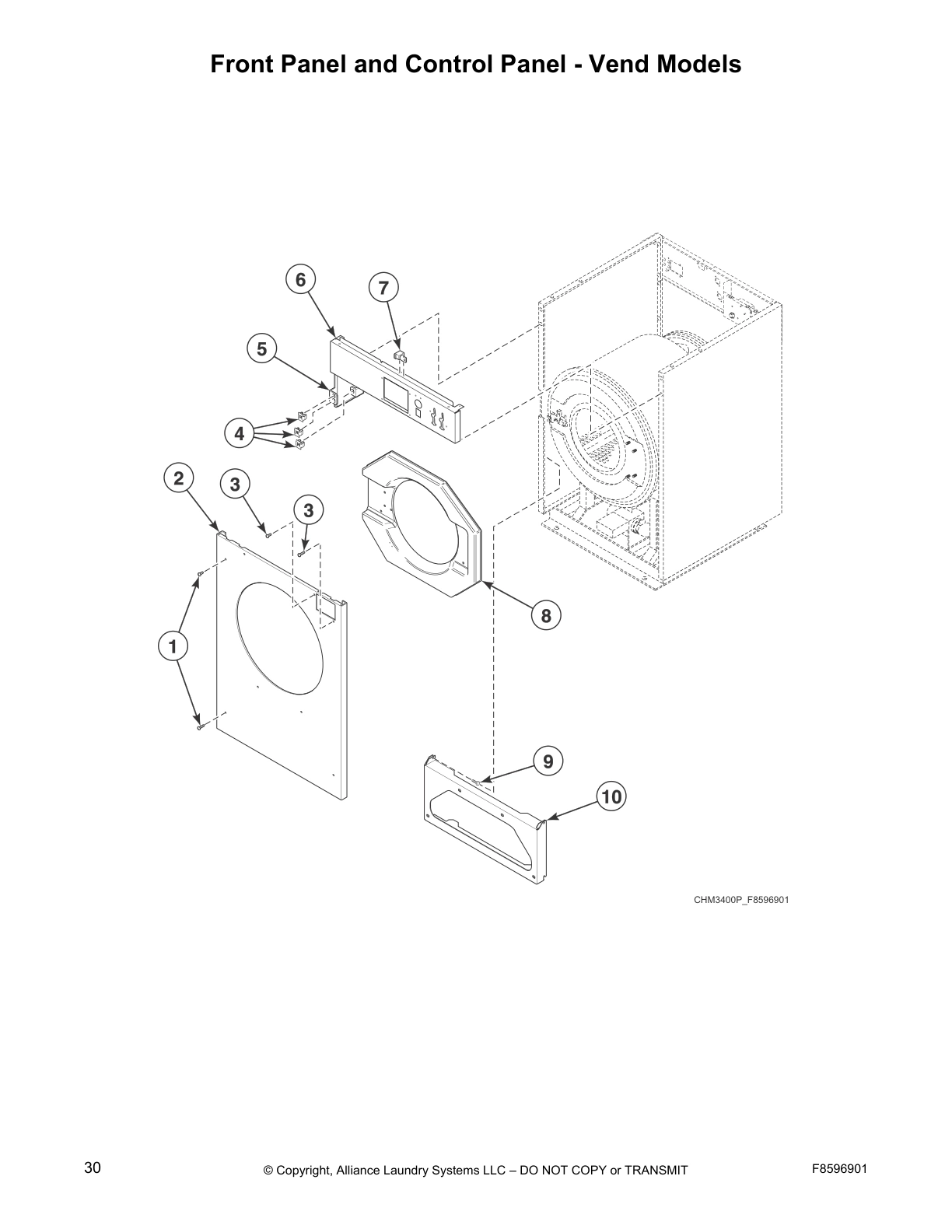

Front Panel and Control Panel - Vend Models

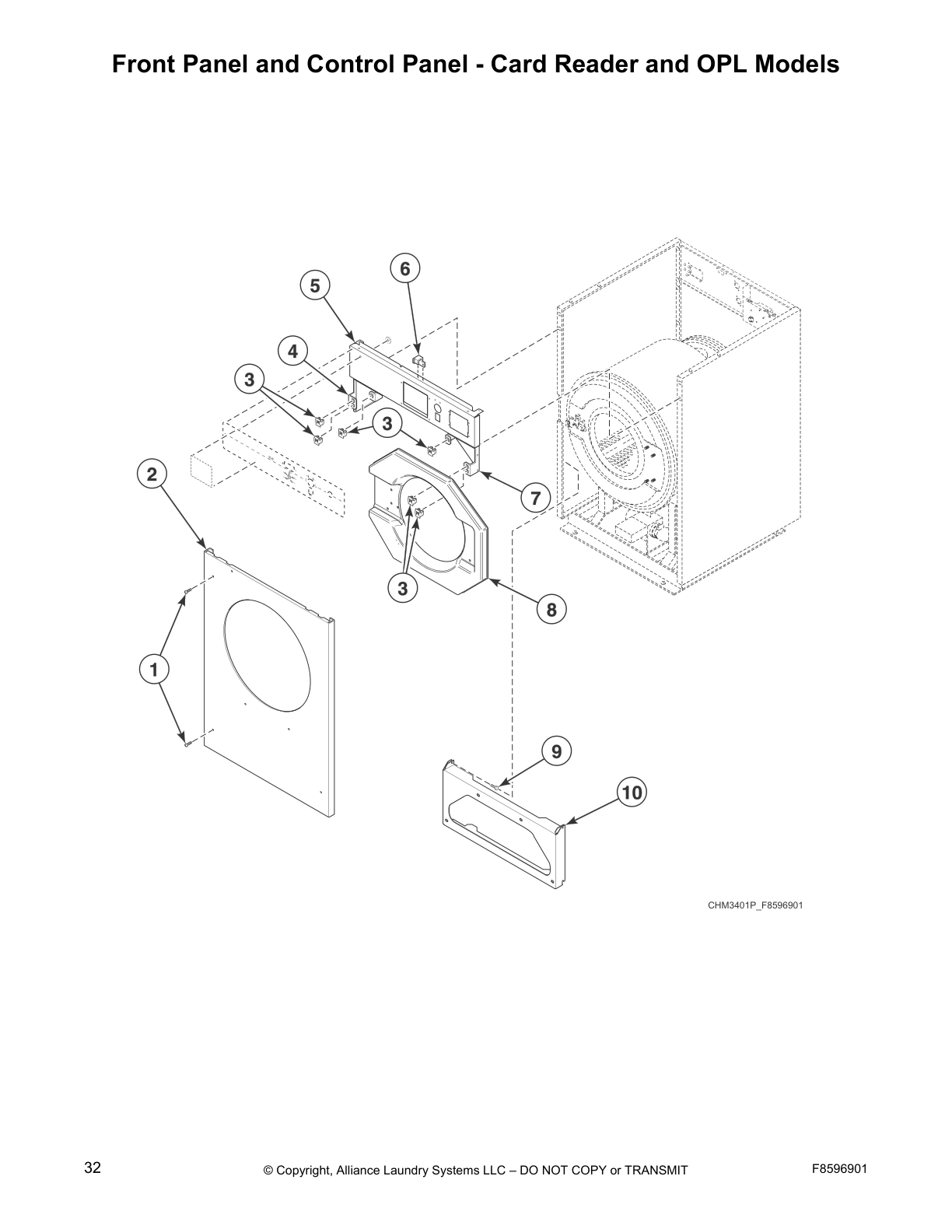

Front Panel and Control Panel - Card Reader and OPL Models

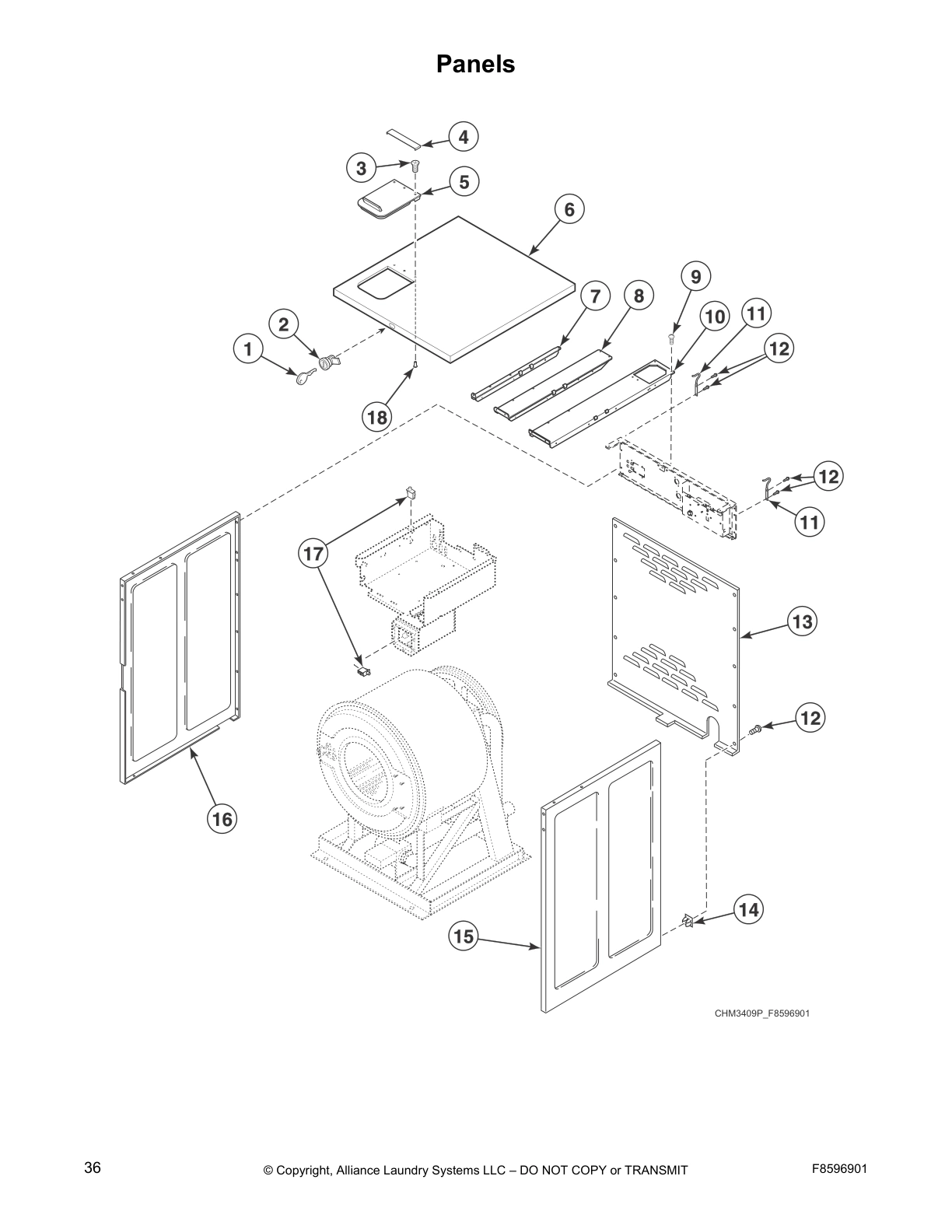

Panels
Door - 20 Pound Models

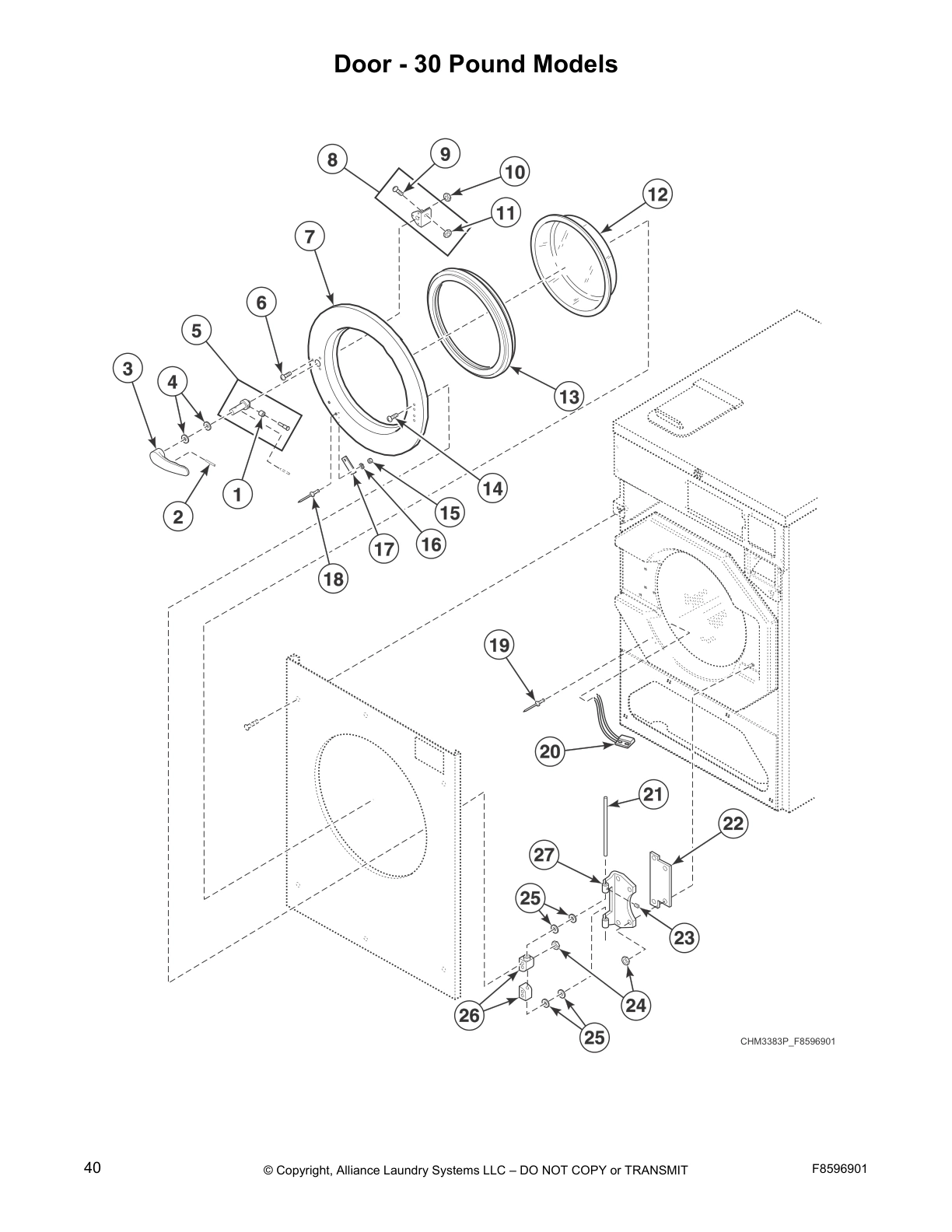

Door - 30 Pound Models

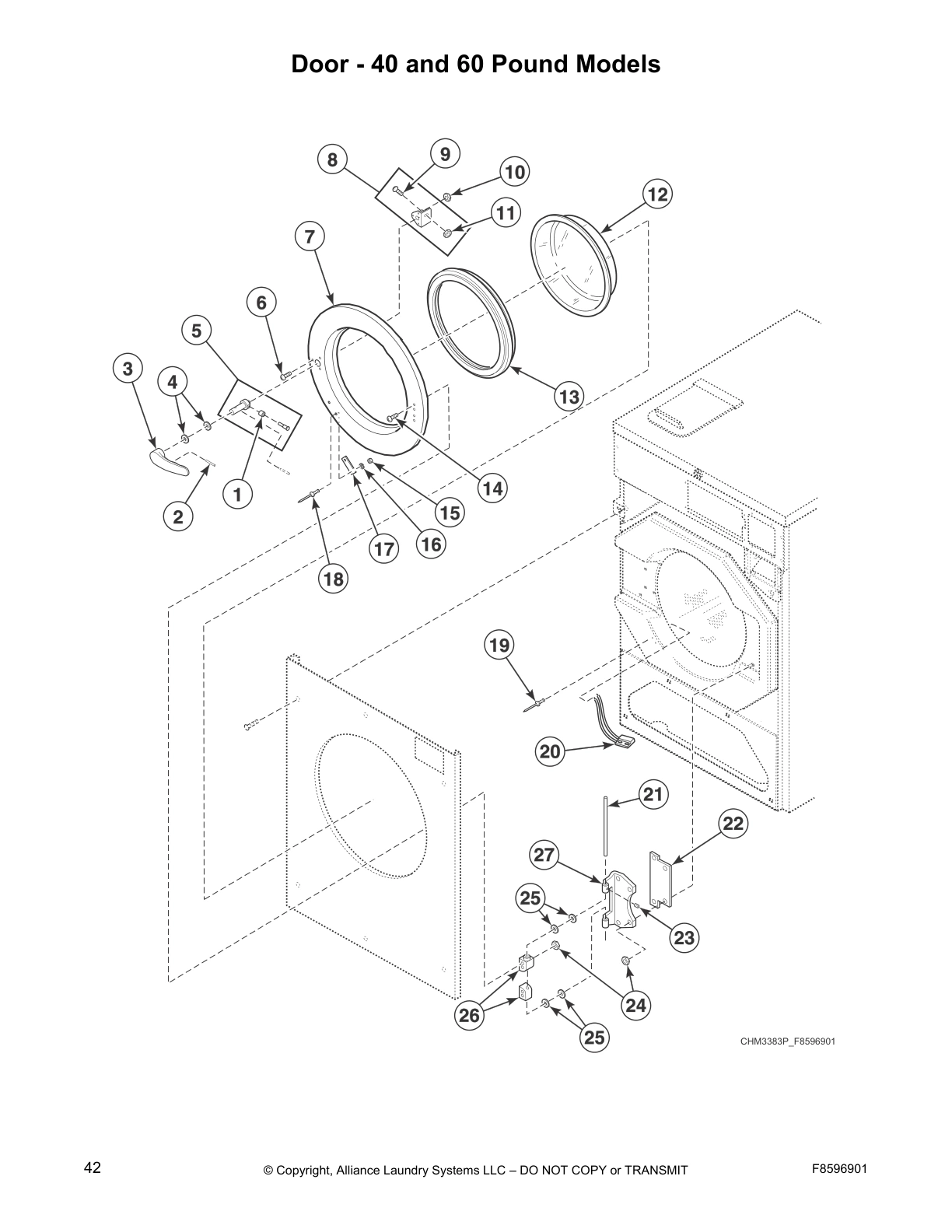

Door - 40 and 60 Pound Models

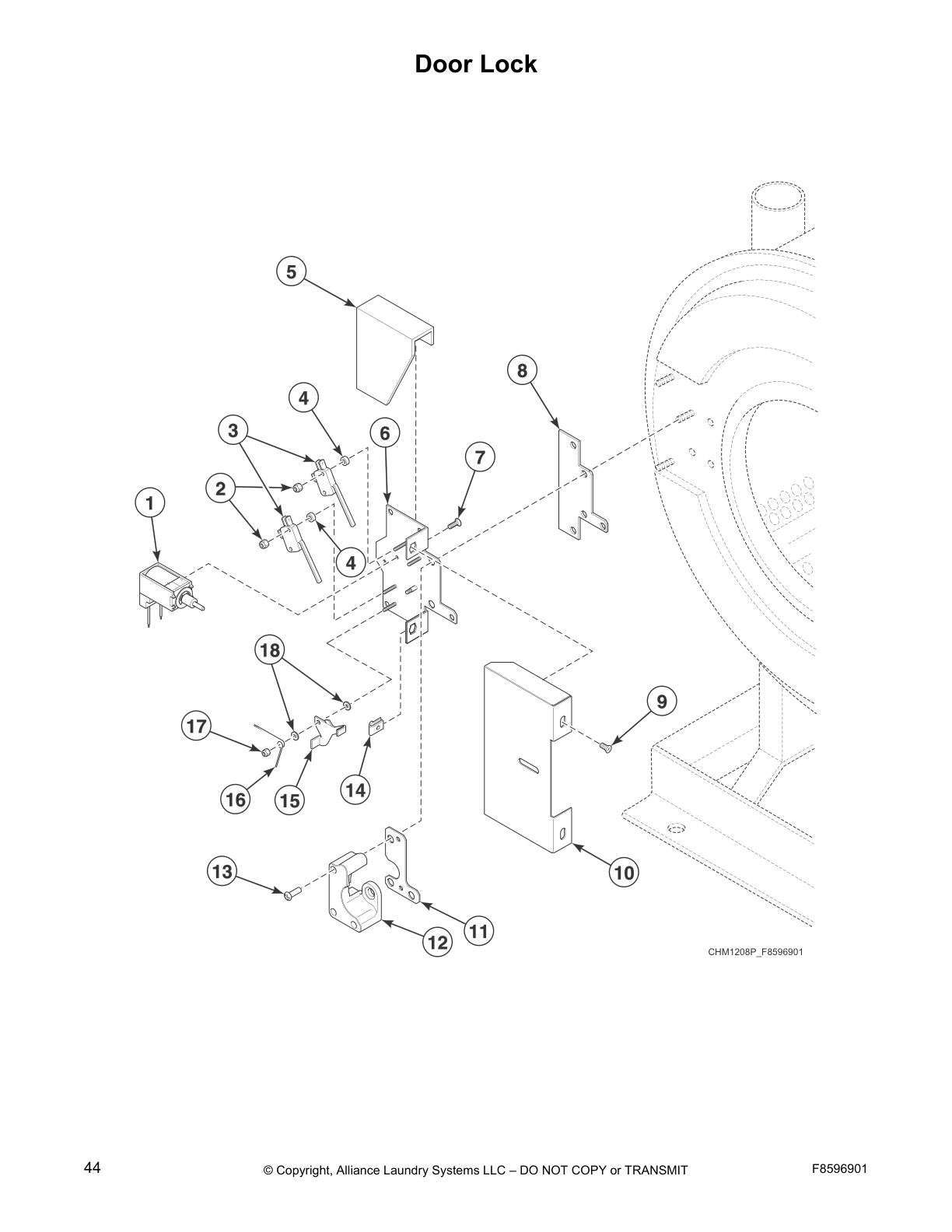

Door Lock

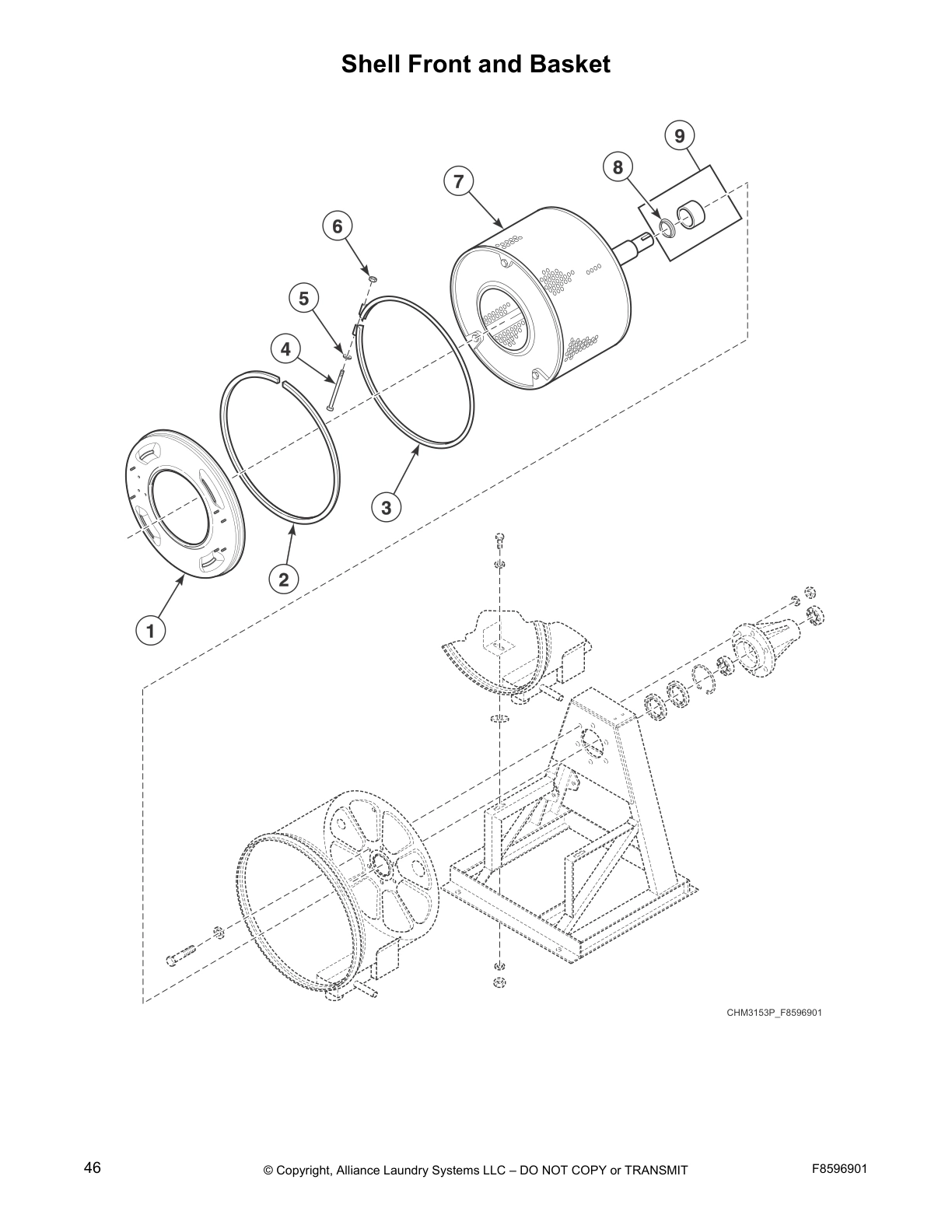

Shell Front and Basket

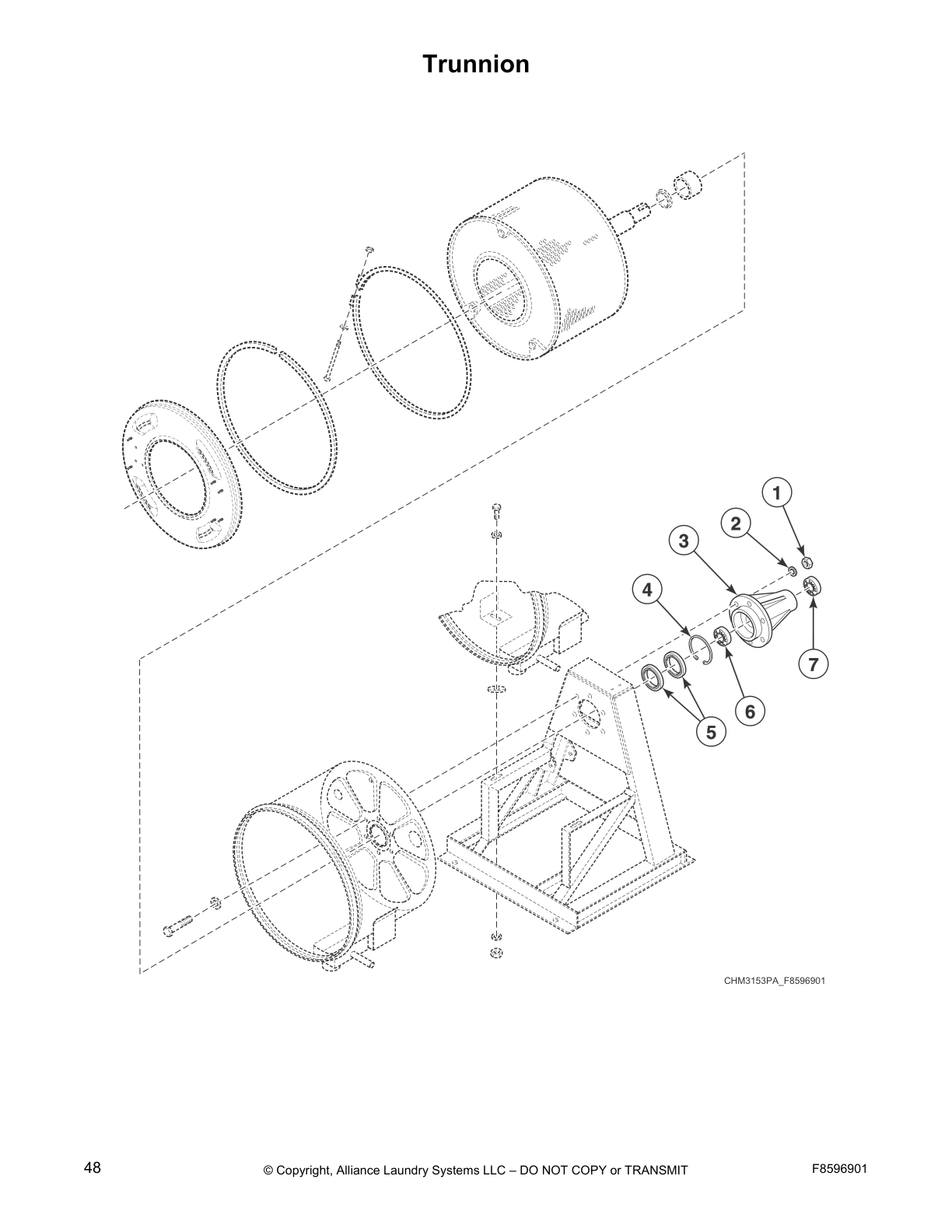

Trunnion

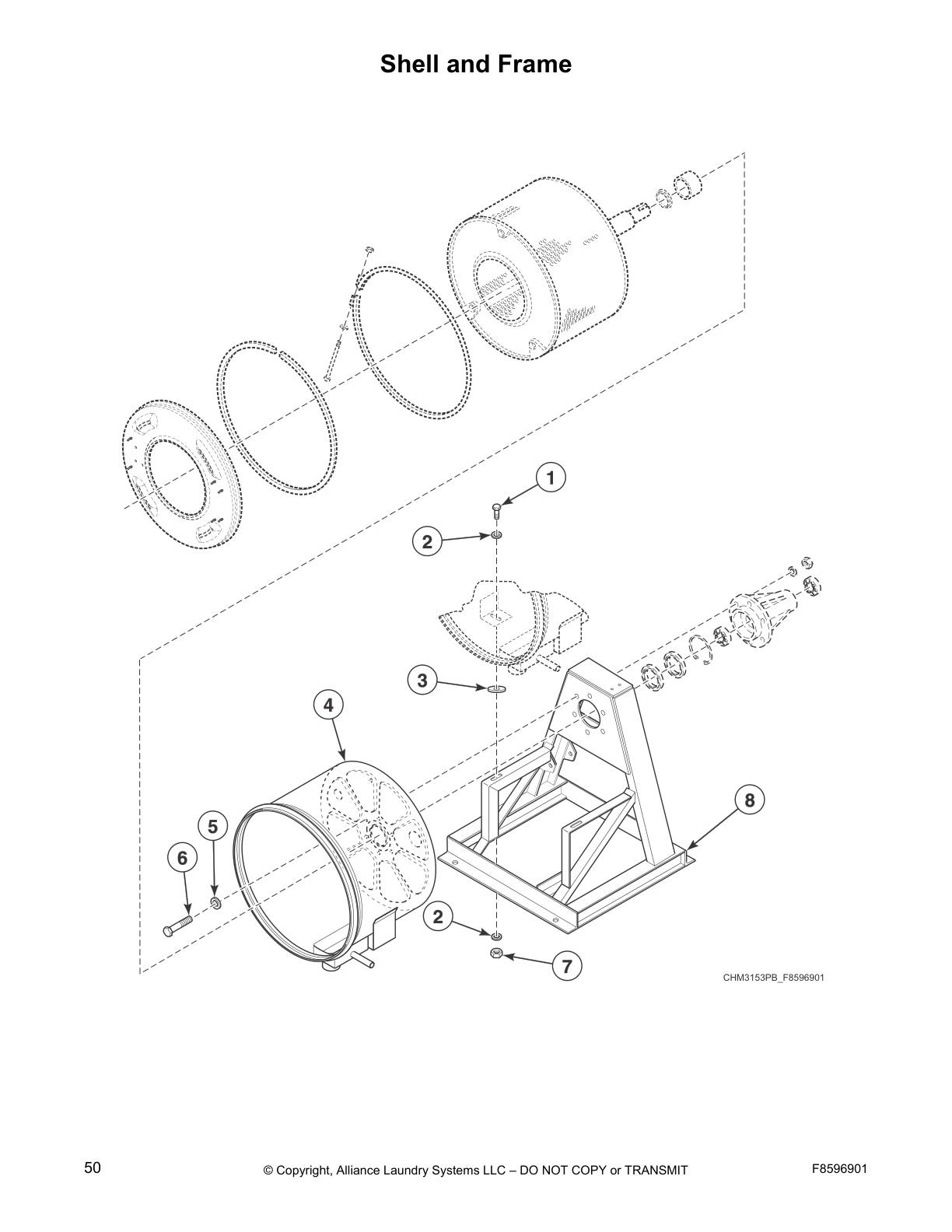

Shell and Frame

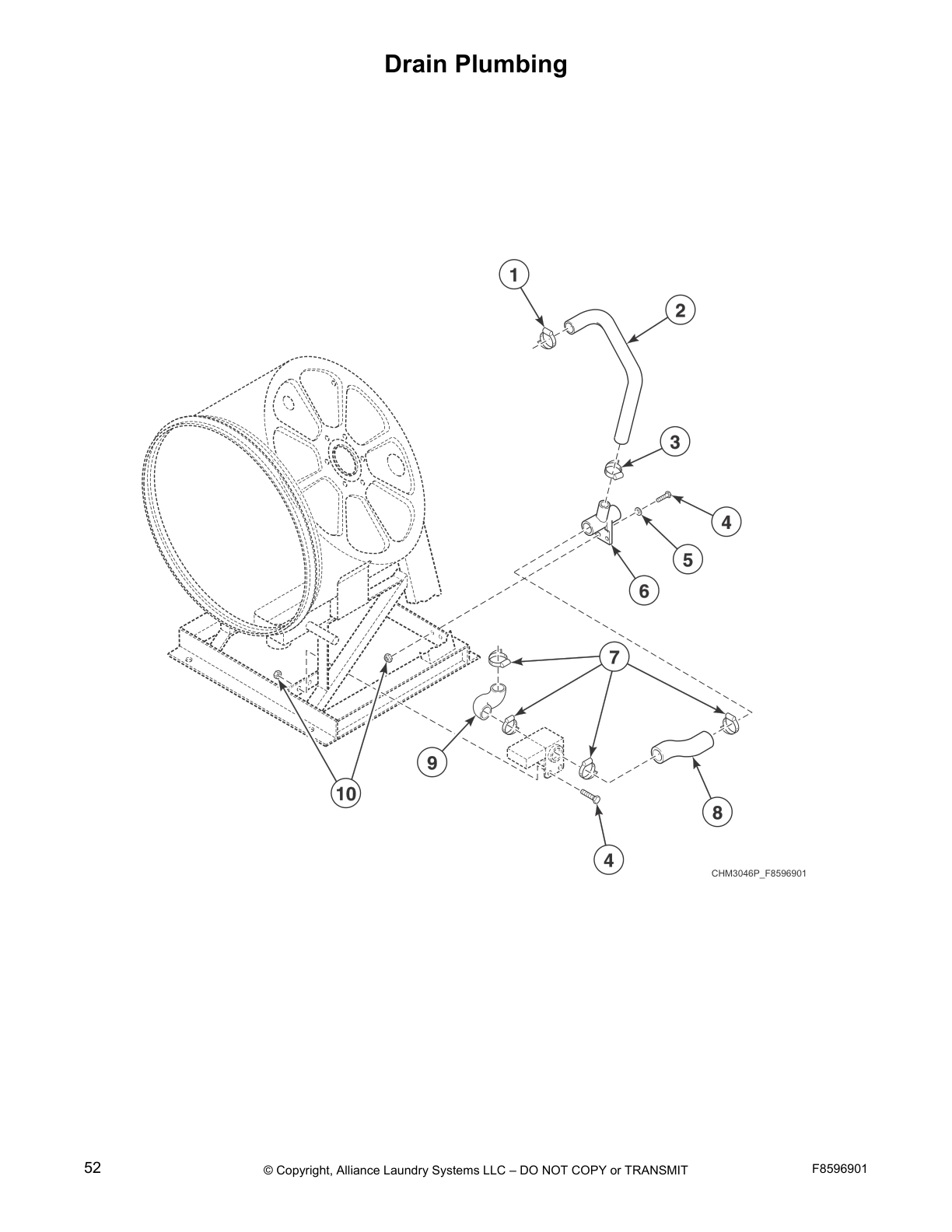

Drain Plumbing

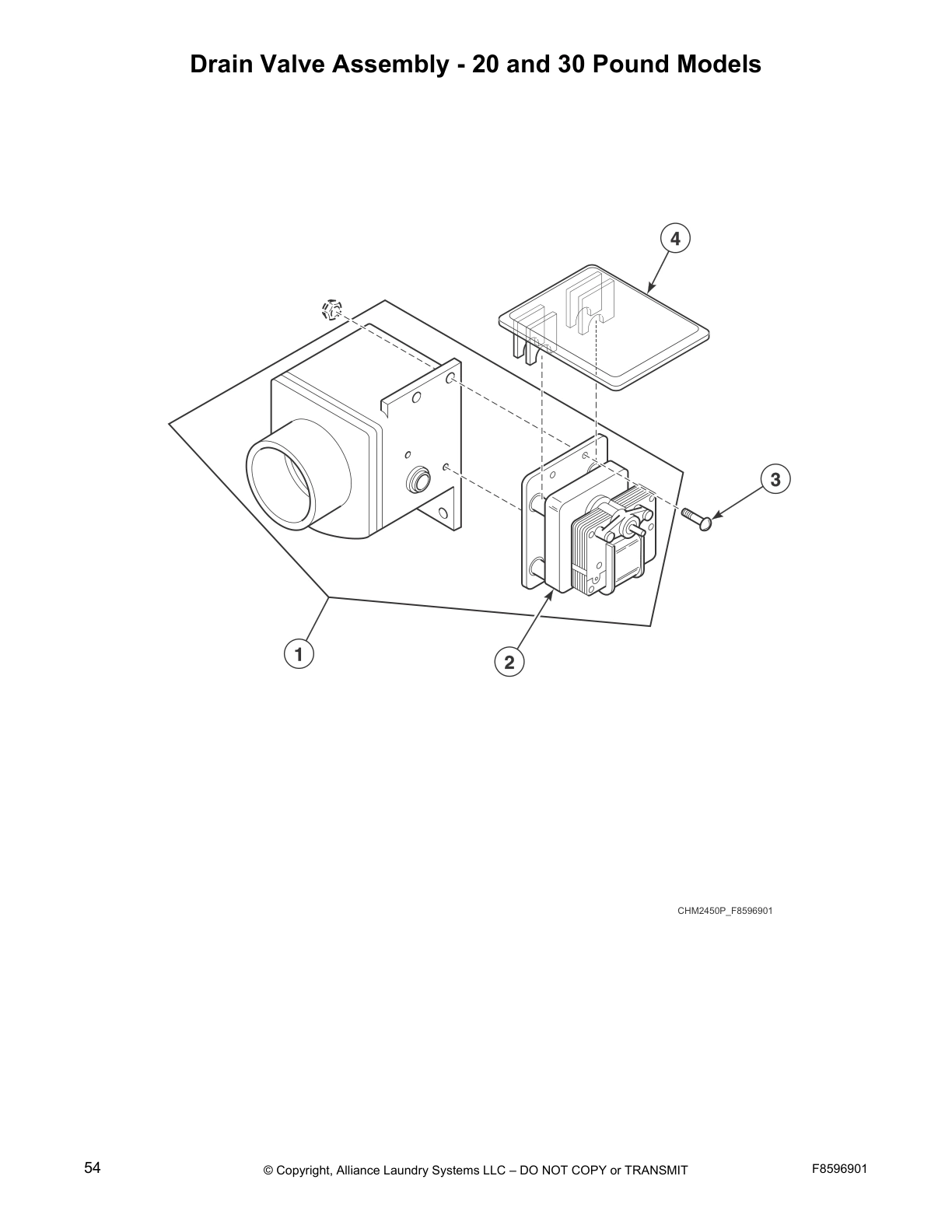

Drain Valve Assembly - 20 and 30 Pound Models

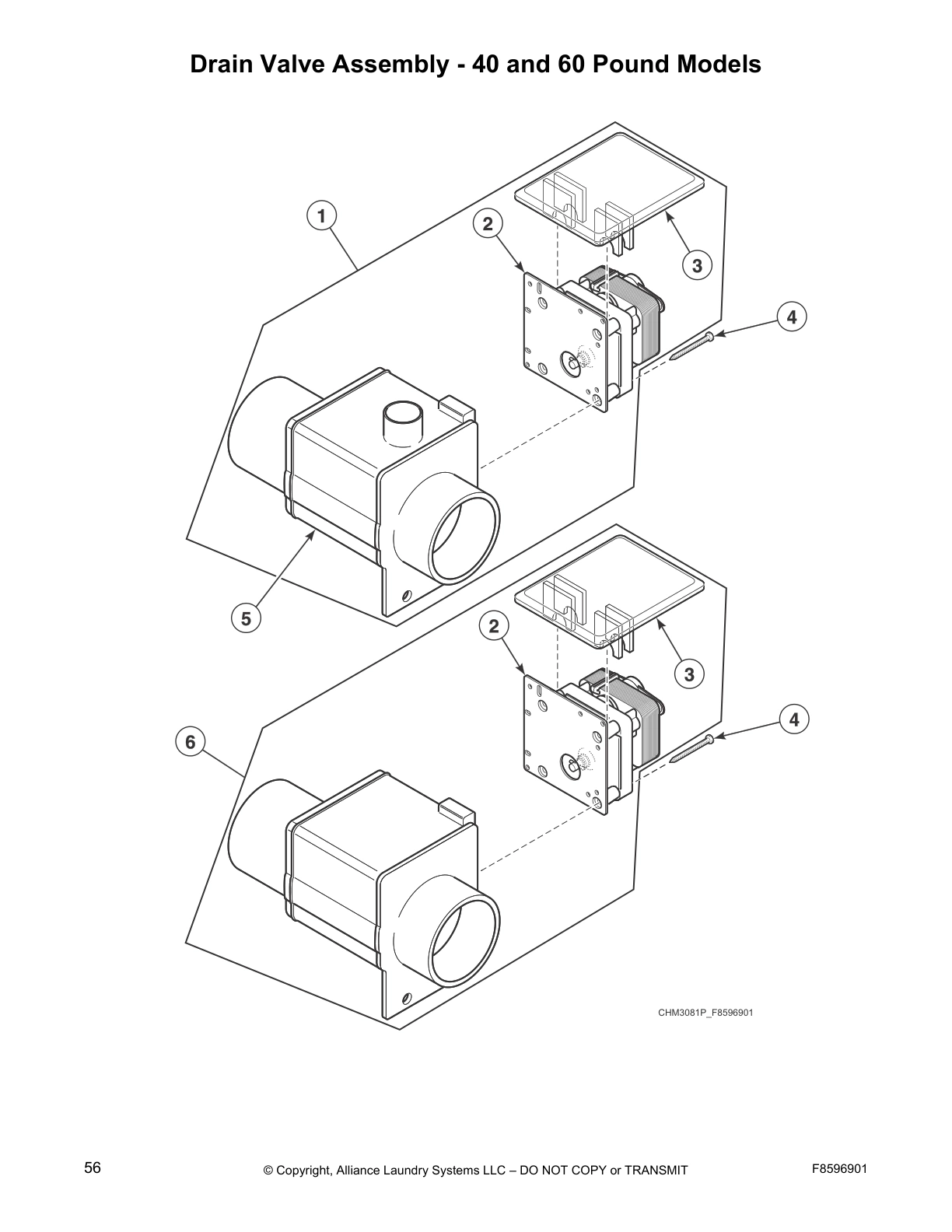

Drain Valve Assembly - 40 and 60 Pound Models

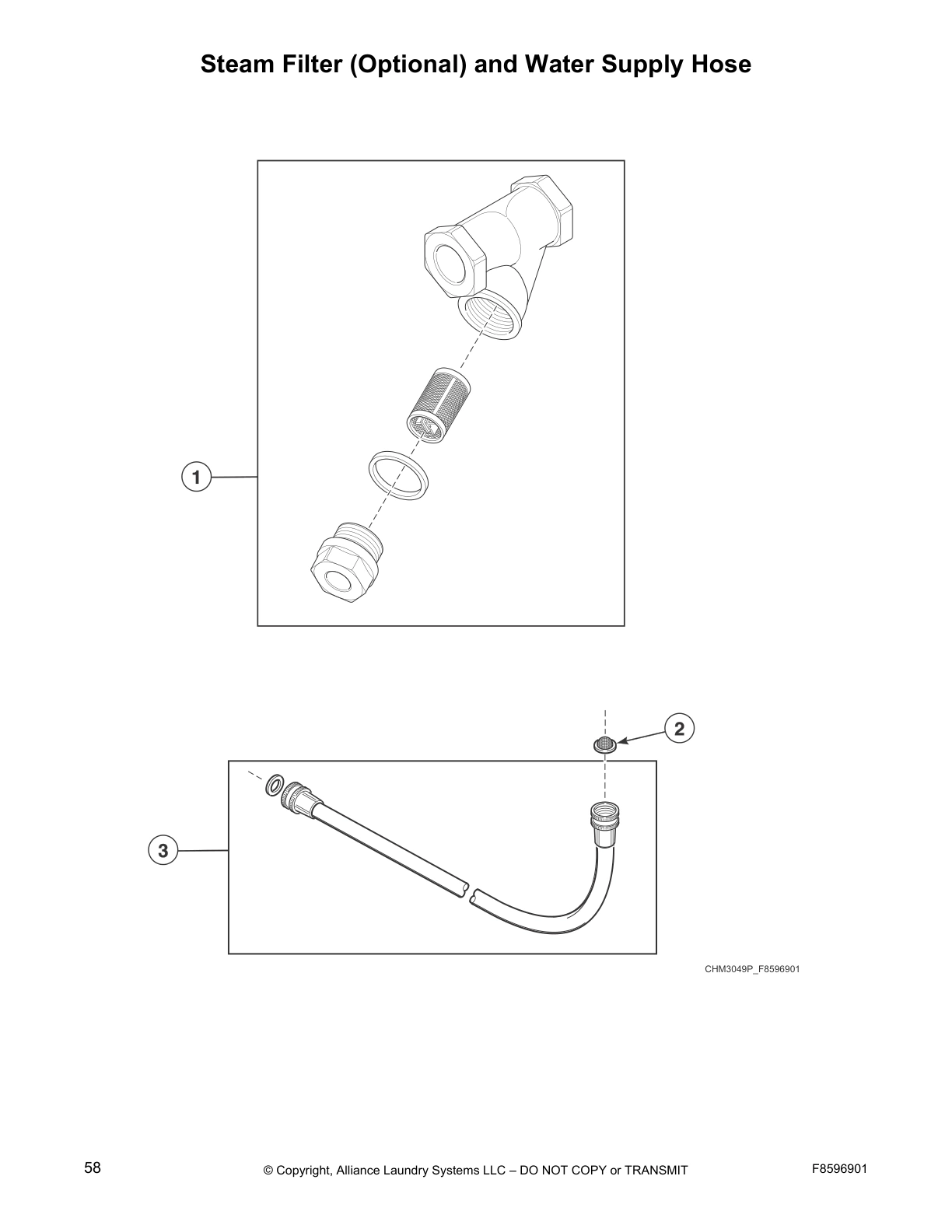

Steam Filter (Optional) and Water Supply Hose

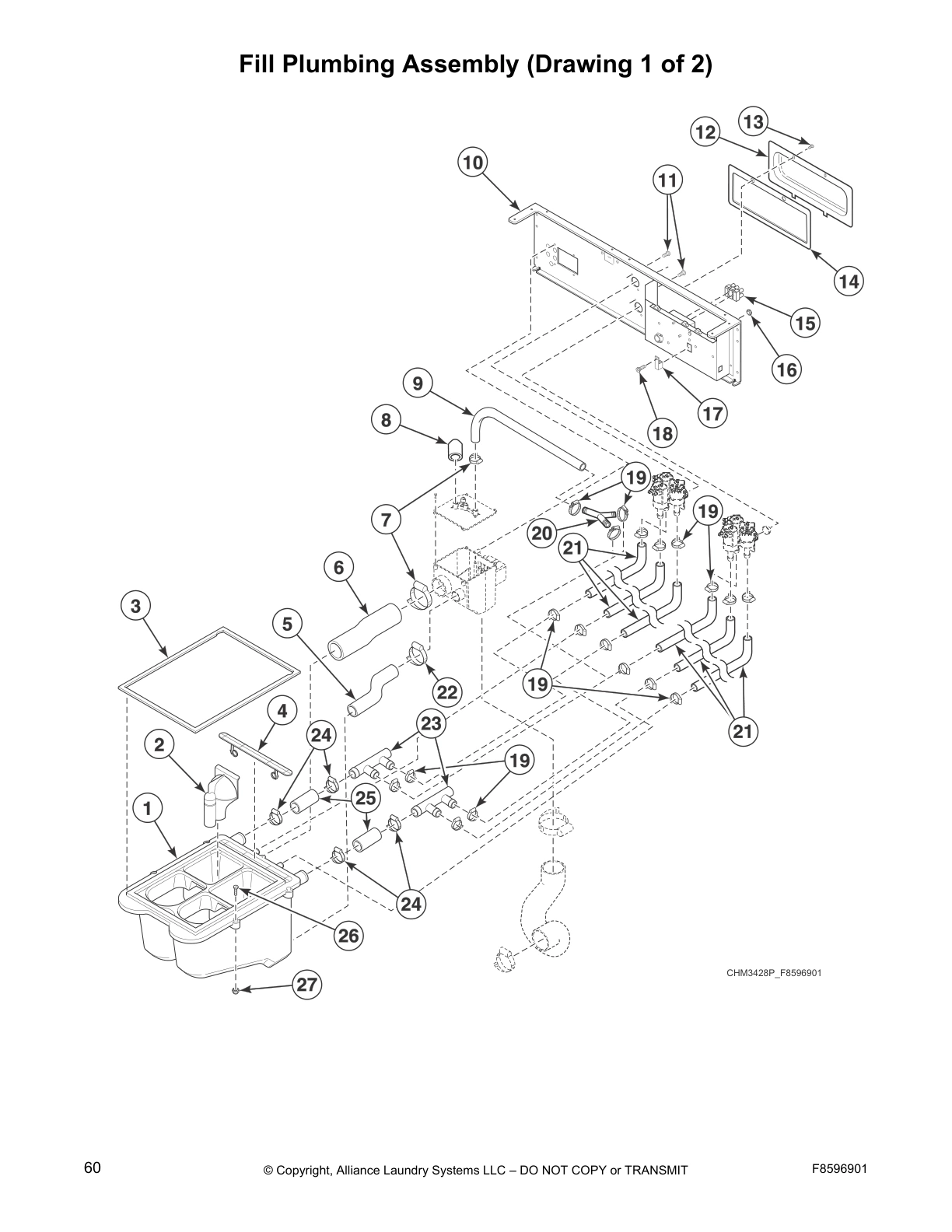

Fill Plumbing Assembly (Drawing 1 of 2)

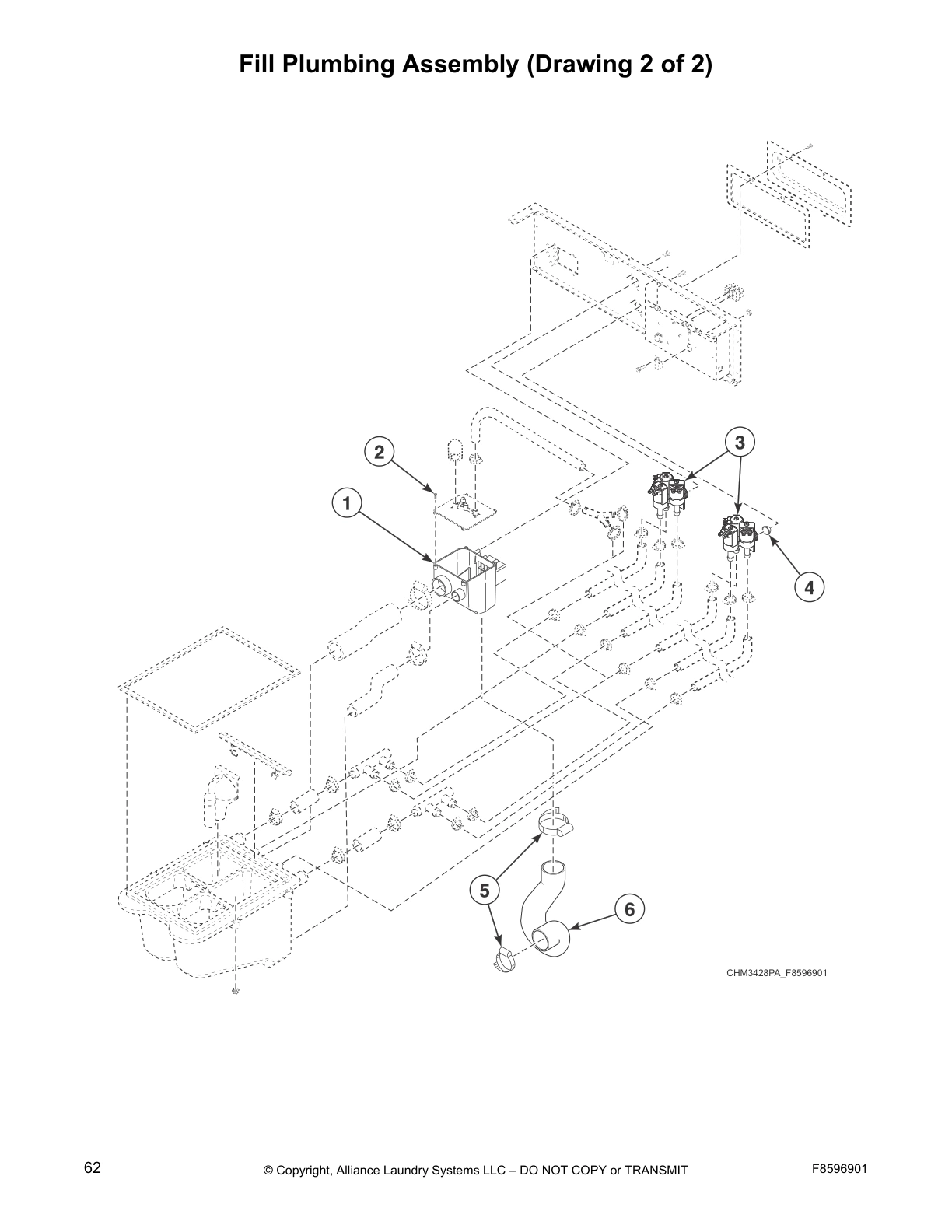

Fill Plumbing Assembly (Drawing 2 of 2)

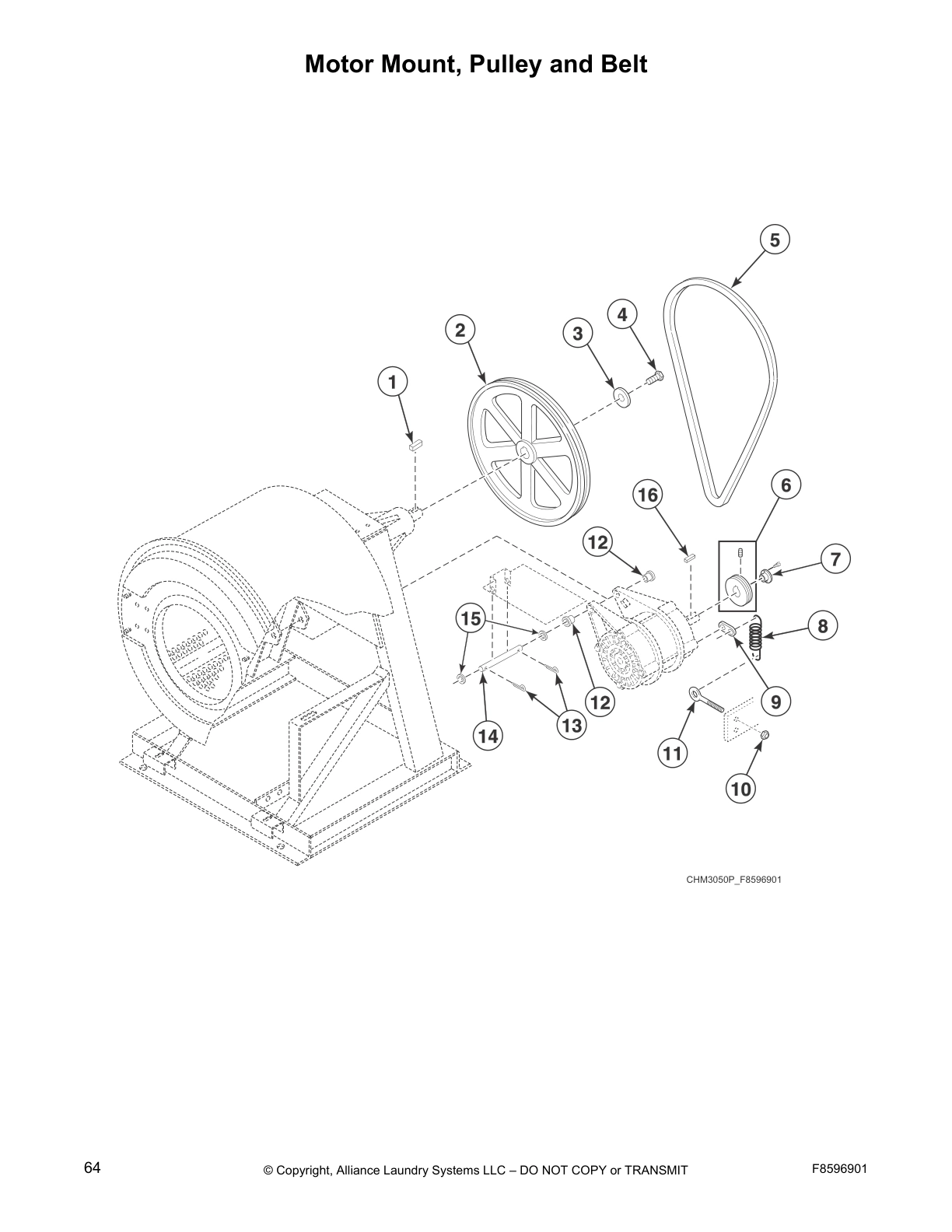

Motor Mount, Pulley and Belt

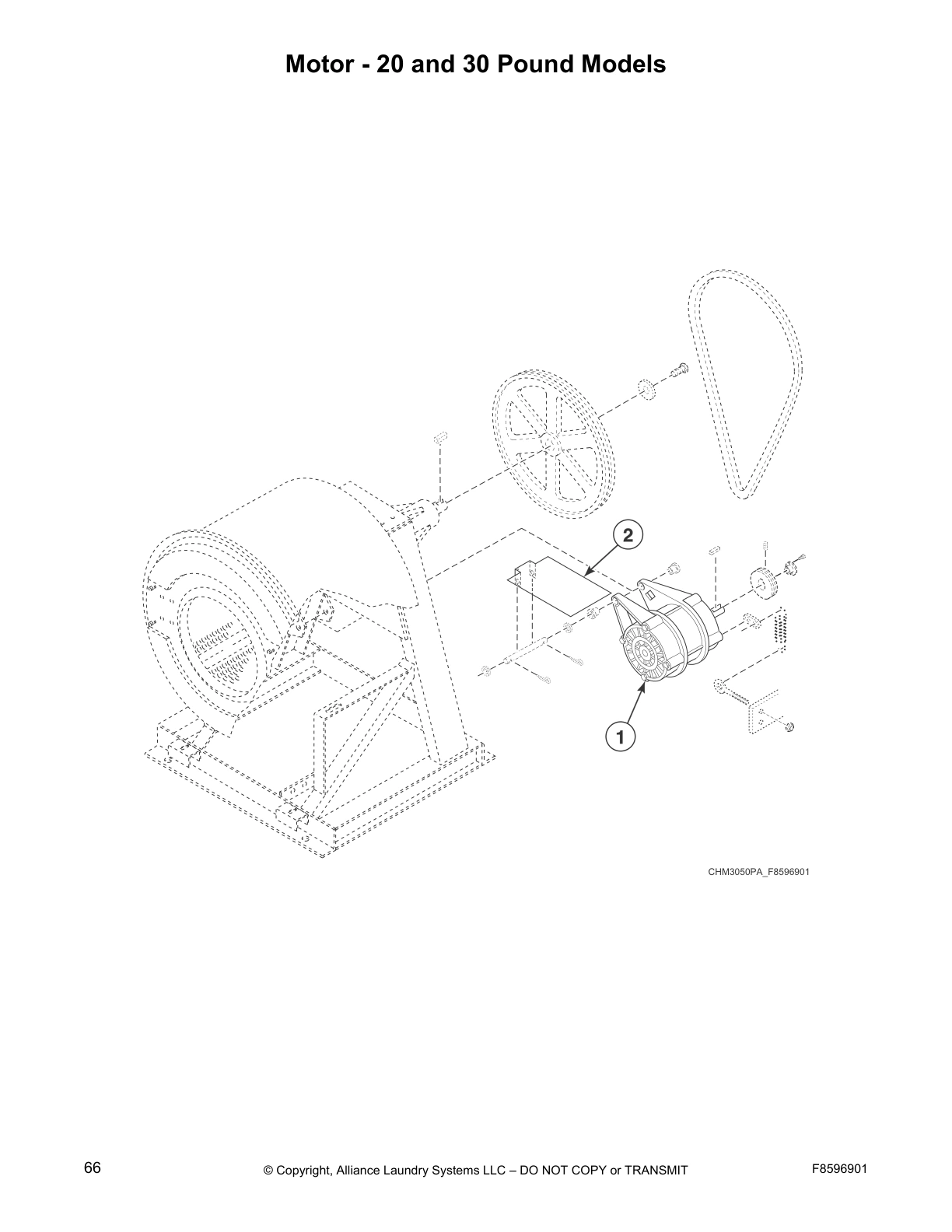

Motor - 20 and 30 Pound Models
Motor - 40 and 60 Pound Models

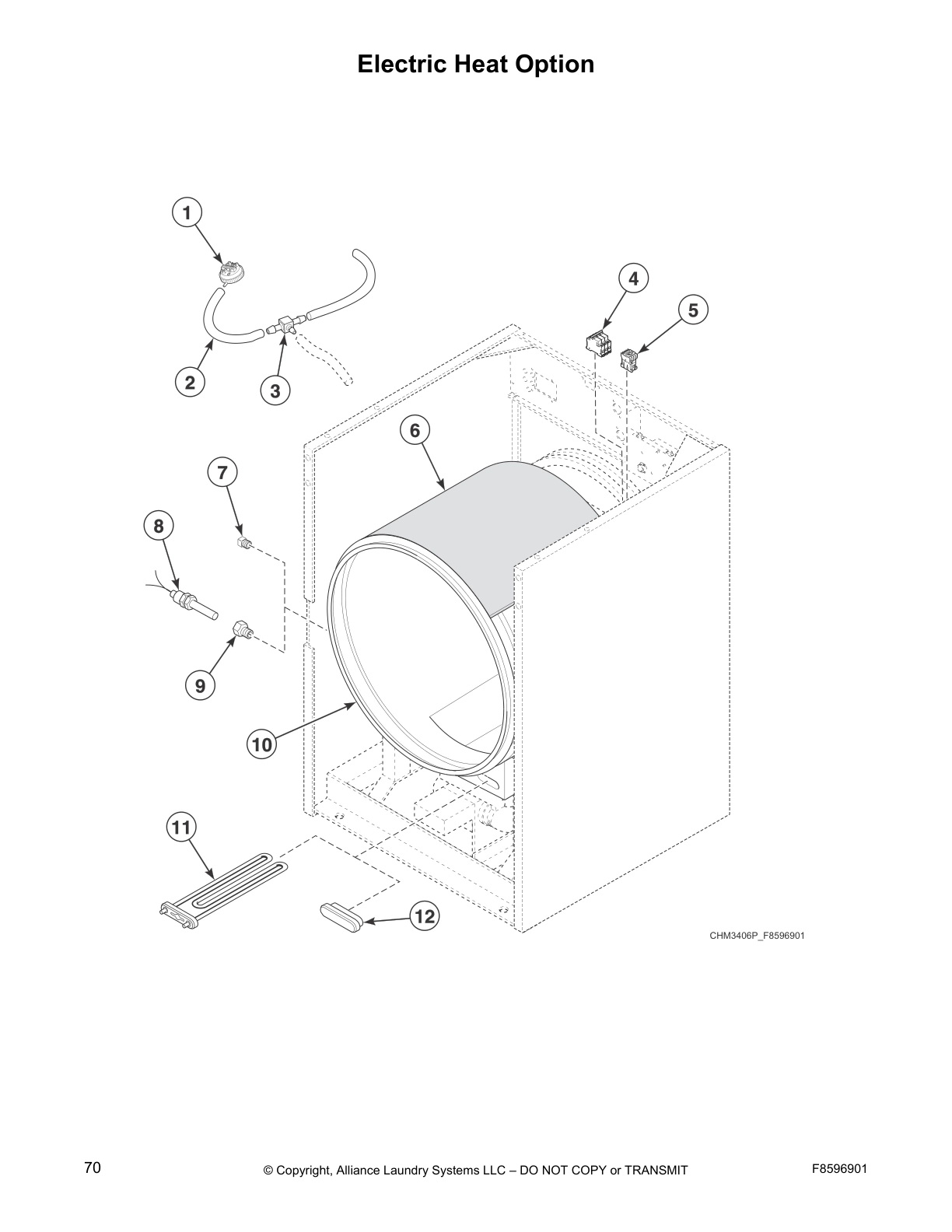

Electric Heat Option

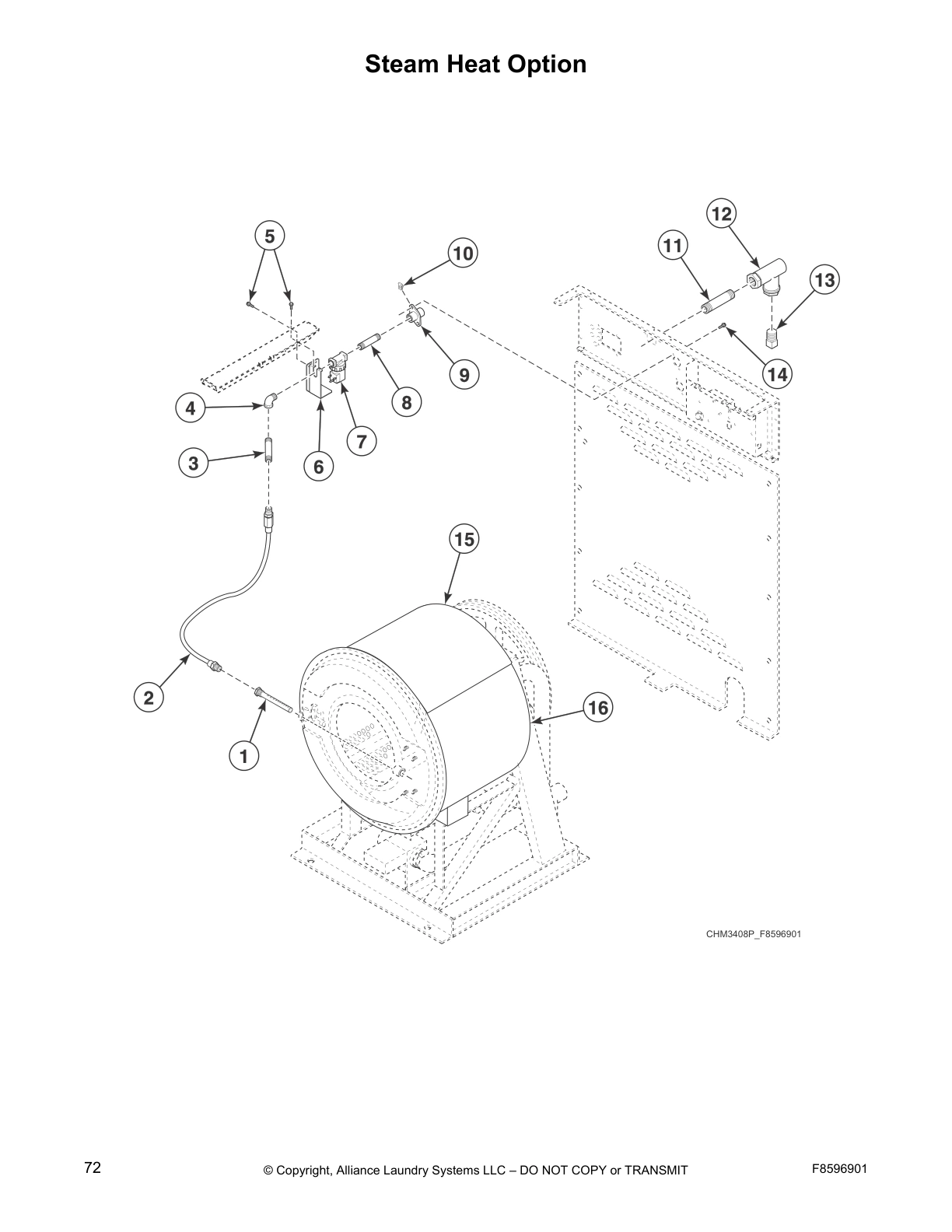

Steam Heat Option
Common parts from model Huebsch HCL020GC2 Washer
