Model Maytag HAV4200ATW WASHER – Common Parts & Diagrams

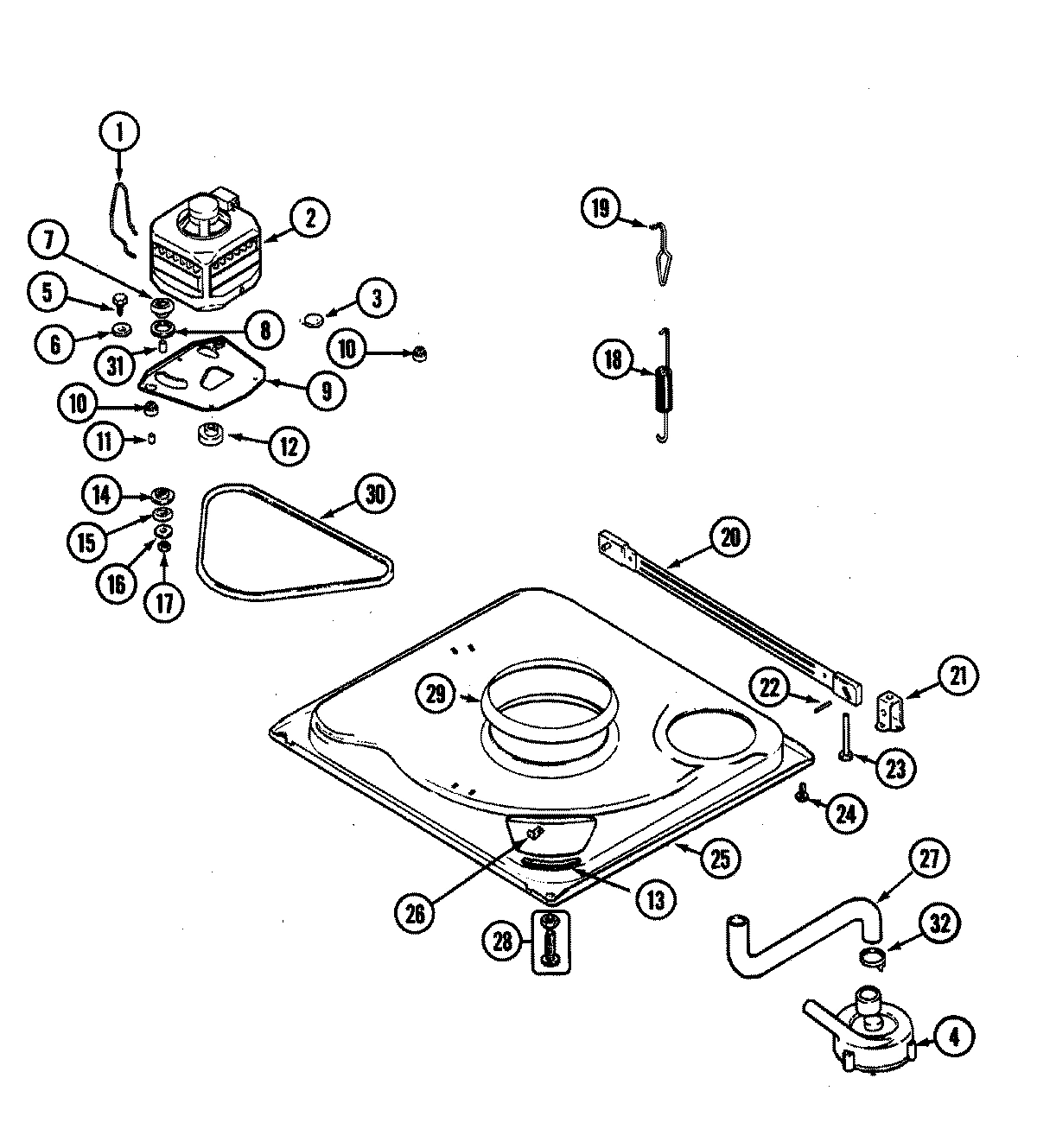

01 - BASE

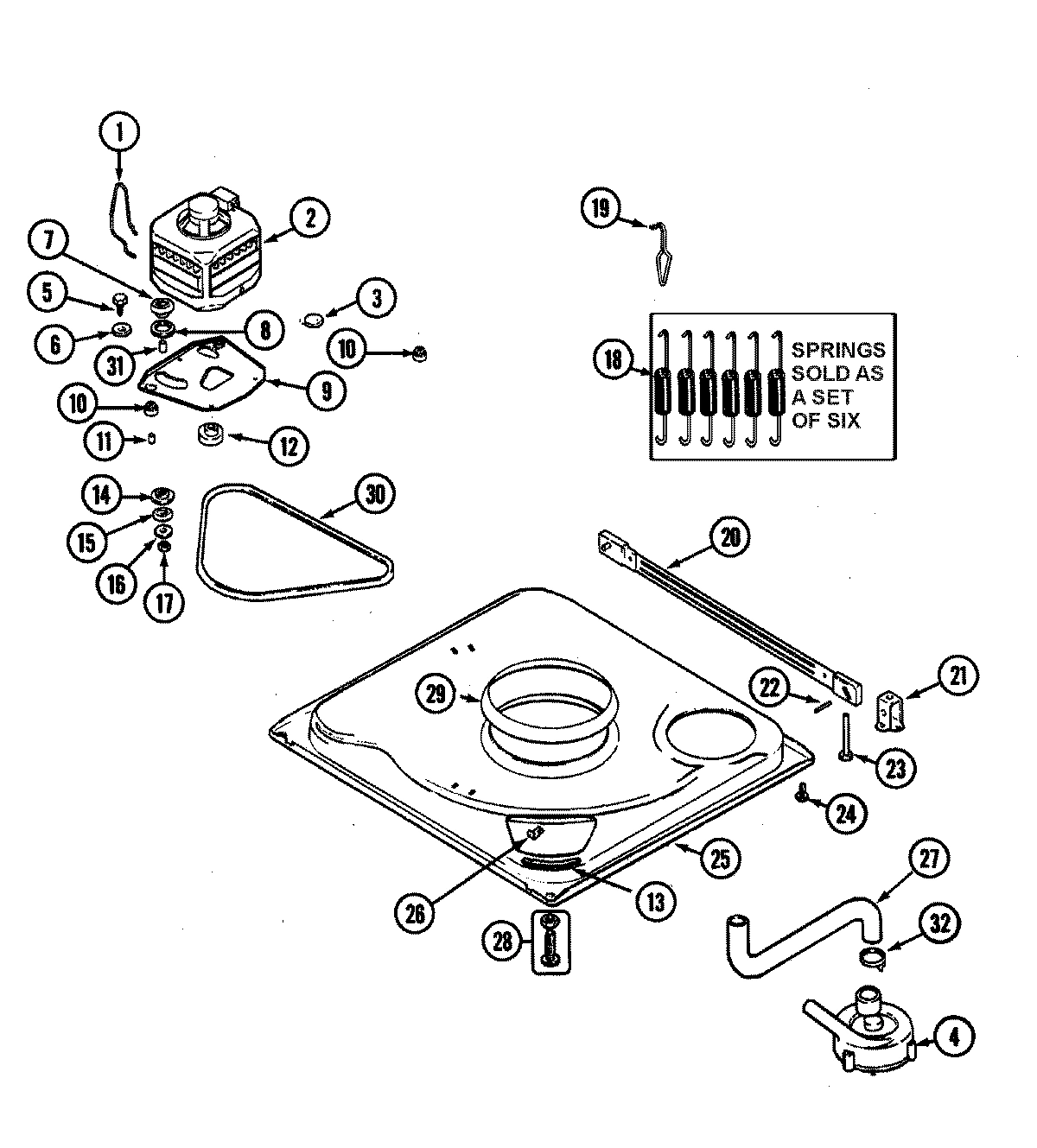

02 - BASE (SERIES 19)

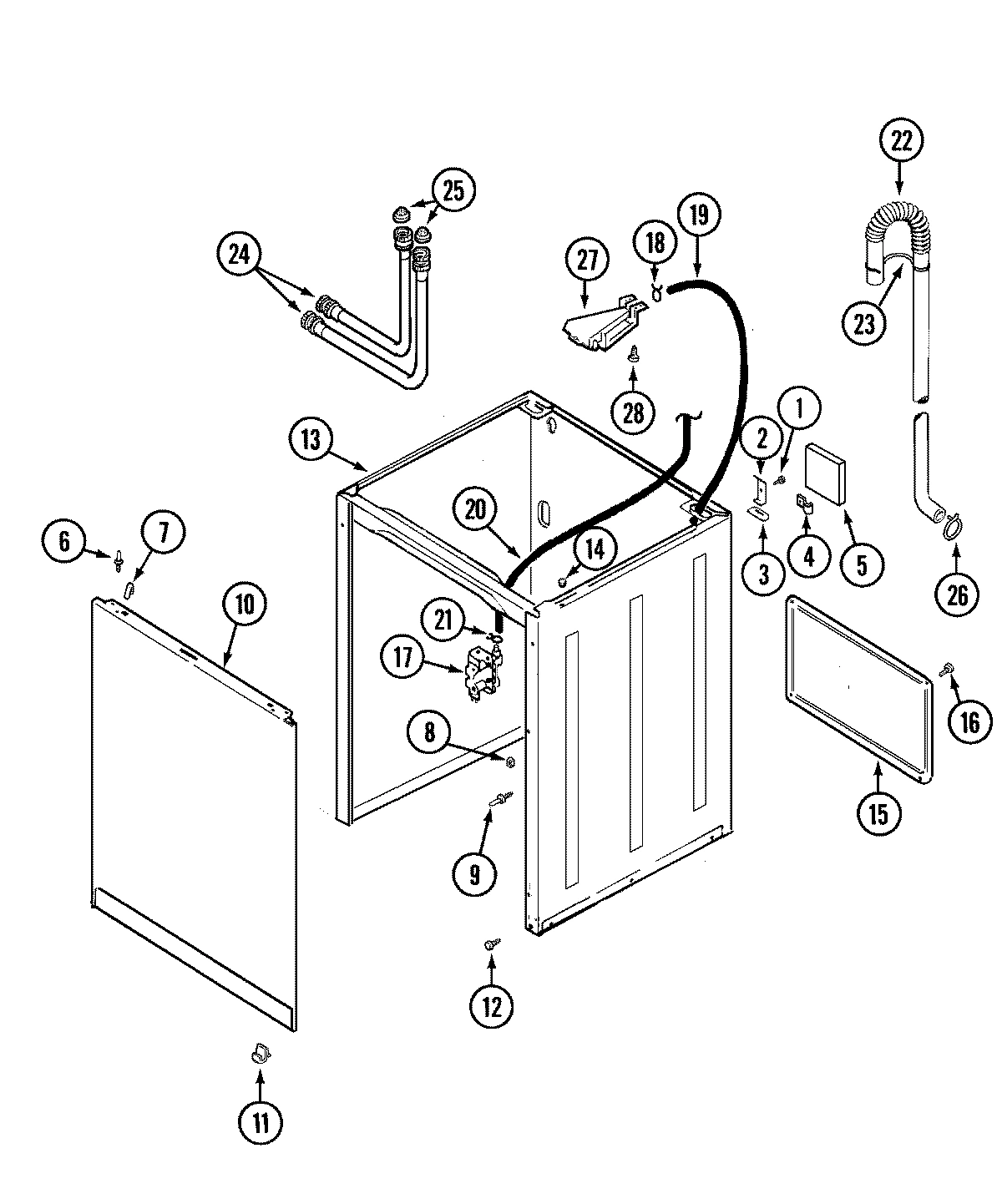

03 - CABINET

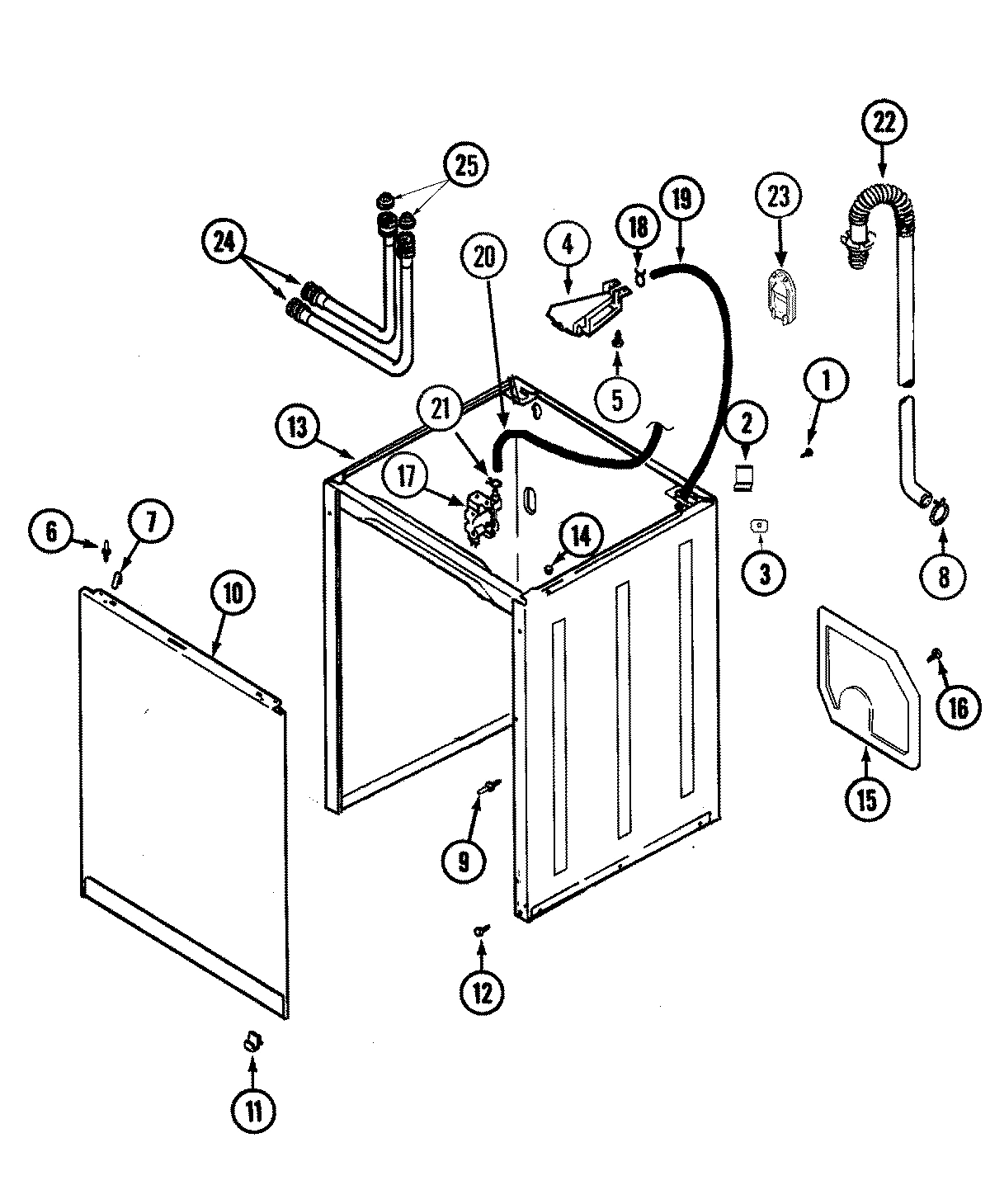

04 - CABINET (SERIES 16)

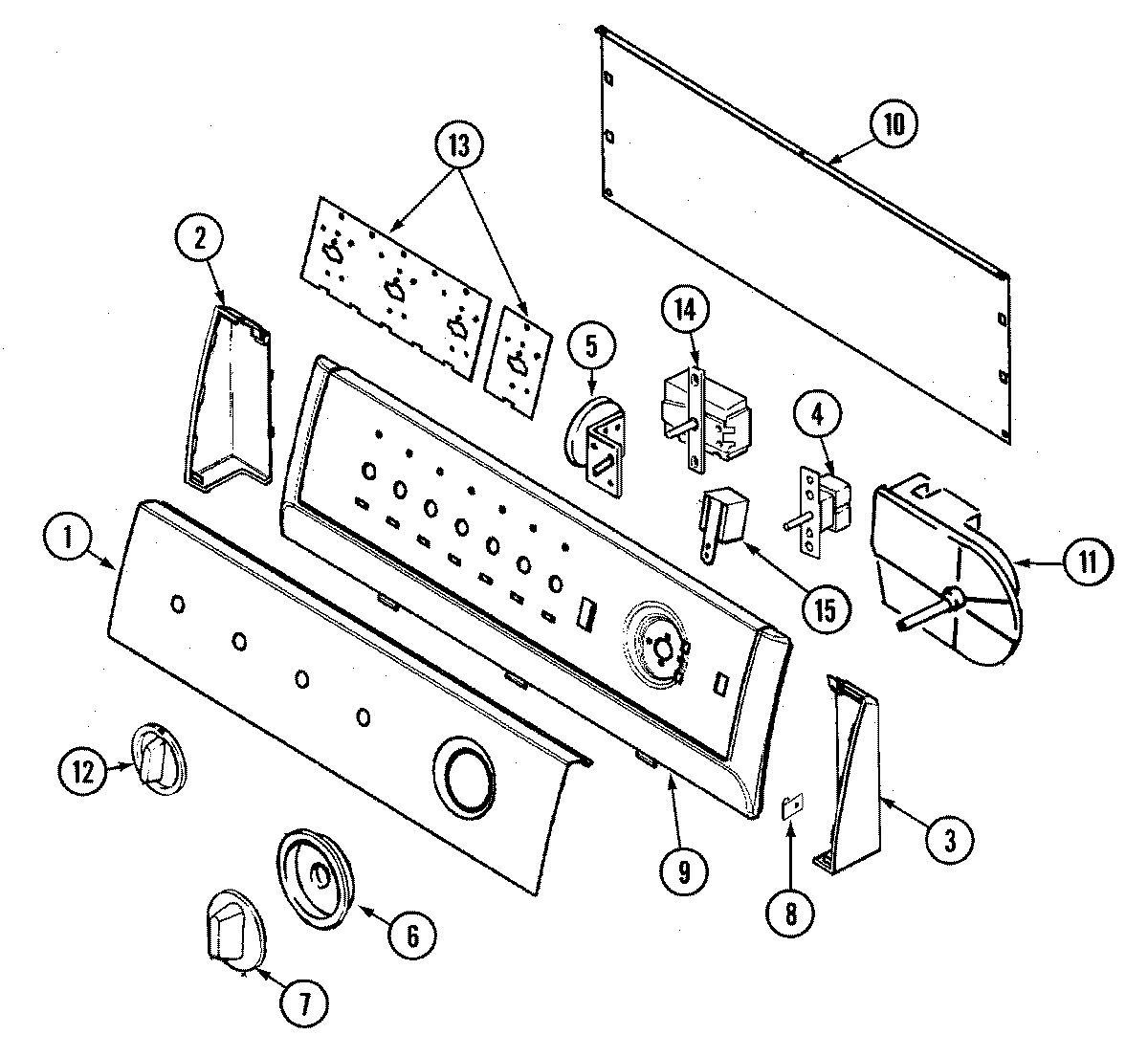

05 - CONTROL PANEL
06 - SUPPLEMENTAL INFORMATION

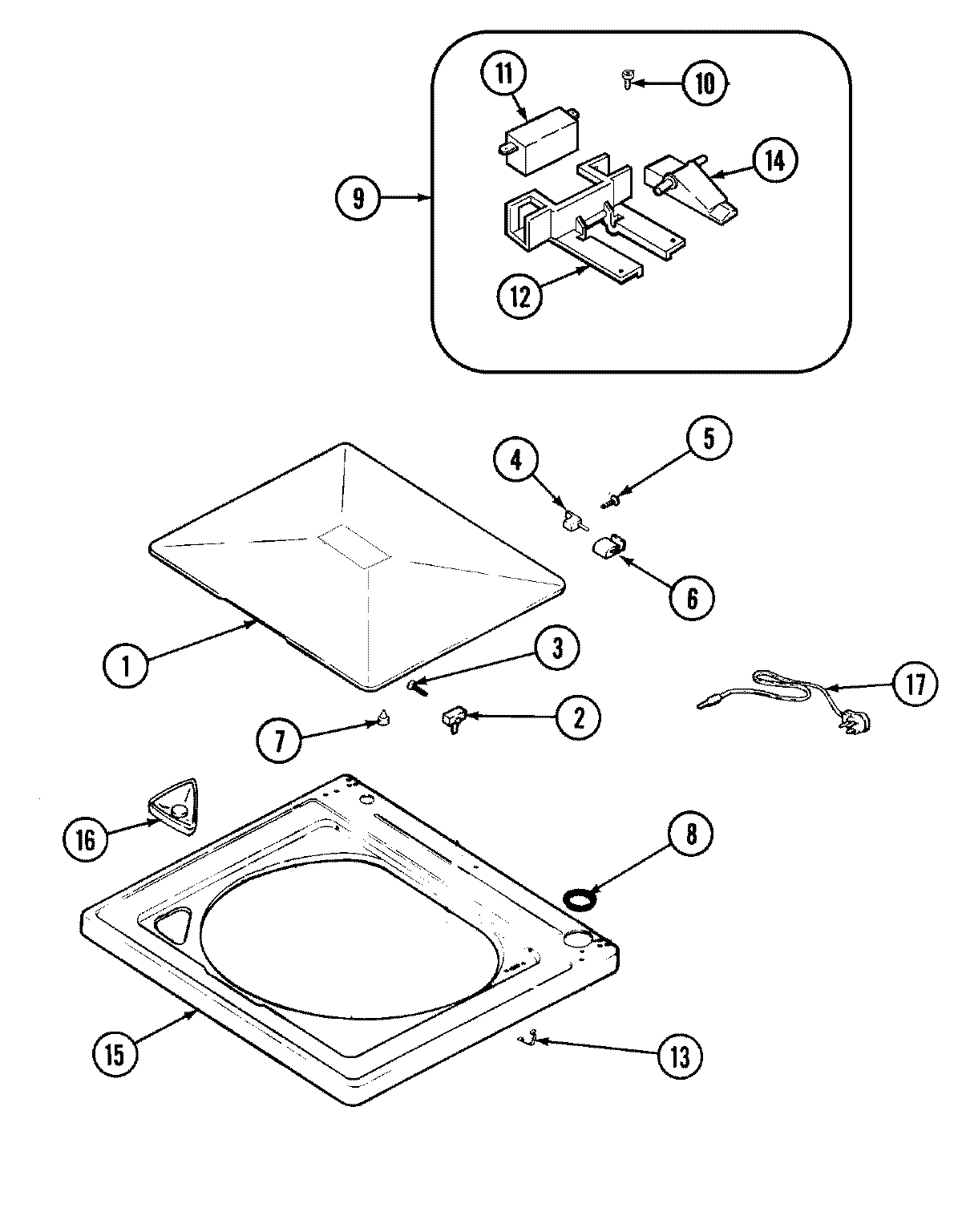

07 - TOP

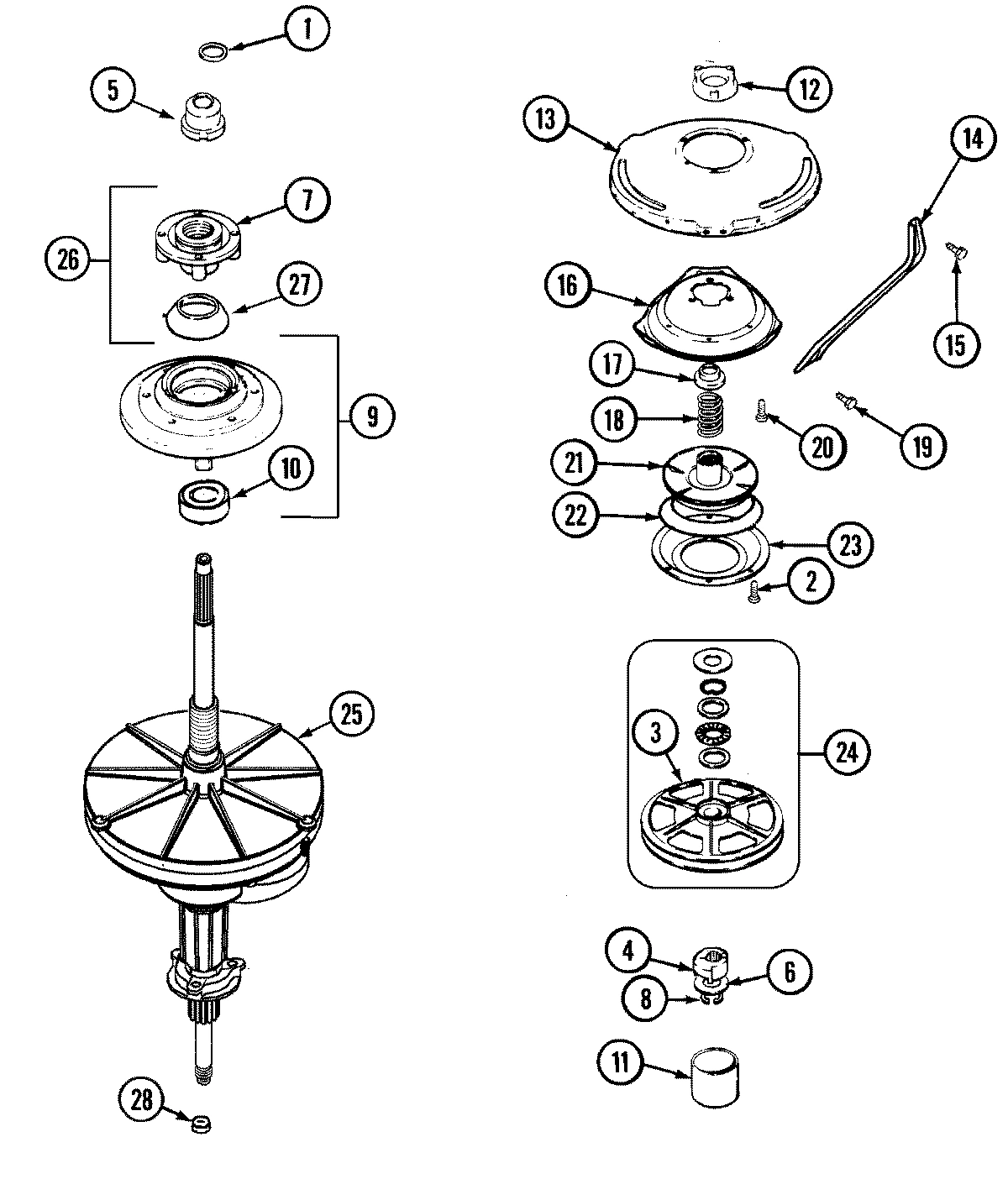

08 - TRANSMISSION

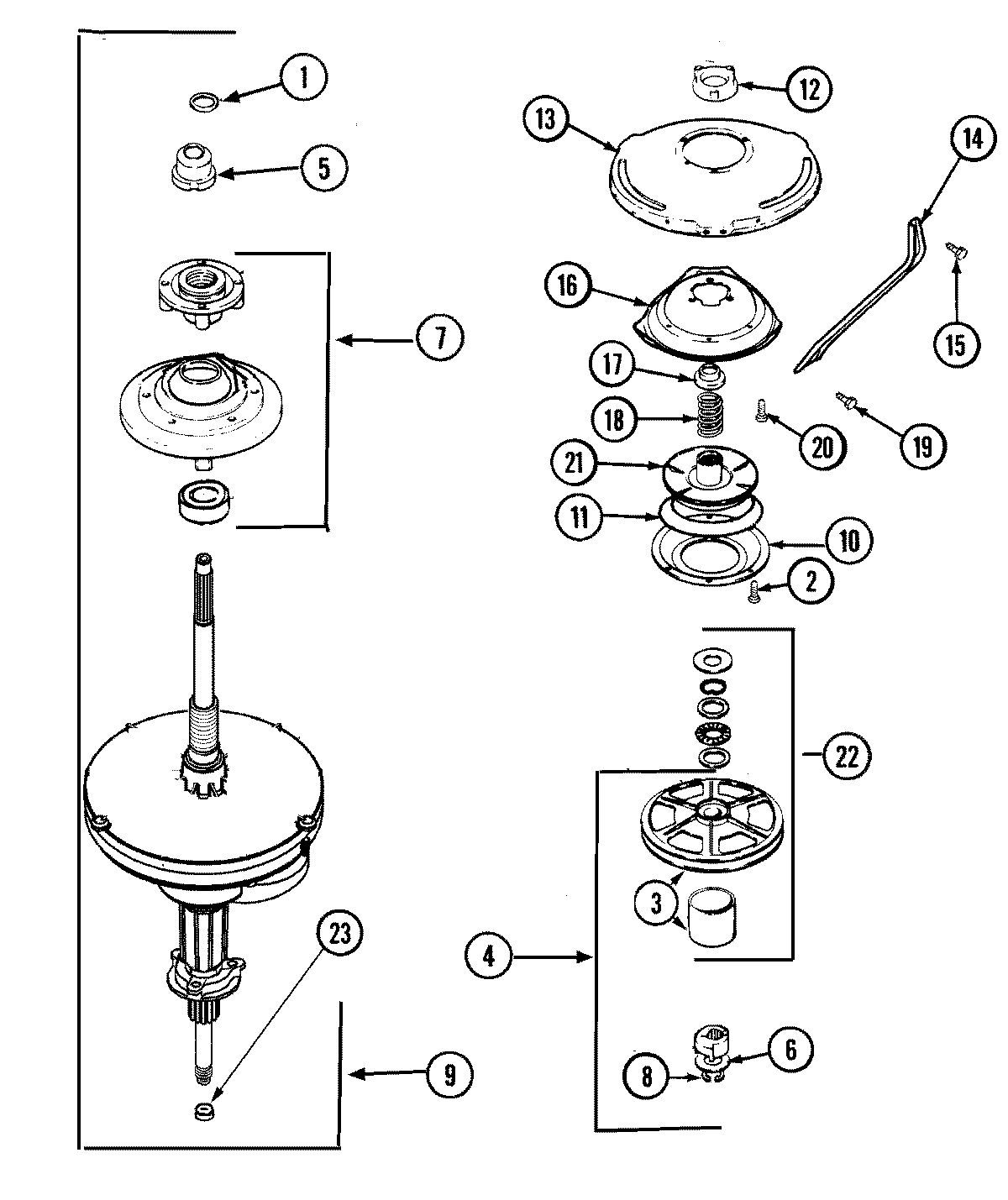

09 - TRANSMISSION (SERIES 17)

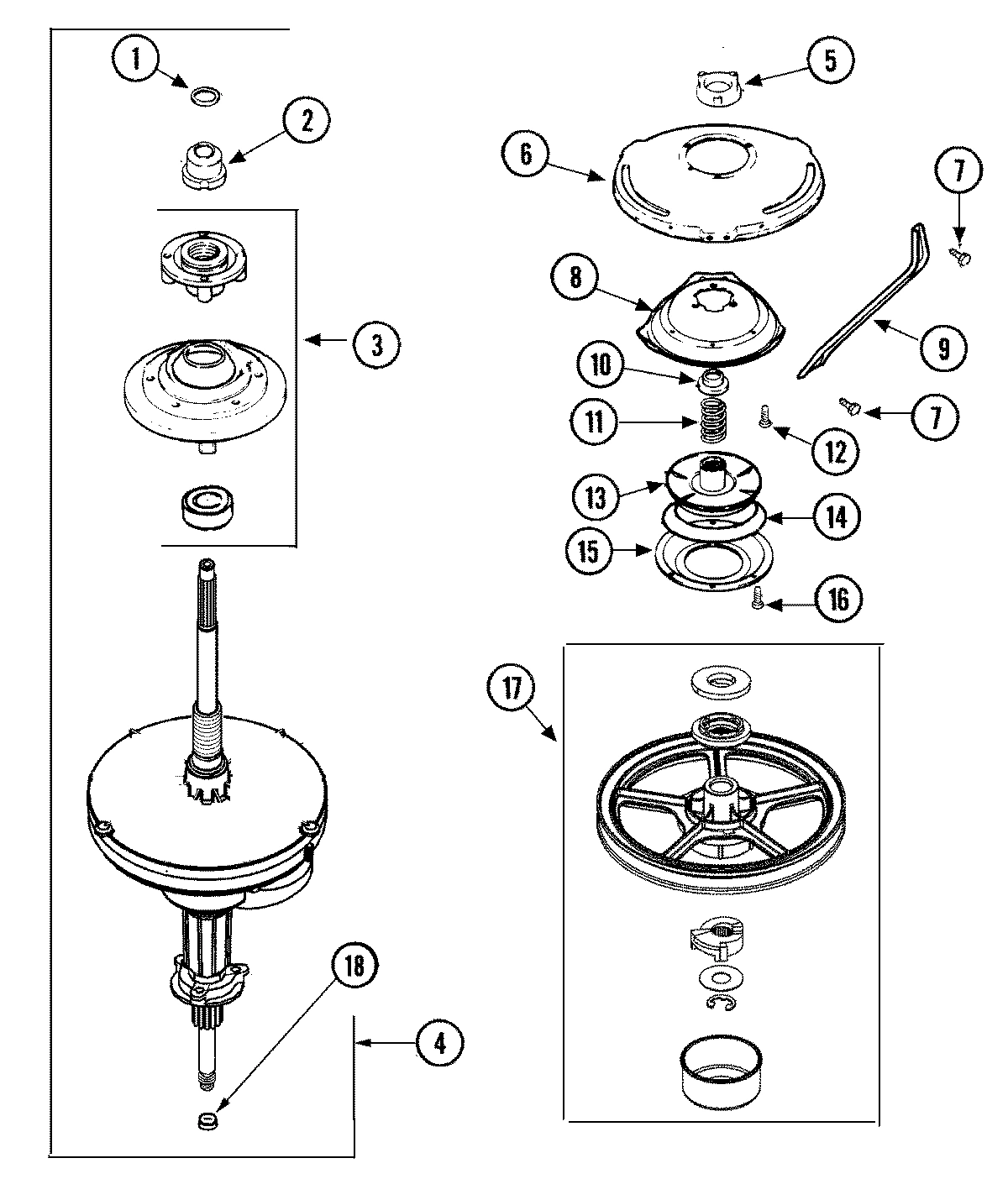

10 - TRANSMISSION (SERIES 22)

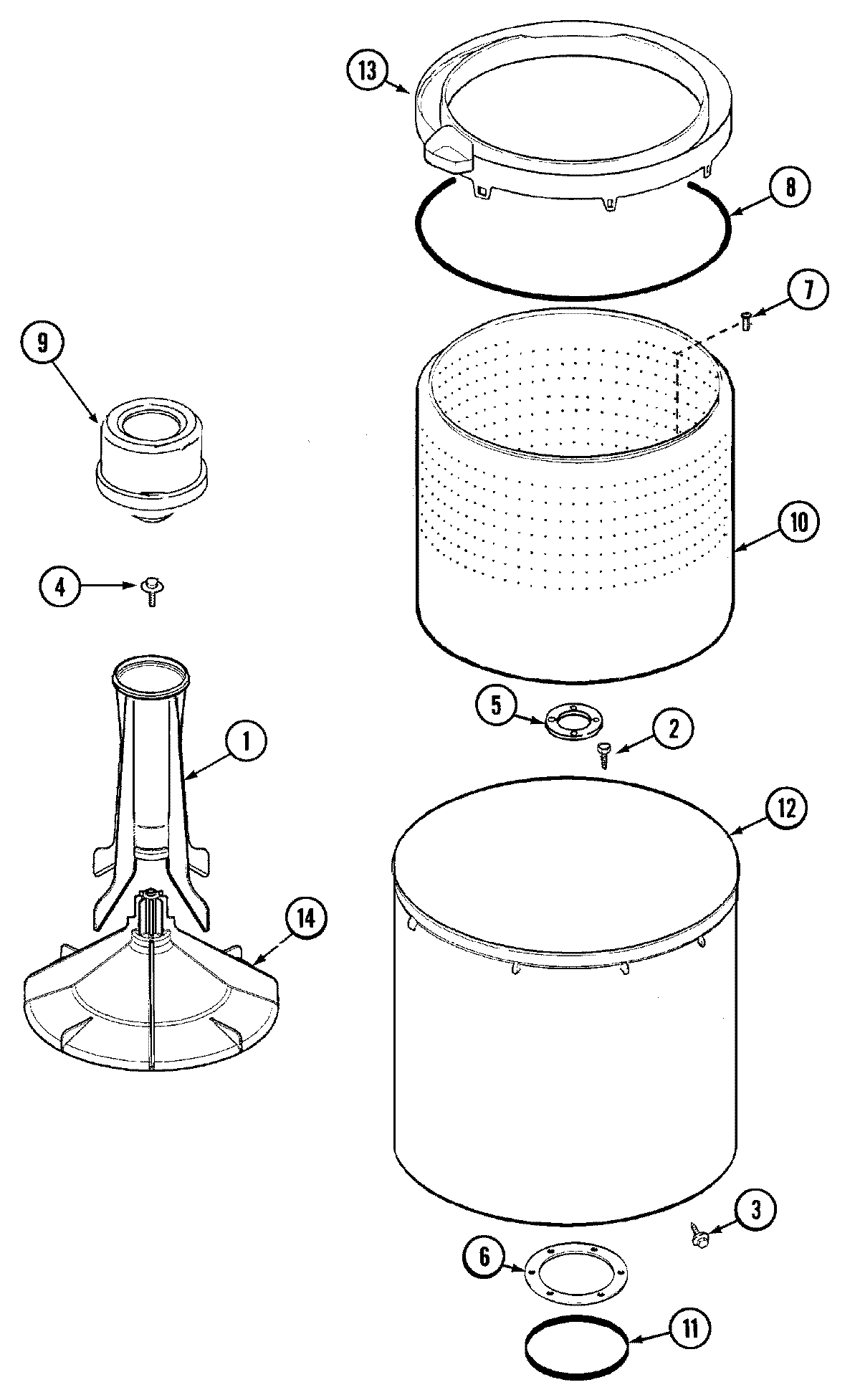

11 - TUB

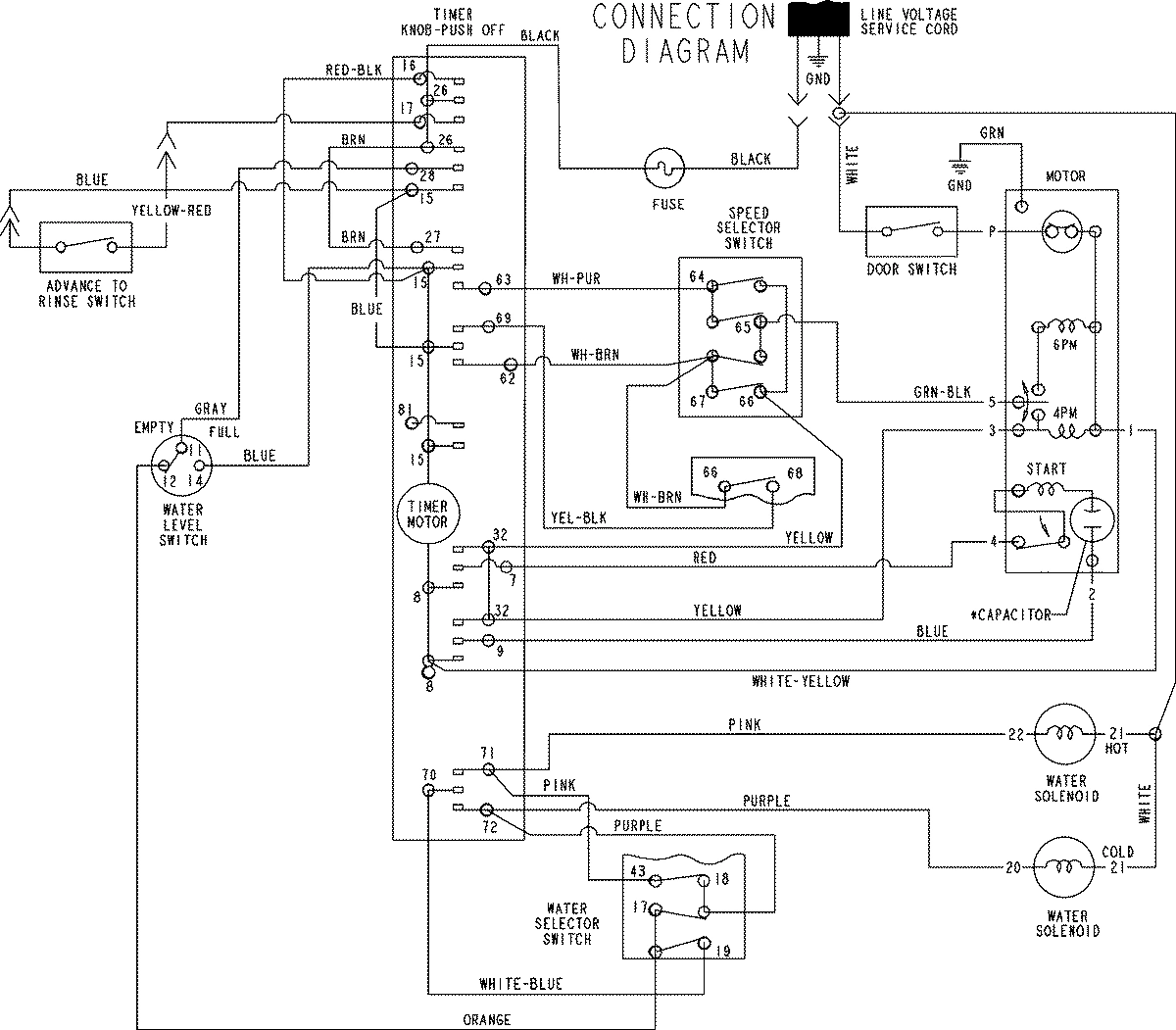

12 - WIRING INFORMATION

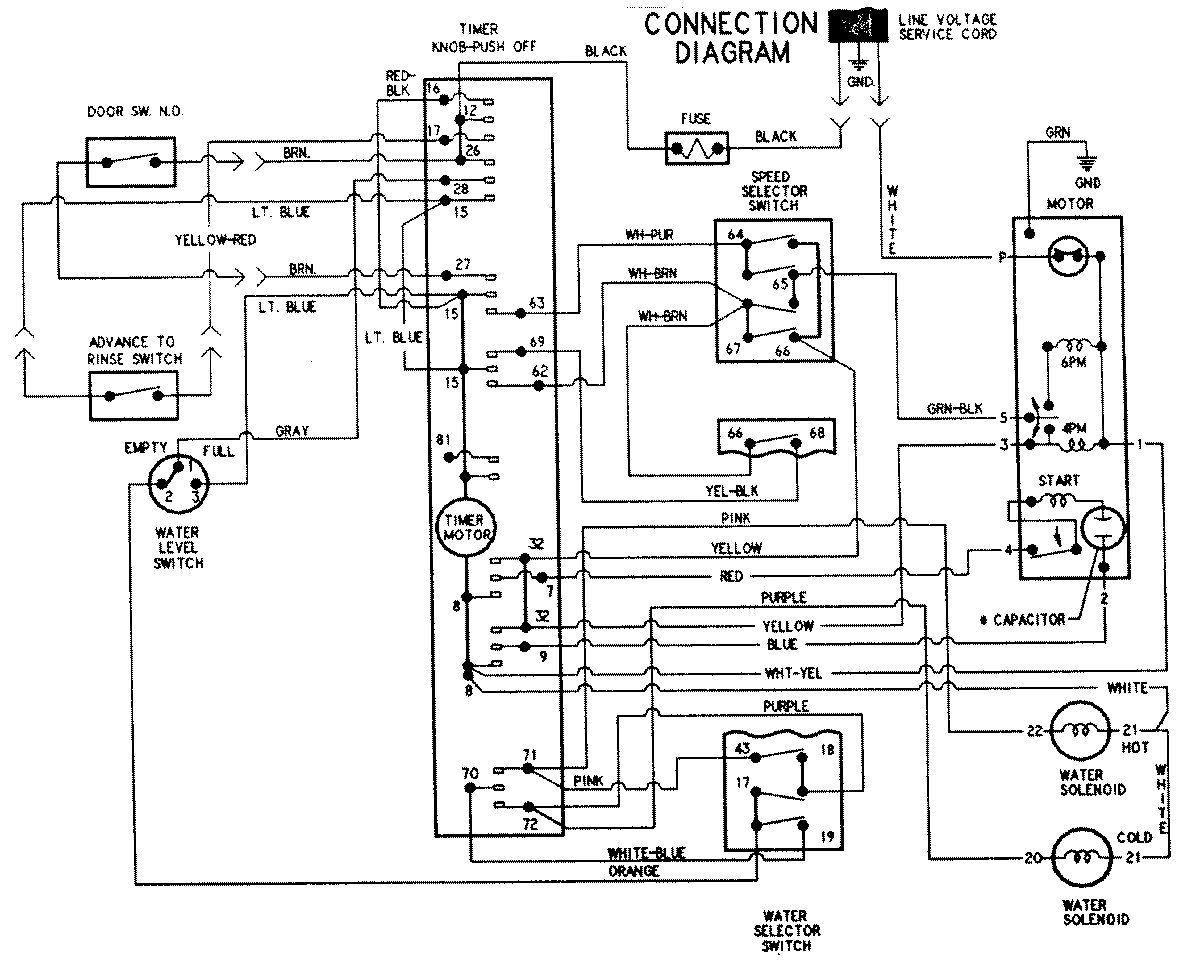

13 - WIRING INFORMATION

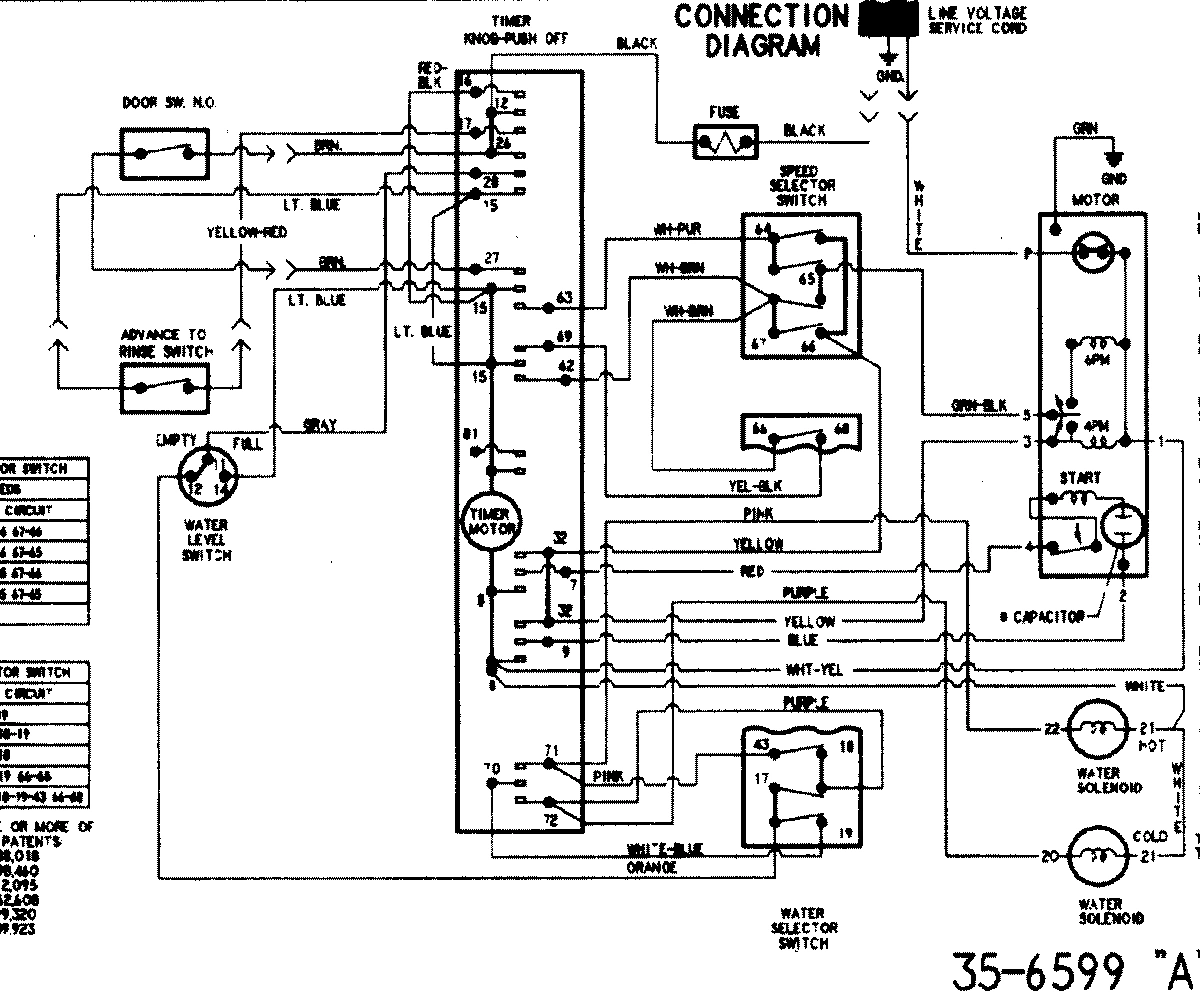

14 - WIRING INFORMATION (SERIES 20)
Common parts from model Maytag HAV4200ATW WASHER
1
MAY 21001521 MAY 21001521 Contact Us For Availability
1
MAY 25-7941 MAY 25-7941 Contact Us For Availability
1
MAY 35-2026 MAY 35-2026 Contact Us For Availability
1
MAY 21001662 MAY 21001662 Contact Us For Availability
1
MAY 21002167 MAY 21002167 Contact Us For Availability
1
MAY 21001620 MAY 21001620 Contact Us For Availability
1
MAY Y2205437 MAY Y2205437 Contact Us For Availability
2
MAY 21001629 MAY 21001629 Contact Us For Availability
2
MAY 21001800 MAY 21001800 Contact Us For Availability
2
MAY 21001944 MAY 21001944 Contact Us For Availability
2
MAY Y2202310 MAY Y2202310 Contact Us For Availability
2
MAY 21001533 MAY 21001533 Contact Us For Availability
3
MAY 21001486 MAY 21001486 Contact Us For Availability
3
MAY 35-4128 MAY 35-4128 Contact Us For Availability
3
MAY 21001636 MAY 21001636 Contact Us For Availability
3
MAY 21001644 MAY 21001644 Contact Us For Availability
3
MAY 25-7438 MAY 25-7438 Contact Us For Availability
3
MAY 35-3829 MAY 35-3829 Contact Us For Availability
3
MAY 21001868 MAY 21001868 Contact Us For Availability
4
MAY 21001760 MAY 21001760 Contact Us For Availability
4
MAY 21001676 MAY 21001676 Contact Us For Availability
4
MAY 21001978 MAY 21001978 Contact Us For Availability
4
MAY 21001867 MAY 21001867 Contact Us For Availability
5
MAY Y2201474 MAY Y2201474 Contact Us For Availability
5
MAY 21001625 MAY 21001625 Contact Us For Availability
5
MAY 21001882 MAY 21001882 Contact Us For Availability
5
MAY 21001511 MAY 21001511 Contact Us For Availability
6
MAY 35-3686 MAY 35-3686 Contact Us For Availability
6
MAY 35-2082 MAY 35-2082 Contact Us For Availability
6
MAY 35-2132 MAY 35-2132 Contact Us For Availability
6
MAY 21001520 MAY 21001520 Contact Us For Availability
6
MAY 21001518 MAY 21001518 Contact Us For Availability
7
MAY 21001526 MAY 21001526 Contact Us For Availability
7
MAY 35-0581 MAY 35-0581 Contact Us For Availability
7
MAY 21001515 MAY 21001515 Contact Us For Availability
7
MAY 21001858 MAY 21001858 Contact Us For Availability
7
MAY 25-7117 MAY 25-7117 Contact Us For Availability
8
MAY 35-2328 MAY 35-2328 Contact Us For Availability
8
MAY 35-3570 MAY 35-3570 Contact Us For Availability
8
MAY 25-7851 MAY 25-7851 Contact Us For Availability
8
MAY 35-2063 MAY 35-2063 Contact Us For Availability
9
MAY 21001783 MAY 21001783 Contact Us For Availability
9
MAY 21001635 MAY 21001635 Contact Us For Availability
9
MAY 21001508 MAY 21001508 Contact Us For Availability
9
MAY 21001532 MAY 21001532 Contact Us For Availability
9
MAY 21002006 MAY 21002006 Contact Us For Availability
10
MAY 21001529 MAY 21001529 Contact Us For Availability
10
MAY 21001527 MAY 21001527 Contact Us For Availability
10
MAY 25-3457 MAY 25-3457 Contact Us For Availability
10
MAY 25-7853 MAY 25-7853 Contact Us For Availability
10
MAY 21001136 MAY 21001136 Contact Us For Availability
10
MAY 35-2018 MAY 35-2018 Contact Us For Availability
11
MAY 35-2978 MAY 35-2978 Contact Us For Availability
11
MAY 21001701 MAY 21001701 Contact Us For Availability
11
MAY 21001744 MAY 21001744 Contact Us For Availability
11
MAY 35-2007 MAY 35-2007 Contact Us For Availability
11
NOT REQUIRED PART OR SEE NOTE KITTED WITH PUL MAY W10124350 Contact Us For Availability
12
MAY 35-3700 MAY 35-3700 Contact Us For Availability
12
MAY 35-2205 MAY 35-2205 Contact Us For Availability
12
MAY 21001544 MAY 21001544 Contact Us For Availability
13
MAY 21001531 MAY 21001531 Contact Us For Availability
13
MAY 25-7878 MAY 25-7878 Contact Us For Availability
13
MAY 21001517 MAY 21001517 Contact Us For Availability
13
MAY 21001603 MAY 21001603 Contact Us For Availability
13
MAY 21002067 MAY 21002067 Contact Us For Availability
13
MAY 53-2504 MAY 53-2504 Contact Us For Availability
13
MAY 21002010 MAY 21002010 Contact Us For Availability
14
MAY 21001530 MAY 21001530 Contact Us For Availability
14
MAY 21001134 MAY 21001134 Contact Us For Availability
14
MAY 35-3571 MAY 35-3571 Contact Us For Availability
14
MAY 21001673 MAY 21001673 Contact Us For Availability
15
MAY 35-6918 MAY 35-6918 Contact Us For Availability
15
MAY 21001602 MAY 21001602 Contact Us For Availability
15
MAY 31001443 MAY 31001443 Contact Us For Availability
15
MAY 25-7895 MAY 25-7895 Contact Us For Availability
16
MAY 25-7047 MAY 25-7047 Contact Us For Availability
16
MAY 21001163 MAY 21001163 Contact Us For Availability
16
MAY 21001597 MAY 21001597 Contact Us For Availability
17
MAY 35-2017 MAY 35-2017 Contact Us For Availability
17
MAY 21001492 MAY 21001492 Contact Us For Availability
17
MAY 21001705 MAY 21001705 Contact Us For Availability
17
MAY 22003540 MAY 22003540 Contact Us For Availability
17
MAY 22003817 MAY 22003817 Contact Us For Availability
17
MAY 22004405 MAY 22004405 Contact Us For Availability
17
MAY 35-1007 MAY 35-1007 Contact Us For Availability
18
MAY 21001457 MAY 21001457 Contact Us For Availability
18
MAY 21001458 MAY 21001458 Contact Us For Availability
18
MAY 35-2010 MAY 35-2010 Contact Us For Availability
19
MAY 25-7930 MAY 25-7930 Contact Us For Availability
21
MAY 35-2046 MAY 35-2046 Contact Us For Availability
21
MAY 35-2948 MAY 35-2948 Contact Us For Availability
22
MAY 35-2052 MAY 35-2052 Contact Us For Availability
23
MAY 21001874 MAY 21001874 Contact Us For Availability
24
MAY 35-3400 MAY 35-3400 Contact Us For Availability
24
MAY 35-3401 MAY 35-3401 Contact Us For Availability
25
MAY 33-4264N MAY 33-4264N Contact Us For Availability
25
MAY 21001536 MAY 21001536 Contact Us For Availability
26
MAY 12001598 MAY 12001598 Contact Us For Availability
27
MAY 35-2974 MAY 35-2974 Contact Us For Availability
30
MAY 35-2279 MAY 35-2279 Contact Us For Availability
NI
MAY 15002603 MAY 15002603 Contact Us For Availability
NI
MAY 15003856 MAY 15003856 Contact Us For Availability
NI
MAY 15003228 MAY 15003228 Contact Us For Availability
× ![]()
