Model GE HA4510 General Electric Model HA4510 – Common Parts & Diagrams

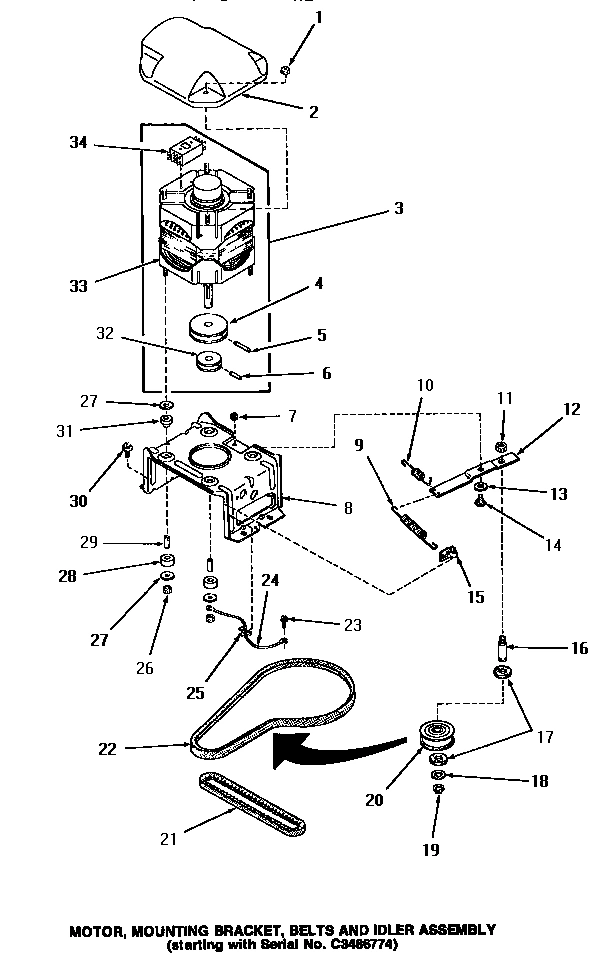

Motor and Mounting Bracket - Models Starting Serial No. C3486774

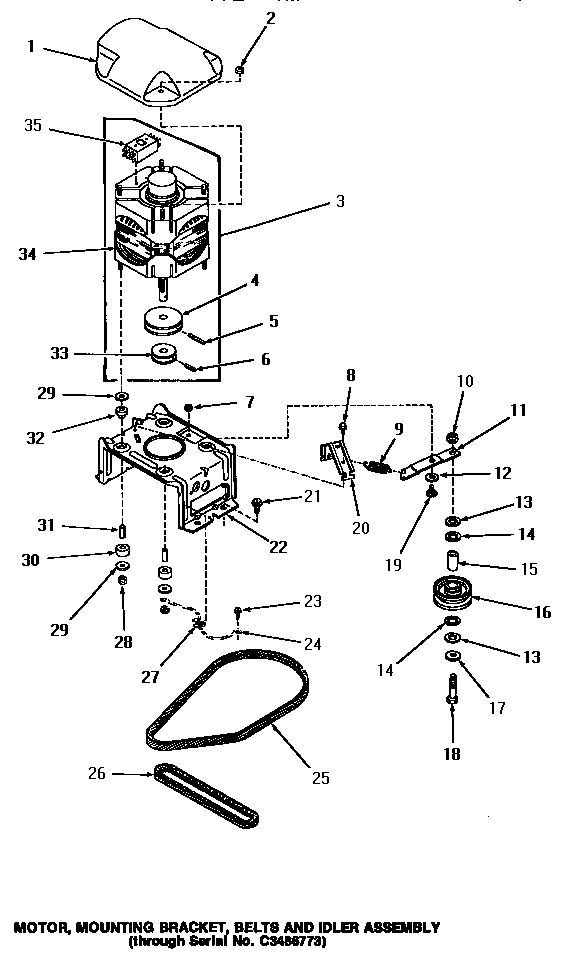

Motor and Mounting Bracket - Models Through Serial No. C3486773

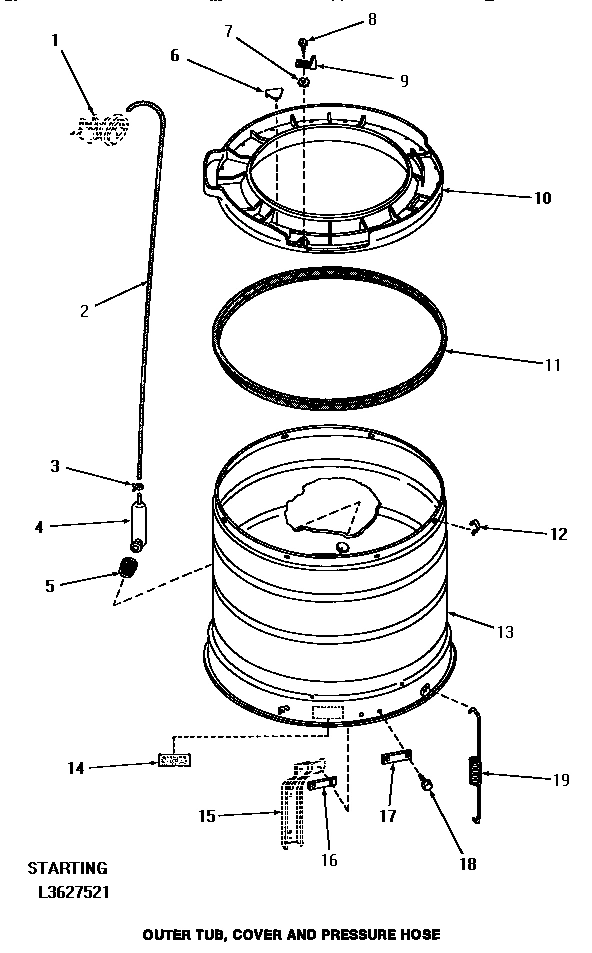

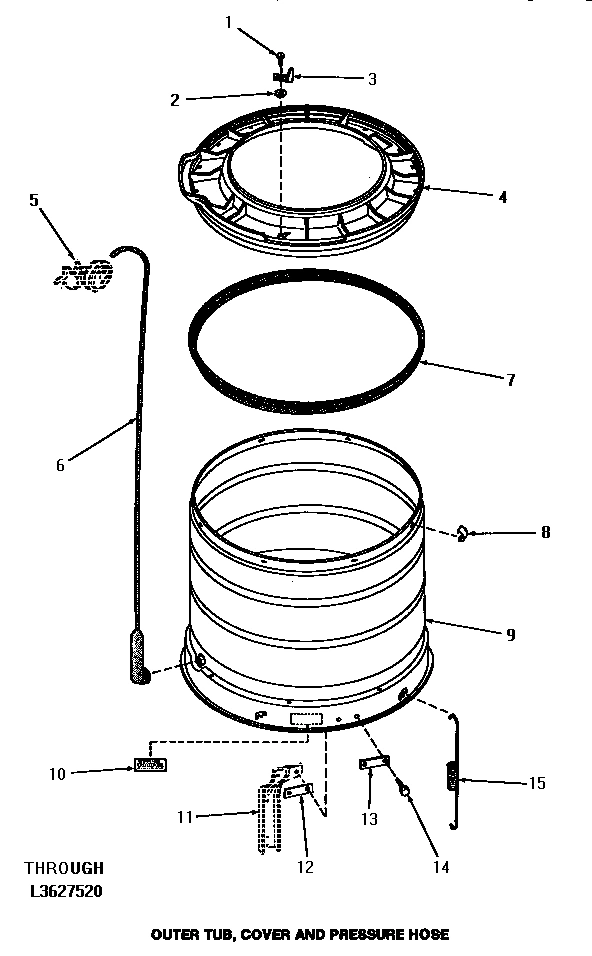

Outer Tub, Cover and Pressure Hose (Drawing 1 of 2)

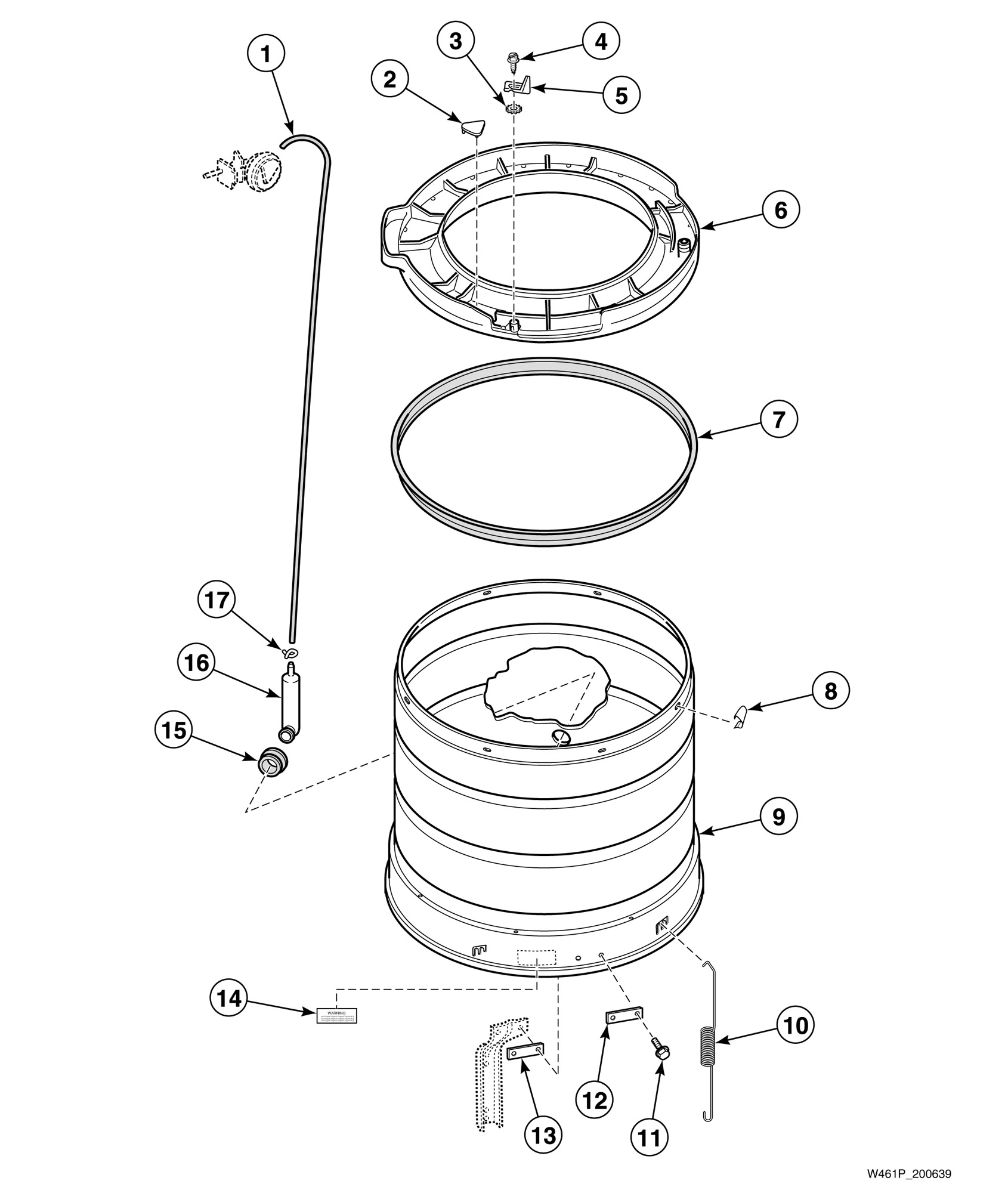

Outer Tub, Cover and Pressure Hose (Drawing 2 of 2)

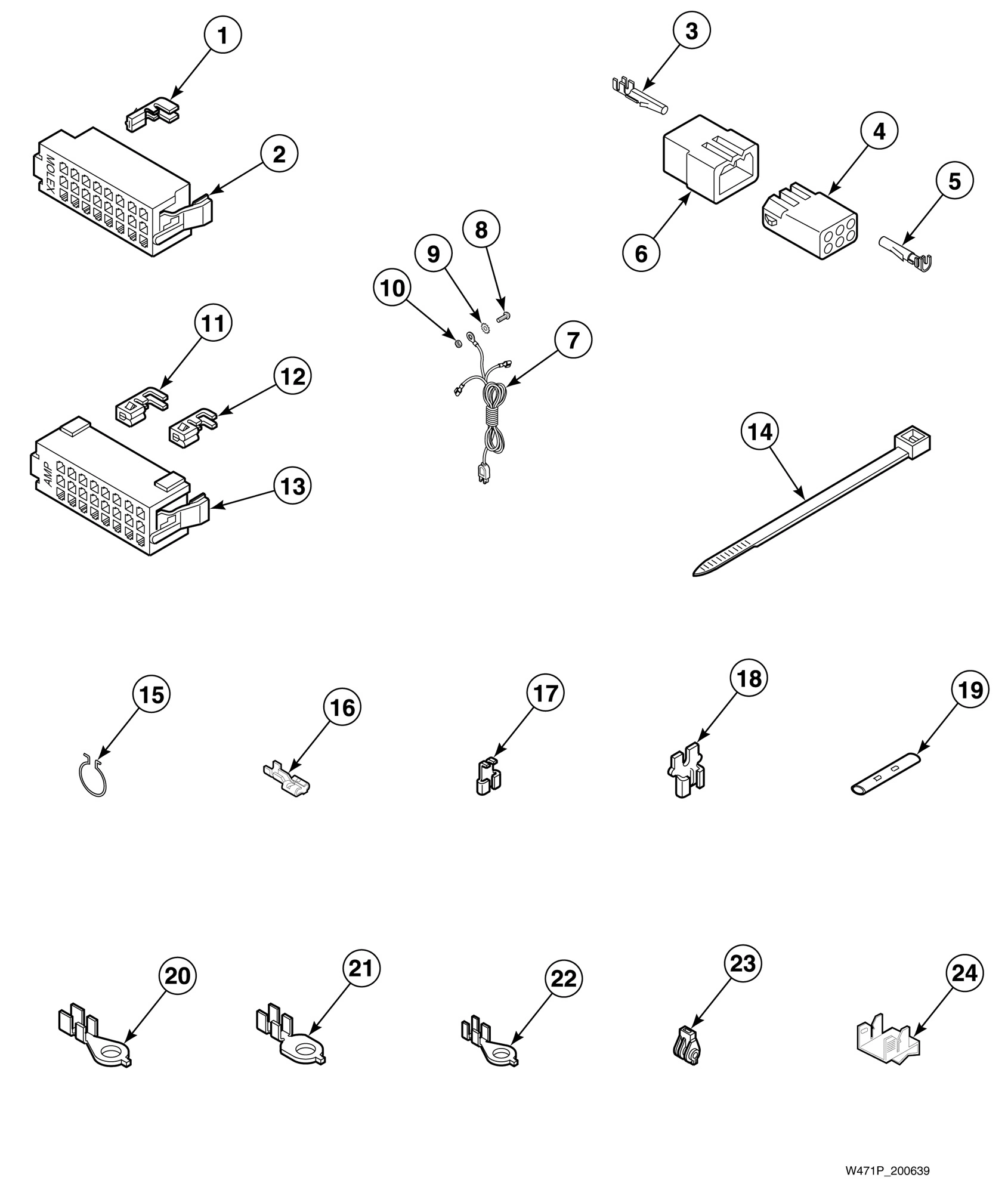

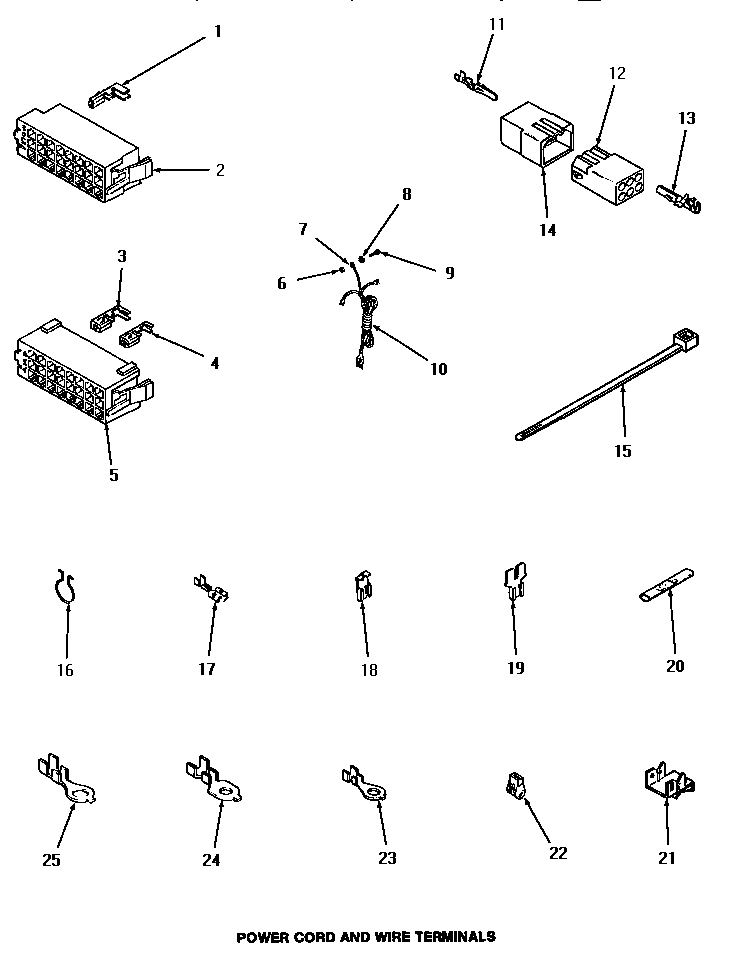

Power Cord and Wire Terminals

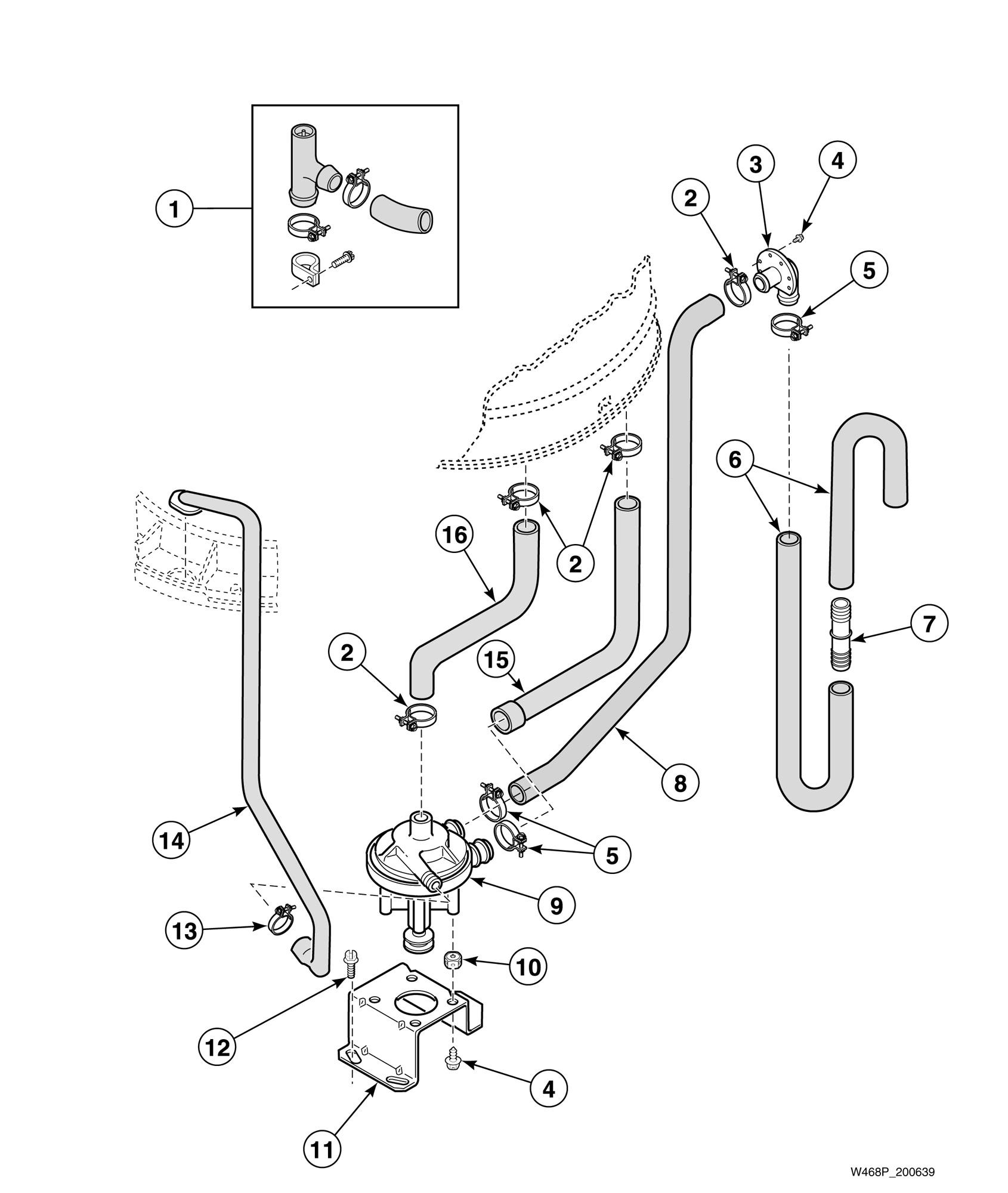

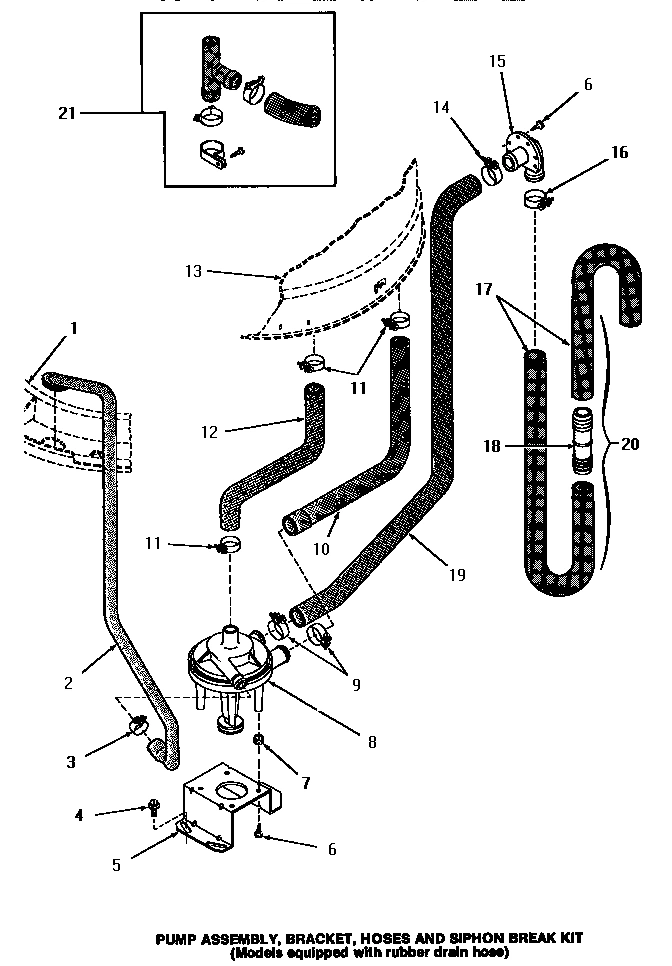

Pump Assembly, Bracket, Hoses and Siphon Break Kit (Drawing 1 of 2)

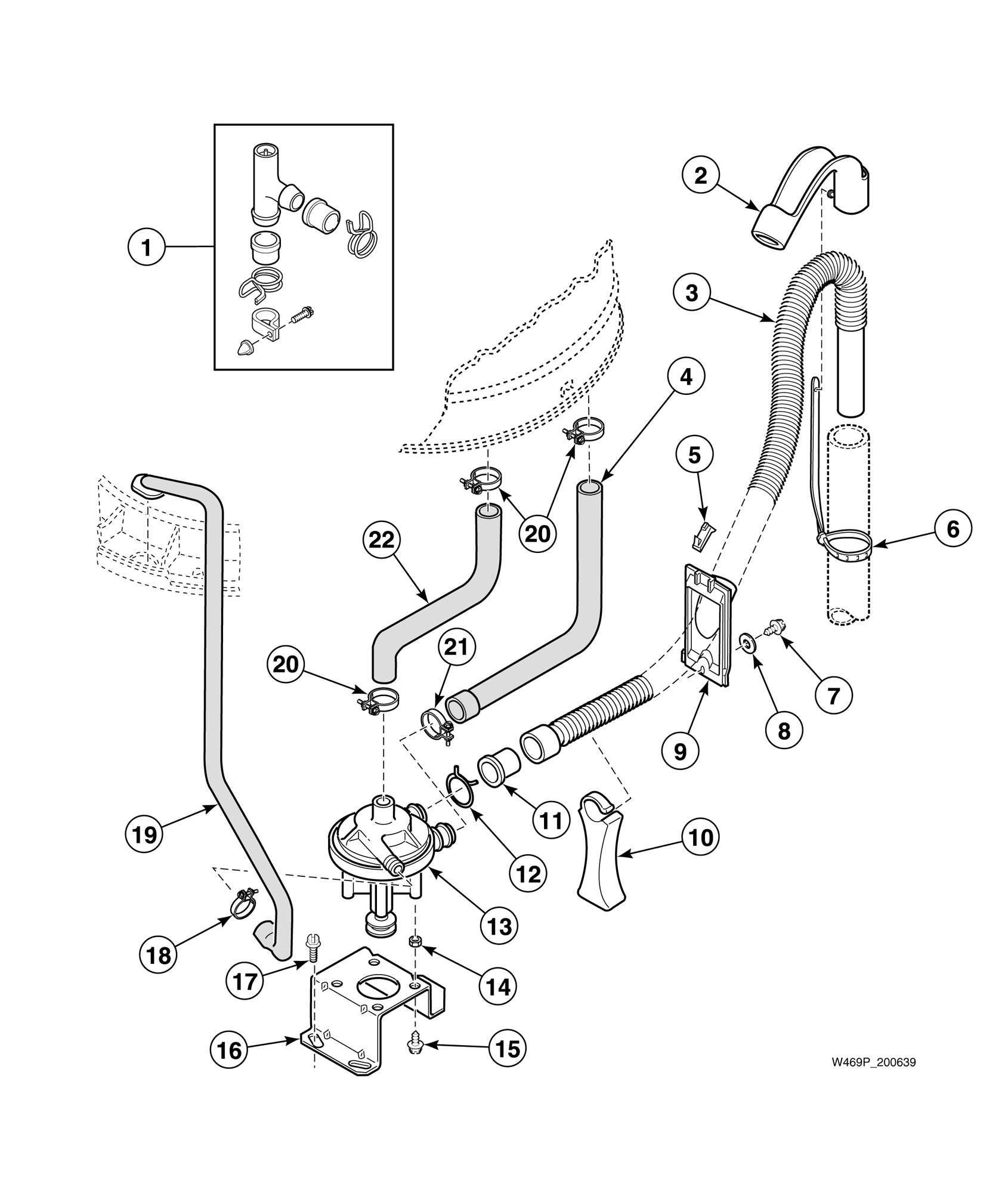

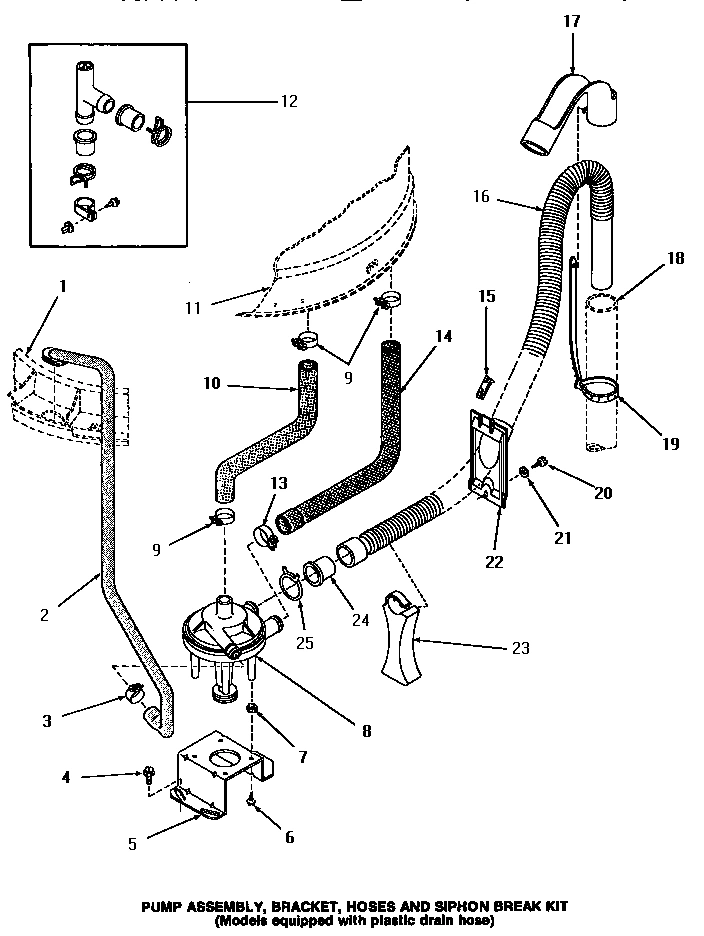

Pump Assembly, Bracket, Hoses and Siphon Break Kit (Drawing 2 of 2)

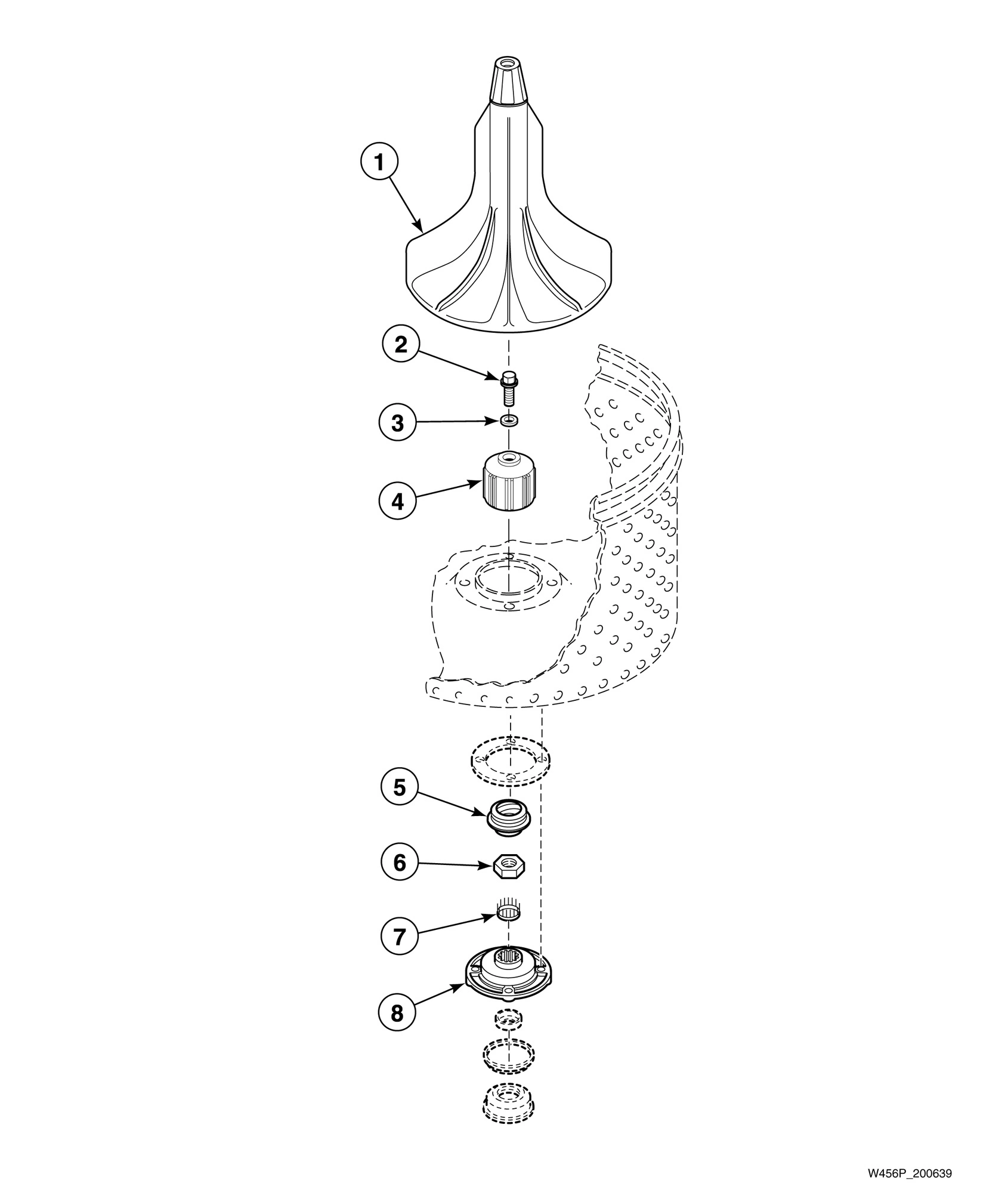

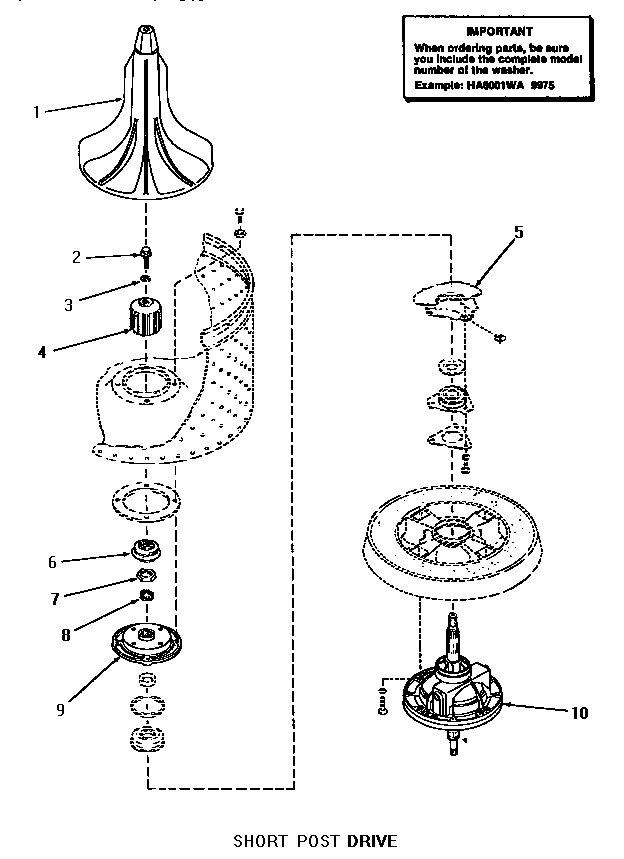

Short Post Drive (Models with Suffix *A 9975)
Special Tools

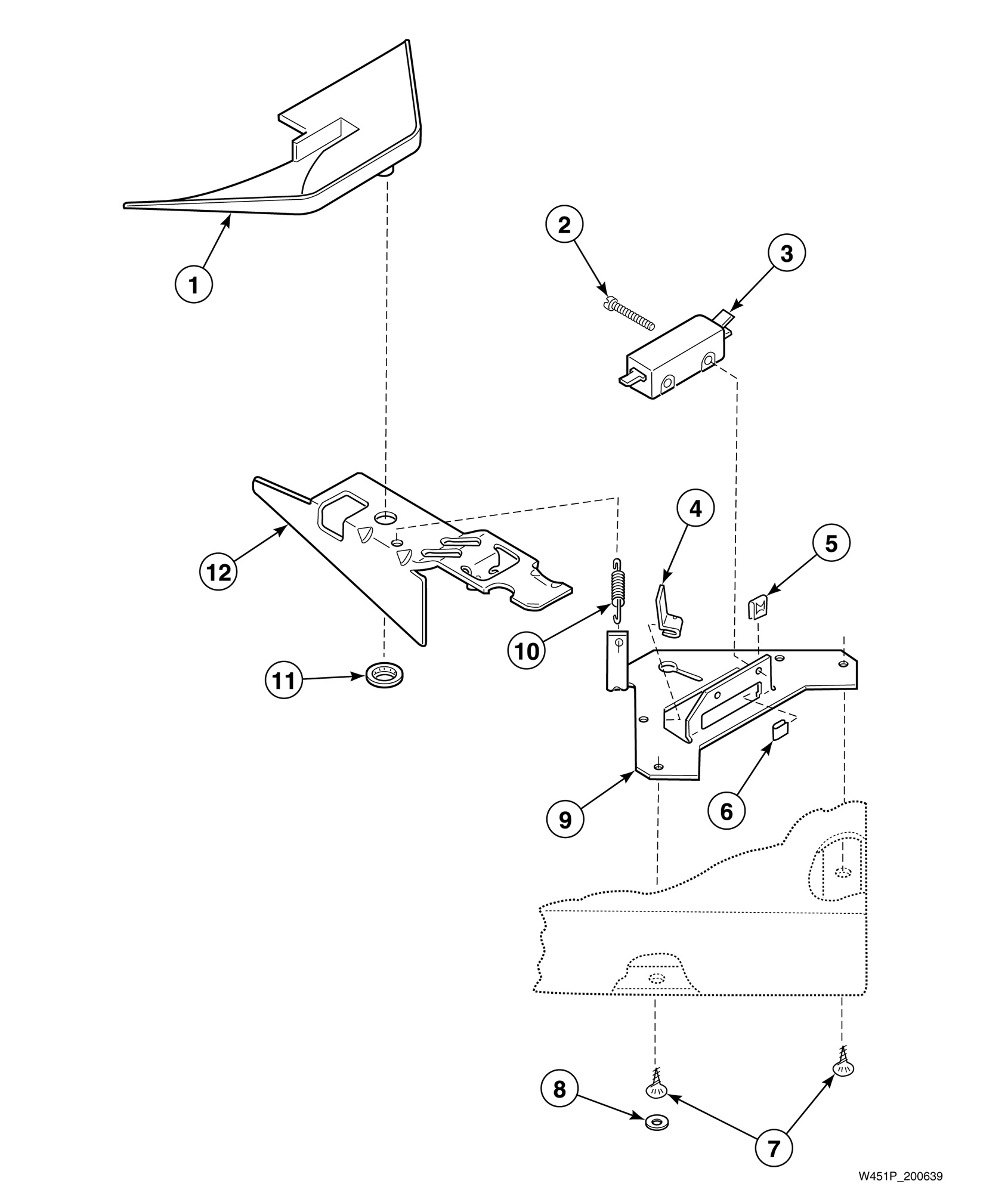

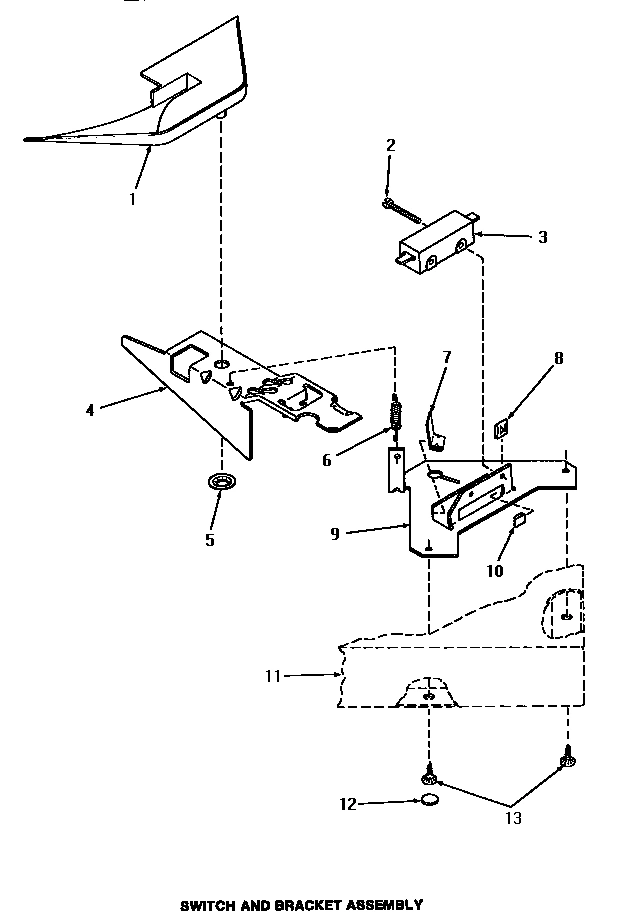

Switch and Bracket Assembly

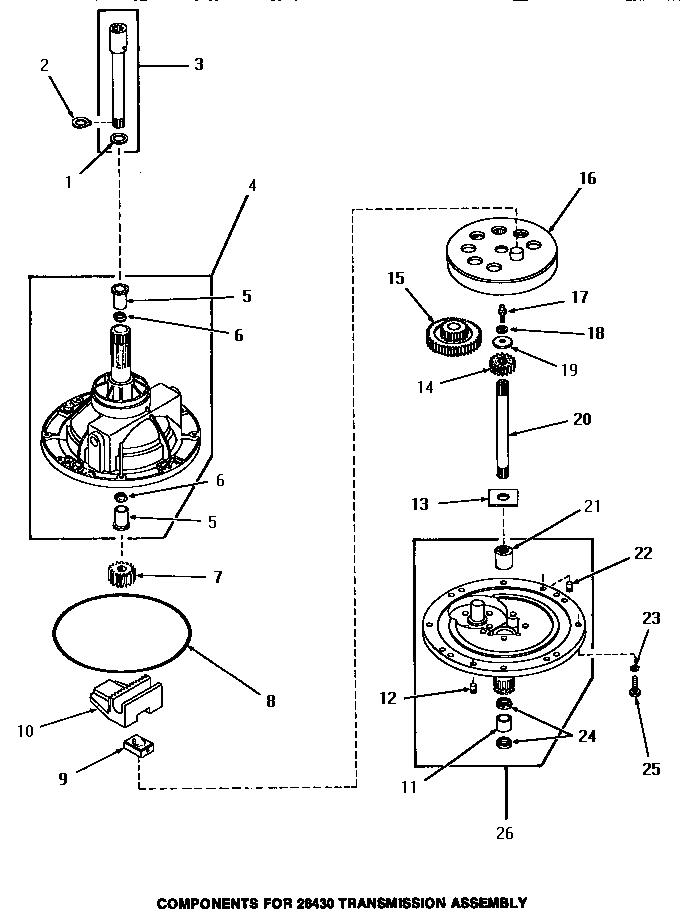

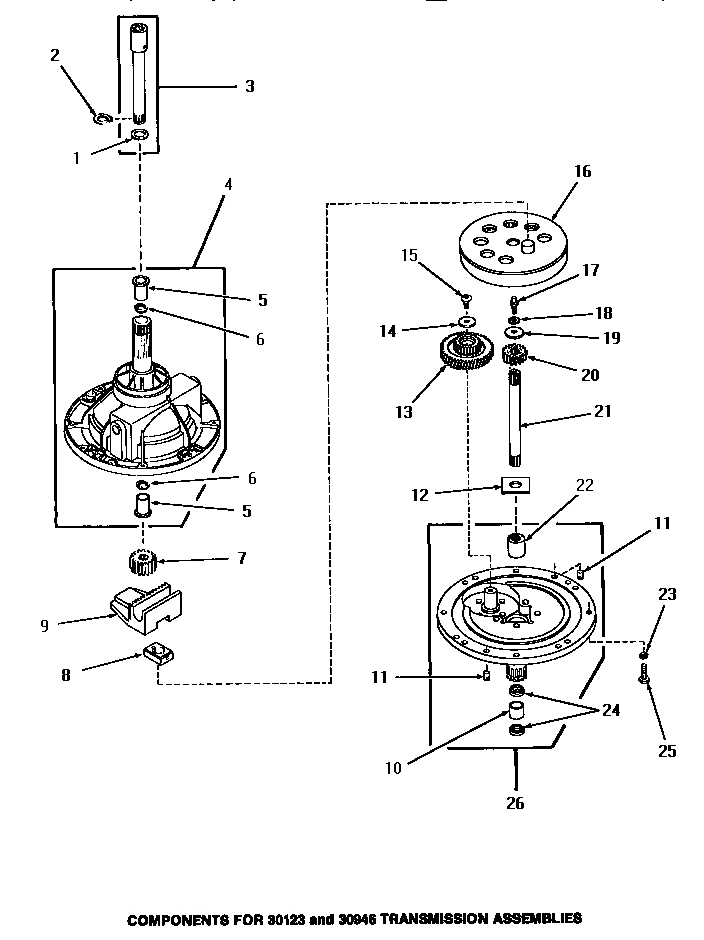

Transmission Assembly

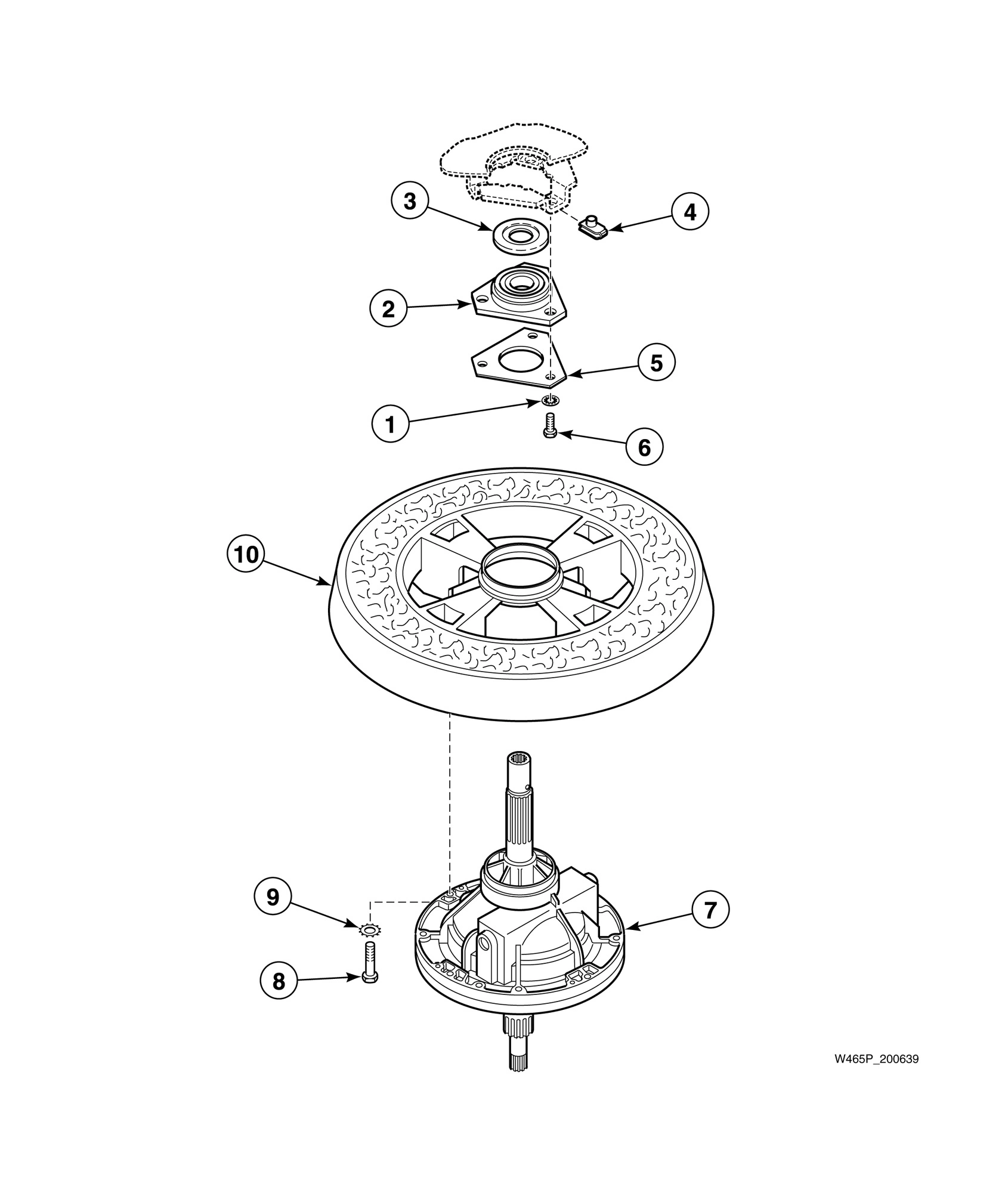

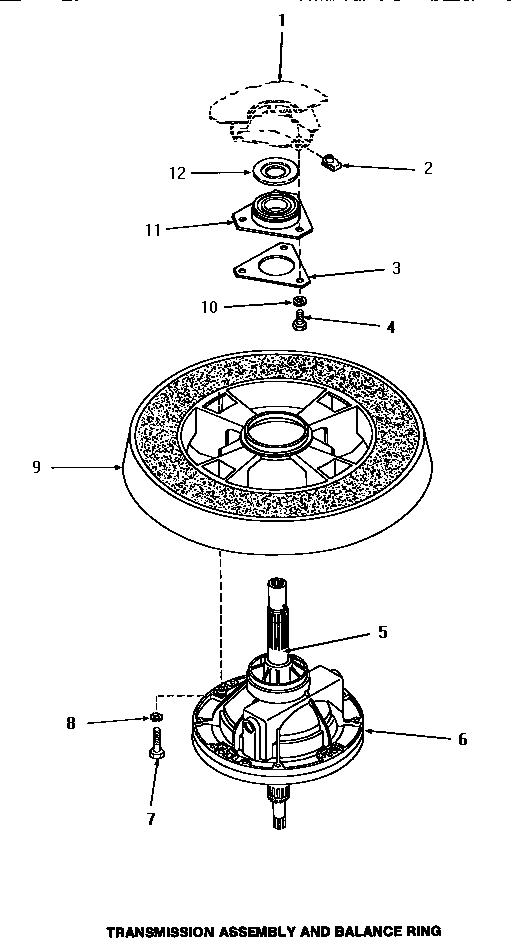

Transmission Assembly and Balance Ring
Common parts from model GE HA4510 General Electric Model HA4510
1
Tubing (Comment: starting Serial No. L3627521 GEN 39125 Contact Us For Availability
1
Female Terminal (Comment: Used for 1 or 2 wir GEN 00188 Contact Us For Availability
1
Siphon Break Kit (Comment: Must be installed GEN 562P3 Contact Us For Availability
1
Agitator GEN 33514 Contact Us For Availability
1
Spring Hook Tool (Comment: Use to remove 5 ce GEN 321P4 Contact Us For Availability
1
Lid Switch Shield (Comment: Models starting S GEN 29042 Contact Us For Availability
1
Retaining Ring GEN 27197 Contact Us For Availability
1
Washer GEN 04366 Contact Us For Availability
2
Motor Shield GEN 27136 Contact Us For Availability
2
Plug GEN 29901 Contact Us For Availability
2
24 Position Housing GEN 32746 Contact Us For Availability
2
Hex Wrench Tool (Comment: Use to remove hex l GEN 306P4 Contact Us For Availability
2
Screw GEN Q6516 Contact Us For Availability
2
Coupling and Shaft Kit GEN 368P3 Contact Us For Availability
2
Bearing Housing Assembly (Comment: Upper) GEN 27182 Contact Us For Availability
3
Male Pin Terminal GEN 00116 Contact Us For Availability
3
Drain Hose Elbow GEN 23553 Contact Us For Availability
3
Drain Hose GEN 39952 Contact Us For Availability
3
Switch GEN 27249 Contact Us For Availability
3
Transmission Case Assembly GEN 33223P Contact Us For Availability
3
Flinger GEN 27187 Contact Us For Availability
4
Motor Kit (Comment: 1 speed, 120 Volt/60 Hert GEN 27658P Contact Us For Availability
4
Screw GEN D503661 Contact Us For Availability
4
6 Circuit Receptacle GEN 26708 Contact Us For Availability
4
Drain Tub-to-Pump Hose GEN 27160 Contact Us For Availability
4
Drive Bell and Seal Kit GEN 39508P Contact Us For Availability
4
Packaged Bearing GEN 36107P Contact Us For Availability
4
Nut GEN 27222 Contact Us For Availability
5
Female Pin Terminal GEN 00117 Contact Us For Availability
5
Spring Installer (Comment: Use to install bra GEN 242P4 Contact Us For Availability
5
Seal GEN 28114 Contact Us For Availability
6
Outer Tub Cover (Comment: Includes item 2) GEN 31153 Contact Us For Availability
6
6 Circuit Plug GEN 23041 Contact Us For Availability
6
Drain Hose GEN 28293 Contact Us For Availability
6
Standpipe Strap GEN 33489 Contact Us For Availability
6
Nut GEN 29220 Contact Us For Availability
6
Reduction Gear GEN 29161 Contact Us For Availability
6
Screw GEN M400057 Contact Us For Availability
7
Roll Pin GEN 10416 Contact Us For Availability
7
Tub Cover Gasket (Comment: Included with 356P GEN 27184 Contact Us For Availability
7
Lead-In Cord GEN 34458 Contact Us For Availability
7
Hose Coupler (Comment: Use to splice hose if GEN 25863 Contact Us For Availability
7
Screw GEN 27196 Contact Us For Availability
7
Spline Insert GEN 29728 Contact Us For Availability
7
Screw GEN 28193 Contact Us For Availability
7
Washer GEN 29260 Contact Us For Availability
7
Transmission Assembly GEN 30946P Contact Us For Availability
7
Transmission Assembly (Comment: Models with s GEN 33227P Contact Us For Availability
8
Nut GEN 52566 Contact Us For Availability
8
Screw GEN N/A Contact Us For Availability
8
Spring Clip GEN 27017 Contact Us For Availability
8
Screw GEN 20267 Contact Us For Availability
8
Pump-to-Drain Elbow Hose GEN 27161 Contact Us For Availability
8
Washer GEN 20492 Contact Us For Availability
8
Hub and Seal Kit GEN 495P3 Contact Us For Availability
8
Screw GEN 29273 Contact Us For Availability
9
Motor Mount Bracket GEN 28791 Contact Us For Availability
9
Washer GEN 03815 Contact Us For Availability
9
Out-of-Balance Switch Bracket GEN 27250 Contact Us For Availability
9
Transmission Oil (Comment: 1 fill) GEN 27243P Contact Us For Availability
9
Washer GEN 02431 Contact Us For Availability
10
Leg Spring GEN 27239 Contact Us For Availability
10
Nut GEN 03673 Contact Us For Availability
10
Gear and Stud Assembly GEN 26577 Contact Us For Availability
10
Balance Ring Assembly GEN 34731P Contact Us For Availability
11
Nut GEN 23604 Contact Us For Availability
11
Screw GEN 35369 Contact Us For Availability
11
Female Terminal (Comment: 1 wire) GEN 00180 Contact Us For Availability
11
Nut GEN 29043 Contact Us For Availability
11
Screw GEN 201773 Contact Us For Availability
12
Washer GEN 03888 Contact Us For Availability
12
Leg Plate (Comment: .063 inch thick) GEN 27926 Contact Us For Availability
12
Female Terminal (Comment: 2 wire) GEN 00183 Contact Us For Availability
12
Out-of-Balance Switch Lever GEN 27602 Contact Us For Availability
12
Washer GEN 21456 Contact Us For Availability
13
Accumulator and Tubing Assembly (Comment: Mod GEN 30930P Contact Us For Availability
13
Pump Assembly (Comment: Includes item 14) GEN 31968 Contact Us For Availability
13
Washer GEN 26509 Contact Us For Availability
14
Harness Strap GEN 55881 Contact Us For Availability
14
Input Pinion (Comment: Use with 28430 Transmi GEN 29156 Contact Us For Availability
14
Drive Pinion (Comment: Use with 30946P Transm GEN 36562 Contact Us For Availability
15
Grommet (Comment: Models starting Serial No. GEN 29175 Contact Us For Availability
15
Wire Clip GEN 51291 Contact Us For Availability
15
Screw GEN 52909 Contact Us For Availability
15
Input Shaft (Comment: Input) GEN 27081P Contact Us For Availability
16
Motor Pulley (Comment: Pump) GEN 27104 Contact Us For Availability
16
Pressure Bulb (Comment: Models starting Seria GEN 30907 Contact Us For Availability
16
Female Spade Terminal (Comment: Large spade) GEN 00223 Contact Us For Availability
16
Pump Mounting Bracket GEN 27105 Contact Us For Availability
17
Hose Clamp (Comment: Models starting Serial N GEN 39282 Contact Us For Availability
17
Female Flag Terminal GEN 00120 Contact Us For Availability
18
Terminal Adapter GEN 29673 Contact Us For Availability
19
Connector GEN 21091 Contact Us For Availability
20
Ring Terminal (Comment: 1/4 inch ring) GEN 00113 Contact Us For Availability
20
Hose Clamp GEN 20391 Contact Us For Availability
20
Screw GEN 20253 Contact Us For Availability
21
Ring Terminal (Comment: Large shank) GEN 00111 Contact Us For Availability
21
Hose Clamp GEN 20211 Contact Us For Availability
21
Transmission Cover Assembly GEN 38287P Contact Us For Availability
22
Ring Terminal (Comment: Small shank) GEN 00110 Contact Us For Availability
22
Bearing GEN 27022 Contact Us For Availability
23
Insulator GEN 70210 Contact Us For Availability
23
Slide GEN 26493 Contact Us For Availability
24
Grounding Clip GEN 00161 Contact Us For Availability
24
Rack GEN 31526 Contact Us For Availability
25
Agitator Pinion GEN 27003 Contact Us For Availability
NA
Capacitor Kit (Comment: For areas where low v GEN 258P3 Contact Us For Availability
NA
Drain Extension Kit GEN 451P3 Contact Us For Availability
NA
Tool Kit (Comment: Includes items 1 and 2) GEN 725P3 Contact Us For Availability
NA
Transmission Sealant (Comment: Use as a seala GEN 37577P Contact Us For Availability
NA
Anti-Seize Compound (Comment: Apply to both t GEN 27604P Contact Us For Availability
× ![]()
